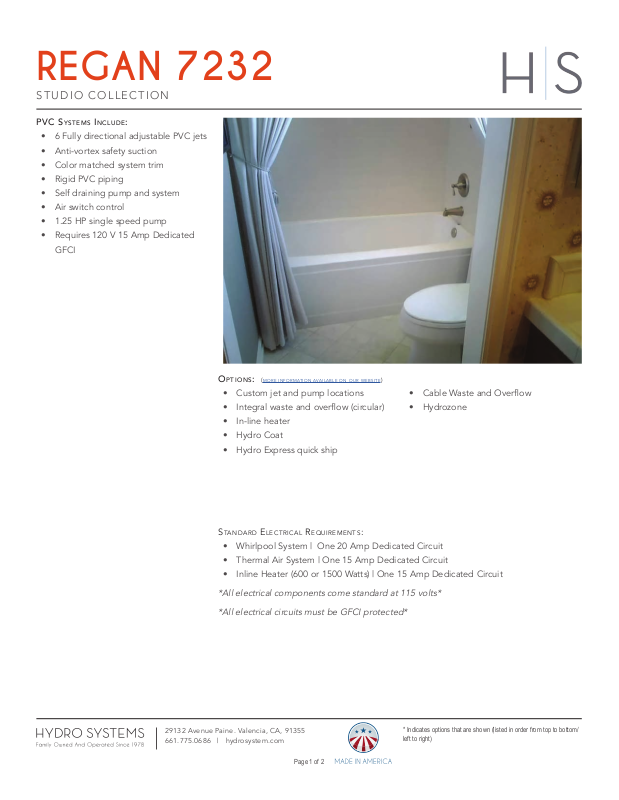

REGAN 7232
STUDIO COLLECTION
PV C Sy St em S In Cl ud e:
• 6 Fully directional adjustable PVC jets
• Anti-vortex safety suction
• Color matched system trim
• Rigid PVC piping
• Self draining pump and system
• Air switch control
• 1.25 HP single speed pump
• Requires 120 V 15 Amp Dedicated
GFCI
OP tI On S: (mo re i nfor mati on ava ilab le o n o ur w ebsi te)
• Custom jet and pump locations
• Integral waste and overow (circular)
• In-line heater
• Hydro Coat
• Hydro Express quick ship
sta nd ar d el ec tr ic al req ui re me nt s:
• Whirlpool System | One 20 Amp Dedicated Circuit
• Thermal Air System | One 15 Amp Dedicated Circuit
• Inline Heater (600 or 1500 Watts) | One 15 Amp Dedicated Circuit
*All electrical components come standard at 115 volts*
*All electrical circuits must be GFCI protected*
• Cable Waste and Overow
• Hydrozone
29132 Avenue Paine. Valencia, CA, 91355
661.775.0686 | hydrosystem.com
Page 1 of 2
* Indicates options that are shown (listed in order from top to bottom/
left to right)
REGAN 7232
STUDIO COLLECTION
AS S hO wn :
Whirlpool option with standard jet
location
Fe Atu re S Sh Ow n:
• Jets
• Overflow location
• Flange on Skirt
Al SO A VAI lA bl e:
• Soaking tub only
• Thermal Air
wAt er CAPA CI ty :
60 Gallons
bA Ck S lO Pe :
28 Degrees
ACrylIC tub
we Ig ht :
120 - 160 Pounds
3- wA ll I nS tAl lAtI On dI me nS IO nS :
Opening (L)ength - 72”
Opening (W)idth - 32”
Ledger- 20”
• Model comes with integral tile ange and skirt
• Extra thick reinforced berglass
• Pre-wired pump on pump platform (standard pump location only)
• Integral E-Z level platform facilitates installation
• Tub must be set in a mortar base
CODES AND COMPLIANCES
Massachusetts code File no: P1-0614-491
29132 Avenue Paine. Valencia, CA, 91355
661.775.0686 | hydrosystem.com
32
16
9.75
1
17.5
1
Page 2 of 2
50
72
28°
2.5
4.75
2.5
18.5
21
22
Pump/
Blower
16
All specications and options subject to change without notice please
contact a Hydro Systems representative for more information.
Certain options or altering the pump/blower location may cause
the pump/blower to extend beyond the tub decking. For cutout
dimensions wait for unit to arrive. All specications subject to change
without notice.
20
