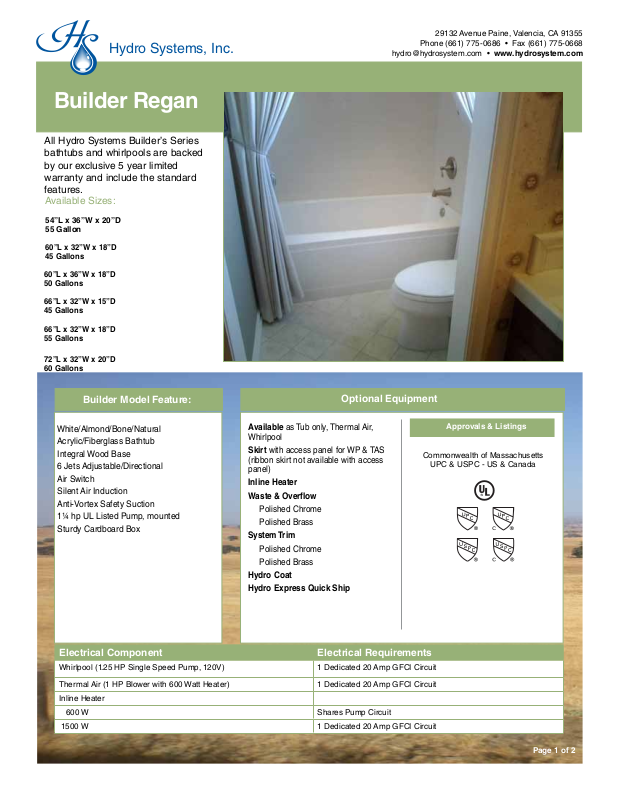

Hydro Systems, Inc.
Builder Regan
All Hydro Systems Builder’s Series
bathtubs and whirlpools are backed
by our exclusive 5 year limited
warranty and include the standard
features.
Available Sizes:
54”L x 36”W x 20”D
55 Gallon
60”L x 32”W x 18”D
45 Gallons
60”L x 36”W x 18”D
50 Gallons
66”L x 32”W x 15”D
45 Gallons
29132 Avenue Paine, Valencia, CA 91355
Phone (661) 775-0686 • Fax (661) 775-0668
hydro@hydrosystem.com • www.hydrosystem.com
66”L x 32”W x 18”D
55 Gallons
72”L x 32”W x 20”D
60 Gallons
Builder Model Feature:
White/Almond/Bone/Natural
Acrylic/Fiberglass Bathtub
Integral Wood Base
6 Jets Adjustable/Directional
Air Switch
Silent Air Induction
Anti-Vortex Safety Suction
1¼ hp UL Listed Pump, mounted
Sturdy Cardboard Box
Optional Equipment
Available as Tub only, Thermal Air,
Whirlpool
Skirt with access panel for WP & TAS
(ribbon skirt not available with access
panel)
Inline Heater
Waste & Overflow
Polished Chrome
Polished Brass
System Trim
Polished Chrome
Polished Brass
Hydro Coat
Hydro Express Quick Ship
Approvals & Listings
Commonwealth of Massachusetts
UPC & USPC - US & Canada
Electrical Component Electrical Requirements
Whirlpool (1.25 HP Single Speed Pump, 120V) 1 Dedicated 20 Amp GFCI Circuit
Thermal Air (1 HP Blower with 600 Watt Heater) 1 Dedicated 20 Amp GFCI Circuit
Inline Heater
600 W Shares Pump Circuit
1500 W 1 Dedicated 20 Amp GFCI Circuit
Page 1 of 2
Hydro Systems, Inc.
Must be set in Mortar Base
29132 Avenue Paine, Valencia, CA 91355
Phone (661) 775-0686 • Fax (661) 775-0668
hydro@hydrosystem.com • www.hydrosystem.com
Builder Regan
Must be set in mortar base.
AS SHOWN:
Whirlpool option w/ standard jets
ALSO AVAILABLE:
Soaking Tub Only,
Thermal Air,
Model GC AC A B C D E F G H I J K L M W Jet Pump
5436 N/A √ 54” 36” 9” 20” 4¾” N/A 2½” 22” 36” 19” 1” 17½” N/A N/A 6 1.25
6032 N/A √ 60” 32” 9½” 15” 4¾” ¼” 2½” 20½” 43½” 18” 1” 15½” 1” 33” 6 1.25
6036 N/A √ 60” 36” 9½” 17” 4¾” ¼” 2½” 22” 43½” 18” 1” 15½” 1” 37” 6 1.25
6632-15 N/A √ 66” 32” 9½” 15 ”
6632 N/A √ 66” 32” 9½” 15” 4¾” ¼” 2½” 20½” 49½” 18” 1” 15½” 1” 33” 6 1.25
7232 N/A √ 72” 32” 9¾” 16” 1¾” ¼” 1¾” 18½” 50” 20” 1¾” 17½” 1¾” 33¾” 6 1.25
¼” 2½” 20½” 49½” 15” 1” 12½” 1” 33” 6 1.25
4¾”
Framing Dimensions
3 Wall Enclosure
Model (L)ength (W)idth (H)eigth Finish
5436 54” 36” 20”
6032 60” 33”
6036 60” 37”
6632-15 66” 33”
6632 66” 33”
7232 72” 33¾”
Wat.Cap.
55 gal.
45 gal.
50 gal.
45 gal.
55 gal.
60gal.
17¾”
17¾”
16”
17¾”
19¾”
Disclaimer: Certain options or altering the pump/blower location may cause the pump/blower to extend beyond the tub decking.
For cutout dimensions wait for unit to arrive. All specifications subject to change without notice.
Page 2 of 2
Page 2 of 2
