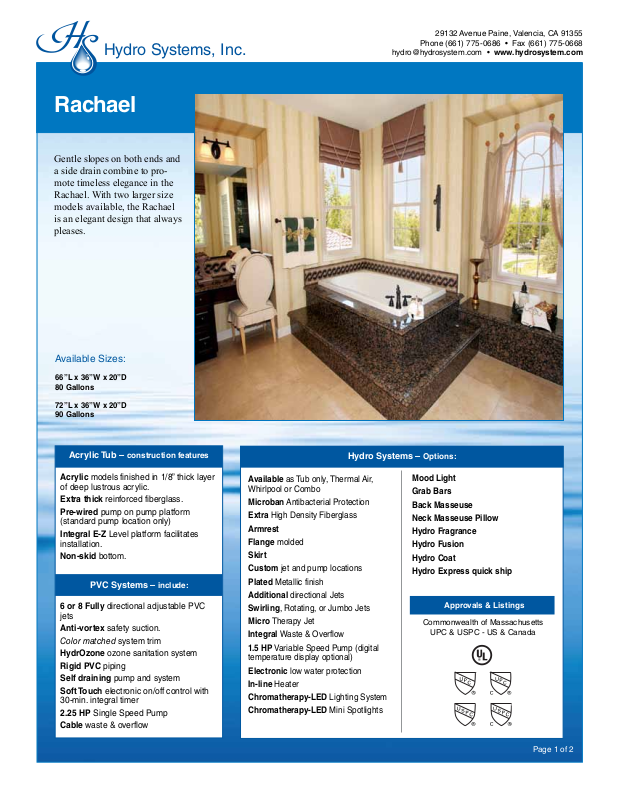

Hydro Systems HYDR1451 Specifications

Hydro Systems, Inc.

Rachael

Gentle slopes on both ends and
a side drain combine to pro­mote timeless elegance in the
Rachael. With two larger size
models available, the Rachael
is an elegant design that always
pleases.

29132 Avenue Paine, Valencia, CA 91355

Phone [phone] • Fax [phone]

[e-mail] • www.hydrosystem.com

Available Sizes:

66”L x 36”W x 20”D
80 Gallons

72”L x 36”W x 20”D
90 Gallons

Acrylic Tub – construction features

Acrylic models finished in 1/8” thick layer

of deep lustrous acrylic.

Extra thick reinforced fiberglass.
Pre-wired pump on pump platform

(standard pump location only)
Integral E-Z Level platform facilitates

installation.

Non-skid bottom.

PVC Systems – include:

6 or 8 Fully directional adjustable PVC

jets
Anti-vortex safety suction.
Color matched system trim

HydrOzone ozone sanitation system
Rigid PVC piping
Self draining pump and system
Soft Touch electronic on/off control with

30-min. integral timer

2.25 HP Single Speed Pump
Cable waste & overflow

Hydro Systems – Options:

Available as Tub only, Thermal Air,

Whirlpool or Combo

Microban Antibacterial Protection
Extra High Density Fiberglass
Armrest
Flange molded
Skirt
Custom jet and pump locations
Plated Metallic finish
Additional directional Jets
Swirling, Rotating, or Jumbo Jets
Micro Therapy Jet
Integral Waste & Overflow

1.5 HP Variable Speed Pump (digital

temperature display optional)

Electronic low water protection
In-line Heater
Chromatherapy-LED Lighting System
Chromatherapy-LED Mini Spotlights

Mood Light
Grab Bars
Back Masseuse
Neck Masseuse Pillow
Hydro Fragrance
Hydro Fusion
Hydro Coat
Hydro Express quick ship

Approvals & Listings

Commonwealth of Massachusetts

UPC & USPC - US & Canada

Page 1 of 2

Hydro Systems, Inc.

29132 Avenue Paine, Valencia, CA 91355

Phone [phone] • Fax [phone]

[e-mail] • www.hydrosystem.com

Must be set in mortar base.

Must be set in Mortar Base

AS SHOWN:

Whirlpool option w/ standard jets

ALSO AVAILABLE:

Soaking Tub Only, Whirlpool, Thermal Air, Combo

Model GC AC A B C D E F G H I J K L M Jet Pump Wat.Cap.

6636 N/A ✓ 66” 36” 33” 8” 3” 3” 24” 42” 20” 18¼” 1¾” 17 ½” 2¼” 6 2.25 80 gal.

Rachael

7236 N/A ✓ 72” 36” 36” 8” 3” 3” 24” 48” 20” 18¼” 1¾” 17½” 2¼” 8 2.25 90 gal.

Amps Volts Breaker

13.5 120 20 amp GFCI Protected

Island Drop-In

Model (L)ength (W)idth (H)eigth Finish (L)ength (W)idth (H)eigth Ledger

6636 64” 34” 19¼” 66” 36” 20¾”

7236 70” 34” 19¼” 72” 36” 20¾”

Disclaimer: Certain options or altering the pump/blower location may cause the pump/blower to extend beyond the tub decking.
For cutout dimensions wait for unit to arrive. All specifications subject to change without notice.

Dedicated Service

Page 2 of 2
