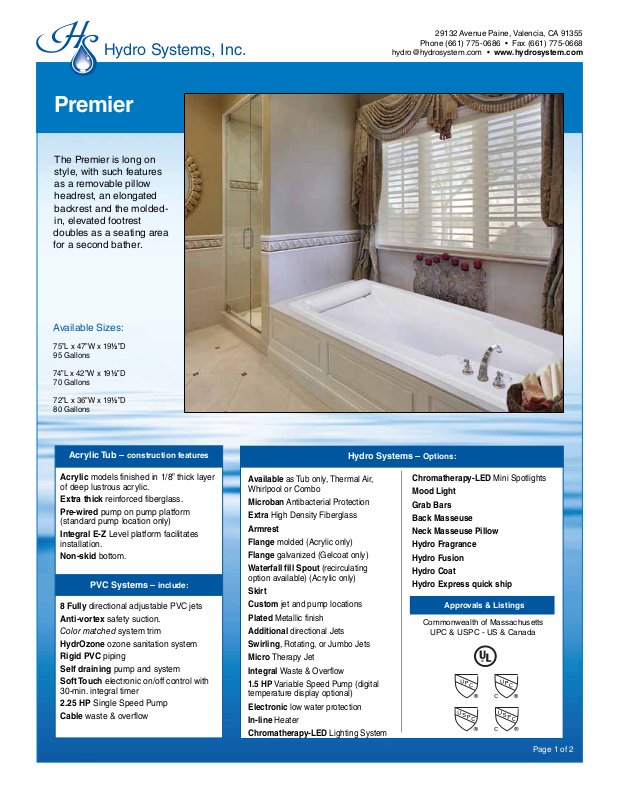

Hydro Systems HYDR1440 Specification sheet
Hydro Systems, Inc.
Premier
The Premier is long on
style, with such features
as a removable pillow
headrest, an elongated
backrest and the molded-
in, elevated footrest
doubles as a seating area
for a second bather.
29132 Avenue Paine, Valencia, CA 91355
Phone (661) 775-0686 • Fax (661) 775-0668
hydro@hydrosystem.com • www.hydrosystem.com
Available Sizes:
75”L x 47”W x 19½”D
95 Gallons
74”L x 42”W x 19½”D
70 Gallons
72”L x 36”W x 19½”D
80 Gallons
Acrylic Tub – construction features
Acrylic models finished in 1/8” thick layer
of deep lustrous acrylic.
Extra thick reinforced fiberglass.
Pre-wired pump on pump platform
(standard pump location only)
Integral E-Z Level platform facilitates
installation.
Non-skid bottom.
PVC Systems – include:
8 Fully directional adjustable PVC jets
Anti-vortex safety suction.
Color matched system trim
HydrOzone ozone sanitation system
Rigid PVC piping
Self draining pump and system
Soft Touch electronic on/off control with
30-min. integral timer
2.25 HP Single Speed Pump
Cable waste & overflow
Hydro Systems – Options:
Available as Tub only, Thermal Air,
Whirlpool or Combo
Microban Antibacterial Protection
Extra High Density Fiberglass
Armrest
Flange molded (Acrylic only)
Flange galvanized (Gelcoat only)
Waterfall fill Spout (recirculating
option available) (Acrylic only)
Skirt
Custom jet and pump locations
Plated Metallic finish
Additional directional Jets
Swirling, Rotating, or Jumbo Jets
Micro Therapy Jet
Integral Waste & Overflow
1.5 HP Variable Speed Pump (digital
temperature display optional)
Electronic low water protection
In-line Heater
Chromatherapy-LED Lighting System
Chromatherapy-LED Mini Spotlights
Mood Light
Grab Bars
Back Masseuse
Neck Masseuse Pillow
Hydro Fragrance
Hydro Fusion
Hydro Coat
Hydro Express quick ship
Approvals & Listings
Commonwealth of Massachusetts
UPC & USPC - US & Canada
Page 1 of 2
Hydro Systems, Inc.
29132 Avenue Paine, Valencia, CA 91355
Phone (661) 775-0686 • Fax (661) 775-0668
hydro@hydrosystem.com • www.hydrosystem.com
Must be set in mortar base.
Must be set in Mortar Base
AS SHOWN:
Whirlpool option w/ standard jets
ALSO AVAILABLE:
Soaking Tub Only, Whirlpool,
Thermal Air, Combo
Model Gel Coat Acrylic A B C D E F G H I J K L Jets Pump Water Cap.
Model GC AC A B C D E F G H I J K L M N O P Q
7547 75” 47¼” 41½” 35¼” 23½” 23” 11 ” 21” 5½” 2½” 16½”
Amp Volt Breaker Dedicated Service R S Jet
13.5 120 20 amp GFCI Protected 2¼” 4½” 8
7442 74 ” 42” 36” 29½” 21” 21¾” 11” 21” 5¾” 2½” 16½” 23” 4¾” 32” 1¾”
13.5 120 20 amp GFCI Protected 1¾” 4¾” 8
7236 72” 36” 30” 24” 15” 23¾” 12” 21” 5½” 2½” 16½”
13.5 120 20 amp GFCI Protected 2” 4½” 8
22¾”
22¾”
4¾” 32” 1¾”
4¾” 34” 1¾”
Premier
19½” 1¼”
Pump Wat.Cap.
2.25 95 gal.
19½” 1¼”
2.25 80 gal.
19½” 3½”
2.25 60 gal.
Disclaimer: Certain options or
altering the pump/blower location
may cause the pump/blower to
extend beyond the tub decking.
For cutout dimensions wait for unit
to arrive.
All specifications subject to
change without notice.
Island Drop-In 3 Wall Enclosure
Model (L)ength (W)idth (H)eigth Finish (L)ength (W)idth (H)eigth Ledger
Metal Flange Molded Flange
7547 73” 45” 18¾”
7442 72” 40”
7236 70” 34”
18¾” 74” 42” 18¾” 20¼”
18¾” 72” 36” 18¾” 20¼”
75” 47¼”
18¾”
20¼”
Page 2 of 2
