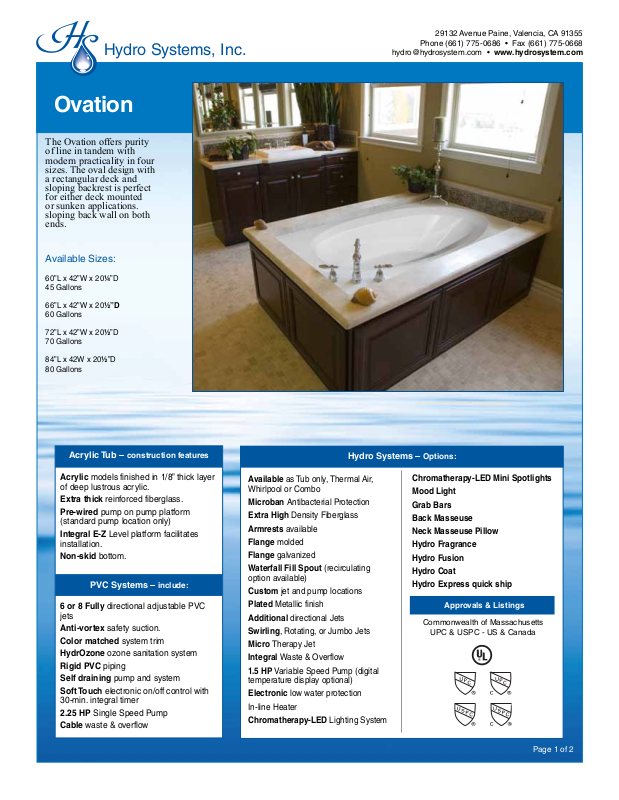

Hydro Systems HYDR1425 Specification sheet

Hydro Systems, Inc.

Ovation

The Ovation offers purity
of line in tandem with
modern practicality in four
sizes. The oval design with
a rectangular deck and
sloping backrest is perfect
for either deck mounted
or sunken applications.
sloping back wall on both
ends.

Available Sizes:

60”L x 42”W x 20¼”D
45 Gallons

66”L x 42”W x 20½”D
60 Gallons

29132 Avenue Paine, Valencia, CA 91355

Phone [phone] • Fax [phone]

[e-mail] • www.hydrosystem.com

Lacey

72”L x 42”W x 20½”D
70 Gallons

84”L x 42W x 20½”D
80 Gallons

Acrylic Tub – construction features

Acrylic models finished in 1/8” thick layer

of deep lustrous acrylic.

Extra thick reinforced fiberglass.
Pre-wired pump on pump platform

(standard pump location only)
Integral E-Z Level platform facilitates

installation.

Non-skid bottom.

PVC Systems – include:

6 or 8 Fully directional adjustable PVC

jets

Anti-vortex safety suction.
Color matched system trim
HydrOzone ozone sanitation system
Rigid PVC piping
Self draining pump and system
Soft Touch electronic on/off control with

30-min. integral timer

2.25 HP Single Speed Pump
Cable waste & overflow

Hydro Systems – Options:

Available as Tub only, Thermal Air,

Whirlpool or Combo

Microban Antibacterial Protection
Extra High Density Fiberglass
Armrests available
Flange molded
Flange galvanized
Waterfall Fill Spout (recirculating

option available)

Custom jet and pump locations
Plated Metallic finish
Additional directional Jets
Swirling, Rotating, or Jumbo Jets
Micro Therapy Jet
Integral Waste & Overflow

1.5 HP Variable Speed Pump (digital

temperature display optional)
Electronic low water protection
In-line Heater

Chromatherapy-LED Lighting System

Chromatherapy-LED Mini Spotlights
Mood Light
Grab Bars
Back Masseuse
Neck Masseuse Pillow
Hydro Fragrance
Hydro Fusion
Hydro Coat
Hydro Express quick ship

Approvals & Listings

Commonwealth of Massachusetts

UPC & USPC - US & Canada

Page 1 of 2

Hydro Systems, Inc.

Must be set in Mortar Base

AS SHOWN:

Whirlpool option w/ standard jets

29132 Avenue Paine, Valencia, CA 91355

Phone [phone] • Fax [phone]

[e-mail] • www.hydrosystem.com

Ovation

ALSO AVAILABLE:

Soaking Tub Only, Whirlpool, Thermal Air, Combo

Model GC AC A B C D E F G H I J K L M Jet Pump Wat.Cap.

6042 ✓ ✓ 60” 42” 8½” 21” 5” 2” 2½” 39” 1¼” 1¾” 20¼” 17½” 29” 6 2.25 45 gal

6642 ✓ ✓ 66” 42” 8¼” 21” 5” 2” 2” 45” 1¼” 1½” 20½” 17½” 29” 6 2.25 60 gal.

7242 ✓ ✓ 71½” 42½” 10½” 21” 5” 4” 3” 48” 3½” 1½” 20½” 17½” 29” 6 2.25 70 gal.

8442 ✓ N/A 83½” 42½” 41¾” 8¾” 2” 4” 4” 51” 3¼” 1¼” 20¾” 17½” 29” 8 2.25 80 gal

Amps Volts Breaker Dedicated Service

13.5 120 20 amp GFCI Protected

Disclaimer: Certain options or altering the
pump/blower location may cause the pump/
blower to extend beyond the tub decking.
For cutout dimensions wait for unit to arrive.
All specifications subject to change without
notice.

Island Drop-In 3 Wall Installation

Model (L)ength (W)idth (H)eigth Finish (L)ength Width (H)eigth Ledger

Metal Flange Molded Flange

6042 58” 40” 19½” 60” 42” 19½” 21”

6642 64” 40” 20” 66” 42” 20” 21¼”

7242 70” 40” 20” 72” 42” 20” 21¼”

8442 82” 40” 20½” 84 42” 20½” N/A
