Hydro Systems HYDR1389, HYDR1376 Specifications
Hydro Systems, Inc.

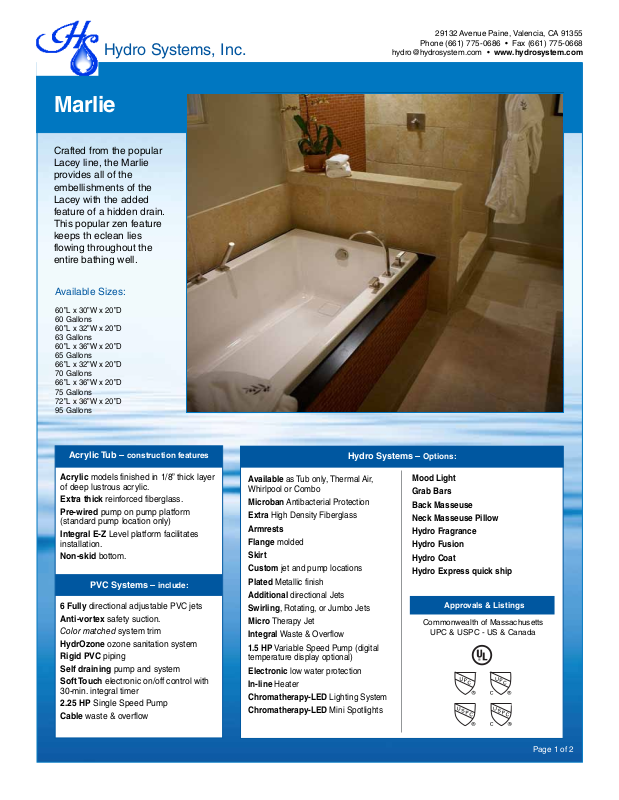

Marlie
Crafted from the popular
Lacey line, the Marlie
provides all of the
embellishments of the
Lacey with the added
feature of a hidden drain.
This popular zen feature
keeps th eclean lies
flowing throughout the
entire bathing well.
Available Sizes:
60”L x 30”W x 20”D
60 Gallons
60”L x 32”W x 20”D
63 Gallons
60”L x 36”W x 20”D
65 Gallons
66”L x 32”W x 20”D
70 Gallons
66”L x 36”W x 20”D
75 Gallons
72”L x 36”W x 20”D
95 Gallons
29132 Avenue Paine, Valencia, CA 91355
Phone (661) 775-0686 • Fax (661) 775-0668
hydro@hydrosystem.com • www.hydrosystem.com
Acrylic Tub – construction features
Acrylic models finished in 1/8” thick layer
of deep lustrous acrylic.
Extra thick reinforced fiberglass.
Pre-wired pump on pump platform
(standard pump location only)
Integral E-Z Level platform facilitates
installation.
Non-skid bottom.
PVC Systems – include:
6 Fully directional adjustable PVC jets
Anti-vortex safety suction.
Color matched system trim
HydrOzone ozone sanitation system
Rigid PVC piping
Self draining pump and system
Soft Touch electronic on/off control with
30-min. integral timer
2.25 HP Single Speed Pump
Cable waste & overflow
Hydro Systems – Options:
Available as Tub only, Thermal Air,
Whirlpool or Combo
Microban Antibacterial Protection
Extra High Density Fiberglass
Armrests
Flange molded
Skirt
Custom jet and pump locations
Plated Metallic finish
Additional directional Jets
Swirling, Rotating, or Jumbo Jets
Micro Therapy Jet
Integral Waste & Overflow
1.5 HP Variable Speed Pump (digital
temperature display optional)
Electronic low water protection
In-line Heater
Chromatherapy-LED Lighting System
Chromatherapy-LED Mini Spotlights
Mood Light
Grab Bars
Back Masseuse
Neck Masseuse Pillow
Hydro Fragrance
Hydro Fusion
Hydro Coat
Hydro Express quick ship
Approvals & Listings
Commonwealth of Massachusetts
UPC & USPC - US & Canada
Page 1 of 2
Hydro Systems, Inc.
29132 Avenue Paine, Valencia, CA 91355
Phone (661) 775-0686 • Fax (661) 775-0668
hydro@hydrosystem.com • www.hydrosystem.com
Must be set in mortar base.
Note:
Acrylic drain
covers are not
Must be set in Mortar Base
AS SHOWN:
Whirlpool option w/ standard jets
ALSO AVAILABLE:
Soaking Tub Only, Whirlpool,
Thermal Air, Combo
Model GC AC A B C D E F G H I J K M Jet Pump Wat.Cap.
6030 N/A 59¾” 29¾” 10½” 14½” 4” 3” 43” 21” 52” 20” 1¾” 17” 6 2.25 60 gal.
6032 N/A 59¾ 32” 10½” 16” 4” 3” 43” 23” 52” 20” 1¾” 17” 6 2.25 63 gal.
6036 N/A 59¾” 36” 10½” 18” 4” 3” 43” 27” 52” 20” 1¾” 17” 6 2.25 65 gal.
6632 N/A
6636 N/A
7236 N/A 70½” 35¾” 10 ½”
Amp Volt Breaker Dedicated Service
13.5 120 20 amp GFCI Protected
32” 10½” 16” 4” 3” 49” 23” 58” 20” 1¾” 17” 6 2.25 70 gal.
65¾”
65¾”
35½” 10½”
4” 3” 49” 27” 58” 20” 1¾” 17” 6 2.25 75 gal.
17⅞”
4” 3” 55” 27” 58” 20” 1¾” 17” 6 2.25 95 gal.
17⅞”
weight bearing
Marlie
Disclaimer: Certain options
or altering the pump/blower
location may cause the pump/
blower to extend beyond the
tub decking.
For cutout dimensions wait for
unit to arrive.
All specifications subject to
change without notice.
Island Drop-In 3 Wall Enclosure
Model (L)ength (W)idth (H)eigth Finish (L)ength (W)idth (H)eigth Ledger Molded Flange
6030 58” 28” 19¼” 59¾” 29¾” 20¾”
6032 58” 30” 19¼ 59¾” 32” 20¾”
6036 58” 34” 19¼” 59¾” 36” 20¾”
6632 64” 30” 19¼” 65¾” 32” 20¾”
6636 64” 34” 19¼”
7236 70” 34” 19¼” 71½” 35¾” 20¾”
65¾”
35½” 20¾”
Page 2 of 2
