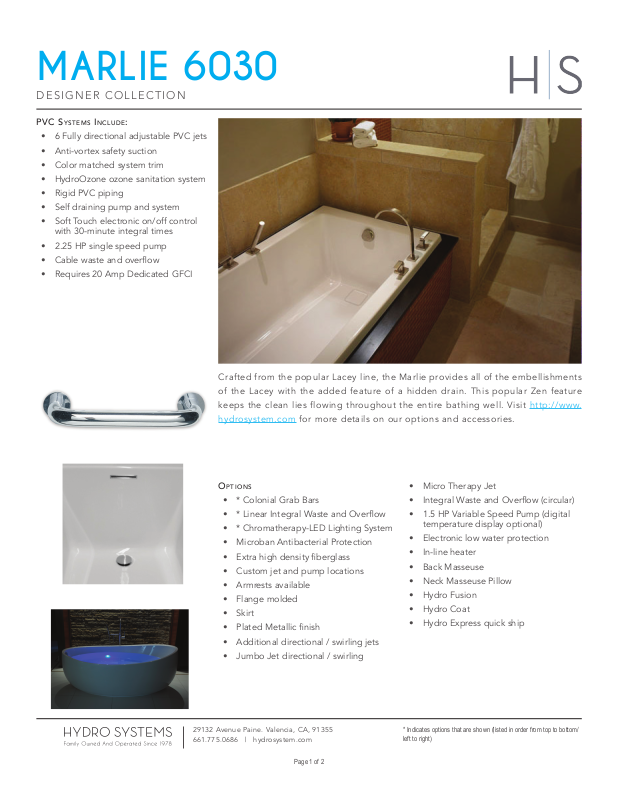

Page 1
MARLIE 6030
DESIGNER COLLECTION
PV C Sy St em S In Cl ud e:
• 6 Fully directional adjustable PVC jets
• Anti-vortex safety suction
• Color matched system trim
• HydroOzone ozone sanitation system
• Rigid PVC piping
• Self draining pump and system
• Soft Touch electronic on/off control
with 30-minute integral times
• 2.25 HP single speed pump
• Cable waste and overflow
• Requires 20 Amp Dedicated GFCI
Crafted from the popular Lacey line, the Marlie provides all of the embellishments
of the Lacey with the added feature of a hidden drain. This popular Zen feature
keeps the clean lies flowing throughout the entire bathing well. Visit http://www.
hydrosystem.com for more details on our options and accessories.
OP tI On S
• * Colonial Grab Bars
• * Linear Integral Waste and Overflow
• * Chromatherapy-LED Lighting System
• Microban Antibacterial Protection
• Extra high density fiberglass
• Custom jet and pump locations
• Armrests available
• Flange molded
• Skirt
• Plated Metallic finish
• Additional directional / swirling jets
• Jumbo Jet directional / swirling
• Micro Therapy Jet
• Integral Waste and Overflow (circular)
• 1.5 HP Variable Speed Pump (digital
temperature display optional)
• Electronic low water protection
• In-line heater
• Back Masseuse
• Neck Masseuse Pillow
• Hydro Fusion
• Hydro Coat
• Hydro Express quick ship
29132 Avenue Paine. Valencia, CA, 91355
661.775.0686 | hydrosystem.com
Page 1 of 2
* Indicates options that are shown (listed in order from top to bottom/
left to right)
Page 2
MARLIE 6030
60
42
3
15
19.5
DESIGNER COLLECTION
AS S hO wn :
Whirlpool option with standard jets
Fe Atu re S Sh Ow n:
• Jets
• Overflow location
Al SO A VAI lA bl e:
• Soaking tub only
• Thermal Air
• Approximately 55 injectors
• Combo
SI ze :
60.30.20
wAt er CAPA CI ty :
60 Gallons
ACrylIC tub
we Ig ht :
60 - 100 Pounds
3- wA ll I nS tAl lAtI On dI me nS IO nS :
• (L)ength- 60”
• (W)idth- 30”
• Ledger - 18.75”
• Acrylic models finished in 1/8” thick layer of deep lustrous acrylic
• Extra thick reinforced fiberglass
• Pre-wired pump on pump platform (standard pump location only)
• Integral E-Z level platform facilitates installation
• Tub must be set in mortar base
• When adding linear option, p-trap is located directly below waste
dr OP -I n In St Al lA tI On d Im en SI On S:
• (L)ength- 58”
• (W)idth- 28”
• Ledger-18.75”
CODES AND COMPLIANCES
Massachusetts code File no: P1-0614-491
4
10
2.25
17
29132 Avenue Paine. Valencia, CA, 91355
661.775.0686 | hydrosystem.com
Page 2 of 2
25 °
30
20.5
pump
All specications and options subject to change without notice please
contact a Hydro Systems representative for more information.
Certain options or altering the pump/blower location may cause
the pump/blower to extend beyond the tub decking. For cutout
dimensions wait for unit to arrive. All specications subject to change
without notice.
1.75
