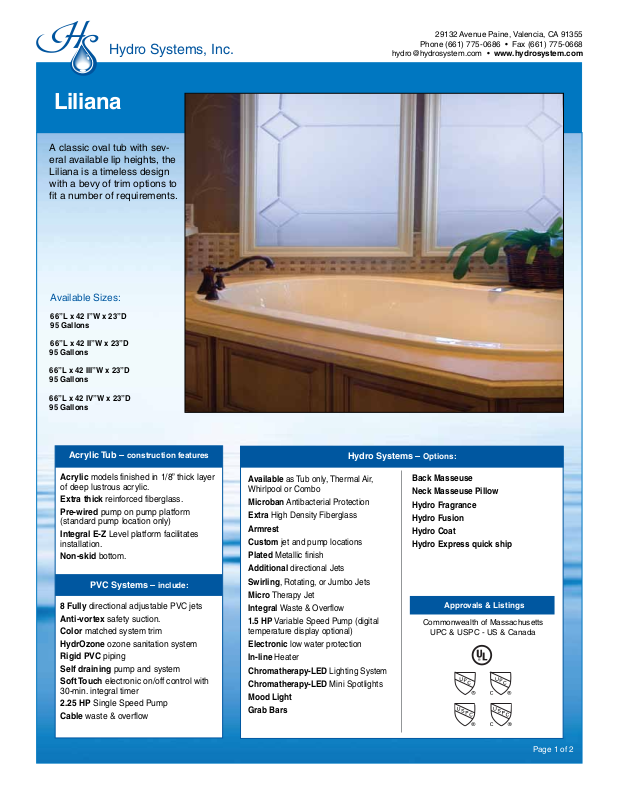

Hydro Systems, Inc.
Liliana
A classic oval tub with several available lip heights, the
Liliana is a timeless design
with a bevy of trim options to
fit a number of requirements.
Available Sizes:
66”L x 42 I”W x 23”D
95 Gallons
29132 Avenue Paine, Valencia, CA 91355
Phone (661) 775-0686 • Fax (661) 775-0668
[email protected] • www.hydrosystem.com
66”L x 42 II”W x 23”D
95 Gallons
66”L x 42 III”W x 23”D
95 Gallons
66”L x 42 IV”W x 23”D
95 Gallons
Acrylic Tub – construction features
Acrylic models finished in 1/8” thick layer
of deep lustrous acrylic.
Extra thick reinforced fiberglass.
Pre-wired pump on pump platform
(standard pump location only)
Integral E-Z Level platform facilitates
installation.
Non-skid bottom.
PVC Systems – include:
8 Fully directional adjustable PVC jets
Anti-vortex safety suction.
Color matched system trim
HydrOzone ozone sanitation system
Rigid PVC piping
Self draining pump and system
Soft Touch electronic on/off control with
30-min. integral timer
2.25 HP Single Speed Pump
Cable waste & overflow
Hydro Systems – Options:
Available as Tub only, Thermal Air,
Whirlpool or Combo
Microban Antibacterial Protection
Extra High Density Fiberglass
Armrest
Custom jet and pump locations
Plated Metallic finish
Additional directional Jets
Swirling, Rotating, or Jumbo Jets
Micro Therapy Jet
Integral Waste & Overflow
1.5 HP Variable Speed Pump (digital
temperature display optional)
Electronic low water protection
In-line Heater
Chromatherapy-LED Lighting System
Chromatherapy-LED Mini Spotlights
Mood Light
Grab Bars
Back Masseuse
Neck Masseuse Pillow
Hydro Fragrance
Hydro Fusion
Hydro Coat
Hydro Express quick ship
Approvals & Listings
Commonwealth of Massachusetts
UPC & USPC - US & Canada
Page 1 of 2
Page 2
Hydro Systems, Inc.
29132 Avenue Paine, Valencia, CA 91355
Phone (661) 775-0686 • Fax (661) 775-0668
[email protected] • www.hydrosystem.com
Must be set in Mortar Base
AS SHOWN:
Whirlpool option w/ standard jets
ALSO AVAILABLE:
Soaking Tub Only, Whirlpool,
Thermal Air, Combo
Must be set in mortar base.
Liliana
Model GC AC A B C D E F G H I J K L Jet Pump
6642-I N/A ✓ 66” 42” 33” 10”
6642-II N/A ✓ 2” 21” 18”
6642-III N/A ✓ 3” 20” 18”
6642-IV N/A ✓ 4” 19” 18”
Amp Volt Breaker Dedicated Service
13.5 120 20 amps GFCI Protected
41” 1” 22” 23” 26” 3½”
3⅝”
MModel (L)engthg (W(W)idth (H)((H)eigth Finish
6642-I 64” 40” 23”2½
6642-II 64” 40”” 2 22”222”
6642-III 64” 40” 21”
6642-IV 64” 40” 20”
Disclaimer: Certain options or altering the pump/blower location may
cause the pump/blower to extend beyond the tub decking.
For cutout dimensions wait for unit to arrive.
All specifications subject to change without notice.
18½”
Island Drop-In
8 2.25 95 gal.
Wat.Cap.
Page 2 of 2
