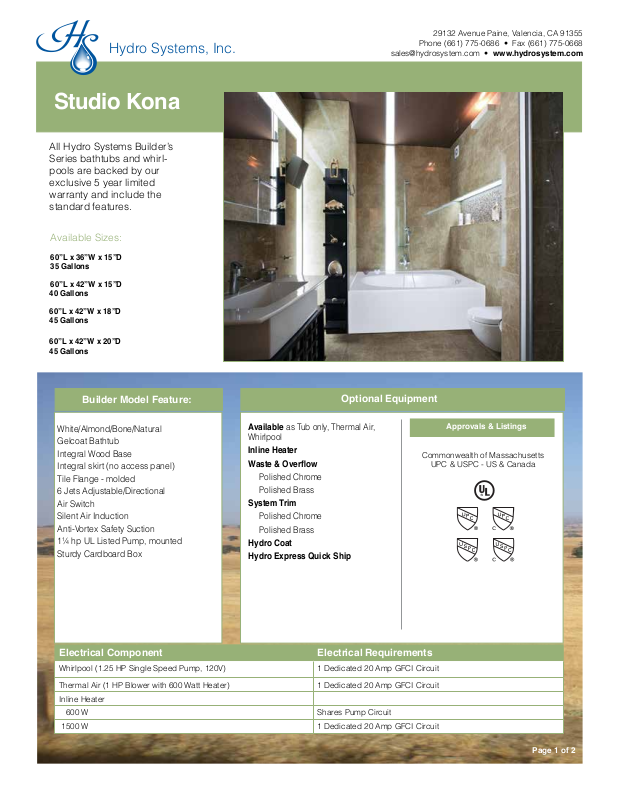

Hydro Systems HYDR1280, HYDR1276 Specifications

Hydro Systems, Inc.

Studio Kona

All Hydro Systems Builder’s
Series bathtubs and whirl­pools are backed by our
exclusive 5 year limited
warranty and include the
standard features.

Available Sizes:

60”L x 36”W x 15”D
35 Gallons

60”L x 42”W x 15”D

40 Gallons

60”L x 42”W x 18”D
45 Gallons

29132 Avenue Paine, Valencia, CA 91355

Phone [phone] • Fax [phone]

[e-mail] • www.hydrosystem.com

60”L x 42”W x 20”D
45 Gallons

Builder Model Feature:

White/Almond/Bone/Natural
Gelcoat Bathtub
Integral Wood Base
Integral skirt (no access panel)
Tile Flange - molded
6 Jets Adjustable/Directional
Air Switch
Silent Air Induction
Anti-Vortex Safety Suction
1¼ hp UL Listed Pump, mounted
Sturdy Cardboard Box

Optional Equipment

Available as Tub only, Thermal Air,

Whirlpool

Inline Heater

Waste & Overow

Polished Chrome
Polished Brass

System Trim
Polished Chrome

Polished Brass

Hydro Coat
Hydro Express Quick Ship

Approvals & Listings

Commonwealth of Massachusetts

UPC & USPC - US & Canada

Electrical Component Electrical Requirements

Whirlpool (1.25 HP Single Speed Pump, 120V) 1 Dedicated 20 Amp GFCI Circuit

Thermal Air (1 HP Blower with 600 Watt Heater) 1 Dedicated 20 Amp GFCI Circuit

Inline Heater

600 W Shares Pump Circuit

1500 W 1 Dedicated 20 Amp GFCI Circuit

Page 1 of 2

Hydro Systems, Inc.

Must be set in Mortar Base

29132 Avenue Paine, Valencia, CA 91355

Phone [phone] • Fax [phone]

[e-mail] • www.hydrosystem.com

Studio Kona

Must be set in mortar base.

AS SHOWN:

Whirlpool option w/ standard jets

ALSO AVAILABLE:

Soaking Tub Only, Thermal Air,

Model GC AC A B C D E F G H I J K L M N O Jet Pump

6036-15 N/A √ 60” 36” 9” 18” 3” 3” 4” 4” 1” 46” 15” 1½” 2½” 22” 12½” 6 1.25

6042-15 N/A √ 60” 42” 11” 21” 3” 4” 4” 4½” 1” 43” 15” 1” 3” 24” 12½” 6 1.25

6042-18 N/A √ 60” 42” 11” 21” 3” 4” 4” 4½” 1” 43” 18” 1” 3” 24”

6042-20 N/A √ 60” 42” 11” 21” 4” 4” 4” 4½” 1” 43” 20” 1” 3” 24”

Framing Dimensions

3 Wall Enclosure

Model (L)ength (W)idth (H)eigth Finish

6036-15 60” 36”

6042-15 60” 42”

6042-18 60” 42”

6042-20 60” 42”

Disclaimer: Certain options or altering the pump/blower location may
cause the pump/blower to extend beyond the tub decking.
For cutout dimensions wait for unit to arrive.

All specications subject to change without notice.

14¾”

14¾”

6 1.25

6 1.25

Wat.Cap.

35 gal.

40 gal.

45 gal.

45 gal.

14¾”

14¾”

17¾”

19¾”

Page 2 of 2
