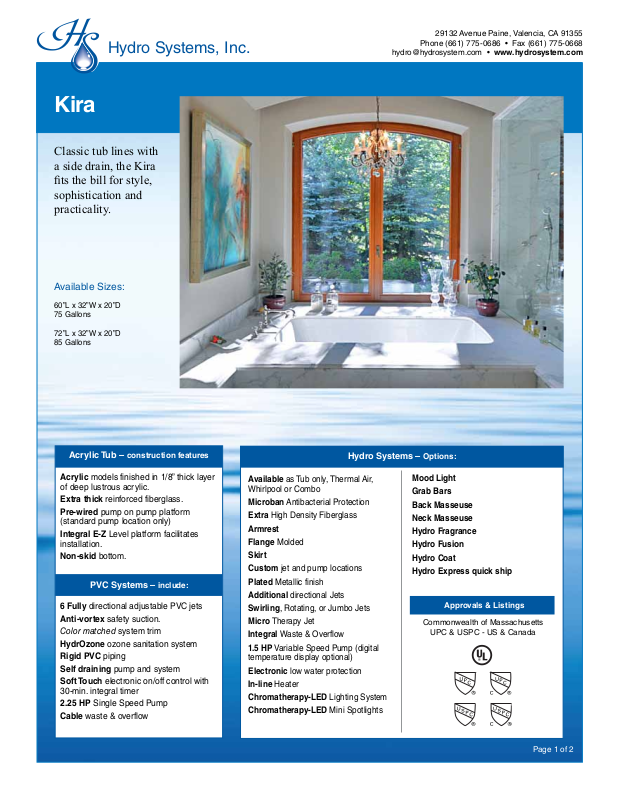

Hydro Systems, Inc.
Kira
Classic tub lines with
a side drain, the Kira
ts the bill for style,
sophistication and
practicality.
Available Sizes:
60”L x 32”W x 20”D
75 Gallons
29132 Avenue Paine, Valencia, CA 91355
Phone (661) 775-0686 • Fax (661) 775-0668
hydro@hydrosystem.com • www.hydrosystem.com
72”L x 32”W x 20”D
85 Gallons
Acrylic Tub – construction features
Acrylic models finished in 1/8” thick layer
of deep lustrous acrylic.
Extra thick reinforced fiberglass.
Pre-wired pump on pump platform
(standard pump location only)
Integral E-Z Level platform facilitates
installation.
Non-skid bottom.
PVC Systems – include:
6 Fully directional adjustable PVC jets
Anti-vortex safety suction.
Color matched system trim
HydrOzone ozone sanitation system
Rigid PVC piping
Self draining pump and system
Soft Touch electronic on/off control with
30-min. integral timer
2.25 HP Single Speed Pump
Cable waste & overflow
Hydro Systems – Options:
Available as Tub only, Thermal Air,
Whirlpool or Combo
Microban Antibacterial Protection
Extra High Density Fiberglass
Armrest
Flange Molded
Skirt
Custom jet and pump locations
Plated Metallic finish
Additional directional Jets
Swirling, Rotating, or Jumbo Jets
Micro Therapy Jet
Integral Waste & Overflow
1.5 HP Variable Speed Pump (digital
temperature display optional)
Electronic low water protection
In-line Heater
Chromatherapy-LED Lighting System
Chromatherapy-LED Mini Spotlights
Mood Light
Grab Bars
Back Masseuse
Neck Masseuse
Hydro Fragrance
Hydro Fusion
Hydro Coat
Hydro Express quick ship
Approvals & Listings
Commonwealth of Massachusetts
UPC & USPC - US & Canada
Page 1 of 2
Hydro Systems, Inc.
29132 Avenue Paine, Valencia, CA 91355
Phone (661) 775-0686 • Fax (661) 775-0668
hydro@hydrosystem.com • www.hydrosystem.com
Must be set in Mortar Base
AS SHOWN:
Whirlpool option w/ standard jets
ALSO AVAILABLE:
Soaking Tub Only, Whirlpool,
Thermal Air, Combo
Must be set in mortar base.
Kira
Model GC AC A B C D E F G H I J K L Jet Pump Wat.Cap.
6032 N/A
7232 N/A
Amp Volt Breaker Dedicated Service
13.5 120 20 amp GFCI Protected
32” 30” 8” 3” 3” 25½” 34” 20” 18¼” 1¾” 17½” 6 2.25 75 gal.
60”
32” 36” 8” 3” 3” 25½” 48” 20” 18¼” 1¾” 17½” 6 2.25 85 gal.
72”
Disclaimer: Certain options or altering the pump/blower location
may cause the pump/blower to
extend beyond the tub decking.
For cutout dimensions wait for
unit to arrive.
All specifications subject to
change without notice.
Island Drop-In 3 Wall Enclosure
Model (L)ength (W)idth (H)eigth Finish (L)ength (W)idth (H)eigth Ledger Molded
6032 58” 30” 19¼” 60” 32” 20¾”
7232 70” 30” 19¼” 72” 32” 20¾”
Page 2 of 2
