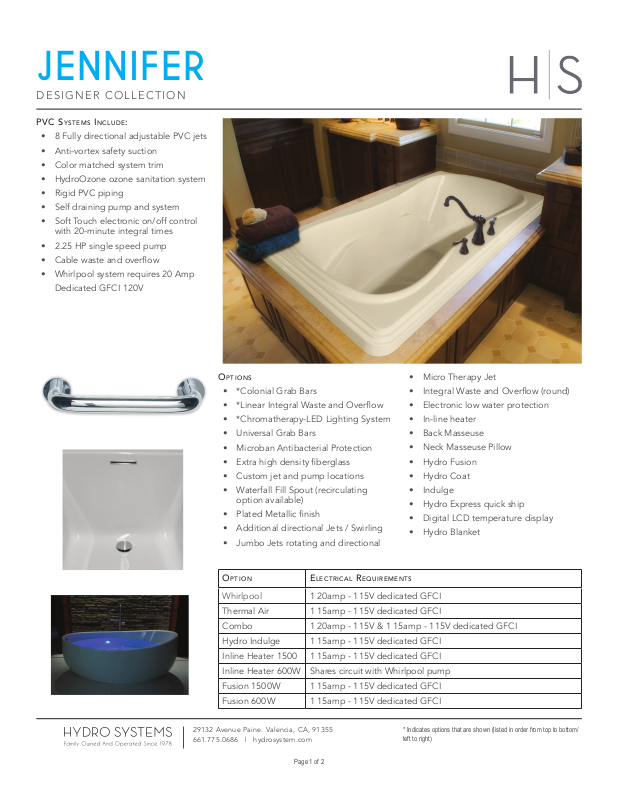

JENNIFER
DESIGNER COLLECTION
PV C Sy St em S In Cl ud e:
• 8 Fully directional adjustable PVC jets
• Anti-vortex safety suction
• Color matched system trim
• HydroOzone ozone sanitation system
• Rigid PVC piping
• Self draining pump and system
• Soft Touch electronic on/off control
with 20-minute integral times
• 2.25 HP single speed pump
• Cable waste and overflow
• Whirlpool system requires 20 Amp
Dedicated GFCI 120V
OP tI On S
• *Colonial Grab Bars
• *Linear Integral Waste and Overflow
• *Chromatherapy-LED Lighting System
• Universal Grab Bars
• Microban Antibacterial Protection
• Extra high density fiberglass
• Custom jet and pump locations
• Waterfall Fill Spout (recirculating
option available)
• Plated Metallic finish
• Additional directional Jets / Swirling
• Jumbo Jets rotating and directional
OP tI On el eC tr IC al r eq uI re me nt S
Whirlpool
Thermal Air 1 15amp - 115V dedicated GFCI
Combo 1 20amp - 115V & 1 15amp - 115V dedicated GFCI
Hydro Indulge 1 15amp - 115V dedicated GFCI
Inline Heater 1500 1 15amp - 115V dedicated GFCI
Inline Heater 600W Shares circuit with Whirlpool pump
Fusion 1500W 1 15amp - 115V dedicated GFCI
Fusion 600W 1 15amp - 115V dedicated GFCI
1 20amp - 115V dedicated GFCI
• Micro Therapy Jet
• Integral Waste and Overflow (round)
• Electronic low water protection
• In-line heater
• Back Masseuse
• Neck Masseuse Pillow
• Hydro Fusion
• Hydro Coat
• Indulge
• Hydro Express quick ship
• Digital LCD temperature display
• Hydro Blanket
29132 Avenue Paine. Valencia, CA, 91355
661.775.0686 | hydrosystem.com
Page 1 of 2
* Indicates options that are shown (listed in order from top to bottom/
left to right)
JENNIFER
72
25.5
6
DESIGNER COLLECTION
aS S hO wn :
Whirlpool option with standard jet
location
Fe atu re S Sh Ow n:
• Jets
• Overflow location
aVa Il ab le S yS te mS :
• Soaking tub only
• Whirlpool
• Thermal Air
• Approximately 55 Injectors
• Combo
SI ze :
72.48.25½
wat er CaPa CI ty :
90 Gallons
we Ig ht :
105 - 145 Pounds
Cu t - Ou t dI me nS IO nS :
• (L)ength- 70”
• (W)idth- 46”
• Finish- 23”
CODES AND COMPLIANCES
Massachusetts code File no: P1-0614-491
aCrylIC tub
• Acrylic models finished in 1/8” thick layer of deep lustrous acrylic
• Extra thick reinforced fiberglass
• Pre-wired pump on pump platform (standard pump location only)
• Integral E-Z level platform facilitates installation
• Tub must be set in mortar base
• When adding linear option, locate p-trap below waste
15
41
6
48
26
23
3.5
15
10
3
13 .5
21.5
1.5
pump
36
10
29132 Avenue Paine. Valencia, CA, 91355
661.775.0686 | hydrosystem.com
Page 2 of 2
All specications and options subject to change without notice please
contact a Hydro Systems representative for more information.
Certain options or altering the pump/blower location may cause
the pump/blower to extend beyond the tub decking. For cutout
dimensions wait for unit to arrive. All specications subject to change
without notice.
