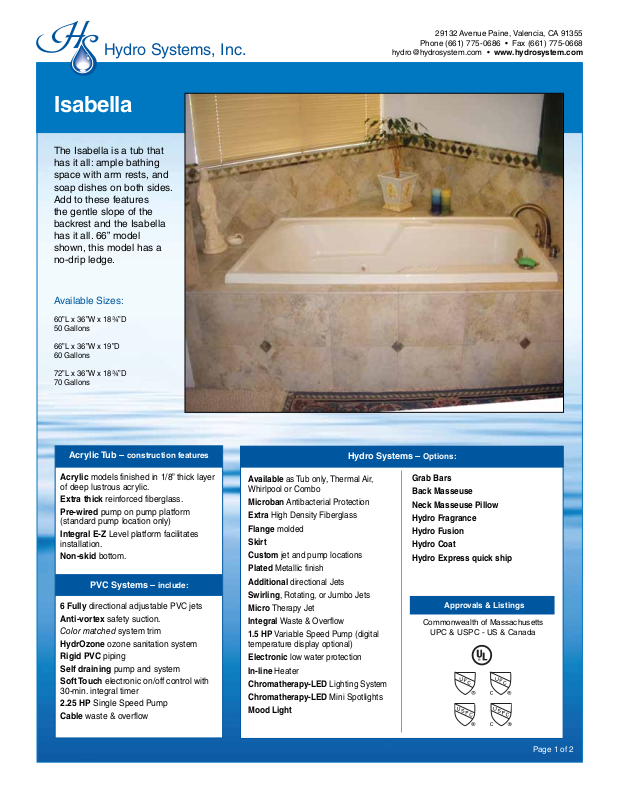

Hydro Systems HYDR1233, HYDR1230 Specification

Hydro Systems, Inc.

Isabella

The Isabella is a tub that
has it all: ample bathing
space with arm rests, and
soap dishes on both sides.
Add to these features
the gentle slope of the
backrest and the Isabella
has it all. 66” model
shown, this model has a
no-drip ledge.

Available Sizes:

60”L x 36”W x 18¾”D
50 Gallons

29132 Avenue Paine, Valencia, CA 91355

Phone [phone] • Fax [phone]

[e-mail] • www.hydrosystem.com

66”L x 36”W x 19”D
60 Gallons

72”L x 36”W x 18¾”D
70 Gallons

Acrylic Tub – construction features

Acrylic models finished in 1/8” thick layer

of deep lustrous acrylic.

Extra thick reinforced fiberglass.
Pre-wired pump on pump platform

(standard pump location only)
Integral E-Z Level platform facilitates

installation.

Non-skid bottom.

PVC Systems – include:

6 Fully directional adjustable PVC jets
Anti-vortex safety suction.

Color matched system trim

HydrOzone ozone sanitation system
Rigid PVC piping
Self draining pump and system
Soft Touch electronic on/off control with

30-min. integral timer

2.25 HP Single Speed Pump
Cable waste & overflow

Hydro Systems – Options:

Available as Tub only, Thermal Air,

Whirlpool or Combo

Microban Antibacterial Protection
Extra High Density Fiberglass
Flange molded
Skirt
Custom jet and pump locations
Plated Metallic finish
Additional directional Jets
Swirling, Rotating, or Jumbo Jets
Micro Therapy Jet
Integral Waste & Overflow

1.5 HP Variable Speed Pump (digital

temperature display optional)

Electronic low water protection
In-line Heater
Chromatherapy-LED Lighting System
Chromatherapy-LED Mini Spotlights
Mood Light

Grab Bars
Back Masseuse
Neck Masseuse Pillow
Hydro Fragrance
Hydro Fusion
Hydro Coat
Hydro Express quick ship

Approvals & Listings

Commonwealth of Massachusetts

UPC & USPC - US & Canada

Page 1 of 2

Hydro Systems, Inc.

29132 Avenue Paine, Valencia, CA 91355

Phone [phone] • Fax [phone]

[e-mail] • www.hydrosystem.com

Must be set in Mortar Base

AS SHOWN:
Whirlpool option w/ standard jets

ALSO AVAILABLE:
Soaking Tub Only,
Thermal Air, Combo

Must be set in mortar base.

Isabella

Model Gel Coat Acrylic A B C D E F G H I J K L Jets Pump Water Cap.

Model GC AC A B C D E F G H I J K L M Jet Pump Wat.Cap.

6036 N/A  59¾” 35¾” 8¼” 18” 2½” 2¼” 2¼” 22” 41½” 18¾” 1¾” 16¼” 1½” 6 2.25 50 gal.

6636 N/A  65¾” 35¾” 8½” 18” 2½” 2¼” 2¼” 22” 47½” 19” 1¾” 16½” 1½” 6 2.25 60 gal.

7236 N/A  71¾” 35¾” 8½” 18” 2½” 2¼” 2¼” 22” 53½” 18¾” 1¾” 16¼” 1½” 6 2.25

Amp Volt Breaker Dedicated Service

13.5 120 20 amp GFCI Protected

Disclaimer: Certain
options or altering
the pump/blower
location may cause
the pump/blower to
extend beyond the
tub decking.
For cutout dimen­sions wait for unit to
arrive.
All specifications
subject to change
without notice.

70 gal.

Island Drop-In 3 Wall Installation

Model (L)ength (W)idth (H)eigth Finish (L)ength (W)idth (H)eigth Ledger Moldel Flange

6036 57¾” 33¾” 18” 60” 36” 19½”

6636 63¾” 33¾” 18¼”

7236 69¾” 33¾”

18” 70” 36” 19½”

66” 36” 19¾”
