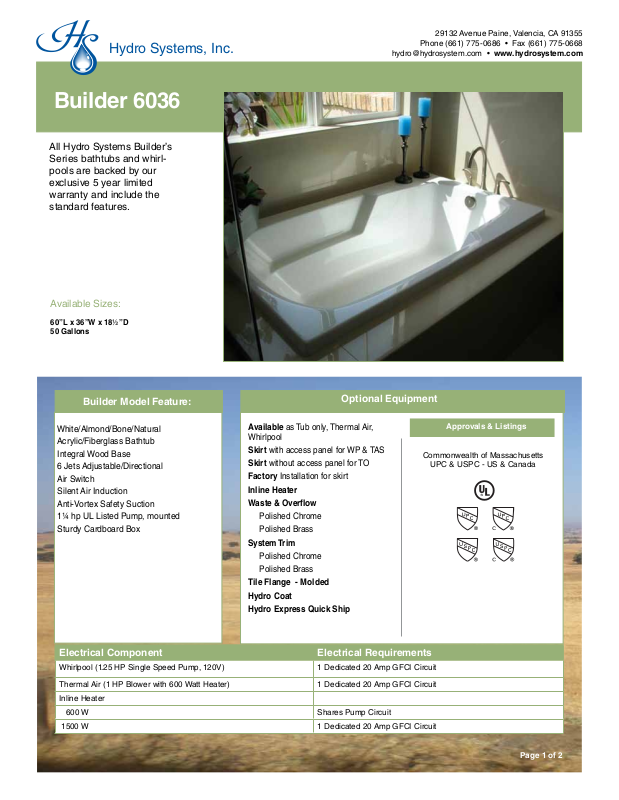

Hydro Systems, Inc.
Builder 6036
All Hydro Systems Builder’s
Series bathtubs and whirlpools are backed by our
exclusive 5 year limited
warranty and include the
standard features.
Available Sizes:
60”L x 36”W x 18½”D
50 Gallons
29132 Avenue Paine, Valencia, CA 91355
Phone (661) 775-0686 • Fax (661) 775-0668
hydro@hydrosystem.com • www.hydrosystem.com
Builder Model Feature:
Optional Equipment
White/Almond/Bone/Natural
Acrylic/Fiberglass Bathtub
Integral Wood Base
6 Jets Adjustable/Directional
Air Switch
Silent Air Induction
Anti-Vortex Safety Suction
1¼ hp UL Listed Pump, mounted
Sturdy Cardboard Box
Electrical Component Electrical Requirements
Whirlpool (1.25 HP Single Speed Pump, 120V) 1 Dedicated 20 Amp GFCI Circuit
Thermal Air (1 HP Blower with 600 Watt Heater) 1 Dedicated 20 Amp GFCI Circuit
Inline Heater
600 W Shares Pump Circuit
1500 W 1 Dedicated 20 Amp GFCI Circuit
Available as Tub only, Thermal Air,
Whirlpool
Skirt with access panel for WP & TAS
Skirt without access panel for TO
Factory Installation for skirt
Inline Heater
Waste & Overflow
Polished Chrome
Polished Brass
System Trim
Polished Chrome
Polished Brass
Tile Flange - Molded
Hydro Coat
Hydro Express Quick Ship
Approvals & Listings
Commonwealth of Massachusetts
UPC & USPC - US & Canada
Page 1 of 2
Hydro Systems, Inc.
Must be set in Mortar Base
29132 Avenue Paine, Valencia, CA 91355
Phone (661) 775-0686 • Fax (661) 775-0668
hydro@hydrosystem.com • www.hydrosystem.com
Builder 6036
Must be set in mortar base.
AS SHOWN:
Whirlpool option w/ standard jets
ALSO AVAILABLE:
Soaking Tub Only,
Thermal Air,
Model GC AC A B C D E F G H I J K L M Jet
6036 N/A √ 60” 36”
Island Drop-In 3 Wall Enclosure
Model (L)ength (W)idth (H)eigth Finish (L)ength (W)idth (H)eigth Ledger Molded
6036 58” 34”4”
18” 2¼” 2” 1½” 22½” 41” 18½” 1¾” 16” 1” 6
8¾”
Framing Dimensions
17¾”2½
60” 36” 19¼”
Pump Wat.Cap.
1.25 50 gal.
Disclaimer: Certain options or altering the pump/blower location may cause the pump/blower to extend beyond the tub decking.
For cutout dimensions wait for unit to arrive.
All specifications subject to change without notice.
Page 2 of 2
