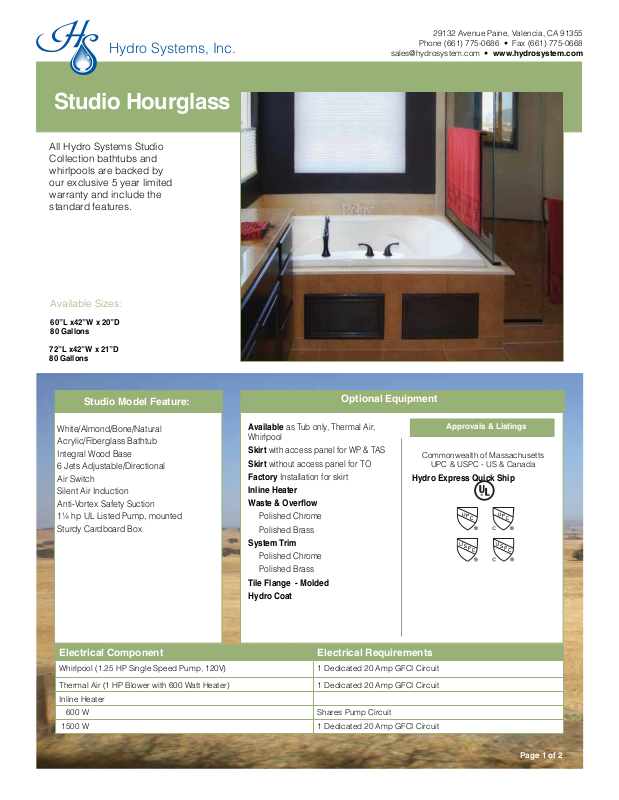

Hydro Systems HYDR1045 Specifications

Hydro Systems, Inc.

Studio Hourglass

All Hydro Systems Studio
Collection bathtubs and
whirlpools are backed by
our exclusive 5 year limited
warranty and include the
standard features.

Available Sizes:

60”L x42”W x 20”D
80 Gallons

29132 Avenue Paine, Valencia, CA 91355

Phone [phone] • Fax [phone]

[e-mail] • www.hydrosystem.com

72”L x42”W x 21”D
80 Gallons

Studio Model Feature:

White/Almond/Bone/Natural
Acrylic/Fiberglass Bathtub
Integral Wood Base
6 Jets Adjustable/Directional
Air Switch
Silent Air Induction
Anti-Vortex Safety Suction
1¼ hp UL Listed Pump, mounted
Sturdy Cardboard Box

Optional Equipment

Available as Tub only, Thermal Air,

Whirlpool

Skirt with access panel for WP & TAS
Skirt without access panel for TO
Factory Installation for skirt
Inline Heater

Waste & Overow

Polished Chrome
Polished Brass

System Trim
Polished Chrome

Polished Brass

Tile Flange - Molded
Hydro Coat

Approvals & Listings

Commonwealth of Massachusetts

UPC & USPC - US & Canada

Hydro Express Quick Ship

Electrical Component Electrical Requirements

Whirlpool (1.25 HP Single Speed Pump, 120V) 1 Dedicated 20 Amp GFCI Circuit

Thermal Air (1 HP Blower with 600 Watt Heater) 1 Dedicated 20 Amp GFCI Circuit

Inline Heater

600 W Shares Pump Circuit

1500 W 1 Dedicated 20 Amp GFCI Circuit

Page 1 of 2

Hydro Systems, Inc.

29132 Avenue Paine, Valencia, CA 91355

Phone [phone] • Fax [phone]

[e-mail] • www.hydrosystem.com

Must be set in Mortar Base

AS SHOWN:

Whirlpool option w/ standard jets

ALSO AVAILABLE:

Soaking Tub Only, Thermal Air,

Studio Hourglass

Must be set in mortar base.

Model GC AC A B C D E F G H I J K L M N Jet

6042 N/A √ 60” 42” 30” 10½” 2” 4½” 2¼” 40” 20½” 18” 25” 1¾” 25” 3¾” 6

7242 N/A √ 72” 42” 35½” 11½” 2¾” 6½” 2½” 50” 21½”

Framing Dimensions

Island Drop-In 3 Wall Enclosure

Model (L)ength (W)idth (H)eigth Finish (L)ength (W)idth (H)eigth Ledger Molded Flange

6042 58” 40” 19¾” 60” 42” 22¼”

7242 70” 40”4” 20¾” 72” 42” 22¼”

Disclaimer: Certain options or altering the pump/blower location may cause the pump/blower to extend beyond the tub decking.
For cutout dimensions wait for unit to arrive.

All specications subject to change without notice.

27” 1¾” 25” 3¾” 6

18¾”

Pump Wat.Cap.

1.25 80 gal.

1.25 85 gal.

Page 2 of 2
