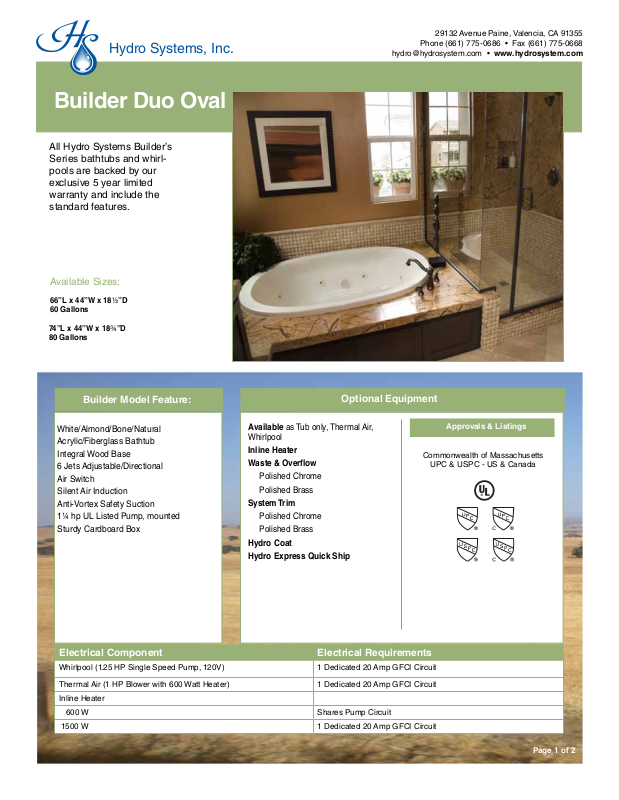

Hydro Systems HYDR1042 Specification sheet

Hydro Systems, Inc.

Builder Duo Oval

All Hydro Systems Builder’s
Series bathtubs and whirl­pools are backed by our
exclusive 5 year limited
warranty and include the
standard features.

Available Sizes:

66”L x 44”W x 18½”D
60 Gallons

29132 Avenue Paine, Valencia, CA 91355

Phone [phone] • Fax [phone]

[e-mail] • www.hydrosystem.com

74”L x 44”W x 18¾”D
80 Gallons

Builder Model Feature:

White/Almond/Bone/Natural
Acrylic/Fiberglass Bathtub
Integral Wood Base
6 Jets Adjustable/Directional
Air Switch
Silent Air Induction
Anti-Vortex Safety Suction
1¼ hp UL Listed Pump, mounted
Sturdy Cardboard Box

Optional Equipment

Available as Tub only, Thermal Air,

Whirlpool

Inline Heater
Waste & Overflow
Polished Chrome

Polished Brass

System Trim
Polished Chrome

Polished Brass

Hydro Coat
Hydro Express Quick Ship

Approvals & Listings

Commonwealth of Massachusetts

UPC & USPC - US & Canada

Electrical Component Electrical Requirements

Whirlpool (1.25 HP Single Speed Pump, 120V) 1 Dedicated 20 Amp GFCI Circuit

Thermal Air (1 HP Blower with 600 Watt Heater) 1 Dedicated 20 Amp GFCI Circuit

Inline Heater

600 W Shares Pump Circuit

1500 W 1 Dedicated 20 Amp GFCI Circuit

Page 1 of 2

Hydro Systems, Inc.

29132 Avenue Paine, Valencia, CA 91355

Phone [phone] • Fax [phone]

[e-mail] • www.hydrosystem.com

Must be set in Mortar Base

AS SHOWN:

Whirlpool option w/ standard jets

ALSO AVAILABLE:

Soaking Tub Only, Thermal Air,

Builder Duo Oval

Must be set in mortar base.

Model GC AC A B C D E F G H I J K L Jet Pump

6644 N/A √ 65½” 43¾” 12¾” 32¾” 4½” 3” 36” 18½” 1¾” 16” 26” 2¾” 8 1.25

7444 N/A √ 74¾” 44½” 12¾”

5” 3” 43” 18¾” 1¾” 16¼” 26” 2¾” 8 1.25

37⅜”

Framing Dimensions

Island Drop-In

Model (L)ength (W)idth (H)eigth Finish

6644 64” 42”4” 17¾”

7444 72” 42””” 18”

Disclaimer: Certain options or altering the pump/blower location may
cause the pump/blower to extend beyond the tub decking.
For cutout dimensions wait for unit to arrive.
All specifications subject to change without notice.

Wat.Cap.

60 gal.

80 gal.

Page 2 of 2
