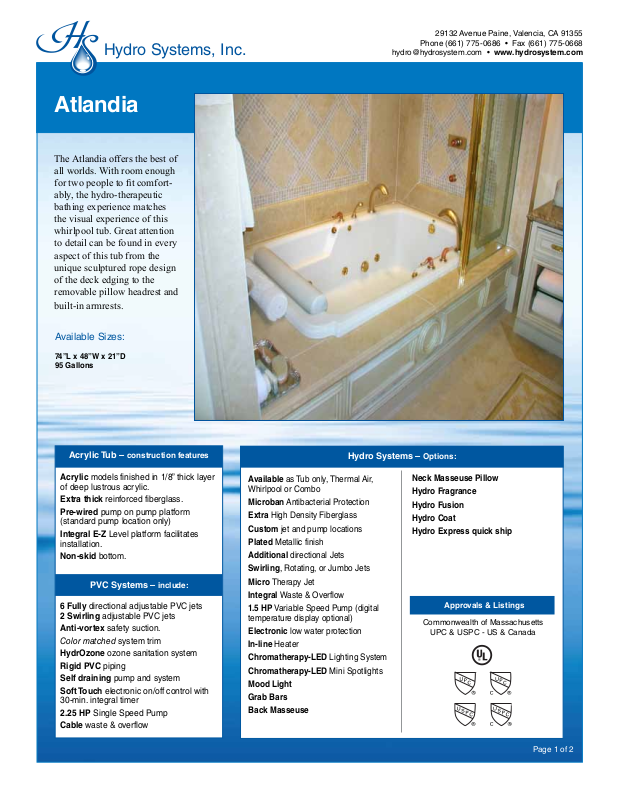

Hydro Systems HYDR1036, HYDR1035 Specification sheet

Hydro Systems, Inc.
Atlandia
The Atlandia offers the best of all worlds. With room enough
for two people to t comfort­ably, the hydro-therapeutic bathing experience matches the visual experience of this
whirlpool tub. Great attention
to detail can be found in every aspect of this tub from the unique sculptured rope design of the deck edging to the
removable pillow headrest and
built-in armrests.
29132 Avenue Paine, Valencia, CA 91355
Phone (661) 775-0686 • Fax (661) 775-0668
hydro@hydrosystem.com • www.hydrosystem.com
Available Sizes:
74”L x 48”W x 21”D 95 Gallons
Acrylic Tub – construction features
Acrylic models finished in 1/8” thick layer
of deep lustrous acrylic.
Extra thick reinforced fiberglass. Pre-wired pump on pump platform
(standard pump location only) Integral E-Z Level platform facilitates
installation.
Non-skid bottom.
PVC Systems – include:
Anti-vortex safety suction.
Color matched system trim
HydrOzone ozone sanitation system Rigid PVC piping Self draining pump and system Soft Touch electronic on/off control with
30-min. integral timer
2.25 HP Single Speed Pump Cable waste & overflow
Hydro Systems – Options:
Available as Tub only, Thermal Air,
Whirlpool or Combo
Microban Antibacterial Protection Extra High Density Fiberglass Custom jet and pump locations Plated Metallic finish Additional directional Jets Swirling, Rotating, or Jumbo Jets Micro Therapy Jet Integral Waste & Overflow
1.5 HP Variable Speed Pump (digital
temperature display optional)
Electronic low water protection In-line Heater Chromatherapy-LED Lighting System Chromatherapy-LED Mini Spotlights Mood Light Grab Bars Back Masseuse
Neck Masseuse Pillow Hydro Fragrance Hydro Fusion Hydro Coat Hydro Express quick ship
Approvals & Listings
Commonwealth of Massachusetts
UPC & USPC - US & Canada
Page 1 of 2
Hydro Systems, Inc.
Must be set in Mortar Base
29132 Avenue Paine, Valencia, CA 91355
Phone (661) 775-0686 • Fax (661) 775-0668
hydro@hydrosystem.com • www.hydrosystem.com
Atlandia
Edge Detail
AS SHOWN:
Whirlpool option w/ standard jets
ALSO AVAILABLE:
Soaking Tub Only, Thermal Air, Combo
Model GC AC A B C D E F G H I J K L M Jet Pump
7448 N/A 74” 48” 9” 24” 1¾” 3½” 3½” 32” 53” 21” 1¾” 2¾” 18½” 6 Std/
2 Swirl’g
Amps Volts Breaker
13.5 120 20 amp GFCI Protected 95 gal.
Dedicated Service Wat.Cap.
Island Drop-In
Model (L)ength (W)idth (H)eigth Finish
7448 72” 46” 20¼”
K
2.25
Disclaimer: Certain options or altering the pump/blower location may cause the pump/blower to extend beyond the tub decking. For cutout dimensions wait for unit to arrive. All specifications subject to change without notice.
Page 2 of 2
