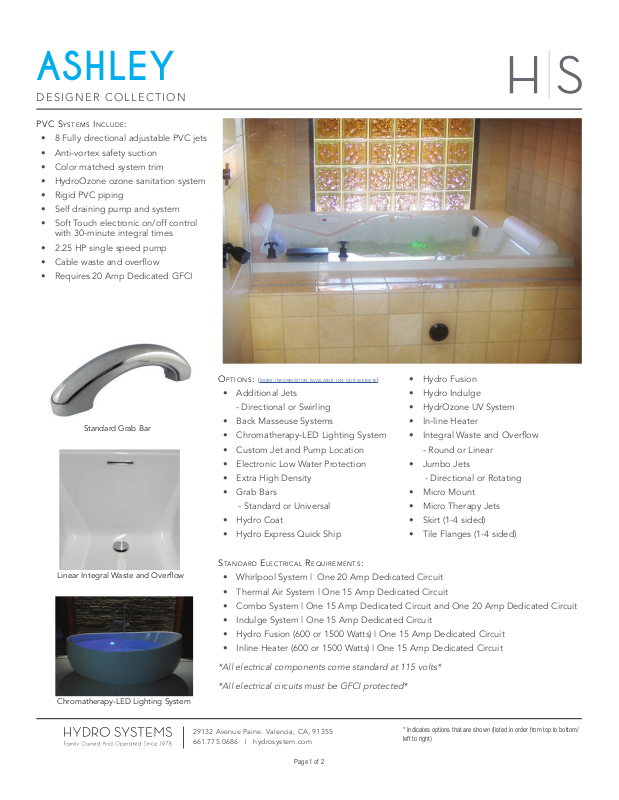

ASHLEY
DESIGNER COLLECTION
PVC Sy St em S In Cl ud e:
• 8 Fully directional adjustable PVC jets
• Anti-vortex safety suction
• Color matched system trim
• HydroOzone ozone sanitation system
• Rigid PVC piping
• Self draining pump and system
• Soft Touch electronic on/off control
with 30-minute integral times
• 2.25 HP single speed pump
• Cable waste and overow
• Requires 20 Amp Dedicated GFCI
Standard Grab Bar
Linear Integral Waste and Overow
OP tI On S: ( mOr e In fOrm atIOn aVaI labl e On Our web SIte )
• Additional Jets
- Directional or Swirling
• Back Masseuse Systems
• Chromatherapy-LED Lighting System
• Custom Jet and Pump Location
• Electronic Low Water Protection
• Extra High Density
• Grab Bars
- Standard or Universal
• Hydro Coat
• Hydro Express Quick Ship
Sta nd ar d el eC tr IC al req uI re me nt S:
• Whirlpool System | One 20 Amp Dedicated Circuit
• Thermal Air System | One 15 Amp Dedicated Circuit
• Combo System | One 15 Amp Dedicated Circuit and One 20 Amp Dedicated Circuit
• Indulge System | One 15 Amp Dedicated Circuit
• Hydro Fusion (600 or 1500 Watts) | One 15 Amp Dedicated Circuit
• Inline Heater (600 or 1500 Watts) | One 15 Amp Dedicated Circuit
*All electrical components come standard at 115 volts*
• Hydro Fusion
• Hydro Indulge
• HydrOzone UV System
• In-line Heater
• Integral Waste and Overow
- Round or Linear
• Jumbo Jets
- Directional or Rotating
• Micro Mount
• Micro Therapy Jets
• Skirt (1-4 sided)
• Tile Flanges (1-4 sided)
Chromatherapy-LED Lighting System
*All electrical circuits must be GFCI protected*
29132 Avenue Paine. Valencia, CA, 91355
661.775.0686 | hydrosystem.com
Page 1 of 2
* Indicates options that are shown (listed in order from top to bottom/
left to right)
ASHLEY
DESIGNER COLLECTION
aS ShO wn :
Whirlpool option with standard jet
location
fe atu re S Sh Ow n:
• Jets
• Overflow location
al SO aVaI la bl e:
• Soaking tub only
• Thermal Air
• Combo
ba Ck Sl OP e:
40 Degrees
wat er CaPa CI ty :
90 Gallons
*Tub must be set in mortar base*
we Ig ht :
105 - 145 Pounds depending on system
dr OP -In In St al la tI On dIm en SI On S:
• (L)ength- 70”
• (W)idth- 46”
• (H)eight- 17-1/4”
3-wa ll InS ta ll at IO n dI me nS IO nS :
• (L)ength- 72”
• (W)idth- 48”
• Top of Ledger- 18-1/4”
In Sta ll atI On tIP S:
• When adding integral linear drain
p-trap location is now below waste
• Adding multiple systems/options may
require equipment to stick out from
tub deck or be installed remotely
CODES AND COMPLIANCES
Massachusetts code File no: P1-0614-491
aCrylIC tub
• Acrylic models nished in 1/8” thick layer of deep lustrous acrylic
• Pre-wired pump on pump platform (standard pump location only)
• Integral E-Z level platform facilitates installation
• Micro mount reduces lip height by approximately 3/8” to 5/8”
• Micro mount requires increase in framing height by an additional 1-1/4”
72
6
Pump/
Blower
7.5
35
48
18
14
15.5
19
11
21
6
37
33
53
3
40°
29132 Avenue Paine. Valencia, CA, 91355
661.775.0686 | hydrosystem.com
Page 2 of 2
All specications and options subject to change without notice please
contact a Hydro Systems representative for more information.
Certain options or altering the pump/blower location may cause
the pump/blower to extend beyond the tub decking. For cutout
dimensions wait for unit to arrive. All specications subject to change
without notice.
