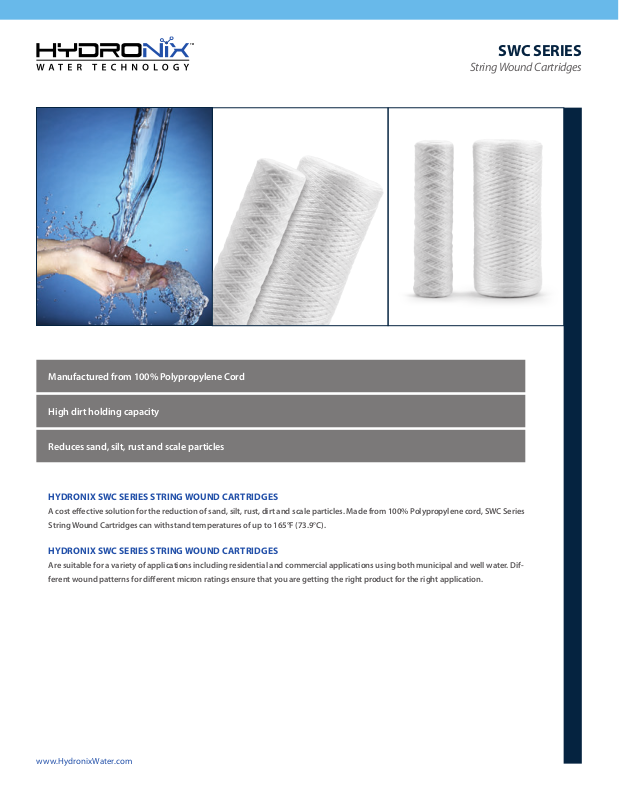

SWC SerieS
String Wound Cartridges
Manufactured from 100% Polypropylene Cord
High dirt holding capacity
Reduces sand, silt, rust and scale particles
Hydronix SWC SerieS String Wound CartridgeS
A cost eective solution for the reduction of sand, silt, rust, dirt and scale particles. Made from 100% Polypropylene cord, SWC Series
String Wound Cartridges can withstand temperatures of up to 165°F (73.9°C).
Hydronix SWC SerieS String Wound CartridgeS
Are suitable for a variety of applications including residential and commercial applications using both municipal and well water. Dif-
ferent wound patterns for dierent micron ratings ensure that you are getting the right product for the right application.
www.HydronixWater.com
Page 2
SWC SerieS
String Wound Cartridges
2.5” DIAMETER SPECIFICATIONS
Part Number Description Micron Rating
SWC-25-1001 2.5” x 10” 1
SWC-25-1005 2.5” x 10” 5
SWC-25-1010 2.5” x 10” 10
SWC-25-1020 2.5” x 10” 20
SWC-25-1030 2.5” x 10” 30
SWC-25-1050 2.5” x 10” 50
SWC-25-10100 2.5” x 10” 100
SWC-25-2001 2.5” x 20” 1
SWC-25-2005 2.5” x 20” 5
SWC-25-2010 2.5” x 20” 10
SWC-25-2020 2.5” x 20” 20
SWC-25-2030 2.5” x 20” 30
SWC-25-2050 2.5” x 20” 50
SWC-25-20100 2.5” x 20” 100
SWC-25-3001 2.5” x 30” 1
SWC-25-3005 2.5” x 30” 5
SWC-25-3010 2.5” x 30” 10
SWC-25-3020 2.5” x 30” 20
SWC-25-3030 2.5” x 30” 30
SWC-25-3050 2.5” x 30” 50
SWC-25-30100 2.5” x 30” 100
SWC-25-4001 2.5” x 40” 1
SWC-25-4005 2.5” x 40” 5
SWC-25-4010 2.5” x 40” 10
SWC-25-4020 2.5” x 40” 20
SWC-25-4030 2.5” x 40” 30
SWC-25-4050 2.5” x 40” 50
SWC-25-40100 2.5” x 40” 100
4.5” DIAMETER SPECIFICATIONS
Part Number Description Micron Rating
SWC-45-1001 4.5” x 10” 1
SWC-45-1005 4.5” x 10” 5
SWC-45-1010 4.5” x 10” 10
SWC-45-1020 4.5” x 10” 20
SWC-45-1030 4.5” x 10” 30
SWC-45-1050 4.5” x 10” 50
SWC-45-10100 4.5” x 10” 100
SWC-45-2001 4.5” x 20” 1
SWC-45-2005 4.5” x 20” 5
SWC-45-2010 4.5” x 20” 10
SWC-45-2020 4.5” x 20” 20
SWC-45-2030 4.5” x 20” 30
SWC-45-2050 4.5” x 20” 50
SWC-45-20100 4.5” x 20” 100
Materials of Construction
Filter Media: Polypropylene Fiber Cord
Core: Polypropylene
Temperature Range: 40°F to 165°F (4.4°C to 73.9°C)
SWC Series Sediment Cartridges
100
90
80
70
60
50
40
30
PERCENT EFFICIENCY*
20
10
0
10
20 30 40 50
PARTICLE SIZE (MICRONS)
WARNING: Do not use with water that is microbiologically unsafe or of
unknown quality without adequate disinfection before or after the system.
* Special lengths and diameters available.
SWC-25-1030
SWC-25-1010
HYDRONIX WATER TECHNOLOGY
P.O. Box 2235 Chino Hills, CA 91709 | USA
[email protected] • www.HydronixWater.com
