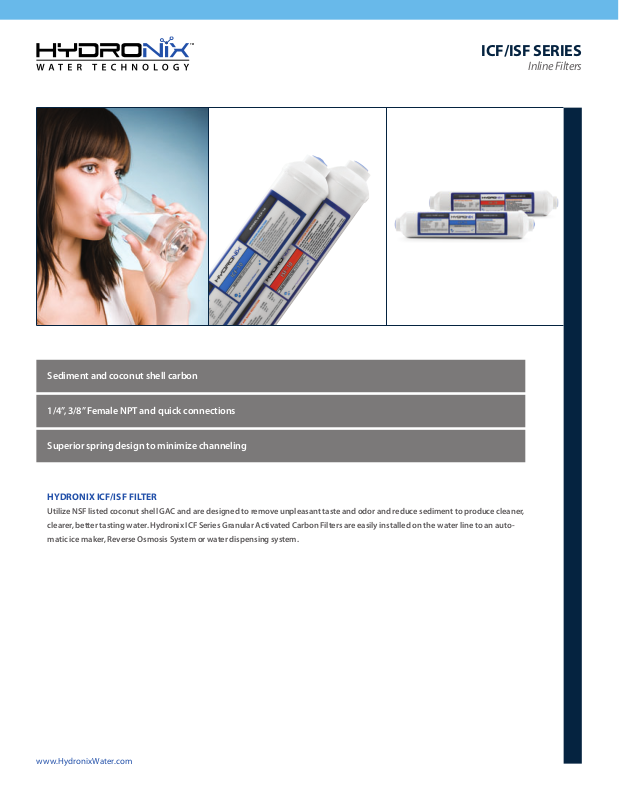

Hydronix BDRO1081 Specifications

ICF/ISF SeRIeS

Inline Filters

Sediment and coconut shell carbon

1/4”, 3/8” Female NPT and quick connections

Superior spring design to minimize channeling

HYDRONIX ICF/ISF FIlteR

Utilize NSF listed coconut shell GAC and are designed to remove unpleasant taste and odor and reduce sediment to produce cleaner,

clearer, better tasting water. Hydronix ICF Series Granular Activated Carbon Filters are easily installed on the water line to an auto-

matic ice maker, Reverse Osmosis System or water dispensing system.

www.HydronixWater.com

ICF/ISF SeRIeS

ISF-10ICF-10

Inline Filters

Chlorine Taste & Odor Reduction

Coconut Shell Carbon

Service Life 1 yr or 2000 gal (7570 L)

Maximum Flow .50 GPM (1.9 LPM)

Maximum Pressure 125 PSI (8.6 BAR)

Maximum Temperature 100°F (38°C)

Minimum Temperature 35°F (2°C)

Materials of Construction

Shell: Polypropylene
Media: Coconut Shell Carbon
Inner Pads: Polypropylene

ICF/ISF SpeCIFICatIONS

2” DIAMETER SPECIFICATIONS

Part

Number

ICF-6 Hydronix Inline Coconut Filter: 1,000 Gallon, 2” x 6”, 1/4” FNPT

ICF-6Q Hydronix Inline Coconut Filter: 1,000 Gallon, 2” x 6”, 1/4” Hydrot™ QC

ICF-10 Hydronix Inline Coconut Filter: 2,000 Gallon, 2” x 10”, 1/4” FNPT

ICF-10Q Hydronix Inline Coconut Filter: 2,000 Gallon, 2” x 10”, 1/4” Hydrot™ QC

ICF-10Q38 Hydronix Inline Coconut Filter: 2,000 Gallon, 2” x 10”, 3/8” Hydrot™ QC

ISF-10 Hydronix Inline Sediment Filter: 2”x 10”, 1/4” FNPT

2.5” DIAMETER SPECIFICATIONS

Part Number Description

ICF-2512 Hydronix Inline Coconut Filter: 3,500 Gallon, 2.5” x 12”, 1/4” FNPT

ISF-2512 Hydronix Inline Sediment Filter: 2.5” x 12”, 1/4” FNPT

Description

Dirt & Sand Reduction

Service Life: Applications vary

Maximum Flow: .50 GPM (1.9 GPM)

Maximum Pressure: 125 PSI (8.6 BAR)

Maximum Temp: 100°F (38°C)

Minimum Temp: 35°F (2°C)

Micron Rating: 5M

Materials of Construction

Shell: Polypropylene
Media: Polypropylene

Available Port Sizes

• 1/4” Female NPT Basic

• 3/8” Female NPT Basic

• 1/4” Quick Connect

• 3/8” Quick Connect

Applications

• Ice makers

• Reverse osmosis systems

• Coee makers

• Refrigerators

• Water Coolers

WARNING: Do not use with water that is microbiologically unsafe or of
unknown quality without adequate disinfection before or after the system.

HYDRONIX WATER TECHNOLOGY

P.O. Box 2235 Chino Hills, CA 91709 | USA

[email protected] • www.HydronixWater.com
