Engineering Data and

Installation Manual

WT MODELS WATER-TO-WATER HEAT PUMPS & HYDRONIC AIR HANDLERS

REVISION: B

20D082-08NN

Page 2

Page 3

Table of Contents:

Section 1: Model Nomenclature

Model Nomenclature................................................................................................................4 - 5

Section 2: Installation Introduction

Introduction, Pre-Installation, Components ............................................................................6 - 7

Section 3: Installation Considerations

Installation Considerations .............................................................................................................8

Heating Mode Operation Considerations...................................................................................9

Buffer Tank Sizing and Usage.......................................................................................................10

Section 4: Installation

Unit and Air Handler Placement ..................................................................................................11

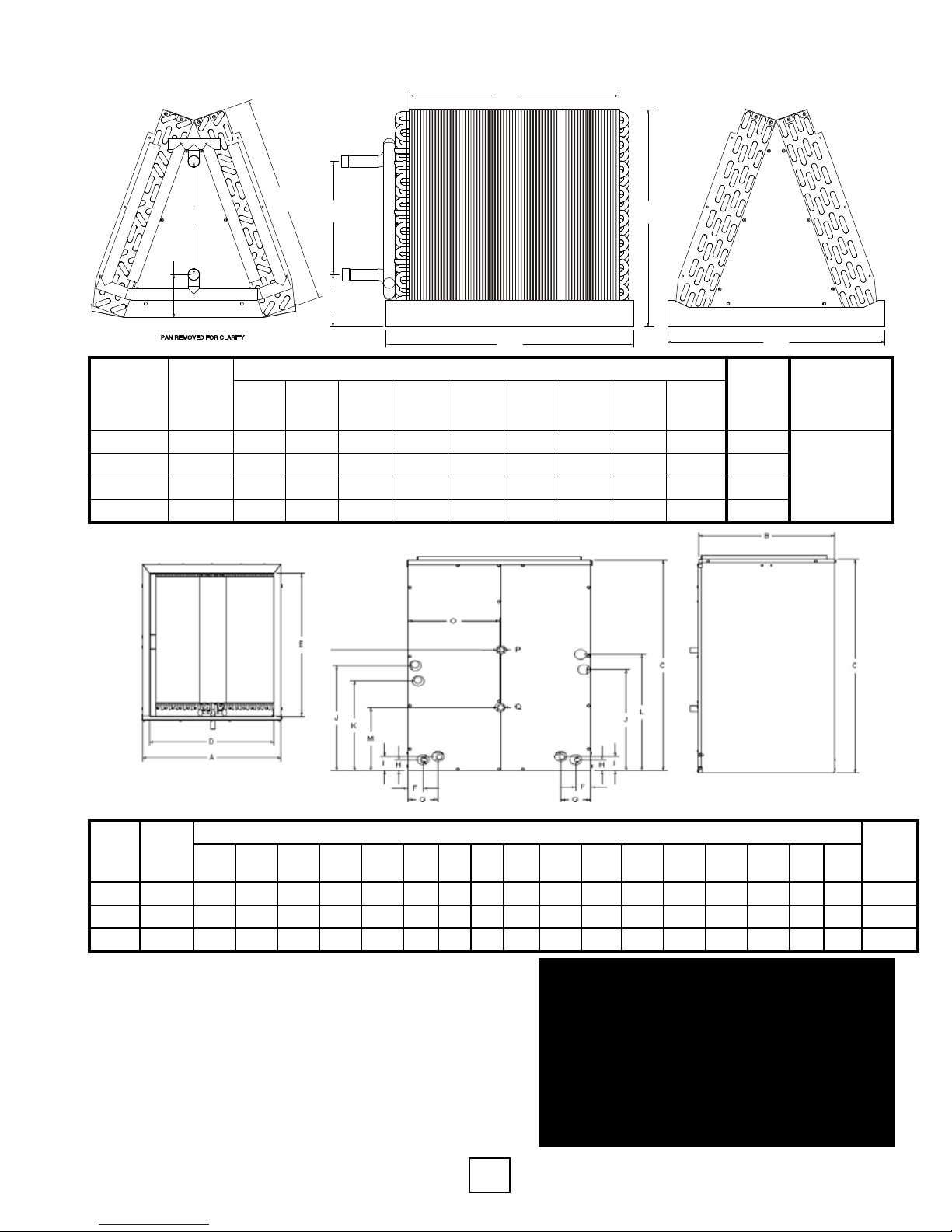

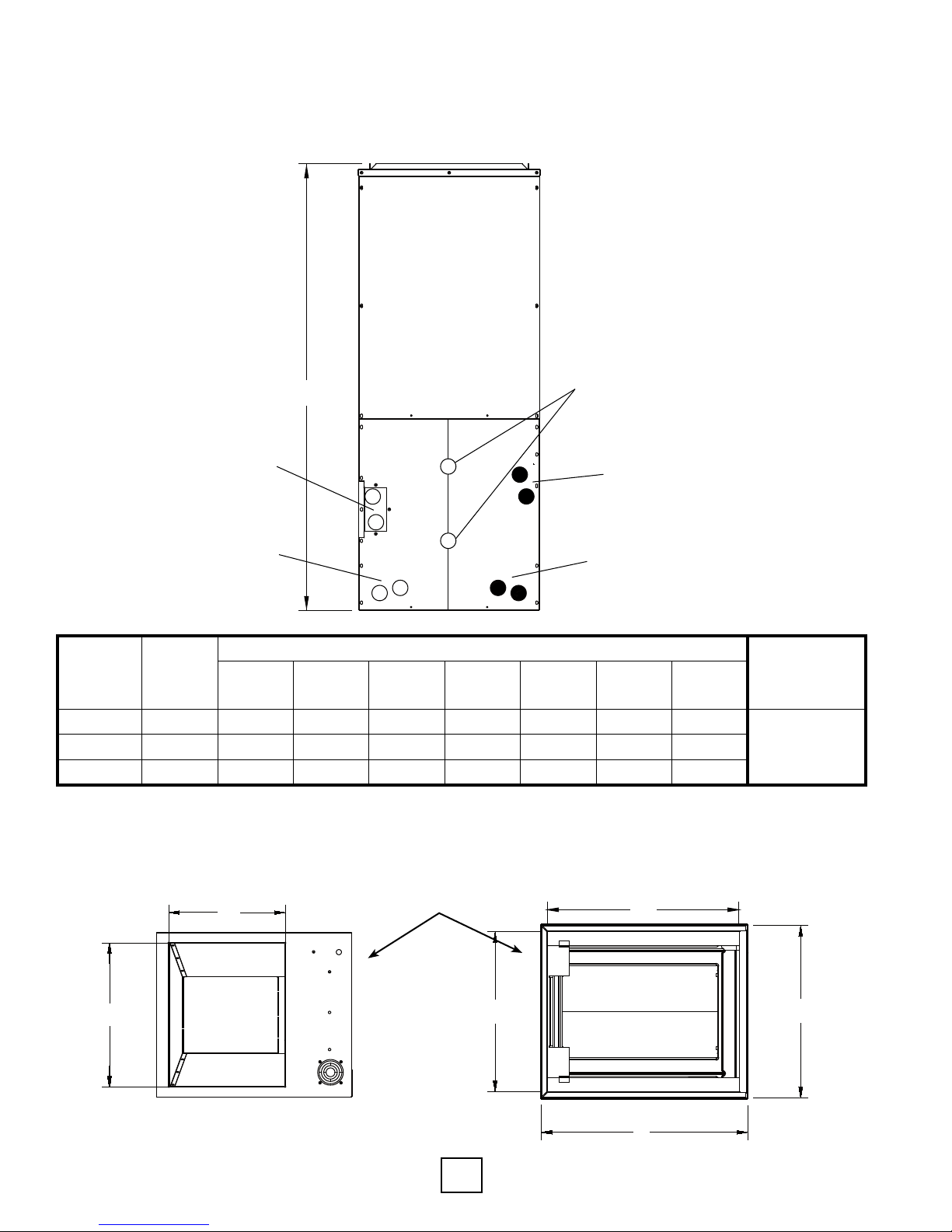

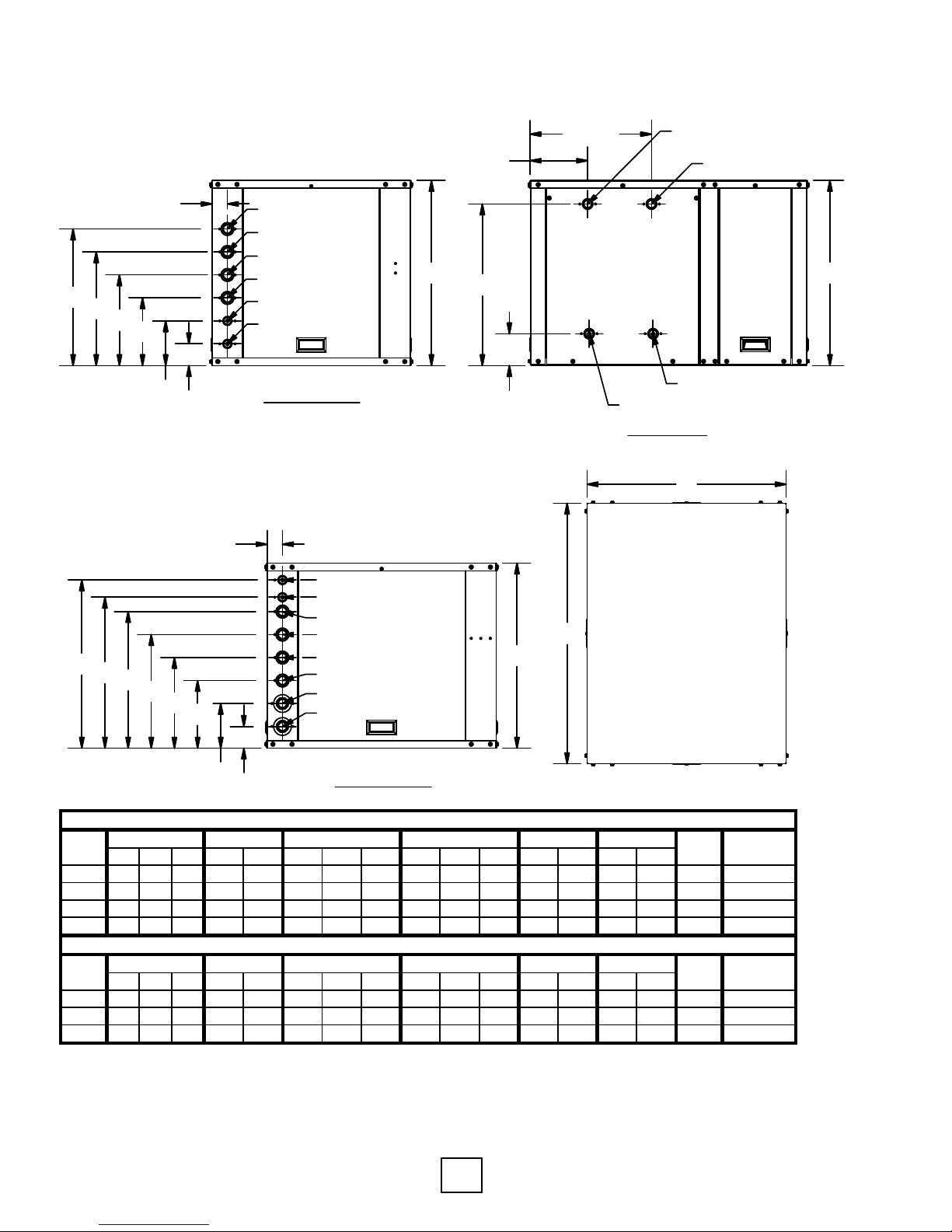

Unit Dimensional Data ...........................................................................................................12 - 14

(Water-to-Water Units, Hydronic Air Handlers/”A” Coils)

Section 5: Unit Piping Installation

Interior Piping, Water Quality .................................................................................................15 - 19

Section 6: Antifreeze

Overview ..................................................................................................................................20 - 21

Anitfreeze Charging ......................................................................................................................22

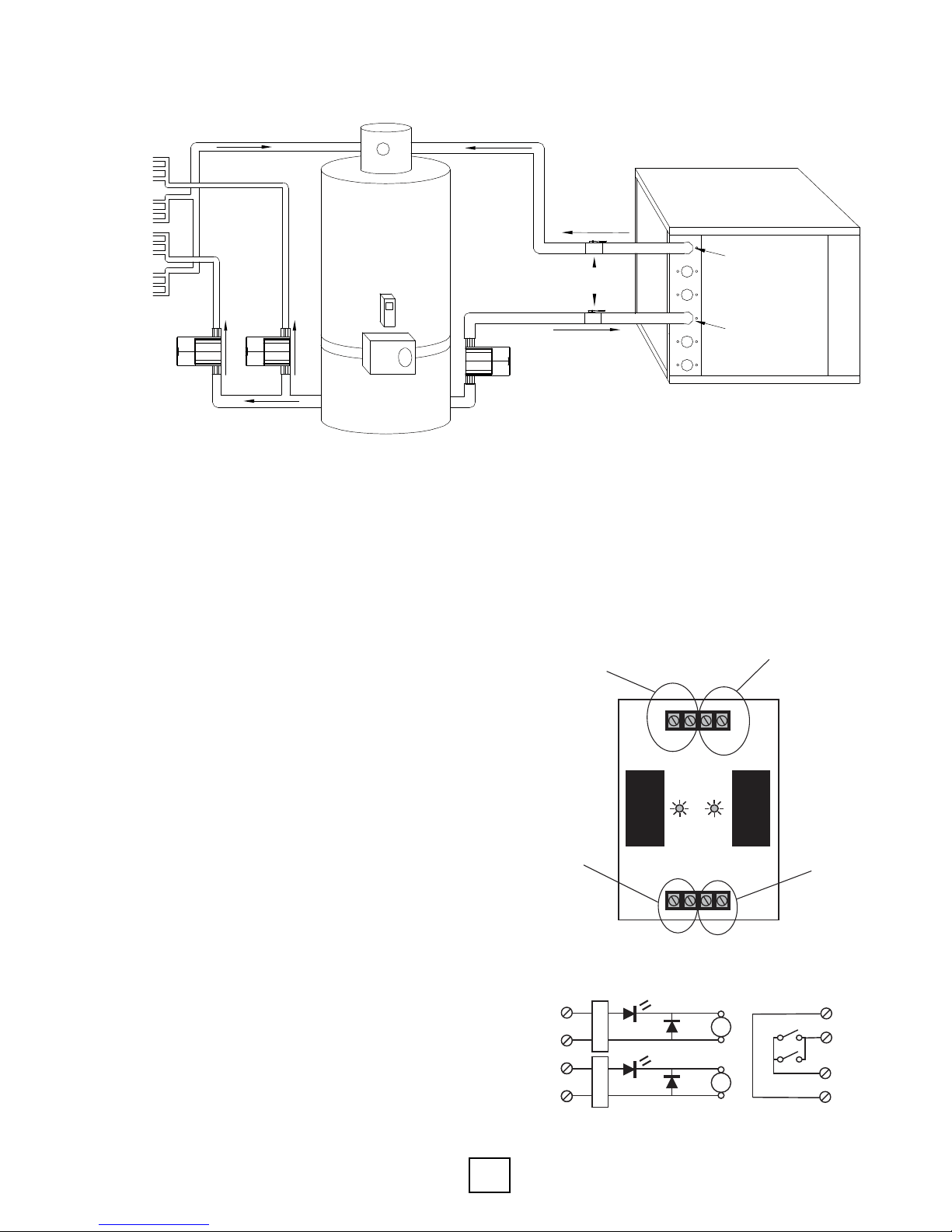

Section 7: Desuperheater Installation

Installation ...............................................................................................................................23 - 25

Section 8: Controls

Controls....................................................................................................................................26 - 29

Hydronic Air Handler Airow Settings ...........................................................................................30

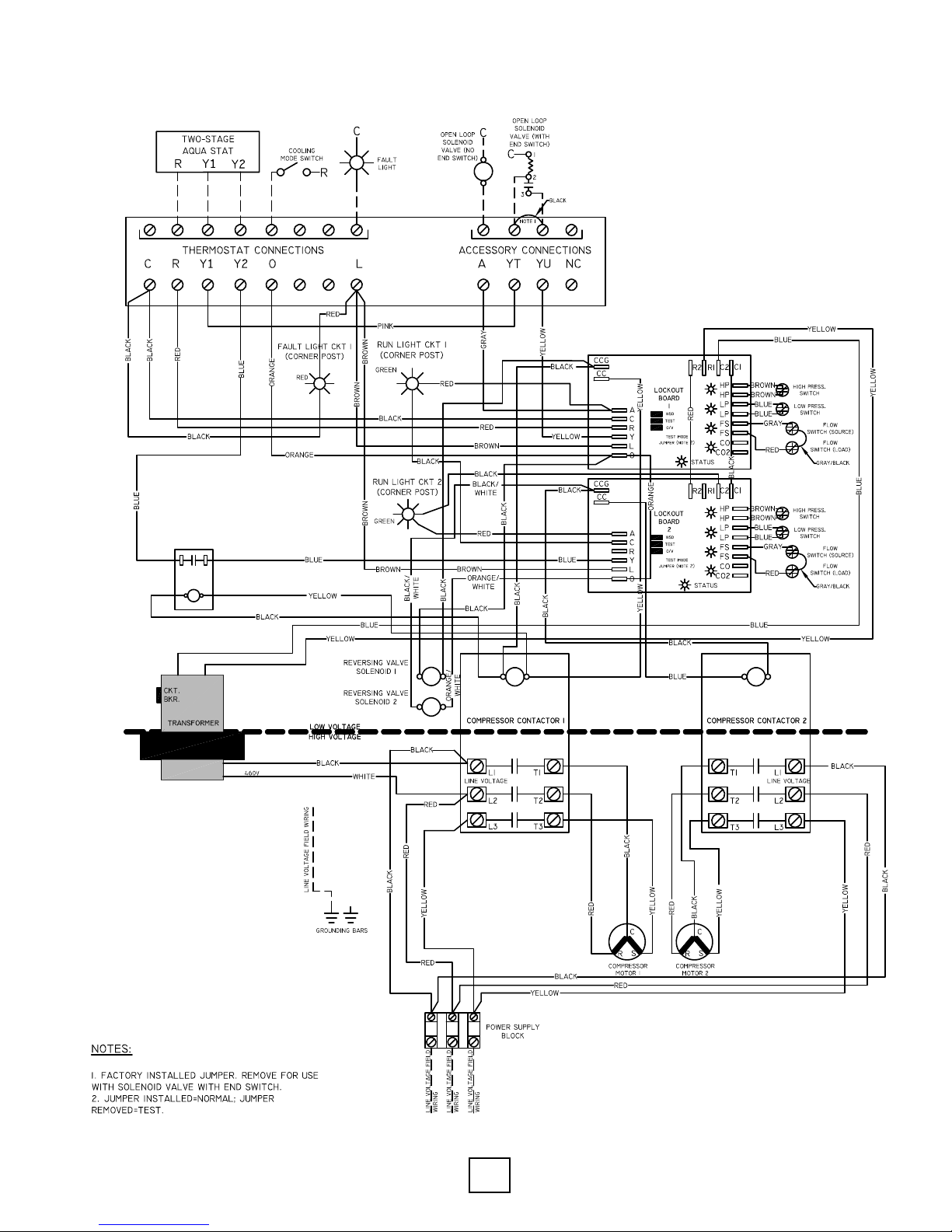

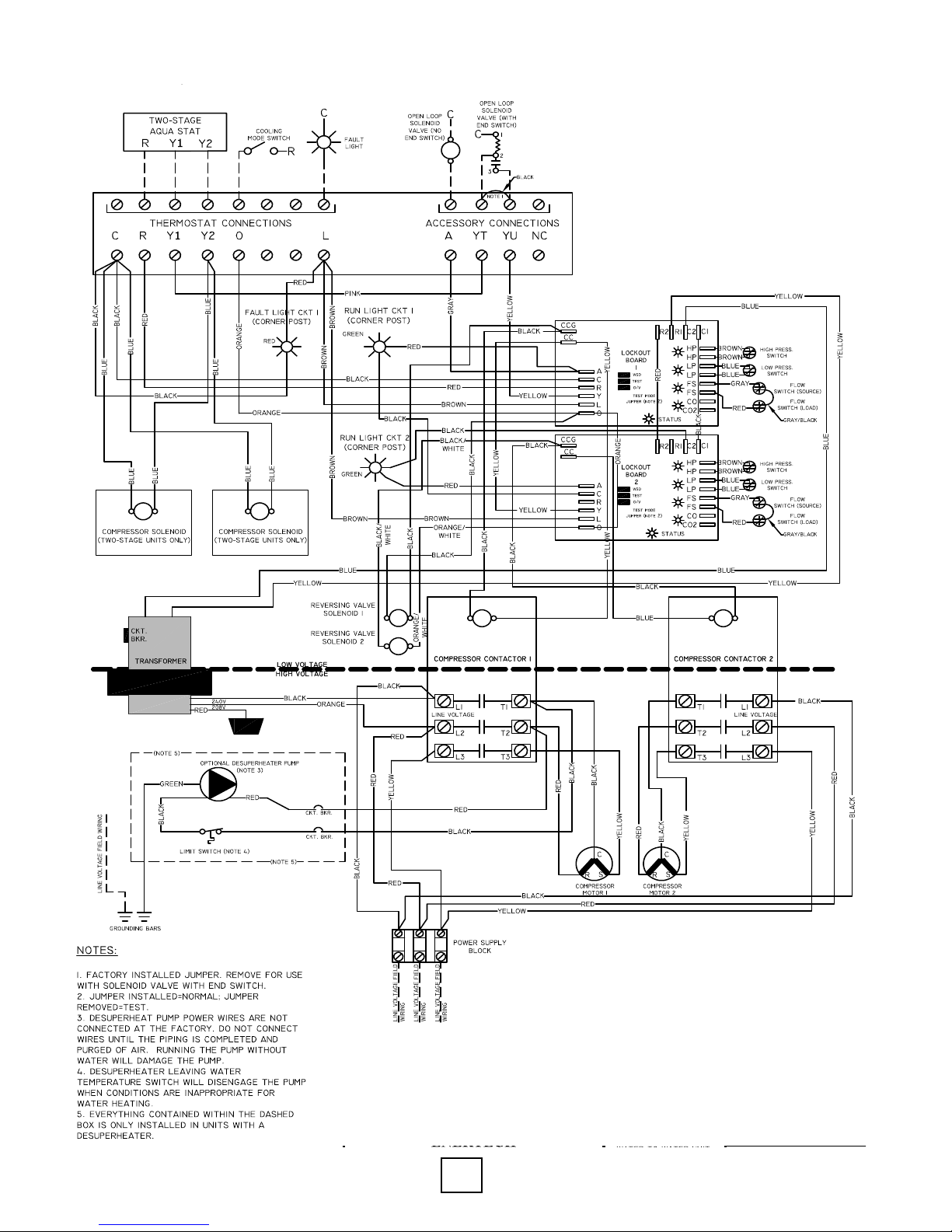

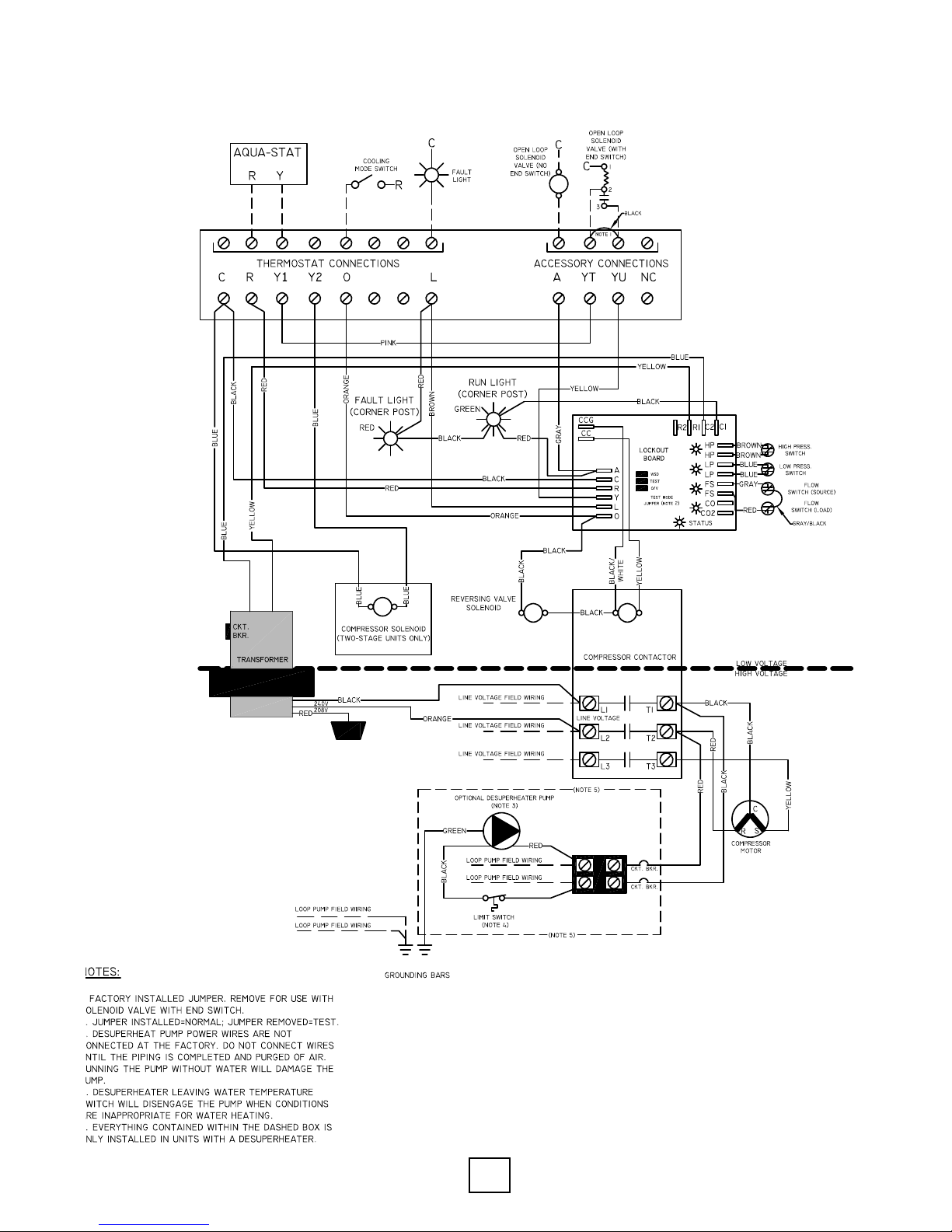

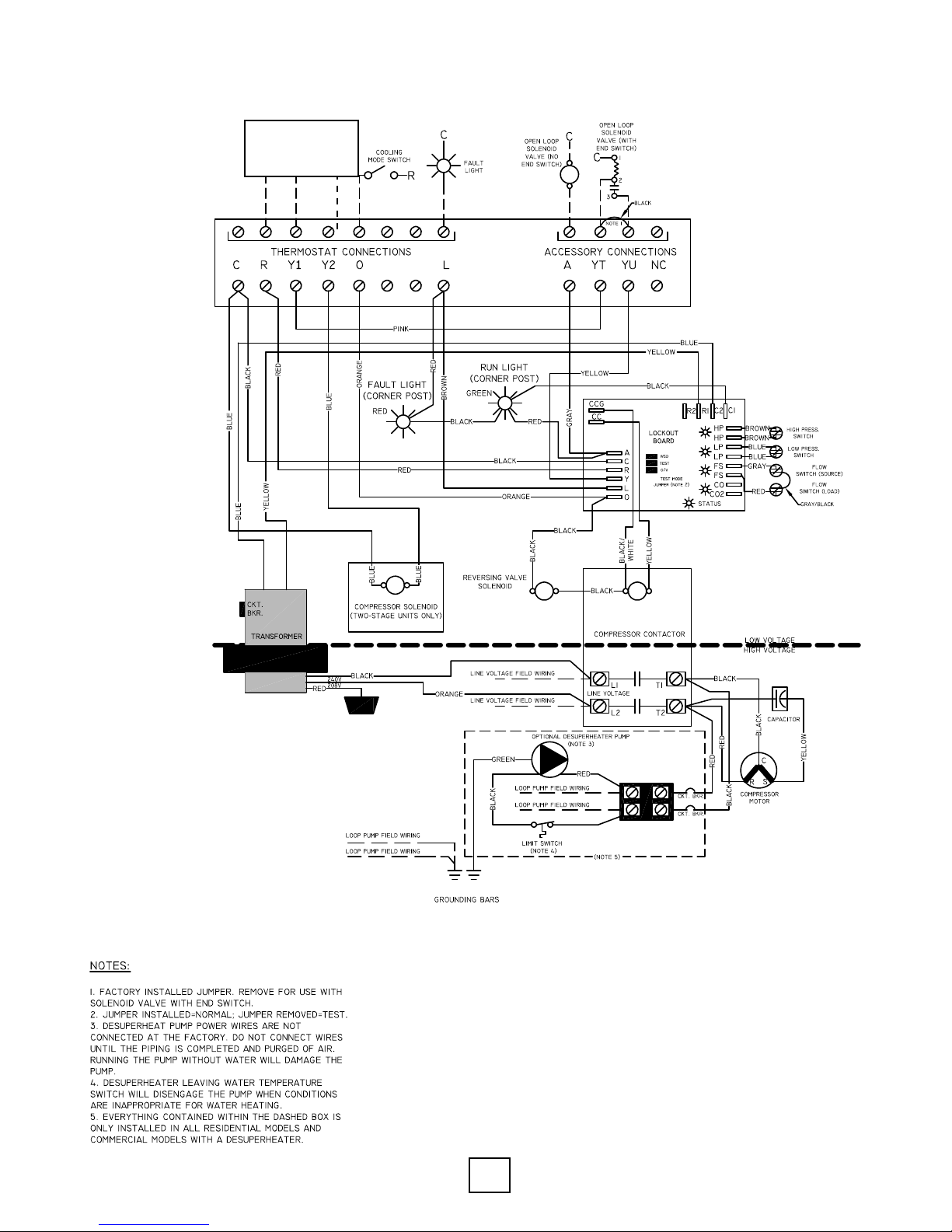

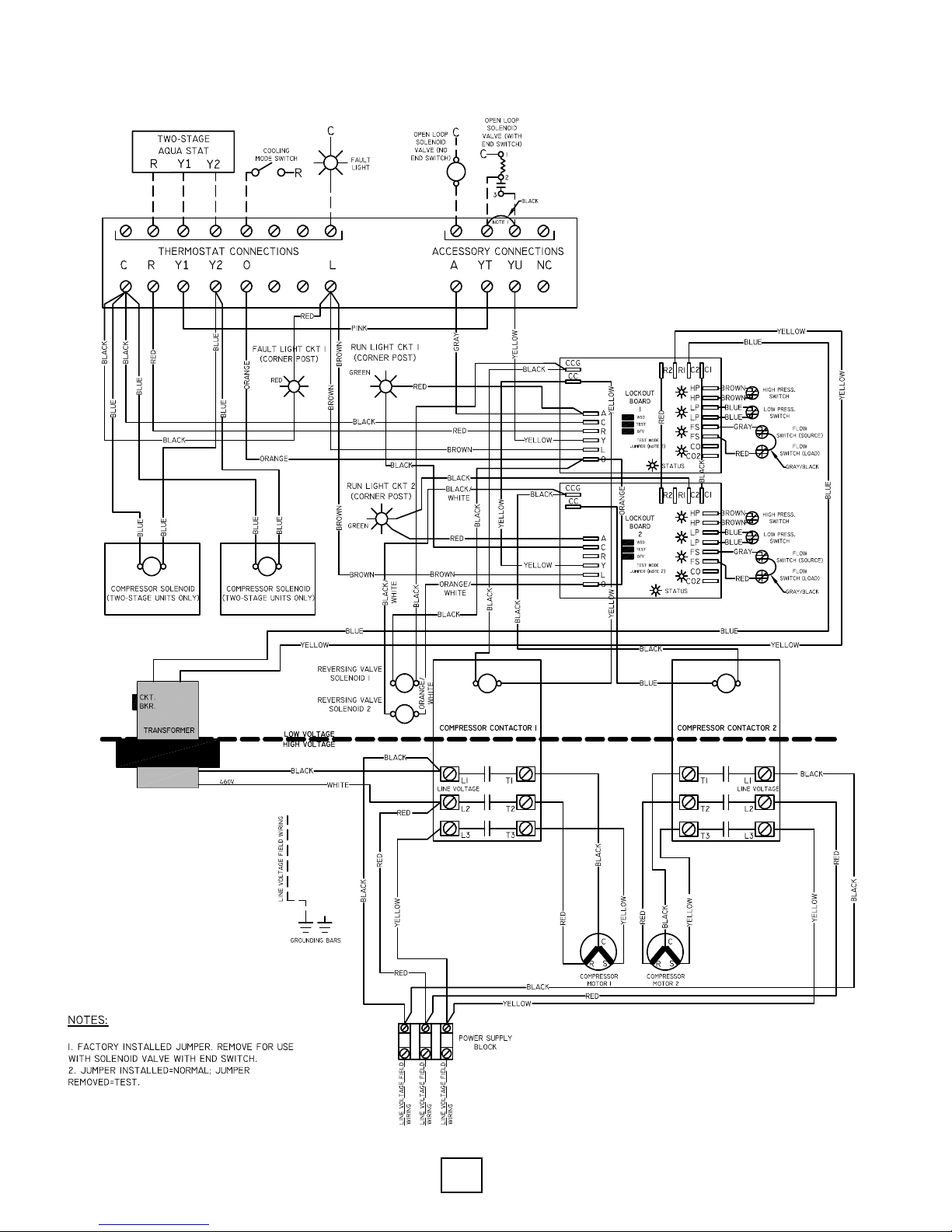

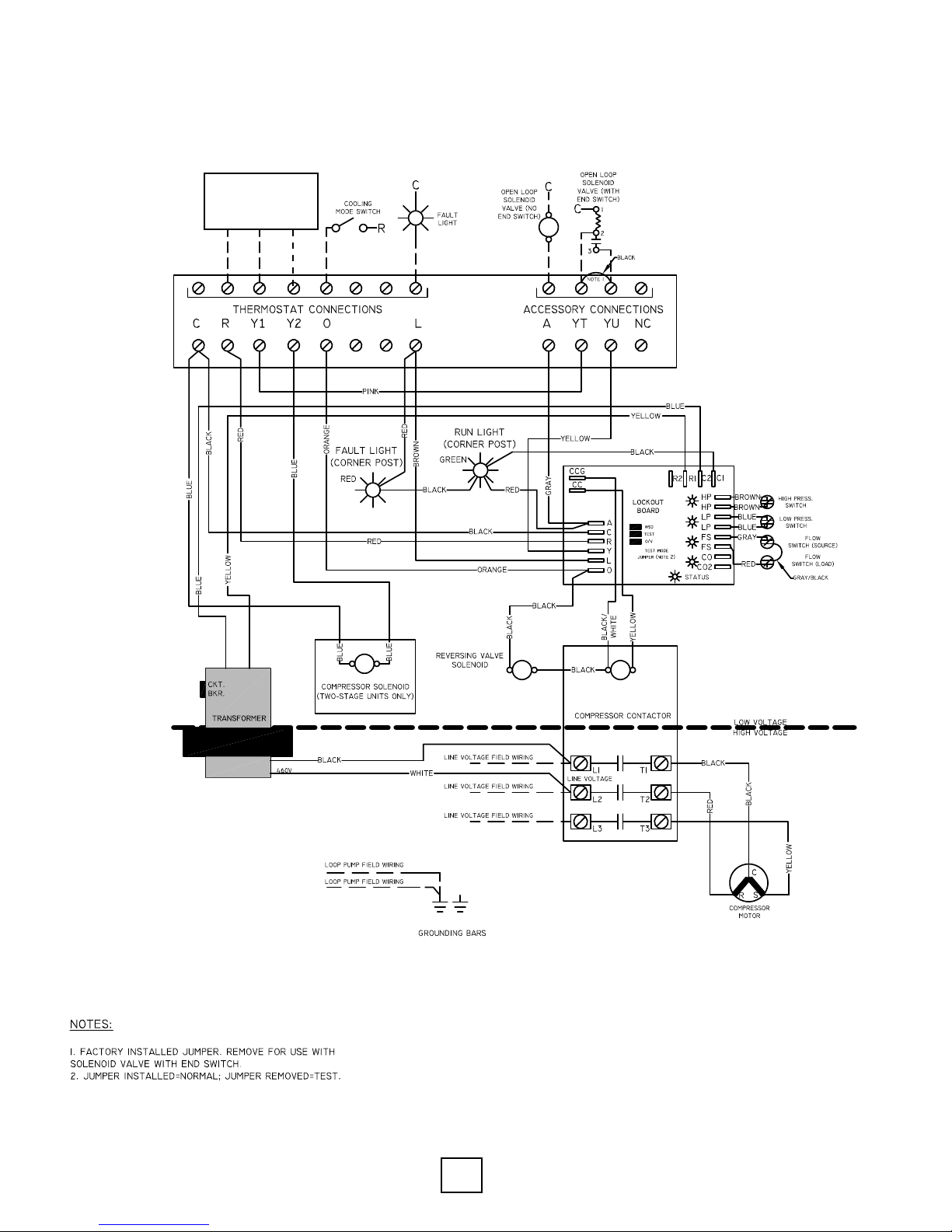

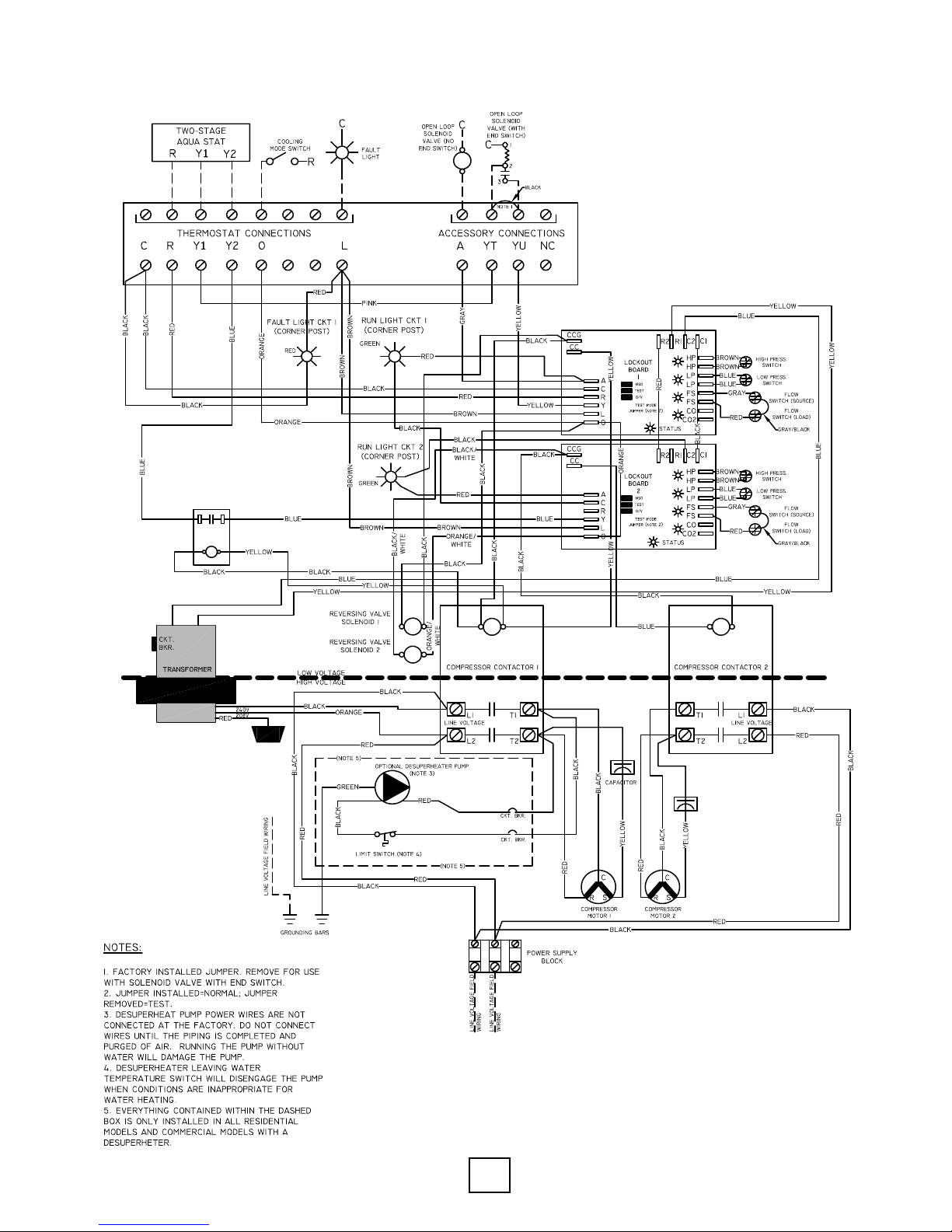

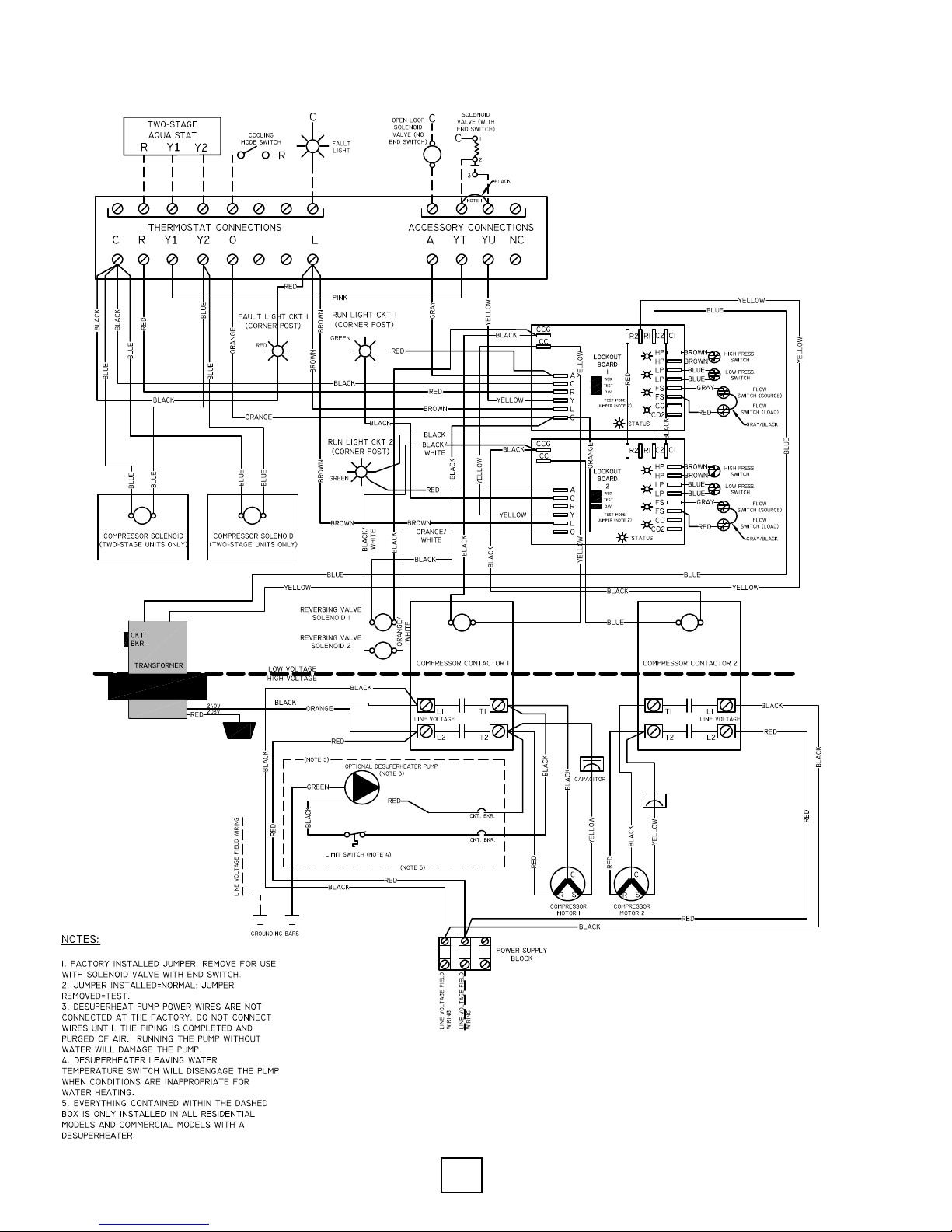

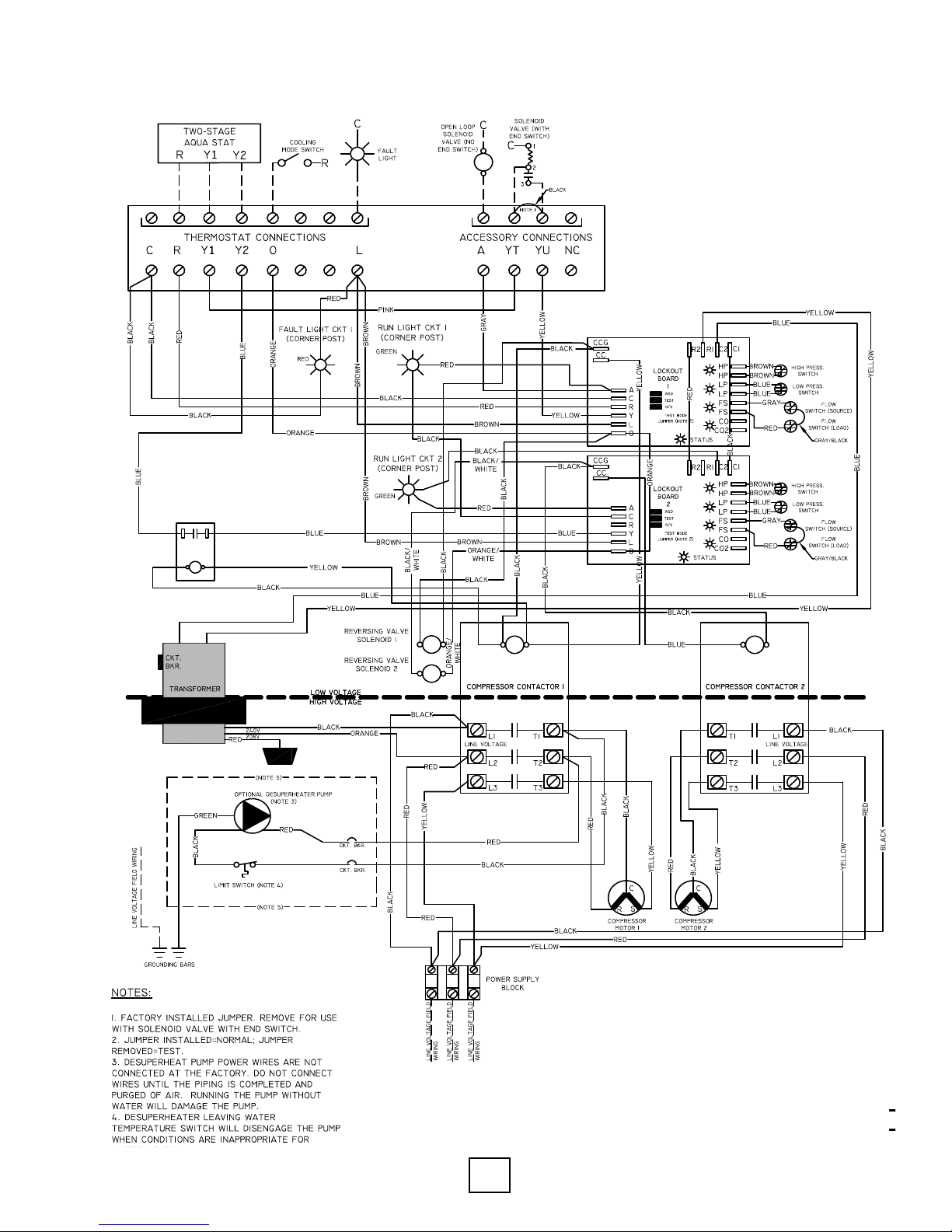

Wiring Diagrams ......................................................................................................................31 - 39

Section 9: Equipment Start-Up Procedures

Equipment Start-Up Checklist and Form..............................................................................40 - 41

Section 10: Troubleshooting

Troubleshooting Guide..........................................................................................................42 - 45

Superheat/Subcooling Conditions.......................................................................................46 - 47

Troubleshooting Form....................................................................................................................48

Section 11: Engineering Data

Unit and Air Handler Electrical Data ....................................................................................49 - 50

Glossary & Flow Rate Calculations ..............................................................................................51

AHRI Performance Data ...............................................................................................................52

Extended Unit Performance Data ........................................................................................53 - 64

Air Handler & “A” Coil Performance Data .................................................................................65

Section 17: Forms

Warranty Registration....................................................................................................................66

Warranty Claim Form.....................................................................................................................67

WT Models, Rev.: B Enertech Global

Page 4

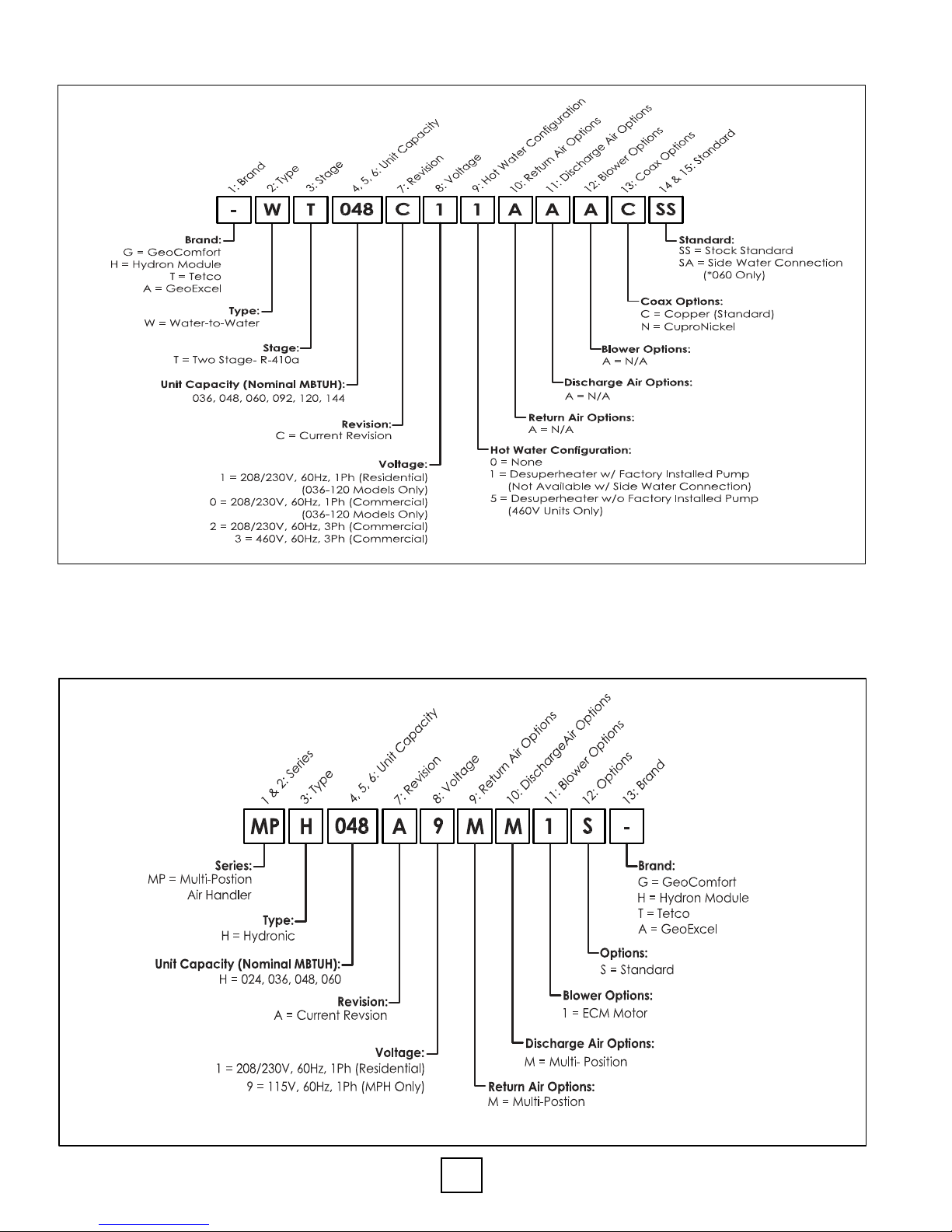

Section 1: WT Water-To-Water Unit Model Nomenclature

Section 1: Air Handler Model Nomenclature

Enertech Global WT Models, Rev.: B

Page 5

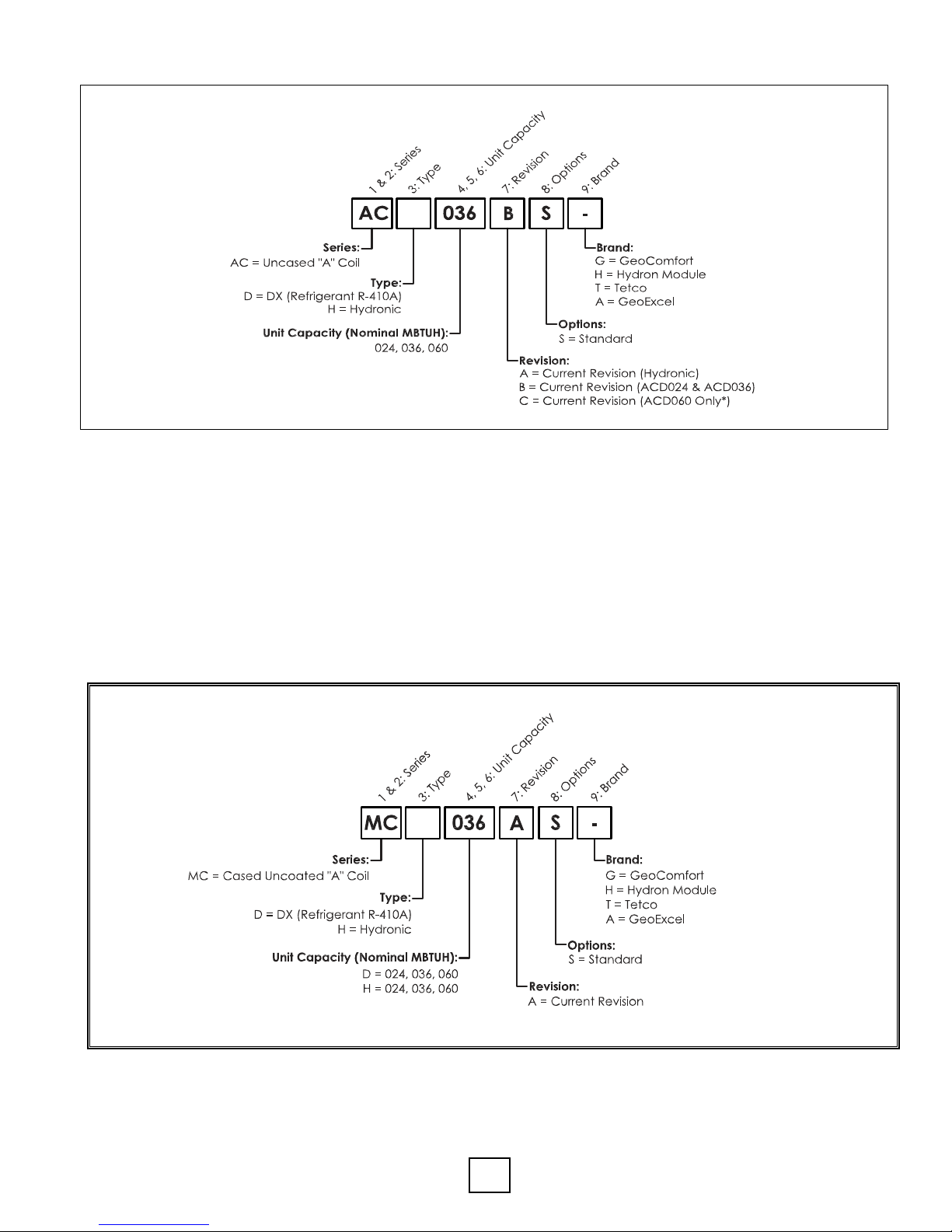

Section 1: Uncased ”A” Coil Model Nomenclature

Section 1: Cased”A” Coil Model Nomenclature

WT Models, Rev.: B Enertech Global

Page 6

Section 2: Installation Introduction

INTRODUCTION

This geothermal heat pump provides heated water and chilled water as well as optional domestic water heating capability. Engineering and quality control is built into every geothermal unit. Good performance depends on proper application and correct installation.

Notices, Cautions, Warnings, & Dangers:

“NOTICE” Notication of installation, operation

or maintenance information which is important, but which is NOT hazard-related.

“CAUTION” Indicates a potentially hazardous situation or an unsafe practice which, if not avoided, COULD result in minor or moderate injury or product or property damage.

“WARNING” Indicates potentially hazardous situation which, if not avoided, COULD result in death or serious injury.

equivalent protective covering. Cap or recap unit connections and all piping until unit is installed. Precautions must be taken to avoid physical damage and contamination which may prevent proper start-up and may result in costly equipment repair.

⚠ CAUTION ⚠

DO NOT OPERATE THE GEOTHERMAL

HEAT PUMP UNIT DURING BUILDING

CONSTRUCTION PHASE.

Storage

All geothermal units should be stored inside in the original packaging in a clean, dry location. Units should be stored in an upright position at all times. Units should not be stacked unless specially noted on the packaging.

“DANGER” Indicates an immediate hazardous situation which, if not avoided, WILL result in death or serious injury.

Inspection

Upon receipt of any geothermal equipment, carefully check the shipment against the packing slip and the freight company bill of lading. Verify that all units and packages have been received. Inspect the packaging of each package and each unit for damages. Insure that the carrier makes proper notation of all damages or shortage on all bill of lading papers. Concealed damage should be reported to the freight company within 15 days.

If not led within 15 days the freight company

can deny all claims.

Note: Notify Enertech Global, LLC shipping department of all damages within 15 days. It

is the responsibility of the purchaser to le all

necessary claims with the freight company.

Unit Protection

Protect units from damage and contamination due to plastering (spraying), painting and all other foreign materials that may be used at the job site. Keep all units covered on the job site with either the original packaging or

Pre-Installation

Special care should be taken in locating the geothermal unit. Installation location chosen should include adequate service clearance around the unit. All units should be placed on a formed plastic air pad, or a high density, closed cell polystyrene pad slightly larger than the base of the unit. If units are being placed on racking, the unit must be placed on a solid foundation. All units should be located in an indoor area where the ambient temperature will remain above 55°F and should be located in a way that piping and ductwork or other

permanently installed xtures do not have to be removed for servicing and lter replacement.

Pre-Installation Steps:

1. Compare the electrical data on the unit

nameplate with packing slip and ordering information to verify that the correct unit has been shipped.

2. Inspect all electrical connections and wires. Connections must be clean and tight at the terminals, and wires should not touch any sharp edges or copper pipe.

3. Verify that all refrigerant tubing is free of dents and kinks. Refrigerant tubing should not be touching other unit components.

Enertech Global WT Models, Rev.: B

Page 7

Section 2: Installation Introduction

4. Before unit start-up, read all manuals and

become familiar with unit components and operation. Thoroughly check the unit before operating.

5. For A-Coil installations, it is recommended that coil be sprayed with liquid detergent thoroughly and rinsed thoroughly before installation to assure proper drainage of

condensate from the coil ns to eliminate

water blowoff and to assure maximum coil performance. If not sprayed approximately 50 hours of break in time is required to achieve the same results.

⚠ CAUTION ⚠

ALL GEOTHERMAL EQUIPMENT IS DESIGNED FOR INDOOR INSTALLATION ONLY. DO NOT INSTALL OR STORE UNIT IN A CORROSIVE ENVIRONMENT OR IN

A LOCATION WHERE TEMPERATURE AND

HUMIDITY ARE SUBJECT TO EXTREMES.

EQUIPMENT IS NOT CERTIFIED FOR

OUTDOOR APPLICATIONS. SUCH

INSTALLATION WILL VOID

ALL WARRANTIES.

Components

Master Contactor: Energizes Compressor and optional Hydronic Pump and/or Desuperheater pump package.

Logic Board: Logic Board operates the compressor and protects unit by locking out when safety switches are engaged. It also provides fault indicator(s).

Terminal Strip: Provides connection to the thermostat or other accessories to the low voltage circuit.

Transformer: Converts incoming (source) voltage to 24V AC.

Low Voltage Breaker: Attached directly to transformer, protects the transformer and low voltage circuit.

Reversing Valve: Controls the cycle of the refrigerant system (heating or cooling). Energized in cooling mode.

High Pressure Switch: Protects the refrigerant system from high refrigerant pressure, by locking unit out if pressure exceeds setting.

⚠ WARNING ⚠

FAILURE TO FOLLOW THIS CAUTION MAY

RESULT IN PERSONAL INJURY. USE CARE

AND WEAR APPROPRIATE PROTECTIVE

CLOTHING, SAFETY GLASSES AND

PROTECTIVE GLOVES WHEN SERVICING

UNIT AND HANDLING PARTS.

⚠ CAUTION ⚠

BEFORE DRILLING OR DRIVING ANY

SCREWS INTO CABINET, CHECK TO BE

SURE THE SCREW WILL NOT HIT ANY

INTERNAL PARTS OR REFRIGERANT LINES.

Low Pressure Switch: Protects the refrigerant system from low suction pressure, if suction pressure falls below setting.

Flow Switch (Freeze Protection Device):

Protects the water heat exchanger from freezing, by shutting down compressor if water

ow decreases.

Compressor (Copeland Scroll): Pumps refrigerant through the heat exchangers and pressurizes the refrigerant, which increases the temperature of the refrigerant.

Shipping Bolts: This unit is equipped with the new COMPRESSOR ISOLATION feature. Do not loosen or remove the bolts.

WT Models, Rev.: B Enertech Global

Page 8

Section 3: Installation Considerations

Consumer Instructions: Dealer should instruct the consumer in proper operation,

maintenance, lter replacements, thermostat

and indicator lights. Also provide the consumer with the manufacturer’s Owner's Manual for the equipment being installed.

Enertech Global D-I-Y Policy: Enertech Global’s geothermal heat pumps and system installations may include electrical, refrigerant and/or water connections. Federal, state and local codes and regulations apply to various aspects of the installation. Improperly installed equipment can lead to equipment failure and health/safety

concerns. For these reasons, only qualied

technicians should install a Enertech Global built geothermal system.

Because of the importance of proper installation, Enertech Global does not sell equipment direct to homeowners. Internet websites and HVAC outlets may allow for purchases directly by homeowners and doit-yourselfers, but Enertech Global offers no warranty on equipment that is purchased via the internet or installed by persons without proper training.

Thermostat: Thermostats should be installed

approximately 54 inches off the oor on an

inside wall in the return air pattern and where they are not in direct sunlight at anytime.

Loop Pumping Modules: Must be wired to the heat pump’s electric control box. A special entrance knockout is provided below the thermostat entrance knockout. A pump module connection block, connected to the master contactor, and circuit breaker is provided to connect the Pump Module wiring.

Desuperheater Package: Water heating is standard on all residential units (units may be ordered without). It uses excess heat during both heating and cooling cycles, to provide hot water for domestic needs. A double wall desuperheater exchanger (coil) located between the compressor and the reversing valve, extracts superheated vapor to heat domestic water; still satisfying its heating and cooling needs. The water circulation pump comes pre-mounted in all residential units, but must be electrically connected to the master contactor. Leaving it disconnected ensures that the pump will not run without a water supply.

Enertech Global has set forth this policy to ensure installations of Enertech Global geothermal systems are done safely and

properly. The use of well-trained, qualied

technicians helps ensure that your system provides many years of comfort and savings.

Equipment Installation: Special care should be taken in locating the unit. All units should be placed on a formed plastic air pad, or a high density, closed cell polystyrene pad slightly larger than the base of the unit. All units should be located in an indoor area were the ambient temperature will remain above 55°F and should be located in a way that piping and ductwork or other permanently

installed xtures do not have to be removed for servicing and lter replacement.

Electrical: All wiring, line and low voltage, should comply with the manufacturer's recommendations, The National Electrical Code, and all local codes and ordinances.

The Desuperheater package can make up to 60% (depending on heat pump usage) of most domestic water needs, but a water heater is still recommended.

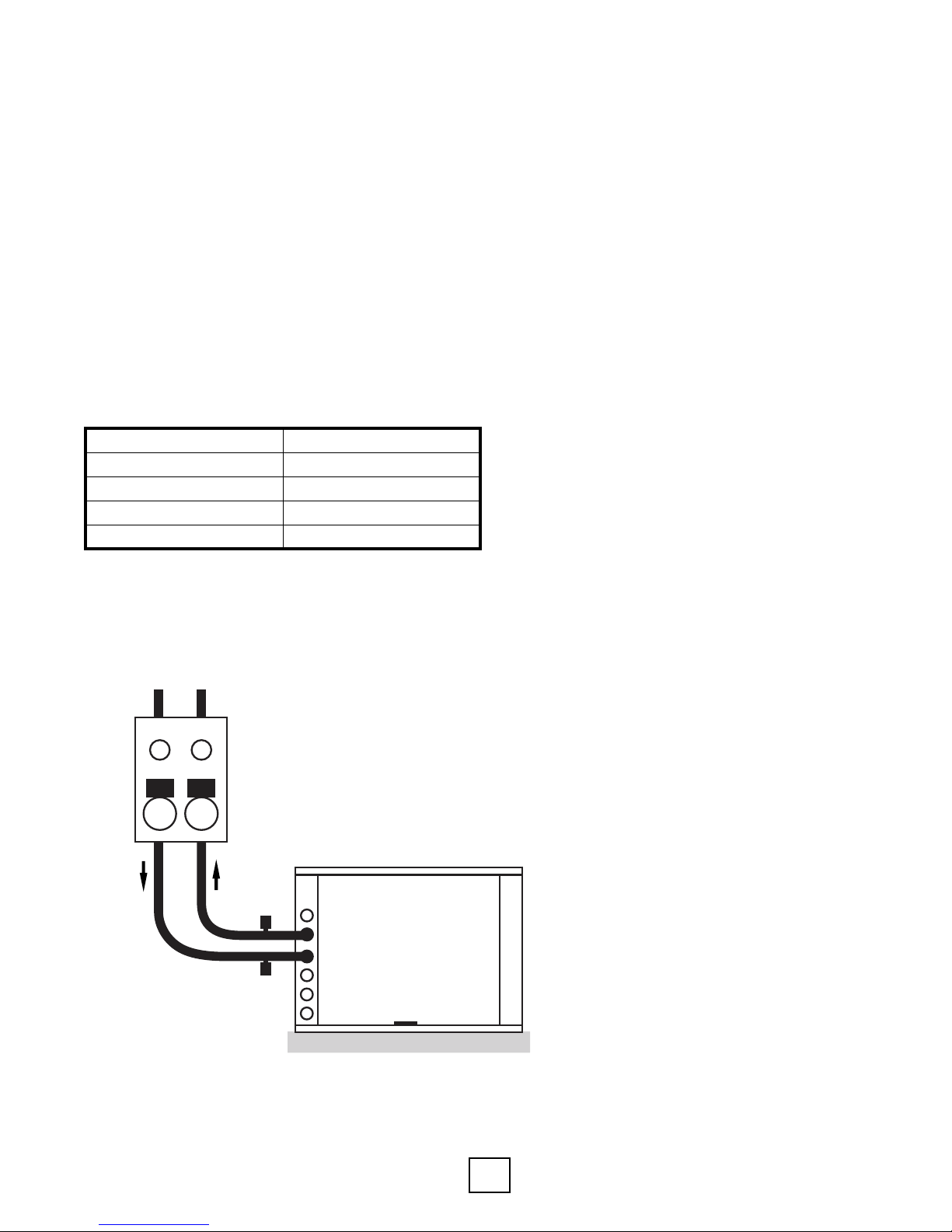

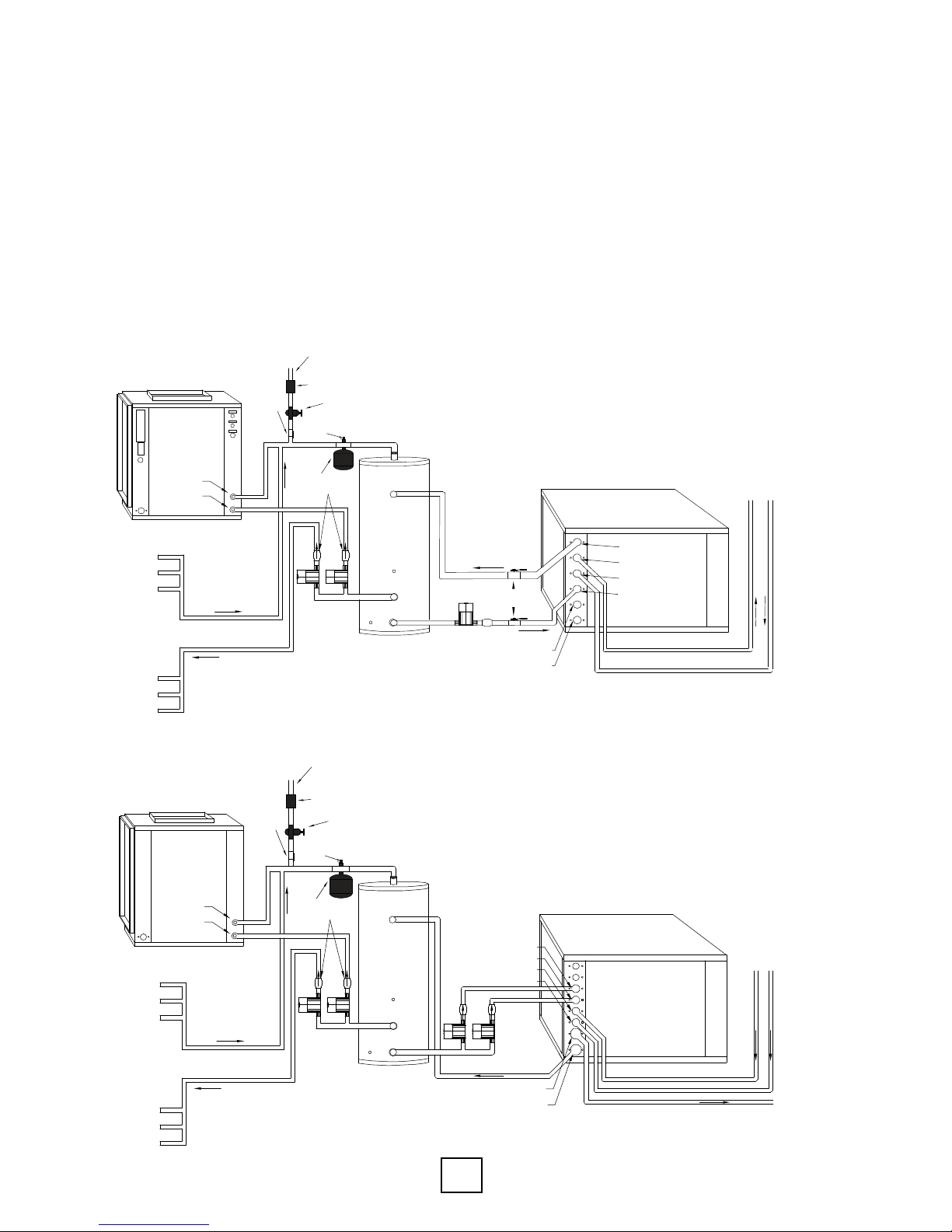

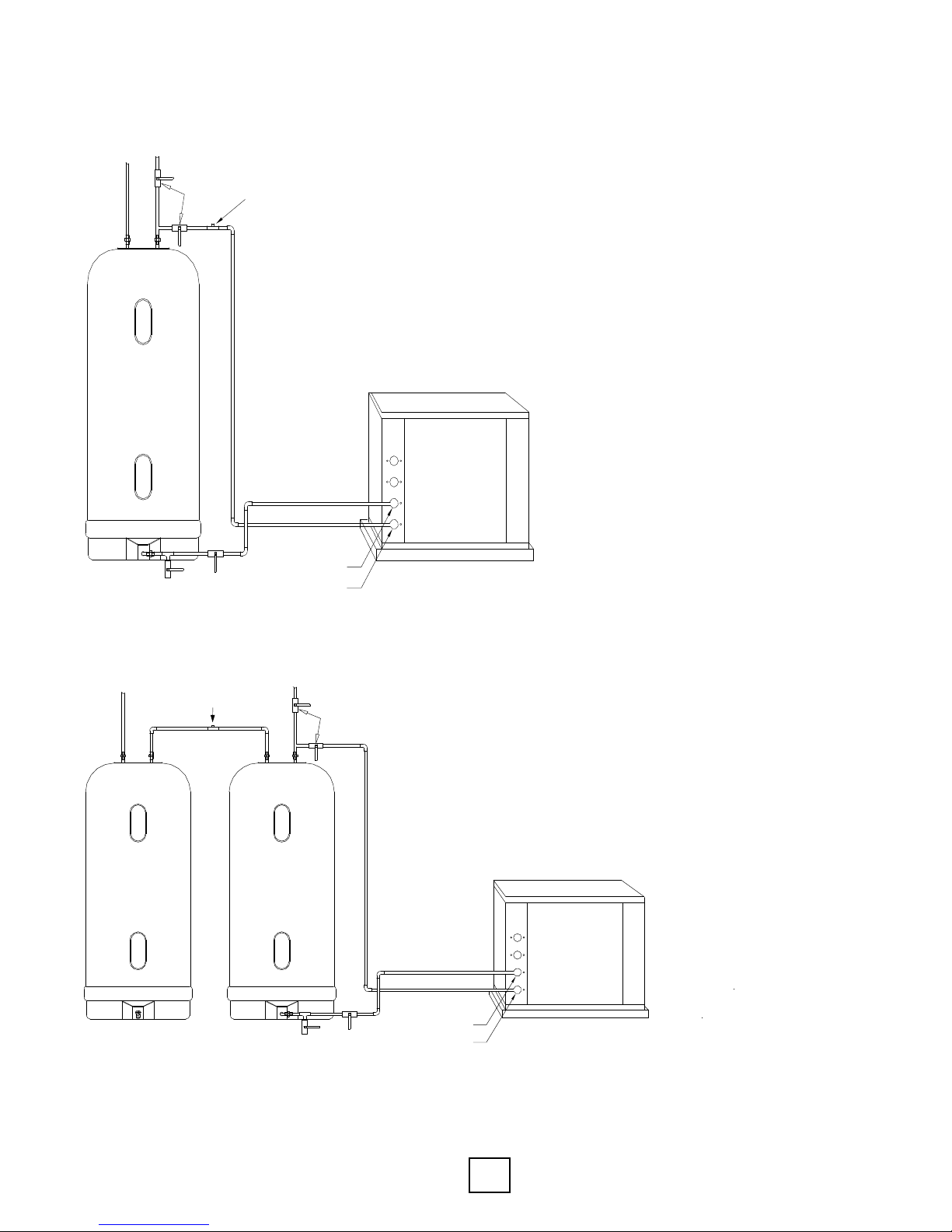

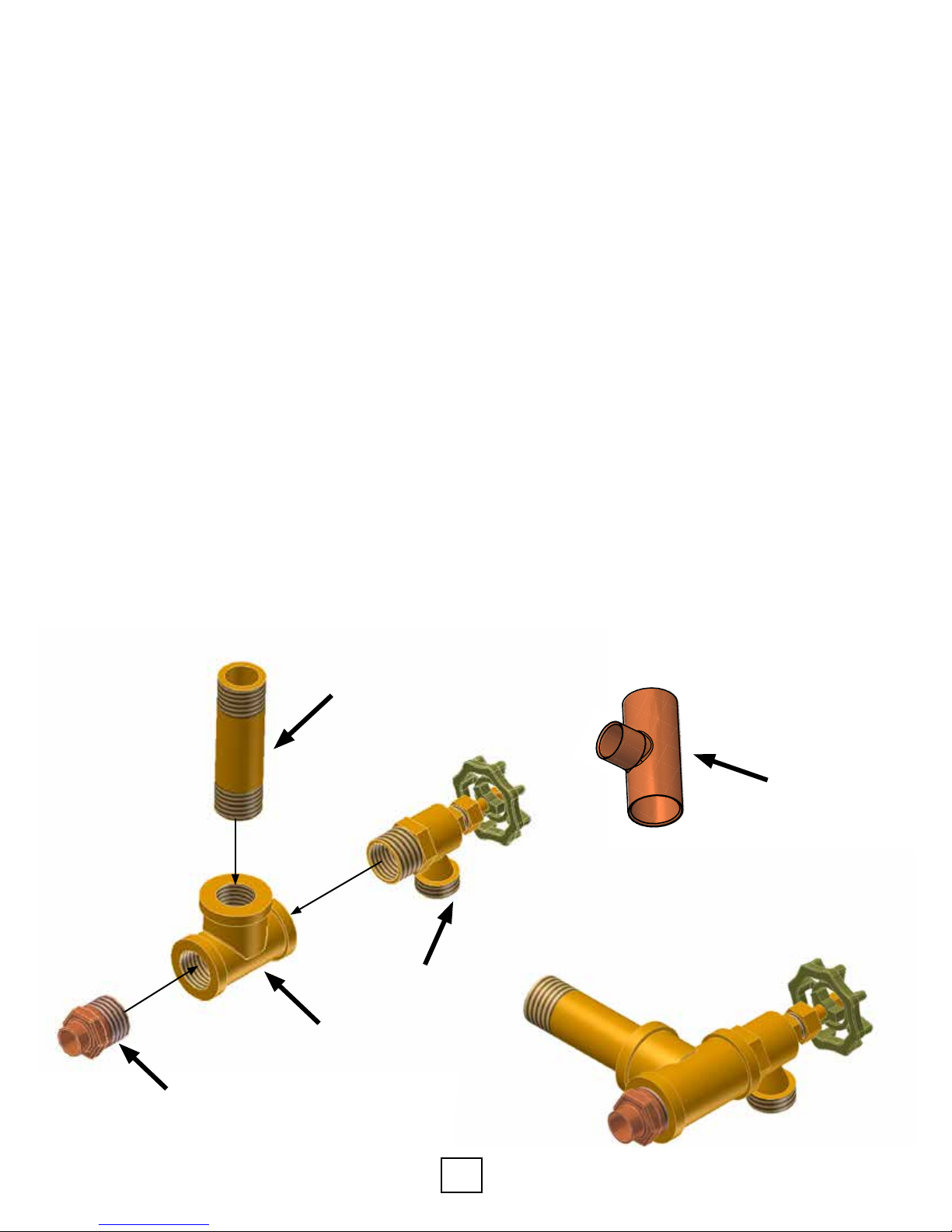

Desuperheater Piping: All copper tubes

& ttings should be 5/8” O.D (1/2” nom)

minimum with a maximum of 50ft separation. Piping should be insulated with 3/8” wall closed cell insulation.

Note: Copper is the only approved material for piping the desuperheater.

Enertech Global WT Models, Rev.: B

Page 9

•

• • • • • • •

Acceptable Operating Conditions

45°F

40°F

35°F

30°F

25°F20°F

15°F10°F

100°F

110°F

115°F

120°F

125°F

130°F

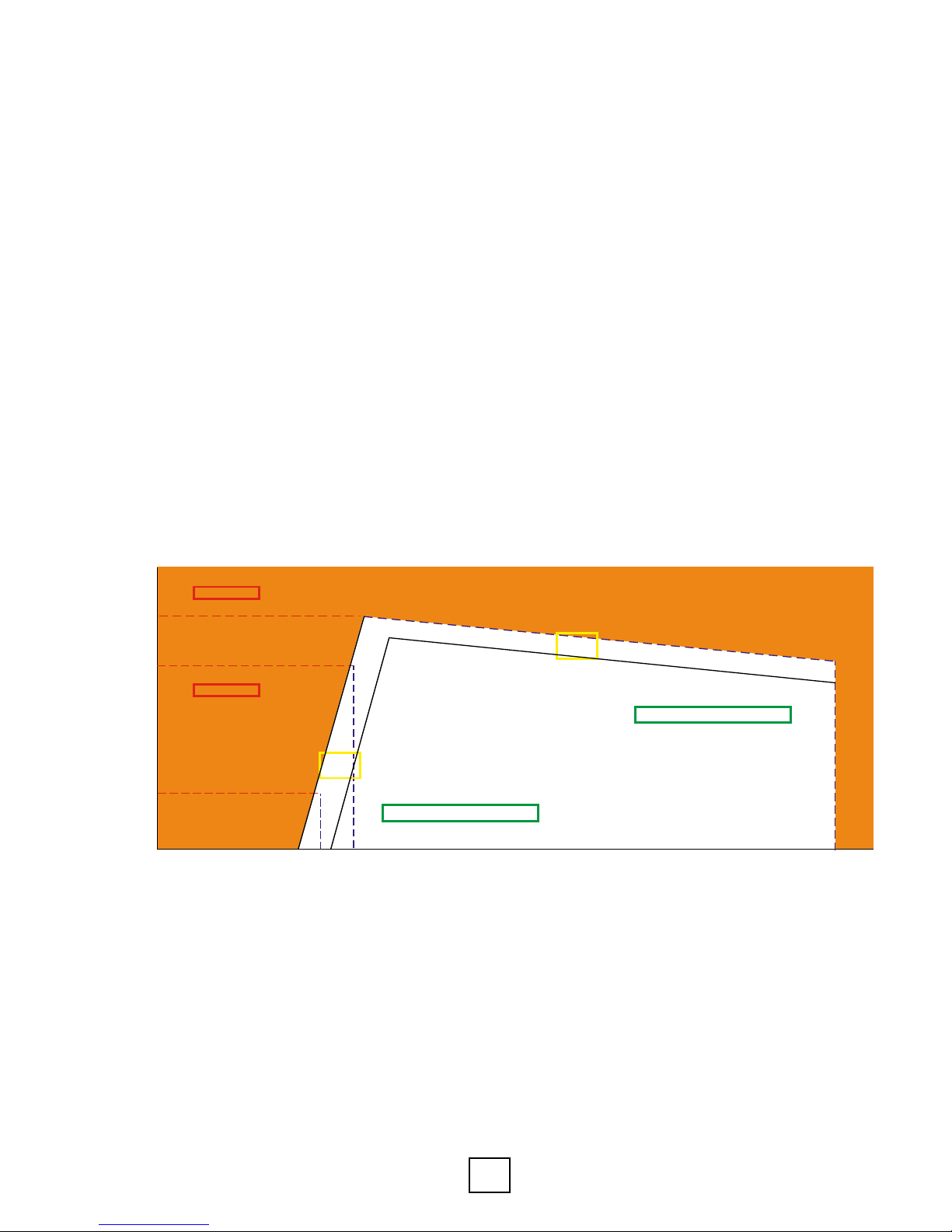

SCROLL COMPRESSOR OPERATING CONDITIONS (WATER TO WATER)

HEATING MODE OPERATION

Source Entering Water Temperature

• • • • •

70°F

65°F

60°F

55°F

50°F

FAILURE ZONE

Acceptable Operating Conditions

Outside Safe Operating Range

•

75°F

•

80°F

FAILURE ZONE

Load Leaving Water Temperature

Safety Factor

Section 3: Operation Considerations

Guidelines For Heating Mode Operation For Water-To-Water Units Using Scroll Compressors

Enertech recommends the aquastat setting not be set above 110°F for the storage tank temperature. Excessive vibration and part failure can occur at higher than recommended

temperature settings. The higher operating temperatures cause substantial efciency and

capacity reductions.

The performance is negatively affected as the unit operates at the higher water temperatures

and it benets the unit and the homeowner to operate at or below the recommended water

temperature of 110°F.

With the lower efciency created by higher water temperatures, the output capacity of the unit is decreased along with the efciency. When operating at the higher entering water temperature the heat of extraction is signicantly reduced, as well. In order to maintain the

needed capacity, more of the heat is coming from the compressor working harder to compress the refrigerant.

The illustration below shows the parameters which are safe for compressor operation. Based on the leaving load water of 120°F, the loop would have to maintain 35°F to operate within the acceptable operating conditions for the compressor. Once your loop temperatures drop below 35°F, the acceptable leaving load temperature drops below 120°F. If you are designing loops for 30°F, the recommended leaving load temperature is 110°F.

Because the water-to-water machines have become so popular for providing heated water for a multitude of uses, we’ve provided the above chart for reference.

The obvious correlation is that the warmer the Source Entering Water Temperature, the hotter the Load Leaving Water Temperature can be, to a point. R410A can only handle up to about 125°F Load Leaving Water Temperature before putting the compressor at risk.

Actual usage, and choices of heat distribution devices need to follow the acceptable operating conditions presented in the chart. If a question arises, please consult the Technical Services Department.

WT Models, Rev.: B Enertech Global

Page 10

Section 3: Buffer Tanks

BUFFER TANKS

Virtually all water-to-water heat pumps used for hydronic applications require a buffer tank to prevent equipment short cycling, and to

allow lower ow rates through the water-to-

water unit than through the hydronic delivery system. The following are considerations for buffer tank sizing.

• The size of the buffer tank should be determined based upon the predominant use of the water-to-water equipment (heating or cooling).

• The size of the buffer tank is based upon the lowest operating stage of the equipment. For example, a water-to-water heat pump with a two-stage compressor or two

compressors may be sized for rst stage

capacity, reducing the size of the tank (twostage aquastat required).

• Pressurized buffer tanks are sized differently than non-pressurized tanks (see guidelines listed below).

stage. Requirements for storage are less according to the manufacturer of the HSS series non-pressurized buffer tank. Using the same conditions for maximum heating and cooling capacity mentioned above, non-pressurized buffer tanks require 6 U.S. gallons per ton.

Pressurized buffer tanks for predominately heating applications should be sized at one (1) U.S. gallon per 1,000 Btuh of heating capacity (10 gallons per ton may also be used) at the maximum entering source water temperature (EST) and the minimum entering load water temperature (ELT), the point at which the waterto-water unit has the highest heating capacity, usually 50-70°F EST and 80-90°F ELT.

For predominately cooling applications, pressurized buffer tanks should be sized at one (1) U.S. gallon per 1,000 Btuh of cooling capacity (10 U.S. gallons per ton may also be used) at the minimum EST and the maximum ELT, the point at which the water-to-water unit has the highest cooling capacity, usually 5070°F EST and 50-60°F ELT.

Select the size of the tank based upon the larger of the calculations (heating or cooling).

Non-pressurized buffer tanks must also be sized based upon predominate use (heating or cooling) and based upon the lowest capacity

Enertech Global WT Models, Rev.: B

Page 11

Section 4: Unit Placement

UNIT PLACEMENT

When installing a geothermal heating and cooling unit, there are several items the installer should consider before placing the equipment.

1. Service Access. Is there enough space for service access? A general rule of thumb is at least 2 feet in the front and 2 feet on at least one side.

2. Unit Air Pad. All geothermal heating and cooling equipment should be placed on either a formed plastic air pad, or a high density, closed cell polystyrene pad. This helps eliminate vibration noise that could

be transmitted through the oor.

If units are being placed on racking, the unit must be placed on a solid foundation covering the full base of the unit. Also, utilize a foam pad between the unit and the rack.

4. The installer must verify that all applicable wiring, piping, and accessories are correct and on the job site.

PRE-INSTALLATION

Before you fully install the geothermal equipment, it is recommended you go through this quick checklist before placing the equipment.

⧠ Fully inspect the unit after unpacking. ⧠

Locate the Unit Start-Up form from this manual and have it available as the unit

installation proceeds.

HYDRONIC AIR HANDLER INSTALLATION

These units have a 0” minimum clearance to

combustible materials rating from all cabinet surfaces. The unit should be i9nstalled with serviceability clearance of 30” from the front of the unit. The unit can be serviced entirely

from the front, including replacing the lter.

Be sure and route primary and secondary drain connections so as not to obstruct

replacement of lter.

UPFLOW APPLICATION

In an upow installation the discharge outlet

is at the top. Care should be taken to insure unit is level to permit proper condensate drainage.

Normal upow installation will be in a

basement or closet. If installed in a closet, the closet should have a platform framed in, with an opening on top of the platform centered in the closet. Connect the supply air outlet to a warm air plenum. Install return air grilles from outside the closet to space below the platform. Platform must be at least 10” above the

oor. If installed in a basement, run supply

and return ductwork in accordance with local codes. Caution! A “P” trap must be installed in the

coil drain line! Cap unused drain ttings.

HORIZONTAL APPLICATION

Horizontal application will normally be used in an attic or crawl space. This type of installation requires a return air duct be attached to the unit inlet. The opposite end of the return air duct is attached to a return

air lter grill through the ceiling or wall. Remove lter from unit if lter grill is used. The unit is shipped in right to left conguration.

For left to right applications (Begin with the unit in the verticl upright poisition and before connecting drains and refrigerant lines) remove coil and doors and move

horizontal pan to right side. Reinstall coil and doors. CAUTION: IT IS MANDATORY TO USE AN EMERGENCY AUXILLARY DRAIN PAN WITH ANY COIL OR AIR HANDLER INSTALLED IN AN ATTIC OR ABOVE A FINISHED CEILING!

DOWNFLOW APPLICATION

Contact Enertech for proper downow kit

including instructions.

Unit is shipped from the factory arranged to

be installed in a vertical upow or horizontal right to left airow position (standard) or eld convertible to a horizontal left to right airow

position.

WT Models, Rev.: B Enertech Global

Page 12

Section 4: Air Handler Dimensional and Physical Data

FRONT VIEW

Model Size

(tons) A B C D E F G

48-60 4 - 5 25 22 23 3/8 20 1/2 19 5/8 16 1/8 58 3/4

24 2 17 5/8 21 16 1/3 20 1/4 15 1/2 12 1/2 43

36 3 21 1/8 21 19 3/4 20 1/4 19 12 1/2 48 1/4

DIMENSIONAL DATA

All Dimensions in Inches

Alternate Drain

Connection (Horizontal)

Alternate Drain

Connection

(Vertical)

Water Connections, Hydronic (Sweat)

Primary Drain

Connection

(Vertical)

Primary Drain

Connection

(Horizontal)

Supply

Return

FRONT VIEW

Water Connections, Hydronic (Sweat)

Return

Supply

All Dimensions in Inches

Alternate Drain

Connection (Horizontal)

Alternate Drain

Connection

(Vertical)

Model

Primary Drain

Connection (Horizontal)

Primary Drain

Connection

(Vertical)

Size

(tons)

A B C D E F G

024 2 17 5/8 21 16 1/3 20 1/4 15 1/2 12 1/2 43

036 3 21 1/8 21 19 3/4 20 1/4 19 12 1/2 48 1/4

048-060 4 - 5 25 22 23 3/8 20 1/2 22 1/4 14 1/4 58 3/4

TOP VIEW

BOTTOM VIEW

Water

Connection

Size (Sweat,

“L” Copper)

0.875” O.D.

0.045” Wall

Enertech Global WT Models, Rev.: B

Front

Page 13

Section 4: Cased and Uncased “A” Coil Dimensional and Physical Data

PAN REMOVED FOR CLARITY

Model

024 2 16.63 19.00 18.5 16.00 4.00 8.67 8.67 3.27 16.00 38

036 3 19.63 19.00 21.0 20.00 6.76 6.77 6.77 6.04 16.00 46

048 4 23.92 20.50 28.0 28.58 9.38 9.38 9.38 8.66 17.50 48

060 5 23.92 20.50 28.0 28.58 9.38 9.38 9.38 8.66 17.50 67

Size

(Tons)

A B C D E F G H I

All Dimensions In Inches

Drain Pan

Return

Weight

Drain Pan

BackSideFront

(lbs)

Water

Connection

Size (Sweat,

“L” Copper)

0.875” O.D.

0.045” Wall

Supply

Model

024 2 17.5 21.0 20.0 15.2 19.2 2.1 4.1 1.6 2.3 11.1 8.5 13.8 9.2 13.5 8.8 .88 8.8 45

036 3 21.0 21.0 24.0 18.7 19.2 4.0 6.0 1.8 2.3 13.0 10.5 15.6 7.8 14.6 10.5 .88 .38 50

060 5 24.5 22.0 34.0 22.0 19.9 2.2 4.2 1.9 2.3 17.3 14.8 19.8 10.3 19.6 12.5 .88 .38 72

NOTES:

1. TheACseriescoilsaredesignedashighefciency“A”coilsto

be installed on new and existing indoor furnaces. These coils

maybeusedinupowanddownowapplications.

2. Coils are ETL and CSA approved.

3. Primaryandsecondarydrainconnectionsareavailableonthe

LH or RH side of the drain pan, and are 3/4” FPT. Center line

ofdrainslocatedfrompancorner,11/2”forprimaryand31/2” forsecondary.

4. Drain pan is injection molded high temperature UL approved

plastic.

Size

(Tons)

A B C D E F G H I J K L M N O P Q

All Dimensions In Inches (nominal)

⚠ WARNING ⚠

IF USING A DUAL FUEL APPLICATION,

“A” COIL MUST BE INSTALLED ON

THE OUTLET OF THE FURNACE.

INSTALLATION ON THE RETURN

COULD CAUSE FURNACE HEAT

EXCHANGER FAILURE, AND MAY

VOID FURNACE WARRANTY.

Weight

(lbs)

WT Models, Rev.: B Enertech Global

Page 14

Section 4: Unit Dimensional Data

Factory

ABC

F F2 I G G2 H IN OUT IN OUT

Charge (oz)

036

24 26 34 2.83 5.83 8.83 N/A 17.83 11.83 N/A 14.83 1" 1" 1" 1" 315 65 048 24 26 34 2.83 5.83 8.83 N/A 17.83 11.83 N/A 14.83 1" 1" 1" 1" 345 73 060 24 26 36 2.83 5.83 8.83 N/A 17.83 11.83 N/A 14.83 1" 1" 1" 1" 390 101

060* 24 32 36 N/A N/A 4.16 N/A 21.10 4.16 N/A 21.10 1" 1" 1" 1" 410 101

Factory

ABC

F F2 I G G2 H IN OUT IN OUT Charge (oz)

092

24 30 48 19.71 21.96 17.83 14.83 2.83 11.83 8.83 5.83 1" 1.25" 1" 1.25" 550 68 EA 120 24 30 48 19.71 21.96 17.83 14.83 2.83 11.83 8.83 5.83 1" 1.5" 1" 1.5" 670 76 EA 144 24 30 48 19.71 21.96 17.83 14.83 2.83 11.83 8.83 5.83 1" 1.5" 1" 1.5" 670 81 EA

Overall Cabinet HWG Water

HWG Water

Single Compressor Units

Weight

Load Water

Source Water

Dual Compressor Units

Load Loop Source Loop

Model

Overall Cabinet

Model

16.000

7.500

2.000

Out (Load Loop)

Out (Source Loop)

In (Source Loop)

In (Load Loop)

HWG Water Out

HWG Water In

FRONT VIEW

Single Compressor

H & I

F & G

In (Source Loop)

Out (Source Loop)

Out (Load Loop)

In (Load Loop)

SIDE VIEW

*WT060 Side Water Connection

2.000

HWG Water Out HWG Water In

In (Load Loop #1) In (Load Loop #2)

In (Source Loop #1) In (Source Loop #2)

Out (Source Loop) Out (Load Loop)

Notes:

- All models & brands (see exception below) use FPT fittings for all source & load loop connections.

- Geocomfort, residential only, models 036-060 use 1" Double O-Ring fittings for source loop connections.

- Dual Compressor: There are two "IN" connections, but only one "Out" Connection (Source & Load)

- All Desuperheater connections are 3/4" FPT.

- Electrical connections are 1" for high voltage, 1/2" for low voltage

*All measurements are in inches.

Enertech Global WT Models, Rev.: B

FRONT VIEW

Dual Compressor

TOP VIEW

Page 15

Section 5: Unit Piping Installation

Open Loop Piping

Placement of the components for an open loop system are important when considering water quality and long term maintenance. The water solenoid valve should always be placed on the outlet of the heat pump, which will keep the heat exchanger under pressure when the unit is not operating. If the heat exchanger is under pressure, minerals will stay in suspension. Water solenoid valves are also designed to close against the pressure, not with the pressure. Otherwise, they tend to be noisy when closing.

A ow regulator should be placed after the

water solenoid valve. Always check the product

specication catalog for proper ow rate. A

calculation must be made to determine the

ow rate, so that the leaving water temperature

does not have the possibility of freezing.

Other necessary components include a strainer,

boiler drains for heat exchanger ushing, P/T

ports and ball valves. Ball valves allow the water to be shut off for service, and also help when velocity noise is noticeable through the

ow regulator. Spreading some of the pressure

drop across the ball valves will lessen the

velocity noise. Always double check ow rate

at the P/T ports to make sure the ball valve

adjustments have not lowered water ow too much, and essentially taken the ow regulator

out of the equation. It’s a good idea to remove the ball valve handles once the system is completed to avoid nuisance service calls.

Hose kits are optional, but make for an easier installation, since the P/T ports and connections are included. The hose also helps to isolate the heat pump from the piping system.

Since the heat pump can operate at lower

waterow on rst stage, two stage units

typically include two water solenoid valves

to save water. The ow regulators should be

sized so that when one valve is open the unit

operates at rst stage ow rate, and when

both valves are open, the unit operates at

full load ow rate. For example, a 4 ton unit needs approximately 4 GPM on rst stage, and approximately 7 GPM at full load. The ow regulator after the rst valve should be 4 GPM, and the ow regulator after the second valve

should be 3 GPM. When both valves are open, the unit will operate at 7 GPM.

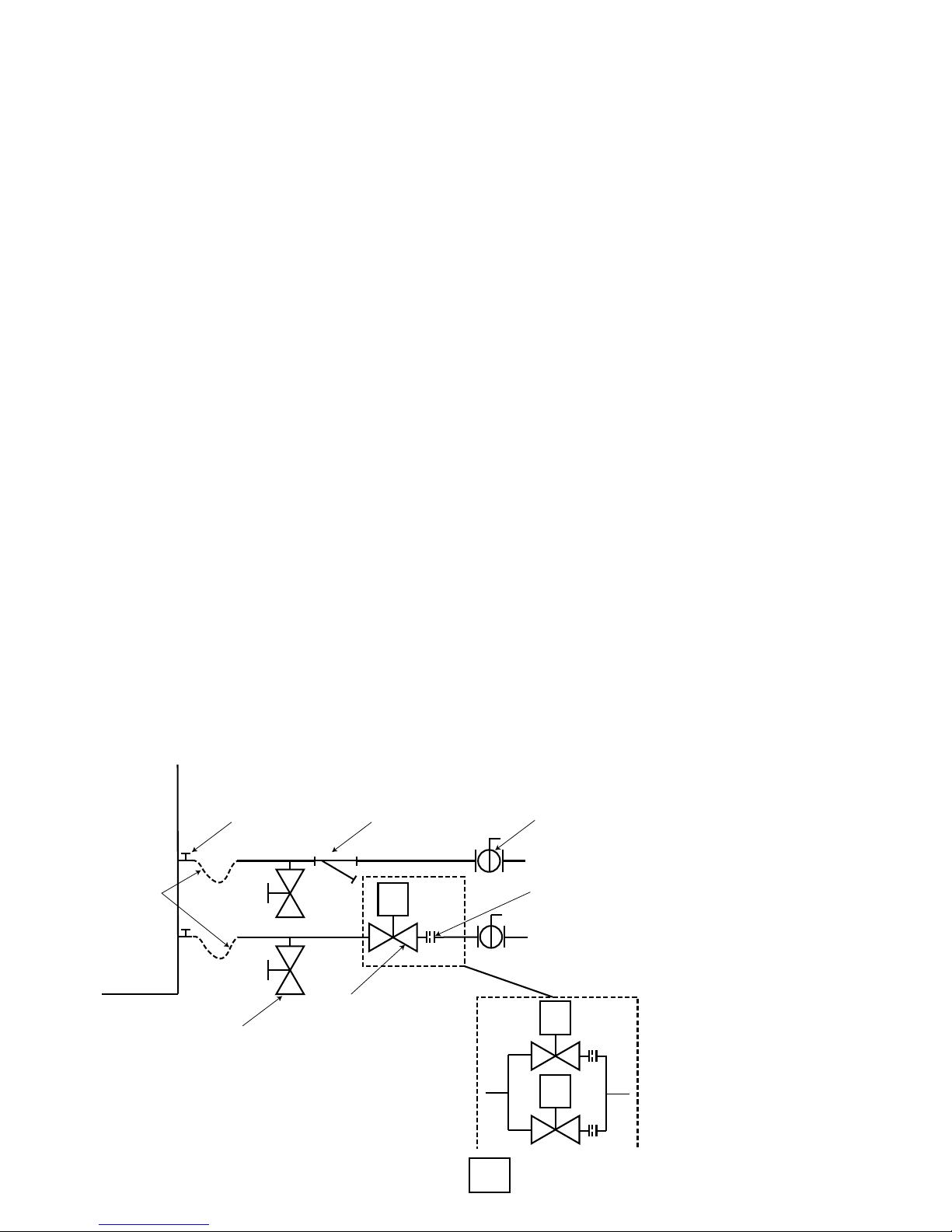

Figure 1: Open Loop Piping Example

TYPICAL OPEN LOOP PLUMBING

AND VALVE INSTALLATION EXAMPLE

HEAT PUMP

Optional

Hose Kit*

OUT

*Hose kit used for unit isolation, includes fittings for P/T ports. **See product specifications for flow rates.

P/T Port

(2 required)

Boiler Drain

for Heat

Exchanger

Maintenance

(2 required)

WYE Strainer

Water

Solenoid

Valve

Single Speed

Units

Ball Valve

(2 required)

From Well

Flow Regulator**

Discharge Line

Two-

Stage

Units

Note: All GWT, HWT, & TWT units are two-stage units.

Not recommended for 3 ton and smaller. Use single solenoid and

ow regulator.

WT Models, Rev.: B Enertech Global

Page 16

Section 5: Unit Piping Installation

Water Quality

The quality of the water used in geothermal systems is very important. In closed loop systems the dilution water (water mixed with antifreeze) must be of high quality to ensure adequate corrosion protection. Water of poor quality

contains ions that make the uid “hard” and

corrosive. Calcium and magnesium hardness ions build up as scale on the walls of the system and reduce heat transfer. These ions may also react with the corrosion inhibitors in glycol based

heat transfer uids, causing them to precipitate

out of solution and rendering the inhibitors ineffective in protecting against corrosion. In addition, high concentrations of corrosive ions, such as chloride and sulfate, will eat through any protective layer that the corrosion inhibitors form on the walls of the system.

Ideally, de-ionized water should be used for dilution with antifreeze solutions since de-

ionizing removes both corrosive and hardness ions. Distilled water and zeolite softened water are also acceptable. Softened water, although free of hardness ions, may actually have increased concentrations of corrosive ions and, therefore, its quality must be monitored. It is recommended that dilution water contain less than 100 PPM calcium carbonate or less than 25 PPM calcium plus magnesium ions; and less than 25 PPM chloride or sulfate ions.

In an open loop system the water quality is of no less importance. Due to the inherent variation of the supply water, it should be tested prior to making the decision to use an open loop system. Scaling of the heat exchanger and corrosion of the internal parts are two of the potential problems. The Department of Natural Resources or your local municipality can direct you to the proper testing agency. Please see Table 1 for guidelines.

Table 1: Water Quality

Potential

Problem

Scaling

Corrosion

Biological

Growth

Erosion

* Chlorine can not be used with 304 Stainless Steel.

Notes

1. Hardness in ppm is equivalent to hardness in mg/l.

2.Grains/gallon=ppmdividedby17.1.

3. Unit internal heat exchangers are not recommended for pool applications or water outside the range of the table.

Secondaryheatexchangersarerequiredforpoolorotherapplicationsnotmeetingtherequirementsshownabove.

4.Saltwaterapplications(approx.25,000ppm)requiresecondaryheatexchangersduetocopperpipingbetweentheheatexchanger andtheunitttings.

5. Filter for maximum of 600 micron size.

Chemical(s) or Condition

Calcium & Magnesium Car-

bonate

pH Range 7 - 9 5 - 9 7 - 9

Total Dissolved Solids Less than 1000 ppm Less than 1500 ppm No rigid setpoint

Ammonia,AmmoniumHy-

droxide

Ammonium Chloride,

Ammonium Nitrate

Calcium/Sodium Chloride

Suspended Solids - Note 5 Less than 10 ppm Less than 10 ppm

See Note 4

Chlorine Less than 0.5 ppm Less than 0.5 ppm Less than 1 ppm*

HydrogenSulde None Allowed None Allowed Less than 0.05 ppm

Iron Bacteria None Allowed None Allowed None Allowed

Iron Oxide Less than 1 ppm Less than 1 ppm Less than 0.2 ppm

WaterVelocity Less than 8 ft/s Less than 12 ft/s

Range for Copper

Heat Exchangers

Less than 350 ppm Less than 350 ppm Less than 0.1 ppm

Less than 0.5 ppm Less than 0.5 ppm No Limit

Less than 0.5 ppm Less than 0.5 ppm Less than 2-20 ppm

Less than 125 ppm Less than 125 ppm None Allowed

Cupro-Nickel Heat

Exchanger Ranges

Stainless Steel Heat

Exchanger Ranges

16-20 mesh strainer

recommended

Less than 5.5 m/s in the

port

Enertech Global WT Models, Rev.: B

Page 17

Section 5: Unit Piping Installation

To/From

Interior Piping

All interior piping must be sized for proper ow

rates and pressure loss. Insulation should be used on all inside piping when minimum loop temperatures are expected to be less than 50°F. Use the table below for insulation sizes with different pipe sizes. All pipe insulation should be a closed cell and have a minimum wall thickness of 3/8”. All piping insulation should be glued and sealed to prevent condensation and dripping. Interior piping may consist of the following materials: HDPE, copper, brass, or rubber hose (hose kit only). PVC is not allowed

on pressurized systems.

Table 2: Pipe Insulation

Piping Material Insulation Description

1” IPS Hose 1-3/8” ID - 3/8” Wall

1” IPS PE 1-1/4” ID - 3/8” Wall

1-1/4” IPS PE 1-5/8” ID - 3/8” Wall

2” IPS PD 2-1/8” ID - 3/8” Wall

Typical Pressurized Flow Center Installation

The ow centers are insulated and contain all ushing and circulation connections for

residential and light commercial earth loops

that require a ow rate of no more than 20 gpm. 1-1/4” fusion x 1” double o-ring ttings

(AGA6PES) are furnished with the double

o-ring ow centers for HDPE loop constructions. Various ttings are available for the double o-ring ow centers for different connections. See gure 2 for connection options. A typical

installation will require the use of a hose kit. Matching hose kits come with double o-ring adapters to transition to 1” hose connection.

Note: Threaded ow centers all have 1” FPT connections. Matching hose kits come with the AGBA55 adapter needed to transition from 1” FPT to 1” hose.

Figure 2: Typical Single Unit Piping Connection (Pressurized Flow Center)

Loop Field

Hose

Kit

Flow

Center

P/T

Ports

GSHP

Source Water Out Source Water In

2” Polyethylene Foam

WT Models, Rev.: B Enertech Global

Equipment Pad

Page 18

Section 5: Unit Piping Installation

Typical Non-Pressurized Flow Center Installation

Standing column ow centers are designed to

operate with no static pressure on the earth loop. The design is such that the column of

water in the ow center is enough pressure to

prime the pumps for proper system operation

and pump reliability. The ow center does have

a cap/seal, so it is still a closed system, where the

uid will not evaporate. If the earth loop header

is external, the loop system will still need to be

ushed with a purge cart. The non-pressurized ow center needs to be isolated from the ush cart during ushing because the ow center

is not designed to handle pressure. Since this is a non-pressurized system, the interior piping can incorporate all the above-mentioned pipe material options (see interior piping), including

PVC. The ow center can be mounted to the

wall with the included bracket or mounted on

the oor as long as it is properly supported.

Figure 3: Typical Single Compressor Unit Piping Connection

Make-up Water Line

Hydronic Fan Coil

Water Out

Water In

Shutoff

Valve

Backflow

Preventer

Pressure Reducing

Valve

Air Vent

Expansion Tank

Check Valve

Pressurized

Storage

Tank

Shutoff

Valves

Water to Water Heat Pump

Out (Loa d Loop)

Out (Ground Loop)

In (Ground Loop)

In (Load Loop)

To / From

Earth Loop

Heating

Radiant Infloor

Out (Desuper heater)

In (D esuperheater)

Figure 4: Typical Dual Compressor Unit Piping Connection

Make-up Water Line

Hydronic Fan Coil

Water Out

Water In

Heating

Radiant Infloor

Shutoff

Valve

Backflow Preventer

Pressure Reducing

Valve

Air Vent

Expansion Tank

Check Valve

Pressurized

Storage

Tank

In (Load Loop #1)

In (Load Loop #2) In (Ground Loop #1) In (Ground Loop #2)

Out (Ground Loop)

Out (Load Loop)

From

Earth Loop

Heat Pump

To Earth Loop

Enertech Global WT Models, Rev.: B

Page 19

Section 5: Unit Piping Installation

Figure 5: Typical Storage Tank Piping For Radiant Floor Heating

Storage

Zone 1 & 2

Radiant Infloor

Check Valves Installed

Tank

Shutoff

Valves

Water to Water Heat Pump

Out (Load Loop)

In (Load Loop)

APSMA PUMP SHARING MODULE

The pump sharing module, part number APSMA, is designed to allow two units to share

one ow center. With the APSMA module,

either unit can energize the pump(s). Connect

the units and ow center as shown in Figure

11, below. Figure 12 includes a schematic of the board. The module must be mounted in a NEMA enclosure or inside the unit control box. Local code supersedes any recommendations in this document.

Figure 11: APSMA Module Layout

240VAC

Power Source

24VAC

connection

to unit #1

(Y1 & C From Thermostat)

240V IN

240V OUT

Relay Relay

24VAC 24VAC

240VAC

to Pump(s)

connection

to unit #2

(Y1 & C From Thermostat)

24VAC

Figure 12: APSMA Module Wiring Schematic

Bridge

LED

24VAC input

from unit #1

24VAC input

from unit #2

Diode

RY1

RY2

240VAC input

Diode

RY2

240VAC to pump(s)

WT Models, Rev.: B Enertech Global

Page 20

Section 6: Antifreeze

Antifreeze Overview

In areas where minimum entering loop temperatures drop below 40°F, or where piping will be routed through areas subject to freezing, antifreeze is required. Alcohols and glycols are commonly used as antifreeze. However, local and state/provincial codes supersede any instructions in this document. The system needs antifreeze to protect the coaxial heat exchanger from freezing and rupturing. Freeze protection should be maintained to 15°F below the lowest expected entering loop temperature. For example, if 30°F is the minimum expected entering loop temperature, the leaving loop temperature could be 22 to 25°F. Freeze protection should be set at 15°F (30-15 = 15°F). To determine antifreeze requirements, calculate how much volume the system holds. Then, calculate how much antifreeze will be needed by determining the percentage of antifreeze required for proper freeze protection. See Tables 3a and 3b for volumes and percentages. The freeze protection should be checked during installation using the proper hydrometer

to measure the specic gravity and freeze

protection level of the solution.

Antifreeze Characteristics

Selection of the antifreeze solution for closed loop systems require the consideration of many important factors, which have long-term implications on the performance and life of the equipment. Each area of concern leads to a different “best choice” of antifreeze. There is no “perfect” antifreeze. Some of the factors to consider are as follows (Brine = antifreeze solution including water):

Safety: The toxicity and ammability of the brine

(especially in a pure form).

Cost: Prices vary widely.

Convenience: Is the antifreeze available and

easy to transport and install?

Codes: Will the brine meet local and state/ provincial codes?

The following are some general observations about the types of brines presently being used:

Methanol: Wood grain alcohol that is considered toxic in pure form. It has good heat transfer, low viscosity, is non-corrosive, and is mid to low price. The biggest down side is that it is

ammable in concentrations greater than 25%.

Ethanol: Grain alcohol, which by the ATF (Alcohol, Tobacco, Firearms) department of the U.S. government, is required to be

denatured and rendered unt to drink. It has

good heat transfer, mid to high price, is noncorrosive, non-toxic even in its pure form, and

has medium viscosity. It also is ammable with

concentrations greater than 25%. Note that the brand of ethanol is very important. Make sure it has been formulated for the geothermal industry. Some of the denaturants are not compatible with HDPE pipe (for example, solutions denatured with gasoline).

Propylene Glycol: Non-toxic, non-corrosive, mid to high price, poor heat transfer, high viscosity when cold, and can introduce micro air bubbles when adding to the system. It has also been known to form a “slime-type” coating inside the pipe. Food grade glycol is recommended because some of the other types have certain inhibitors that react poorly with geothermal systems. A 25% brine solution is a minimum required by glycol manufacturers, so that bacteria does not start to form.

Ethylene Glycol: Considered toxic and is not recommended for use in earth loop applications.

Thermal Performance: The heat transfer and viscosity effect of the brine.

Corrosiveness: The brine must be compatible with the system materials.

Stability: Will the brine require periodic change out or maintenance?

Enertech Global WT Models, Rev.: B

GS4 (POTASSIUM ACETATE): Considered highly corrosive (especially if air is present in the system) and has a very low surface tension, which causes leaks through most mechanical

ttings. This brine is not recommended for use in

earth loop applications.

Page 21

Section 6: Antifreeze

Figure 6: Antifreeze Specic Gravity

1.0500

1.0400

1.0300

1.0200

1.0100

1.0000

Specific Gravity

0.9900

0.9800

0.9700

0.9600

-5 0 5 10 15 20 25 30 32

Freeze Protection (deg F)

Procool Methanol Propylene Glycol

Notes:

1. Consult with your representative or distributor if you have any questions regarding antifreeze selection or use.

2. All antifreeze suppliers and manufacturers recommend the use of either de-ionized or distilled water with their products.

⚠ CAUTION ⚠

USE EXTREME CARE WHEN OPENING, POURING, AND MIXING FLAMMABLE

ANTIFREEZE SOLUTIONS. REMOTE FLAMES

OR ELECTRICAL SPARKS CAN IGNITE

UNDILUTED ANTIFREEZES AND VAPORS.

USE ONLY IN A WELL VENTILATED AREA.

DO NOT SMOKE WHEN HANDLING

FLAMMABLE SOLUTIONS. FAILURE TO

OBSERVE SAFETY PRECAUTIONS MAY

RESULT IN FIRE, INJURY, OR DEATH. NEVER

WORK WITH 100% ALCOHOL SOLUTIONS.

WT Models, Rev.: B Enertech Global

Page 22

Section 6: Antifreeze

Antifreeze Charging

Calculate the total amount of pipe in the system and use Table 3a to calculate the

amount of volume for each specic section of

the system. Add the entire volume together, and multiply that volume by the proper antifreeze percentage needed (Table 3b) for the freeze protection required in your area. Then, double check calculations during installation with the proper hydrometer and

specic gravity chart (Figure 6) to determine if

the correct amount of antifreeze was added.

Table 3a: Pipe Fluid Volume

Type Size

Copper 1” CTS 4.1 HDPE .75” SDR11 3.0

Copper 1.25” CTS 6.4 HDPE 1” SDR11 4.7

Copper 1.5” CTS 9.2 HDPE 1.25” SDR11 7.5

Volume Per 100ft

US Gallons

Type Size

HDPE 1.5” SDR11 9.8

HDPE 2” SDR11 15.4

Volume Per 100ft

US Gallons

Additional component volumes: Unit coaxial heat exchanger = 1 Gallon Flush Cart = 8-10 Gallons

10’of1”RubberHose=0.4Gallons

Table 3b: Antifreeze Percentages by Volume

TypeofAntifreeze

ProCool (Ethanol) 25% 22% 17% 12%

Methanol 25% 21% 16% 10%

PropyleneGlycol 38% 30% 22% 15%

Heat Transfer Fluid (HTF) Mixaccordingtomanufacturer’sdirectionsoncontainerlabel

Antifreeze solutions are shown in pure form - not premixed HTF is a premixed Methanol solution

10°F (-12.2°C) 15°F (-9.4°C) 20°F (-6.7°C) 25°F (-3.9°C)

Minimum Temperature for Freeze Protection

Enertech Global WT Models, Rev.: B

Page 23

Section 7: Desuperheater Installation

Desuperheater Installation

Units that ship with the desuperheater function must be connected to the water heater/ storage tank with the optionally offered Desuperheater Connection Kit or (as supplied by others) shown on the following sections of this manual.

Note: Desuperheater capacity is based on 0.4 GPM Flow per nominal ton at 90°F entering hot water temperature.

Note: Units that are shipped with a desuperheater do not have the desuperheater pump wires connected to the electrical circuit, to prevent accidentally running the pump while dry. Pump has to be connected to the electric circuit (master contactor) when the lines from the water heater are installed & air is removed.

CONTENTS OF THE DESUPERHEATER FITTING KIT:

• (1) p/n 20D052-01NN, Installation Instruc-

tions

• (1) p/n 33P211-01BN, 3/4”x 3/4”x 3/4” FPT

Brass Tee

• (1) p/n 33P210-01NN, ¾” Boiler

Drain Valve

• (1) p/n 11080005001, ¾” MPT x 3-1/2”

Brass Nipple

• (3) p/n 11080006001, ½” SWT x ¾” MPT

Copper Adaptor

• (1) p/n 11080007001, ¾” x ¾” x ½” SWT

Copper Tee

PLUMBING INSTALLATION

NOTE: All plumbing and piping connections must comply with local plumbing codes.

TIP: Measure the distance above the oor or

shelf that the water heater is setting on, to where the drain valve is located. This distance must be greater than one-half the width of the tee you’re about to install, or you won’t be able to thread the tee on to the water heater.

1. Disconnect electricity to water heater.

2. Turn off water supply to water heater.

3. Drain water heater. Open pressure relief valve.

4. Remove drain valve and tting from water

heater.

5. Thread the ¾” MPT x 3-1/2” nipple into the

water heater drain port. Use Teon tape, or

pipe dope on threads.

6. Thread the center port of the ¾” brass tee to the other end of the nipple.

7. Thread one of the copper adaptors into the end of the tee closest to the heat pump.

8. Thread the drain valve into the other end of the nipple. See Figure 1.

9. Above the water heater, cut the incoming cold water line. Remove a section of that line to enable the placement of the copper tee.

⚠ WARNING ⚠

TO AVOID SERIOUS INJURY, IT IS

RECOMMENDED THAT AN ANTI-SCALD

MIXING VALVE IS INSTALLED ON THE HOT WATER SUPPLY LINE INTO THE HOME. EVEN THOUGH HOT WATER TANK TEMPERATURES

COULD APPEAR TO BE SET AT LOWER

LEVELS, HIGH TEMPERATURE WATER FROM

THE DESUPERHEATER COULD RAISE TANK

TEMPERATURES TO UNSAFE LEVELS.

WT Models, Rev.: B Enertech Global

10. Insert the copper tee in the cold water line. See Figure 2.

11. Thread the remaining two ½”SWT x ¾”MPT

copper adaptors into the ¾” FPT ttings on

the heat pump, marked HWG IN and HWG OUT.

12. Run interconnecting ½” copper pipe from the HOT WATER OUT on the heat pump, to the copper adaptor located on the tee at the bottom of the water heater.

13. Run interconnecting ½” copper pipe from the HOT WATER IN on the heat pump, to the copper tee in the cold water line.

Page 24

Section 7: Desuperheater Installation

14. Install an air vent tting at the highest point

of the line from step 13 (assuming it’s the higher of the two lines from the heat pump to the water heater).

15. Shut off the valve installed in the desuperheater line close to the tee in the cold water line. Open the air vent and all shut off valves installed in the “hot water hot”.

16. Turn the water supply to the water heater on. Fill water heater. Open highest hot water faucet to purge air from tank and piping.

17. Flush the interconnecting lines, and check for leaks. Make sure air vent is shoutoff when water begins to drip steadily from the vent.

Figure 10: Water Heater Connection Kit Assembly for Bottom of Water Heater

18. Loosen the screw on the end of the despuerheater pump to purge the air from the pump’s rotor housing. A steady drip of water will indicate the air is removed. Tighten the screw and the pump can be connected to the contactor or teminal block.

19. Install 3/8” closed cell insulation on the lines connecting the heat pump to the water heater.

20. Reconnect electricity to water heater.

NOTE: Drawing shown vertically for detail. Fitting installs horizontally into hot water tank.

Connection to Hot Water Tank

Drain

Copper Tee For Domestic Cold Water In Line

Brass Tee

Adapter to Unit Water Line

Enertech Global WT Models, Rev.: B

Page 25

Section 7: Desuperheater Installation

Cold Water

Figure 8: Typical Desuperheater Installation

Cold Water

Hot Water

Supply

Water Heater (or Storage Tank)

Shutoff Valves

Air Vent Located at System High Point

Heat Pump

Drain Valve

Shutoff

Valves

Desuperheater Out

Desuperheater In

2” Polyethylene Equipment Pad

Figure 9: Desuperheater Installation in Preheat Tank

Hot Water

Cold Water Supply

Air Vent Located at System High Point

Hot Water

Supply

Shutoff Valves

Water Heater No. 2

(or Storage Tank)

Water Heater No. 1

(or Storage Tank)

Heat Pump

Drain Valve

WT Models, Rev.: B Enertech Global

Shutoff Valves

Desuperheater Out

Desuperheater In

2” Polyethylene Equipment Pad

Page 26

Section 8: Controls

MICROPROCESSOR FEATURES AND OPERATION

Enertech Global geothermal heat pump controls provide a unique modular approach for controlling heat pump operation. The control system uses one, two, or three printed circuit boards, depending upon the features

of a particular unit. This approach simplies

installation and troubleshooting, and eliminates features that are not applicable for some units.

A microprocessor-based printed circuit board controls the inputs to the unit as well as outputs for status mode, faults, and diagnostics. A status LED and an LED for each fault is provided for diagnostics.

Removable low voltage terminal strips provide

all necessary terminals for eld connections.

Not only are the thermostat inputs included, but there are also removable terminal strips for all of the accessory wiring for ease of installation and troubleshooting.

Startup/Random Start

The unit will not operate until all the inputs and safety controls are checked for normal

conditions. At rst power-up, the compressor is energized after a ve minute delay. In addition,

a zero to sixty second random start delay is

added at rst power-up to avoid multiple units

from being energized at the same time.

Short Cycle Protection A built-in ve minute anti-short cycle timer provides short cycle protection of the compressor.

Component Sequencing Delays

Components are sequenced and delayed for optimum space conditioning performance and to make any startup noise less noticeable.

Test Mode The microprocessor control allows the technician to shorten most timing delays for faster diagnostics by changing the position of a jumper located on the lockout board.

Water Solenoid Valve Connections

Two accessory relay outputs at the terminal

strip provide a eld connection for two types

of water solenoid valves, a standard 24VAC

solenoid valve, or a 24VAC solenoid valve

with an end switch. Additional eld wiring is no

longer required for operation of the end switch.

Loop Pump Circuit Breakers

The loop pump(s) and desuperheater pump on single compressor units are protected by control box mounted circuit breakers for easy wiring of pumps during installation.

Dual compressor units desuperheater pump but

loop or load side pumps. All loop and load side pumps must be wired externally using relays and circuit breakers supplied by others. Circuit breakers eliminate the need to replace fuses.

Safety Controls The control receives separate signals for high

pressure, low pressure, and low water ow. Upon

a continuous 30-second measurement of the fault (immediate for high pressure), compressor operation is suspended (see Fault Retry below),

and the appropriate LED ashes. Once the unit

is locked out (see Fault Retry below), an output (terminal “L”) is made available to a fault LED at the thermostat (water-to-water unit has fault LED on the corner post).

Low Pressure: If the low pressure switch is open for 30 continuous seconds, the compressor operation will be interrupted, and the control will go into fault retry mode. At startup, the low pressure switch is not monitored for 90 seconds to avoid nuisance faults.

High Pressure: If the high pressure switch opens, the compressor operation will be interrupted, and the control will go into fault retry mode. There is no delay from the time the switch opens and the board goes into fault retry mode. There is also no delay of switch monitoring at startup.

Flow Switch: If the ow switch is open for 30

continuous seconds, the compressor operation will be interrupted, and the control will go into

fault retry mode. At startup, the ow switch

is not monitored for 30 seconds to avoid nuisance faults.

FAULT RETRY

only protect the

do not protect the

Enertech Global WT Models, Rev.: B

Page 27

Section 8: Controls

All faults are retried twice before nally locking

the unit out. The fault retry feature is designed to prevent nuisance service calls. There is an antishort cycle period between fault retries. On the third fault, the board will go into lockout mode.

Over/Under Voltage Shutdown

The lockout board protects the compressor from operating when an over/under voltage condition exists. The control monitors secondary voltage (24VAC) to determine if an over/under voltage condition is occurring on the primary side of the transformer. For example, if the secondary voltage is 18VAC, the primary voltage for a 240V unit would be approximately 180V, which is below the minimum voltage (197V) recommended by the compressor manufacturer. Under voltage (<18VAC) causes the compressor to disengage and restart when the voltage returns to >20VAC. Over voltage (>31VAC) causes the compressor to disengage and restart when the voltage returns to <29VAC. When an O/U Voltage condition occurs, the board will initiate a fault, shut down the

compressor, and start the ve minute ASC

Table 4a: LED Identication

period. All four fault LEDs will ash (HP + LP + FS + CO) and the thermostat “Call For

Service” indicator will be illuminated. This feature is self-resetting. If voltage returns to normal range normal operation will resume if/when the ASC period is over (except if in lockout mode). If voltage is still out of range at the end of the ASC period the control will execute a Fault Retry. On the third fault within 30 minutes, the board will go into lockout mode and illuminate the “Call For Service” indicator. When normal operation is restored the four fault LED’s will stop ashing and the “Call For Service” indicator will turn off.

Intelligent Reset If the thermostat is powered off and back on (soft reset), the board will reset, but the last fault will be stored in memory for ease of troubleshooting. If power is interrupted to the board, the fault memory will be cleared.

Diagnostics

The lockout board includes ve LEDs (status, high pressure, low pressure, low water ow, condensate overow) for fast and simple

control board diagnosis. Below is a table showing LED function.

LED Color Location

Green To p High Pressure OFF Flashing

Orange 2nd Low Pressure OFF Flashing

Red 3rd Water Flow OFF Flashing

Yellow Not applicable on water-to-water units

Green Bottom Status Flashing

Notes:

1. Looking at the board when the LEDs are on the right hand side

2.Ifallvelightsareashing,thefaultisover/undervoltage

3.Onlythelightassociatedwiththeparticularfault/lockoutwillbeonorashing.

For example, if a high pressure lockout has occurred, the top green light will be on.

Theorange,red,andyellowlightswillbeoff

4. Status lights will be off when in test mode

5.FlashesalternatelywiththefaultLED

WT Models, Rev.: B Enertech Global

Function Normal Operation FaultRetry

Flashing

Lockout

Flashing

Page 28

Section 8: Controls

Hot Water Pump Control

Controls for high water temperature and low compressor discharge line temperature prevent the hot water (desuperheater) pump from operating when the leaving water temperature is above 130°F, or when the compressor discharge line is too cool to provide adequate water heating.

Lockout Board Jumper Selection

The lockout board includes three jumpers for

eld selection of various board features.

Water Solenoid Valve Delay (WSD): When the WSD jumper is installed, the “A” terminal is energized when the compressor is energized. When the jumper is removed, the “A” terminal is energized 10 seconds after the compressor. If using the Taco water solenoid valve (or a valve with an end switch), the unit terminal strip includes a means for connecting a valve of this type. The WSD jumper should be installed. If using a fast opening valve without an end switch, the jumper should be removed.

include power company transformer selection,

insufcient entrance wire sizing, defective

breaker panel, incorrect transformer tap (unit control box), or other power-related issues.

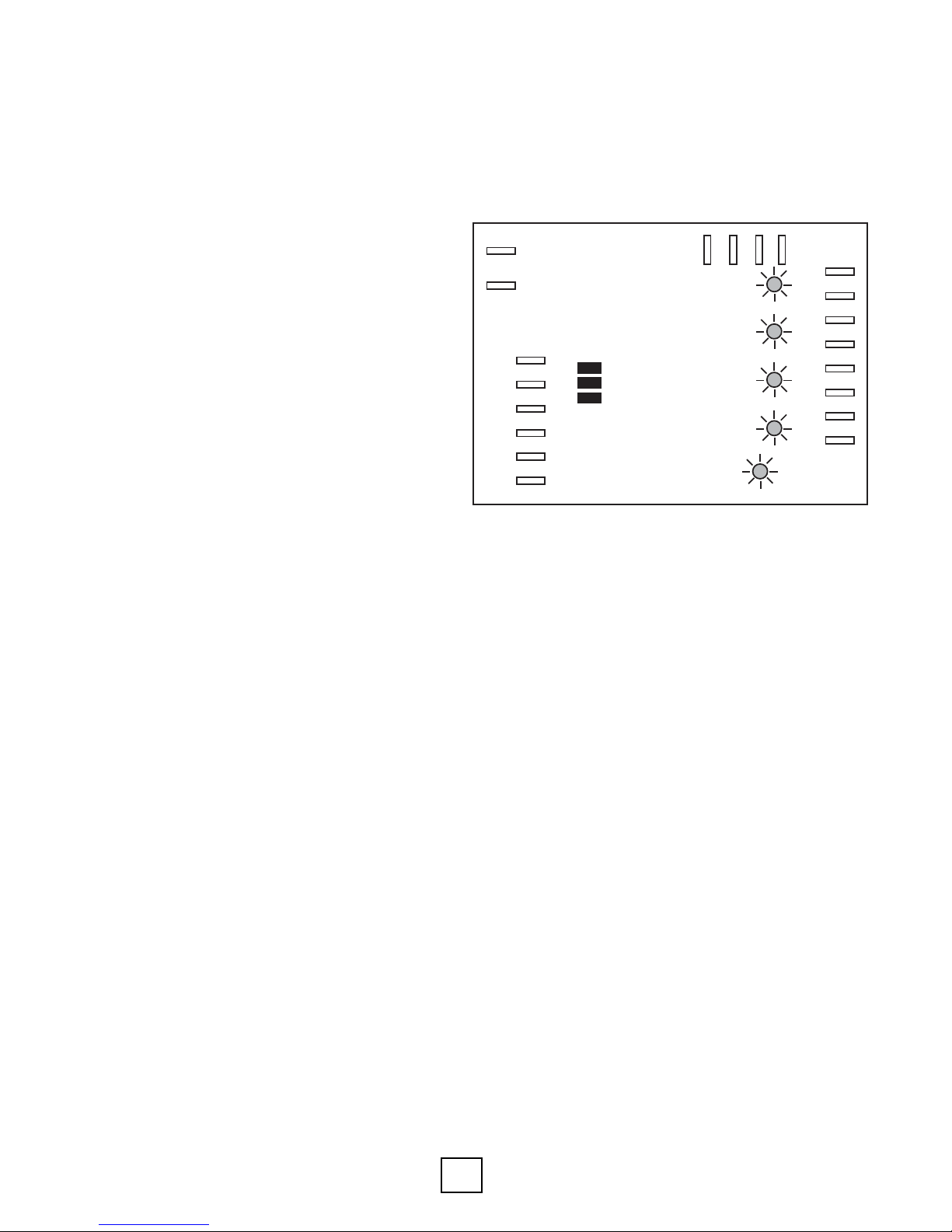

Figure 10a: Lockout Board Layout

CCG

R2 R1 C2 C1

Lockout

Board

HP HP LP LP

A C R Y

WSD TEST O/V

FS FS CO CO

SEQUENCE OF OPERATION:

Water-to-Water Units, Single Compressor

Status

Test Mode (TEST): When the TEST jumper is installed, the board operates in the normal mode. When the jumper is removed, the board operates in test mode, which speeds up all delays for easier troubleshooting. When service is complete, the jumper must be re-installed in order to make sure that the unit operates with normal sequencing delays. While test jumper is removed, the status (bottom green light) will remain off.

Over/Under Voltage Disable (O/V): When the O/V jumper is installed, the over/under voltage feature is active. When the jumper is removed, the over/under voltage feature is disabled. On rare occasions, variations in voltage will be outside the range of the over/under voltage feature, which may require removal of the jumper. However, removal of the jumper could cause the unit to run under adverse conditions, and therefore should not be removed without contacting technical services. An over/under voltage condition could cause premature component failure or damage to the unit controls. Any condition that would cause this fault must be thoroughly investigated before taking any action regarding the jumper removal. Likely causes of an over/under voltage condition

Heating (Y1)

Water-to-Water Units, Single Compressor

Heating rst stage (Y1)

The compressor (rst stage) and loop/

desuperheater pump(s) are energized 10 seconds after the “Y1” input is received.

Heating second stage (Y1, Y2)

The compressor solenoid is energized immediately upon receiving a “Y2” input, switching the compressor to full load.

Cooling Operation

The reversing valve is energized for cooling operation. Terminal “O” is connected to the reversing valve solenoid.

Cooling rst stage (Y1, O)

The compressor (rst stage) and loop/

desuperheater pump(s) are energized 10 seconds after the “Y1” input is received.

Cooling second stage (Y1, Y2, O)

The compressor solenoid is energized immediately upon receiving a “Y2” input, switching the compressor to full load.

Enertech Global WT Models, Rev.: B

Page 29

Section 8: Controls

SEQUENCE OF OPERATION:

Water-to-Water Units, Dual Two-Stage Compressors (WT092 Only)

Heating rst stage (Y1)

Compressor A is energized in rst stage 10

seconds after the “Y1” input is received.

Compressor B is energized in rst stage 10

seconds after Compressor A.

Heating second stage (Y1, Y2)

Both compressor solenoids are energized immediately upon receiving a “Y2” input, switching the compressors to full load.

Cooling Operation

The reversing valve is energized for cooling operation. Terminal “O” is connected to the reversing valve solenoid.

Cooling rst stage (Y1, O)

Compressor A is energized in rst stage 10

seconds after the “Y1” input is received.

Compressor B is energized in rst stage 10

seconds after Compressor A.

Cooling second stage (Y1, Y2, O)

Both compressor solenoids are energized immediately upon receiving a “Y2” input, switching the compressors to full load.

SEQUENCE OF OPERATION:

Water-to-Water Units, Dual Single Stage Compressors (WT120 & WT144 Only)

Heating rst stage (Y1)

Compressor A is energized 10 seconds after the “Y1” input is received.

Heating second stage (Y1, Y2)

Compressor B is energized 10 seconds after the “Y2” input is received. Compressor A remains energized.

Cooling Operation

The reversing valve is energized for cooling operation. Terminal “O” is connected to the reversing valve solenoid.

Cooling rst stage (Y1, O)

Compressor A is energized 10 seconds after the “Y1” input is received.

Cooling second stage (Y1, Y2, O)

Compressor B is energized 10 seconds after the “Y2” input is received. Compressor A remains energized.

WT Models, Rev.: B Enertech Global

Page 30

MPH Series

Section 8: Controls/Hydronic Air Handler

HYDRONIC AIR HANDLER:

ECM fan/hydronic chilled water/hot water coil

Thermostat Wiring / Fan Speed Notes

For two-stage thermostats, use both Y1 and Y2. For single stage thermostats, jumper Y1 and Y2, and use the “CFM Y2” column in table 6b for determining jumper location. The ECM control board in the air handler is the thermostat connection point. Wire nut the thermostat wiring to the leads connected to the 1/4” spades on the ECM board.

For dehumidication in cooling, cut the resistor

at the “DEHUMIDIFY” LED. Use either the HUM terminal (reverse logic -- designed to be used with a humidistat) to lower the fan speed when

Table 4b: MPH Air Handler Fan Speeds

Model Number

WT036 with MPH024A

Change to:

COOL Jumper B

HEAT Jumper B

ADJUST Jumper Norm

WT036 with MPH036A

Ships Set On:

COOL Jumper C

HEAT Jumper C

ADJUST Jumper Norm

WT048 with MPH060B

Change to:

COOL Jumper C

HEAT Jumper C

ADJUST Jumper Norm

WT060 with MPH060B

Ships Set On:

COOL Jumper B

HEAT Jumper B

ADJUST Jumper Norm

COOL

Jumper

A A Norm 930 930 920 830 820 810 420 410 410

B B Norm 930 920 890 770 750 730 380 370 360

C C Norm 870 860 820 710 700 670 360 350 330

D D Norm 870 840 810 700 680 650 350 340 330

A A + 930 930 920 930 930 920 470 460 460

B B + 930 930 900 880 860 830 440 430 420

C C + 930 930 890 810 800 760 410 400 380

D D + 930 930 890 800 780 750 400 390 370

A A Norm 1556 1556 1508 1448 1448 1428 567 539 502

B B Norm 1547 1547 1518 1239 1239 1227 476 433 407

C C Norm 1312 1308 1308 1012 1006 1006 396 349 302

D D Norm 1150 1145 1139 880 873 865 322 288 N/A

A A + 1556 1556 1508 1566 1566 1518 674 633 619

B B + 1547 1547 1518 1428 1428 1428 558 529 493

C C + 1528 1520 1486 1156 1156 1156 450 404 377

D D + 1317 1317 1317 1024 1020 1006 395 345 302

A A Norm 2180 2170 2116 1810 1810 1784 1157 1137 1137

B B Norm 2015 2015 2004 1678 1678 1664 1087 1087 1045

C C Norm 1710 1701 1693 1407 1407 1396 953 934 905

D D Norm 1567 1567 1546 1318 1304 1274 9 11 989 962

A A + 2243 2170 2116 1885 1860 1823 1289 1271 1253

B B + 2232 2170 2105 1897 1873 1848 1215 1203 1191

C C + 1937 1921 1914 1612 1612 1603 1032 1017 981

D D + 1809 1795 1752 1493 1488 1467 1003 978 945

HEAT

Jumper

ADJUST

Jumper

High SPD CFM Y2 Low SPD CFM Y1 FAN G

.40” .60” .80” .40” .60” .80” .40” .60” .80”

dehumidication is needed, or if the HUM

terminal is not connected (and the resistor is cut), the air handler will operate at a lower fan speed in cooling and normal fan speed in heating.

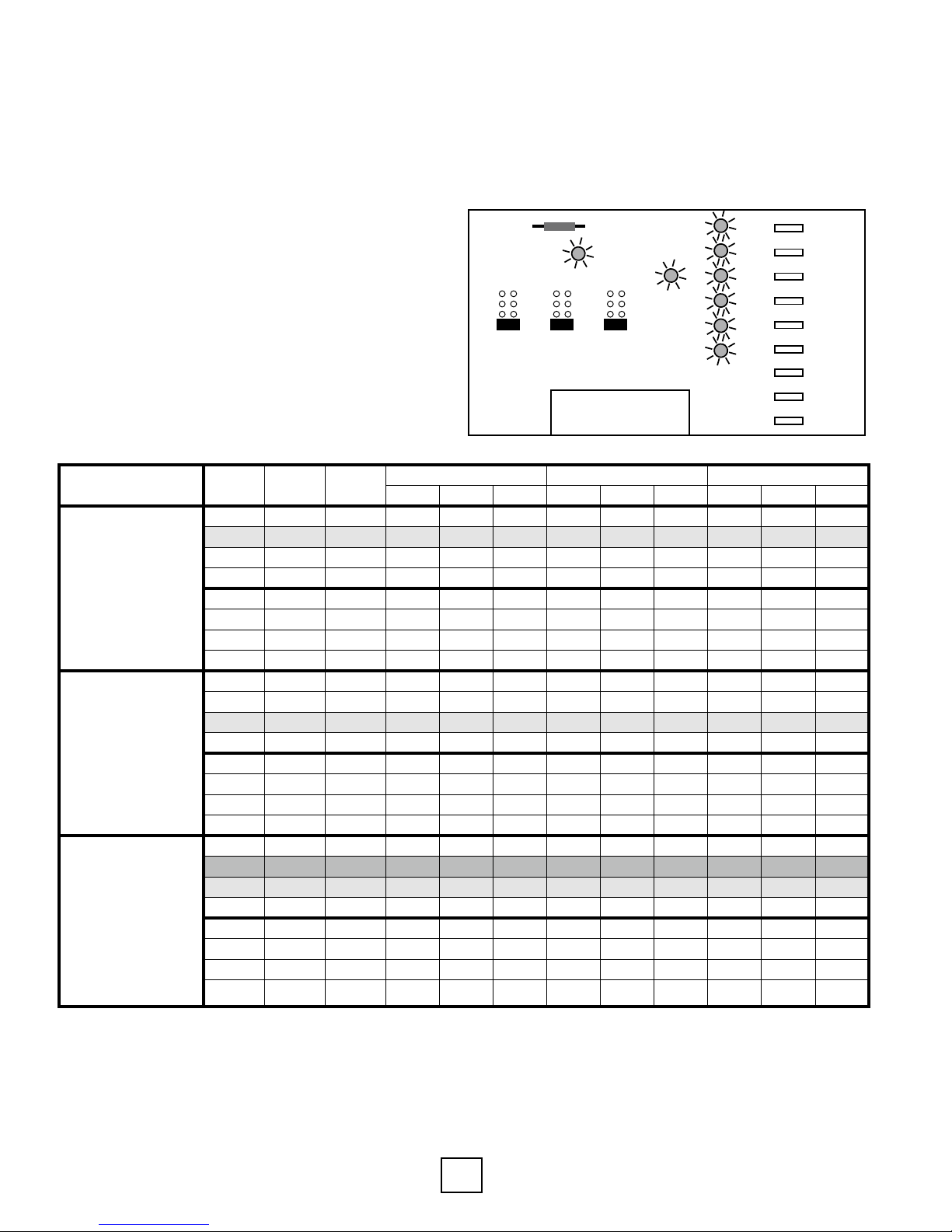

Figure 10b: ECM Board (Air Handler Board)

CUT TO ENABLE

DEHUMIDIFY

COOL

D C B A

HEAT ADJUST

ECM Control Board

(MPD series)

Low Voltage

Connection

to ECM Motor

TEST (-) (+) NORM

CFM

Y1 Y2

HUM

NOTES:

1.DehumidicationmodecanbeenabledbycuttingthejumperontheECMboard.Whencut,coolingCFMisreducedby15%,andheating/auxiliaryheatCFMremains

unchanged. Example: Model 036 with HEAT and COOL jumpers on C setting and ADJUST jumper on Norm setting would run at 1115 CFM with jumper cut, instead of 1308 CFM with jumper intact.

1.Grayshadedareasarerecommendedsettings.Othersettingsmaybeused,dependinguponapplication.DONOTcutdehumidicationjumperifCFMsettingwill

causeairowtobebelow250CFMpertononrststage,andbelow325CFMpertononsecondstage.Example:Model036shouldnotrunbelow750CFMinrst

stage, or below 975 CFM in second stage.

2.TheCOOLandHEATjumpersshouldbothbesetatthesameposition.COOLcontrolsheatingandcoolingairow;HEATcontrolselectricheatairow.

3. Above CFM will be maintained up to 0.50” ESP for models MPH024 and 036, and up to 0.75” ESP for models MPH048 and 60.

Enertech Global WT Models, Rev.: B

Page 31

Section 8: Controls

Water-to-Water Unit, Two-Stage, Single Compressor Wiring Diagram

2 STAGE AQUASTAT

R1 Y1 Y2

Note: On units lower than 8 tons, load side pumping is handled via connection to the loop pump terminals (i.e. the loop and load pumps can be powered from the unit as long as no more than three UP26-116 pumps are connected total (loop and load side).

WT Models, Rev.: B Enertech Global

Page 32

Section 8: Controls

Water-to-Water Unit, Two-Stage, Dual Two-Stage Compressor Wiring Diagram

Note: Units 8 tons and larger are considered “commercial” size units and all pumping is handled from a separate electrical circuit outside of the unit

Enertech Global WT Models, Rev.: B

Page 33

Section 8: Controls

Water-to-Water Unit, Two-Stage, Dual Single Stage Compressor Wiring Diagram

Note: Units 8 tons and larger are considered “commercial” size units and all pumping is handled from a separate electrical circuit outside of the unit

WT Models, Rev.: B Enertech Global

Page 34

Section 8: Controls

Water-to-Water Unit, Single, Two Stage Compressor, Three Phase, 460V, 60 HZ Wiring Diagram

2 STAGE AQUASTAT

R1 Y1 Y2

Enertech Global WT Models, Rev.: B

Page 35

Section 8: Controls

Water-to-Water Unit, Two-Stage or Single Stage Compressor, Three Phase , 60HZ Wiring Diagram

WT Models, Rev.: B Enertech Global

Page 36

Section 8: Controls

Water-to-Water Unit, Dual Two Stage Compressors, Three Phase, 60 HZ Wiring Diagram

Note: Units 8 tons and larger are considered “commercial” size units and all pumping is handled from a separate electrical circuit outside of the unit

Enertech Global WT Models, Rev.: B

Page 37

Section 8: Controls

Water-to-Water Unit, Dual Single Stage Compressors, Three Phase , 60HZ Wiring Diagram

Note: Units 8 tons and larger are considered “commercial” size units and all pumping is handled from a separate electrical circuit outside of the unit

WT Models, Rev.: B Enertech Global

Page 38

Section 8: Controls

Water-to-Water Unit, Dual Two-Stage Compressors, Three Phase , 460V, 60HZ Wiring Diagram

Note: Units 8 tons and larger are considered “commercial” size units and all pumping is handled from a separate electrical circuit outside of the unit

Enertech Global WT Models, Rev.: B

Page 39

Section 8: Controls

Water-to-Water Unit, Dual Single Stage Compressors, Three Phase, 460V, 60 HZ Wiring Diagram

Note: Units 8 tons and larger are considered “commercial” size units and all pumping is handled from a separate electrical circuit outside of the unit

WT Models, Rev.: B Enertech Global

Page 40

EQUIPMENT START-UP FORM

Unit Electrical Data

Loop Type: Open Closed

(Circle One)

Line Voltage

Wire Size

Circuit Breaker Size

Cooling

Heating

Cooling

Heating

Flow Rate

*Check pressure drop chart for GPM

Total Unit Amps

Compressor Amps

Flow Rate

Source Water Pressure In

Source Water Pressure Out

Source Water Pressure Drop

BTU/HR

Source Water Temp. Difference

Cooling

Heating

Source Water Temperature In

Source Water Temperature Out

Source Water Temperature Difference

Cooling

Heating

Load Water Temp. Difference

Cooling

Heating

Heat of Extraction/Rejection = GPM X Water Temp. Difference X 485 (Water & Antifreeze - Closed Loop)

Heat of Rejection

Heat Of Extraction

Load Water Temperature In

Load Water Temperature Out

Load Water Temperature Difference

Heat of Extraction/Rejection = GPM X Water Temp. Difference X 500 (Water - Open Loop)

Air Temperature Difference

Supply Air Temperature

Return Air Temperature

Air Temp. Difference

Auxiliary Heat Operation Only

Supply Air Temperature

*Confirm auxiliary heaters are de-energized for the above readings.

Return Air Temperature

Air Temp. Difference

Auxiliary Heat Electrical Data

CFM = (Watts X 3.413) ÷ (Air Temp. Difference X 1.08)

Watts = Volts X Auxiliary Heater Amps

Line Voltage

Total Amperage (Full kW - All Stages)

Wire Size

Breaker Size

Customer Name:_________________________________________________________________

Customer Address:_____________________________________________________________________________________

Model #:__________________________________________ Serial #:____________________________________________

Dealer Name:__________________________________________________________________________________________

Distributor Name:_____________________________________________ Start-up Date:____________________________

PSI PSI V PSI PSI A A PSI PSI A A GPM GPM GA

ºF ºF ºF ºF ºF ºF

Heat of Rejection/Extraction

BTU/HR

ºF ºF ºF ºF ºF ºF

Cooling Heating

ºF ºF ºF ºF ºF ºF

Heating

ºF ºF ºF

Heating

V A

Installer/Technician:____________________________________________ Date:________________________

Page 41

Equipment Start-Up Process

Check the following before power is applied to the equipment

Caution: Do not start-up the unit until the new structure is ready to be occupied

Electrical:

 Geothermal unit high voltage

wiring is installed correctly

 Geothermal unit high voltage

wiring and breaker are the correct size

 Auxiliary electric heaters are

wired and installed correctly

 Circulating pumps are wired and

fused (if necessary) correctly

 Desuperheater pump is NOT

wired, unless piping is complete and all air is purged

 Low voltage wiring is correct and

completely installed

Equipment Start-Up

1. Energize geothermal unit with

high voltage.

2. Set the thermostat to “Heat” or “Cool.” Adjust set point to energize the unit. System will energize after delays expire (typically a five minute delay).

3. Check water flow with a flow meter (non-pressurized) or pressure drop conversion (pressurized). Pressure drop tables must be used to convert the pressure drop to GPM. The pressure drop can be obtained by checking water pressure in and water pressure out at the P/T ports.

4. Check the geothermal unit’s electrical readings listed in the Unit Electrical Data table.

5. Check the source water temperature in and out at the P/T ports (use insertion probe). Allow 10 minutes of operation before recording temperature drop.

6. Calculate the heat of extraction or heat of rejection.

Plumbing:

 Pipe and pump sizes are correct  Air is purged from all lines  Antifreeze is installed  All valves are open, including

those on the flow center

 Condensate is trapped and piped

to the drain

Ductwork:

 Filter is installed and clean  Packaging is removed from the

blower assembly

 Blower turns freely  Canvas connections installed on

supply plenum & return drop

7. Check the temperature difference of the load coax (water-to-water) or air coil (water-to-air). P/T ports are recommended for use on the load side, but the line temperatures can be used to check the temperature difference.

8. Change the mode of the thermostat and adjust the set point to energize the unit. Check the data in opposite mode as the previous tests. Amp draws as well as temperature differences and flow rate should be recorded.

9. Check auxiliary heat operation by adjusting the thermostat set point 5°F above the room temperature in “Heat” mode or set thermostat to “Emergency." Record voltage, amperage, and air temperature difference.

Page 42

Section 10: Troubleshooting

PERFORMANCE CHECK:

Heat of Extraction(HE)/Rejection(HR) Record information on the Unit Start-up Form

Equipment should be in operation for a minimum of 10 minutes in either mode – WITH

THE HOT WATER GENERATOR TURNED OFF.

1. Determine ow rate in gallons per minute

a. Check entering water temperature b. Check entering water pressure c. Check leaving water pressure

Once this information is recorded, nd

corresponding entering water temperature

column in Specication Manual for unit.

Find pressure differential in PSI column in Spec Manual. Then read the GPM column in Spec

Manual to determine ow in GPM.

2. Check leaving water temperature of unit. FORMULA: GPM x water temp diff, x 485 (antifreeze) or 500 (fresh water) = HE or HR in BTU/HR

A 10% variance from Spec Manual is allowed. Always use the same pressure gauge & temperature measuring device.

Water ow must be in range of Specication Manual. If system has too much water ow,

performance problems should be expected

Enertech Global WT Models, Rev.: B

Page 43

Section 10: Troubleshooting

A: UNIT WILL NOT START IN EITHER CYCLE

Set thermostat on heating and highest temperature setting. Unit should run. Set thermostat on cooling and

Thermostat

Loose or broken wires Tighten or replace wires.

Blown Fuse/ Tripped Circuit Breakers

Low Voltage Circuit

Water Flow (runs for 30 sec)

lowest temperature setting. Unit should run. Set fan to On position. Fan should run. If unit does not run in

anyposition,disconnectwiresatheatpumpterminalblockandjumpR,G,Y.Unitshouldruninheating.If unitruns,replacethermostatwithcorrectthermostatonly.

Check fuse size, replace fuse or reset circuit breaker. Check low voltage circuit breaker.

Check24volttransformer.Ifburnedoutorlessthan24volt,replace.Beforereplacing,verifytapsetting andcorrectifnecessary.

Ifwaterowislow(lessthan3.5GPM),unitwillnotstart.MakesurePumpModuleorsolenoidvalveis connected(seewiringdiagram).Waterhastoowthroughtheheatexchangerintherightdirection(see labelsatwaterttingconnections)beforethecompressorcanstart.Ifwaterowisatnormalow,usean ohmmetertocheckifyougetcontinuityattheowswitch.Ifnoswitchisopenandowisanormalow,

remove switch and check for stuck particles or bad switch.

B: UNIT RUNNING NORMAL, BUT SPACE TEMPERATURE IS UNSTABLE

Thermostat

Thermostat is getting a draft of cold or warm air. Make sure that the wall or hole used to run thermostat wire from the ceiling or basement is sealed, so no draft can come to the thermostat.

FaultyThermostat(Replace).

C: NO WATER FLOW

MakesurePumpModuleisconnectedtothecontrolboxrelay(checkallelectricalconnections).Fornon-

Pump Module

Solenoid valve Make sure solenoid valve is connected. Check solenoid. If defective, replace.

pressurizedsystems,checkwaterlevelinPumpModule.Iffullofwater,checkpump.Closevalveonthe pumpangesandloosenpump.Takeoffpumpandseeifthereisanobstructioninthepump.Ifpumpis defective,replace.Forpressurizedsystems,checklooppressure.Repressurizeifnecessary.Mayrequire re-ushingifthereisairintheloop.

D: IN HEATING OR COOLING MODE, UNIT OUTPUT IS LOW

Water Waterow&temperatureinsufcient.

Load Side Flow

Refrigerant charge

Reversing valve

Check speed setting, check nameplate or data manual for proper speed, and correct speed setting.

Checkfordirtyairlter—Cleanorreplace. Restrictedorleakyductwork.Repair.

Refrigerantchargelow,causinginefcientoperation.Makeadjustmentsonlyafterairowandwaterow

are checked.

Defectivereversingvalvecancreatebypassofrefrigeranttosuctionsideofcompressor.Switchreversing valvetoheatingandcoolingmoderapidly.Ifproblemisnotresolved,replacevalve.Wrapthevalvewitha wetclothanddirecttheheatawayfromthevalve.Excessiveheatcandamagethevalve.Alwaysusedry nitrogenwhenbrazing.Replacelter/drieranytimethecircuitisopened.

E: IN HEATING OR COOLING MODE, UNIT OUTPUT IS LOW

Heat pump will not cool but will heat. Heat pump will not heat but will cool.

Water heat exchanger

Systemundersized Recalculate conditioning load.

Reversing valve does not shift. Check reversing valve wiring. If wired wrong, correct wiring. If reversing

valveisstuck,replacevalve.Wrapthevalvewithawetclothanddirecttheheatawayfromthevalve. Excessiveheatcandamagethevalve.Alwaysusedrynitrogenwhenbrazing.Replacelter/drieranytime

the circuit is opened.

Check for high-pressure drop, or low temperature drop across the coil. It could be scaled. If scaled, clean with condenser coil cleaner.

F: WATER HEAT EXCHANGER FREEZES IN HEATING MODE

Waterow Lowwaterow.Increaseow.SeeF.Nowaterow.

Flow Switch Check switch. If defective, replace.

G: EXCESSIVE HEAD PRESSURE IN COOLING MODE

Inadequatewaterow Lowwaterow,increaseow.

WT Models, Rev.: B Enertech Global

Page 44

Section 10: Troubleshooting

H: EXCESSIVE HEAD PRESSURE IN HEATING MODE

Load Side Flow SeeE:Noisyblowerandlowairow.

I: WATER DRIPPING FROM UNIT

Unit not level Level unit.

Condensation drain line plugged

Water sucking off the air coil in cooling mode

Water sucking out of the drain pan

Unplug condensation line.

Toomuchairow.Ductworknotcompletelyinstalled.Ifductworkisnotcompletelyinstalled,nishduct work.Checkstaticpressureandcomparewithairowchartinspecmanualunderspecicmodelssection. IfductworkiscompletelyinstalleditmaybenecessarytoreduceCFM.

Install an EZ-Trap or P-Trap on the drain outlet so blower cannot suck air back through the drain outlet.

Enertech Global WT Models, Rev.: B

Page 45

Section 10: Troubleshooting

J: COMPRESSOR WON’T START

Check for proper compressor nameplate voltage.

Attempt to restart the compressor

Does Compressor draw

current when voltage is applied.

Check voltage supply

& contactor operation.

Is the compressor hot?

Allow time for the

protector to reset.

Recheck Resistance

Replace Compressor

Yes

Not

Are the suction &

Yes

discharge pressures balanced.

Check motor

resistance. (See Note B)

Not OK

Yes

Allow time for compressor to balance.

Voltage supply is too low.

Compressor Connection Block

Single Phase 208-230 C = Line Winding R = Run Winding S = Start Winding

Check the wiring, capacitor & contactor operation. (See Note A)

Allow to start the compressor while measuring voltage on the load side of the contactor.

Is the voltage 197 or higher when the compressor is trying to start.

Yes

If the compressor fails to start after 3 attempts, replace the compressor.

A: Check all terminals, wires & connections for loose or burned wires and connections. Check contactor and 24 Volt

coil. Check capacitor connections & check capacitor with capacitor tester.

B: Ifohmmeterreads0(short)resistancefromCtoS,StoR,RtoCorfromanyoneofoneoftheseterminalsto

ground (shorted to ground), compressor is bad.

K: COMPRESSOR WON’T PUMP CHART

Is the c om p re ssor

ru n n ing?

N o

R ef er t o t h e co m pr esso r

w on 't s ta rt f low ch art.

M ea su re & r eco rd

Y es Y es

th e a m p s, volts, suc ti on & d is ch a rg e p re ss ur e .

D oe s th e u n it

O K

h av e a r e frig er a nt c h a rg e?

A dd r e frig er an t to t h e s ys te m .

If th e co m p ressor s till w o n't pum p re p lace co m pr esso r.

N o

S hut t h e unit d ow n & re v er se th e p h as in g (3 -P has e On ly )

C heck & v er ify th e r un c ap acitor

C heck th e ope ra tio n o f t h e r ev e rs ing

O K

v a lv e.

O K

WT Models, Rev.: B Enertech Global

Page 46

Superheat Subcooling Condition

Normal Normal Normal operation Normal High Overcharged

High Low Undercharged High High Restriction or TXV is stuck almost closed

Low Low TXV is stuck open

Section 10: Troubleshooting

Table 6: Refrigeration Troubleshooting

SystemFaults Mode

Under Charge

Over Charge

Low Air Flow

Low Source Water Flow

Low Load Water Flow

Restricted TXV

TXV Stuck Open

Inadequate Compression

Discharge

Pressure

Heat Low Low High Low Low Low Low

Cool Low Low High Low Low Low Low

Heat High High/Normal Normal High High Normal High

Cool High High/Normal Normal High Normal High High

Heat High High/Normal Normal High/Normal High Low High

Cool Low Low/Normal Low Normal High Low High/Normal

Heat Low Low/Normal Low Normal High Low High/Normal

Cool High High/Normal Normal High/Normal High Low High

Heat High High/Normal Normal High/Normal High Low High

Cool Low Low/Normal Low Normal High Low High/Normal

Heat High Low High High Low Low Low

Cool High Low High High Low Low Low

Heat Low High/Normal Low Low Low Low High

Cool Low High/Normal Low Low Low Low High

Heat Low High High/Normal Low/Normal Low Low Low

Cool Low High High/Normal Low/Normal Low Low Low

Suction

Pressure

Superheat Subcooling Air TD Water TD

Compressor

Amps

Superheat/Subcooling Conditions

Enertech Global WT Models, Rev.: B

Page 47

Discharge Suction Subcooling Superheat

Source Water

Temp Drop

Load Water

Temp Rise

°F GPM/Ton GPM/Ton °F PSIG PSIG °F °F °F °F

318-363 49-84 11-26 6-14 7-11 4-9

365-411 51-86 10-25 5-13 7-11 4-9

110

438-488 53-89 8-24 4-13 5-10 4-8

291-332 56-89 6-20 7-13 3-8 5-10

334-377 58-92 5-20 5-12 3-8 5-10

110

402-447 60-95 3-18 4-12 2-7 4-10

330-376 77-110 12-28 6-13 11-15 6-10

378-426 79-114 11-27 4-12 10-15 6-10

110

455-506 82-117 9-26 4-12 9-13 6-10

302-344 86-118 7-22 9-14 5-10 7-12

346-390 89-122 6-21 7-13 5-10 7-12

110

417-463 92-125 4-20 7-13 4-9 6-12

344-390 106-141 13-29 6-15 15-20 8-13

394-442 109-145 12-27 5-14 14-19 8-12

110

474-525 113-150 11-27 4-15 13-17 8-12

315-357 118-151 8-23 11-18 8-13 9-15

361-405 122-156 7-22 10-17 7-13 9-15

110

434-480 125-161 5-21 10-18

6-12 9-14

356-403 134-172 15-29 9-18 19-24 11-15

408-457 138-178 13-27 7-17 19-23 10-15

110

490-543 142-183 12-27 7-18 17-21 10-14

326-369 149-185 9-24 16-23 10-16 11-17

374-418 154-191 8-22 15-22 9-15 11-17

110

450-496 158-197 6-21 14-23 8-12 11-15

Discharge Suction Subcooling Superheat

Source Water

Temp Rise

Load Water Temp Drop

°F GPM/Ton GPM/Ton °F PSIG PSIG °F °F °F °F

193-252 58-94 12-28 5-16 13-19 4-9

193-252 65-100 12-28 5-15 14-20 4-9

193-252 71-107 12-28 5-15 15-22 5-10

176-231 66-100 8-23 6-15 6-11 5-10

176-231 73-107 7-23 7-16 6-12 5-10

176-231 80-114 7-23 7-16 7-13 6-11

266-312 62-96 14-26 4-14 13-19 4-9

266-312 68-102 13-26 4-14 14-20 4-9

266-312 75-109 13-26 4-14 15-21 5-10

243-286 69-103 8-21 6-14 6-11 4-9

243-286 77-109 8-20 7-14 6-12 5-10

243-286 84-117 8-20 7-14 7-12 5-10

346-393 64-98 12-27 4-13 13-19 3-8

349-396 71-104 12-28 5-13 14-20 4-8

352-399 78-111 12-28 5-13 15-21 4-9

316-359 72-104 7-22 6-13 6-11 4-9

319-362 80-111 7-22 7-13 6-11 4-9

322-366 87-119 7-23 7-14

7-12 5-10

444-495 67-102 9-25 3-12 13-19 3-7

448-500 74-109 10-26 3-12 13-20 3-8

452-504 82-116 10-26 3-12 14-21 3-8

407-453 75-109 4-20 5-12 6-11 3-8

411-457 83-116 4-20 5-13 6-11 3-8

415-461 91-124 4-21 6-13 6-12 4-9

Load

EWT

Full Load Heating-No Hot Water Generation

1.5

3.0

1.5

3.0

Source

EWT

Source

Flow

Load Flow

1.5

3.0

1.5

3.0

Source

EWT

Source

Flow

Load Flow

Load

EWT

Full Load Cooling-No Hot Water Generation

1.5

3.0

110

1.5

3.0

1.5

3.0

1.5

3.0

Section 10: Troubleshooting

Table 4: Typical R-410A Unit Superheat/Subcooling Values

WT Models, Rev.: B Enertech Global

Page 48

°F

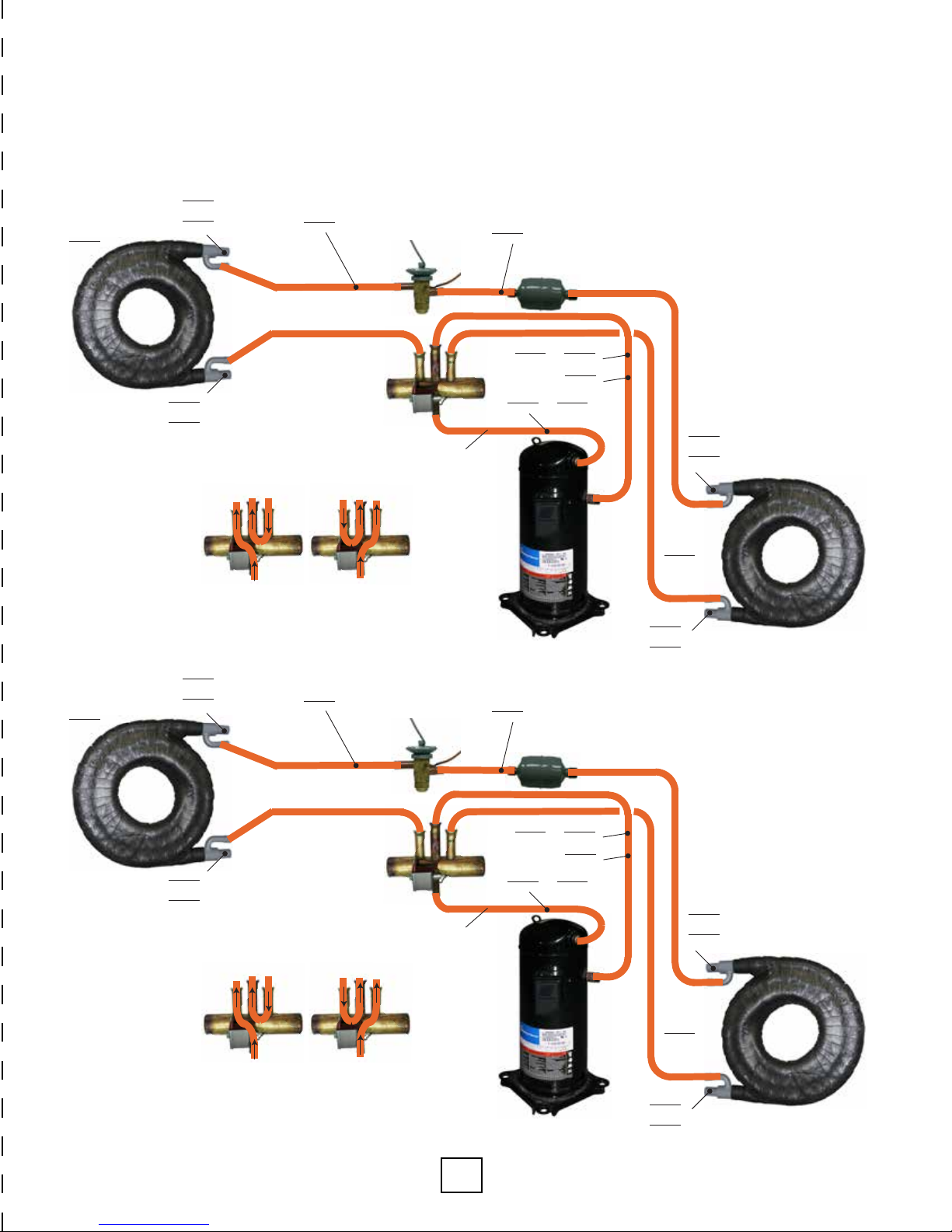

Section 10: Forms - Troubleshooting

Customer/Job Name:____________________________________________ Date:________________________________

Model #:__________________________________________ Serial #:____________________________________________

Antifreeze Type:____________________________________

GPM

Load Coax

For water-to-water units

substitute a second coaxial

heat exchanger for the air coil.

Load IN

Load OUT

Heating

Mode

psi

°F

psi

Condenser

Suction

Discharge

Air Coil

Evaporator

°F

Liquid line (heating)

Reversing

Valve

Evaporator

Discharge

Suction

Condenser

To suction line bulb

TXV

Optional desuperheater

installed in discharge line

(always disconnect during

troubleshooting)

Cooling

Mode

To suction line

HE or HR = GPM x TD x Fluid Factor (Use 500 for water; 485 for antifreeze)

SH = Suction Temp. - Suction Sat.

°F

Liquid line (cooling)

SC = Disch. Sat. - Liq. Line Temp.

Filter Drier

Suction Line

Discharge Line

psi

(saturation)

Suction temp

°F

(saturation)

°F

psi

Source (loop) IN

GPM

Source

Coax

Cut along this line

Diagram A: Water-to-Water Unit (Cooling Mode)

°F

GPM

Load Coax

For water-to-water units

substitute a second coaxial

heat exchanger for the air coil.

Load OUT

Load IN

°F

psi

Heating

Mode

psi

Air Coil

Condenser

Suction

Evaporator

Discharge

°F

Liquid line (heating)

Reversing

Valve

Evaporator

Discharge

Suction

Condenser

To suction line bulb

TXV

Cooling

Mode

Liquid line (cooling)

To suction line

Optional desuperheater

installed in discharge line

(always disconnect during

troubleshooting)

°F

Suction Line

Discharge Line

psi

Suction temp

psi

(saturation)

Filter Drier

(saturation)

°F

psi

Source (loop) OUT

Source (loop) IN

GPM

°F

psi

Source

Coax

Diagram B: Water-to-Water Unit (Heating Mode)

Enertech Global WT Models, Rev.: B

°F

psi

Source (loop) OUT

Page 49

Section 11: Unit Electrical Data

20D237‐02NN:WTElectricalData

Voltage

Model Max Ft

WT036

WT048

WT060

WT092

WT120

WT144

Notes:

1. All line and low voltage wiring must adhere to the National Electrical Code and Local Codes, whichever is the most stringent.

2.Wirelengthbasedonaonewaymeasurementwitha2%voltagedrop.

3.Wiresizebasedon60°Ccopperconductorandminimumcircuitampacity.

4. All fuses class RK-5 * The external loop pump FLA is based on a maximum of three UP26-116F-230V pumps (1/2hp) for 048 - 060 and two pumps for 034

Code/ HWG

Option

00 208/230 1 104.0 21.2 0.0 0.0 21.2 26.5 45 10 78 01 208/230 1 104.0 21.2 0.5 0.0 21.7 27.0 45 10 76 10 208/230 1 104.0 21.2 0.0 4.0 25.2 30.5 50 8 101 11 208/230 1 104.0 21.2 0.5 4.0 25.7 31.0 50 8 99 20 208/230 3 83.1 14.0 0.0 0.0 14.0 17.5 30 14 46 21 208/230 3 83.1 14.0 0.5 0.0 14.5 18.0 30 14 44

30/35 460 3 41.0 6.4 0.0 0.0 6.4 8.0 10 14 100

00 208/230 1 152.9 27.1 0.0 0.0 27.1 33.9 60 8 94 01 208/230 1 152.9 27.1 0.5 0.0 27.6 34.4 60 8 92 10 208/230 1 152.9 27.1 0.0 5.5 32.6 39.4 60 8 78 11 208/230 1 152.9 27.1 0.5 5.5 33.1 39.9 60 8 77 20 208/230 3 110.0 16.5 0.0 0.0 16.5 20.6 35 12 60 21 208/230 3 110.0 16.5 0.5 0.0 17.0 21.1 35 12 58

30/35 460 3 52.0 7.2 0.0 0.0 7.2 9.0 15 14 89

00 208/230 1 179.2 29.7 0.0 0.0 29.7 37.1 60 8 86 01 208/230 1 179.2 29.7 0.5 0.0 30.2 37.6 60 8 84 10 208/230 1 179.2 29.7 0.0 5.5 35.2 42.6 70 6 115 11 208/230 1 179.2 29.7 0.5 5.5 35.7 43.1 70 6 114 20 208/230 3 136.0 17.6 0.0 0.0 17.6 22.0 40 12 56 21 208/230 3 136.0 17.6 0.5 0.0 18.1 22.5 40 12 55

30/35 460 3 66.1 8.5 0.0 0.0 8.5 10.6 14 14 75

00 208/230 1 152.9 ea. 27.1 ea. 0.0 0.0 54.2 61.0 80 4 119 01 208/230 1 152.9 ea. 27.1 ea. 0.5 0.0 54.7 61.5 80 4 117 10 208/230 1 152.9 ea. 27.1 ea. 0.0 0.0 54.2 61.0 80 4 119 11 208/230 1 152.9 ea. 27.1 ea. 0.5 0.0 54.7 61.5 80 4 117 20 208/230 3 110.0 ea. 16.5 ea. 0.0 0.0 33.0 37.1 50 8 77 21 208/230 3 110.0 ea. 16.5 ea. 0.5 0.0 33.5 37.6 50 8 76

30/35 460 3 52.0 ea. 7.2 ea. 0.0 0.0 14.4 16.2 20 14 44

00 208/230 1 178.0 ea. 28.3 ea. 0.0 0.0 56.6 63.7 90 4 113 01 208/230 1 178.0 ea. 28.3 ea. 0.5 0.0 57.1 64.2 90 4 112 10 208/230 1 178.0 ea. 28.3 ea. 0.0 0.0 56.6 63.7 90 4 113 11 208/230 1 178.0 ea. 28.3 ea. 0.5 0.0 57.1 64.2 90 4 112 20 208/230 3 136.0 ea. 19.2 ea. 0.0 0.0 38.4 43.2 60 6 106 21 208/230 3 136.0 ea. 19.2 ea. 0.5 0.0 38.9 43.7 60 6 104

30/35 460 3 66.1 ea. 8.7 ea. 0.0 0.0 17.4 19.6 25 14 37

20 208/230 3 149.0 ea. 22.4 ea. 0.0 0.0 44.8 50.4 70 6 91 21 208/230 3 149.0 ea. 22.4 ea. 0.5 0.0 45.3 50.9 70 6 90

30/35 460 3 75.0 ea. 10.6 ea. 0.0 0.0 21.2 23.9 30 12 47

Proper Power Supply Evaluation: Whenanycompressorbearingunitisconnectedtoaweakpowersupply,startingcurrentwillgenerate

asignicant“sag”inthevoltagereducingthestartingtorqueofthecompressormotorincreasingthestarttime.Thiswillinuencetherestofthe electricalsysteminthebuildingbyloweringthevoltagetothelights.Thismomentarylowvoltagecauses“lightdimming”.Thetotalelectricalsystem shouldbeevaluatedbyanelectricianandHVACtechnician.Theevaluationshouldincludeconnections,sizesofwires,andsizeofthedistribution panelbetweentheunitandtheutility’sconnection.Thetransformerconnectionandsizingshouldbeevaluatedbytheelectricutilityprovider.

60 Hz Power Compressor

Volts Phase LRA RLA

HWG Pump

FLA

Ext.

Loop

Pump

FLA

Total

Unit FLA

Min Circuit AMPS

Max

Fuse

HACR

Min

AWG

CHECK COMPRESSOR AMP DRAW TO VERIFY COMPRESSOR ROTATION ON THREE PHASE UNITS. COMPARE AGAINST

UNIT ELECTRICAL TABLES. REVERSE ROTATION RESULTS IN HIGHER SOUND LEVELS, LOWER AMP DRAW, AND INCREASED

COMPRESSOR WEAR. THE COMPRESSOR INTERNAL OVERLOAD WILL TRIP AFTER A SHORT PERIOD OF OPERATION.

WT Models, Rev.: B Enertech Global

⚠ CAUTION ⚠

Page 50

Section 11: Hydronic Air Handler Unit Electrical Data

Model

024

036

048-060

60 HZ Power Single Phase

Volts

208/240

115

208/240

115

208/240

115

Motor

Amps /

2.8 /

0.33

2.8 /

0.33

2.8 /

0.33

5.0 /

0.33

4.3 /

0.50

4.3 /

0.50

4.3 /

0.50

4.3 /

0.50

7.7 /

0.50

6.8 /

0.75

6.8 /

0.75

6.8 /

0.75

6.8 /

0.75

6.8 /

0.75

12.8 /

1.0

Electric Heater Data MinimumCircuitAmpacity Maximum Overcurrent Protection

Amps

MCA

MOCP

# of

Circuits

115V

208V

240V

115V

208V

240V

115V

Cr 1 Cr 1 Cr 2 Cr 1 Cr 2 Cr 1 Cr 1 Cr 2 Cr 1 Cr 2 Cr 1 Cr 1 Cr 2 Cr 1 Cr 2

208V

MOCP

240V

0 0 - - - - - - 3.5 - 3.5 - - 10.0 - 10.0 -

1 5 - 18.0 - 20.8 - - 25.3 - 28.8 - - 35.0 - 35.0 -

1 10 - 36.1 - 41.7 - - 47.9 - 54.9 - - 60.0 - 60.0 -

0 0 5.0 - - - - 6.3 - - - - 10.0 - - - -

0 0 - - - - - - 5.4 - 5.4 - - 10.0 - 10.0 -

1 5 - 18.0 - 20.8 - - 26.8 - 30.3 - - 35.0 - 40.0 -

1 10 - 36.1 - 41.7 - - 49.4 - 56.4 - - 60.0 - 60.0 -

2 15 18.0 36.1 20.8 41.7 26.8 49.4 30.3 56.4 35.0 60.0 40.0 60.0

0 0 7.7 - - - - 9.6 - - - - 15.0 - - - -

0 0 - - - - - - 8.5 - 8.5 - - 15.0 - 15.0 -

1 5 - 18.0 - 20.8 - - 29.3 - 32.8 - - 35.0 - 40.0 -

1 10 - 36.1 - 41.7 - - 51.9 - 58.9 - - 60.0 - 70.0 -

2 15 - 18.0 36.1 20.8 41.7 - 29.3 51.9 32.8 58.9 - 35.0 60.0 40.0 70.0

2 20 - 36.1 36.1 41.7 41.7 - 51.9 51.9 58.9 58.9 - 60.0 60.0 70.0 70.0

0 0 12.8 - - - - 16.0 - - - - 20.0 - - - -

MOCP

240V

Notes:

1.Alwaysrefertounitnameplatedatapriortoinstallation

2. Maximum overcurrent device, overcurrent protection installed on breaker are sized per MCA

Enertech Global WT Models, Rev.: B

Page 51

Section 11: Specication Glossary, Calculations

Glossary

COP=CoefcientofPerformance=BTUOutput/BTUInput HR = Total Heat Of Rejection, Btu/hr

DH=DesuperheaterCapacity,Btu/hr KW = Total Power Unit Input, Kilowatts

EER=EnergyEfciencyRatio=BTUoutput/Wattsinput LWT = Leaving Source Water Temperature, Fahrenheit

EST = Entering Source Water Temperature, Fahrenheit LLT = Leaving Load Water Temperature, Fahrenheit

ELT = Entering Load Water Temperature, Fahrenheit TC=TotalCoolingCapacity,Btu/hr

GPM = Water Flow, Gallons Per Minute HC=HeatingCapacity,Btu/hr

HE = Total Heat Of Extraction, Btu/hr WPD = Water Pressure Drop, PSI & Feet of Water

Heating & Cooling Calculations

Heating Cooling

LWT = EST - HE GPM x 500*

HE = 500* x GPM x (EWT - LWT) HR = 500* x GPM x (LWT - EWT)

*500 = Constant factor for pure water. Brine should be 485.

LWT = EST + HR GPM x 500*

Source Water Flow Selection

Properowrateiscrucialforreliableoperationofgeothermalheat pumps.Theperformancedatashowsthreeowratesforeachentering

water temperature (EST column). The general “rule of thumb” when

selectingowratesisthefollowing:

Topowrate:Openloopsystems(1.5to2.0gpmperton) Middleowrate:Minimumclosedloopsystemowrate

(2.25 to 2.50 gpm/ton) Bottomowrate:Nominal(optimum)closedloopsystemowrate (3.0 gpm/ton)

Although the “rule of thumb” is adequate in most areas of North

America,itisimportanttoconsidertheapplicationtypebeforeapplying this“ruleofthumb.”Antifreezeisgenerallyrequiredforallclosedloop

(geothermal) applications. Extreme Southern U.S. locations are the

onlyexception.Openloop(wellwater)systemscannotuseantifreeze, andmusthaveenoughowrateinordertoavoidfreezingconditionsat

the Leaving Source Water Temperature (LWT) connection.

CalculationsmustbemadeforallsystemswithoutantifreezetodetermineifthetopowrateisadequatetopreventLWTatornearfreezing

conditions. The following steps should taken in making this calculation:

DetermineminimumESTbaseduponyourgeographicalarea.

Go to the performance data table for the heat pump model selected and

lookupthetheHeatofExtraction(HE)atthe“ruleofthumb”waterow

rate (GPM) and at the design Entering Load Temperature (ELT).

Calculate the temperature difference (TD) based upon the HE and GPM of the model. TD = HE / (GPM x 500). Calculate the LWT. LWT = EST - TD.

If the LWT is below 35-38°F, there is potential for freezing conditions if

theowrateorwatertemperatureislessthanidealconditions,andthe owratemustbeincreased.

Example 1:

EST = 50°F, ELT = 95°F. Model 036 Full Load, heating. Flow rate = 5 GPM. HE = 33,600 Btuh. TD = 33,600 / (5 x 500) = 13.4°F LWT = 50 - 13.4 = 36.6°F

Waterowrateshouldbeadequateundertheseconditions.

Example 2:

EST = 40°F, ELT = 95°F. Model 036 Full Load, heating. Flow rate = 5 GPM. HE = 28,700 Btuh. TD = 28,700 / (5 x 500) = 11.5°F LWT = 40 - 11.5 = 28.5°F

Waterowratemustbeincreased.

Application Notes for Performance Data

Notes:

1.DesuperheaterCapacityisbasedupon0.4GPMFlowpernominaltonat90°Fenteringhotwatertemperature.

2. Extrapolation data down to 25°F for heating and interpolation between EST & GPM data is permissible.

3. EWT (Entering Water Temperature) is also called EST (Entering Source Temperature).

4.Loadowrateisthesameasthenominalsourceowrate,approximately3GPMperton.

WT Models, Rev.: B Enertech Global

Page 52

Section 11: AHRI Performance Data

MODEL TYPE

F/L COOL F/L EER F/L HEAT F/L COP P/L COOL P/L EER P/L HEAT P/L COP

GW 44,300 20.6 44,900 3.6 34,600 24.5 33,300 3.5

GL 42,000 16.0 36,400 3.0 33,300 20.6 29,200 3.1

GW 54,300 19.8 55,100 3.6 40,800 23.0 40,500 3.4

GL 49,400 15.1 44,100 3.0 38,800 19.2 35,700 3.1

GW 62,700 19.0 66,200 3.6 47,800 21.4 49,500 3.5

GL 57,800 14.6 53,200 3.0 46,100 18.1 44,400 3.1

GW 107,100 19.8 117,000 3.8 78,500 22.2 82,300 3.5

GL 100,200 15.2 92,400 3.1 75,700 18.6 75,700 3.1

GW 124,400 20.1 124,900 3.5 NA NA NA NA

GL 114,800 15.4 97,400 2.8 NA NA NA NA

GW 134,000 17.2 140,800 3.3 NA NA NA NA

GL 124,500 13.5 109,400 2.7 NA NA NA NA

WT060

WT092

WT120

WT144

WT036

WT048

Ground Loop and Ground Water Heat Pump

Ground Loop (GL) Notes: Rated in accordance with ISO Standard 13256-2 which includes Pump Penalties. Heating capacities based on 32°F EST & 104°F ELT. Cooling capacities based on 77°F EST & 53.6°F ELT. Entering load temperature over 120°F heating and under 45°F Cooling is not permissible.

Floorheatingismostgenerallydesignedfor85°Fenteringloadtemperature.

Ground Water (GW) Notes: Rated in accordance with ISO Standard 13256-2 which includes Pump Penalties. Heating capacities based on 50°F EST & 104°F ELT. Cooling capacities based on 59°F EST & 53.6°F ELT. Entering load temperature over 120°F heating and under 45°F Cooling is not permissible.

Floorheatingismostgenerallydesignedfor85°Fenteringloadtemperature.

Notice:

*Model144isavailablein3-PhaseOnly

Model 144 is outside the scope of the ENERGY STAR program and AHRI listing.

Enertech Global WT Models, Rev.: B

Page 53

Section 11: Model 036 Performance Data: 3.0 Ton, Part Load Capacity

GWT036B LOW STAGE Load GPM set to max

PSI FT PSI FT PSI FT

1.8 4.1

24.1 16.7 93.0 2.18 3.24 3.2

1.7 4.0

23.9 15.2 103.0 2.55 2.75 3.2

110

1.6 3.6

23.5 12.7 117.8 3.16 2.18 3.1

1.8 4.1

25.5 18.0 93.5 2.21 3.38 3.4

1.7 4.0

25.3 16.5 103.4 2.59 2.86 3.4

110

1.6 3.6

24.9 13.9 118.3 3.21 2.27 3.3

1.8 4.1

26.1 18.7 93.7 2.17 3.52 3.5

1.7 4.0

25.9 17.2 103.6 2.54 2.99 3.4

110

1.6 3.6

25.4 14.7 118.5 3.15 2.36 3.4

1.8 4.1

26.7 19.4 93.9 2.13 3.67 3.5

1.7 4.0

26.4 17.9 103.8 2.49 3.11 3.4

110

1.6 3.6

26.0 15.5 118.7 3.09 2.47 3.4

1.8 4.1

29.9 22.5 95.0

1.57

4.06 3.9 40

1.6 3.6

32.5 35.6 29.2 0.92 35.33 4.1

1.7 4.0

29.6 21.0 104.9

1.57

3.43 4.0 45

1.6 3.6

35.8 38.9 33.1 0.91 39.34 4.6

110

1.6 3.6

29.1 18.4 119.7

1.57

2.72 4.0 50

1.6 3.6

38.1 41.2 37.3 0.91 41.87 4.8

1.8 4.1

30.6 23.4 95.2 2.12 4.23 4.0 40

1.6 3.6

34.5 37.6 28.5 0.90 38.33 4.4

1.7 4.0

30.3 21.8 105.1 2.48 3.58 4.0 45

1.6 3.6

37.9 40.9 32.4 0.89 42.58 4.8

110

1.6 3.6

29.8 19.3 119.9 3.07 2.84 4.0 50

1.6 3.6

40.3 43.3 36.6 0.89 45.28 5.1

1.8 4.1

31.2 24.1 95.4 2.08 4.40 4.0 40

1.6 3.6

33.4 36.4 28.9 0.88 37.95 4.2

1.7 4.0

30.9 22.6 105.3 2.43 3.73 4.3 45

1.6 3.6

36.8 39.8 32.7 0.87 42.30 4.6

110

1.6 3.6

30.4 20.1 120.1 3.01 2.96 4.2 50

1.6 3.6

39.1 42.1 37.0 0.87 44.94 4.5

1.8 4.1

34.2 27.0 96.4 2.12 4.73 4.5 40

1.6 3.6

31.0 35.1 29.7 1.21 25.62 4.1

1.7 4.0

33.9 25.5 106.3 2.47 4.02 4.5 45

1.6 3.6

34.1 38.2 33.6 1.19 28.66 4.6

110

1.6 3.6

33.3 22.9 121.1 3.06 3.19 4.4 50

1.6 3.6

36.3 40.4 37.9 1.19 30.50 4.8

1.8 4.1

35.0 27.9 96.7 2.08 4.93 4.6 40

1.6 3.6

32.9 36.9 29.0 1.18 27.88 4.4

1.7 4.0

34.7 26.4 106.6 2.43 4.19 4.5 45

1.6 3.6

36.2 40.2 32.9 1.17 30.94 4.8

110

1.6 3.6

34.1 23.8 121.4 3.01 3.32 4.5 50

1.6 3.6

38.5 42.5 37.2 1.17 32.91 5.1

1.8 4.1

35.7 28.7 96.9 2.04 5.13 4.6 40

1.6 3.6

31.9 35.9 29.4 1.16 27.50 4.2

1.7 4.0

35.4 27.3 106.8 2.38 4.36 4.7 45

1.6 3.6

35.1 39.0 33.3 1.15 30.52 5.1

110

1.6 3.6

34.8 24.7 121.6 2.95 3.46 4.5 50

1.6 3.6

37.4 41.3 37.5 1.15 32.52 4.9

1.8 4.1

38.8 31.8 97.9 2.05 5.55 5.1 40

1.6 3.6

30.5 35.5 29.8 1.46 20.89 4.4

1.7 4.0

38.4 30.2 107.8 2.40 4.69 5.1 45

1.6 3.6

33.6 38.5 33.8 1.44 23.33 4.4

110

1.6 3.6

37.7 27.6 122.6 2.97 3.72 5.1 50

1.6 3.6

35.7 40.6 38.1 1.44 24.79 4.5

1.8 4.1

39.7 32.8 98.2 2.01 5.79 5.1 40

1.6 3.6

32.3 37.2 29.2 1.43 22.59 4.6

1.7 4.0

39.3 31.3 108.1 2.35 4.90 5.2 45

1.6 3.6

35.6 40.4 33.1 1.41 25.25 4.4

110

1.6 3.6

38.6 28.6 122.9 2.92 3.87 5.1 50

1.6 3.6

37.9 42.7 37.4 1.41 26.88 4.5

1.8 4.1

40.5 33.7 98.5 1.98 5.99 5.3 40

1.6 3.6

31.4 36.2 29.5 1.40 22.43 4.5

1.7 4.0

40.1 32.2 108.4 2.31 5.09 5.5 45

1.6 3.6

34.5 39.2 33.5 1.39 24.82 4.7

110

1.6 3.6

39.4 29.6 123.1 2.86 4.04 5.5 50

1.6 3.6

36.7 41.4 37.8 1.39 26.40 4.6

1.8 4.1

43.3 36.5 99.4 2.00 6.35 5.7 40

1.6 3.6

30.0 35.8 30.0 1.71 17.54 3.9

1.7 4.0

42.9 34.9 109.3 2.33 5.40 5.5 45

1.6 3.6

33.0 38.8 34.0 1.69 19.53 4.3

110

1.6 3.6

42.2 32.3 124.1 2.89 4.28 5.6 50

1.6 3.6

35.1 40.9 38.3 1.69 20.77 4.6

1.8 4.1

44.3 37.6 99.8 1.96 6.62 5.7 40

1.6 3.6

31.8 37.5 29.4 1.67 19.04 4.1

1.7 4.0

43.9 36.1 109.6 2.29 5.62 5.8 45

1.6 3.6

35.0 40.6 33.3 1.65 21.21 4.5

110

1.6 3.6

43.2 33.5 124.4 2.84 4.46 5.6 50

1.6 3.6

37.2 42.8 37.6 1.65 22.55 4.8

1.8 4.1

45.3 38.7 100.1 1.92 6.91 6.0 40

1.6 3.6

30.8 36.4 29.7 1.64 18.78 4.0

1.7 4.0

44.8 37.1 109.9 2.25 5.84 5.9 45

1.6 3.6

33.9 39.4 33.7 1.62 20.93 4.9

110

1.6 3.6

44.1 34.6 124.7 2.78 4.65 5.8 50

1.6 3.6

36.1 41.6 38.0 1.62 22.28 4.7

1.8 4.1

47.6 40.9 100.9 1.96 7.12 6.3 40

1.6 3.6

29.3 36.1 30.2 1.98 14.80 4.2

1.7 4.0

47.2 39.4 110.7 2.30 6.01 6.3 45

1.6 3.6

32.2 38.9 34.3 1.96 16.43 4.2

110

1.6 3.6

46.4 36.7 125.5 2.85 4.77 6.3 50

1.6 3.6

34.3 41.0 38.6 1.96 17.50 4.3

1.8 4.1

48.8 42.2 101.3 1.93 7.41 6.4 40

1.6 3.6

31.1 37.7 29.6 1.94 16.03 4.5

1.7 4.0

48.3 40.6 111.1 2.25 6.29 6.6 45

1.6 3.6

34.2 40.8 33.6 1.92 17.81 4.2

110

1.6 3.6

47.5 38.0 125.8 2.79 4.99 6.5 50

1.6 3.6

36.4 43.0 37.9 1.92 18.96 4.4

1.8 4.1

49.8 43.4 101.6 1.89 7.72 6.6 40

1.6 3.6

30.1 36.6 30.0 1.91 15.76 4.3

1.7 4.0

49.3 41.8 111.4 2.21 6.54 6.8 45

1.6 3.6

33.1 39.5 34.0 1.88 17.61 4.3

110

1.6 3.6

48.5 39.2 126.2 2.74 5.19 6.7 50

1.6 3.6

35.3 41.7 38.2 1.88 18.78 4.4

1.8 4.1

52.0 45.4 102.3 1.94 7.86 7.0 40

1.6 3.6

28.6 36.5 30.5 2.31 12.38 3.8

1.7 4.0

51.5 43.8 112.2 2.26 6.68 6.9 45

1.6 3.6

31.4 39.2 34.5 2.28 13.77 4.2

110

1.6 3.6

50.6 41.0 126.9 2.80 5.30 6.8 50

1.6 3.6

33.5 41.3 38.8 2.28 14.69 4.5

1.8 4.1

53.2 46.7 102.7 1.90 8.21 7.1 40

1.6 3.6

30.3 38.0 29.9 2.27 13.35 4.1

1.7 4.0

52.7 45.1 112.6 2.22 6.96 7.1 45

1.6 3.6

33.3 40.9 33.9 2.24 14.87 4.4

110

1.6 3.6

51.8 42.4 127.3 2.75 5.52 6.9 50

1.6 3.6

35.5 43.1 38.2 2.24 15.85 4.8

1.8 4.1

54.3 48.0 103.1 1.86 8.56 7.3 40

1.6 3.6

29.4 37.0 30.2 2.23 13.18 3.9

1.7 4.0

53.8 46.4 112.9 2.18 7.23 7.2 45

1.6 3.6

32.3 39.8 34.2 2.20 14.68 4.3

110

1.6 3.6

52.9 43.7 127.6 2.70 5.74 7.1 50

1.6 3.6

34.4 41.9 38.5 2.20 15.64 4.6

1.6 3.6

26.4 37.0 31.2 3.10 8.52 3.5

1.6 3.6

29.1 39.5 35.3 3.06 9.51 3.9

1.6 3.6

30.9 41.3 39.7 3.06 10.10 4.1

1.6 3.6

28.0 38.4 30.7 3.04 9.21 3.8

1.6 3.6

30.8 41.0 34.7 3.00 10.27 4.1

1.6 3.6

32.8 43.0 39.1 3.00 10.93 4.4

1.6 3.6

27.2 37.4 30.9 2.98 9.13 3.6

1.6 3.6

29.9 39.9 35.0 2.94 10.17 3.9

1.6 3.6

31.8 41.8 39.4 2.94 10.82 4.2

Mbtuh

COP

WDHMbtuh

ELT °F

Load

GPM

WPD

MbtuhHRMbtuh

LLT

°F

EER

EST

°F

Source

GPM

WPD

ELT °F

Load

GPM

WPD

MbtuhHEMbtuh

LLT

°F

6.0 6.0

Operation Not Recommended

6.0

6.0 6.0

6.0

6.0 6.0

25 6.0 2.2 5.0

Heatin

Coolin

kW kW

6.0

Operation Not Recommended

6.0

2.0

5.0 1.3 3.0

6.0 1.8 4.1

4.0 0.9

6.0

4.0 0.8 1.8

5.0 1.2 2.7

6.0 1.6 3.7

6.0

4.0 0.8 1.8

5.0 1.2 2.8

6.0 1.6 3.8

4.0 0.8 1.8

5.0 1.2 2.7

6.0 1.6 3.7

4.0 0.7 1.6

5.0 1.1 2.5

6.0 1.4 3.3

4.0 0.6 1.5

5.0 1.0 2.2

6.0 1.3 3.0

4.0 0.6 1.5

5.0 1.0 2.2

6.0 1.3 3.0

2.5

110

4.0 0.5 1.2

5.0 0.8 1.8

6.0 1.1

* See Page 13 for Application Notes

WT Models, Rev.: B Enertech Global

Page 54

Section 11: Model 036 Performance Data: 3.0 Ton, Full Load Capacity

GWT036B HIGH STAGE Load GPM set to max

PSI FT PSI FT PSI FT

2.6 5.9

30.9 21.6 91.9 2.74 3.31 4.1

2.5 5.8

30.4 19.7 101.8 3.15 2.83 4.1

110

2.2 5.1

29.1 16.2 116.5 3.79 2.25 3.8

2.6 5.9

35.0 25.4 92.8 2.80 3.66 4.6

2.5 5.8

34.5 23.5 102.7 3.22 3.14 4.6

110

2.2 5.1

33.0 19.8 117.3 3.87 2.50 4.3

2.6 5.9

35.8 26.4 93.0 2.76 3.80 4.8

2.5 5.8

35.4 24.6 102.9 3.17 3.27 4.6

110

2.2 5.1

33.8 20.8 117.5 3.82 2.59 4.5

2.6 5.9

35.9 26.6 93.0 2.73 3.85 4.7

2.5 5.8

35.4 24.7 102.9 3.14 3.30 4.6

110

2.2 5.1

33.8 20.9 117.5 3.78 2.62 4.4

2.6 5.9

40.1 30.6 93.9

2.60

4.23 5.2 40

2.6 6.0

40.6 45.5 31.0 1.43 28.39 5.1

2.5 5.8

39.6 28.7 103.8

2.60

3.63 5.4 45

2.6 6.0

44.7 49.6 35.1 1.43 31.26 5.7

110

2.2 5.1

37.8 24.7 118.4

2.60

2.88 5.3 50

2.6 6.0

47.6 52.5 39.4 1.43 33.29 6.0

2.6 5.9

41.1 31.8 94.1 2.74 4.40 5.3 40

2.6 6.0

41.8 46.6 30.7 1.41 29.65 5.3

2.5 5.8

40.6 29.9 104.0 3.15 3.78 5.3 45

2.6 6.0

45.9 50.7 34.8 1.41 32.55 5.7

110

2.2 5.1

38.8 25.9 118.6 3.79 3.00 5.3 50

2.6 6.0

48.9 53.7 39.1 1.41 34.68 6.2

2.6 5.9

41.2 32.0 94.2 2.71 4.46 5.2 40

2.6 6.0

41.9 46.6 30.7 1.39 30.14 5.2

2.5 5.8

40.7 30.1 104.0 3.12 3.82 5.6 45

2.6 6.0

46.1 50.8 34.8 1.39 33.17 5.8

110

2.2 5.1

38.8 26.0 118.6 3.75 3.03 5.5 50

2.6 6.0

49.1 53.8 39.1 1.39 35.32 5.6

2.6 5.9

45.1 35.6 95.0 2.77 4.77 6.0 40

2.6 6.0

38.8 45.1 31.4 1.84 21.09 5.1

2.5 5.8

44.5 33.6 104.9 3.19 4.09 5.9 45

2.6 6.0

42.6 48.9 35.5 1.84 23.15 5.7

110

2.2 5.1

42.5 29.4 119.4 3.83 3.25 5.7 50

2.6 6.0

45.4 51.7 39.9 1.84 24.67 6.0

2.6 5.9

46.2 36.9 95.3 2.73 4.96 6.1 40

2.6 6.0

39.9 46.1 31.1 1.81 22.04 5.3

2.5 5.8

45.6 34.9 105.1 3.14 4.26 5.9 45

2.6 6.0

43.8 50.0 35.3 1.81 24.20 5.7

110

2.2 5.1

43.6 30.7 119.7 3.78 3.38 5.8 50

2.6 6.0

46.7 52.9 39.6 1.81 25.80 6.2

2.6 5.9

46.3 37.1 95.3 2.70 5.03 6.0 40

2.6 6.0

40.0 46.1 31.1 1.79 22.35 5.2

2.5 5.8

45.7 35.1 105.2 3.11 4.31 5.9 45

2.6 6.0

44.0 50.1 35.2 1.79 24.58 6.4

110

2.2 5.1

43.7 30.9 119.7 3.74 3.42 5.7 50

2.6 6.0

46.8 52.9 39.6 1.79 26.15 6.1

2.6 5.9

51.5 42.0 96.4 2.78 5.43 6.7 40

2.6 6.0

38.1 45.2 31.5 2.07 18.41 5.5

2.5 5.8

50.8 39.9 106.3 3.20 4.65 6.7 45

2.6 6.0

41.9 49.0 35.7 2.07 20.24 5.4

110

2.2 5.1

48.6 35.5 120.8 3.85 3.70 6.7 50

2.6 6.0

44.6 51.7 40.1 2.07 21.55 5.6

2.6 5.9

52.8 43.5 96.7 2.74 5.65 6.7 40

2.6 6.0

39.2 46.2 31.3 2.04 19.22 5.6

2.5 5.8

52.1 41.4 106.6 3.15 4.85 6.8 45

2.6 6.0

43.1 50.1 35.4 2.04 21.13 5.4

110

2.2 5.1

49.8 36.9 121.1 3.79 3.85 6.6 50

2.6 6.0

45.9 52.9 39.8 2.04 22.50 5.6

2.6 5.9

52.9 43.7 96.8 2.71 5.72 6.7 40

2.6 6.0

39.3 46.2 31.3 2.01 19.55 5.6

2.5 5.8

52.2 41.6 106.6 3.12 4.90 7.2 45

2.6 6.0

43.2 50.1 35.4 2.01 21.49 5.9

110

2.2 5.1

49.9 37.1 121.1 3.75 3.90 7.0 50

2.6 6.0

46.0 52.9 39.8 2.02 22.77 5.7

2.6 5.9

57.5 47.9 97.8 2.81 6.00 7.6 40

2.6 6.0

37.5 45.3 31.7 2.29 16.38 5.0

2.5 5.8

56.8 45.8 107.6 3.23 5.15 7.3 45

2.6 6.0

41.2 49.0 35.8 2.29 17.99 5.4

110

2.2 5.1

54.2 40.9 122.0 3.89 4.08 7.2 50

2.6 6.0

43.9 51.7 40.2 2.29 19.17 5.8

2.6 5.9

58.9 49.4 98.1 2.77 6.23 7.6 40

2.6 6.0

38.5 46.2 31.4 2.26 17.04 5.0

2.5 5.8

58.1 47.2 107.9 3.18 5.35 7.6 45

2.6 6.0

42.4 50.1 35.6 2.25 18.84 5.5

110

2.2 5.1

55.5 42.4 122.3 3.83 4.25 7.2 50

2.6 6.0

45.1 52.8 40.0 2.26 19.96 5.9

2.6 5.9

59.1 49.8 98.1 2.74 6.32 7.7 40

2.6 6.0

38.7 46.3 31.4 2.23 17.35 5.0

2.5 5.8

58.3 47.6 108.0 3.15 5.42 7.6 45

2.6 6.0

42.5 50.1 35.6 2.23 19.06 6.2

110

2.2 5.1

55.7 42.8 122.4 3.79 4.31 7.3 50

2.6 6.0

45.3 52.9 39.9 2.23 20.31 5.9

2.6 5.9

61.4 51.7 98.6 2.85 6.31 8.0 40

2.6 6.0

36.6 45.4 31.9 2.59 14.13 5.3

2.5 5.8

60.6 49.4 108.5 3.28 5.41 8.1 45

2.6 6.0

40.3 49.1 36.0 2.59 15.56 5.2

110

2.2 5.1

57.9 44.4 122.9 3.95 4.30 7.9 50

2.6 6.0

42.9 51.7 40.5 2.59 16.56 5.3

2.6 5.9

62.9 53.3 99.0 2.81 6.56 8.1 40

2.6 6.0

37.7 46.4 31.6 2.55 14.78 5.5

2.5 5.8

62.1 51.0 108.8 3.24 5.62 8.3 45

2.6 6.0

41.4 50.1 35.8 2.55 16.24 5.2

110

2.2 5.1

59.3 46.0 123.2 3.89 4.47 8.1 50

2.6 6.0

44.1 52.8 40.2 2.55 17.29 5.4

2.6 5.9

63.0 53.5 99.0 2.78 6.64 8.1 40

2.6 6.0

37.8 46.4 31.6 2.52 15.00 5.4

2.5 5.8

62.2 51.3 108.8 3.20 5.70 8.4 45

2.6 6.0

41.5 50.1 35.8 2.52 16.47 5.4

110

2.2 5.1

59.4 46.3 123.2 3.85 4.52 8.2 50

2.6 6.0

44.2 52.8 40.2 2.53 17.47 5.5

2.6 5.9

65.1 55.2 99.5 2.91 6.56 8.7 40

2.6 6.0

35.7 45.8 32.1 2.97 12.02 4.8

2.5 5.8

64.3 52.9 109.3 3.35 5.63 8.6 45

2.6 6.0

39.3 49.4 36.3 2.97 13.23 5.4

110

2.2 5.1

61.4 47.7 123.6 4.02 4.48 8.2 50

2.6 6.0

41.8 52.0 40.7 2.98 14.03 5.6

2.6 5.9

66.7 56.9 99.8 2.87 6.81 8.9 40

2.6 6.0

36.7 46.7 31.8 2.93 12.53 5.0

2.5 5.8

65.8 54.5 109.6 3.30 5.84 8.8 45

2.6 6.0

40.4 50.4 36.0 2.93 13.79 5.4

110

2.2 5.1

62.9 49.4 124.0 3.97 4.64 8.4 50

2.6 6.0

43.0 53.0 40.4 2.93 14.68 5.8

2.6 5.9

66.9 57.2 99.9 2.83 6.93 8.9 40

2.6 6.0

36.8 46.7 31.8 2.90 12.69 4.9

2.5 5.8

66.0 54.9 109.7 3.26 5.93 8.8 45

2.6 6.0

40.5 50.4 36.0 2.90 13.97 5.4

110

2.2 5.1

63.0 49.6 124.0 3.92 4.71 8.4 50

2.6 6.0

43.1 53.0 40.4 2.90 14.86 5.7

2.6 6.0

33.0 46.1 32.7 3.83 8.62 4.4

2.6 6.0

36.3 49.4 36.9 3.83 9.48 4.8

2.6 6.0

38.7 51.8 41.4 3.84 10.08 5.2

2.6 6.0

33.9 46.8 32.5 3.78 8.97 4.5

2.6 6.0

37.3 50.2 36.7 3.78 9.87 4.9

2.6 6.0

39.8 52.7 41.2 3.78 10.53 5.3

2.6 6.0

34.0 46.8 32.4 3.74 9.09 4.5

2.6 6.0

37.4 50.1 36.7 3.73 10.03 5.0

2.6 6.0

39.9 52.7 41.1 3.74 10.67 5.3

Mbtuh

COP

WDHMbtuh

ELT °F

Load GPM

WPD

MbtuhHRMbtuh

LLT

°F

EER

EST

°F

Source

GPM

WPD

ELT °F

Load GPM

WPD

MbtuhHEMbtuh

LLT

°F

9.0 9.0

Operation Not Recommended

9.0

9.0 9.0

9.0

9.0 9.0

25 9.0 4.0 9.2

Heatin

Coolin

kW kW

9.0

Operation Not Recommended

9.0

3.5

7.0 2.6 5.9

9.0 3.8 8.8

5.0 1.5

9.0

5.0 1.4 3.1

7.0 2.3 5.4

9.0 3.4 8.0

9.0

5.0 1.2 2.8

7.0 2.1 4.8

9.0 3.1 7.2

5.0 1.1 2.6

7.0 1.9 4.4

9.0 2.8 6.5

5.0 1.0 2.4

7.0 1.8 4.1

9.0 2.6 6.1

5.0 1.0 2.3

7.0 1.7 3.9

9.0 2.5 5.8

5.0 0.9 2.2

7.0 1.6 3.8

9.0 2.4 5.6

5.1

110

5.0 0.9 2.0

7.0 1.5 3.4

9.0 2.2

* See Page 13 for Application Notes

Enertech Global WT Models, Rev.: B

Page 55

Section 11: Model 048 Performance Data: 4.0 Ton, Part Load Capacity

GWT048B LOW STAGE Load GPM set to max

PSI FT PSI FT PSI FT

2.2 5.0

30.3 21.2 91.7 2.67 3.33 3.9

2.1 4.9

29.4 19.0 101.5 3.06 2.82 3.9

110

1.9 4.4

28.5 15.7 116.3 3.74 2.23 3.7

2.2 5.0

29.4 19.7 91.5 2.84 3.03 3.8

2.1 4.9

28.6 17.5 101.4 3.24 2.59 3.8

110

1.9 4.4

27.7 14.2 116.2 3.97 2.04 3.6

2.2 5.0

31.4 22.2 92.0 2.71 3.40 4.2

2.1 4.9

30.5 19.9 101.8 3.10 2.88 4.1

110

1.9 4.4

29.5 16.6 116.6 3.79 2.28 3.9

2.2 5.0

32.3 23.4 92.2 2.61 3.63 4.3

2.1 4.9

31.4 21.2 102.0 2.99 3.08 4.1

110

1.9 4.4

30.4 17.9 116.8 3.65 2.44 4.0

2.2 5.0

34.5 24.9 92.7

2.22

3.61 4.5 40

2.2 5.1

33.6 37.4 32.5 1.11 30.27 4.0

2.1 4.9

33.6 22.6 102.5

2.22

3.07 4.7 45

2.2 5.1

36.9 40.7 36.8 1.11 33.24 4.4

110

1.9 4.4

32.5 19.1 117.2

2.22

2.43 4.6 50

2.2 5.1

39.2 43.0 41.3 1.10 35.64 4.6

2.2 5.0

36.8 27.7 93.2 2.68 4.02 4.8 40

2.2 5.1

36.3 39.9 31.9 1.06 34.25 4.3

2.1 4.9

35.8 25.4 103.0 3.06 3.43 4.9 45

2.2 5.1

39.8 43.4 36.2 1.06 37.55 4.6

110

1.9 4.4

34.7 21.9 117.7 3.75 2.71 4.8 50

2.2 5.1

42.3 45.9 40.6 1.05 40.29 5.0

2.2 5.0

37.9 29.1 93.4 2.58 4.31 4.9 40

2.2 5.1

37.1 40.6 31.8 1.03 36.02 4.3

2.1 4.9

36.9 26.8 103.2 2.95 3.67 5.0 45

2.2 5.1

40.6 44.1 36.0 1.02 39.80 4.6

110

1.9 4.4

35.7 23.4 117.9 3.61 2.90 5.0 50

2.2 5.1

43.2 46.6 40.4 1.01 42.77 4.5

2.2 5.0

39.6 30.1 93.8 2.77 4.19 5.3 40

2.2 5.1

30.0 35.6 33.3 1.64 18.29 4.0

2.1 4.9

38.5 27.7 103.6 3.17 3.56 5.1 45

2.2 5.1

32.9 38.5 37.7 1.63 20.18 4.4

110

1.9 4.4

37.3 24.1 118.3 3.87 2.82 5.0 50

2.2 5.1

34.9 40.4 42.2 1.62 21.54 4.6

2.2 5.0

42.2 33.2 94.4 2.65 4.67 5.6 40

2.2 5.1

32.4 37.8 32.8 1.57 20.64 4.3

2.1 4.9

41.1 30.8 104.1 3.03 3.98 5.4 45

2.2 5.1

35.5 40.8 37.1 1.56 22.76 4.6

110

1.9 4.4

39.8 27.2 118.8 3.70 3.15 5.3 50

2.2 5.1

37.7 43.0 41.6 1.54 24.48 5.0

2.2 5.0

43.5 34.8 94.7 2.55 5.00 5.7 40

2.2 5.1

33.0 38.2 32.7 1.51 21.85 4.3

2.1 4.9

42.3 32.3 104.4 2.92 4.25 5.5 45

2.2 5.1

36.2 41.3 37.0 1.50 24.13 5.2

110

1.9 4.4

41.0 28.8 119.1 3.57 3.37 5.4 50

2.2 5.1

38.5 43.6 41.4 1.49 25.84 5.0

2.2 5.0

44.0 34.8 94.8 2.70 4.78 5.7 40

2.2 5.1

29.3 36.0 33.5 1.95 15.03 4.2

2.1 4.9

42.8 32.3 104.5 3.08 4.07 5.9 45

2.2 5.1

32.1 38.7 37.9 1.94 16.55 4.2

110

1.9 4.4

41.4 28.5 119.2 3.77 3.22 5.8 50

2.2 5.1

34.1 40.7 42.4 1.92 17.76 4.4

2.2 5.0

46.9 38.1 95.4 2.58 5.33 6.0 40

2.2 5.1

31.7 38.0 33.0 1.86 17.04 4.5

2.1 4.9

45.6 35.5 105.1 2.95 4.53 6.1 45

2.2 5.1

34.7 41.0 37.3 1.85 18.76 4.4

110

1.9 4.4

44.2 31.9 119.8 3.60 3.60 6.0 50

2.2 5.1

36.9 43.1 41.8 1.83 20.16 4.5

2.2 5.0

48.3 39.8 95.7 2.48 5.71 6.2 40

2.2 5.1

32.3 38.4 32.8 1.79 18.04 4.6

2.1 4.9

47.0 37.3 105.4 2.84 4.85 6.2 45

2.2 5.1

35.4 41.5 37.1 1.78 19.89 4.6

110

1.9 4.4

45.5 33.7 120.1 3.47 3.84 6.1 50

2.2 5.1

37.6 43.6 41.6 1.77 21.24 4.5

2.2 5.0

48.2 39.3 95.7 2.62 5.39 6.4 40

2.2 5.1

28.6 36.3 33.6 2.25 12.71 3.8

2.1 4.9

46.8 36.6 105.4 2.99 4.59 6.1 45

2.2 5.1

31.4 39.0 38.0 2.24 14.02 4.1

110

1.9 4.4

45.4 32.9 120.1 3.66 3.64 6.0 50

2.2 5.1

33.3 40.9 42.6 2.22 15.00 4.4

2.2 5.0

51.4 42.9 96.4 2.50 6.03 6.7 40

2.2 5.1

30.9 38.2 33.1 2.15 14.37 4.0

2.1 4.9

49.9 40.1 106.1 2.86 5.11 6.5 45

2.2 5.1

33.9 41.2 37.5 2.14 15.84 4.4

110

1.9 4.4

48.4 36.5 120.8 3.50 4.05 6.3 50

2.2 5.1

36.0 43.2 42.0 2.12 16.98 4.7

2.2 5.0

52.9 44.7 96.8 2.41 6.43 6.9 40

2.2 5.1

31.5 38.6 33.0 2.08 15.14 4.1

2.1 4.9

51.5 42.1 106.4 2.76 5.47 6.6 45

2.2 5.1

34.6 41.6 37.3 2.06 16.80 5.0

110

1.9 4.4

49.8 38.3 121.1 3.37 4.33 6.5 50

2.2 5.1

36.7 43.7 41.8 2.04 17.99 4.8

2.2 5.0

52.7 43.9 96.7 2.58 5.99 6.8 40

2.2 5.1

27.2 36.1 34.0 2.61 10.42 3.9

2.1 4.9

51.3 41.2 106.4 2.95 5.10 7.1 45

2.2 5.1

29.8 38.7 38.4 2.60 11.46 3.9

110

1.9 4.4

49.7 37.4 121.0 3.60 4.05 7.0 50

2.2 5.1

31.6 40.4 43.0 2.58 12.25 4.0

2.2 5.0

56.2 47.8 97.5 2.46 6.70 7.3 40

2.2 5.1

29.3 37.8 33.5 2.50 11.72 4.2

2.1 4.9

54.7 45.1 107.2 2.82 5.68 7.4 45

2.2 5.1

32.2 40.7 37.8 2.49 12.93 4.1

110

1.9 4.4

52.9 41.2 121.8 3.44 4.51 7.3 50

2.2 5.1

34.2 42.6 42.4 2.46 13.90 4.2

2.2 5.0

57.9 49.8 97.9 2.37 7.16 7.5 40

2.2 5.1

30.0 38.2 33.3 2.41 12.45 4.3

2.1 4.9

56.3 47.1 107.5 2.71 6.09 7.5 45

2.2 5.1

32.8 41.0 37.7 2.39 13.72 4.0

110

1.9 4.4

54.5 43.2 122.1 3.32 4.81 7.4 50

2.2 5.1

34.9 43.0 42.2 2.37 14.73 4.2

2.2 5.0

57.2 48.6 97.7 2.53 6.63 7.6 40

2.2 5.1

25.5 35.8 34.3 3.01 8.47 3.4

2.1 4.9

55.6 45.7 107.4 2.90 5.62 7.5 45

2.2 5.1

27.9 38.1 38.8 2.99 9.33 3.8

110

1.9 4.4

53.9 41.8 122.0 3.54 4.46 7.2 50

2.2 5.1

29.6 39.7 43.4 2.96 10.00 4.0

2.2 5.0

61.0 52.7 98.6 2.42 7.39 8.2 40

2.2 5.1

27.5 37.3 33.9 2.88 9.55 3.7

2.1 4.9

59.3 49.8 108.2 2.77 6.27 7.9 45

2.2 5.1

30.1 39.9 38.3 2.86 10.52 4.1

110

1.9 4.4

57.4 45.9 122.8 3.38 4.98 7.7 50

2.2 5.1

32.0 41.7 42.9 2.83 11.31 4.3

2.2 5.0

62.8 54.8 99.0 2.33 7.90 8.4 40

2.2 5.1

28.1 37.6 33.8 2.77 10.14 3.8

2.1 4.9

61.1 52.0 108.6 2.67 6.71 8.2 45

2.2 5.1

30.8 40.2 38.2 2.76 11.16 4.1

110

1.9 4.4

59.2 48.1 123.2 3.26 5.32 7.9 50

2.2 5.1

32.7 42.0 42.7 2.73 11.98 4.4

2.2 5.1

21.9 35.3 35.1 3.93 5.57 2.9

2.2 5.1

24.0 37.3 39.7 3.91 6.14 3.3

2.2 5.1

25.5 38.7 44.3 3.87 6.59 3.4

2.2 5.1

23.6 36.4 34.8 3.75 6.29 3.2

2.2 5.1

25.9 38.6 39.2 3.73 6.94 3.4

2.2 5.1

27.5 40.1 43.9 3.70 7.43 3.7

2.2 5.1

24.1 36.5 34.6 3.62 6.66 3.2

2.2 5.1

26.4 38.7 39.1 3.60 7.33 3.5

2.2 5.1

28.1 40.2 43.8 3.56 7.89 3.7

Mbtuh

COP

WDHMbtuh

ELT °F

Load

GPM

WPD

MbtuhHRMbtuh

LLT

°F

EER

EST

°F

Source

GPM

WPD

ELT °F

Load

GPM

WPD

MbtuhHEMbtuh

LLT

°F

9.0 9.0

Operation Not Recommended

9.0

9.0 9.0

9.0

9.0 9.0

25 9.0 2.3 5.2

Heatin

Coolin

kW kW

9.0

Operation Not Recommended

9.0

1.2

7.0 1.0 2.3

9.0 2.2 5.0

5.0 0.5

9.0

5.0 0.5 1.1

7.0 0.9 2.1

9.0 1.9 4.5

9.0

5.0 0.4 1.0

7.0 0.8 2.0

9.0 1.8 4.2

5.0 0.4 1.0

7.0 0.8 2.0

9.0 1.8 4.2

5.0 0.4 1.0

7.0 0.9 2.0

9.0 1.8 4.2

5.0 0.4 1.0

7.0 0.8 2.0

9.0 1.8 4.2

5.0 0.4 0.9

7.0 0.8 1.8

9.0 1.7 3.8

3.6

110

5.0 0.4 0.9

7.0 0.7 1.7

9.0 1.6

* See Page 13 for Application Notes

WT Models, Rev.: B Enertech Global

Page 56

Section 11: Model 048 Performance Data: 4.0 Ton, Full Load Capacity

GWT048B HIGH STAGE Load GPM set to max

PSI FT PSI FT PSI FT

3.6 8.4

41.1 29.8 91.9 3.32 3.63 5.4

3.4 7.9

40.2 27.4 101.7 3.74 3.15 5.3

110

3.4 7.9

38.9 23.7 116.5 4.45 2.56 5.1

3.6 8.4

40.8 28.4 91.8 3.62 3.30 5.4

3.4 7.9

39.9 26.0 101.7 4.08 2.87 5.3

110

3.4 7.9

38.7 22.2 116.5 4.85 2.34 5.1

3.6 8.4

43.5 31.7 92.3 3.45 3.70 5.8

3.4 7.9

42.5 29.2 102.1 3.89 3.20 5.6

110

3.4 7.9

41.2 25.4 116.9 4.63 2.61 5.5

3.6 8.4

44.2 32.8 92.4 3.34 3.88 5.8

3.4 7.9

43.2 30.3 102.2 3.77 3.36 5.6

110

3.4 7.9

41.9 26.6 117.0 4.48 2.74 5.5

3.6 8.4

46.9 34.4 92.8

3.99

3.77 6.1 40

4.0 9.2

47.1 53.9 32.2 1.98 23.79 5.7

3.4 7.9

45.8 31.7 102.6

3.99

3.26 6.4 45

4.0 9.2

50.9 57.7 36.5 2.00 25.45 6.2

110

3.4 7.9

44.4 27.7 117.4

3.99

2.66 6.3 50

4.0 9.2

54.6 61.5 40.9 2.02 27.03 6.6

3.6 8.4

49.9 38.0 93.3 3.48 4.20 6.5 40

4.0 9.2

50.2 56.6 31.6 1.89 26.56 6.1

3.4 7.9

48.8 35.4 103.1 3.93 3.64 6.5 45

4.0 9.2

54.2 60.7 36.0 1.91 28.38 6.5

110

3.4 7.9

47.3 31.4 117.9 4.67 2.97 6.5 50

4.0 9.2

58.1 64.7 40.3 1.93 30.10 7.1

3.6 8.4

50.7 39.2 93.5 3.38 4.40 6.5 40

4.0 9.2

54.1 60.3 31.0 1.83 29.56 6.5

3.4 7.9

49.6 36.6 103.3 3.80 3.83 6.8 45

4.0 9.2

58.4 64.7 35.3 1.85 31.57 6.7

110

3.4 7.9

48.0 32.6 118.0 4.52 3.11 6.6 50

4.0 9.2

62.7 69.1 39.6 1.87 33.53 6.6

3.6 8.4

53.1 40.5 93.9 3.69 4.22 7.1 40

4.0 9.2

43.1 51.7 32.8 2.51 17.17 5.7

3.4 7.9

51.9 37.7 103.7 4.16 3.66 6.9 45

4.0 9.2

46.5 55.2 37.3 2.54 18.31 6.2

110

3.4 7.9

50.3 33.4 118.4 4.95 2.98 6.7 50

4.0 9.2

49.9 58.7 41.7 2.57 19.42 6.6

3.6 8.4

56.6 44.6 94.4 3.52 4.71 7.5 40

4.0 9.2

45.8 54.0 32.4 2.40 19.08 6.1

3.4 7.9

55.3 41.8 104.2 3.97 4.08 7.2 45

4.0 9.2

49.5 57.8 36.8 2.42 20.45 6.5

110

3.4 7.9

53.6 37.5 118.9 4.72 3.33 7.1 50

4.0 9.2

53.1 61.5 41.2 2.45 21.67 7.1

3.6 8.4

57.4 45.8 94.6 3.41 4.93 7.5 40

4.0 9.2

49.4 57.3 31.8 2.32 21.29 6.5

3.4 7.9

56.1 43.0 104.4 3.85 4.27 7.4 45

4.0 9.2

53.4 61.4 36.1 2.35 22.72 7.6

110

3.4 7.9

54.4 38.8 119.1 4.57 3.49 7.1 50

4.0 9.2

57.3 65.4 40.5 2.37 24.18 7.5

3.6 8.4

59.5 46.7 94.9 3.75 4.65 7.8 40

4.0 9.2

41.3 50.8 33.1 2.78 14.86 5.9

3.4 7.9

58.1 43.7 104.7 4.22 4.03 8.0 45

4.0 9.2

44.6 54.2 37.6 2.82 15.82 5.8

110

3.4 7.9

56.3 39.2 119.4 5.02 3.29 7.9 50

4.0 9.2

47.8 57.5 42.0 2.84 16.83 6.1

3.6 8.4

63.4 51.2 95.6 3.58 5.19 8.2 40

4.0 9.2

44.0 53.1 32.7 2.66 16.54 6.3

3.4 7.9

61.9 48.1 105.3 4.03 4.50 8.3 45

4.0 9.2

47.4 56.6 37.1 2.69 17.62 6.3

110

3.4 7.9

60.0 43.7 120.0 4.79 3.67 8.1 50

4.0 9.2

50.9 60.1 41.5 2.71 18.78 6.4

3.6 8.4

64.4 52.6 95.7 3.46 5.45 8.3 40

4.0 9.2

47.4 56.2 32.1 2.57 18.44 6.8

3.4 7.9

62.9 49.6 105.5 3.90 4.73 8.5 45

4.0 9.2

51.2 60.1 36.5 2.60 19.69 6.5

110

3.4 7.9

61.0 45.2 120.2 4.64 3.85 8.4 50

4.0 9.2

54.9 63.9 40.9 2.63 20.87 6.4

3.6 8.4

66.3 53.3 96.1 3.82 5.09 8.8 40

4.0 9.2

39.4 49.8 33.4 3.05 12.92 5.2

3.4 7.9

64.8 50.1 105.8 4.30 4.42 8.4 45

4.0 9.2

42.6 53.1 37.9 3.09 13.79 5.5

110

3.4 7.9

62.8 45.3 120.5 5.12 3.59 8.3 50

4.0 9.2

45.7 56.3 42.4 3.12 14.65 6.0

3.6 8.4

70.7 58.3 96.8 3.64 5.69 9.2 40

4.0 9.2

42.0 51.9 33.0 2.91 14.43 5.4

3.4 7.9

69.1 55.1 106.5 4.11 4.93 9.0 45

4.0 9.2

45.3 55.3 37.5 2.94 15.41 6.0

110

3.4 7.9

66.9 50.2 121.2 4.88 4.02 8.7 50

4.0 9.2

48.6 58.7 41.9 2.97 16.36 6.3

3.6 8.4

71.8 59.8 97.0 3.53 5.96 9.4 40

4.0 9.2

45.3 54.9 32.5 2.82 16.06 6.0

3.4 7.9

70.1 56.5 106.7 3.98 5.16 9.1 45

4.0 9.2

48.9 58.6 36.9 2.85 17.16 7.1

110

3.4 7.9

68.0 51.9 121.3 4.73 4.21 8.9 50

4.0 9.2

52.5 62.3 41.3 2.88 18.23 6.9

3.6 8.4

73.6 60.3 97.3 3.89 5.55 9.6 40

4.0 9.2

37.1 48.7 33.8 3.41 10.88 5.4

3.4 7.9

72.0 57.0 107.0 4.39 4.81 9.9 45

4.0 9.2

40.1 51.8 38.3 3.44 11.66 5.3

110

3.4 7.9

69.7 51.9 121.6 5.22 3.91 9.8 50

4.0 9.2

43.0 54.9 42.8 3.48 12.36 5.4

3.6 8.4

78.5 65.8 98.1 3.72 6.18 10.2 40

4.0 9.2

39.5 50.6 33.4 3.25 12.15 5.7

3.4 7.9

76.7 62.4 107.8 4.19 5.36 10.4 45

4.0 9.2

42.7 53.9 37.9 3.29 12.98 5.7

110

3.4 7.9

74.3 57.3 122.4 4.98 4.37 10.2 50

4.0 9.2

45.8 57.1 42.4 3.32 13.80 5.9

3.6 8.4

79.7 67.4 98.3 3.60 6.49 10.3 40

4.0 9.2

42.6 53.3 32.9 3.15 13.52 6.2

3.4 7.9

77.9 64.0 108.0 4.06 5.62 10.6 45

4.0 9.2

46.0 56.9 37.3 3.18 14.47 5.6

110

3.4 7.9

75.5 59.1 122.6 4.82 4.59 10.4 50

4.0 9.2

49.4 60.4 41.8 3.21 15.39 5.8

3.6 8.4

81.1 67.5 98.5 3.98 5.97 10.9 40

4.0 9.2

34.9 48.0 34.2 3.84 9.09 4.7

3.4 7.9

79.3 64.0 108.2 4.48 5.19 10.6 45

4.0 9.2

37.7 50.9 38.7 3.88 9.72 5.1

110

3.4 7.9

76.8 58.6 122.8 5.33 4.22 10.3 50

4.0 9.2

40.4 53.8 43.3 3.92 10.31 5.4

3.6 8.4

86.5 73.6 99.4 3.79 6.69 11.6 40

4.0 9.2

37.2 49.7 33.8 3.66 10.16 5.0

3.4 7.9

84.5 69.9 109.1 4.28 5.79 11.3 45

4.0 9.2

40.1 52.7 38.3 3.70 10.84 5.4

110

3.4 7.9

81.9 64.5 123.7 5.09 4.72 11.0 50

4.0 9.2

43.1 55.9 42.8 3.74 11.52 5.8

3.6 8.4

87.8 75.3 99.6 3.67 7.01 11.7 40

4.0 9.2

40.1 52.2 33.3 3.55 11.30 5.4

3.4 7.9

85.8 71.7 109.3 4.14 6.07 11.5 45

4.0 9.2

43.3 55.5 37.8 3.59 12.06 5.8

110

3.4 7.9

83.1 66.3 123.9 4.93 4.94 11.1 50

4.0 9.2

46.4 58.8 42.3 3.62 12.82 6.2

4.0 9.2

31.4 47.9 34.8 4.85 6.47 4.2

4.0 9.2

33.9 50.6 39.4 4.90 6.92 4.6

4.0 9.2

36.4 53.3 43.9 4.95 7.35 4.9

4.0 9.2

33.4 49.2 34.4 4.62 7.23 4.5

4.0 9.2

36.1 52.0 39.0 4.67 7.73 4.8

4.0 9.2

38.7 54.8 43.6 4.72 8.20 5.2

4.0 9.2

36.0 51.3 34.0 4.48 8.04 4.8

4.0 9.2

38.9 54.4 38.5 4.53 8.59 5.2

4.0 9.2

41.8 57.4 43.0 4.57 9.15 5.6

Mbtuh

COP

WDHMbtuh

ELT °F

Load

GPM

WPD

MbtuhHRMbtuh

LLT

°F

EER

EST

°F

Source

GPM

WPD

ELT °F

Load

GPM

WPD

MbtuhHEMbtuh

LLT

°F

12.0 12.0

Operation Not Recommended

12.0

12.0 12.0

12.0

12.0 12.0

25 12.0 4.2 9.7

Heatin

Coolin

kW kW

12.0

Operation Not Recommended

12.0

1.6

9.0 2.2 5.2

12.0 4.0 9.2

6.0 0.7

12.0

6.0 0.6 1.4

9.0 2.0 4.6

12.0 3.6 8.3

12.0

6.0 0.6 1.3

9.0 1.8 4.2

12.0 3.2 7.5

6.0 0.5 1.2

9.0 1.7 3.9

12.0 3.0 6.9

6.0 0.5 1.2

9.0 1.6 3.8

12.0 2.9 6.8

6.0 0.5 1.2

9.0 1.7 3.9

12.0 3.0 7.0

6.0 0.6 1.3

9.0 1.8 4.1

12.0 3.2 7.4

7.9

110

6.0 0.6 1.4

9.0 1.9 4.4

12.0 3.4

* See Page 13 for Application Notes

Enertech Global WT Models, Rev.: B

Page 57

Section 11: Model 060 Performance Data: 5.0 Ton, Part Load Capacity

GWT060B LOW STAGE Load GPM set to max

PSI FT PSI FT PSI FT

3.2 7.5

36.4 25.4 91.1 3.22 3.31 4.8

3.0 7.0

35.3 22.7 100.9 3.68 2.81 4.7

110

2.2 5.1

34.2 18.8 115.7 4.50 2.23 4.5

3.2 7.5

35.7 23.9 91.0 3.46 3.02 4.7

3.0 7.0

34.6 21.1 100.8 3.96 2.56 4.6

110

2.2 5.1

33.5 17.0 115.6 4.84 2.03 4.4

3.2 7.5

37.5 26.4 91.3 3.25 3.38 5.0

3.0 7.0

36.4 23.7 101.1 3.72 2.87 4.8

110

2.2 5.1

35.3 19.8 115.9 4.55 2.27 4.7

3.2 7.5

38.8 28.1 91.5 3.14 3.62 5.1

3.0 7.0

37.7 25.4 101.3 3.60 3.07 4.9

110

2.2 5.1

36.5 21.5 116.1 4.40 2.43 4.8

3.2 7.5

41.9 30.2 92.0

3.45 3.59

5.4 40

3.5 8.0

45.2 49.8 32.5 1.36 33.24 5.8

3.0 7.0

40.6 27.3 101.8

3.45 3.04

5.6 45

3.5 8.0

46.9 51.5 37.2 1.35 34.74 6.1

110

2.2 5.1

39.4 23.1 116.6

3.45 2.42

5.5 50

3.5 8.0

50.6 55.2 41.6 1.34 37.76 6.5

3.2 7.5

44.0 33.0 92.3 3.21 4.02 5.7 40

3.5 8.0

47.9 52.3 32.0 1.28 37.42 6.2

3.0 7.0

42.7 30.1 102.1 3.68 3.40 5.8 45

3.5 8.0

49.7 54.0 36.7 1.27 39.13 6.4

110

2.2 5.1

41.4 26.1 116.9 4.49 2.70 5.7 50

3.5 8.0

53.6 57.9 41.1 1.26 42.54 6.9

3.2 7.5

45.6 35.0 92.6 3.11 4.30 5.8 40

3.5 8.0

49.9 54.1 31.7 1.24 40.24 6.4

3.0 7.0

44.2 32.1 102.4 3.55 3.65 6.0 45

3.5 8.0

51.7 55.9 36.4 1.23 42.03 6.5

110

2.2 5.1

42.9 28.1 117.2 4.35 2.89 5.9 50

3.5 8.0

55.8 60.0 40.7 1.22 45.74 6.5

3.2 7.5

48.0 36.5 93.0 3.38 4.16 6.4 40

3.5 8.0

44.0 50.8 32.7 2.00 22.00 5.8

3.0 7.0

46.5 33.3 102.8 3.87 3.52 6.2 45

3.5 8.0

45.6 52.4 37.4 1.99 22.91 6.1

110

2.2 5.1

45.1 29.0 117.5 4.73 2.79 6.0 50

3.5 8.0

49.2 55.9 41.8 1.97 24.97 6.5

3.2 7.5

50.5 39.6 93.4 3.18 4.65 6.7 40

3.5 8.0

46.6 53.0 32.2 1.88 24.79 6.2

3.0 7.0

48.9 36.5 103.2 3.63 3.95 6.4 45

3.5 8.0

48.3 54.7 37.0 1.87 25.83 6.4

110

2.2 5.1

47.5 32.4 117.9 4.44 3.14 6.3 50

3.5 8.0

52.1 58.4 41.3 1.85 28.16 6.9

3.2 7.5

52.3 41.8 93.7 3.07 4.99 6.8 40

3.5 8.0

48.5 54.7 31.9 1.82 26.65 6.4

3.0 7.0

50.7 38.7 103.5 3.51 4.23 6.6 45

3.5 8.0

50.3 56.5 36.6 1.81 27.79 7.2

110

2.2 5.1

49.2 34.6 118.2 4.29 3.36 6.4 50

3.5 8.0

54.2 60.3 41.0 1.79 30.28 7.1

3.2 7.5

53.3 42.1 93.9 3.29 4.75 6.9 40

3.5 8.0

42.9 51.0 32.9 2.38 18.03 6.1

3.0 7.0

51.7 38.9 103.6 3.76 4.03 7.1 45

3.5 8.0

44.5 52.6 37.6 2.36 18.86 6.0

110

2.2 5.1

50.1 34.4 118.4 4.60 3.19 7.0 50

3.5 8.0

48.0 56.0 42.0 2.34 20.51 6.2

3.2 7.5

56.0 45.5 94.3 3.09 5.31 7.2 40

3.5 8.0

45.5 53.1 32.4 2.23 20.40 6.4

3.0 7.0

54.3 42.3 104.1 3.53 4.51 7.3 45

3.5 8.0

47.1 54.7 37.2 2.22 21.22 6.3

110

2.2 5.1

52.7 38.0 118.8 4.32 3.58 7.2 50

3.5 8.0

50.8 58.3 41.5 2.20 23.09 6.5

3.2 7.5

58.0 47.8 94.7 2.99 5.69 7.4 40

3.5 8.0

47.3 54.7 32.1 2.16 21.90 6.6

3.0 7.0

56.3 44.6 104.4 3.42 4.82 7.5 45

3.5 8.0

49.1 56.4 36.8 2.15 22.84 6.5

110

2.2 5.1

54.6 40.3 119.1 4.18 3.83 7.4 50

3.5 8.0

52.9 60.2 41.2 2.13 24.84 6.5

3.2 7.5

58.4 47.5 94.7 3.19 5.37 7.8 40

3.5 8.0

41.9 51.3 33.0 2.75 15.24 5.6

3.0 7.0

56.6 44.1 104.4 3.65 4.54 7.4 45

3.5 8.0

43.4 52.7 37.8 2.74 15.84 5.7

110

2.2 5.1

54.9 39.6 119.2 4.47 3.60 7.3 50

3.5 8.0

46.8 56.0 42.2 2.71 17.27 6.2

3.2 7.5

61.4 51.2 95.2 3.00 6.00 8.0 40

3.5 8.0

44.4 53.2 32.6 2.58 17.21 5.8

3.0 7.0

59.5 47.8 104.9 3.43 5.08 7.8 45

3.5 8.0

46.0 54.8 37.3 2.57 17.90 6.1

110

2.2 5.1

57.7 43.4 119.6 4.20 4.03 7.5 50

3.5 8.0

49.6 58.3 41.7 2.55 19.45 6.5

3.2 7.5

63.6 53.7 95.6 2.90 6.43 8.3 40

3.5 8.0

46.2 54.7 32.3 2.50 18.48 6.1

3.0 7.0

61.7 50.4 105.3 3.32 5.45 8.0 45

3.5 8.0

47.9 56.4 37.0 2.49 19.24 6.8

110

2.2 5.1

59.8 45.9 120.0 4.06 4.32 7.8 50

3.5 8.0

51.6 60.0 41.4 2.46 20.98 6.8

3.2 7.5

63.9 53.2 95.7 3.14 5.96 8.3 40

3.5 8.0

40.7 51.6 33.2 3.19 12.76 5.8

3.0 7.0

62.0 49.8 105.3 3.59 5.06 8.5 45

3.5 8.0

42.2 53.0 38.0 3.17 13.31 5.6

110

2.2 5.1

60.1 45.1 120.0 4.39 4.01 8.4 50

3.5 8.0

45.5 56.2 42.4 3.14 14.49 5.9

3.2 7.5

67.2 57.1 96.2 2.95 6.68 8.7 40

3.5 8.0

43.1 53.3 32.8 3.00 14.37 6.0

3.0 7.0

65.2 53.7 105.9 3.38 5.65 8.9 45

3.5 8.0

44.7 54.9 37.6 2.98 15.00 6.0

110

2.2 5.1

63.2 49.1 120.5 4.13 4.48 8.8 50

3.5 8.0

48.2 58.3 42.0 2.95 16.34 6.2

3.2 7.5

69.6 59.9 96.6 2.85 7.16 9.0 40

3.5 8.0

44.9 54.8 32.5 2.90 15.48 6.3

3.0 7.0

67.5 56.4 106.3 3.26 6.07 9.1 45

3.5 8.0

46.5 56.3 37.3 2.88 16.15 5.9

110

2.2 5.1

65.5 51.9 120.9 3.99 4.81 8.9 50

3.5 8.0

50.2 59.9 41.6 2.85 17.61 6.2

3.2 7.5

69.4 58.9 96.6 3.09 6.58 9.3 40

3.5 8.0

39.3 51.8 33.5 3.67 10.71 5.3

3.0 7.0

67.2 55.2 106.2 3.53 5.58 9.0 45

3.5 8.0

40.8 53.3 38.2 3.65 11.18 5.4

110

2.2 5.1

65.2 50.5 120.9 4.32 4.42 8.7 50

3.5 8.0

44.0 56.4 42.7 3.62 12.15 5.9

3.2 7.5

72.9 63.0 97.2 2.90 7.37 9.8 40

3.5 8.0

41.7 53.5 33.1 3.45 12.09 5.5

3.0 7.0

70.7 59.4 106.8 3.32 6.24 9.5 45

3.5 8.0

43.2 54.9 37.8 3.43 12.59 5.8

110

2.2 5.1

68.6 54.7 121.4 4.06 4.95 9.2 50

3.5 8.0

46.6 58.2 42.2 3.40 13.71 6.2

3.2 7.5

75.5 65.9 97.6 2.81 7.87 10.1 40

3.5 8.0

43.4 54.8 32.8 3.33 13.03 5.8

3.0 7.0

73.2 62.2 107.2 3.21 6.68 9.8 45

3.5 8.0

45.0 56.3 37.5 3.32 13.55 6.0

110

2.2 5.1

71.0 57.6 121.8 3.92 5.31 9.5 50

3.5 8.0

48.5 59.7 41.9 3.29 14.74 6.5

3.5 8.0

36.7 53.0 33.9 4.79 7.66 4.9

3.5 8.0

38.0 54.3 38.7 4.77 7.97 5.1

3.5 8.0

41.0 57.1 43.2 4.72 8.69 5.5

3.5 8.0

38.8 54.2 33.5 4.50 8.62 5.2

3.5 8.0

40.3 55.6 38.3 4.48 9.00 5.4

3.5 8.0

43.4 58.5 42.8 4.44 9.77 5.8

3.5 8.0

40.4 55.2 33.3 4.35 9.29 5.4

3.5 8.0

41.9 56.7 38.0 4.33 9.68 5.6

3.5 8.0

45.2 59.8 42.5 4.29 10.54 6.0

Mbtuh

COP

WDHMbtuh

ELT °F

Load GPM

WPD

MbtuhHRMbtuh

LLT

°F

EER

EST

°F

Source

GPM

WPD

ELT °F

Load GPM

WPD

MbtuhHEMbtuh

LLT

°F

12.0 12.0

Operation Not Recommended

12.0

12.0 12.0

12.0

12.0 12.0

25 12.0 5.4 12.5

Heatin

Coolin

kW kW

12.0

Operation Not Recommended

12.0

3.6

9.0 2.8 6.5

12.0 5.1 11.8

6.0 1.6

12.0

6.0 1.4 3.3

9.0 2.7 6.2

12.0 4.6 10.6

12.0

6.0 1.3 2.9

9.0 2.5 5.8

12.0 4.1 9.5

6.0 1.2 2.7

9.0 2.5 5.8

12.0 3.8 8.7

6.0 1.1 2.5

9.0 2.4 5.5

12.0 3.5 8.1

6.0 1.0 2.4

9.0 2.3 5.3

12.0 3.3 7.7

6.0 1.0 2.3

9.0 2.3 5.3

12.0 3.2 7.3

5.2

110

6.0 0.7 1.6

9.0 2.2 5.1

12.0 2.3

* See Page 13 for Application Notes

WT Models, Rev.: B Enertech Global

Page 58

Section 11: Model 060 Performance Data: 5.0 Ton, Full Load Capacity

GWT060B HIGH STAGE Load GPM set to max

PSI FT PSI FT PSI FT

85 5.2 12.1 49.2 35.8 91.6 3.94 3.66 6.5 95 5.1 11.7 48.0 32.6 101.4 4.50 3.13 6.4

110 4.6 10.7 46.4 27.9 116.2 5.41 2.51 6.1

85 5.2 12.1 50.2 35.8 91.7 4.22 3.49 6.6 95 5.1 11.7 48.9 32.5 101.5 4.82 2.97 6.5

110 4.6 10.7 47.3 27.5 116.3 5.79 2.39 6.2

85 5.2 12.1 51.8 37.8 91.9 4.11 3.69 6.9 95 5.1 11.7 50.5 34.5 101.7 4.69 3.16 6.6

110 4.6 10.7 48.8 29.6 116.5 5.64 2.54 6.5

85 5.2 12.1 52.6 38.7 92.0 4.06 3.80 6.9 95 5.1 11.7 51.3 35.5 101.8 4.64 3.24 6.7

110 4.6 10.7 49.6 30.6 116.6 5.57 2.61 6.5

85 5.2 12.1 57.8 43.5 92.7 4.19 4.04 7.5 40 4.6 10.7 62.3 71.6 31.7 2.72 22.90 8.1 95 5.1 11.7 56.3 40.0 102.5 4.79 3.44 7.7 45 4.6 10.7 64.7 74.1 36.4 2.75 23.53 8.3

110 4.6 10.7 54.4 34.7 117.3 5.76 2.77 7.6 50 4.6 10.7 69.5 79.0 40.7 2.78 25.00 9.0

85 5.2 12.1 59.6 45.7 92.9 4.08 4.28 7.8 40 4.6 10.7 64.5 73.5 31.4 2.65 24.34 8.3 95 5.1 11.7 58.1 42.2 102.7 4.66 3.65 7.8 45 4.6 10.7 67.0 76.1 36.1 2.68 25.00 8.5

110 4.6 10.7 56.2 37.1 117.5 5.61 2.94 7.7 50 4.6 10.7 72.0 81.2 40.4 2.70 26.67 9.3

85 5.2 12.1 60.6 46.8 93.1 4.03 4.41 7.8 40 4.6 10.7 65.7 74.6 31.2 2.62 25.08 8.3 95 5.1 11.7 59.1 43.4 102.9 4.61 3.76 8.1 45 4.6 10.7 68.2 77.2 35.9 2.64 25.83 8.7

110 4.6 10.7 57.1 38.2 117.6 5.54 3.02 8.0 50 4.6 10.7 73.3 82.4 40.2 2.67 27.45 8.7

85 5.2 12.1 65.5 51.2 93.7 4.18 4.59 8.7 40 4.6 10.7 60.6 70.6 31.9 2.92 20.75 8.1 95 5.1 11.7 63.9 47.6 103.5 4.78 3.92 8.5 45 4.6 10.7 62.9 73.0 36.6 2.95 21.32 8.3

110 4.6 10.7 61.8 42.2 118.2 5.75 3.15 8.2 50 4.6 10.7 67.6 77.8 41.0 2.98 22.68 9.0

85 5.2 12.1 67.6 53.7 94.0 4.07 4.87 9.0 40 4.6 10.7 62.8 72.5 31.6 2.84 22.11 8.3 95 5.1 11.7 65.9 50.0 103.8 4.65 4.15 8.6 45 4.6 10.7 65.1 74.9 36.3 2.87 22.68 8.5

110 4.6 10.7 63.7 44.6 118.5 5.60 3.33 8.5 50 4.6 10.7 70.0 79.9 40.7 2.90 24.14 9.3

85 5.2 12.1 68.7 55.0 94.2 4.02 5.01 9.0 40 4.6 10.7 63.9 73.5 31.5 2.81 22.74 8.3 95 5.1 11.7 67.0 51.3 103.9 4.60 4.27 8.7 45 4.6 10.7 66.3 76.0 36.2 2.84 23.35 9.3

110 4.6 10.7 64.8 45.9 118.6 5.53 3.43 8.5 50 4.6 10.7 71.2 81.0 40.5 2.86 24.90 9.3

85 5.2 12.1 73.3 58.6 94.8 4.30 5.00 9.5 40 4.6 10.7 59.1 70.2 32.1 3.24 18.24 8.3 95 5.1 11.7 71.4 54.6 104.5 4.91 4.26 9.7 45 4.6 10.7 61.3 72.5 36.8 3.27 18.75 8.1

110 4.6 10.7 69.0 48.8 119.2 5.91 3.42 9.6 50 4.6 10.7 65.9 77.2 41.2 3.31 19.91 8.4

85 5.2 12.1 75.6 61.3 95.1 4.19 5.29 9.7 40 4.6 10.7 61.2 71.9 31.8 3.15 19.43 8.6 95 5.1 11.7 73.7 57.4 104.8 4.78 4.52 9.9 45 4.6 10.7 63.5 74.4 36.5 3.18 19.97 8.3

110 4.6 10.7 71.2 51.6 119.5 5.75 3.63 9.7 50 4.6 10.7 68.3 79.3 40.9 3.22 21.21 8.5

85 5.2 12.1 76.8 62.7 95.2 4.14 5.44 9.9 40 4.6 10.7 62.4 73.0 31.7 3.11 20.06 8.7 95 5.1 11.7 74.9 58.8 105.0 4.73 4.64 10.2 45 4.6 10.7 64.7 75.4 36.4 3.15 20.54 8.6

110 4.6 10.7 72.4 53.0 119.7 5.68 3.74 10.1 50 4.6 10.7 69.5 80.4 40.7 3.18 21.86 8.6

85 5.2 12.1 81.4 66.2 95.9 4.45 5.36 10.7 40 4.6 10.7 57.7 69.8 32.3 3.54 16.30 7.6 95 5.1 11.7 79.4 62.0 105.6 5.09 4.57 10.3 45 4.6 10.7 59.8 72.0 37.0 3.57 16.75 7.8

110 4.6 10.7 76.7 55.8 120.2 6.12 3.67 10.1 50 4.6 10.7 64.3 76.6 41.4 3.61 17.81 8.5

85 5.2 12.1 84.0 69.2 96.2 4.33 5.69 10.9 40 4.6 10.7 59.7 71.4 32.0 3.44 17.35 7.8 95 5.1 11.7 81.9 65.0 105.9 4.95 4.85 10.7 45 4.6 10.7 62.0 73.9 36.7 3.48 17.82 8.2

110 4.6 10.7 79.2 58.9 120.6 5.95 3.90 10.3 50 4.6 10.7 66.6 78.6 41.1 3.51 18.97 8.7

85 5.2 12.1 85.4 70.8 96.4 4.28 5.85 11.2 40 4.6 10.7 60.8 72.4 31.9 3.40 17.88 8.0 95 5.1 11.7 83.3 66.6 106.1 4.89 4.99 10.9 45 4.6 10.7 63.1 74.8 36.6 3.44 18.34 8.9

110 4.6 10.7 80.5 60.4 120.7 5.88 4.01 10.6 50 4.6 10.7 67.8 79.6 41.0 3.47 19.54 8.9

85 5.2 12.1 90.4 74.9 97.1 4.54 5.84 11.8 40 4.6 10.7 56.0 69.2 32.5 3.87 14.47 7.9 95 5.1 11.7 88.2 70.5 106.8 5.18 4.99 12.0 45 4.6 10.7 58.1 71.5 37.3 3.92 14.82 7.7

110 4.6 10.7 85.2 63.9 121.4 6.23 4.01 11.8 50 4.6 10.7 62.5 76.0 41.7 3.96 15.78 8.0

85 5.2 12.1 93.3 78.2 97.4 4.42 6.19 12.1 40 4.6 10.7 58.0 70.9 32.3 3.77 15.38 8.1 95 5.1 11.7 91.0 73.8 107.1 5.05 5.28 12.3 45 4.6 10.7 60.2 73.2 37.0 3.81 15.80 7.9

110 4.6 10.7 88.0 67.3 121.7 6.07 4.25 12.1 50 4.6 10.7 64.7 77.8 41.4 3.85 16.81 8.2

85 5.2 12.1 94.9 80.0 97.7 4.36 6.38 12.3 40 4.6 10.7 59.1 71.8 32.1 3.73 15.84 8.3 95 5.1 11.7 92.5 75.5 107.3 4.99 5.43 12.7 45 4.6 10.7 61.3 74.2 36.8 3.77 16.26 7.9

110 4.6 10.7 89.4 69.0 121.9 5.99 4.37 12.5 50 4.6 10.7 65.9 78.9 41.2 3.80 17.34 8.2

85 5.2 12.1 99.6 83.8 98.3 4.63 6.30 13.4 40 4.6 10.7 54.2 69.1 32.8 4.36 12.43 7.3 95 5.1 11.7 97.1 79.0 107.9 5.30 5.37 13.0 45 4.6 10.7 56.2 71.2 37.5 4.41 12.74 7.5

110 4.6 10.7 93.9 72.2 122.5 6.37 4.32 12.6 50 4.6 10.7 60.4 75.6 41.9 4.46 13.54 8.1

85 5.2 12.1 102.8 87.4 98.7 4.51 6.68 13.8 40 4.6 10.7 56.1 70.6 32.5 4.25 13.20 7.5 95 5.1 11.7 100.3 82.7 108.4 5.15 5.71 13.3 45 4.6 10.7 58.2 72.8 37.2 4.29 13.57 7.7

110 4.6 10.7 96.9 75.7 122.9 6.20 4.58 13.0 50 4.6 10.7 62.6 77.4 41.7 4.34 14.42 8.4

85 5.2 12.1 104.5 89.3 98.9 4.46 6.87 13.9 40 4.6 10.7 57.1 71.4 32.4 4.20 13.60 7.6 95 5.1 11.7 101.9 84.5 108.6 5.09 5.87 13.6 45 4.6 10.7 59.3 73.8 37.1 4.24 13.99 7.9

110 4.642 10.7 98.5 77.6 123.1 6.12 4.72 13.1 50 4.6 10.7 63.7 78.3 41.5 4.29 14.85 8.5

40 4.6 10.7 50.5 69.7 33.3 5.62 8.99 6.7 45 4.6 10.7 52.4 71.8 38.0 5.69 9.21 7.0 50 4.6 10.7 56.3 75.9 42.5 5.74 9.81 7.5 40 4.6 10.7 52.3 71.0 33.0 5.48 9.54 7.0 45 4.6 10.7 54.3 73.2 37.8 5.53 9.82 7.2 50 4.6 10.7 58.3 77.4 42.2 5.59 10.43 7.8 40 4.6 10.7 53.2 71.7 32.9 5.41 9.83 7.1 45 4.6 10.7 55.3 74.0 37.6 5.47 10.11 7.4 50 4.6 10.7 59.4 78.2 42.1 5.52 10.76 7.9

Mbtuh

LLT

EER

WPD

ELT °F

Load

GPM

Mbtuh

LLT

°F

COP

Mbtuh

WPD

ELT °F

Load

15.0 5.0 11.6 15

110

10.0 2.6 6.0

Operation Not Recommended

13.0 4.0 9.2 15

15.0 5.2 12.0 15 15

10.0 2.7 6.3 15 15

13.0 4.2 9.6 15

15.0 5.4 12.4 15 15

10.0 2.8 6.5 15 15

13.0 4.3 9.9 15

15.0 5.5 12.8 15 15

10.0 2.9 6.7 15 15

13.0 4.4 10.2 15

15.0 5.7 13.1 15 15

10.0 3.0 6.8 15 15

13.0 4.5 10.5 15

6.1 14.1 15 15

10.0 3.1 7.1 15 15

15.0

13.0 4.7 10.8 15 15

15.0 5.9 13.6 15 15

13.0 4.9 11.3 15 15

15.0 6.4 14.8 15

10.0 3.2 7.4 15

10.0

25 15.0 6.5 15.0

WPD

kW kW

3.3 7.7 15

13.0 5.1 11.8 15

Operation Not Recommended

EST

Source

GPM

* See Page 13 for Application Notes

Enertech Global WT Models, Rev.: B

Page 59

Section 11: Model 092 Cooling Performance Data: 8.0 Ton, Full Load Capacity

EST Flow LST ELT Flow LLT

TC HR EER Discharge Suction Subcooling Superheat

°F GPM PSID FT °F °F GPM PSID FT °F MBtuh MBtuh kW Btuh/W PSIG PSIG °F °F

57.7 40 4.0 9.3 32.5 89.6 103.3 4.02 22.3 182.3 81.4 13.2 3.5

59.0 45 3.9 9.1 36.9 96.6 110.5 4.05 23.8 182.3 87.8 13.1 3.3

60.3 50 3.9 8.9 41.3 104.0 117.9 4.09 25.4 182.3 94.6 13.0 3.0

52.8 40 4.0 9.3 31.8 98.5 111.6 3.86 25.5 171.6 87.5 10.1 3.0

53.7 45 3.9 9.1 36.2 106.2 119.5 3.89 27.3 171.6 94.4 10.0 3.1

54.6 50 3.9 8.9 40.5 114.2 127.6 3.92 29.1 171.6 101.7 9.9 3.2

49.7 40 4.0 9.3 31.6 100.2 112.9 3.72 27.0 166.1 88.0 8.6 4.7

50.4 45 3.9 9.1 36.0 108.1 120.9 3.75 28.8 166.1 95.0 8.5 5.0

51.1 50 3.9 8.9 40.3 116.2 129.2 3.78 30.7 166.1 102.3 8.4 5.3

67.2 40 4.0 9.3 33.1 83.1 100.2 5.01 16.6 231.6 78.9 23.5 5.8

68.4 45 3.9 9.1 37.5 89.6 106.8 5.05 17.7 231.6 85.2 23.4 5.7

69.6 50 3.8 8.9 42.0 96.4 113.8 5.09 18.9 231.6 91.8 23.2 5.6

62.3 40 4.0 9.3 32.4 91.3 107.7 4.81 19.0 218.1 84.8 19.8 5.4

63.2 45 3.9 9.1 36.8 98.5 115.0 4.85 20.3 218.1 91.5 19.8 5.6

64.0 50 3.9 8.9 41.2 105.9 122.6 4.89 21.7 218.1 98.6 19.6 5.8

59.3 40 4.0 9.3 32.3 92.9 108.8 4.63 20.1 211.0 85.4 18.1 7.2

60.0 45 3.9 9.1 36.6 100.2 116.2 4.68 21.4 211.0 92.1 18.0 7.6

60.6 50 3.9 8.9 41.0 107.8 123.9 4.71 22.9 211.0 99.2 17.9 8.1

77.2 40 4.0 9.3 33.2 81.0 99.9 5.52 14.7 261.0 80.2 22.2 5.5

78.3 45 3.9 9.1 37.7 87.4 106.4 5.57 15.7 261.0 86.5 22.0 5.4

79.4 50 3.8 8.9 42.2 94.0 113.1 5.61 16.7 261.0 93.2 21.9 5.3

72.3 40 4.0 9.3 32.6 89.0 107.1 5.30 16.8 245.7 86.1 18.3 5.1

73.1 45 3.9 9.1 37.0 96.0 114.2 5.34 18.0 245.7 92.9 18.2 5.4

73.9 50 3.9 8.9 41.4 103.3 121.6 5.39 19.2 245.7 100.2 18.1 5.6

69.3 40 4.0 9.3 32.5 90.6 108.0 5.11 17.7 237.8 86.7 16.5 6.9

69.9 45 3.9 9.1 36.9 97.7 115.3 5.15 19.0 237.8 93.5 16.4 7.4

70.5 50 3.9 8.9 41.2 105.1 122.8 5.20 20.2 237.8 100.8 16.2 7.9

87.0 40 4.0 9.3 33.5 78.4 99.2 6.08 12.9 292.3 81.0 21.3 5.5

88.1 45 3.9 9.1 38.0 84.6 105.5 6.13 13.8 292.3 87.4 21.2 5.4

89.2 50 3.8 8.9 42.4 91.0 112.0 6.18 14.7 292.3 94.1 21.0 5.4

82.2 40 4.0 9.3 32.8 86.2 106.1 5.83 14.8 275.2 87.0 17.4 5.1

82.9 45 3.9 9.1 37.3 92.9 113.0 5.89 15.8 275.2 93.9 17.3 5.5

83.8 50 3.9 8.9 41.7 99.9 120.2 5.93 16.9 275.2 101.1 17.1 5.8

79.2 40 4.0 9.3 32.7 87.7 106.9 5.63 15.6 266.4 87.6 15.5 6.9

79.8 45 3.9 9.1 37.1 94.6 113.9 5.68 16.7 266.4 94.5 15.4 7.5

80.4 50 3.9 8.9 41.5 101.7 121.2 5.72 17.8 266.4 101.8 15.2 8.1

96.8 40 4.0 9.2 33.8 74.6 98.0 6.86 10.9 332.6 81.3 22.7 5.8

97.9 45 3.9 9.1 38.3 80.5 104.1 6.92 11.6 332.6 87.7 22.6 5.8

99.0 50 3.8 8.9 42.8 86.6 110.4 6.98 12.4 332.6 94.5 22.4 5.9

92.0 40 4.0 9.3 33.2 82.0 104.5 6.59 12.5 313.1 87.3 18.8 5.5

92.7 45 3.9 9.1 37.6 88.4 111.1 6.65 13.3 313.1 94.2 18.7 5.9

93.5 50 3.9 8.9 42.1 95.1 118.0 6.70 14.2 313.1 101.5 18.5 6.3

89.0 40 4.0 9.3 33.0 83.5 105.1 6.35 13.1 303.0 87.9 17.0 7.4

89.6 45 3.9 9.1 37.5 90.0 111.8 6.41 14.0 303.0 94.8 16.9 8.0

90.2 50 3.9 8.9 41.9 96.8 118.8 6.46 15.0 303.0 102.2 16.6 8.7

106.8 40 4.0 9.2 34.1 70.8 97.6 7.85 9.0 372.5 82.6 22.2 5.5

107.8 45 3.9 9.1 38.6 76.4 103.4 7.92 9.7 375.8 89.1 22.6 5.5

108.8 50 3.8 8.9 43.2 82.1 109.4 7.98 10.3 379.3 96.0 23.0 5.6

101.9 40 4.0 9.3 33.5 77.8 103.5 7.53 10.3 350.7 88.7 18.5 5.2

102.6 45 3.9 9.1 38.0 83.9 109.8 7.60 11.0 353.8 95.7 19.0 5.7

103.3 50 3.9 8.9 42.5 90.3 116.4 7.66 11.8 357.1 103.1 19.4 6.1

98.9 40 4.0 9.3 33.4 79.2 104.0 7.26 10.9 339.4 89.3 16.8 7.1

99.5 45 3.9 9.1 37.9 85.4 110.4 7.33 11.7 342.4 96.3 17.2 7.8

100.1 50 3.9 8.9 42.3 91.9 117.1 7.39 12.4 345.6 103.8 17.7 8.5

126.8 40 4.0 9.2 34.7 63.4 97.6 10.04 6.3 475.4 87.0 20.4 3.8

127.7 45 3.9 9.1 39.3 68.3 102.9 10.13 6.7 479.6 93.8 20.9 3.9

128.6 50 3.8 8.9 43.9 73.5 108.3 10.21 7.2 484.1 101.1 21.3 4.1

121.7 40 4.0 9.3 34.2 69.6 102.5 9.64 7.2 447.6 93.4 16.4 3.6

122.4 45 3.9 9.1 38.7 75.1 108.3 9.72 7.7 451.5 100.8 16.9 4.1

123.1 50 3.8 8.9 43.3 80.8 114.2 9.80 8.2 455.7 108.6 17.2 4.6

118.8 40 4.0 9.3 34.1 70.9 102.6 9.30 7.6 433.2 94.0 14.8 5.5

119.3 45 3.9 9.1 38.6 76.4 108.4 9.38 8.2 437.0 101.5 15.2 6.3

119.8 50 3.8 8.9 43.2 82.2 114.4 9.45 8.7 441.1 109.3 15.6 7.1

LST is based on 15% (by volume) methanol antifreeze solution only or 485 multiplier

LLT is based on water only or 500 multiplier

Performance data accurate within ± 10%

Discharge pressure is ± 20 PSI; Suction pressure is ± 10 PSI

SubCooling is ± 5 °F; Superheat is ± 6 °F

Source Water

Load Water

Cooling

WPD

24.018.0 2.6 6.0

24.0 4.4 10.1

24.018.0 2.5 5.8

24.0

12.0 1.2 2.8

12.0 1.3 2.9

4.2 9.6

12.0 1.2 2.7

24.018.0 2.4 5.6

24.0 4.0 9.3

24.018.0 2.4 5.4

24.0 3.9 9.0

24.018.0 2.3 5.3

24.0

12.0 1.1 2.6

12.0 1.2 2.7

3.8 8.9

12.0 1.1 2.6

24.018.0 2.3 5.3

24.0 3.8 8.8

110

12.0 1.2 2.7

24.0

18.0 2.4 5.4

24.0 3.9 9.0

WT Models, Rev.: B Enertech Global

Page 60

Section 11: Model 092 Heating Performance Data: 8.0 Ton, Full Load Capacity

EST Flow LST ELT Flow LLT

HC HE COP Discharge Suction Subcooling Superheat

°F GPM PSID FT °F °F GPM PSID FT °F MBtuh MBtuh kW W/W PSIG PSIG °F °F

19.5 85 3.2 7.5 92.2 86.3 63.5 6.68 3.79 308.7 65.9 14.6

8.1

19.9 95 3.1 7.2 102.1 85.7 59.6 7.65 3.28 352.4 68.4 14.2

6.6

20.5 110 3.0 7.0 117.0 83.7 52.4 9.17 2.68 421.6 70.7 12.7

5.6

20.8 85 3.2 7.5 91.5 78.5 53.8 7.24 3.18 342.9 68.9 20.8 6.4

21.5 95 3.1 7.2 101.5 78 49.7 8.30 2.75 391.4 71.4 19.9 4.9

22.7 110 3.0 7.0 116.4 76.2 42.3 9.93 2.25 468.3 73.8 18.6 3.8

21.9 85 3.2 7.5 92.8 94 70.3 6.94 3.97 322.8 74.0 17.0 5.4

22.4 95 3.1 7.2 102.8 93.4 66.2 7.96 3.44 368.5 76.7 16.3

3.9

23.3 110 3.0 7.0 117.6 91.2 58.7 9.53 2.80 440.9 79.3 14.7 2.9

23.8 85 3.2 7.5 92.9 94.5 71.6 6.70 4.13 312.4 74.5 15.2 6.8

24.2 95 3.1 7.2 102.8 93.9 67.7 7.68 3.58 356.6 77.2 14.7 5.3

24.8 110 3.0 7.0 117.6 91.7 60.3 9.19 2.92 426.7 79.8 13.1 4.3

29.0 85 3.2 7.5 92.5 89.4 64.3 7.35 3.56 349.3 81.9 21.8

5.7

29.7 95 3.1 7.2 102.4 88.8 60.0 8.43 3.09 398.6 84.9 20.8

4.2

31.0 110 3.0 7.0 117.2 86.8 52.4 10.09 2.52 477.0 87.7 19.6

3.3

30.5 85 3.2 7.5 93.9 107 82.9 7.06 4.44 328.8 87.9 18.0 5.4

31.0 95 3.1 7.2 103.9 106.4 78.8 8.09 3.85 375.3 91.2 17.3 4.0

31.9 110 3.0 7.0 118.7 103.9 70.8 9.69 3.14 449.1 94.3 15.7 3.1

32.7 85 3.2

7.5 94.0 107.6 84.4 6.81 4.63 318.2 88.5 16.2

7.3

33.1 95 3.1 7.2 103.9 106.9 80.3 7.80 4.02 363.2 91.8 15.6

5.8

33.8 110 3.0 7.0 118.7 104.4 72.5 9.34 3.28 434.6 94.9 14.0

5.0

37.1 85 3.2 7.5 93.4 100.5 75.0 7.48 3.94 355.7 95.2 22.7 5.8

37.9 95 3.1 7.2 103.3 99.9 70.7 8.57 3.42 405.9 98.7 21.6 4.3

39.3 110 3.0 7.0 118.1 97.5 62.5 10.26 2.79 485.7 102.0 20.6 3.6

39.0 85 3.2 7.5 95.0 120.3 95.8 7.18 4.91 334.9 102.2 18.9 6.3

39.5 95 3.1 7.2 105.0 119.6 91.5 8.23 4.26 382.2 106.0 18.1 4.8

40.5 110 3.0 7.0 119.7 116.8 83.2 9.85 3.48 457.3 109.6 16.5 4.1

41.6 85 3.2 7.5 95.1 120.9 97.3 6.92 5.12 324.1 102.9 17.2 8.6

42.0 95 3.1 7.2 105.0

120.2 93.1 7.93 4.44 369.9 106.7 16.4 7.2

42.7 110 3.0 7.0 119.8 117.3 84.9 9.50 3.62 442.6 110.3 14.8 6.6

45.0 85 3.2 7.5 94.4 113.2 87.3 7.59 4.37 362.7 110.1 23.4

5.8

45.8 95 3.1 7.2 104.4 112.4 82.7 8.70 3.79 414.0 114.2 22.2

4.4

47.3 110 3.0 7.0 119.2 109.8 74.2 10.42 3.09 495.4 118.0 21.4

3.7

47.3 85 3.2 7.5 96.3 135.5 110.7 7.28 5.45 341.5 118.3 19.7 7.0

47.8 95 3.1 7.2 106.2 134.6 106.1 8.35 4.72 389.8 122.7 18.6 5.6

48.9 110 3.0 7.0 121.0 131.4 97.3 10.00 3.85 466.4 126.8 17.1 5.0

50.4 85 3.2 7.5 96.3 136.1 112.1 7.02 5.68 330.5 119.1 17.9

9.9

50.7 95 3.1 7.2 106.3 135.2 107.7 8.05 4.92 377.2 123.4 17.0

8.5

51.5 110 3.0 7.0 121.0 132.1 99.2 9.64 4.02 451.4 127.6

15.4

8.0

52.8 85 3.2 7.5 95.5 126.4 100.1 7.71 4.80 369.8 125.8 23.8 6.2

53.6 95 3.1 7.2 105.5 125.6 95.4 8.84 4.16 422.1 130.5 22.5 4.8

55.1 110 3.0 7.0 120.2 122.6 86.5 10.59 3.39 505.1 134.9 21.9 4.2

55.6 85 3.2 7.5 97.6 151.3 126.1 7.40 5.99 348.2 135.2 20.1 8.0

56.1 95 3.1 7.2 107.5 150.3 121.3 8.49 5.19 397.4 140.2 18.9 6.6

57.2 110 3.0 7.0 122.2 146.8 112.1 10.16 4.23 475.5 144.9 17.4 6.2

59.0 85 3.2 7.5 97.7 152 127.6 7.14 6.24 337.0 136.1 18.3 11.4

59.4 95 3.1 7.2 107.6 151.1 123.2 8.19 5.41 384.6 141.1 17.3 10.0

60.2 110 3.0 7.0 122.3 147.5 114.1 9.80 4.41 460.2 145.9 15.6 9.7

60.7 85 3.2 7.5 96.6 139.1 112.2 7.88 5.17 376.3 141.3 23.9

7.3

61.5 95

3.1 7.2 106.5 138.2 107.4 9.04 4.48 429.5 146.5 22.5

5.9

63.1 110 3.0 7.0 121.3 135 98.1 10.82 3.66 513.9 151.4 22.1

5.4

63.9 85 3.2 7.5 98.9 166.5 140.7 7.57 6.45 354.3 151.8 20.3 9.7

64.4 95 3.1 7.2 108.8 165.5 135.9 8.67 5.59 404.3 157.4 18.9 8.3

65.6 110 3.0 7.0 123.5 161.6 126.1 10.39 4.56 483.8 162.7 17.5 7.9

67.8 85 3.2 7.5 98.9 167.3 142.4 7.30 6.72 342.9 152.8 18.5

13.6

68.2 95 3.1 7.2 108.9 166.3 137.8 8.36 5.83 391.3 158.4 17.3

12.2

69.0 110 3.0 7.0 123.5 162.4 128.2 10.02 4.75 468.2 163.8 15.6

12.0

68.6 85 3.2 7.5 97.7 152.1 124.6 8.06 5.53 382.8 157.0 24.0 8.7

69.5 95 3.1 7.2 107.6 151.1 119.6 9.24 4.79 436.9 162.8 22.4 7.2

71.1 110

3.0 7.0 122.3 147.6

109.9 11.06 3.91 522.8 168.3 22.2 6.8

72.2 85 3.2 7.5 100.2 182.1 155.7 7.73 6.90 360.4 168.7 20.3 11.7

72.7 95 3.1 7.2 110.1 180.9 150.6 8.87 5.98 411.3 174.9 18.8 10.2

73.9 110 3.0 7.0 124.7 176.7 140.5 10.62 4.88 492.2 180.8 17.5 9.9

76.5 85 3.2 7.5 100.3 183 157.5 7.46 7.19 348.8 169.8 18.6 16.1

76.9 95 3.1 7.2 110.2 181.8 152.6 8.55 6.23 398.1 176.0 17.2 14.6

77.7 110 3.0 7.0 124.8 177.5 142.6 10.24 5.08 476.3 182.0 15.5

14.5

LST is based on 15% (by volume) methanol antifreeze solution only or 485 multiplier LLT is based on water only or 500 multiplier Performance data accurate within ± 10% Discharge pressure is ± 20 PSI; Suction pressure is ± 10 PS I SubCooling is ± 5 °F; Superheat is ± 6 °F

12.0 1.1 2.7

24.0

18.0 2.3 5.4

24.0 3.8 8.9

12.0 1.2 2.7

12.0 1.2 2.8

3.9 9.0

24.018.0 2.4 5.5

24.0

24.018.0 2.4 5.6

24.0 4.0 9.3

12.0 1.3 2.9

24.018.0 2.5 5.8

24.0 4.2 9.6

12.0 1.3 3.0

12.0 1.4 3.1

4.3 10.0

24.018.0 2.6 6.1

24.0

24.018.0 2.8 6.4

24.0 4.5 10.5

25 24.0 4.9 11.2 24.0

12.0 1.4 3.3

24.018.0 2.9 6.7

24.0 4.8 11.0

Source Water

Load Water

Heating

WPD

Enertech Global WT Models, Rev.: B

Page 61

Section 11: Model 120 Cooling Performance Data: 10.0 Ton, Full Load Capacity

EST Flow LST ELT Flow LLT

TC HR EER Discharge Suction Subcooling Superheat

°F GPM PSID FT °F °F GPM PSID FT °F MBtuh MBtuh kW Btuh/W PSIG PSIG °F °F

54.7 40 6.1 14.1 33.9 91.5 106.7 4.44 20.6 181.9 66.5 19.1 15.5

55.7 45 6.0 13.8 38.4 99.0 114.3 4.47 22.2 181.9 72.3 19.0 15.4

56.8 50 5.9 13.5 42.9 106.8 122.1 4.50 23.7 181.9 78.2 18.8 15.5

50.2 40 6.1 14.1 33.5 96.9 111.2 4.20 23.1 172.4 71.0 16.3 15.1

50.9 45 6.0 13.8 38.0 104.9 119.3 4.23 24.8 172.4 77.2 16.1 15.3

51.7 50 5.9 13.6 42.5 113.0 127.6 4.26 26.5 172.4 83.5 15.9 15.7

47.9 40 6.1 14.1 33.3 100.6 114.6 4.11 24.5 167.4 73.3 14.7 15.4

48.4 45 6.0 13.8 37.7 108.8 122.9 4.13 26.3 167.4 79.6 14.6 15.8

49.0 50 5.9 13.6 42.2 117.3 131.5 4.17 28.2 167.4 86.2 14.4 16.4

64.7 40 6.1 14.1 34.0 90.1 107.3 5.05 17.8 213.1 73.3 19.4 10.6

65.8 45 6.0 13.8 38.5 97.4 114.8 5.08 19.2 213.1 79.7 19.1 10.4

66.8 50 5.9 13.5 43.0 105.0 122.5 5.12 20.5 213.1 86.2 18.9 10.5

60.2 40 6.1 14.1 33.6 95.3 111.6 4.78 20.0 201.9 78.2 16.2 10.2

61.0 45 6.0 13.8 38.1 103.1 119.5 4.80 21.5 201.9 85.1 16.0 10.3

61.7 50 5.9 13.5 42.6 111.2 127.7 4.84 23.0 201.9 92.0 15.8 10.6

57.9 40 6.1 14.1 33.4 98.9 114.9 4.67 21.2 196.0 80.8 14.6 10.5

58.5 45 6.0 13.8 37.9 107.0 123.1 4.70 22.8 196.0 87.8 14.4 10.7

59.0 50 5.9 13.5 42.3 115.4 131.5 4.73 24.4 196.0 95.0 14.1 11.3

74.8 40 6.1 14.1 34.1 88.0 107.7 5.76 15.3 247.7 75.8 19.9 9.1

75.8 45 6.0 13.8 38.7 95.2 115.0 5.80 16.4 247.7 82.4 19.7 8.9

76.8 50 5.9 13.5 43.2 102.6 122.5 5.84 17.6 247.7 89.2 19.4 8.9

70.2 40 6.1 14.1 33.8 93.1 111.7 5.45 17.1 234.8 80.9 16.5 8.7

71.0 45 6.0 13.8 38.3 100.8 119.5 5.48 18.4 234.8 88.0 16.3 8.7

71.7 50 5.9 13.5 42.8 108.6 127.5 5.53 19.7 234.8 95.2 16.0 9.0

67.9 40 6.1 14.1 33.6 96.6 114.8 5.33 18.1 227.9 83.6 14.7 8.9

68.4 45 6.0 13.8 38.0 104.6 122.9 5.36 19.5 227.9 90.8 14.5 9.2

69.0 50 5.9 13.5 42.5 112.7 131.2 5.41 20.9 227.9 98.3 14.2 9.7

84.8 40 6.1 14.1 34.3 85.3 107.8 6.59 13.0 285.9 76.7 20.6 8.8

85.8 45 6.0 13.8 38.8

92.3 115.0 6.63 13.9 285.9 83.3 20.3 8.6

86.8 50 5.9 13.5 43.4 99.5 122.3 6.68 14.9 285.9 90.2 20.0 8.6

80.2 40 6.1 14.1 34.0 90.3 111.6 6.23 14.5 271.0 81.8 17.0 8.3

80.9 45 6.0 13.8 38.5 97.7 119.1 6.27 15.6 271.0 88.9 16.7 8.4

81.6 50 5.9 13.5 43.0 105.4 126.9 6.32 16.7 271.0 96.2 16.4 8.7

77.9 40 6.1 14.1 33.8 93.7 114.5 6.10 15.4 263.0 84.5 15.1 8.6

78.4 45 6.0 13.8 38.2 101.4 122.4 6.13 16.5 263.0 91.8 14.8 8.9

79.0 50 5.9 13.5 42.7 109.3 130.4 6.18 17.7 263.0 99.4 14.5 9.5

94.8 40 6.1 14.1 34.5 82.1 107.8 7.52 10.9 327.6 77.5 20.8 8.5

95.8 45 6.0 13.8 39.1 88.8 114.7 7.57 11.7 327.6 84.2 20.5 8.3

96.7 50 5.9 13.5 43.6 95.8 121.8 7.63 12.6 327.6 91.1 20.2 8.4

90.2 40 6.1 14.1 34.2 86.9 111.2 7.12 12.2 310.4 82.7 17.3 8.1

90.9 45 6.0 13.8 38.7 94.1 118.5 7.16 13.1 310.4 89.9 17.0 8.2

91.5 50 5.9 13.5 43.2 101.4 126.0 7.21 14.1 310.4 97.2 16.6 8.5

87.8 40 6.1 14.1 34.0 90.2 114.0 6.96 13.0 301.3 85.3 15.4 8.4

88.4 45 6.0 13.8 38.5 97.6 121.5 7.00 13.9 301.3 92.8 15.1 8.7

88.9 50 5.9 13.5 43.0 105.2 129.3 7.06 14.9 301.3 100.4 14.8 9.2

104.8 40 6.1 14.1 34.8 78.3 107.6 8.57 9.1 365.5 78.9 19.0 7.8

105.7 45 6.0 13.8 39.4 84.7 114.1 8.62 9.8 368.5 85.8 19.2 7.7

106.6 50 5.9 13.5 43.9 91.3 121.0 8.68 10.5 371.8 92.8 19.4 7.7

100.1 40 6.1 14.1 34.5 82.9 110.6 8.10 10.2 346.4 84.2 15.6 7.4

100.8 45 6.0 13.8 39.0 89.7 117.5 8.15 11.0 349.2 91.6 15.8 7.5

101.4 50 5.9 13.5 43.6 96.7 124.7 8.21 11.8 352.4 99.1 16.1 7.9

97.8 40 6.1 14.1 34.3 86.0 113.1 7.93 10.9 336.2 86.9 13.8 7.7

98.3 45 6.0 13.8 38.8 93.1 120.3 7.97 11.7 339.0 94.5 14.0 8.0

98.8 50 5.9 13.5 43.3 100.3 127.7 8.03 12.5 342.1 102.3 14.3 8.6

124.6 40 6.1 14.1 35.4 69.0 106.5 10.99 6.3 464.4 82.1 16.4 7.1

125.4 45 6.0 13.8 40.0 74.6 112.3 11.05 6.8 468.2 89.3 16.6 7.1

126.3 50 5.9 13.5 44.6 80.4 118.4 11.13 7.2 472.5 96.6 16.8 7.2

119.9 40 6.1 14.1 35.1 73.0 108.5 10.39 7.0 440.1 87.7 12.9 6.8

120.5 45 6.0 13.8 39.7 79.0 114.7 10.45 7.6 443.7 95.3 13.0 7.0

121.1 50

5.9 13.5 44.3 85.2 121.1 10.53 8.1 447.7 103.1 13.2 7.5

117.6 40 6.1 14.1 34.9 75.8 110.5 10.16 7.5 427.2 90.5 11.1 7.1

118.0 45 6.0 13.8 39.5 82.0 116.9 10.22 8.0 430.7 98.4 11.3 7.6

118.5 50 5.9 13.5 44.1 88.4 123.5 10.30 8.6 434.6 106.5 11.4 8.3

110

15.0 1.8 4.1

30.0

22.5 3.6 8.4

30.0 6.0 13.8

15.0 1.7 4.0

15.0 1.8 4.0

5.9 13.6

30.022.5 3.6 8.2

30.0

30.022.5 3.6 8.2

30.0 5.9 13.6

15.0 1.8 4.1

30.022.5 3.6 8.4

30.0 6.0 13.9

15.0 1.8 4.2

15.0 1.9 4.4

6.2 14.3

30.022.5 3.7 8.6

30.0

30.022.5 3.9 8.9

30.0 6.4 14.8

Source Water

Load Water

Cooling

WPD

15.0 2.0 4.5

30.022.5 4.0 9.3

30.0 6.7 15.5

WT Models, Rev.: B Enertech Global

Page 62

Section 11: Model 120 Heating Performance Data: 10.0 Ton, Full Load Capacity

EST Flow LST ELT Flow LLT

HC HE COP Discharge Suction Subcooling Superheat

°F GPM PSID FT °F °F GPM PSID FT °F MBtuh MBtuh kW W/W PSIG PSIG °F °F

20.3 85 5.0 11.6 91.2 93.4 68.7 7.24 3.78 306.7 62.6 13.1

8.8

20.6 95 4.9 11.3 101.1 92 63.8 8.26 3.26 349.1 64.2 12.9

7.9

21.2 110 4.7 10.8 115.9 89.2 55.4 9.92 2.64 416.2 66.0 10.8

7.3

20.5 85 5.0 11.6 91.4 96.2 69.1 7.94 3.55 337.9 64.5 19.0 9.4

21.2 95 4.9 11.3 101.3 94.7 63.8 9.06 3.06 384.6 66.1 18.4 8.5

22.5 110 4.7 10.8 116.1 91.8 54.7 10.88 2.47 458.5 68.0 16.3 8.0

23.2 85 5.0 11.6 91.7 99.8 74.2 7.51 3.89 320.2 68.8 15.4 8.4

23.7 95 4.9 11.2 101.6 98.3 69.1 8.57 3.36 364.5 70.6 15.1 7.5

24.5 110 4.7 10.8 116.4 95.3 60.2 10.29 2.71 434.5 72.5 12.9 7.0

24.7 85 5.0 11.6 91.8 101.8 76.7 7.35 4.06 310.8 71.0 13.6 8.3

25.1 95 4.9 11.2 101.7 100.3 71.7 8.38 3.51 353.8 72.9 13.3 7.4

25.7 110 4.7 10.8 116.5 97.2 62.8 10.07 2.83 421.7 74.9 11.1 7.0

28.5 85 5.0 11.6 92.4 111 83.5 8.05 4.04 343.8 78.2 19.5

8.3

29.3 95 4.9 11.3 102.3 109.3 78.0 9.18 3.49 391.3 80.2 18.8

7.3

30.6 110 4.7 10.8 117.1 106 68.4 11.03 2.82 466.5 82.4 16.7

7.0

31.8 85 5.0 11.6 92.7 115.2 89.2 7.61 4.44 325.8 83.5 16.0 7.8

32.3 95 4.9 11.2 102.6 113.4 83.7 8.69 3.82 370.9 85.6 15.5 6.9

33.2 110 4.7 10.8 117.3 110 74.4 10.43 3.09 442.1 88.0 13.2 6.7

33.7 85 5.0 11.6 92.8 117.5 92.1 7.45 4.62 316.2 86.2 14.1

8.1

34.0 95 4.9 11.2 102.7 115.7 86.7 8.50 3.99 360.0 88.4 13.7

7.2

34.7 110 4.7 10.8 117.5 112.2 77.4 10.20 3.22 429.1 90.8 11.4

7.1

36.5 85 5.0 11.6 93.4 125.9 98.1 8.16 4.52 349.7 92.0 20.0 8.2

37.3 95 4.9 11.2 103.3 124 92.2 9.31 3.90 398.1 94.4 19.2 7.3

38.7 110 4.7 10.8 118.0 120.2 82.1 11.18 3.15 474.6 97.0 17.2 7.2

40.4 85 5.0 11.5 93.7 130.6 104.3 7.72 4.96 331.4 98.2 16.5 8.3

41.0 95 4.9 11.2 103.6 128.7 98.7 8.80 4.29 377.3 100.7 15.9 7.5

41.9 110 4.7 10.8 118.3 124.8 88.7 10.57 3.46 449.7 103.5 13.5 7.5

42.6 85 5.0 11.5 93.9 133.3 107.5 7.55 5.17 321.7 101.3 14.7 9.0

43.0 95 4.9 11.2 103.8

131.3 101.9 8.61 4.47 366.2 104.0 14.1 8.2

43.7 110 4.7 10.8 118.5 127.3 92.0 10.34 3.61 436.5 106.8 11.8 8.3

44.5 85 5.0 11.6 94.4 141.4 113.0 8.32 4.98 356.8 106.4 20.6

9.0

45.3 95 4.9 11.2 104.3 139.3 106.9 9.49 4.30 406.2 109.2 19.7

8.1

46.8 110 4.7 10.8 119.0 135 96.1 11.40 3.47 484.2 112.2 17.8

8.3

49.0 85 5.0 11.5 94.8 146.7 119.8 7.87 5.46 338.2 113.6 17.2 9.7

49.6 95 4.9 11.2 104.6 144.5 113.9 8.98 4.72 384.9 116.5 16.4 8.9

50.5 110 4.7 10.8 119.3 140.1 103.3 10.78 3.81 458.9 119.7 14.1 9.2

51.5 85 5.0 11.5 95.0 149.6 123.3 7.70 5.69 328.2 117.2 15.4

10.9

51.9 95 4.9 11.2 104.8 147.4 117.4 8.78 4.92 373.6 120.3 14.7

10.1

52.7 110 4.7 10.8 119.5 142.9 106.9 10.55 3.97 445.4 123.6 12.2

10.5

52.4 85 5.0 11.5 95.5 157 128.1 8.48 5.43 364.0 120.9 21.3 10.2

53.3 95 4.9 11.2 105.3 154.7 121.7 9.68 4.68 414.3 124.1 20.3 9.4

54.8 110 4.7 10.8 120.0 150 110.4 11.62 3.78 493.9 127.5 18.6 9.8

57.6 85 5.0 11.5 95.9 162.9 135.5 8.02 5.95 344.9 129.1 17.9 11.6

58.2 95 4.8 11.2 105.7 160.5 129.3 9.15 5.14 392.6 132.4 17.0 10.8

59.2 110 4.7 10.7 120.4 155.6 118.1 10.99 4.15 468.1 136.1 14.7 11.3

60.4 85 5.0 11.5 96.1 166.2 139.4 7.85 6.20 334.8 133.2 16.1 13.2

60.8 95 4.8 11.2 105.9 163.7 133.2 8.95 5.36 381.1 136.7 15.3 12.4

61.6 110 4.7 10.7 120.6 158.7 122.0 10.75 4.33 454.3 140.5 12.8 13.0

60.3 85 5.0 11.5 96.5 172.5 143.2 8.60 5.88 370.0 135.0 21.9

11.5

61.3 95 4.9 11.2 106.3 169.9 136.4 9.81 5.08 421.2 138.5 20.8

10.7

62.9 110 4.7 10.7 121.0 164.8 124.6 11.78 4.10 502.1 142.4 19.4

11.3

66.1 85 5.0 11.5 96.9 179 151.3 8.13 6.45 350.7 144.1 18.5 13.4

66.7 95 4.8 11.2 106.8 176.3 144.6 9.28 5.57 399.2 147.8 17.5 12.6

67.8 110 4.6 10.7 121.4 170.9 132.9 11.15 4.49 475.9 151.9 15.3 13.3

69.3 85 5.0 11.5 97.2 182.6 155.4 7.96 6.72 340.4 148.8 16.7

15.3

69.8 95 4.8 11.2 107.0 179.9 148.9 9.08 5.81 387.5 152.6 15.8

14.6

70.6 110 4.6 10.7 121.6 174.4 137.2 10.90 4.69 461.9 156.8 13.4

15.4

68.2 85 5.0 11.5 97.5 188.1 158.3 8.72 6.32 376.1 149.1 22.6 13.0

69.2 95 4.8 11.2 107.4 185.3 151.3 9.95 5.46 428.2 153.0 21.4 12.3

70.9 110

4.7 10.7 122.0 179.6 138.8 11.95 4.40 510.4 157.2 20.2 13.0

74.7 85 5.0 11.5 98.0 195.1 166.9 8.25 6.93 356.5 159.2 19.2 15.4

75.3 95 4.8 11.1 107.8 192.2 160.1 9.41 5.99 405.8 163.3 18.1 14.7

76.5 110 4.6 10.7 122.4 186.4 147.8 11.30 4.83 483.7 167.8 16.0 15.6

78.2 85 5.0 11.5 98.3 199.1 171.6 8.07 7.23 346.0 164.3 17.4 17.7

78.7 95 4.8 11.1 108.1 196.1 164.7 9.20 6.25 393.9 168.6 16.4 17.0

79.5 110 4.6 10.7 122.7 190.1 152.4 11.05 5.04 469.5 173.2 14.0 18.0

15.0 1.8 4.1

30.0

22.5 3.6 8.3

30.0 5.9 13.6

15.0 1.8 4.2

30.022.5 3.6 8.4

30.0 6.0 13.9

15.0 1.9 4.3

15.0 1.9 4.4

6.2 14.2

30.022.5 3.7 8.6

30.0

30.022.5 3.9 9.0

30.0 6.4 14.7

15.0 2.0 4.6

30.022.5 4.0 9.3

30.0 6.7 15.4

15.0 2.1 4.8

15.0 2.2 5.1

7.0 16.1

30.022.5 4.2 9.8

30.0

30.022.5 4.4 10.2

30.0 7.3 16.9

Source Water

Load Water

Heating

WPD

25 30.0 7.5 17.3 30.0

Enertech Global WT Models, Rev.: B

Page 63

Section 11: Model 144 Performance Data: 12.0 Ton, Part Load Capacity

EST GPM PSI FT

10.0 2.2 5.0

14.0 4.0 9.3

18.0 6.5 15.0

10.0 2.0 4.7

14.0 3.7 8.6

18.0 6.0 14.0

10.0 2.0 4.7

14.0 3.6 8.3

18.0 5.8 13.3

10.0 1.9 4.3

14.0 3.3 7.7

18.0 5.3 12.3

10.0 1.8 4.2

110

14.0 3.3 7.7

18.0 5.3 12.1

Heating Cooling

ELT HC HE KW L LT COP DH ELT TC HR KW LLT EER DH

85 58.8 42.2 5.13 96.7 3.36 7.3

95 57.1 39.7 5.40 106.4 3.10 7.5

110 55.3 37.4 5.66 121.0 2.86 7.8

85 60.5 44.0 5.18 93.7 3.42 7.5

95 58.9 41.3 5.46 103.4 3.16 7.8

110 57.3 38.9 5.73 118.2 2.93 8.0

85 61.3 44.8 5.18 91.8 3.47 7.6

95 59.7 42.3 5.45 101.6 3.21 7.9

110 58.1 39.7 5.73 116.5 2.97 8.2

85 76.0 58.9 5.37 100.2 4.15 9.5 40 61.9 72.8 3.57 27.6 17.3 5.2

95 73.7 55.4 5.66 109.7 3.82 9.7 45 67.2 77.5 3.65 31.6 18.4 5.3

110 71.2 52.2 5.93 124.2 3.52 10.0 50 72.6 82.1 3.73 35.5 19.5 5.5

85 79.2 61.7 5.48 96.3 4.24 9.9 40 62.5 73.1 3.41 31.1 18.3 5.0

95 76.6 58.2 5.77 106.0 3.89 10.1 45 67.9 77.7 3.48 35.3 19.5 5.1

110 74.2 54.6 6.06 120.6 3.58 10.4 50 73.3 82.4 3.55 39.5 20.6 5.2

85 80.8 63.3 5.50 94.0 4.31 10.1 40 63.1 73.5 3.31 33.0 19.1 4.7

95 78.2 59.7 5.79 103.7 3.96 10.3 45 68.6 78.2 3.38 37.4 20.3 4.8

110 75.6 56.1 6.09 118.4 3.64 10.6 50 74.1 82.8 3.45 41.8 21.5 5.0

85 92.5 74.3 5.71 103.5 4.75 11.5 40 58.0 70.9 4.29 28.4 13.5 7.5

95 89.2 70.1 6.01 112.8 4.35 11.8 45 63.0 75.4 4.39 32.4 14.3 7.7

110 85.9 65.8 6.30 127.2 4.00 12.1 50 68.1 80.0 4.47 36.4 15.3 8.0

85 97.1 78.3 5.88 98.9 4.84 12.1 40 58.9 71.2 4.09 31.6 14.4 7.2

95 93.7 73.8 6.19 108.4 4.44 12.4 45 64.0 75.8 4.17 35.8 15.3 7.5

110 90.2 69.4 6.51 122.9 4.06 12.7 50 69.1 80.4 4.25 40.1 16.2 7.6

85 99.7 80.7 5.95 96.1 4.92 12.4 40 59.4 71.6 3.96 33.4 15.0 6.9

95 96.1 76.1 6.26 105.7 4.50 12.7 45 64.7 76.2 4.04 37.8 16.0 7.1

110 92.5 71.5 6.57 120.3 4.13 13.0 50 69.8 80.6 4.13 42.2 16.9 7.4

85 106.6 87.6 5.67 106.3 5.52 13.3 40 52.8 68.2 5.31 29.4 9.9 9.9

95 102.7 82.5 6.41 115.5 4.70 13.6 45 57.4 72.6 5.41 33.5 10.6 10.2

110 98.8

85 112.7 92.9 6.22 101.1 5.31 14.0 40 53.8 68.6 4.99 32.3 10.8 9.5

95 108.6 87.6 6.55 110.5 4.86 14.4 45 58.5 73.0 5.12 36.6 11.4 9.8

110 104.3 82.4 6.88 124.9 4.45 14.6 50 63.3 77.3 5.19 41.0 12.2 10.0

85 116.5 96.1 6.32 97.9 5.40 14.5 40 54.5 68.7 4.87 33.9 11.2 9.1

95 112.0 90.7 6.64 107.4 4.94 14.8 45 59.2 73.1 4.96 38.4 11.9 9.4

110 107.6 85.3 6.98 122.0 4.52 15.1 50 63.9 77.5 5.07 42.9 12.6 9.7

77.6 6.59 129.7 4.39 13.9 50 62.0 77.0 5.50 37.6 11.3 10.4

40 46.0 64.9 6.61 30.8 7.0 12.2

45 50.0 69.1 6.70 35.0 7.5 12.6

50 54.1 73.2 6.87 39.2 7.9 13.0

40 47.2 65.2 6.19 33.3 7.6 11.8

Operation Not Recommended

45 51.4 69.3 6.33 37.6 8.1 12.2

50 55.5 73.5 6.50 42.1 8.5 12.4

40 47.7 65.2 6.06 34.7 7.9 11.3

45 51.9 69.3 6.14 39.2 8.5 11.7

50 56.0 73.5 6.25 43.8 9.0 12.1

Operation Not Recommended

* See Page 13 for Application Notes

WT Models, Rev.: B Enertech Global

Page 64

Section 11: Model 144 Performance Data: 12.0 Ton, Full Load Capacity

EST GPM PSI FT

17.8 2.3 5.4

24.9 4.4 10.1

32.0 7.0 16.2

17.8 2.2 5.0

24.9 4.1 9.4

32.0 6.6 15.1

17.8 2.2 5.0

24.9 3.9 9.0

32.0 6.2 14.4

17.8 2.0 4.7

24.9 3.6 8.3

32.0 5.8 13.3

17.8 2.0 4.5

110

24.9 3.6 8.3

32.0 5.7 13.2

Heating Cooling

ELT HC HE KW L LT COP DH ELT TC HR KW LLT EER DH

85 117.5 84.3 10.26 98.2 3.36 14.6

95 114.2 79.4 10.81 107.8 3.10 15.1

110 110.6 74.8 11.33 122.4 2.86 15.5

85 121.1 87.9 10.37 94.7 3.42 15.1

95 117.7 82.7 10.92 104.5 3.16 15.6

110 114.5 77.8 11.47 119.2 2.93 16.1

85 122.6 89.6 10.36 92.7 3.47 15.3

95 119.4 84.7 10.91 102.5 3.21 15.8

110 116.2 79.4 11.45 117.3 2.97 16.3

85 152.0 117.8 10.75 102.1 4.15 18.9 40 123.7 145.7 7.14 26.1 17.3 10.4

95 147.5 110.9 11.32 111. 6 3.82 19.5 45 134.4 155.1 7.30 29.9 18.4 10.7

110 142.5 104.3 11.87 126.0 3.52 20.0 50 145.1 164.3 7.45 33.7 19.5 10.9

85 158.5 123.4 10.95 97.7 4.24 19.7 40 125.0 146.2 6.82 29.9 18.3 9.9

95 153.2 116.5 11.54 107.3 3.89 20.3 45 135.7 155.4 6.97 34.1 19.5 10.2

110 148.3 109.3 12.13 121.9 3.58 20.8 50 146.7 164.8 7.11 38.2 20.6 10.4

85 161.7 126.6 11.01 95.1 4.31 20.1 40 126.3 146.9 6.62 32.1 19.1 9.4

95 156.5 119.4 11.59 104.8 3.96 20.7 45 137.2 156.4 6.76 36.4 20.3 9.7

110 151.2 112.2 12.17 119.4 3.64 21.2 50 148.2 165.6 6.90 40.7 21.5 9.9

85 185.0 148.6 11.42 105.8 4.75 23.0 40 116.1 141.8 8.59 27.0 13.5 15.0

95 178.4 140.1 12.01 115.1 4.35 23.6 45 126.0 150.8 8.79 30.8 14.3 15.5

110 171.8 131.6 12.60 129.3 4.00 24.1 50 136.2 159.9 8.93 34.7 15.3 16.0

85 194.2 156.5 11.76 100.6 4.84 24.2 40 117.9 142.3 8.17 30.5 14.4 14.5

95 187.3 147.6 12.37 110.1 4.44 24.8 45 128.1 151.5 8.35 34.7 15.3 15.0

110 180.5 138.7 13.02 124.5 4.06 25.3 50 138.3 160.7 8.51 38.9 16.2 15.2

85 199.5 161.4 11.89 97.5 4.92 24.8 40 118.9 143.1 7.92 32.6 15.0 13.7

95 192.3 152.2 12.51 107.0 4.50 25.4 45 129.3 152.3 8.08 36.9 16.0 14.2

110 185.1 143.1 13.14 121.6 4.13 26.0 50 139.5 161.2 8.25 41.3 16.9 14.7

85 213.3 175.2 11.33 109.0 5.52 26.6 40 105.6 136.5 10.62 28.1 9.9 19.8

95 205.4 165.0 12.82 118.1 4.70 27.2 45 114.8 145.1 10.82 32.1 10.6 20.3

110 197.5

85 225.4 185.7 12.44 103.1 5.31 28.1 40 107.6 137.2 9.99 31.3 10.8 19.1

95 217.2 175.2 13.10 112.5 4.86 28.7 45 117.1 145.9 10.23 35.6 11.4 19.6

110 208.7 164.7 13.75 126.8 4.45 29.3 50 126.5 154.6 10.38 39.8 12.2 20.1

85 233.0 192.3 12.64 99.6 5.40 29.0 40 108.9 137.5 9.73 33.2 11.2 18.3

95 224.1 181.4 13.29 109.0 4.94 29.6 45 118.4 146.2 9.91 37.6 11.9 18.8

110 215.2 170.6 13.95 123.5 4.52 30.2 50 127.8 155.1 10.14 42.0 12.6 19.3

155.2 13.19 132.2 4.39 27.7 50 124.0 154.1 11.00 36.1 11.3 20.8

40 92.1 129.8 13.22 29.6 7.0 24.4

45 100.0 138.3 13.40 33.8 7.5 25.2

50 108.2 146.4 13.73 37.8 7.9 25.9

40 94.4 130.4 12.38 32.4 7.6 23.6

Operation Not Recommended

45 102.8 138.5 12.65 36.7 8.1 24.4

50 111.0 146.9 13.00 41.1 8.5 24.9

40 95.4 130.4 12.11 34.0 7.9 22.6

45 103.8 138.5 12.28 38.5 8.5 23.4

50 112.0 146.9 12.51 43.0 9.0 24.1

Operation Not Recommended

* See Page 13 for Application Notes

Enertech Global WT Models, Rev.: B

Page 65

Section 11: Air Handler and “A” Coil Performance Data

Air Handler / “A” Coil Capacities

Hot Water Heating Capacity -- 68°F EAT (DB)

Model CFM

MPH/

ACH024

MPH/

ACH036

MPH/

ACH048

MPH/

ACH060

1058

1564

1952

EWT

GPM

°F

100

105 1.9 17,677 88.7

789

110 1.9 21,829 93.6

115 1.8 25,980 98.5

120

100

105 1.9 23,527 88.6

110 1.9 29,246 93.6

115

120 1.8 40,684 103.6

100

105 2.4 33,373 87.8

110

115 2.4 49,441 97.3

120 2.3 57,474 102.0

100

105

110 3.9 54,791 94.0

115 3.8 64,785 98.7

120 3.7 74,779 103.5

3.0

4.5

6.0

7.5

WPD

Htg Cap

Ft Hd

1.9 13,526 83.9

1.8

30,131 103.4

1.9 17,808 83.6

1.8

34,965 98.6

2.5 25,339 83.0

2.4

41,407 92.5

4.0 34,801 84.5

3.9

44,796 89.2

Btuh

LAT

°F

Air Handler / “A” Coil Corrections

Airow Correction Factors

Model CFM

MPH/

ACH024

1058 1.000 1.000 1.000

MPH/

ACH036

MPH/

ACH048

MPH/

ACH060

1023 0.987 0.987 0.979

1952 1.101 1.098 1.159

1761 1.051 1.050 1.081

1564 1.000 1.000 1.000

1385 0.954 0.955 0.927

1952 1.000 1.000 1.000

1761 0.960 0.961 0.937

1564 0.919 0.921 0.873

1385 0.882 0.885 0.814

Heating

Capacity

880 1.047 1.046 1.074

789 1.000 1.000 1.000

690 0.949 0.950 0.920

584 0.895 0.897 0.833

831 0.913 0.915 0.862

657 0.846 0.850 0.757

Tot Cooling

Capacity

Sensible Capacity

Chilled Water Cooling Capacity -- 80/67°F EAT (DB/WB)

Model CFM

MPH/

ACH024

MPH/

ACH036

MPH/

ACH048

MPH/

ACH060

1200 45 4.0 3.3 41,540 30,430

1600 45 5.5 5.5 51,940 38,600

2000 45 7.0 8.4 63,750 47,340

EWT

GPM

°F

800 45 3.5 2.1 32,350 22,190

WPD Ft Hd

Btuh

Air Handler / “A” Coil Corrections

Entering Air Correction Factors

Heating Cooling

EAT

°F (DB)

**At this condition, Total Capacity = Sensible Capacity.

Gray shaded area includes conditions not typical for cooling operation.

Heating

Capacity

50 1.038 50 0.743 0.911 ** ** ** ** **

55 1.028 55 0.820 0.771 0.882 1.019 ** ** **

60 1.018 60 0.896 0.670 0.854 1.047 ** **

65 1.007 65 0.971 0.649 0.866 1.081 **

68 1.000 67 1.000 0.556 0.780 1.000 1.216

70 0.995 70 1.044 0.638 0.865 1.085

75 0.984 75 1.116 0.601 0.832

EAT

°F (WB)

Total

Capacity

60 65 70 75 80 85

Sensible Capacity

EAT °F (DB)

WT Models, Rev.: B Enertech Global

Page 66

WARRANTY ORDER & CLAIM

PHONE : 618.664.9010 FAX : 618.66 4.4597 EMAIL : WARRANTY@ENERTECHGEO.COM

ALL WARRANTY REGISTRATIONS SHOULD BE SUBMITTED WITHIN 10 DAYS OF INSTALLATION

COMPANY NAME ____________________________________________________ DAT E ___________________

(Form submitter)

PHONE _________________ FAX _________________ EMAIL ________________________________________

ORDERED BY _____________________________________ JOB NAME/PO # ____________________________

UNIT Model # _____________________________________ Serial # ____________________________________

FAILURE DATE ____________________

SHIP TO

(If different

ADDRESS

than

company)

Required if claim is for defective ow center

HOMEOWNER

FLOW CENTER MODEL # ________________________ FLOW CENTER SERIAL # __________________________

FAILURE CODES, DESCRIPTION AND LABOR REIMBURSEMENT

MUST BE FOUND IN WARRANTY MANUAL

FAILURE CODE DESCRIPTION PART NUMBER

____________ _________________________________________________

__________

____________ _________________________________________________

LABOR REIMBURSEMENT REQUESTED

DO YOU NEED PARTS ORDERED?

(If no, and replacement was purchased from another vendor, attach copy of bill if reimbursement is needed

NO YES

____________

__________

____________

OTHER NOTES _______________________________________________________________________________

____________________________________________________________________________________________

FOR ENERTECH COMPANIES USE ONLY

SRO# _________________________________________ CREDIT MEMO# ________________________________

1) See warranty coverage summary sheet for labor allowances, conditions and exclusions, etc. 2) Warranty start date is ship date from Enertech facility unless proof of startup is presented. 3) Outsourced warranty replacement parts will be reimbursed in the form of credit for the part only. Credit will be no more than the standard equivalent part cost through Enertech. 4) Factory pre-approval is required for anything outside the scope of this document. 5) Fuses, hose kits and items not mentioned on Warranty Coverage Summary are not covered under this program.

Page 67

WARRANTY REGISTRATION

1 (Very Dissatis ed) 2 3 4 5 6 7 8 9 10 (Very Satis ed)

NOW REGISTER ONLINE AT WARRANTY-REGISTRATION.ENERTECHGEO.COM

WARRANTY REGISTRATIONS SHOULD BE SUBMITTED WITHIN 60 DAYS OF INSTALLATION

Model Number _________________________Serial Number __________________________ Install Date _______________

This unit is performing Satisfactorily Not Satisfactorily (please explain) _______________________________________

______________________________________________________________________________________________________

Purchaser/User Name _____________________________________________________ Phone ________________________

Address ____________________________________________ City __________________________ State/Prov _________

Postal Code ___________________ Email __________________________________________________________________

Installer Company Name ________________________________________________________________________________

City _____________________________State/Prov __________ Email ___________________________________________

Application

Residential New Construction Residential Geo Replacement Residential Replacement of Electric, Gas or Other

Multi-Family (Condo/Townhome/Multiplex) Commercial Other ___________________________________

Use (check all that apply)

Space Conditioning Domestic Water Heating Radiant Heat Swimming Pool Snow/Ice Melt

Other ______________________________________________________________________________________________

Loop Type

Horizontal Loop Vertical Loop Pond Loop Open Loop

Demographics

Household Income Under $30,000 $30,000–$45,000 $45,000–$60,000 $60,000–$75,000 $75,000–$100,000 Over $100,000

Home Size Up to 1500 sq. ft. 1501 to 2500 sq. ft. 2501 to 4000 sq. ft. Over 4000 sq. ft.

Home Location Rural Urban Suburban

Value of Home Less than $100,000 $100,000–$250,000 $250,000–$500,000 $500,000–$1 mil Over $1 mil

Customer Satisfaction

How would you rate your overall satisfaction with your new geothermal system?

How would you rate your overall satisfaction with your installing geothermal contractor?

MAIL THIS FORM TO: EMAIL THIS FORM TO: FAX THIS FORM TO:

ENERTECH GLOBAL LLC [email protected] ENERTECH GLOBAL LLC 2506 SOUTH ELM STREET 618.664.4597 GREENVILLE, IL 62246

Rev 30 DEC 2013B

Page 68

Greenville, IL - Mitchell, SD

MEMBER

[email protected]

Rev Tab

Enertech Global is continually working to improve its products. As a result, the pricing, design and specications of each product may change without notice and may not be as described herein. For the most up-to-date information, please visit our website, or contact our Customer Service department at [email protected]. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely Enertech Global’s opinion or commendation of its products.

20D082-08NN

ENERTECH GLOBAL, LLC

160113G
