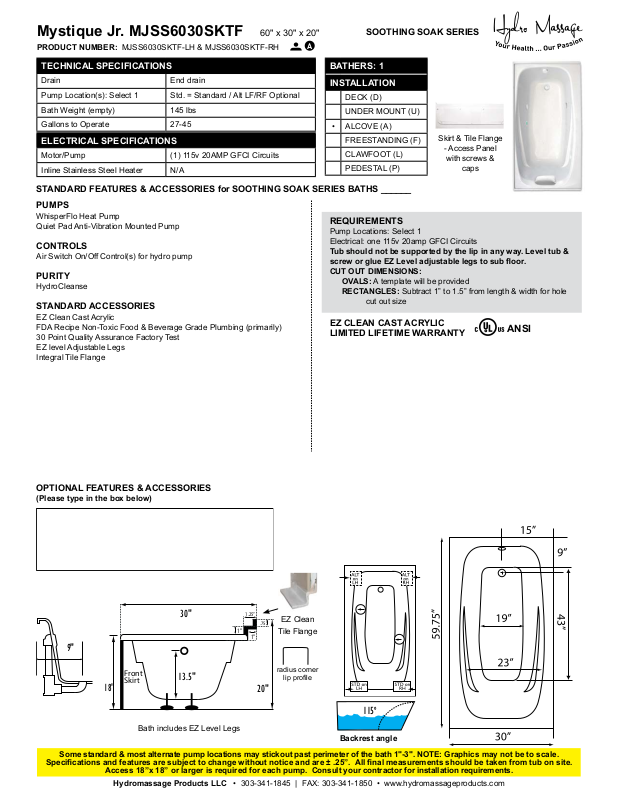

Mystique Jr. MJSS6030SKTF 60" x 30" x 20"
PRODUCT NUMBER: MJSS6030SKTF-LH & MJSS6030SKTF-RH
TECHNICAL SPECIFICATIONS
Drain End drain
Pump Location(s): Select 1 Std. = Standard / Alt LF/RF Optional
Bath Weight (empty) 145 lbs
Gallons to Operate 27-45
ELECTRICAL SPECIFICATIONS
Motor/Pump (1) 115v 20AMP GFCI Circuits
Inline Stainless Steel Heater N/A
A
BATHERS: 1
INSTALLATION
• ALCOVE (A)
SOOTHING SOAK SERIES
DECK (D)
UNDER MOUNT (U)
FREESTANDING (F)
CLAWFOOT (L)
PEDESTAL (P)
STANDARD FEATURES & ACCESSORIES for SOOTHING SOAK SERIES BATHS ______
PUMPS
WhisperFlo Heat Pump
Quiet Pad Anti-Vibration Mounted Pump
CONTROLS
Air Switch On/Off Control(s) for hydro pump
PURITY
HydroCleanse
STANDARD ACCESSORIES
EZ Clean Cast Acrylic
FDA Recipe Non-Toxic Food & Beverage Grade Plumbing (primarily)
30 Point Quality Assurance Factory Test
EZ level Adjustable Legs
Integral Tile Flange
REQUIREMENTS
Pump Locations: Select 1
Electrical: one 115v 20amp GFCI Circuits
Tub should not be supported by the lip in any way. Level tub &
screw or glue EZ Level adjustable legs to sub oor.
CUT OUT DIMENSIONS:
OVALS: A template will be provided
RECTANGLES: Subtract 1” to 1.5” from length & width for hole
cut out size
EZ CLEAN CAST ACRYLIC
LIMITED LIFETIME WARRANTY
Jet &
Control
placement
may vary
Skirt & Tile Flange
- Access Panel
with screws &
caps
ANSI
OPTIONAL FEATURES & ACCESSORIES
(Please type in the box below)
30"
1.25”
1”
1”
.75”
EZ Clean
Tile Flange
X HTT® Leg Therapy Air Massage System includes 10 Air Jets on the
A
oor.OptionalonComboPlatandComboGoldSeries
B
X 6 Jet HTT® Back Massage System: N/A on Combo Series-Standard
on Plat series
C
Warm Back Tubing Zone
9"
radius corner
lipprole
20"
18"
Front
Skirt
13.5"
115º
Bath includes EZ Level Legs
Backrest angle
Some standard & most alternate pump locations may stickout past perimeter of the bath 1"-3". NOTE: Graphics may not be to scale.
Specications and features are subject to change without notice and are ± .25”. All nal measurements should be taken from tub on site.
Access 18”x 18” or larger is required for each pump. Consult your contractor for installation requirements.
Hydromassage Products LLC • 303-341-1845 | FAX: 303-341-1850 • www.hydromassageproducts.com
