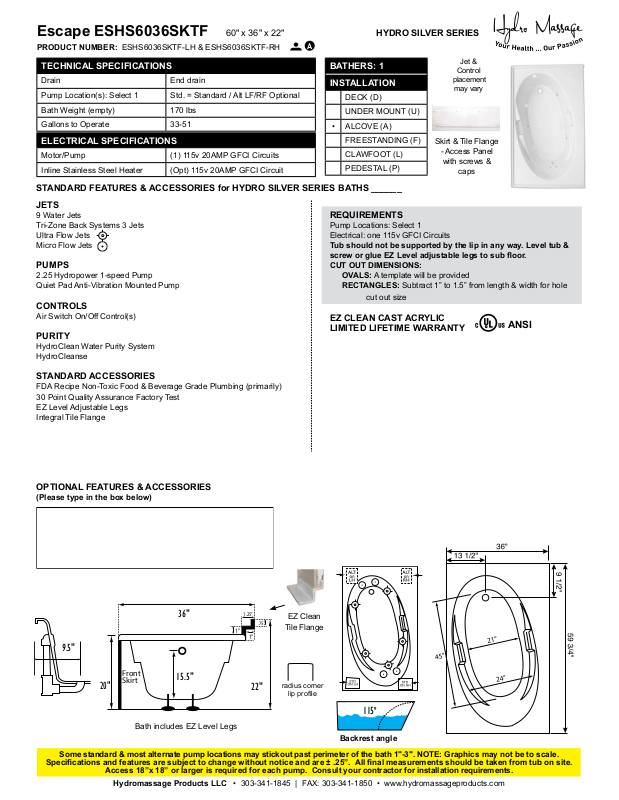

Escape ESHS6036SKTF 60" x 36" x 22"
PRODUCT NUMBER: ESHS6036SKTF-LH & ESHS6036SKTF-RH
TECHNICAL SPECIFICATIONS
Drain End drain
Pump Location(s): Select 1 Std. = Standard / Alt LF/RF Optional
Bath Weight (empty) 170 lbs
Gallons to Operate 33-51
ELECTRICAL SPECIFICATIONS
Motor/Pump (1) 115v 20AMP GFCI Circuits
Inline Stainless Steel Heater (Opt) 115v 20AMP GFCI Circuit
A
BATHERS: 1
INSTALLATION
DECK (D)
UNDER MOUNT (U)
• ALCOVE (A)
FREESTANDING (F)
CLAWFOOT (L)
PEDESTAL (P)
HYDRO SILVER SERIES
STANDARD FEATURES & ACCESSORIES for HYDRO SILVER SERIES BATHS ______
JETS
9 Water Jets
Tri-Zone Back Systems 3 Jets
Ultra Flow Jets
Micro Flow Jets
PUMPS
2.25 Hydropower 1-speed Pump
Quiet Pad Anti-Vibration Mounted Pump
REQUIREMENTS
Pump Locations: Select 1
Electrical: one 115v GFCI Circuits
Tub should not be supported by the lip in any way. Level tub &
screw or glue EZ Level adjustable legs to sub oor.
CUT OUT DIMENSIONS:
OVALS: A template will be provided
RECTANGLES: Subtract 1” to 1.5” from length & width for hole
cut out size
CONTROLS
Air Switch On/Off Control(s)
EZ CLEAN CAST ACRYLIC
LIMITED LIFETIME WARRANTY
PURITY
HydroClean Water Purity System
HydroCleanse
Jet &
Control
placement
may vary
Skirt & Tile Flange
- Access Panel
with screws &
caps
ANSI
STANDARD ACCESSORIES
FDA Recipe Non-Toxic Food & Beverage Grade Plumbing (primarily)
30 Point Quality Assurance Factory Test
EZ Level Adjustable Legs
Integral Tile Flange
OPTIONAL FEATURES & ACCESSORIES
(Please type in the box below)
36"
1.25”
.75”
1”
1”
9.5"
EZ Clean
Tile Flange
X HTT® Leg Therapy Air Massage System includes 10 Air Jets on the
A
oor.OptionalonComboPlatandComboGoldSeries
B
X 6 Jet HTT® Back Massage System: N/A on Combo Series-Standard
on Plat series
C
Warm Back Tubing Zone
20"
Front
Skirt
15.5"
22"
radius corner
lipprole
115º
Bath includes EZ Level Legs
Backrest angle
Some standard & most alternate pump locations may stickout past perimeter of the bath 1"-3". NOTE: Graphics may not be to scale.
Specications and features are subject to change without notice and are ± .25”. All nal measurements should be taken from tub on site.
Access 18”x 18” or larger is required for each pump. Consult your contractor for installation requirements.
Hydromassage Products LLC • 303-341-1845 | FAX: 303-341-1850 • www.hydromassageproducts.com
