Hydro-Force M100 Operating Manual

1

2

Olympus M100 Operating Manual

TABLE OF CONTENTS

TOPIC PAGE #

• Introduction 3

• Technical Specifications 4

• Optional Equipment 5

SECTION 1: Operational Safety

• Electrical Safety 6

• Mechanical Safety 7

SECTION 2: Operation Procedures

• Electrical Supply 8

• Water Supply & Chemicals 9

• Chemical Metering Tips 10

• Water Supply 11

• Solution & Vacuum Hoses 12

• Pump-Out System 13

• Pressure Adjustments 14

• Shutdown Procedures 15

• Troubleshooting 16-18

• Solution Flow Path 19

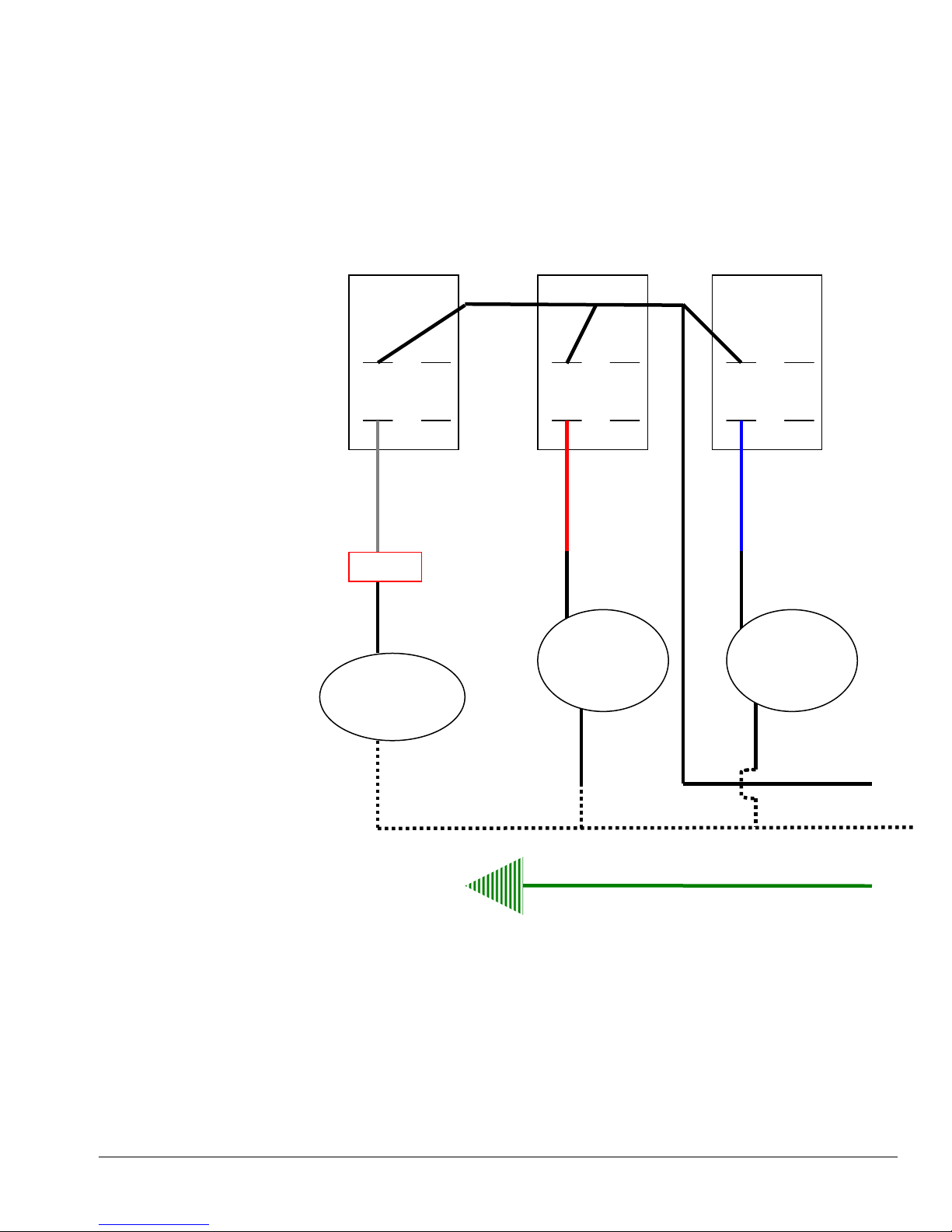

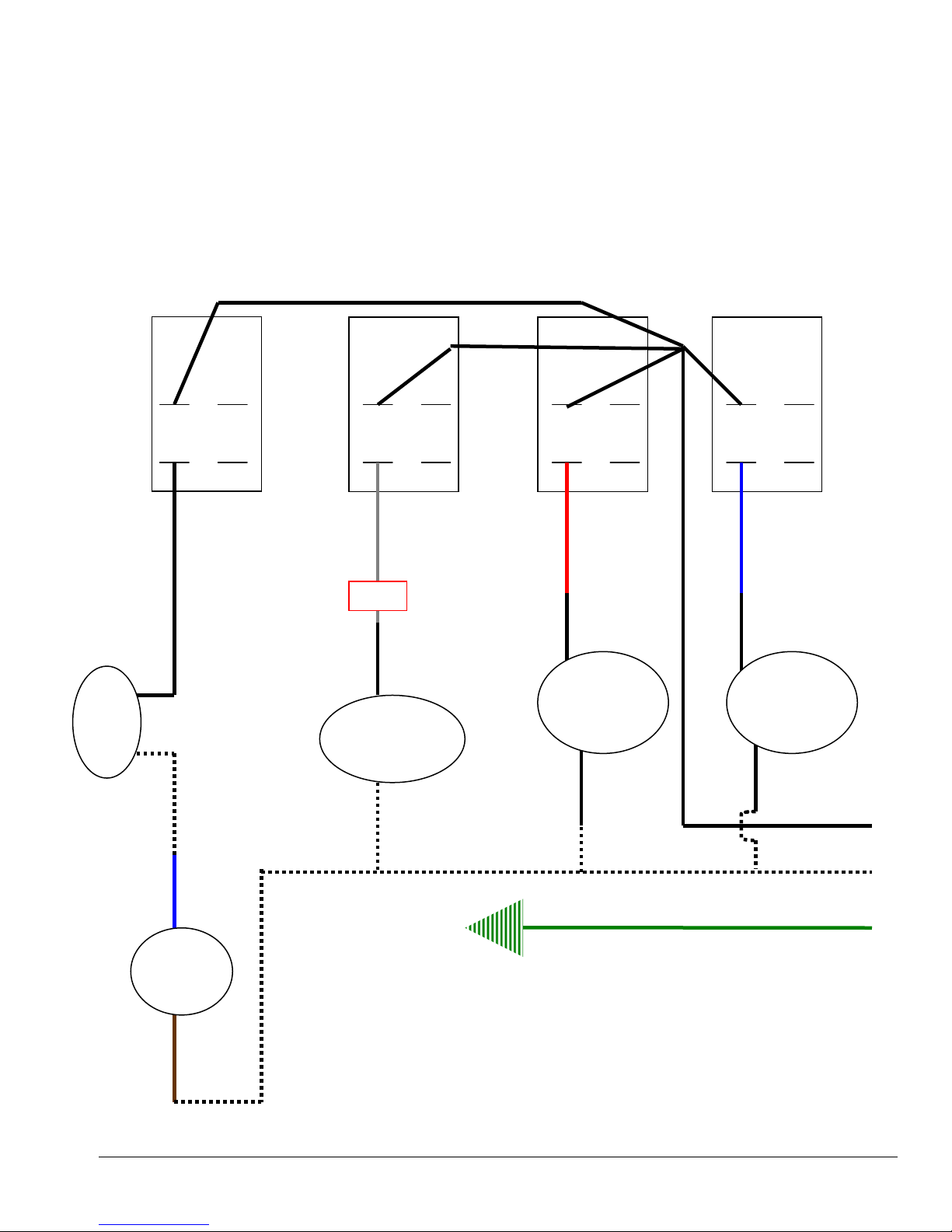

• Wiring Diagrams 20

SECTION 3: Maintenance/ Technical

• Maintenance 24

• Drawings & Parts Lists

o Pump 32

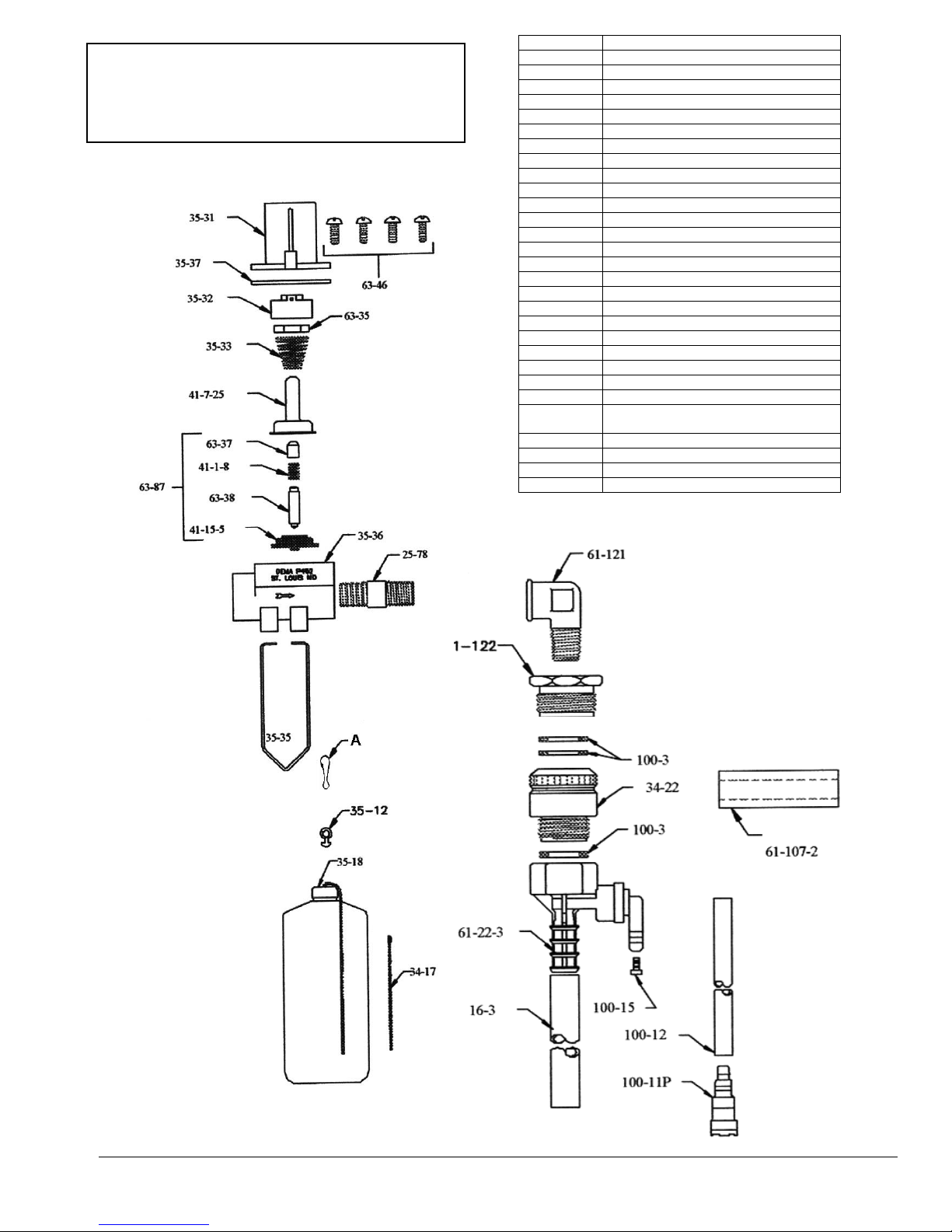

o Auto-Fill - optional 33

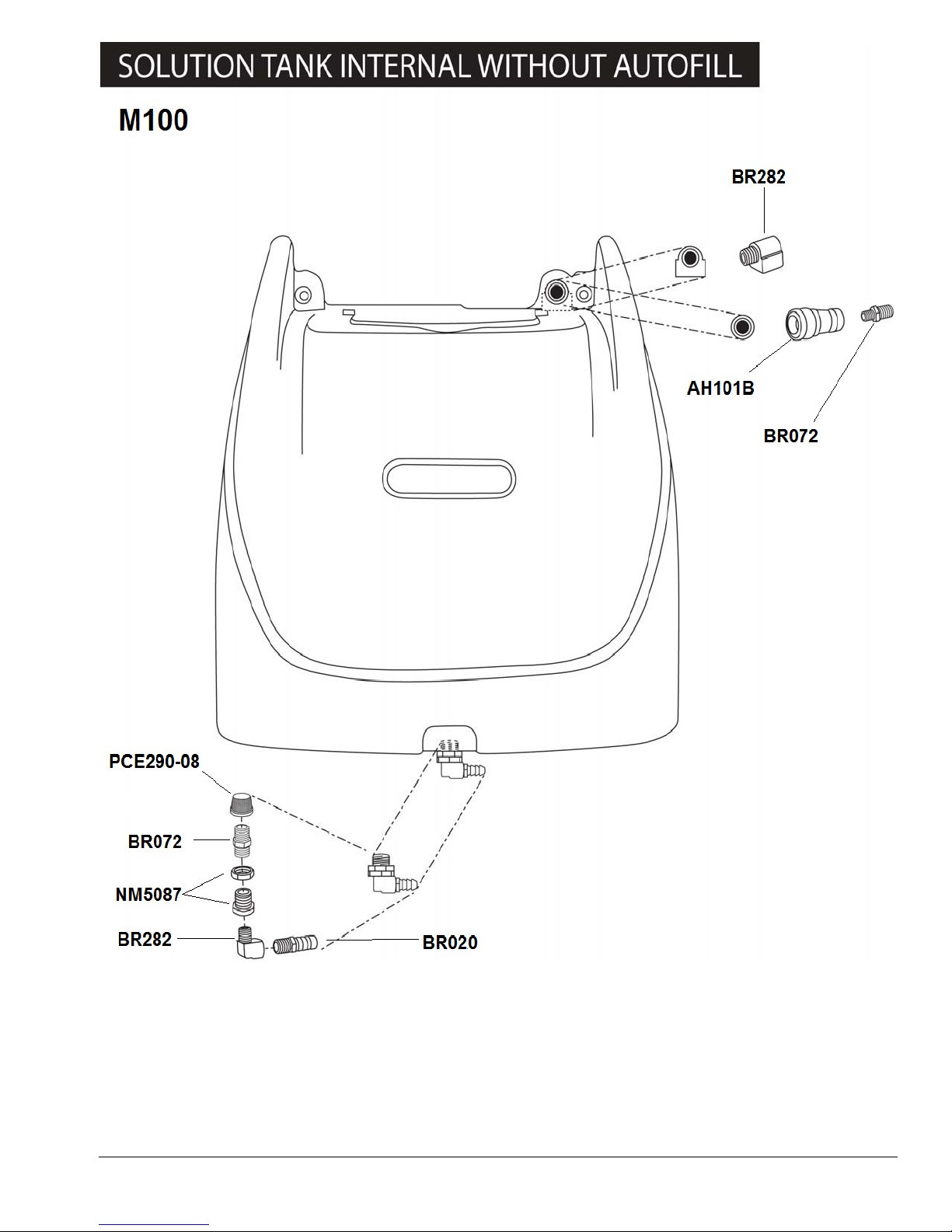

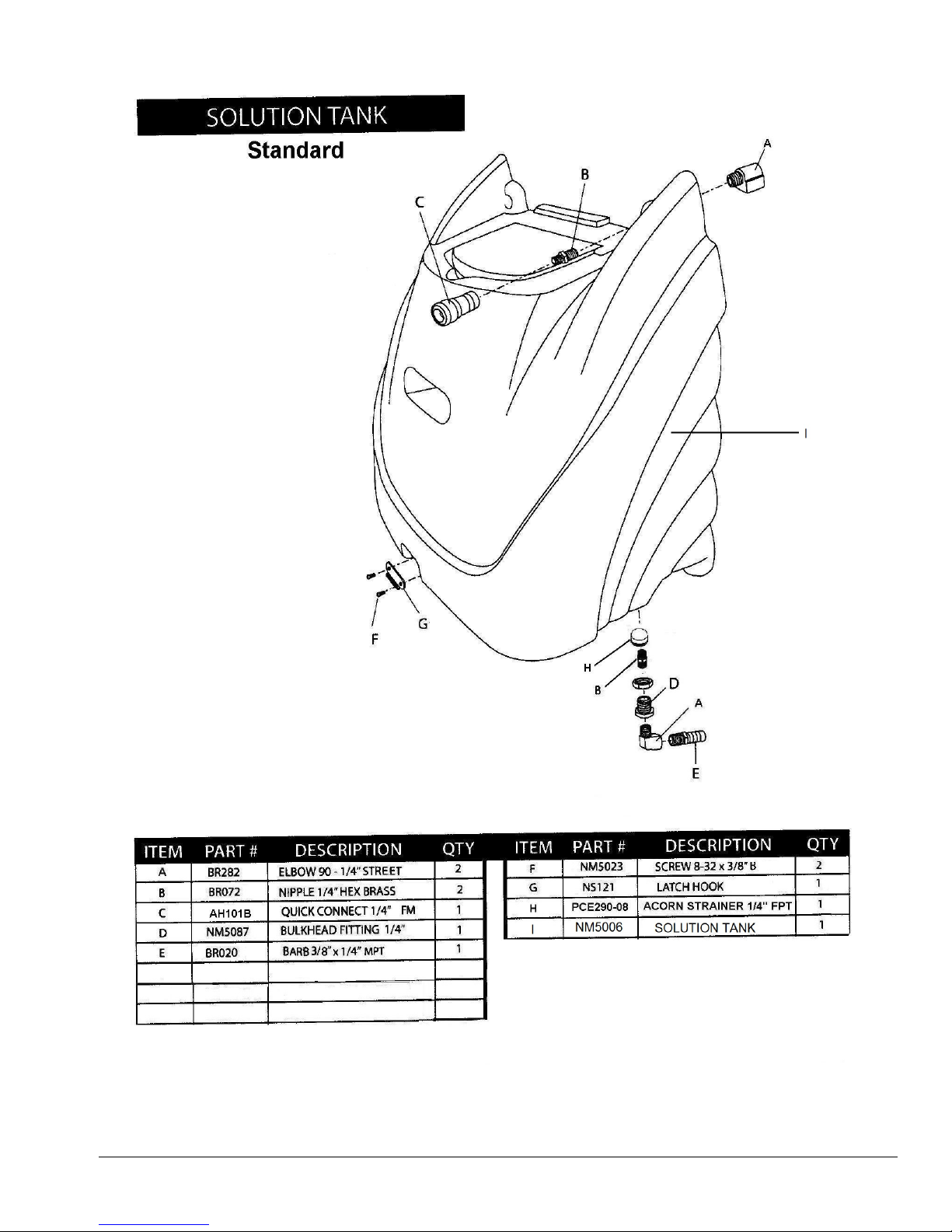

o Solution Tank 34

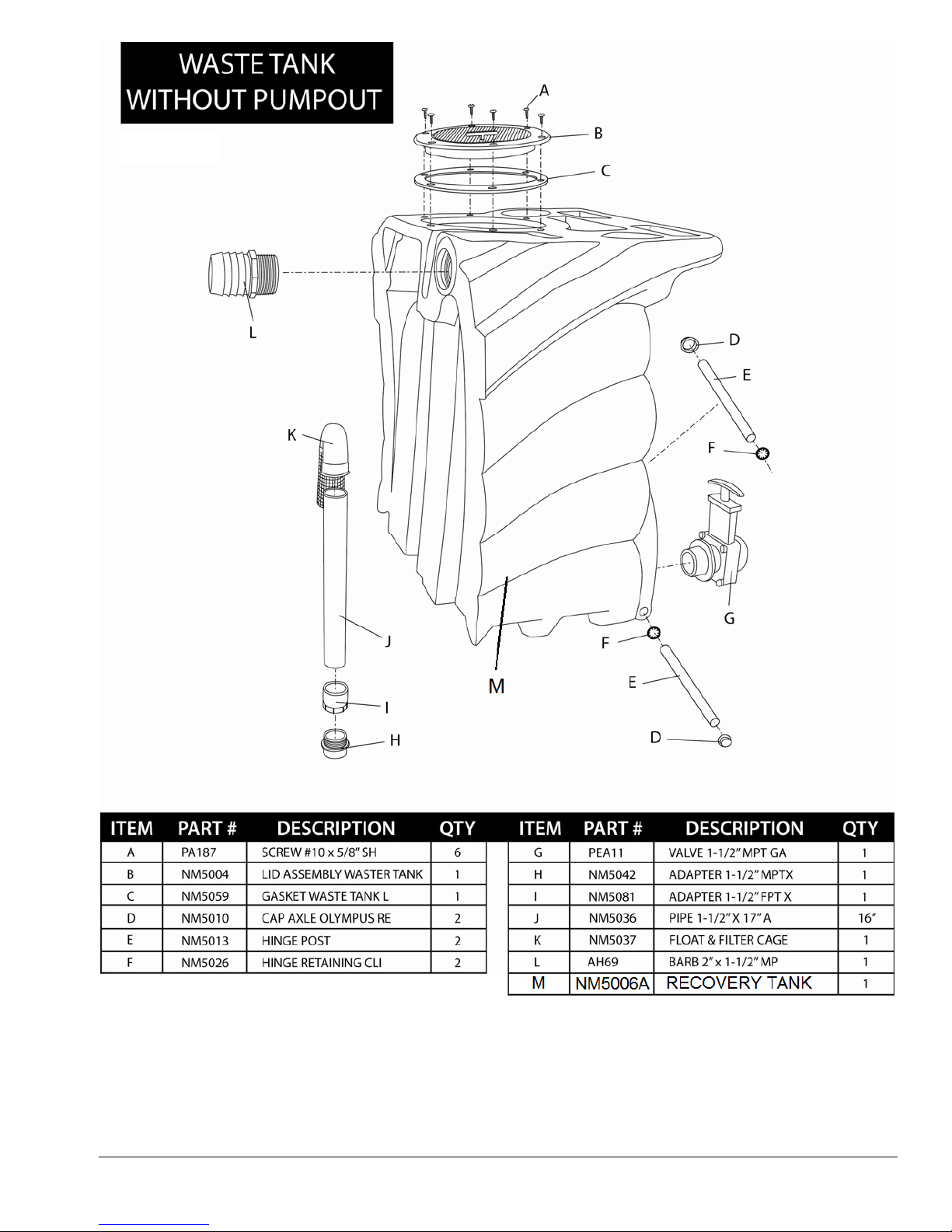

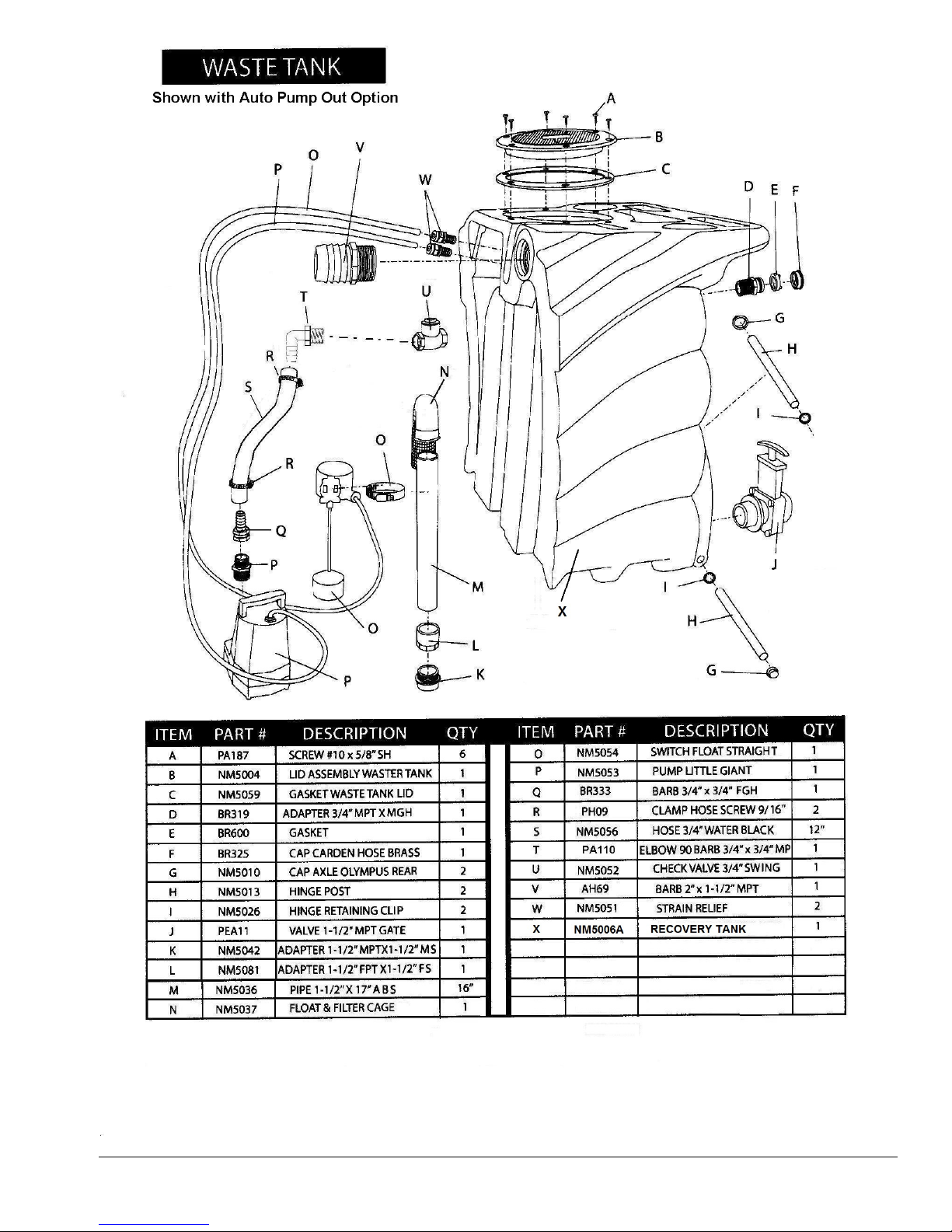

o Waste Tank 38

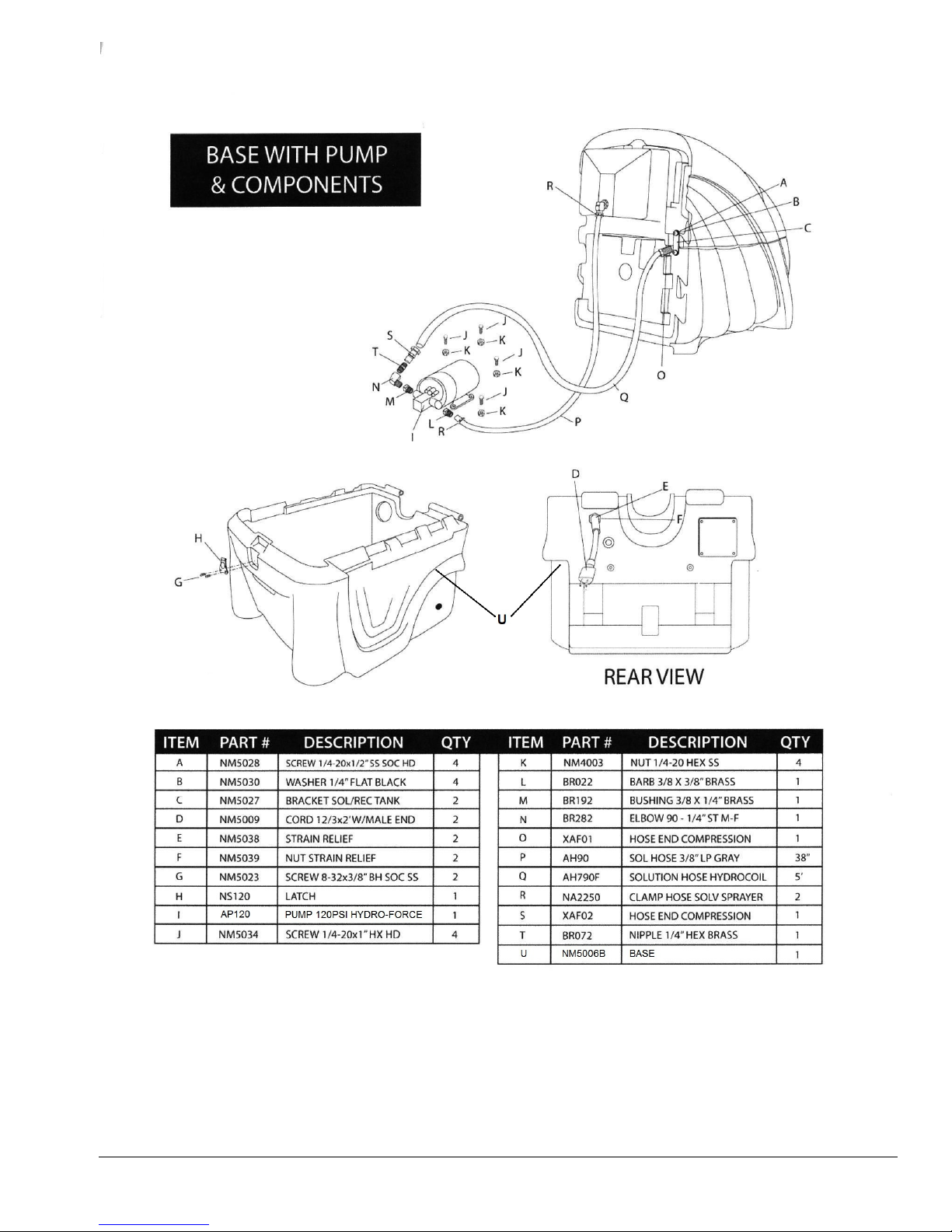

o Base, Pumps, Components 42

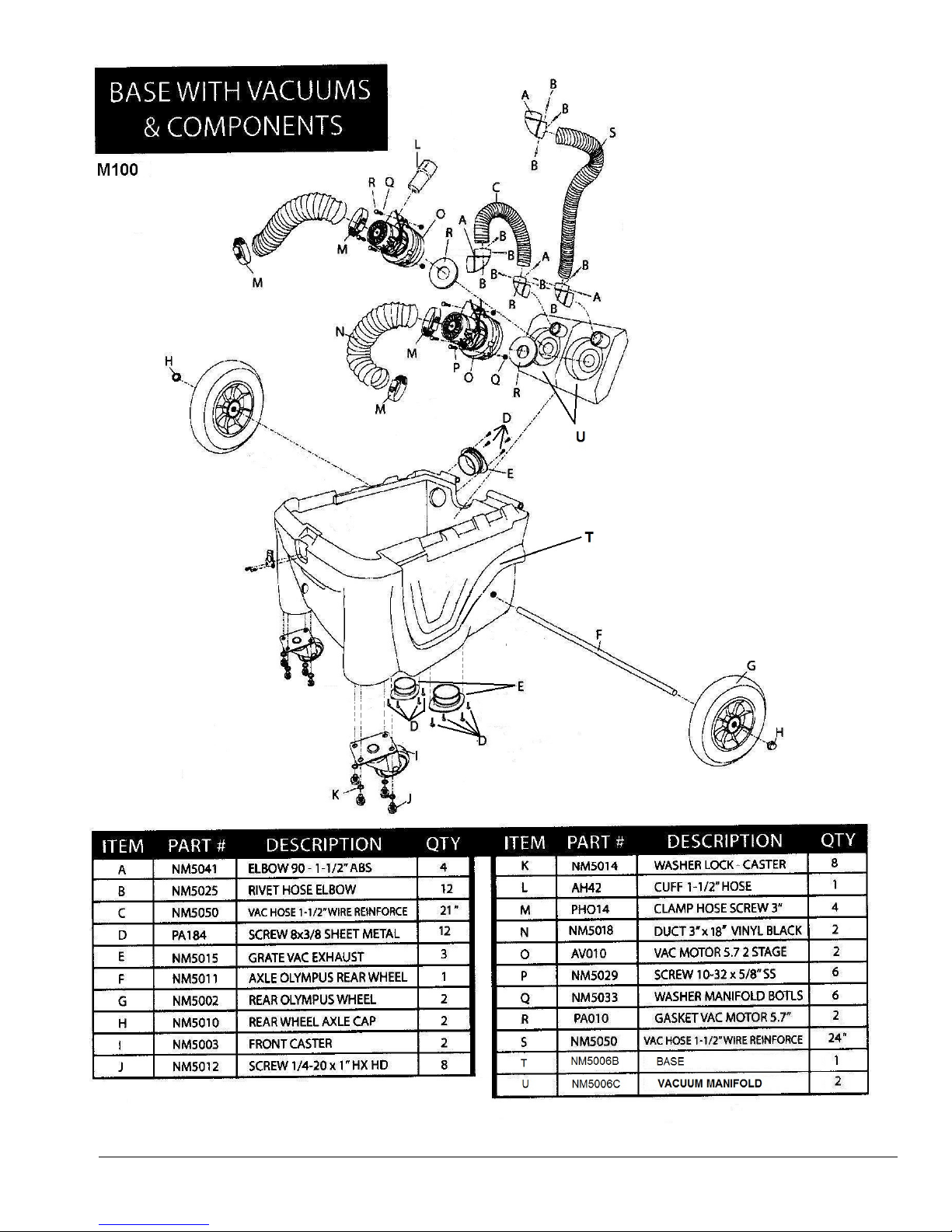

o Base & Vacuum System 43

• Warranty 44

3

Introduction

Congratulations on your purchase of the Hydro-Force Olympus M100. The M100
is designed to give truckmount-level performance in a portable machine that
combines versatility with ease of transport. Years of experience, engineering, and
planning have gone into the design and manufacturing of the M100. We take a
great deal of pride in the M100; our goal is no less than your complete satisfaction.

This manual will provide users with the knowledge required to operate the
Olympus M100 safely, to understand how to properly operate and maintain the
machine, and to ensure that the equipment operates at its maximum performance
level.

All users must read and understand this manual completely before
operating the machine.

Always maintain this manual in legible condition adjacent to the Olympus M100,
or place in a secure location for future reference.

Any questions pertaining to the operating or servicing of this unit should be
directed to your nearest Hydro-Force distributor.

This manual is written specifically for the Olympus M100 portable extractor units
manufactured by:

Hydro-Force
4282 South 590 West
Salt Lake City, UT 84123
801-268-2673
801-268-3856 FAX

Information in this manual is subject to change without notice and does not
represent a commitment on the part of Hydro-Force or its parent or affiliated
companies.

4

Technical Specifications

M100 High Performance Extractor

Height: 38”
Length: 28”
Width: 19-1/2”
Weight: 85 lbs.
Solution Tank Capacity: 12 gallon
Recovery Tank Capacity: 12 gallon

Solution Pump: Hydro-Force AP120 pump

100 psi – 1.30gpm

Vacuum Motors: Two AMETEK Lamb 5.7” diameter – tangential discharge

Two stage – Mounted in series

Power Draw: 18.20 wide open / 11.20 full load
(Add 5 amps on machines with Auto Pump-out System)

Standard Equipment
M100 High Performance Extractor

Carpet Wand: AW29 - Stainless Steel S-Bend Dual Jet Wand

Vacuum Hose: 25’ X 1-1/2” with 1-1/2” cuff & 2” cuff

HP Solution Hose: 25’ x 1/4” with 1/4” male / female quick connects

Power Cord: 25’ x 12gauge with male & female plug ends

5

Additional / Optional Equipment

AW50

AW50D

NM4407A

Wand Glide – Delrin AW529D
Wand Glide – Teflon AW529T
Auto Fill System with chemical draw: M012
Metering Tip Kit: PDE001
Auto Pump-out System: M016
Pump-out Hose: AH65
Hydro-Filter II Inline Filter: AC10

3.5” HyDry Upholstery Tool: AW50A

4.5” HyDry Upholstery Tool: AW51A

3.5” HyDry Deluxe Upholstery Tool: AW50D

4.5” HyDry Deluxe Upholstery Tool: AW51D
1-1/2” Vacuum Hose: (Sold per foot – No cuffs) AH36
2” cuff for 1-1/2” Vac Hose: AH46
1-1/2” cuff for 1-1/2” Vac Hose: AH42
2” Hose Connector PVC: AH76
1-1/2” Hose Connector PVC: AH74
HP Solution Hose: (Does not include Quick Connects) AH79D
1/4” Male Quick Connect: AH102B
1/4” Female Quick Connect: AH101B
Power Cord 25’ x 12gauge w/male & female plugs AW32
Power Cord 50’ x 12gauge w/male & female plugs AW33
GFCI Power Cord 50’ x 12gauge w/male & female plugs NM4407A

AC10

6

Safety

Section

1

CAUTION! This machine is an electrical appliance. Care must be

taken to reduce the risk of electrical shock.

• READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE OPERATING THE M100.

• To reduce the risk of property damage or injury, repairs to electrical systems should only be performed by

experienced technicians. Contact your distributor for assistance. Unplug machine power cord from outlet
before performing any repairs on the extractor.

• This machine shall be grounded while in use to protect the operator from electric shock. The machine is

provided with a three-conductor cord and a three-contact grounding type attachment plug to fit the
proper grounding type receptacle. The green (or green and yellow) conductor in the cord is the grounding
wire. Never connect this wire to other than the grounding pin of the attachment plug.

• This machine is for use on a nominal 120-volt circuit and

has a grounding plug that resembles the plug illustrated in
the sketch to the right. Make sure that the machine is
connected to an outlet having the same configuration as
the plug. No plug adapter should be used with this
machine.

• The power cord supplied with this machine is properly

sized to handle the electrical load of this machine and
properly grounded as described above. Any extension
cords used with this machine must be similarly sized and
grounded to assure safe operation. A properly sized
GFCI protected cord can be used for additional protection.

• Do not use the M100 outdoors, in standing water or on wet surfaces. Do not store the M100 in wet conditions.

If extractor is leaking, unplug machine power cords from outlets before approaching or touching machine.

• Do not unplug power cord by pulling on the cord. Grasp the plug end when unplugging the cord. Do not pull

the extractor by the cord. If cord or plug is damaged, do not use cord. Replace with new cord or repair as
needed before use.

• Overloaded circuit may not always trip circuit breaker. Reduced voltage to machine on overloaded circuit will

prevent components from operating properly.

7

WARNING! This machine must be protected from conditions which may

damage the pump, tank, hoses and other components.

• Freezing of water in this machine will cause serious damage. The M100, solution hoses, and tools must

be protected from freezing temperature. Store, transport, and use this equipment only in temperatures well
above freezing. (32ºF or 0ºC). If you suspect the M100 has been frozen, do not plug in or turn on machine
until you are sure it has thawed completely.

• If the equipment cannot be stored or transported in a warm environment, it can be guarded from freezing by

running an anti-freeze solution through the incoming water lines, chemical feed system, solution pump, solution
lines, tools and pump-out pump. The machine is filled at the factory with anti-freeze to eliminate damage during
shipment in cold weather.

o The anti-freeze solution must be completely flushed from the machine before it is returned to service.

• The M100 must not be used to pick up flammable or combustible materials or used in areas where these

materials may be present.

• Solvent-based or water-based solutions containing solvents may damage the pump, hoses, and other

components. Do not assume chemical compatibility. Contact your distributor or Hydro-Force if you have
questions regarding the compatibility of your chemicals with the machine.

• Do not clean with solutions that are at temperatures above 130ºF.

• Rinse the solution tank, chemical system, and pump with fresh water after each day’s use.

• Do not allow pump to run dry. Always maintain adequate solution level to supply solution pump.

• HP hoses may rupture if worn or damaged. Do not use HP solution hoses if hose covering is cut, bulging, or

otherwise damaged. Examine HP solution hoses daily and replace or repair hoses as needed.

• Use a Hydro-Filter II and clean the recovery tank daily to keep pump-out filter and pump from becoming

clogged. Store the M100 with the recovery tank lid open.

• Keep Vacuum Inlet Filter clean and check float for proper operation. Do not operate the M100 without the

Vacuum Inlet Filter in place. Use defoamer to eliminate foam build-up during cleaning and prevent

foam/moisture from entering vacuums.

***Use common sense to protect yourself and others while using this equipment.***

• Keep pets and children away from the machine when in use.

• Keep all body parts, hair, and loose clothing away from openings and moving parts. Always wear appropriate

clothing and safety equipment when operating unit.

• Use extra care when cleaning on stairs. Wet carpet on stairs can be slippery.

• Do not move the M100 up or down stairs when tanks are full of water. Drain solution and recovery tanks, and

secure base latches before moving unit up or down stairs. Lift using only the appropriate handles.

• Water may be spilled, drip, or be exhausted from vacuums during operation. Place unit in area where water will

not cause damage or use drop cloth to protect surfaces.

8

Operation Procedures

Section

2

Knowledge of the proper operation of the M100 is required to ensure user
safety and efficient performance of the extractor.

SET UP AND OPERATION

1. Electrical Cord:

One 25’ power cord is supplied with the Olympus M100. The amperage draw requires that the cord be
plugged into a 20amp circuit.

Plug the power cord into the outlet. and connect cord to the machine.

Power

Power Cord – AX32
25’ – 12 gauge M-F Plugs

9

2A. Water Supply & Chemical Mixing– Manual Fill:

Proportioning Valve

Chemical Feed Hose

• Pour up to 12 gallons of hot water into the solution tank at the front of the machine. The water

temperature cannot exceed 130°°°°F.

• Measure and add the appropriate amount of the desired liquid chemical to the water in the solution tank.

The amount of chemical will vary depending on the type of chemical used, the amount of water in the
tank, and the material being cleaned; consult the chemical packaging for specific mixture ratios.

• Powdered chemicals should be dissolved in water before adding to the water in the solution tank.

Pour appropriate amount of hot water into

Add appropriate amount of chemical to water

2B. Water Supply & Chemical Dilution – Optional Auto-Fill System:

• The chemical dilution rate is controlled by the metering tip, and the dilution rate can only be changed by

changing the metering tip (See “How to Change the Metering Tip” on Page 10 for instructions.)

Chemical Feed Setup:

• Remove the chemical feed hose from the solution tank.

• Place the end of the hose into a container of liquid chemical.

• If the tip is removed, and the proportioning system operated with no tip, the dilution rate will be 8:1 (the

equivalent to adding 16-1/4oz of chemical to each gallon of water.)

• The standard tip used with the M100 is the turquoise tip with a dilution rate of 256:1. This means that for

each gallon of water flowing into the machine, 1/2 ounce of chemical will be added.

• If a fresh water rinse with no chemical is desired, simply leave the chemical feed hose inside the

solution tank.

How to Change the Metering Tip:

TIP

CHEMICAL DILUTION RATES

Proportioning Valve

• Remove the chemical feed hose from the barb on the side of the proportioning valve.

• Unscrew and remove the old tip.

• Screw in the proper tip for your chemical tip and place the hose back on the barb

Turquoise Tip
Dilution 256 - 1

Red Tip
Dilution 85 - 1

Metering Tip Kit – PDE001

Metering Tip Kit (Hydro-Force Item# PDE001) contains 14 different colored metering tips, allowing
dilution rates from 11:1 up to 427:1. Refer to the chart below to select the tip that meets the dilution rate for
your chemical application.

• For example: if you require 1-1/2 ounces of chemical per gallon of water, change to the red metering tip

with the dilution rate of 85:1.

• The dilution rates are based on chemicals with water-like viscosity. Thicker (more viscous) chemicals will

dilute at a different rate.

• For powdered chemicals, a liquid concentrate must be made. Mix the concentrate according to the

manufacturer’s directions, and then select the appropriate metering tip.

• Contact your distributor or Hydro-Force if you have questions about your chemical.

Metering Tip Application Chart:

COLOR

OZ / GAL (RATIO)

TAN 0.30 (427:1)

ORANGE 0.40 (320:1)

TURQUOISE 0.50 (256:1)

PINK 0.75 (170:1)
LIGHT BLUE 1.00 (128:1)

BROWN 1.12 (114:1)
RED 1.50 (85:1)

WHITE 1.75 (73:1)
GREEN 2.00 (64:1)

BLUE 2.50 (51:1)
YELLOW 3.75 (34:1)

BLACK 5.00 (26:1)
PURPLE 8.50 (15:1)

GRAY 11.50 (11:1)

NO TIP 16.25 (8:1)

10

Water Supply:

• Once the correct metering tip is in place:

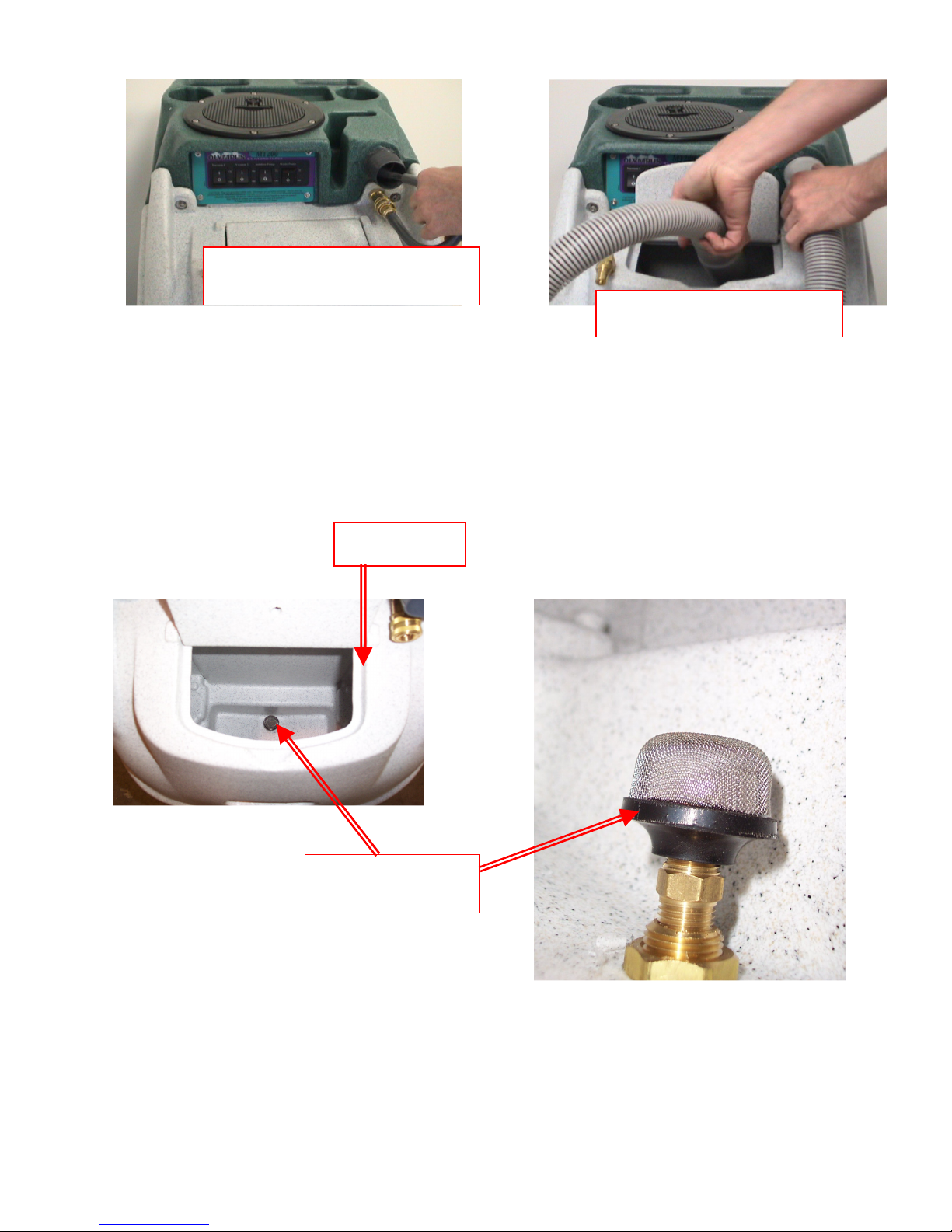

o Connect the Auto-Fill Water Supply Hose to the water inlet (the male quick-connect on the front

of the machine.)

o Connect the other end of the hose to a water faucet, and then turn on the water.

• Hot water can be used as long as the temperature does not exceed 140°F.

• Faucet adapter kits (Hydro-Force item #AX21 & AX22) are available that allow connection to different

types of faucets if needed.

Chemical
Feed Hose

Connect the Auto-Fill Water Supply Hose to Solution Inlet
(Male quick connect on the front of the machine.)

3/8” id X 25’ with F Quick Connect & F Garden Hose Fitting

Connect the Auto-Fill Water Supply Hose to a
faucet and turn on the water

To adjust the water level in the solution tank:

• Turn off the water supply.

• Adjust the length of the chain connecting the float bottle to the float valve.

• Snap the beaded chain off the connector on the valve.

Float Valve

o Move the bottle down to decrease the water level.
o Move the bottle up to increase the water level.

• Snap the chain back into the connector.

• Turn the water supply back on.

If the chemical is not drawing, or if the tank is not filling
or is overflowing, refer to the trouble shooting guide, or
contact your distributor for assistance.

Chain

Float Bottle

11

3. Connection of Solution Hose:

Connect the high pressure solution hose to the solution outlet (female quick connect on the front of the
machine). Connect the other end of the hose to the male quick connect on the cleaning tool. When you are
ready to start cleaning, turn the solution pump switch to the ON position The Flojet solution pump, standard
on the M100 is self priming and usually additional priming procedures are not required.
If the pump does not prime by itself, or if flow is low or unsteady, check the hose from the solution tank to
the pump (as well as the inline filter) for clogging, kinks, or restrictions. Clean or replace hose and/or filter
and repeat the priming procedure. Check the jets and filters on the wand or other tool for flow restrictions
that can affect priming.
If you are having trouble with the pump, refer to the trouble shooting guide or contact your distributor for
advice or assistance.

HP Solution Hose Assembly – AH79D
1/4” id X 25’ with M-F Quick Connects

Connect the male end of the HP Solution Hose
Assembly to the female solution outlet fitting on
the machine. Connect the female end to the
cleaning tool.

4. Connection of Vacuum Hoses:

A 1-1/2” x 25’ Vacuum Hose is included with the M100. The 2” cuff on the 25’ vacuum hose is connected
to the Vacuum Barb on the front of the machine. The other end with the 1-1/2” cuff is connected to the
cleaning tool.

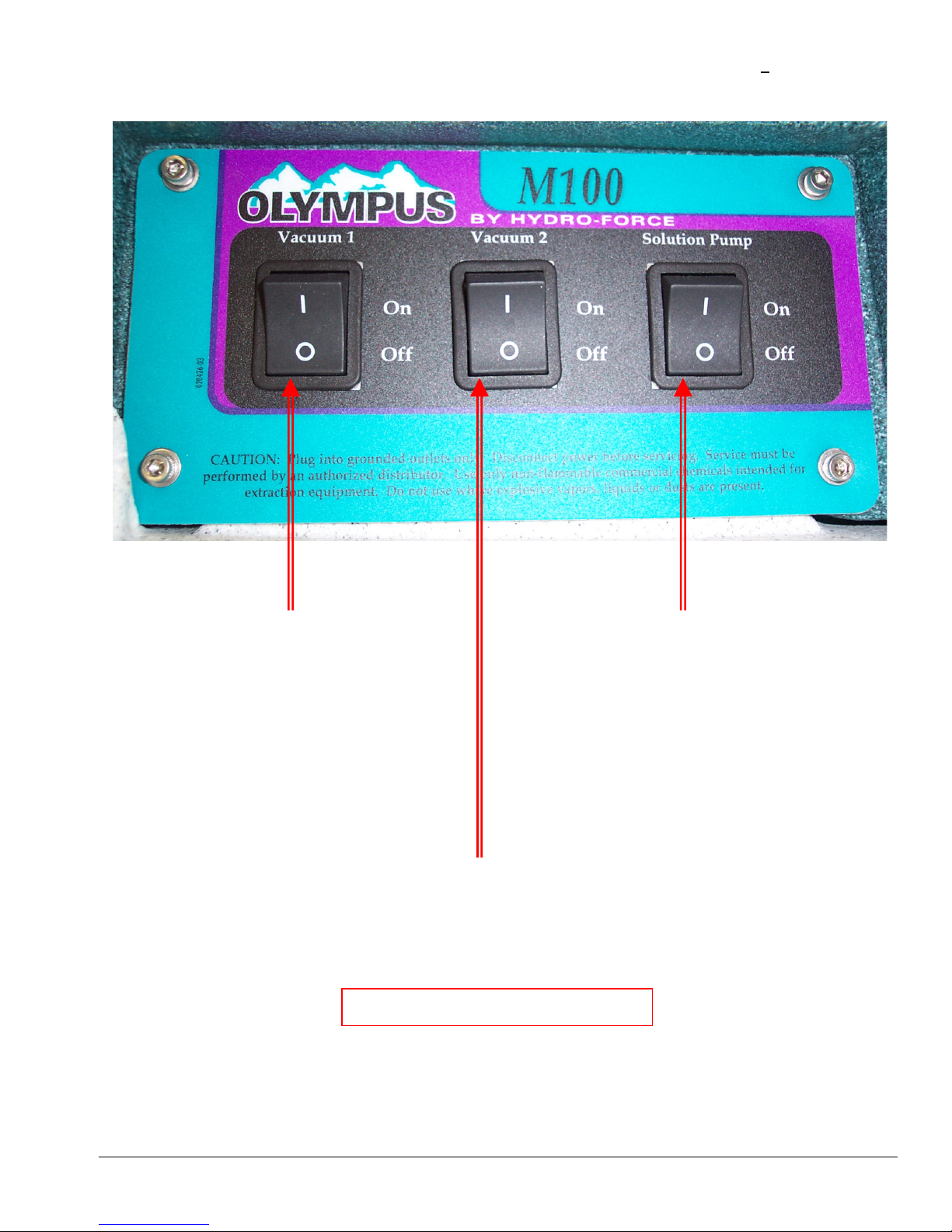

When ready to begin cleaning, turn both vacuum switches to the ON position. While the M100 can be
operated with only one vacuum for cleaning delicate fabrics, in most situations you will turn both vacuum
switches ON.

Vacuum Hose
1-1/2” x 25’ with 2” & 1-1/2” cuffs

12

5. Optional Auto Pump-out System - Connection of Pump-out Hose:

The pump-out hose is a 50’ section of 3/4” garden hose.

• Remove the cap from the pump-out outlet fitting on the back of the machine.

• Connect the pump-out hose to the outlet fitting.

• Place the other end of the hose in a commode or drain connected to the sanitary sewer system.

• Secure hose end to prevent movement during pumping.

Use defoamer to prevent foam build-up in recovery tank during cleaning and to keep foam/moisture
from entering vacuums.

When ready to begin cleaning, turn the waste pump switch to the ON position.

• Do not turn on waste pump switch unless pump-out hose is connected and has been routed

to a proper drain.

Pump-out Hose – AH65
3/4” id X 50’ with M-F Garden Hose Fittings

Connect the Female Garden Hose Fitting end of the
Pump-out Hose to the outlet fitting on the back of the
recovery tank. Place the other end of the pump-out
hose in a sanitary drain.

5A. Waste Tank Shutoff:

If not equipped with an Auto Pump-out System or not using the waste pump-out, the pump-out hose does
not need to be connected. When the recovery tank fills during cleaning, the float ball assembly in the vacuum
inlet filter will rise and will automatically shut off the vacuum air flow to prevent the recovery tank from
overfilling and waste water from getting into the vacuums. When this occurs:

• Immediately shut off the vacuum switches.

• Drain the recovery tank.

o Turn off the pump switch while draining the tank.
o Turn pump switch back upon resumption of cleaning.

• Close the drain valve and turn the vacuum switches back on when ready to resume cleaning.

If the pump-out or vacuum shutoff is not working properly, refer to the trouble shooting guide or contact
your distributor for advice or assistance.

Float Shutoff Assembly – NM5037

13

Draining the Recovery Tank

6. Pressure Adjustment:

The pressure of the M100 is not adjustable. The pump controls the pressure internally and has a pressure

switch that shuts the pump off when the tool is not being sprayed and the pressure builds up past 120psi. The
maximum pump pressure is 120psi, but the actual pressure attained is dependent on the amount of water flow
at the tool. The wand jets included with the M100 carpet wand were selected to deliver the optimum balance
between flow and pressure from the solution pump.

The only way to change the water flow and pressure delivered to the surface being cleaned is to change the
jets. If you feel the need to change the jets:

• Smaller jets and lower flow will allow for higher pressure at the tool. (Up to 120psi.)

• Larger jets and higher flow will lower the pressure attained at the tool.

The number found on the face of the jet, such as 8006, 9505 or 11004, states the size and shape of the jet
orifice. The first two or in some cases three numbers (80, 95 & 110) represent the spray angle. The last two or
in some cases three numbers (06, 05 & 04) represent the orifice size. The orifice size number represents the
flow through that jet at 40psi in tenths of a gallon per minute. Thus a small orifice such as 04 will flow

0.40gpm at 40psi. A larger orifice such as 06 will flow 0.60gpm at 40psi. (See chart below.)

Different jets with the same spray angle (8001, 8003 & 8004) can have different orifice sizes.
Different jets with the same orifice size (80015, 95015 & 110015) can have different spray angles.

Using a jet that is too small may cause the pump to pulsate or cycle by causing the pressure switch to engage
while the tool is being sprayed. If this occurs, replace the jet with a larger jet or contact your distributor for
advice or assistance.

Choose the jets that will meet the flow rate at your desired pressure and have the spray pattern suited to your
tool and type of cleaning. (The maximum flow rate of the M100 AP120 pump is 1.30gpm.)

If maintaining pressure becomes a problem, refer to the trouble shooting guide or contact your distributor for
advice or assistance.

Tee Jets and Vee Jets

Equiv. Dia. Flow Capacity (Gallons Per Minute)
Orifice Size in inches 40psi 60psi 100psi 200psi 300psi 500psi 1000psi
01 0.026 0.10 0.12
015 0.031 0.15 0.18
02 0.036 0.20 0.25
03 0.043 0.30 0.37
04 0.052 0.40 0.49
05 0.057 0.50 0.61
06 0.062 0.60 0.73
08 0.72 0.80 0.98
10 5/64 1.00 1.20
15 3/32 1.50 1.80

0.16

0.24

0.32

0.47

0.63

0.79

0.95

1.30

1.60

2.40

0.22

0.34

0.45

0.67

0.89

1.10

1.30

1.80

2.20

3.40

0.27

0.41

0.55

0.82

1.10

1.40

1.60

2.20

2.70

4.10

0.35

0.53

0.71

1.10

1.40

1.80

2.10

2.80

3.50

5.30

0.50

0.75

1.00

1.50

2.00

2.50

3.00

4.00

5.00

7.50

To determine the flow rate of tools with multiple jets, add the flow of each jet together to calculate the total
flow at the desired pressure.

14

Shutdown Procedures:

• If using the auto-fill system, turn the water supply off before finishing each job. This will allow use of the

water and chemical already in the tank, and will reduce the amount of excess water to be disposed of later.

• When finished cleaning, turn off all switches.

• If the auto-fill system was used and there is still water in the solution tank, push the float down to release

the water inlet hose pressure before disconnecting the hose from the faucet. Disconnect the water inlet
hose from the quick-connect on the front of the machine.

• Disconnect the solution hose and vacuum hose from the cleaning tool. Pull valve trigger to release

pressure from the hose before disconnecting solution hose from cleaning tool.

• If used disconnect the Hydro-Filter from the vacuum hoses and clean

the filter as needed. Replacement filter bags are available (AC11A.)

• Disconnect the vacuum hose and solution hose from the machine.

• If water remains in the solution tank, use the vacuum

and vacuum the excess water from the tank.

• If the auto-fill system was utilized, place the chemical feed

hose back into the solution tank.

• If the waste pump-out system was used:

o Turn the waste pump switch “ON” to pump out any remaining water from the recovery tank.
o Turn switch off, remove the pump-out hose from the outlet fitting and replace the cap.
o Roll up hose toward drain to remove remaining water from hose.
o Connect ends of hose together to prevent dirty water from dripping from hose during transport.

• Disconnect the power cord from the outlet and from the machine.

• Remove the float shutoff assembly from

the recovery tank and clean filter as needed.
Replace shutoff assembly and tank lid.

• Drain any remaining water from the recovery tank

and dispose in sanitary drain. Do not use the same
bucket to drain the tank that you use to fill the tank.

• Roll up all hoses and cord.

Collect and store extractor, all tools, and accessories.

15

Prob

lem

Cause

Solution

Section

2

Troubleshooting

Troubleshooting –
Olympus M100

Machine not Building circuit breaker tripped. Reset breaker or move cord to other outlet
turning on - Faulty power cord Replace cord (AX32)
No power Faulty switches or internal wiring Check wiring & test switches - Repair as needed *

Solution
Pump

not running Pressure Switch faulty. Replace pressure switch. (PAQ01)
Building circuit breaker tripped. Reset breaker or move cord to other outlet.
Faulty power cord Replace cord (AX32)
Faulty switches or internal wiring Check wiring & test switches - Repair as needed *
Pump fuse blown Replace 5amp fuse
Pump motor faulty Replace pump (AP120)
Pump seized - trips breaker Repair or replace pump (AP120)

Low Solution Jets too large for pressure desired
Pressure
and/or Jets worn allowing too much flow Replace jets

Pulsation Solution inlet filter plugged Clean or replace filter
Hose from solution tank restricted Repair or replace hose

Solution tank empty Add water to tank - Check & repair auto fill assembly
Pump faulty Repair or replace pump (AP120)
Tool valve faulty Repair or replace valve
Quick connects or hoses restricted Clean out or replace quick connects and/or hoses

Can't connect Pressure in lines Release pressure
solution hose Quick connects faulty Replace quick connects (AH101B, AH102B)
to machine Wrong style/size quick connects Replace quick connects to match connects on machine

experienced service technicians.
If you are not experienced in checking electrical wiring contact your nearest authorized service
center to perform tests and repairs to wiring and switches.

Line pressure activating pressure
switch. Spray tool to release pressure

Check jets size & flow rates use smaller jets or lower
pressure

Pump intake hose or fittings
leaking Repair or replace hose. Tighten clamps or replace fittings
Filter screen or jets plugged on
tool Clean out filter or jets

* To reduce the risk of fire electrical shock or injury repairs to wiring should only be performed by

16

Problem

Cause

Solution

Auto

O

ptional

Pump-out Building circuit breaker tripped. Reset breaker or move cord to other outlet.
not working Faulty power cord Replace cord (AX32)

Check wiring & test switches - Repair as needed *

Faulty switches or internal wiring

Optional

Pump-Out

Outlet check valve stuck Clean or replace check valve
Discharge hose restricted Un-kink, clean out or replace hose
Float switch stuck Clean switch make sure float slides up & down easily
Float switch faulty Replace float switch (NM5054)

Vacuum Building circuit breaker tripped. Reset breaker or move cord to other outlet
Motor Faulty power cord Replace cord (AX32)
not running Faulty switches or internal wiring Check wiring & test switches - Repair as needed *
Vacuum motor faulty Replace vacuum motor (AV010)

Loss of Vacuum motor faulty Replace vacuum motor (AV010)
Vacuum Vacuum motor gasket damaged Replace gasket (PA010)
Recovery tank lid gasket damaged Replace gasket (NM5059)
Drain valve open Close valve
Drain valve leaking Repair or replace drain valve (PEA11)

Vacuum hose or tool clogged Clean out vacuum hoses and tool
Vacuum hoses or cuffs leaking Replace vacuum hoses, cuffs & connectors as needed
Recovery tank full Drain tank
Float shutoff filter clogged Clean float shutoff filter
Ball stuck in float shutoff Repair or replace float shutoff (NM5037)
Pump-out Check Valve stuck open Clean out or replace check valve(NM5052)
Recovery tank damaged Replace recovery tank

Chemical not Solution tank not filling Check & repair auto fill assembly
feeding Chemical hose restricted Un-kink, shorten, clean out or replace hose
Filter screen plugged Clean or replace filter (PDE100-11P)

Auto-Fill

Wrong size metering tip Change metering tip
Chemical proportioner faulty Replace chemical proportioner (PDE61-22-3)
Check valve in filter faulty Replace filter (PDE100-11P)

Tool won't Jets clogged Clean out or replace jets
spray - low or Inline filter clogged Clean out or replace filter
uneven spray Jets worn Replace jets
Jets not aligned properly Re-align jets
Tool valve faulty Repair or replace valve
Quick connects or hoses restricted Clean out or replace quick connects and/or hoses

experienced service technicians.
If you are not experienced in checking electrical wiring contact your nearest authorized service

center to perform tests and repairs to wiring and switches.

Pump-out pump faulty Replace pump-out pump (NM5053)

Pump-out pump clogged

Vacuum motor hoses loose /
leaking Reconnect or replace vacuum motor hoses

Low Incoming Water Pressure

* To reduce the risk of fire electrical shock or injury repairs to wiring should only be performed by

(NM5714)

Clean pump-out - Keep recovery tank clean - Use Hydro­Filter

Set chemical bottle on top of machine – Shorten Chemical
hose – Find other water source.

17

Problem Cause Solution

Solution Tank Water source turned off Turn on faucet or find other water source
not filling Float not on valve arm Reconnect float to valve arm - Adjust to proper height/level
Float valve faulty Repair or replace float valve (NM5055)

Optional
Auto Fill

Solution tank Float too heavy/ Filled with water Replace float (PHY005-003)
overflowing Float & chain tangled Make sure float chain free & hanging properly

Optional
Auto Fill

Chemical Jug Foot valve in Filter stuck Clean out foot valve and filter
Filling with Foot valve in Filter faulty Replace foot valve and filter (PDE100-11P)
water -
Overflowing

Optional
Auto Fill

experienced service technicians.
If you are not experienced in checking electrical wiring contact your nearest authorized service
center to perform tests and repairs to wiring and switches.

Water hose restricted Un-kink, clean out or replace hose
Quick connects faulty Clean out or replace quick connects (AH101B, AH102B)

Float too high Adjust chain to set float at proper level
Float valve faulty Repair or replace float valve (NM5055)

* To reduce the risk of fire electrical shock or injury repairs to wiring should only be performed by

• Contact your distributor for additional troubleshooting

assistance, to order parts, or for advice and assistance in
performing necessary repairs.

18

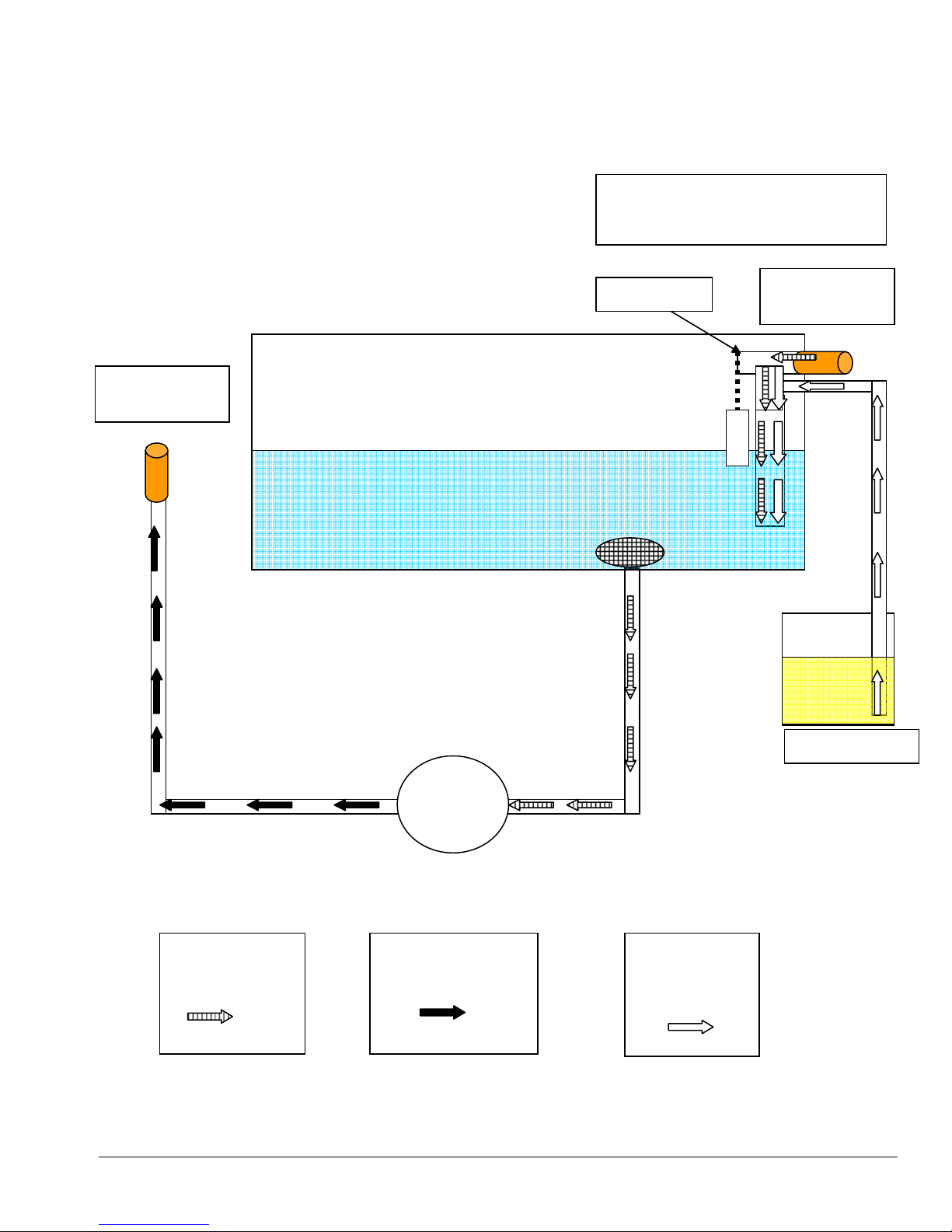

Chemical Jug

Float Valve

Flow Path shown with optional

Pump

M100
Solution Flow Path

Outlet Quick

Connect

Denotes
incoming water
flow

Solution Tank

AP120

Denotes Water
flow in pressure
hose

19

Auto-Fill System M012

Inlet Quick

Connect

Denotes
Chemical flow

SOLUTION

BLACK 12 GA

GREEN

M100
Wiring Diagram - Standard

Solution
Pump

Vacuum #2 Vacuum #1

YELLOW

FUSE

BLACK

PUMP

WHITE

RED

BLACK

VACUUM
#2
2-Stage

BLACK

TO COMMON GROUND FOR ALL COMPONENTS

BLUE

BLACK

VACUUM
#1
2-Stage

BLACK

WHITE

POWER CORD

20

POWER

CORD

WASTE

FLOAT

SWITCH

SOLUTION

BLACK

BLACK 12 GA

WHITE

BLUE

BROWN

GREEN

BLACK

M100
Wiring Diagram
With Auto Pump-Out System

Waste Pump

Solution
Pump

Vacuum #1 Vacuum #2

PUMP

YELLOW

FUSE

BLACK

PUMP

RED

BLACK

VACUUM
#2
2-Stage

BLACK

TO COMMON GROUND FOR ALL COMPONENTS

BLUE

BLACK

VACUUM
#1
2-Stage

BLACK

WHITE

21

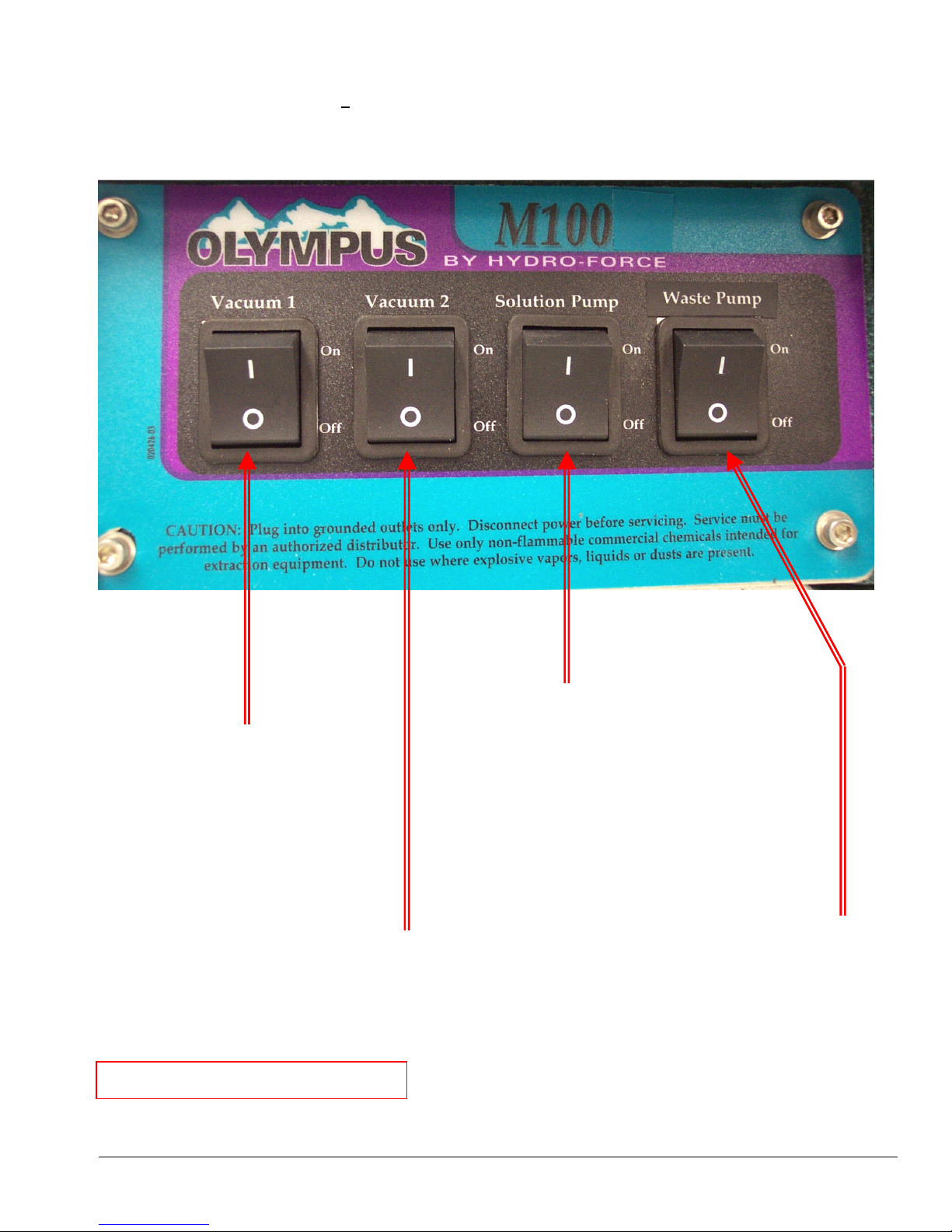

OLYMPUS M100 STANDARD SWITCH PANEL:

Replacement Switch: NM5714

Vacuum #1

When the switch is turned to the ON
position power is supplied to the vacuum
motor. (2-Stage Vacuum)

Vacuum #2

When the switch is turned to the ON
position power is supplied to the vacuum
motor. (2-Stage Vacuum)

Solution Pump Switch

When the switch is turned to the ON position
power is supplied to the solution pump motor.
The pump will run until the pressure builds up in
the solution line and the pressure switch on the
pump will turn the pump OFF. When the tool is
sprayed the pressure drops, the pressure switch
turns the pump back ON.
When not using solution (Extracting Only) do not
turn this switch ON.

22

OLYMPUS M100 WITH AUTO PUMP-OUT

Replacement Switch: NM5714

SWITCH PANEL:

Vacuum #1

When the switch is turned to the ON
position power is supplied to the vacuum
motor. (2-Stage Vacuum)

Vacuum #2

When the switch is turned to the ON
position power is supplied to the vacuum
motor. (2-Stage Vacuum)

Solution Pump Switch
When the switch is turned to the ON position
power is supplied to the solution pump motor.
The pump will run until the pressure builds up in
the solution line and the pressure switch on the
pump will turn the pump OFF. When the tool is
sprayed the pressure drops, the pressure switch
turns the pump back ON.
When not using solution (Extracting Only) do not
turn this switch ON.

Waste Pump Switch

When switch is turned to the ON position,
Waste Pump operation is controlled by the Float
Switch in the Recovery Tank. Pump will remain
off until water level rises to the point at which
the float switch will turn the Waste Pump ON.
Do not turn Waste Pump Switch ON unless a
hose is connected to the Pump-out Outlet port.

23

Daily

– After Each Job

25

Daily

– After Each Job

25

Daily

– After Each Job

26

Daily

26

Daily

27

Daily

27

Daily

28

Monthly

29

As needed

30

As needed

31

Section

3

Maintenance

Proper maintenance is required to keep the M100 operating properly, prevent
downtime and to extend the life of your equipment.

WARNING: Disconnect electrical power before performing any service or
maintenance inside machine base or before testing or repairing switches or power
cords. Failure to do so may result in severe personal injury or death.

OPERATION INTERVAL Page #

CLEAN CHEMICAL FEED FILTER & FOOT VALVE

(Machines with optional AUTO-FILL SYSTEM only)

CLEAN VACUUM SHUTOFF ASSEMBLY SCREEN

CLEAN HYDRO-FILTER II (If so equipped)

RINSE OUT RECOVERY TANK

CLEAN WASTE PUMP

(Machines with optional AUTO PUMP-OUT SYSTEM only)

FLUSH SOLUTION TANK AND PUMP

CLEAN PUMP-INLET FILTER

FLUSH CHEMICAL SYSTEM

(Machines with optional AUTO-FILL SYSTEM only)

CLEAN DRAIN VALVE

STORAGE PREP – FREEZE PROTECTION

24

CLEAN CHEMICAL FEED FILTER & FOOT VALVE:
With optional Auto-Fill System Only

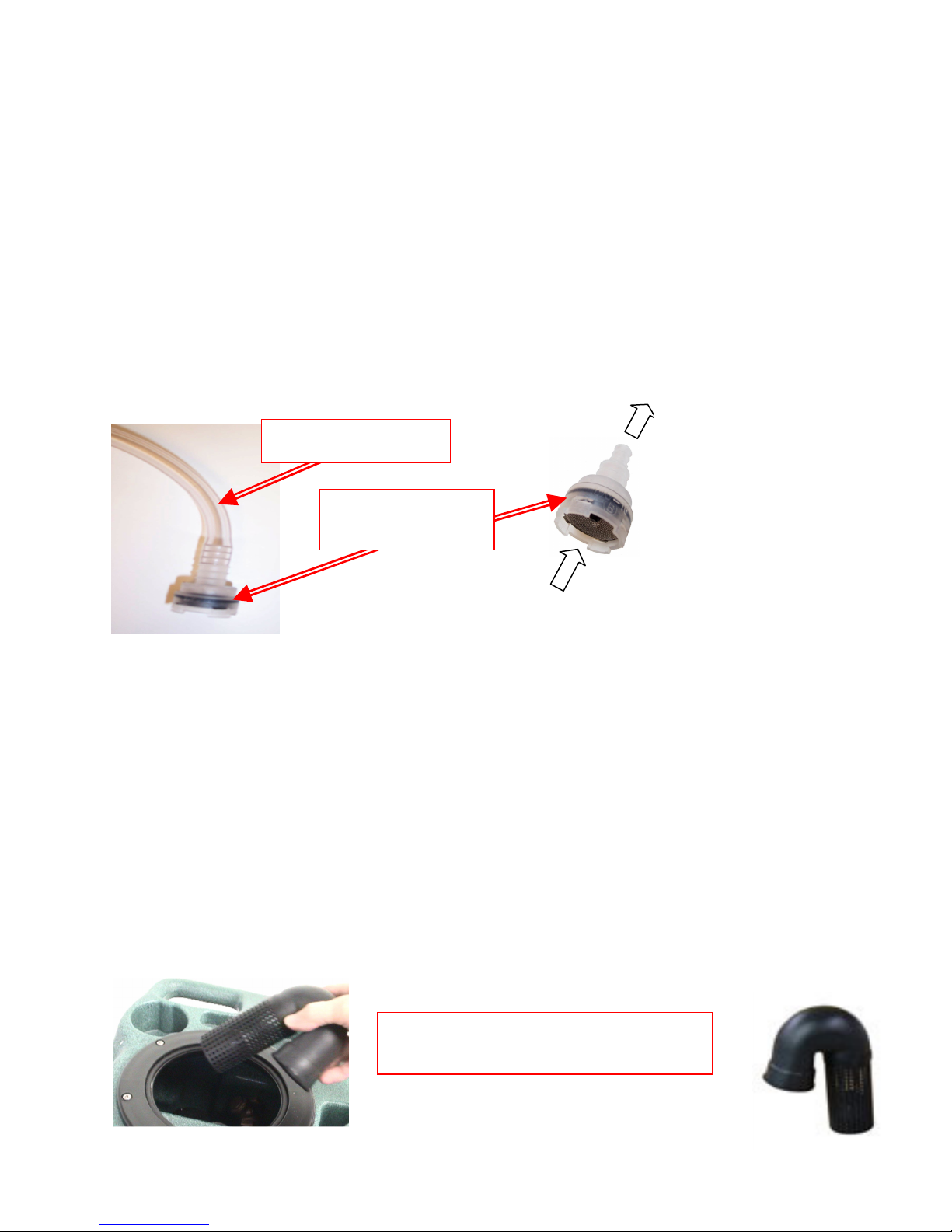

The Filter & Foot Valve is on the end of the chemical feed hose that is placed in the chemical jug as part of
the optional Auto-Fill chemical feed system.

Regularly examine the filter and clean as needed.

To test the Foot Valve:

• Remove the Filter & Foot Valve from the end of the chemical feed hose and rinse in fresh water.

• Blow through the valve from the filter side of the barb.

o If the Foot Valve is functioning, air should move freely from the filter side, but will not flow from

the barb side of the filter.

o If valve is not functional, clean or replace as needed.

Heavy chemical build-up can be removed with a mild acid rinse and/or the use of a brush and compressed
air.

Chemical Feed Hose

Filter & Foot Valve
PDE100-11P

Flow Direction

Flow Direction

CLEAN VACUUM SHUTOFF ASSEMBLY SCREEN:

Inside the recovery tank, on top of the stand pipe, is the Vacuum Shutoff Assembly. It functions to prevent
debris and water from being sucked into the vacuum motors. Operating the M100 without the Vacuum
Shutoff Assembly or with a poorly maintained assembly will greatly decrease the life of the vacuum motors
and will void the warranty.
If debris builds up on this filter, it will reduce the vacuum air flow and may cause a significant decrease in the
rate of water recovery. If debris prevents the float ball from moving or seating inside the assembly, it may not
stop the airflow when the tank fill with water, and the water will be sucked into the vacuums and blown out
the exhaust. Use defoamer to prevent foam or moisture from entering vacuums.
To clean:

• Twist to loosen and pull the assembly off of the stand pipe.

• Pull fibers and lint off and rinse with clean water.

• Push the assembly back onto the stand pipe and replace the recovery tank lid.

Vacuum Shutoff Assembly
NM5037

25

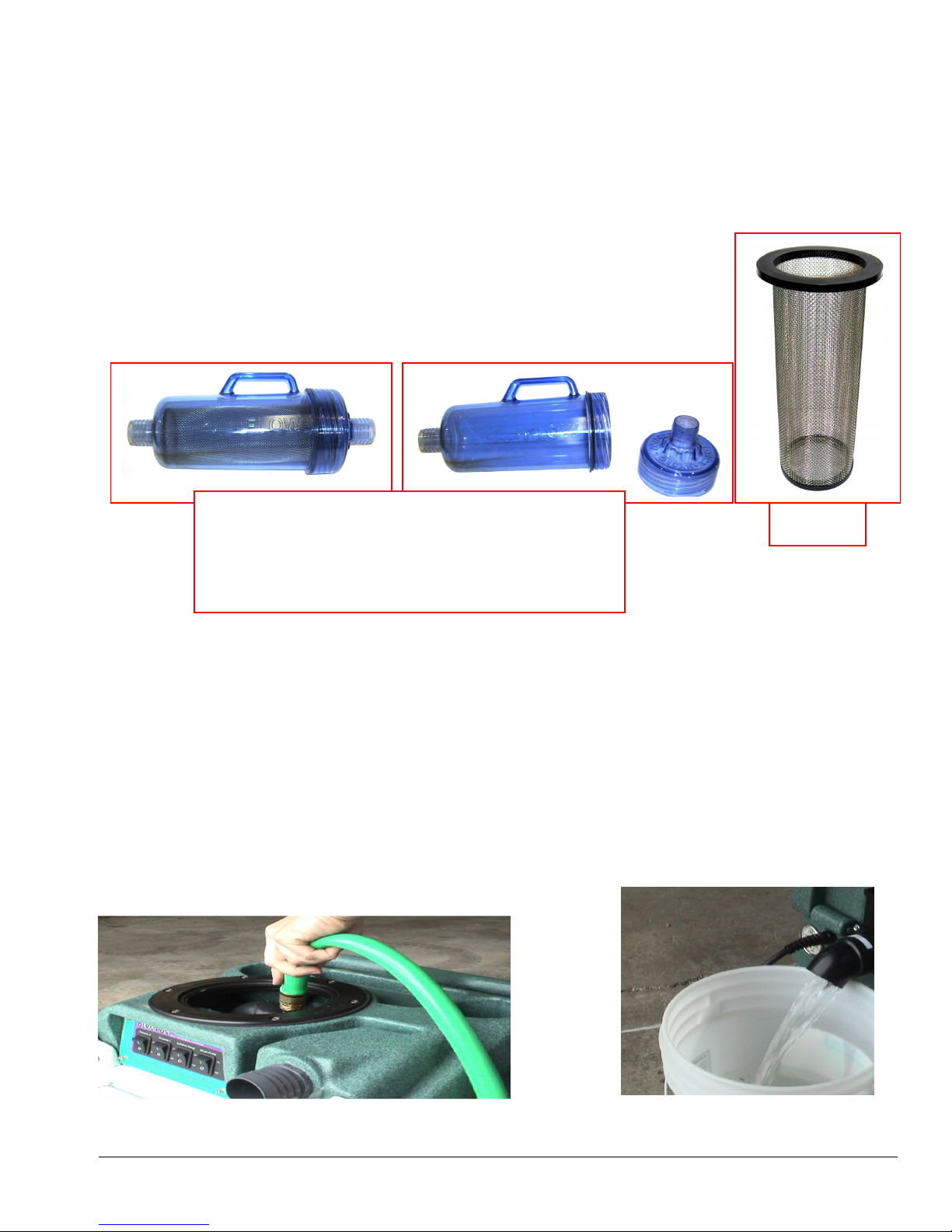

CLEAN THE HYDRO-FILTER II: (Optional Accessory)

AC10C

Re

placement Filter Screen:

AC10C

When used with the M100, build-up of debris in the filter screen of the optional Hydro-Filter II will reduce
the vacuum air flow and may cause a significant decrease in water recovery. A torn filter screen will allow
debris past the filter and into the recovery tank. This debris can clog the Waste Pump and the Vacuum
Shutoff Assembly. The Hydro-Filter II must be examined and cleaned regularly to keep the M100

functioning properly:

• Grasp and turn the lid counterclockwise to open the Hydro-Filter II lid.

• Remove the filter screen. Examine the screen and clean or replace as needed.

• Rinse the body of the Hydro-Filter II with clean water.

• Examine the o-ring lid seal and replace as needed.

• Re-install the new or cleaned screen.

• Screw the lid back onto the body and turn clockwise to tighten.

Replacement Cover: AC10A
Replacement O-Ring: AC10D
Replacement Body: AC10B

RINSE OUT RECOVERY TANK:

Build-up of fine silt and debris can damage the Waste Pump and Drain Valve. Clean out the tank on a regular
basis to extend the life of these components as well as keep the tank and machine smelling better.

• Remove the recovery tank lid and open the drain valve.

• Place a bucket under the drain valve.

• Use a hose to rinse the dirt and debris out of the recovery tank.

• Close the drain valve and spray the tank with a deodorizer or disinfectant.

• Proceed to Waste Pump Cleaning and replace the recovery tank lid.

• Dispose of the dirty water and debris.

26

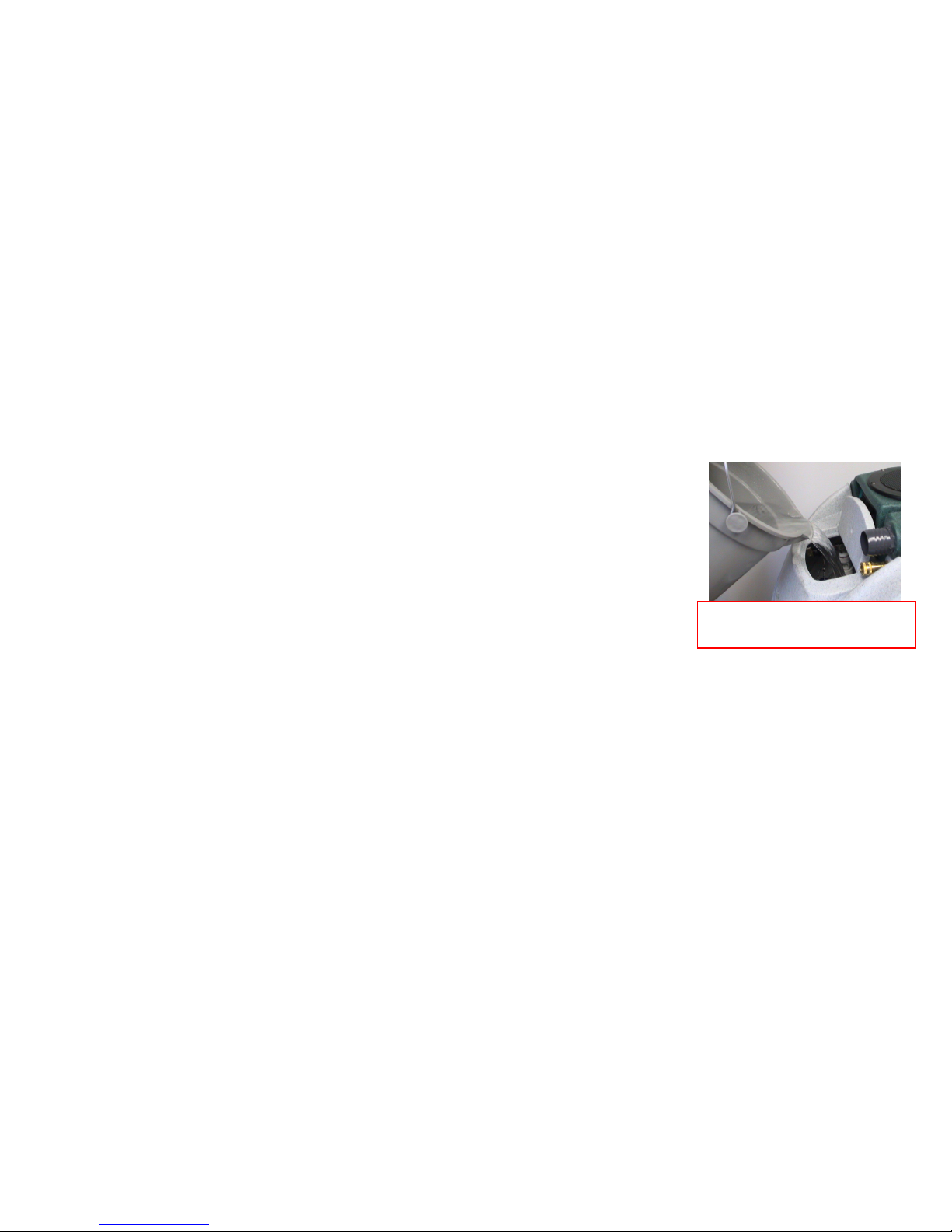

CLEAN WASTE PUMP-OUT PUMP:

water into Solution Tank

(With optional Auto Pump-Out System Only)

Build-up of fine silt inside the Waste Pump can clog the pump even if the pump is not used, so this
maintenance procedure should be performed regardless of whether the Waste Pump has been used.

• After cleaning out the recovery tank, remove the cap and connect the Pump-Out hose to the Waste

Pump outlet fitting on the back of the machine; run the hose to a drain..

• With Cord plugged in, turn the Waste Tank switch to the ON position.

• Use a hose to fill the recovery tank to the point where the float switch turns the Waste Pump ON.

• Let the pump run until it pumps the level down to the point when the float switch shuts off the Waste

Pump.

• Unplug the cord and turn the Waste Pump switch OFF.

• Open the drain valve and drain out the remaining water.

• Close the drain valve, replace the recovery tank lid, and dispose of the dirty water and debris.

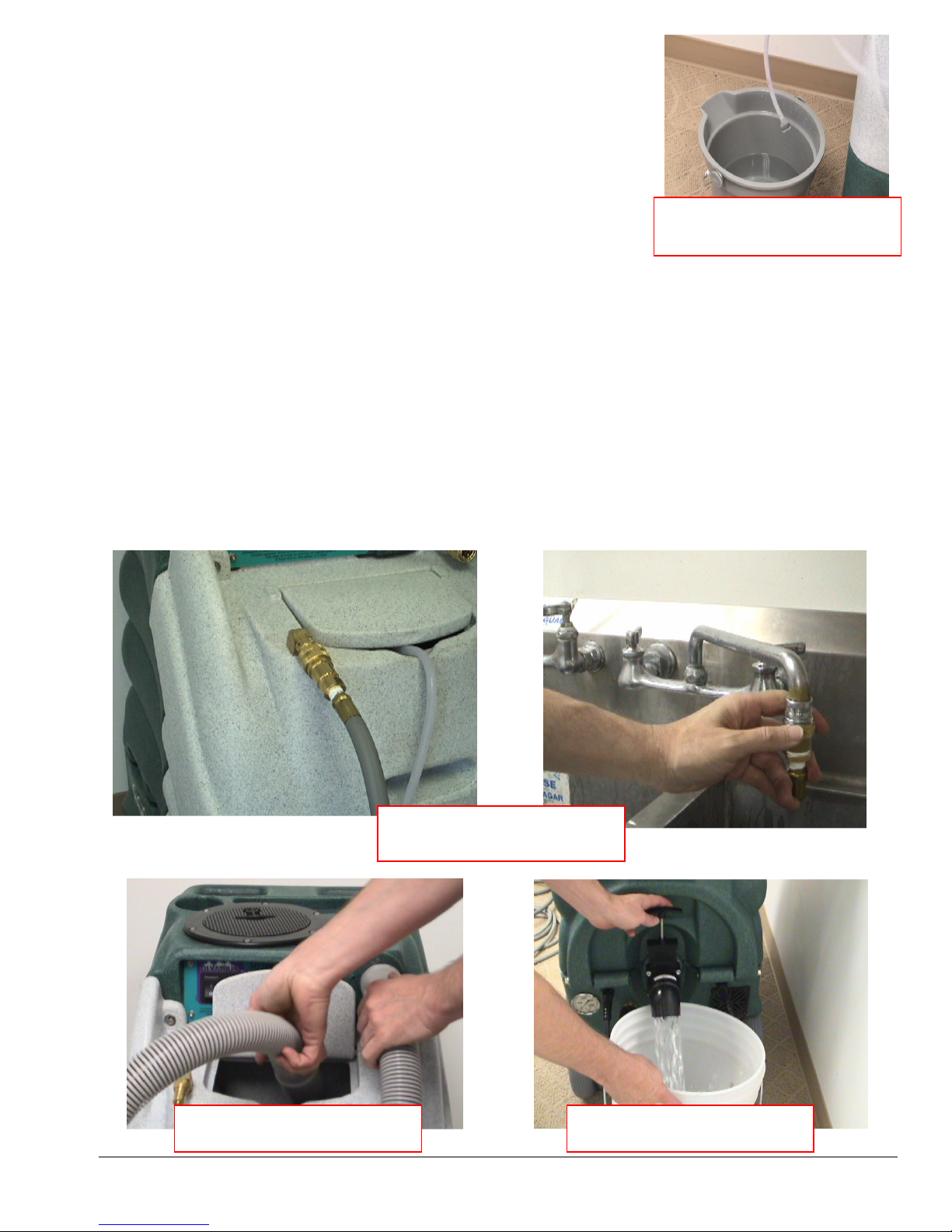

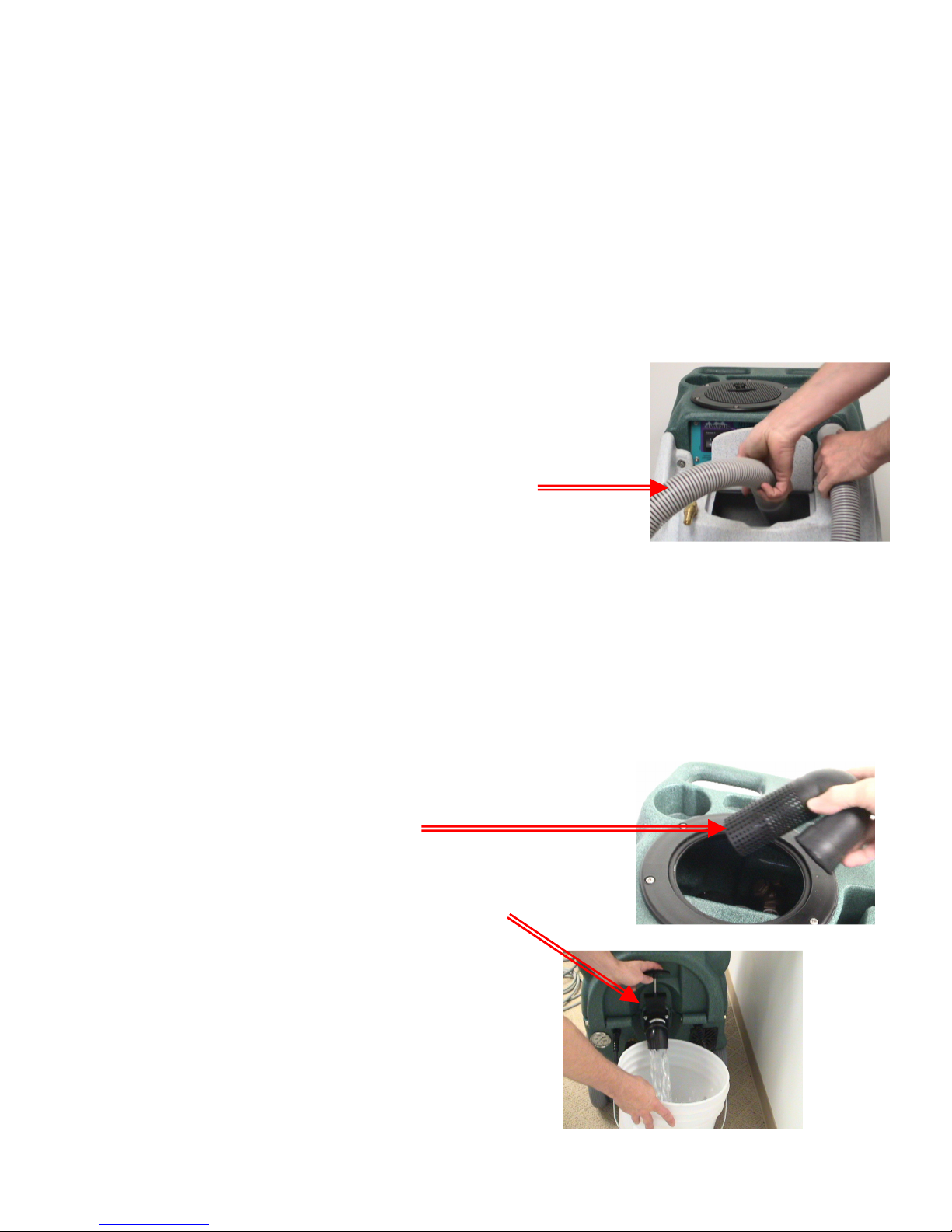

FLUSH SOLUTION TANK AND PUMP:

• Pour two or three gallons of clean water into the solution tank.

• With Cord plugged in, connect the pump prime hose to the solution

outlet female quick connect.

• Direct the end of the prime hose into the recovery tank vacuum barb.

• Turn one or both of the vacuums ON and turn the solution pump ON.

• Let the pump run until most of the water has been pumped out of the

solution tank. Do not let the pump run dry. Turn the pump OFF
before the water gets to the bottom of the tank.

• Turn the vacuums OFF and disconnect the prime hose.

• Place a bucket under the drain valve; open the drain valve to drain the water out of the recovery tank.

• Close the drain valve and dispose of the water.

If there is a heavy chemical build-up in the machine, hoses, or tools, a mild acid can be added to the rinse
water in the previous procedure (REFER TO PHOTOS ON FOLLOWING PAGE.)

• After the pump has been primed, turn the solution pump switch OFF and turn the vacuums OFF.

• Remove the prime hose and connect the HP solution hose and tools.

• Turn the solution pump ON and direct the tool spray into a bucket. Let the pump run until most of

the water has been pumped out of the solution tank. Do not let the pump run dry. Turn the pump
OFF before the water gets to the bottom of the tank.

• Disconnect the solution hose and tool.

• Use the vacuum hose to vacuum the remaining acid solution out of the solution tank.

• Pour two or three gallons of clean water into the solution tank.

• Connect the pump prime hose to the solution outlet female quick connect.

• Direct the end of the prime hose into the recovery tank vacuum barb.

• Turn one or both of the vacuums ON and turn the solution pump ON. Let the pump run until most

of the water has been pumped out of the solution tank.

• Turn the vacuums OFF and disconnect the prime hose.

• Place a bucket under the drain valve and open the drain valve to drain the water out of the recovery

tank. Close the drain valve and dispose of the water.

Pour 2 or 3 gallons of clean

27

FLUSH SOLUTION TANK AND PUMP: (continued from previous page)

Solution Tank

Direct the end of the prime hose into

the recovery tank vacuum barb

Vacuum acid solution out of

CLEAN PUMP INLET FILTER

A restricted Pump Inlet Filter can prevent the solution pump from providing adequate pressure for cleaning.

• Remove the stainless steel filter screen and clean as needed.

Solution Tank

Pump Inlet Filter
PCE290-08

28

FLUSH CHEMICAL SYSTEM:

Tank

Tank

(With optional Auto-Fill System Only)

Chemical build-up in the chemical system can prevent the system from
drawing chemical.

• Rinse the chemical system with fresh water

(For heavy chemical build-up, a mild acid can be added to the rinse.)

• Remove the chemical feed hose from the solution tank and place the

end of the hose in a bucket of fresh water or mild acid solution.

• Connect the Auto-Fill Water Supply Hose to the water inlet

(male quick connect) on the front of the machine.

• Connect the other end of the hose to a water faucet and turn on the water. Let the water flow into the

tank until you are sure the rinse solution has been drawn through the proportioner and mixed with the
incoming water. The metering tip can be removed from the proportioner to speed up the process.

• Once the rinse solution has been drawn through the proportioner, turn off the water faucet and

disconnect the Auto-Fill Water Supply Hose.

• Plug in Cord, connect the vacuum hose to the vacuum barb, turn on vacuum #1, and use the vacuum

hose to remove the water from the solution tank.

• When the solution tank has been emptied, turn off the vacuum and unplug the power cord.

• Place a bucket under the drain valve and open the drain valve to drain the water from the recovery tank.

• Close the drain valve and dispose of the water.

Place Chemical Feed Hose into
Rinse Solution

Connect Auto-Fill Water Supply
Hose to machine and faucet

Vacuum water out of Solution

29

Drain water from Recovery

CLEAN RECOVERY TANK DRAIN

ADAPTER

Debris and sand accumulation in the drain valve can damage the valve or prevent it from closing completely.
This will result in dirty water leaking from the valve. Use of the Hydro-Filter and regular cleaning of the
recovery tank will help prevent this, but occasionally the drain valve will require cleaning or replacement.

Drain the recovery tank before attempting to service the drain valve.

• Unscrew the nuts and remove the four bolts holding the valve assembly to the flange attached to the

recovery tank. Unless the flange is damaged, it does not have to be removed from the tank, even when
replacing the drain valve.

• Separate the valve body, outlet adapter and gaskets from the flange.

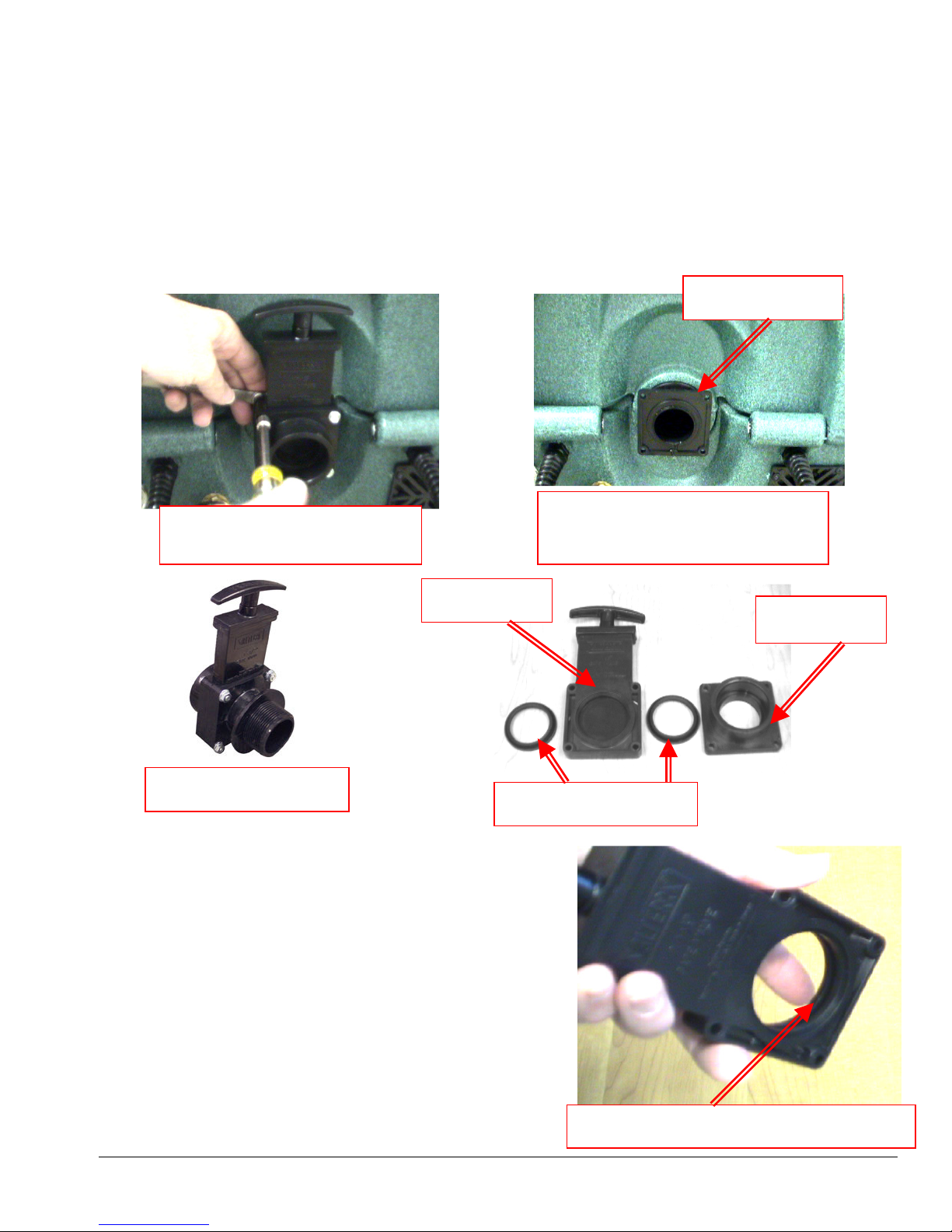

FLANGE FITTING

Remove four bolts holding valve
assembly to flange fitting

Unless damaged or leaking between
tank and flange, the flange fitting does
not have to be removed

VALVE BODY

OUTLET

DRAIN VALVE – PEA11

GASKET – NM3019

• Examine the valve body for wear. Check the valve slide

for deep scratches. Deep scratches will allow water to flow
past gaskets and leak from valve. Replace valve if needed.

• Examine the gaskets and replace if cut, torn or deformed.

• Raised, rounded side of gasket goes toward valve slide.

Larger flat sides seat on ring on flange and outlet adapter.
Sand and debris will collect in the bottom of the valve
body and prevent the slide from going down and seating
properly.

• Clean debris out as needed so slide can move to bottom.

• Rinse valve body and reassemble valve body, gaskets and

outlet adapter, and place assembly back onto flange fitting.

• Replace four bolts and tighten evenly to secure assembly

Clean debris from slot in bottom of valve body.

to flange. Do not over-tighten bolts.

30

Storage Prep and Freeze Protection Procedures:

Your Olympus M100 must be protected from freezing. Freezing can cause serious damage to the pump,
pump-out, auto-fill float valve, and any other component containing water. If the M100 is transported or
stored in freezing temperatures, the following procedures should be performed.
ALSO, if the M100 is stored for an extended period of time, the following procedure should be performed to
prevent the pump seals from drying out.

1. In a separate container mix 1/2 gallon of water with 1/2 gallon of automotive radiator anti-freeze.

(Ethylene glycol type). Mix well and pour into the solution tank.

2. Connect the pump prime hose to the solution outlet (female quick connect) and perform the pump

priming procedure, directing the flow back into the solution tank. When the pump is primed, turn the
pump off and disconnect the priming hose.

3. If equipped with Auto-Fill (If not go to step #5); connect the HP solution hose to the solution outlet

(female quick connect.) Connect the opposite end of the HP solution hose to the Auto-Fill inlet (male
quick connect.) Leave the chemical feed hose in the solution tank and ensure the check valve filter is
submerged in the anti-freeze solution. To speed the process the metering tip can be removed. Be sure
float is high enough and fluid level is low enough that float valve does not close.

4. Turn the solution pump switch to the ON position. Allow the anti-freeze to circulate for 5-10 minutes.

Mix and add more anti-freeze solution as needed. Make sure end of chemical feed hose stays submerged
in the anti-freeze solution. This will assure that the anti-freeze will be drawn into the proportioning valve.
Then turn the solution pump off.

5. Connect any cleaning tools that will be stored with the M100. Turn the solution pump switch to the ON

position. Direct tool spray back into the solution tank or into a bucket. Turn the solution pump off and
repeat for all tools to be protected.

6. Turn the solution pump switch to the OFF position.

7. Use the vacuum hose to vacuum the remaining anti-freeze solution out of the solution tank and bucket.

8. If equipped with Auto Pump-Out (If not go to step #10); remove the cap from the waste-pump out

outlet fitting on the back of the machine. Connect a hose to a drain or hold a bucket up to the fitting to
catch the pump-out flow.

9. Remove the lid from the recovery tank. Turn the Waste Pump switch to the ON position and lift the float

switch to engage the pump-out. Lower the float and turn off the Waste Pump Switch as soon as you see
anti-freeze flowing from the outlet fitting or hose.

10. Drain the remaining anti-freeze solution from the recovery tank and the machine is ready for storage.

RETURNING THE M100 TO SERVICE AFTER STORAGE OR
FREEZE PROTECTION:

To return the M100 to service, the anti-freeze must be flushed from the machine. Flush the anti-freeze out of
the machine by repeating the procedures above using fresh water in place of anti-freeze.

31

Parts

Section

3

Replacement parts available for repair of your M100.

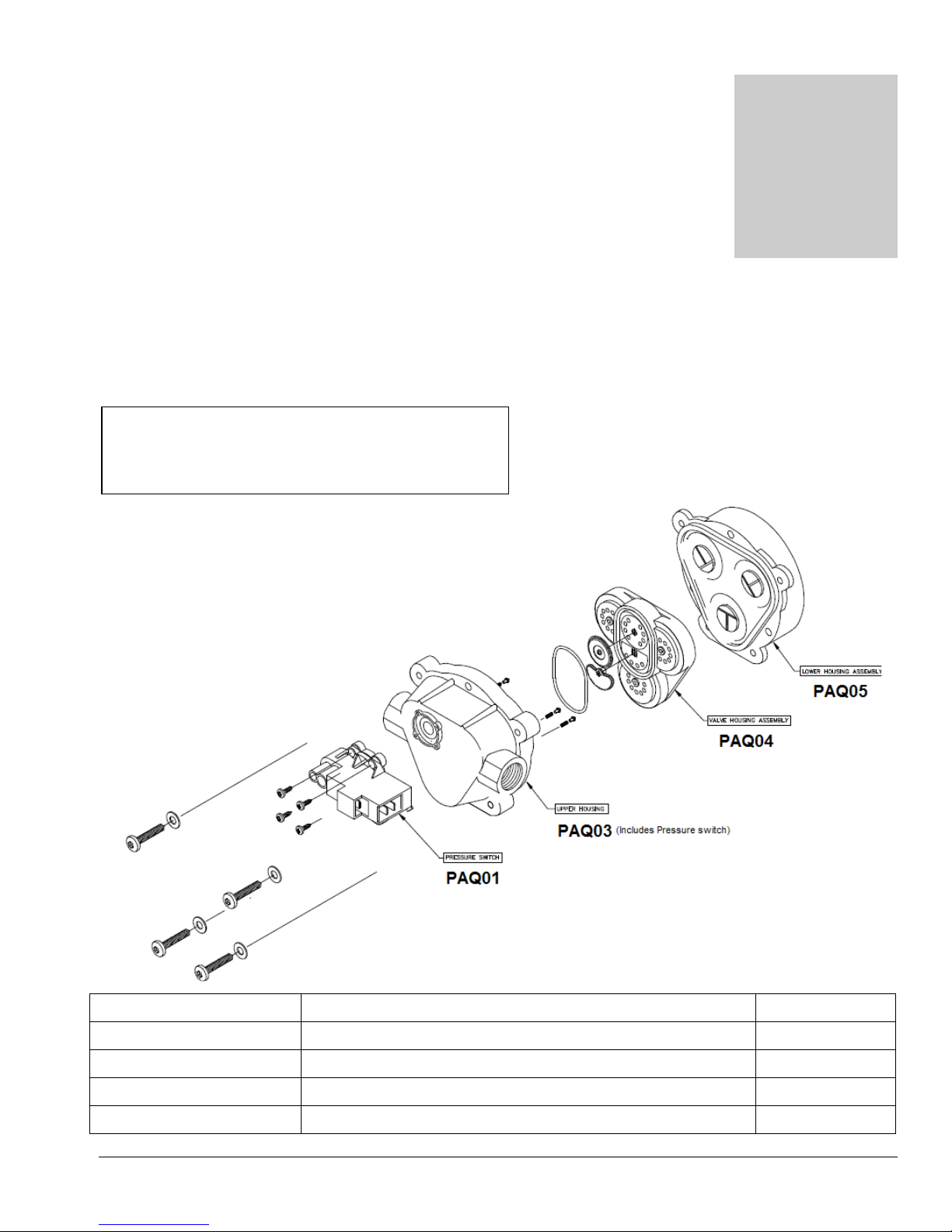

M100 PUMP – AP120

PARTS ASSEMBLY

Part Number Description Quantity

PAQ01 Pressure Switch 120psi 1

PAQ03 Kit Upper Housing Assembly with 120psi Pressure Switch 1

PAQ04 Kit Valve Housing Assembly 1

PAQ05 Kit Lower Housing Assembly 1

32

Part Number

Description

16-3 3’ Discharge Tubing

25-78 Pipe Nipple

34-17 16” Chain with Connector

34-22 Backflow Preventer

35-12 Float Hanger Clip

– NM5452

A Snap Clip

– NM5450

35-18 Float Assembly

– PHY005

-

003

35-31 Magnet Housing

35-32 Magnet Holder

35-33 Spring

35-35 Float Hanger Wire

– PDE35

-42

35-36 Valve Body

35-37 Flange

41-1-8 Spring

41-7-25 Enclosing Tube

41-15-5 Diaphragm

61-121 Elbow 90º Street 1/4”

61-122 Adapter

61-107-2 Ceramic Weight

61-22-3 Proportioner

– PDE61

-22-3

63-35 Magnet

63-37 Spacer

63-38 Plunger

63-46 Screw 8

-

18 x 1/2” (4 req.)

63-87 Valve Repair Kit

- PDE63

-87

100-3 Rubber Washer

100-11P Foot Valve

– Filter –

PDE100

-

11P

100-12 8’ x 1/4” Plastic Tubing

– XAF1

100-15 Metering Tip

- Turquoise

OLYMPUS AUTO-FILL

FLOAT VALVE ASSEMBLY

(Optional)

(Includes: 41-1-8, 41-15-5, 63-37 & 63-38)

33

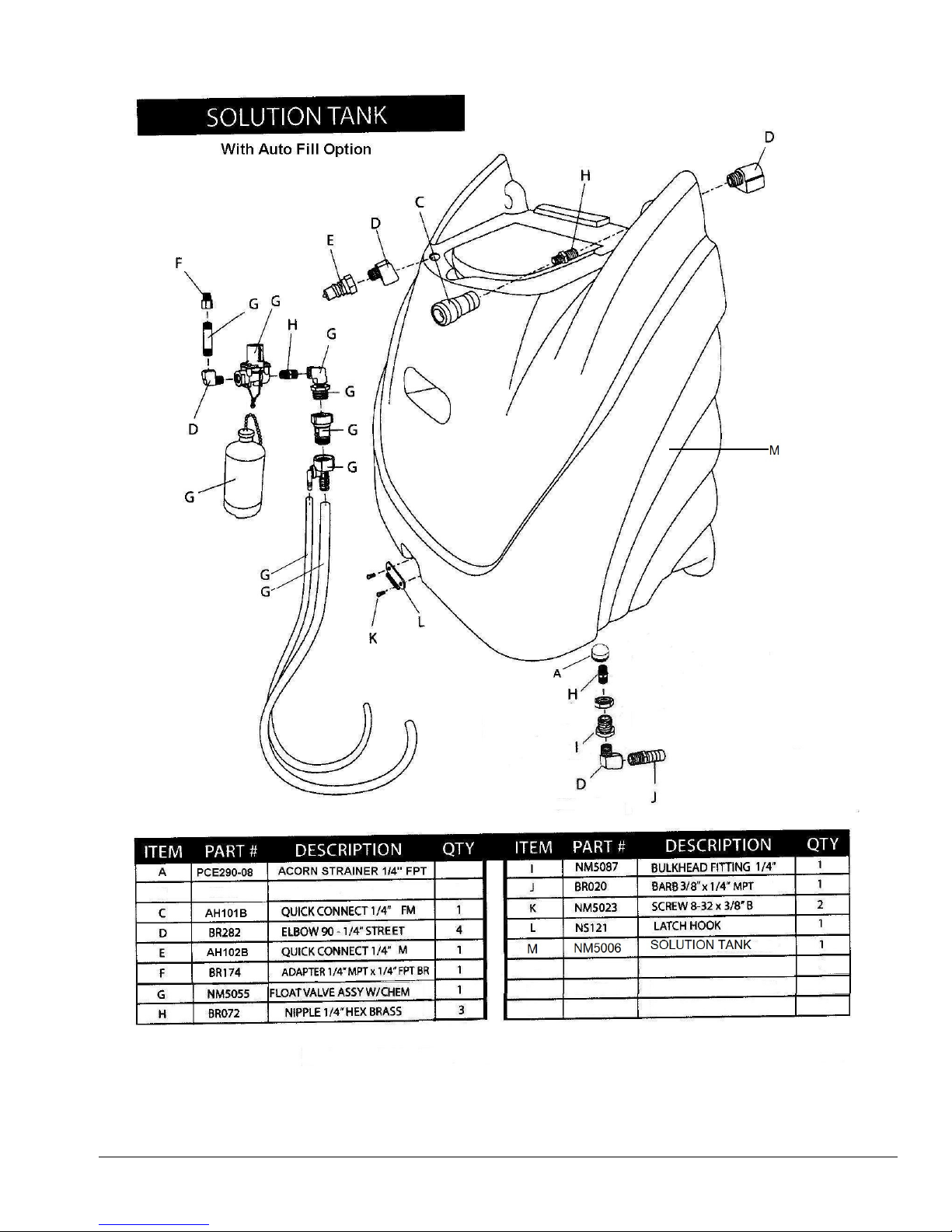

34

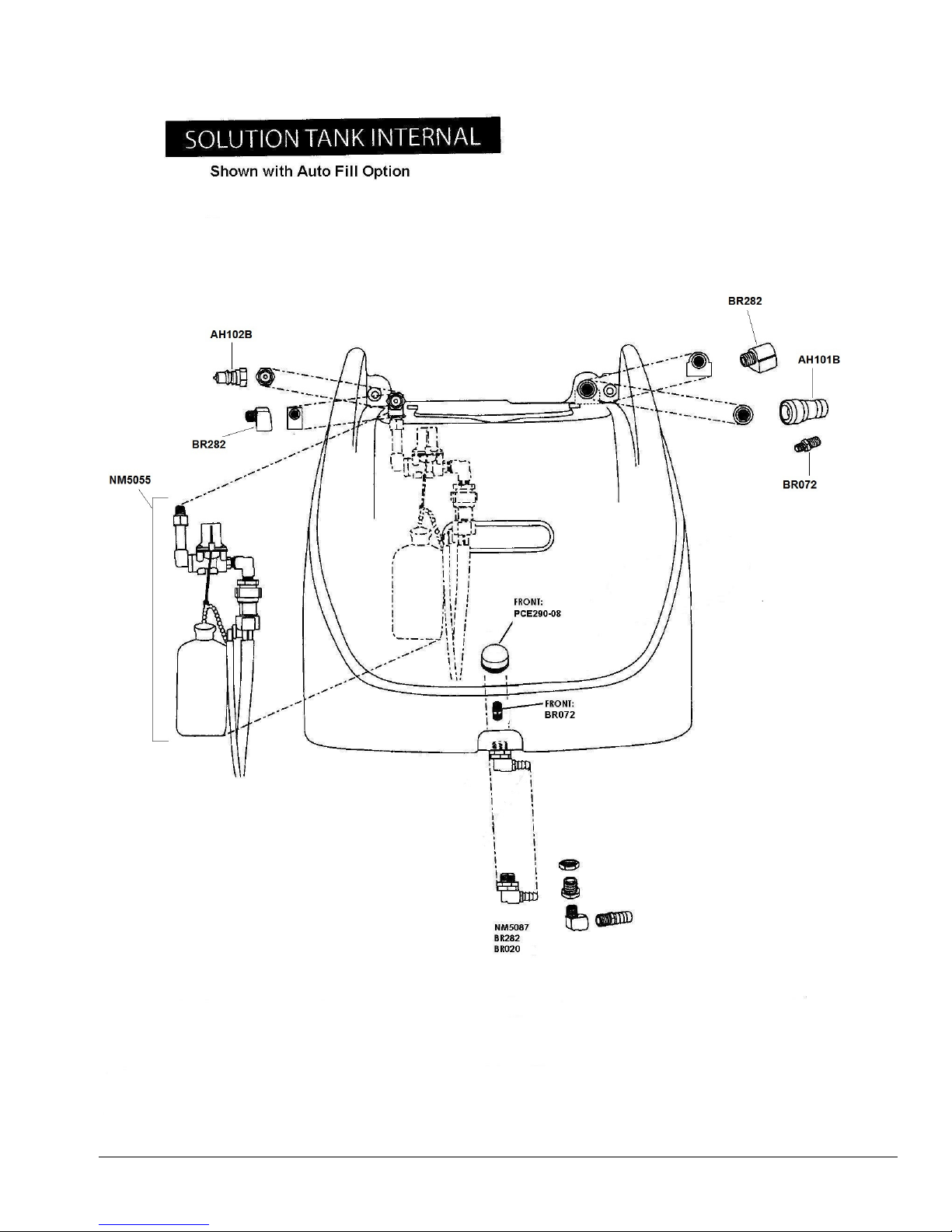

35

36

37

38

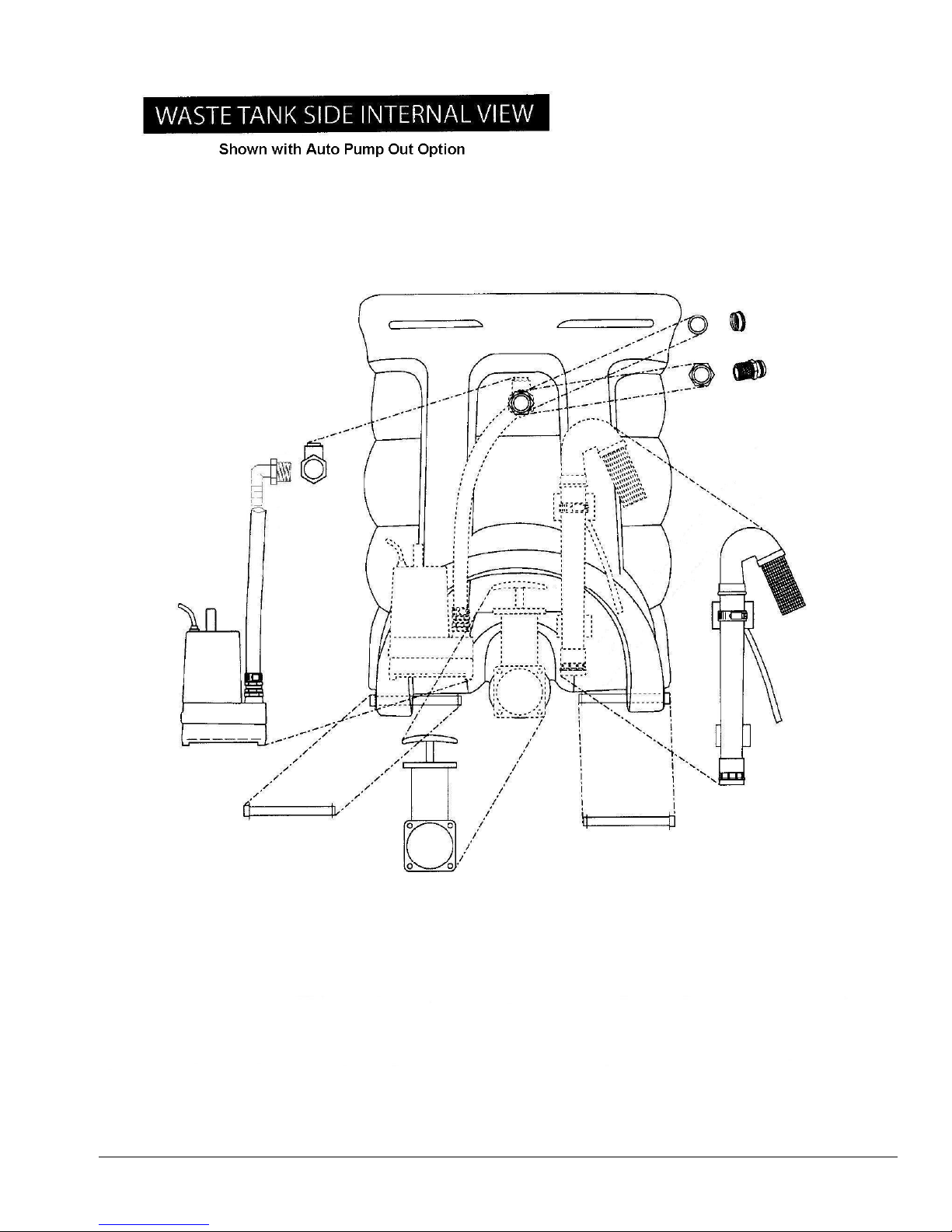

39

40

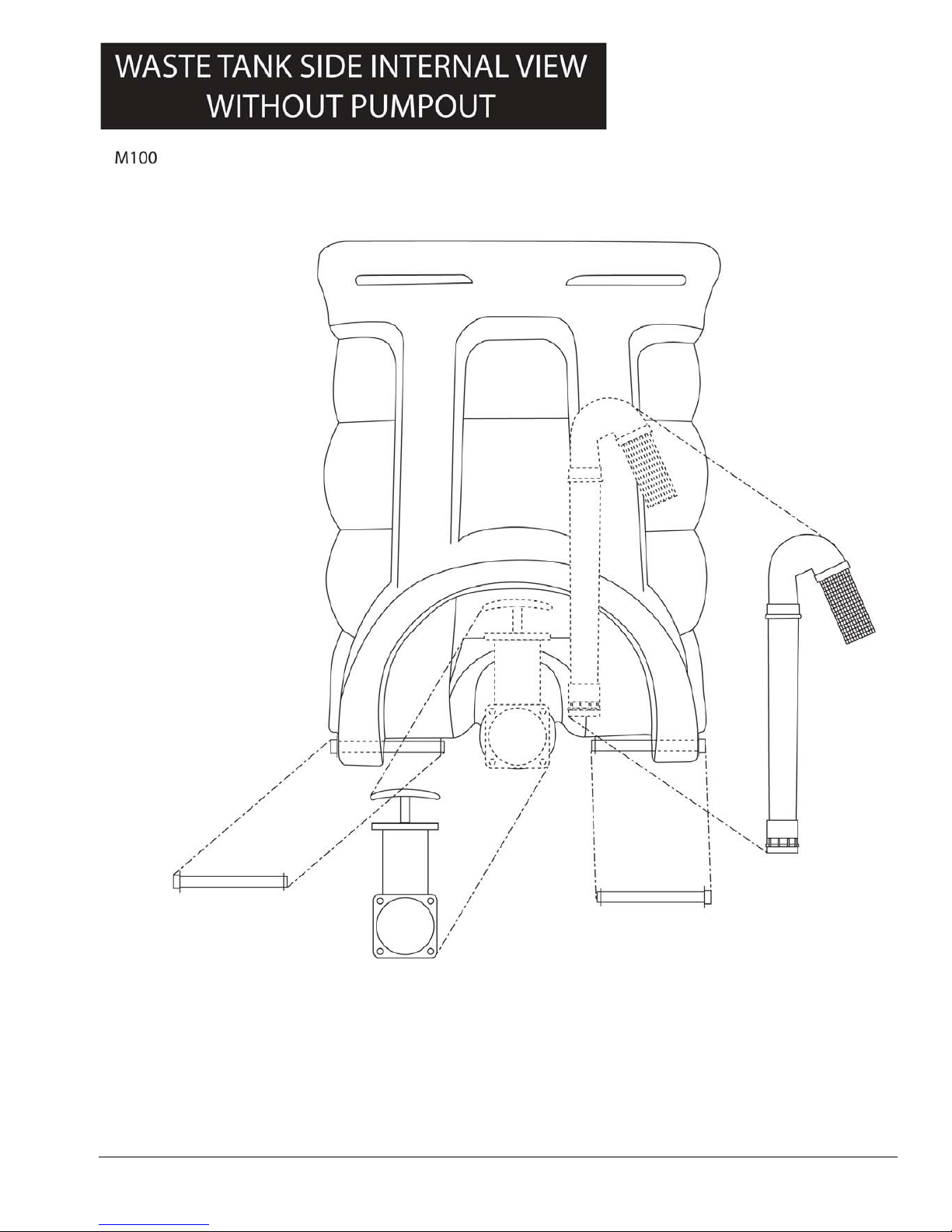

41

42

43

Section

4

Limited Warranty

Your Olympus M100 is designed to give you years of reliable service. If a problem should arise use the
troubleshooting section in the operation manual to diagnose and correct the problem if possible.

If you are unable to determine the cause or solution to the problem contact your distributor or Hydro-Force
for assistance.

Hydro-Force warrants the roto-molded tanks and base of the Olympus M100 to be free from defects in
material or workmanship for five years from the date of purchase.
All other components of the Olympus M100 are warranted to be free of defects in material and workmanship
for one year from the date of purchase.

During the warranty period, Hydro-Force will, at its option repair or replace components which prove to be
defective. This warranty does not provide for replacement of complete units due to defective components.
Any costs for transportation or related service labor are not covered in this warranty. Replacement parts are
warranted only for the remainder of the original warranty period.

This warranty shall not apply to defects resulting from improper operation, lack of maintenance,
unauthorized modification, chemical incompatibility, misuse, abuse or exposure to freezing temperature
conditions. It does not cover normal wear items such as o-rings, valve seals, pump seals, hoses, jets, cords,
batteries, or other items which require replacement as a result of ordinary usage.

To obtain warranty service for the Olympus M100, contact your distributor or Hydro-Force. If the extractor
must be returned to Hydro-Force or an authorized service center, the purchaser shall prepay shipping charges
for products returned for warranty service. No returned items will be accepted by Hydro-Force without prior
authorization. All returns must have a return authorization number, issued by Hydro-Force, clearly marked on
the exterior of the package.

Hydro-Force makes no other warranty either expressed or implied with respect to this product.

The remedies provided herein are the purchaser’s sole and exclusive remedies. In no event shall Hydro-Force
be liable for any direct, indirect, special, incidental or consequential damages.

This warranty gives you specific legal rights. You may also have other rights which vary from jurisdiction to
jurisdiction.

44
