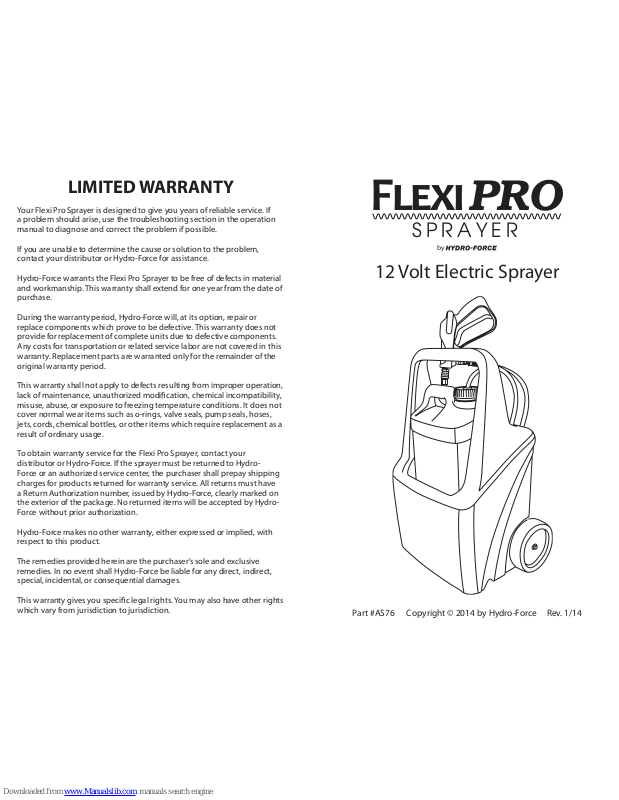

Hydro-Force AS76 User Manual

Part #AS76 Copyright © 2014 by Hydro-Force Rev. 1/14

LIMITED WARRANTY

Your Flexi Pro Sprayer is designed to give you years of reliable service. If
a problem should arise, use the troubleshooting section in the operation
manual to diagnose and correct the problem if possible.

If you are unable to determine the cause or solution to the problem,
contact your distributor or Hydro-Force for assistance.

Hydro-Force warrants the Flexi Pro Sprayer to be free of defects in material
and workmanship. This warranty shall extend for one year from the date of
purchase.

During the warranty period, Hydro-Force will, at its option, repair or
replace components which prove to be defective. This warranty does not
provide for replacement of complete units due to defective components.
Any costs for transportation or related service labor are not covered in this
warranty. Replacement parts are warranted only for the remainder of the
original warranty period.

This warranty shall not apply to defects resulting from improper operation,
lack of maintenance, unauthorized modication, chemical incompatibility,
misuse, abuse, or exposure to freezing temperature conditions. It does not
cover normal wear items such as o-rings, valve seals, pump seals, hoses,
jets, cords, chemical bottles, or other items which require replacement as a
result of ordinary usage.

To obtain warranty service for the Flexi Pro Sprayer, contact your
distributor or Hydro-Force. If the sprayer must be returned to Hydro­Force or an authorized service center, the purchaser shall prepay shipping
charges for products returned for warranty service. All returns must have
a Return Authorization number, issued by Hydro-Force, clearly marked on
the exterior of the package. No returned items will be accepted by Hydro­Force without prior authorization.

Hydro-Force makes no other warranty, either expressed or implied, with
respect to this product.

The remedies provided herein are the purchaser’s sole and exclusive
remedies. In no event shall Hydro-Force be liable for any direct, indirect,
special, incidental, or consequential damages.

This warranty gives you specic legal rights. You may also have other rights
which vary from jurisdiction to jurisdiction.

12 Volt Electric Sprayer

SPRAYER

F PRO

SPRAYER

by

Table of Contents

Feature and Benets ...................................................3

Specications .................................................................3

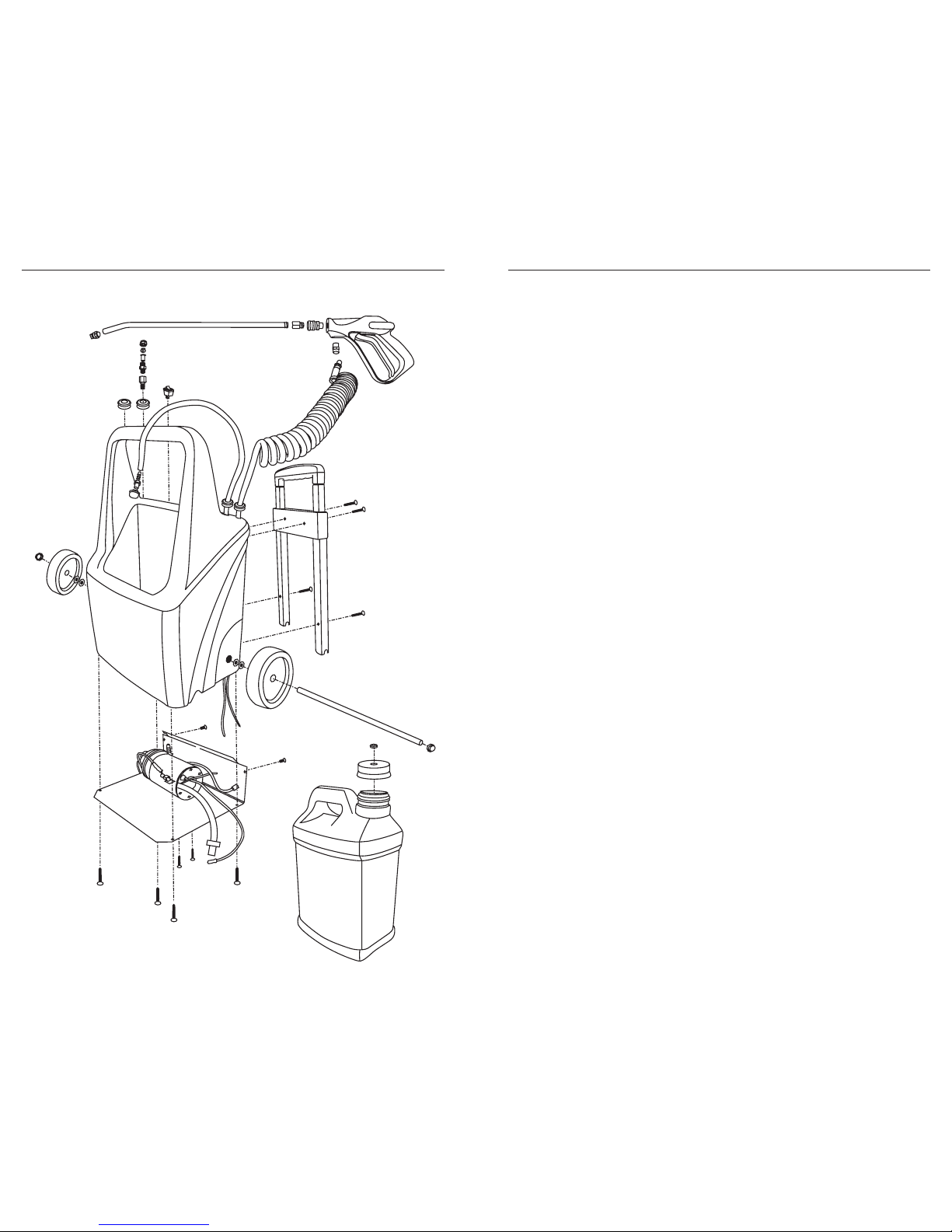

Complete Sprayer Diagram ......................................4

Complete Sprayer Parts List ...................................... 5

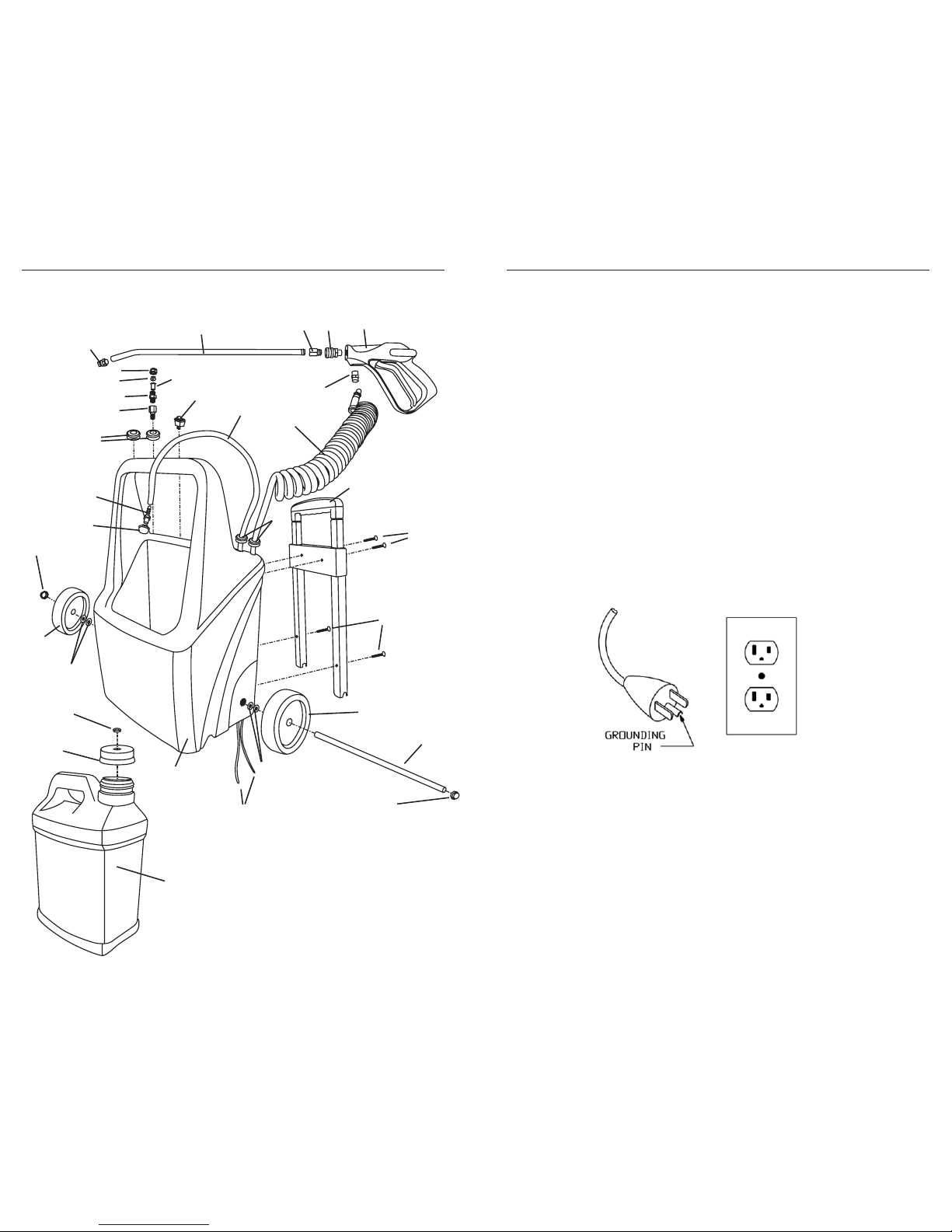

Sprayer Body and Gun Diagram .............................6

Sprayer Body and Gun Parts List ............................. 7

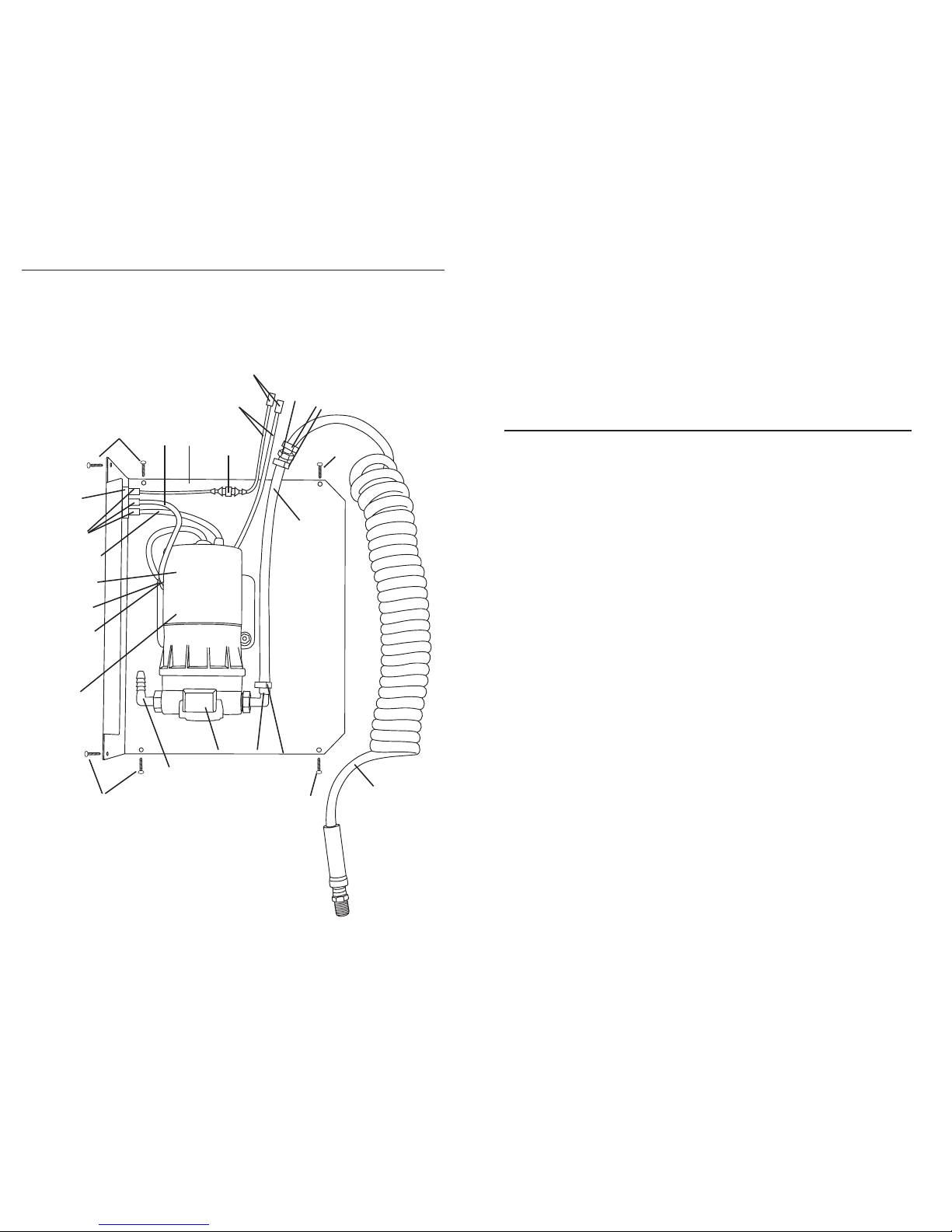

Sprayer Base Diagram ................................................. 8

Sprayer Base Parts List ................................................ 9

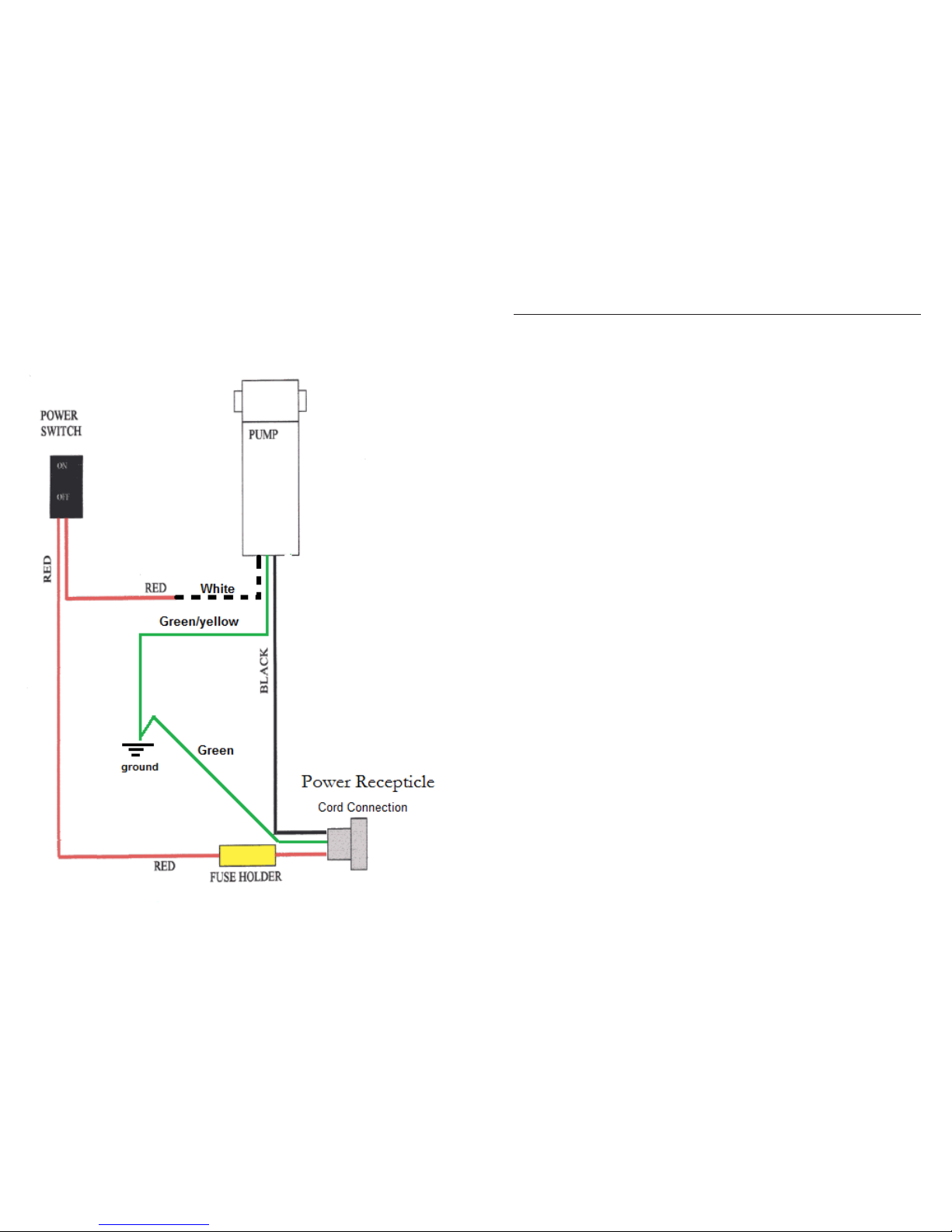

Wiring - Flexi Pro AS75 ..............................................10

Safety and General Maintenance .........................11

Operation ......................................................................13

Troubleshooting .........................................................14

Warranty Information ...............................................16

Notes

15

Wide Bottom: prevents the sprayer from tipping over
Translucent Bottle: make it easy to see the level of chemical
2 1/2 Gallon Bottle: the sprayer holds more chemical, allowing less

frequent relling.

Removable Bottle: allows for quick chemical switching
Large cap: enables easy rells and less chance of spills
15 Feet of Coiled Hose: Prespray upholstery with sprayer in one

position

Built In Extension Holder: Keep out of the way on truck
Large Wheels: Easy movement on commercial jobs or large rooms
Extendable Handle: for easy transportation and movement
Extra Jets Easily Attached: move from carpet prespray to upholstery

prespray to protector with dierent jets

Easy Priming and Rinsing of Lines: removable jets
Easy to Fix: remove 6 screws to service pump or battery
Sealed Cavity: pump protected from spills
Flojet Water Pump: durable, easy to maintain, self-priming
Rotomolded Plastic: proven to last for years

Features and Benets

Hose

Length: 15’
Diameter: 3/8” OD / 1/4” ID

Power Cord detachable

Length: 8 feet
Gauge: 16

Fuse

Amps: 10

Specications

Pump

Flow: 1 gallon/minute
Pressure: 50 psi
Voltage: 115/102 volt AC
Amperage: 0.6 amp

Jets

Pre-spray:

Veejet, Hydro-Force

part # B281, size = 8005

Protectant:

Teejet, Hydro-Force

part # B006, size = 6501

Troubleshooting

Pump not turning
on - No power

Not spraying
properly

Solution dripping
from jet with
valve closed

Problem Cause Solution

No power from outlet

Fuse blown
Cord faulty
Faulty switches or internal wiring

Pump motor faulty
Pump seized

Reset breaker or move cord to

another outlet
Check fuse - replace as needed
Replace cord
Check wiring & test switches - repair

as needed
Replace pump motor
Repair or replace pump head &

bearing - Check motor

Jet clogged
Jet worn
Chemical hose not submerged

in jug
Chemcial lter clogged (intake)
Air leak in chemical hose (intake)
Chemical hose restricted (intake)
Chemical jug not vented

Spray hose restricted (outlet)
Spray valve faulty
Debris in pump head

Pump faulty
Faulty switches or internal wiring
Chemcial to thick to pump

properly

Clean or replace jet
Replace jet
Make sure end of chemical hose

with lter is in the chemical
Clean or replace lter
Repair or replace hose
Un-kink, clean out or replace hose
Remove cap - enlarge hole in cap

for hose
Un-kink, clean out or replace hose
Repair or replace valve
Clean out pump head - Replace

valves as needed
Repair or replace pump
Check wiring & test switches
Charge chemicals - Must be similar

in viscosity to water

Spray valve faulty
Check valve faulty
Jet worn
Extension faulty

Repair or replace valve
Replace check valve
Replace jet
Replace extension
