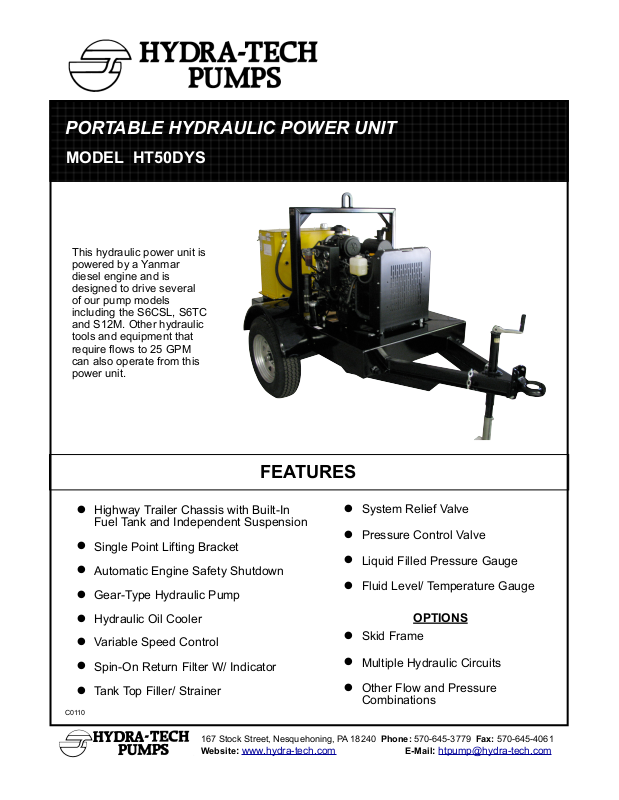

Page 1
MODEL HT50DYS
PORTABLE HYDRAULIC POWER UNIT
This hydraulic power unit is
powered by a Yanmar
diesel engine and is
designed to drive several
of our pump models
including the S6CSL, S6TC
and S12M. Other hydraulic
tools and equipment that
require flows to 25 GPM
can also operate from this
power unit.
Highway Trailer Chassis with Built-In
•
Fuel Tank and Independent Suspension
Single Point Lifting Bracket
•
Automatic Engine Safety Shutdown
•
Gear-Type Hydraulic Pump
•
Hydraulic Oil Cooler
•
Variable Speed Control
•
Spin-On Return Filter W/ Indicator
•
Tank Top Filler/ Strainer
•
C0110
167 Stock Street, Nesquehoning, PA 18240 Phone: 570-645-3779 Fax: 570-645-4061
Website: www.hydra-tech.com E-Mail: [email protected]
FEATURES
•
•
•
•
•
•
•
System Relief Valve
Pressure Control Valve
Liquid Filled Pressure Gauge
Fluid Level/ Temperature Gauge
OPTIONS
Skid Frame
Multiple Hydraulic Circuits
Other Flow and Pressure
Combinations
Page 2
Model HT50DYS Overall Dimensions
115"
(292 cm)
62"
65"
(158 cm)
(165 cm)
SPECIFICATIONS
ENGINE:.................. Yanmar 4TNV84T Liquid Cooled Diesel (Tier 4 Int.)
POWER:...................................................... 55 HP(41 KW) @ 3000 RPM
HYDRAULIC OUTPUT*:...................... Variable, Max. 25 GPM (95 LPM)
OPERATING PRESSURE*:....................... Maximum 2600 PSI (177 Bar)
HOSE PORT SIZE:........................................................................ 1" NPT
HYDRAULIC OIL:.................. SAE 10W or 20W (ISO 32 or 46) Type AW
................................................. also: Biodegradable oil (Consult Factory)
OIL FILTRATION:.................................................... 10 Micron (Standard)
OIL RESERVOIR CAPACITY:....................... 50 U.S. Gallons (189 Liters)
FUEL TANK CAPACITY:............................... 48 U.S. Gallons (182 Liters)
FUEL CONSUMPTION:............... Approx. 2.5 U.S. Gal/Hr (9.5 Liters/Hr)
DIMENSIONS:......... H 65" (166 cm) x W 62" (158 cm) x L 115" (292 cm)
WEIGHT (Dry):............................................................. 1900 lbs. (860 kg)
* For Flows and Pressures Other Than Standard, Consult Factory
Since we are constantly working to improve our products, specifications are subject to change without notice.
