Page 1
Hydra-Power
Hydraulic Power Pack
Operation Instructions
HSPWRPK v1.11 Revised March 2016
Specifi cations subject to change without notice.
Page 2
Table of Contents
Section Title Page
1.0 Hydra-Power Specifi cations 1
2.0 Features and Controls 1
3.0 Safety Warnings 2
4.0 Hydra-Power Setup Instructions 3
5.0 Hydra-Power Operation 4
6.0 Replacement Parts 7
Hydra-Power Hydraulic Power Pack Operation Instructions HSPWRPK v1.11 Revised March 2016
Specifi cations subject to change without notice.
Page 3
SECTION 1 - Hydra-Power Speci cations
13 HP electric start gas powered engine
Dimensions: 44 1/2 L X 24 1/4 W X 22 1/4 H
Weight: 304 pounds (with full hydraulic tank and fuel
load)
Output: 9 GPM @ 1700-1800 psi.
15 gallon hydraulic oil reservoir with in-tank fi lter kit
12v battery rated to 230cca at 0deg.
Power Unit is skid mounted with protective cage.
Power Unit can be lifted with a forklift with or without
straps.

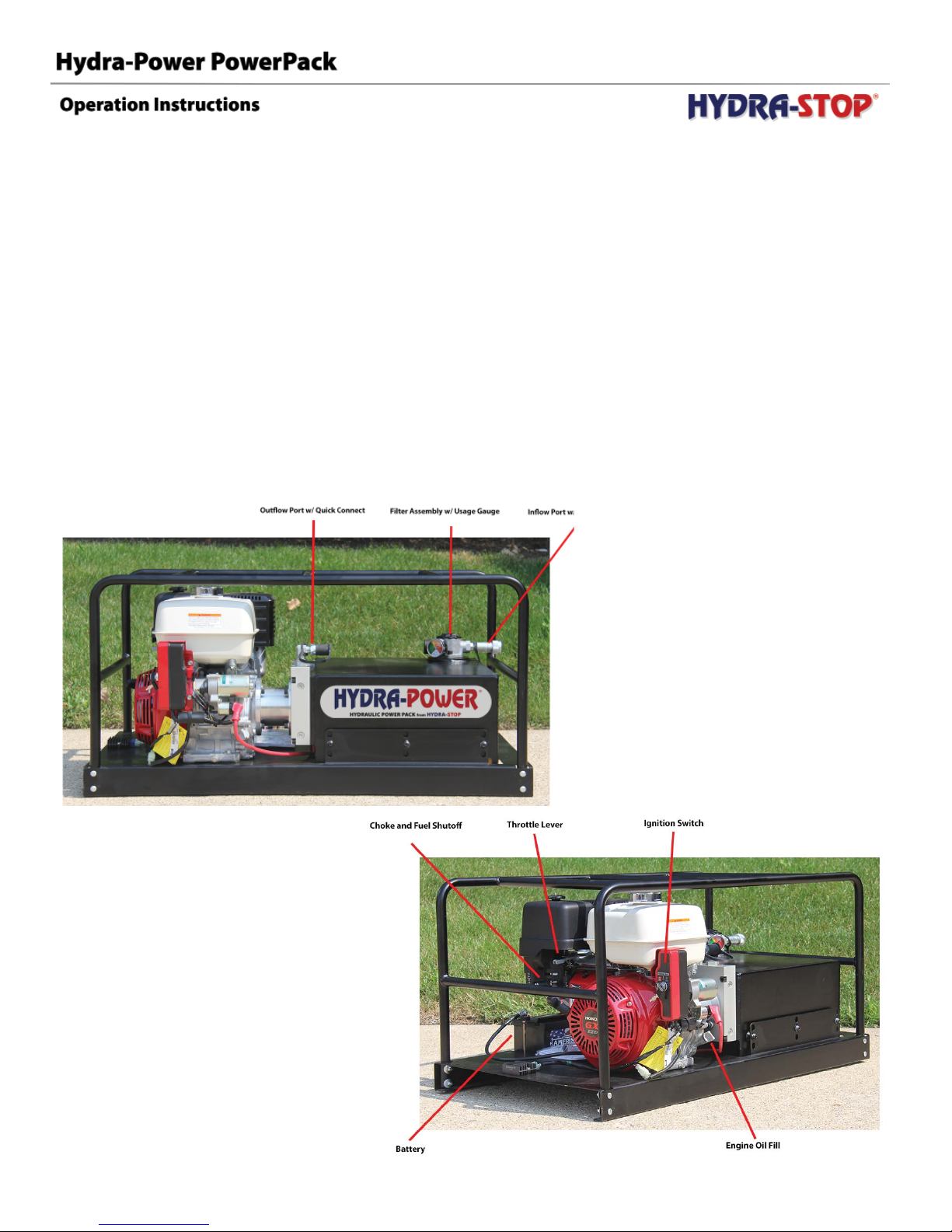

SECTION 2 - Controls and Features
What’s included:
Gas powered, electric start power pack, with Quick
Connects pre-installed
2 - 50 foot hydraulic hose, 1/2” SAE 100R16 rated
hose with Quick Connects pre-installed
1 set Quick Connect hose couplings customer drive
motor (nipples not included)
Gauges and fi lters necessary for Hydra-Power Power-
Pack operation
Hydra-Power Hydraulic Power Pack Operation Instructions HSPWRPK v1.11 Revised March 2016
Specifi cations subject to change without notice.
Page 4
SECTION 3 - SAFETY WARNINGS
Conventions used in this manual include:
WARNING indicates a potentially
hazardous situation which, if not
avoided, could result in serious injury
or death.
DO NOT touch hot surfaces. Avoid contact with hot exhaust
gases. Allow equipment to cool before touching. Maintain at
least three feet of clearance on all sides to ensure adequate cooling. Maintain at least fi ve feet of clearance from
combustible materials.
NOTE signifi es an important point of
information.
Read this manual thoroughly before operating your
Hydra-Power PowerPack. Failure to follow instructions
could result in serious injury or death.
Engine exhaust contains carbon monoxide, a colorless,
odorless, poison gas. Breathing carbon monoxide will
cause nausea, dizziness, fainting or death. If you start to
feel dizzy or weak, get to fresh air immediately.
Operate Hydra-Power PowerPack outdoors only in a well
ventilated area.
DO NOT operate the Hydra-Power PowerPack inside any
building, including garages, basements, crawlspaces and
sheds, enclosure or compartment.
DO NOT allow exhaust fumes to enter a confi ned area
through windows, doors, vents or other openings.
Rotating parts can entangle hands, feet, hair, clothing and/
or accessories.
Traumatic amputation or severe laceration can result.
Keep hands and feet away from rotating parts.
Tie up long hair and remove jewelry.
Operate equipment with guards in place.
DO NOT wear loose-fi tting clothing, dangling drawstrings or
items that could become caught.
Sparks can result in fi re or electrical shock. When servicing
the Hydra-Power PowerPack:
Disconnect the spark plug wire and place it where it cannot
contact the plug. DO NOT check for spark with the plug
removed. Use only approved spark plug testers.
Fuel and fuel vapors are highly fl ammable and extremely
explosive. Fire or explosion can cause severe burns or
death. Unintentional startup can result in entanglement,
traumatic amputation or laceration.
When adding or removing fuel: Turn the Hydra-Power
PowerPack off and let it cool for at least two minutes before
removing the fuel cap. Loosen the cap slowly to relieve
pressure in the tank. Only fi ll or drain fuel outdoors in a
well-ventilated area. DO NOT pump gas directly into the
Hydra-Power PowerPack at the gas station. Use an approved container to transfer the fuel to the Hydra-Power
PowerPack. DO NOT overfi ll the fuel tank. Always keep fuel
away from sparks, open fl ames, pilot lights, heat and other
sources of ignition.
DO NOT light or smoke cigarettes while fueling the Hydra-Power PowerPack.
When starting the Hydra-Power PowerPack engine:
DO NOT attempt to start a damaged engine.
Make certain that the gas cap, air fi lter, spark plug, fuel
lines and exhaust system are properly in place.
Allow spilled fuel to evaporate fully before attempting to
start the engine.
Make certain that the Hydra-Power PowerPack is resting
fi rmly on level ground.
When operating the Hydra-Power PowerPack:
DO NOT move or tip the Hydra-Power PowerPack or allow
fuel or oil to spill.
When transporting or servicing the Hydra-Power PowerPack:
Make certain that the fuel shutoff valve is in the off position
and the fuel tank is empty.
Disconnect the spark plug wire.
Running engines produce heat. Severe burns can occur
on contact. Combustible material can catch fi re on contact.
Hydra-Power Hydraulic Power Pack Operation Instructions HSPWRPK v1.11 Revised March 2016
When storing the Hydra-Power PowerPack:
Store away from sparks, open fl ames, pilot lights,heat and
other sources of ignition.
Specifi cations subject to change without notice.
Page 5
SECTION 4 - Hydra-Power Setup Instructions
3) Fill oil reservoir. Approximately 15 gallons of fl uid
will be required.
Quick Connectors
Quick connectors come attached to both hoses and
also to the outfl ow and infl ow ports of the Hydra-Pow-
er PowerPack unit.
Quick connectors are provided for the drive motor
connection, however, the fi ttings, nipples, bushings,
etc. required to attach quick connects to drive motor
ARE NOT INCLUDED.
Due to the large number of drive motor connection
combinations which exist (size, thread type, etc.) it is
the customer’s responsibility to purchase these drive
motor to quick connect pipe fi ttings separately. Quick
connectors are female, 1/2 inch, NPT threaded.
FILL HYDRAULIC OIL RESERVOIR
Hydraulic oil recommendation: all purpose, pe-
troleum based hydraulic oil, ISO Grade 32. Normal
operating oil conditions: 37-54C/100-130F. Do not
operate at oil temperatures above 85C/185F
NOTE: It is recommended to check Hydraulic Fluid Levels after every 15 hours of operation.

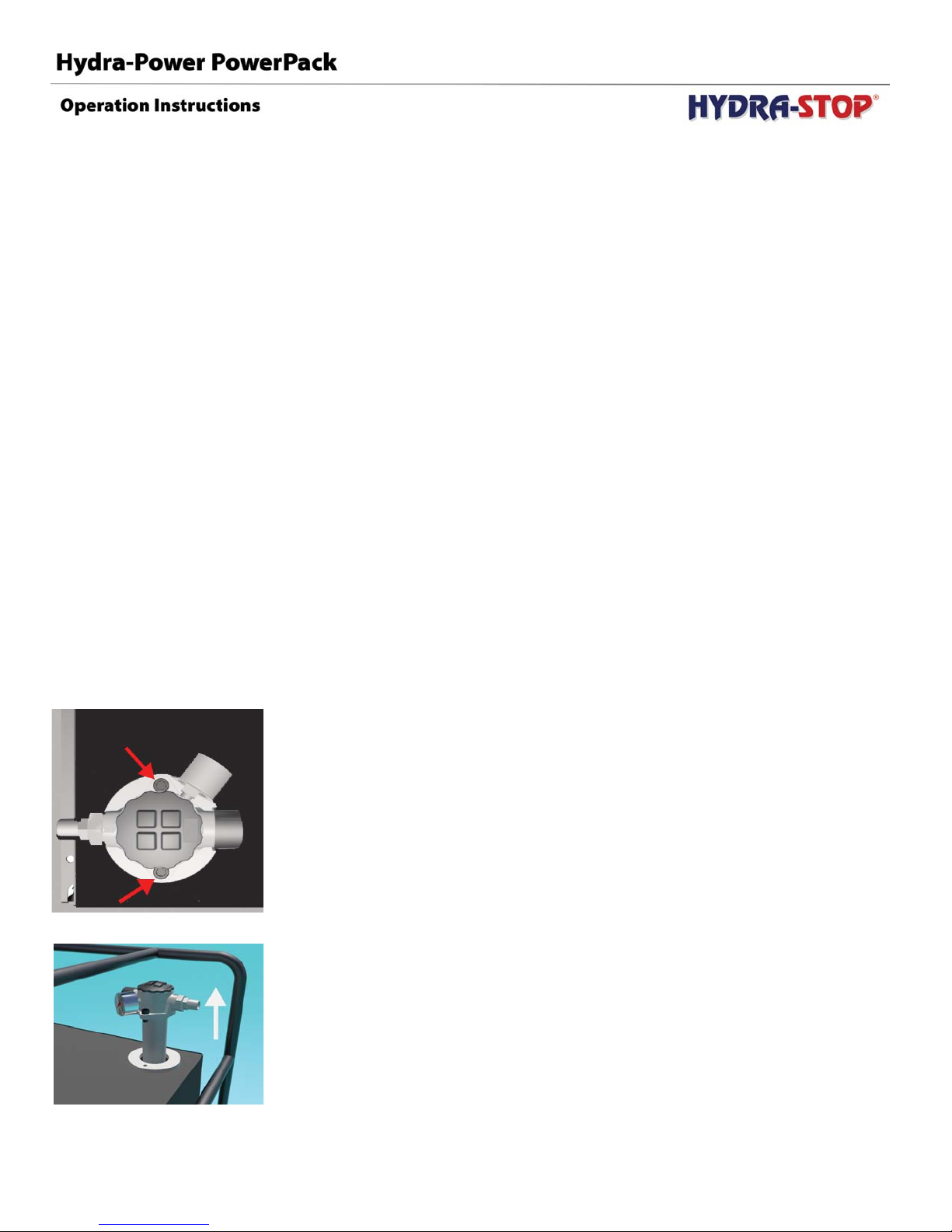

1) Remove fi lter as-
sembly by removing the
two 3/8 cap screws as
shown.
3) Replace fi lter assembly.
4) Replace cap screws. Be careful to not over tighten
cap screws.
CHECK ENGINE OIL
The Hydra-Power PowerPack is shipped with full
crankcase oil level. Before starting engine, it is a
good practice to check engine oil level.
CAUTION: Any attempt to crank or start the engine
before it has been properly fi lled with the recommend-
ed oil will result in equipment failure. Refer to engine
owner’s manual and follow oil and fuel recommendations and instructions.
NOTE: Check oil often during engine break–in. Refer
to engine owner’s manual for recommendations.
Thoroughly read owner’s manual for 13 HP electric
start engine. Follow instructions for operation and
maintenance of gas powered engine.
ADD FUEL
Regular unleaded gasoline with an octane rating of
87 and no more than 10% ethanol is preferred.
Never
use an E85 fuel or a mixture of oil and gasoline
designated for two cycle engines. Utilizing a higher grade premium fuel will not yield any increase
in power output or improved performance.
PRE-USE INSPECTION
Check Hydra-Power PowerPack for any engine oil or
hydraulic oil leaks. Check all fl uid levels. Add fl uids if
necessary.
2) Lift and remove fi lter
assembly. Set assembly aside.
Hydra-Power Hydraulic Power Pack Operation Instructions HSPWRPK v1.11 Revised March 2016
IMPORTANT: TO AVOID DAMAGE TO ENGINE AND
HYDRA-POWER POWERPACK PUMP DO NOT ATTEMPT TO START HYDRA-POWER POWERPACK
ENGINE BEFORE HOSES ARE CONNECTED TO
THE HYDRA-POWER POWERPACK UNIT AND THE
HYDRAULIC DRIVE MOTOR.
Specifi cations subject to change without notice.
Page 6
SECTION 5 - Hydra-Power Operation

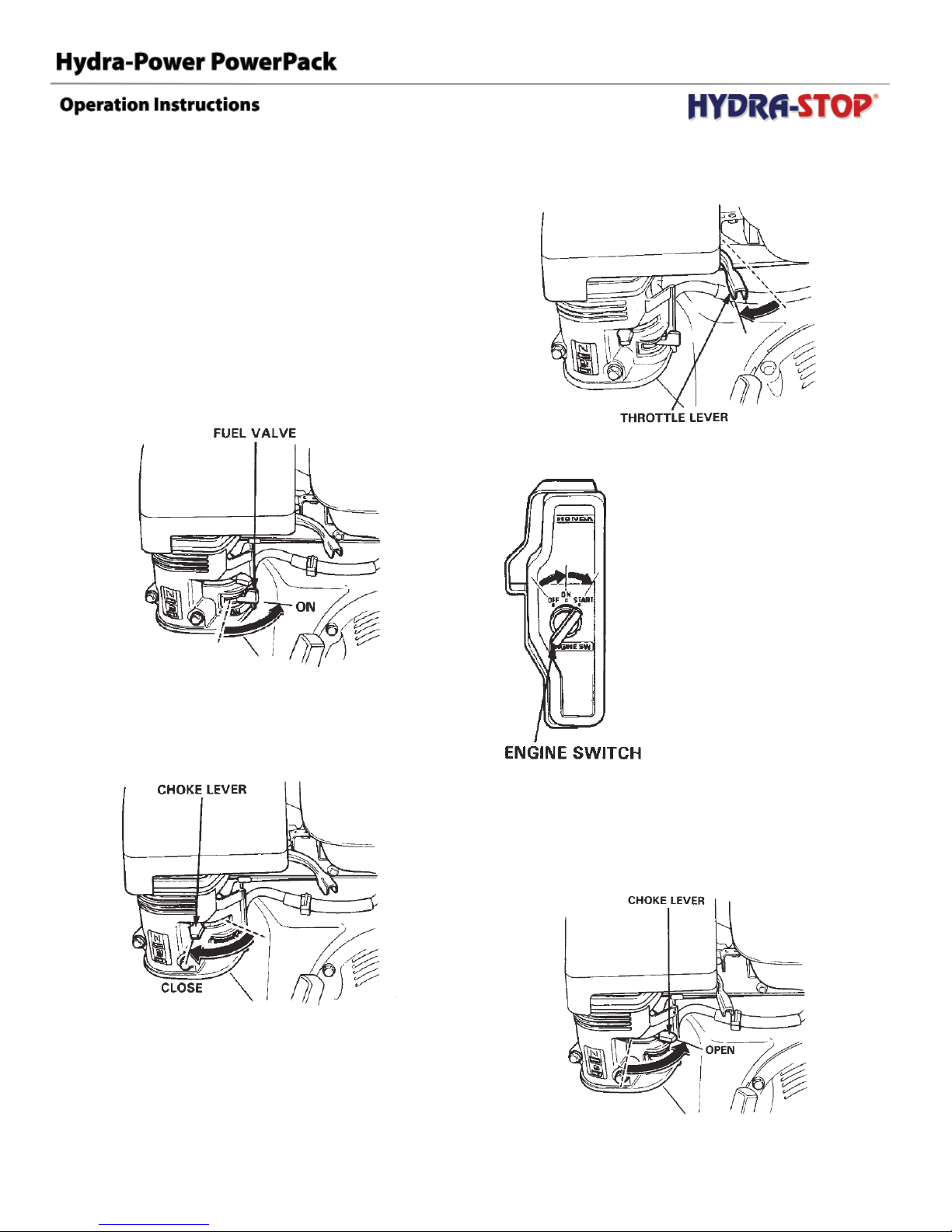

Starting the Engine
1) Make certain the Hydra-Power PowerPack is on a
fl at, level surface.
2) Connect all hoses to both the power pack and drive
motor before starting engine.
3) Make sure drive motor is in the neutral position.
4) Move the black fuel valve to the “ON” position.
6) Move throttle lever slightly to the left.
7) Turn ignition key which activates electric start. (If battery
is dead, pull the starter cord
slowly until resistance is felt
and then pull rapidly.)
5) Move the gray choke lever left to the “CHOKE”
position.
NOTE: The choke may not be needed if the engine is
warm or the air temperature is high.
8) Do not over-choke. As the engine warms, gradually move the choke lever to the open position (to the
right).
Hydra-Power Hydraulic Power Pack Operation Instructions HSPWRPK v1.11 Revised March 2016
Specifi cations subject to change without notice.
Page 7
SECTION 5 - Hydra-Power Operation -
continued
Hydra-Power PowerPack Maintenance and Storage

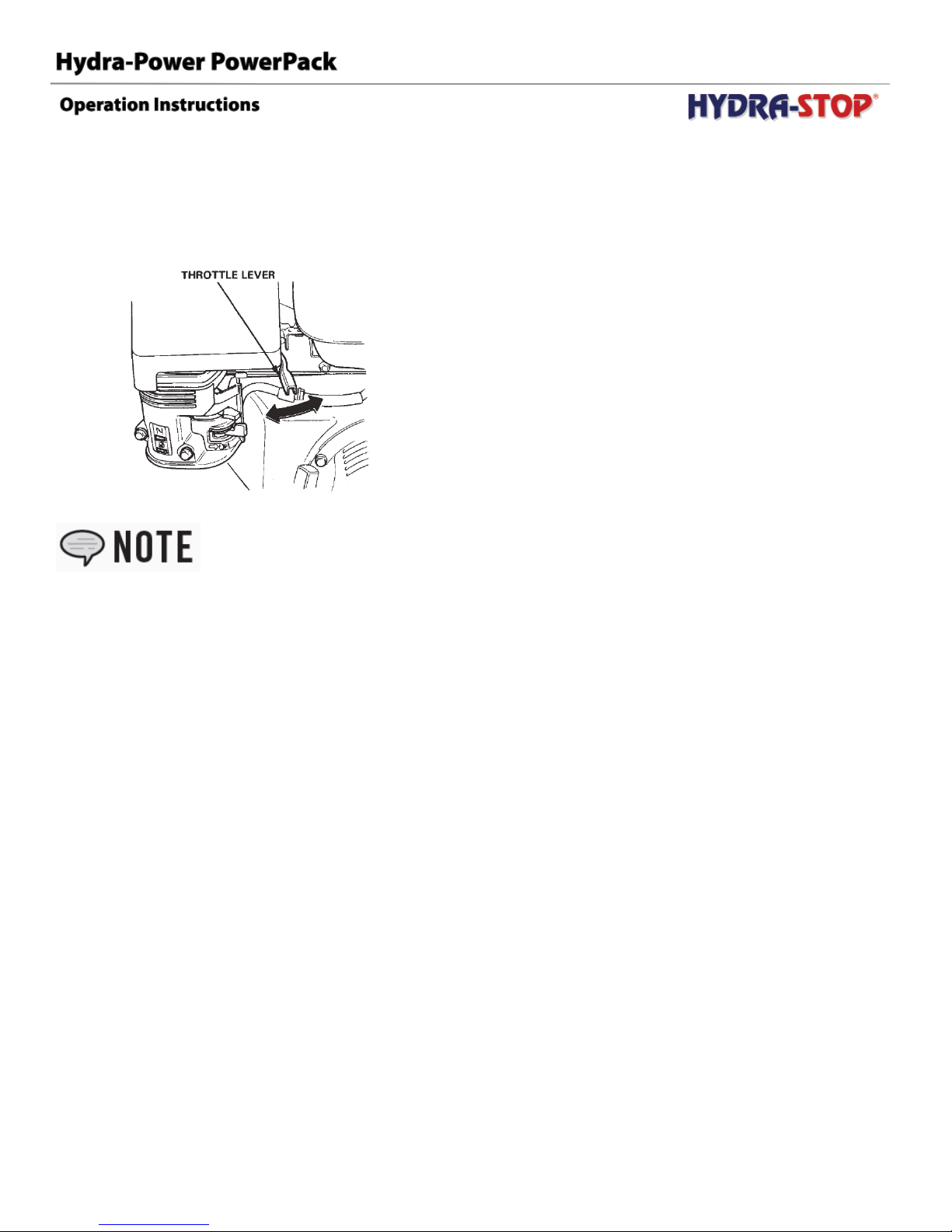

9) Position the throttle lever for the desired engine
speed.
During operation check the oil operating temperature.
Temperature gauge is located on side of oil reservoir
tank. Normally operating oil conditions: 37-54C /
100-130F. Do not operate at oil temperatures
above 85C / 185F
Refer to the engine owners manual for detailed engine maintenance specifi cations.
Contact our helpline at 1-800-538-7867 to assist in
Hydra-Power PowerPack or engine maintenance
needs.
NOTE: DO NOT use a garden hose to clean the Hydra-Power PowerPack.
Long Term Hydra-Power PowerPack Storage
1. Add a properly formulated fuel stabilizer to the tank.
2. Be certain to connect a hydraulic device or use one
hose as a by-pass device. NOTE: Engine will not
start if hydraulic fl uid is not able to cycle through the
pump and return to the oil reservoir.
3. Run the Hydra-Power PowerPack for a few minutes
so the treated fuel cycles through the fuel system and
carburetor.
4. Turn the fuel valve to the “Off” position.
5. Let the Hydra-Power PowerPack run until fuel
starvation has stopped the engine. This usually takes
a few minutes.
Stopping the Engine
6. The Hydra-Power PowerPack needs to cool completely before cleaning and storage.
1. Return drive motor to neutral.
2. Allow the Hydra-Power PowerPack engine to run at
no-load for several minutes to stabilize internal temperatures of the engine and pump.
3. Turn the Fuel Valve to the “OFF” position.
4. Let the engine run until fuel starvation has stopped
the engine. This usually takes a few minutes.
5. Turn the ignition switch to the “OFF” position.
Important: Always ensure that the Fuel Valve and the
7. Clean the Hydra-Power PowerPack according to
the maintenance section.
8. Change the oil.
9. Remove the spark plug and pour about 1⁄2 ounce
of oil into the cylinder. Crank the engine slowly to
distribute the oil and lubricate the cylinder.
10. Reattach the spark plug.
11. Store the unit in a clean, dry place out of direct
sunlight.
Engine Switch are in the “OFF” position when the
engine is not in use.
NOTE: If the engine will not be used for a period of
two (2) weeks or longer, please see the Storage section below for proper engine and fuel storage.
Hydra-Power Hydraulic Power Pack Operation Instructions HSPWRPK v1.11 Revised March 2016
Specifi cations subject to change without notice.
Page 8
SECTION 6 - Replacement Parts
Replacement parts for your hydra-Power are available from Hydra-Stop. Please contact your inside sales representative to order or for additional information.
Part number Quantity per machine Part Description
SLF1-12S-0-ZSLE110 ASSY 1 Filter Assembly (tank top canister
and fi lter, no gauge)
ZSLE-110 1 Filter Element
CI-20 1 Filter Gauge
SG-05M-T-G 1 Sight Gauge (Oil Level/Temp)
Hydra-Power Hydraulic Power Pack Operation Instructions HSPWRPK v1.11 Revised March 2016
Specifi cations subject to change without notice.
Loading...
