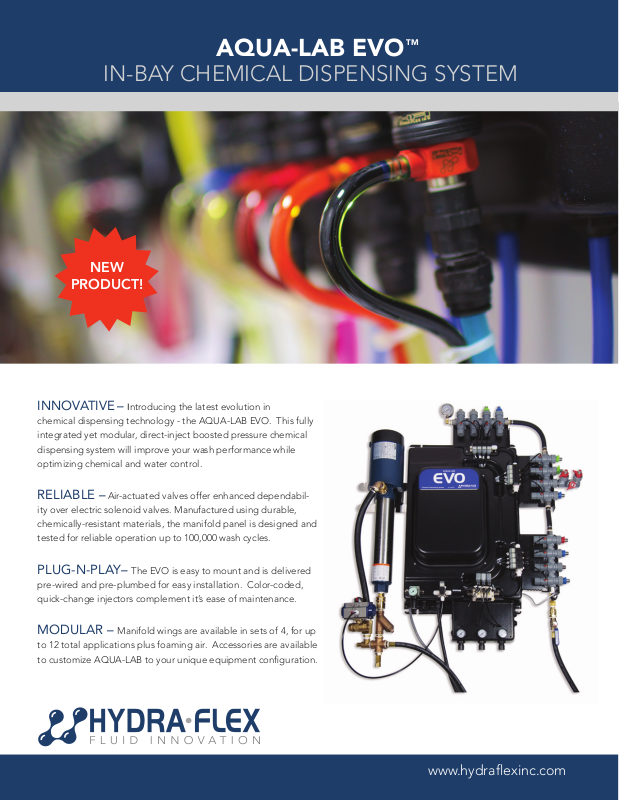

Hydra-Flex Aqua-Lab EVO User Manual
IN-BAY CHEMICAL DISPENSING SYSTEM
NEW
PRODUCT!
TM
AQUA-LAB EVO
INNOVATIVE – Introducing the latest evolution in
chemical dispensing technology - the AQUA-LAB EVO. This fully
integrated yet modular, direct-inject boosted pressure chemical
dispensing system will improve your wash performance while
optimizing chemical and water control.
RELIABLE – Air-actuated valves offer enhanced dependabil-
ity over electric solenoid valves. Manufactured using durable,
chemically-resistant materials, the manifold panel is designed and
tested for reliable operation up to 100,000 wash cycles.
PLUG-N-PLAY– The EVO is easy to mount and is delivered
pre-wired and pre-plumbed for easy installation. Color-coded,
quick-change injectors complement it’s ease of maintenance.
MODULAR – Manifold wings are available in sets of 4, for up
to 12 total applications plus foaming air. Accessories are available
to customize AQUA-LAB to your unique equipment conguration.
www.hydraexinc.com
www.hydraexinc.com
TM
AQUA-LAB EVO
IN-BAY CHEMICAL DISPENSING SYSTEM
INTEGRATED 10 GPM PUMP
Includes quick-connects, Wye
strainer, bypass pressure regulator
and thermal relief valve for safe and
reliable operation.
INTEGRATED ELECTRICAL
CONTROL BOX
UL approved enclosure, with easy
wire single control cable.
INLET WATER
SELECTION VALVE
(Optional) Use two water sources
with the same pump - select fresh,
RO, reclaim, or tempered water.
MANIFOLD WINGS
Available in sets of 4, for up to
12 total applications. Use with
quick change injectors, ow-thru
rinse valves, and duo-foam or
triple-foam manifolds.
PRESSURE SWITCH
(Optional) Noties or shuts down
the car wash in the event of a low
water fault - great for unstaffed
sites.
FOAMING AIR OR FROST
PROTECTION WING
(Optional) Includes air valves and
air regulators.
SYSTEM REQUIREMENTS/SPECIFICATIONS
Power Requirements 10 GPM Pump Air-Actuated Valves
208-230V/3PH/8A or 460V/3PH/4A 24VDC, 3.5 Watts per port
Space Requirements 38” W x 44” H with pump assembly
Water Inlet Line 3/4” ID
Solution Outlet Lines Up to 3.25 GPM 3.25 GPM-5.5 GPM 5.5-8 GPM
3/8” ID (1/2” Polyow) 1/2” ID 5/8” ID
Operating Water Pressure 200 PSI Factory Set
Max. Water Source Temperature 140ºF (+60ºC)
Air Inlet Line 3/8” OD Polyow
Air Outlet Line 3/8” OD Polyow Per Application
Air Inlet Pressure 20 CFM @ 80-100 PSI Dry Air
680 East Travelers Trail • Burnsville, MN 55337
T: 952-808-3640 • F: 952-808-3650 • www.hydraexinc.com • info@hydraexinc.com
PROPRIETARY
AIR-ACTUATED VALVE
Allows particulate in water stream
to pass through, preventing fail to
close errors. Offers enhanced de-
pendability over electric solenoid
valves.
P/N EVO RevA0214
