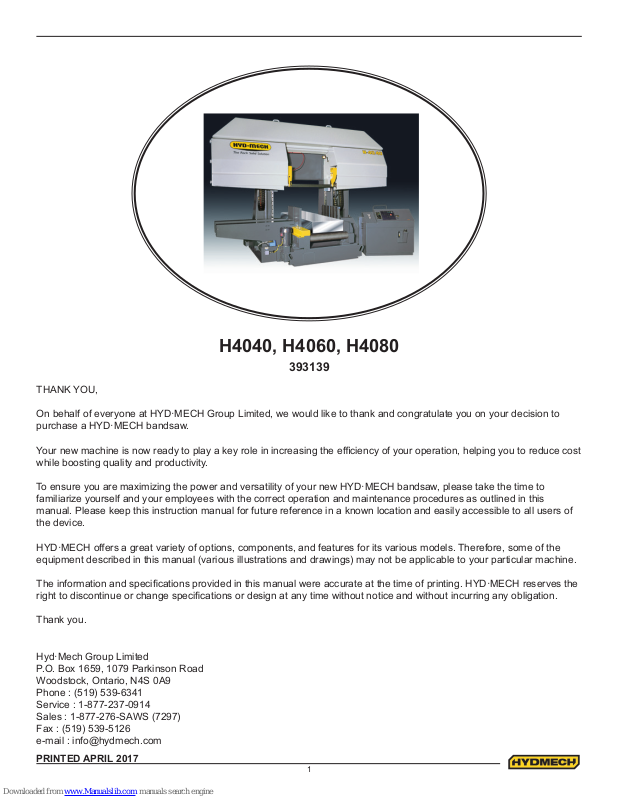

Hyd-Mech H4040, H4060, H4080 User Manual

Page 1

H4040, H4060, H4080

393139

THANK YOU,

On behalf of everyone at HYD·MECH Group Limited, we would like to thank and congratulate you on your decision to purchase a HYD·MECH bandsaw.

Your new machine is now ready to play a key role in increasing the e󰀩ciency of your operation, helping you to reduce cost

while boosting quality and productivity.

To ensure you are maximizing the power and versatility of your new HYD·MECH bandsaw, please take the time to familiarize yourself and your employees with the correct operation and maintenance procedures as outlined in this manual. Please keep this instruction manual for future reference in a known location and easily accessible to all users of the device.

HYD·MECH o󰀨ers a great variety of options, components, and features for its various models. Therefore, some of the

equipment described in this manual (various illustrations and drawings) may not be applicable to your particular machine.

The information and specications provided in this manual were accurate at the time of printing. HYD·MECH reserves the right to discontinue or change specications or design at any time without notice and without incurring any obligation.

Thank you.

Hyd·Mech Group Limited P.O. Box 1659, 1079 Parkinson Road Woodstock, Ontario, N4S 0A9 Phone : (519) 539-6341 Service : 1-877-237-0914 Sales : 1-877-276-SAWS (7297) Fax : (519) 539-5126 e-mail : [email protected]

PRINTED APRIL 2017

Page 2

TABLE OF CONTENTS

SECTION 0 - SAFETY INSTRUCTIONS

SUMMARY .......................................................................................................................................0.1

BASIC RULES ..................................................................................................................................0.3

RESPONSIBILITIES OF THE OWNER ............................................................................................0.3

RESPONSIBILITIES OF THE OPERATOR AND MAINTENANCE PERSONNEL ...........................0.4

SAFETY HAZARD LABELS .............................................................................................................0.6

SECTION 1 - INSTALLATION

SAFETY PRECAUTIONS .................................................................................................................1.1

LIFTING THE H-40 ...........................................................................................................................1.2

MACHINE LAYOUT ..........................................................................................................................1.3

H-40 INSTALLATION PROCEDURE ................................................................................................1.4

FOUNDATION, LEVELING AND ANCHORING ...............................................................................1.4

HYDRAULIC OIL AND CUTTING FLUID .........................................................................................1.6

WIRING CONNECTIONS .................................................................................................................1.6

SECTION 2 - OPERATING INSTRUCTIONS

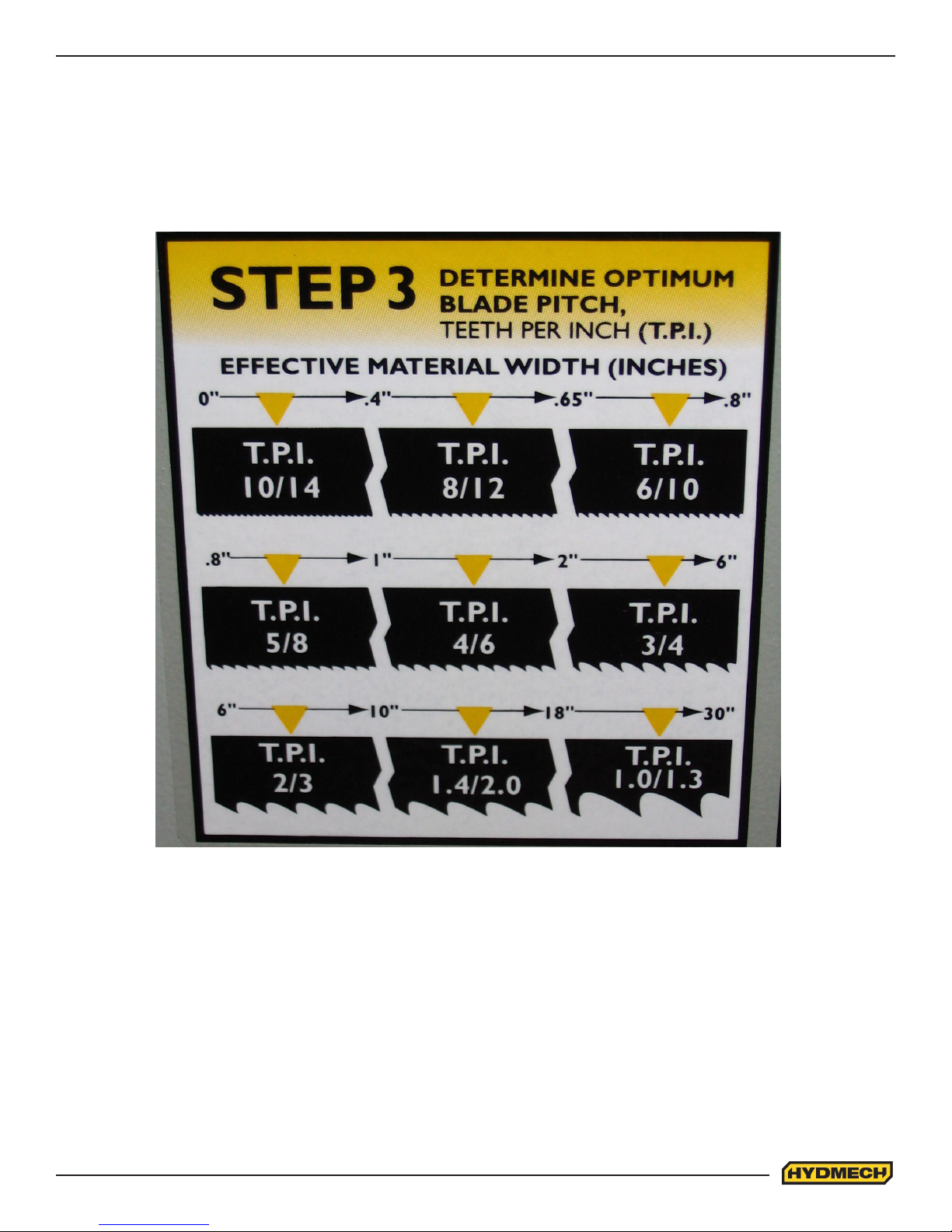

BLADE BASICS................................................................................................................................2.1

VARIABLE SPEED CONTROL.........................................................................................................2.1

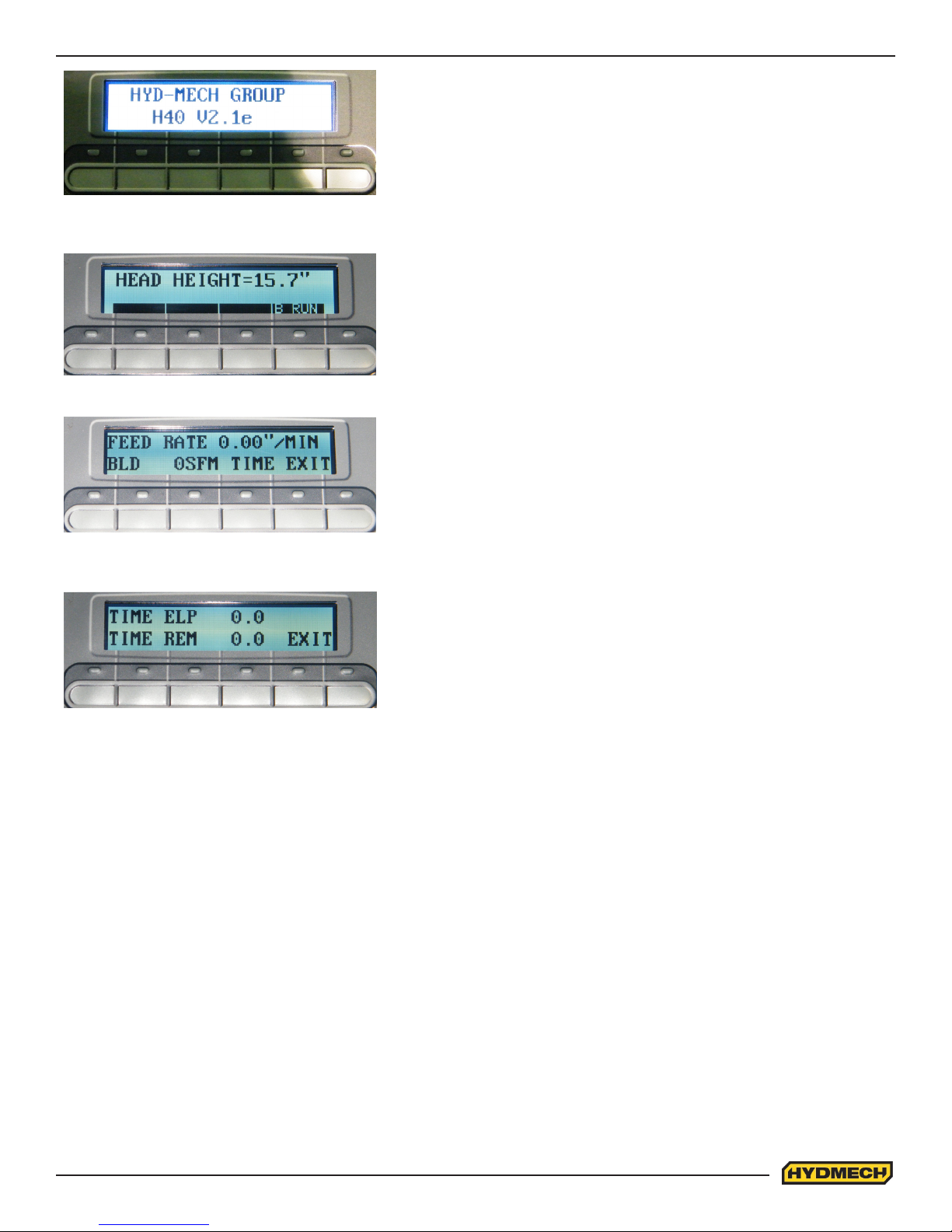

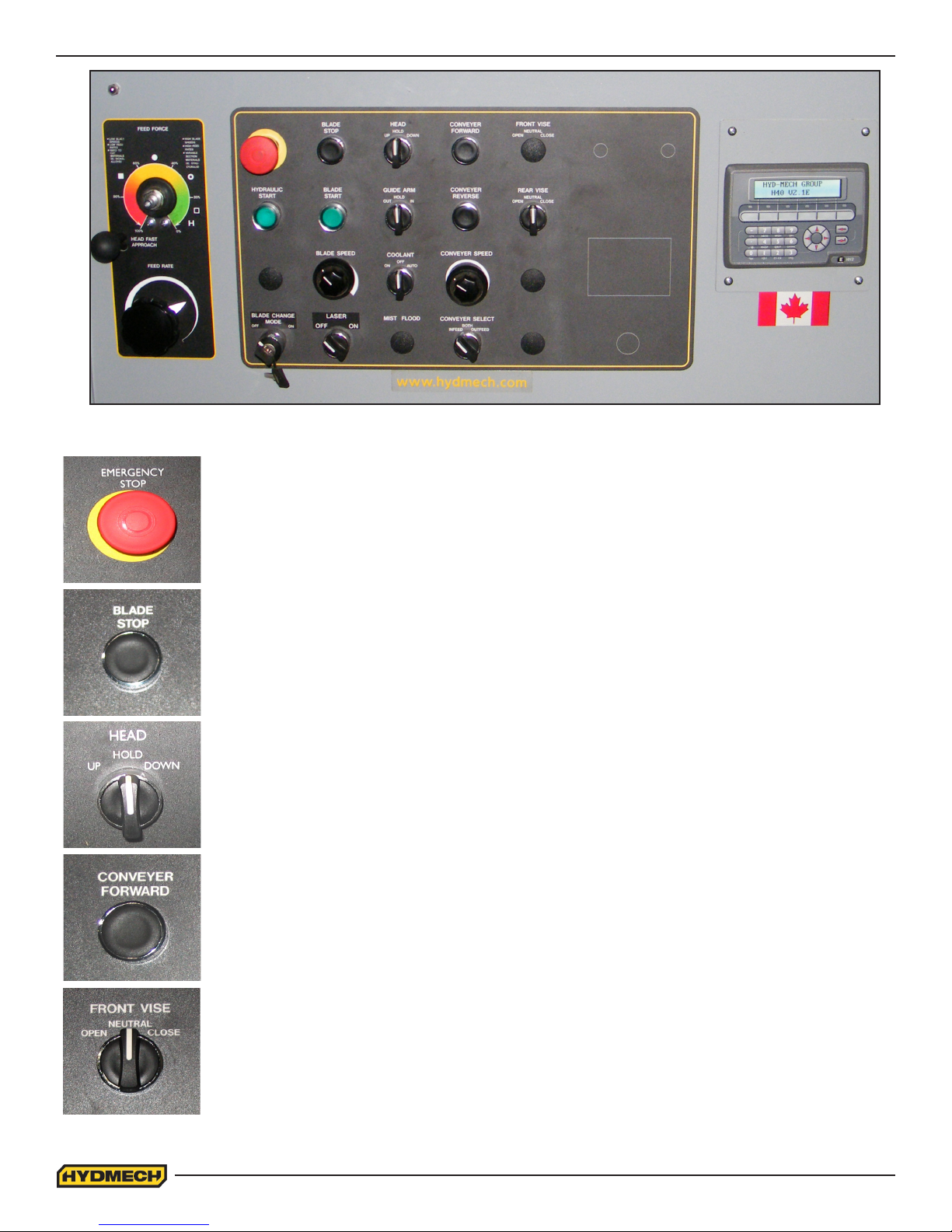

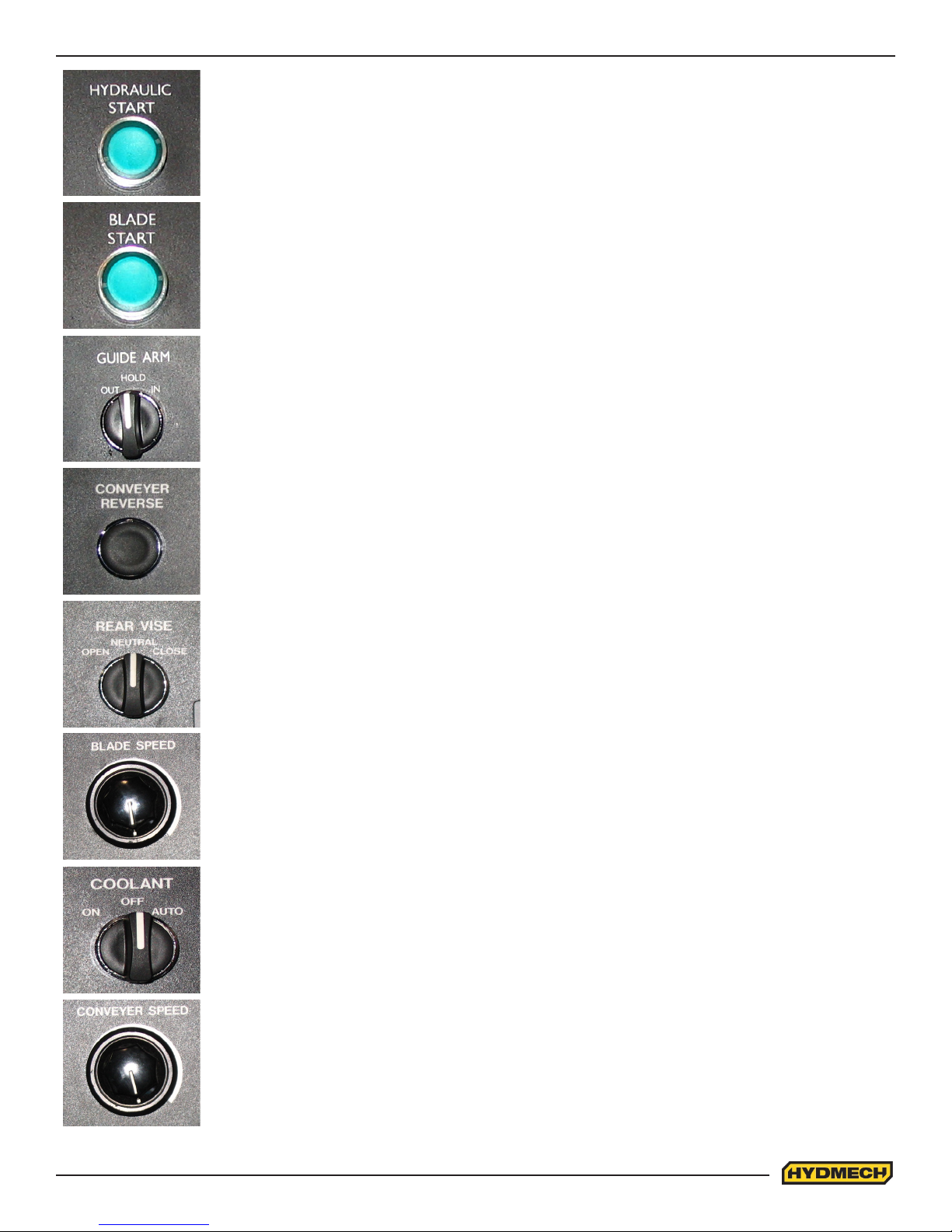

THE CONTROL PANEL ...................................................................................................................2.1

MANUAL OPERATION .....................................................................................................................2.1

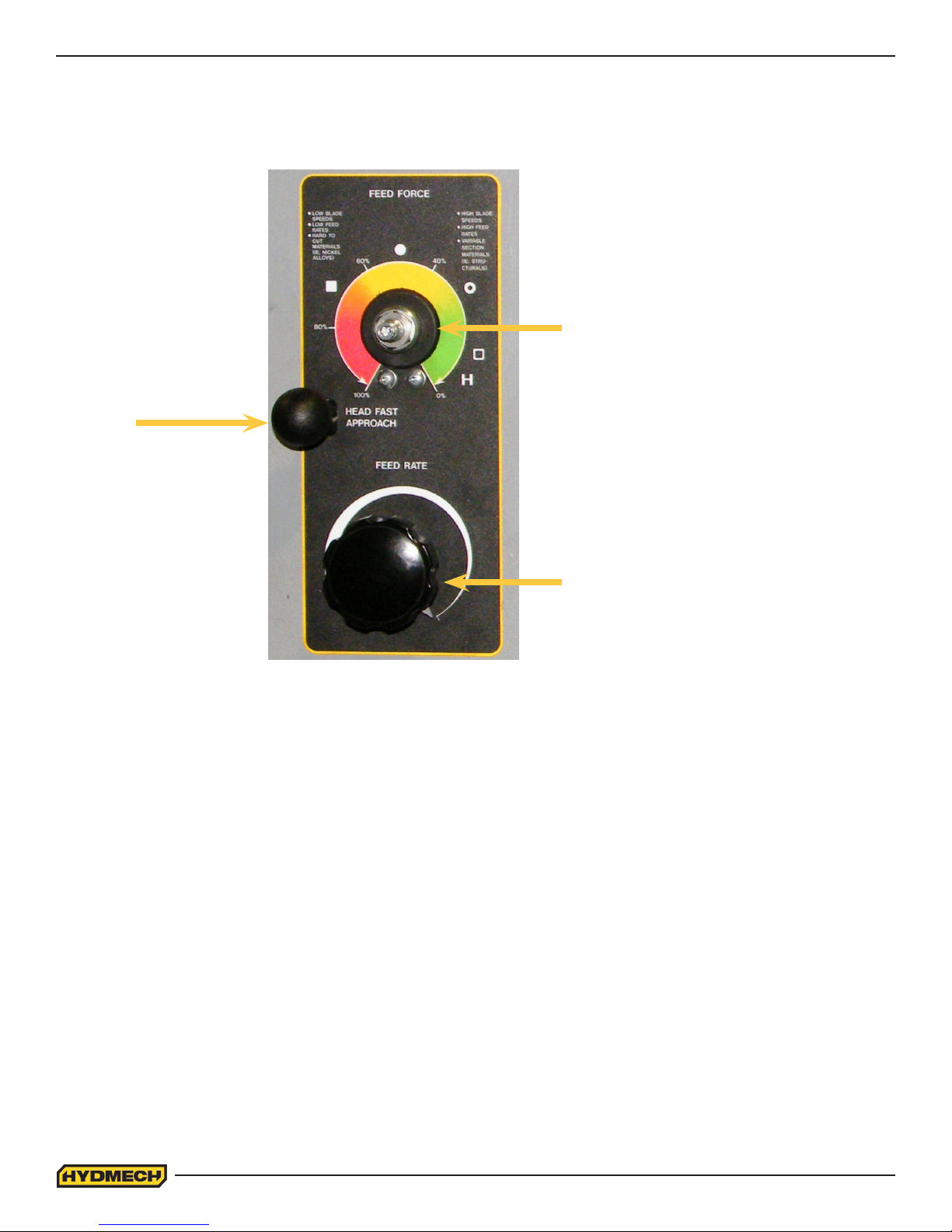

HYDRAULIC FEED CONTROL ........................................................................................................2.6

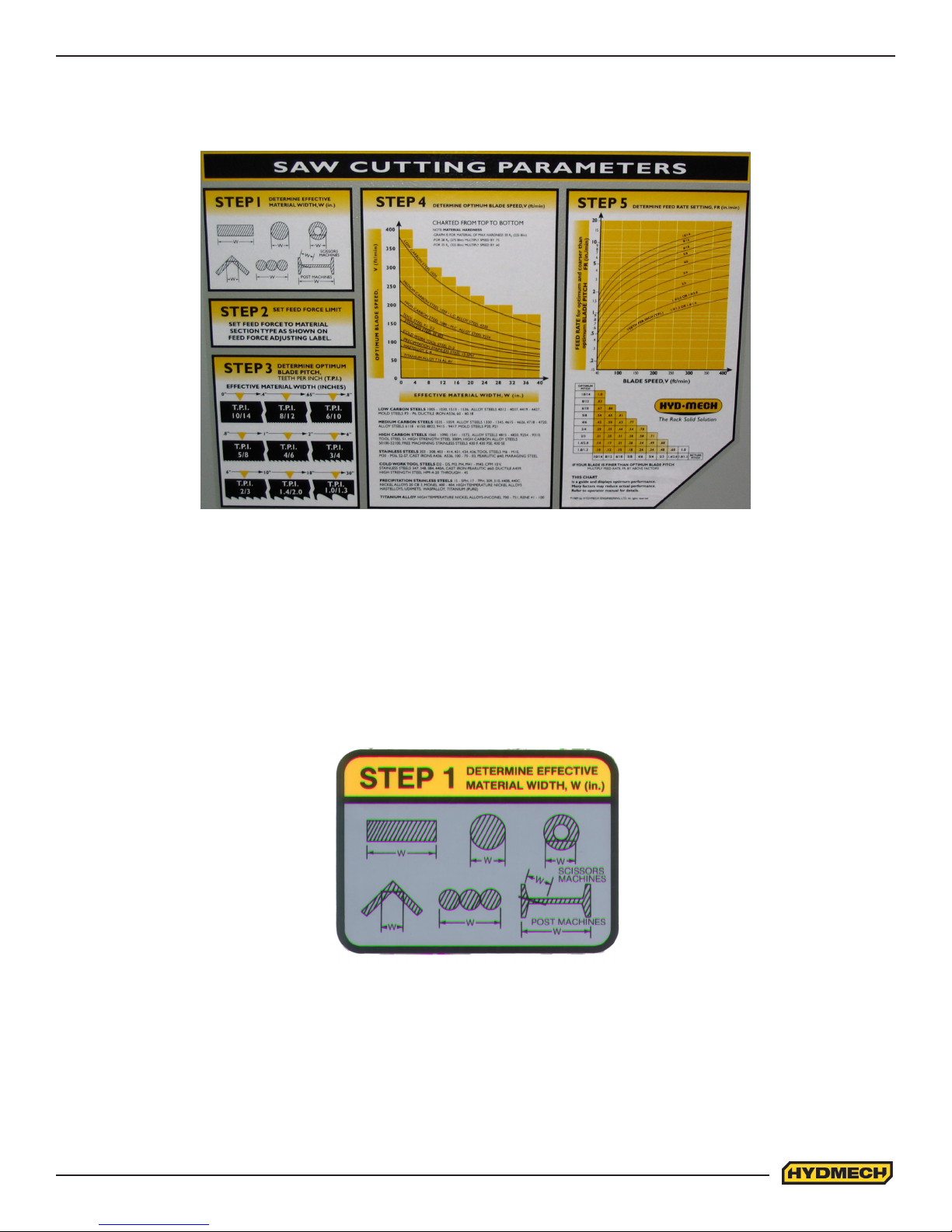

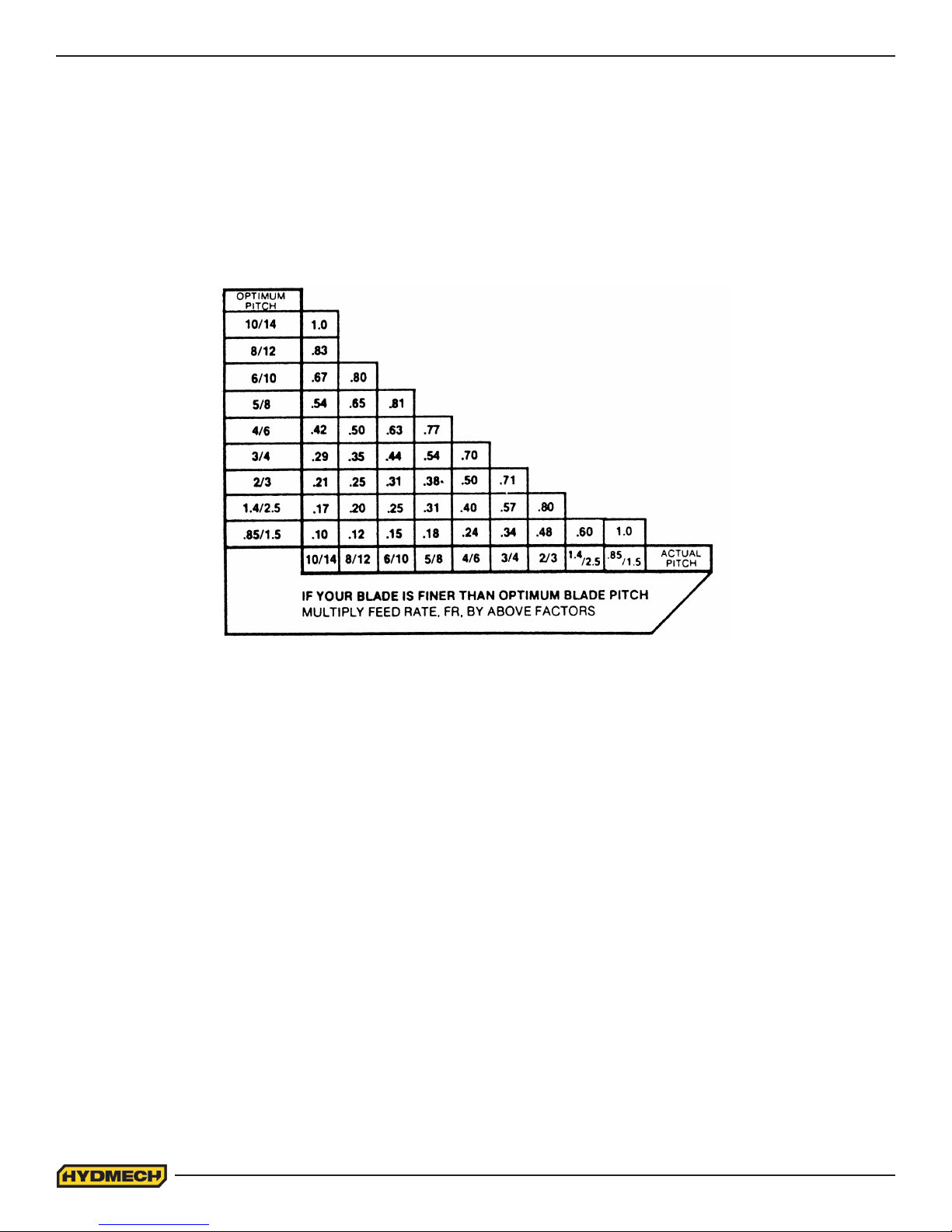

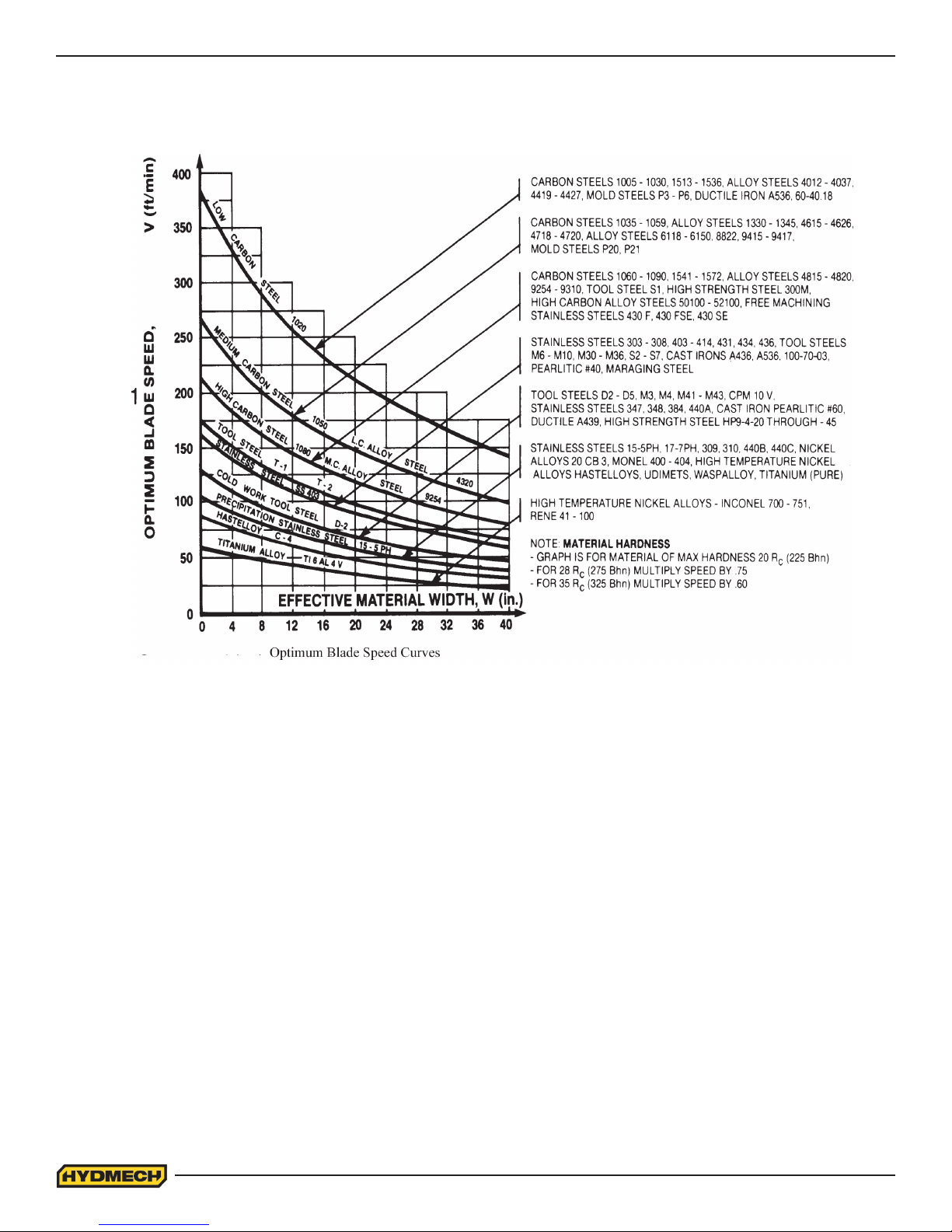

CUTTING PARAMETERS CHART ...................................................................................................2.7

HEAD DOWN LIMIT SETTING .......................................................................................................2.13

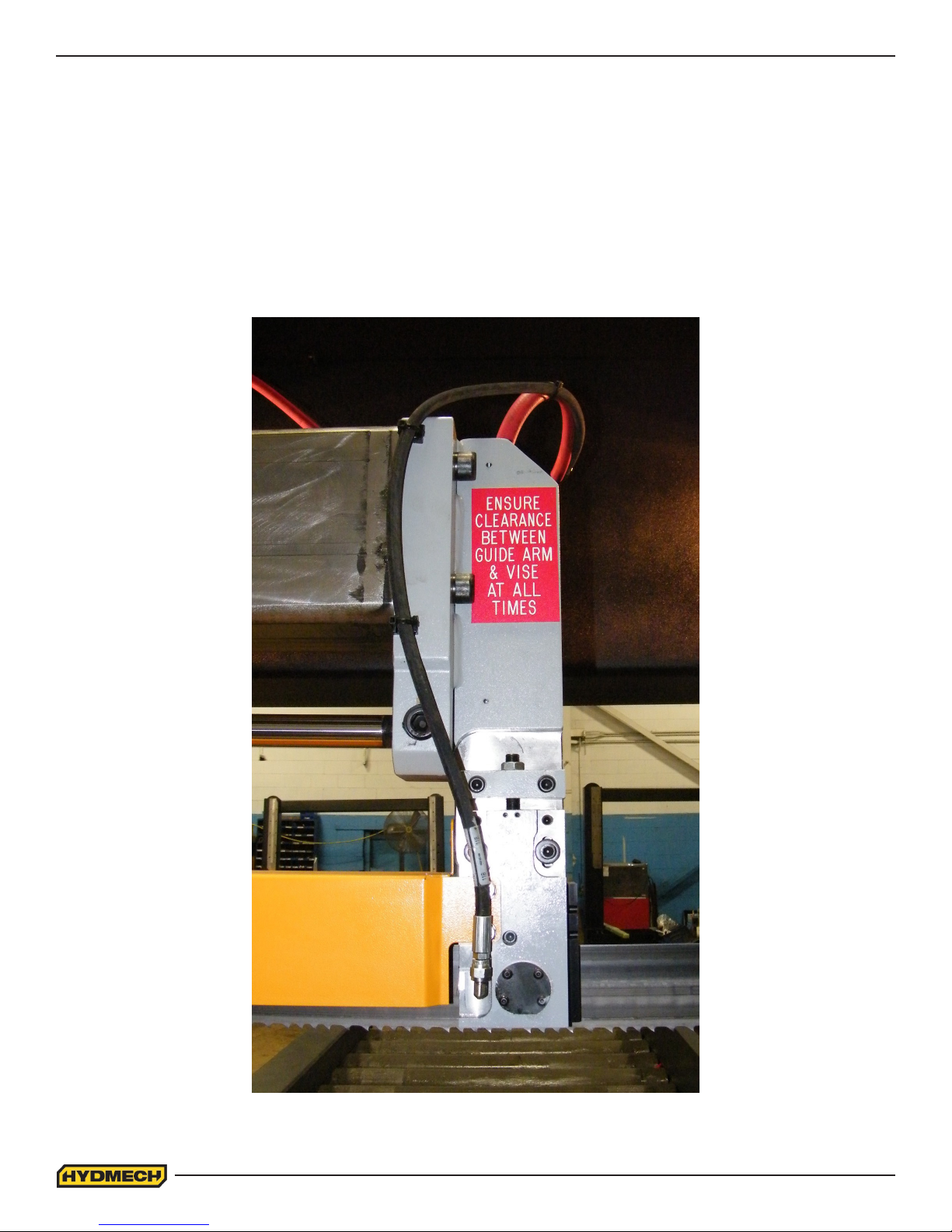

GUIDE ARM POSITIONING ............................................................................................................2.14

COOLANT CONTROLS ..................................................................................................................2.15

SECTION 3 – MAINTENANCE

SAFETY DURING MAINTENANCE AND TROUBLESHOOTING ....................................................3.1

LOCK OUT PROCEDURE ...............................................................................................................3.1

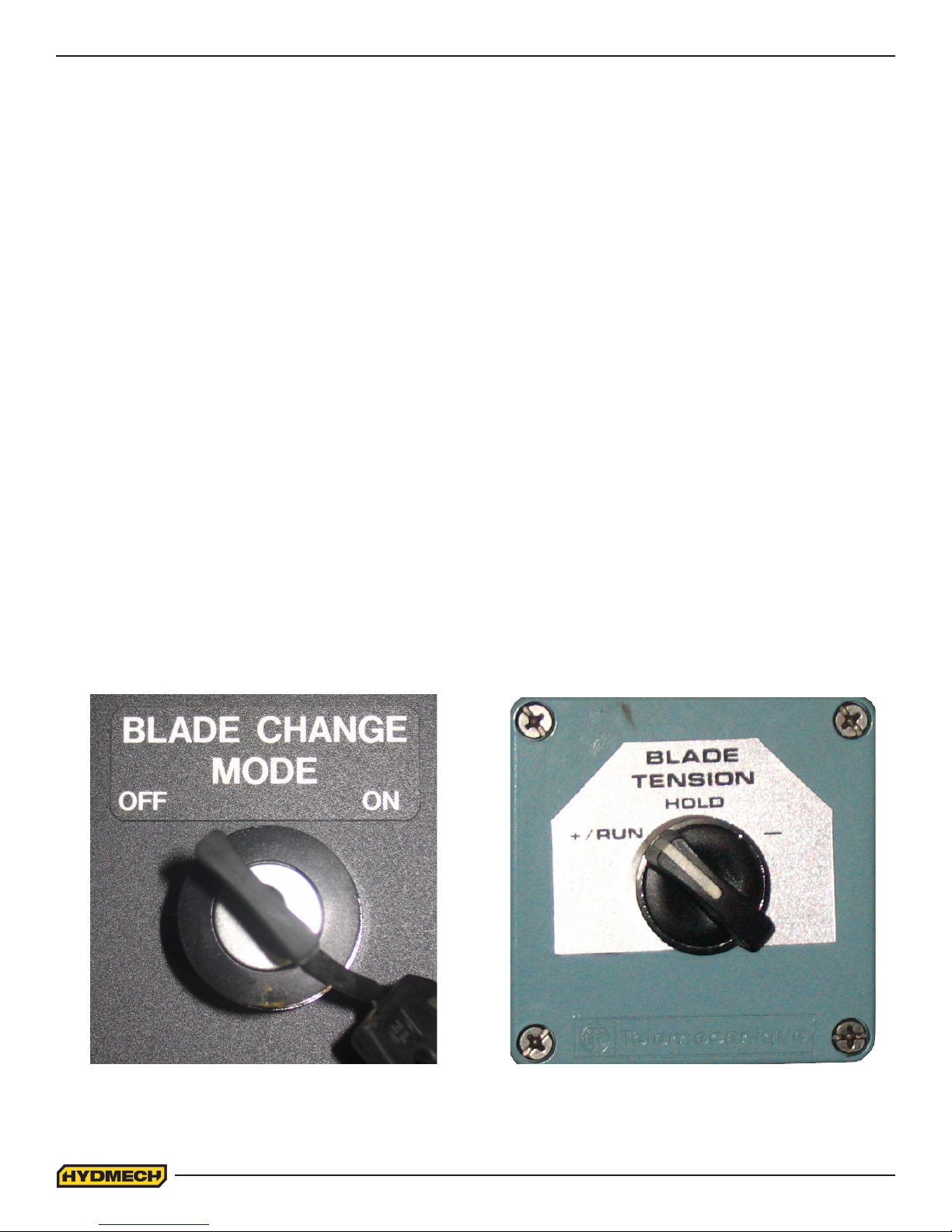

BLADE CHANGE MODE PROCEDURE ..........................................................................................3.2

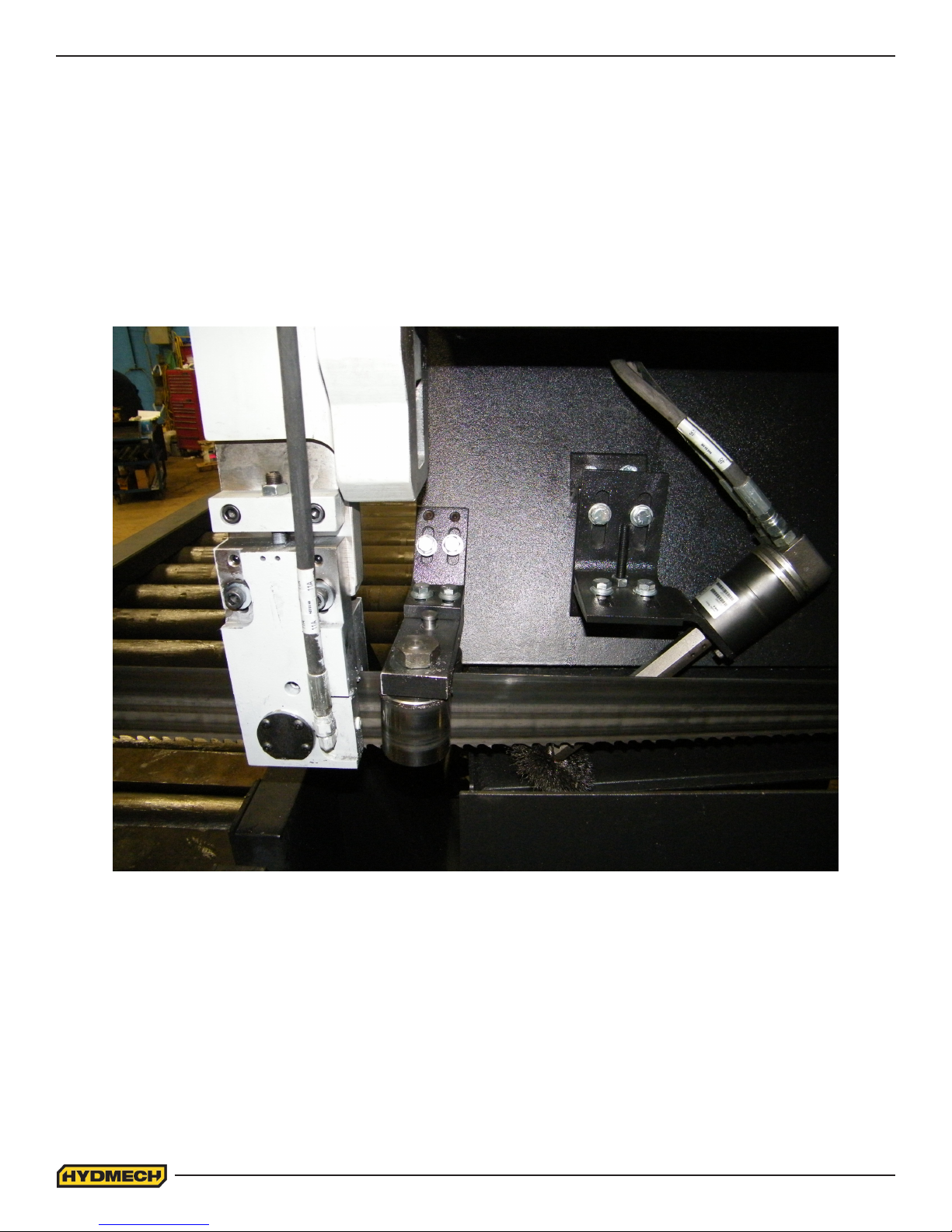

BLADE BRUSH ADJUSTMENT .......................................................................................................3.4

LUBRICATION ..................................................................................................................................3.5

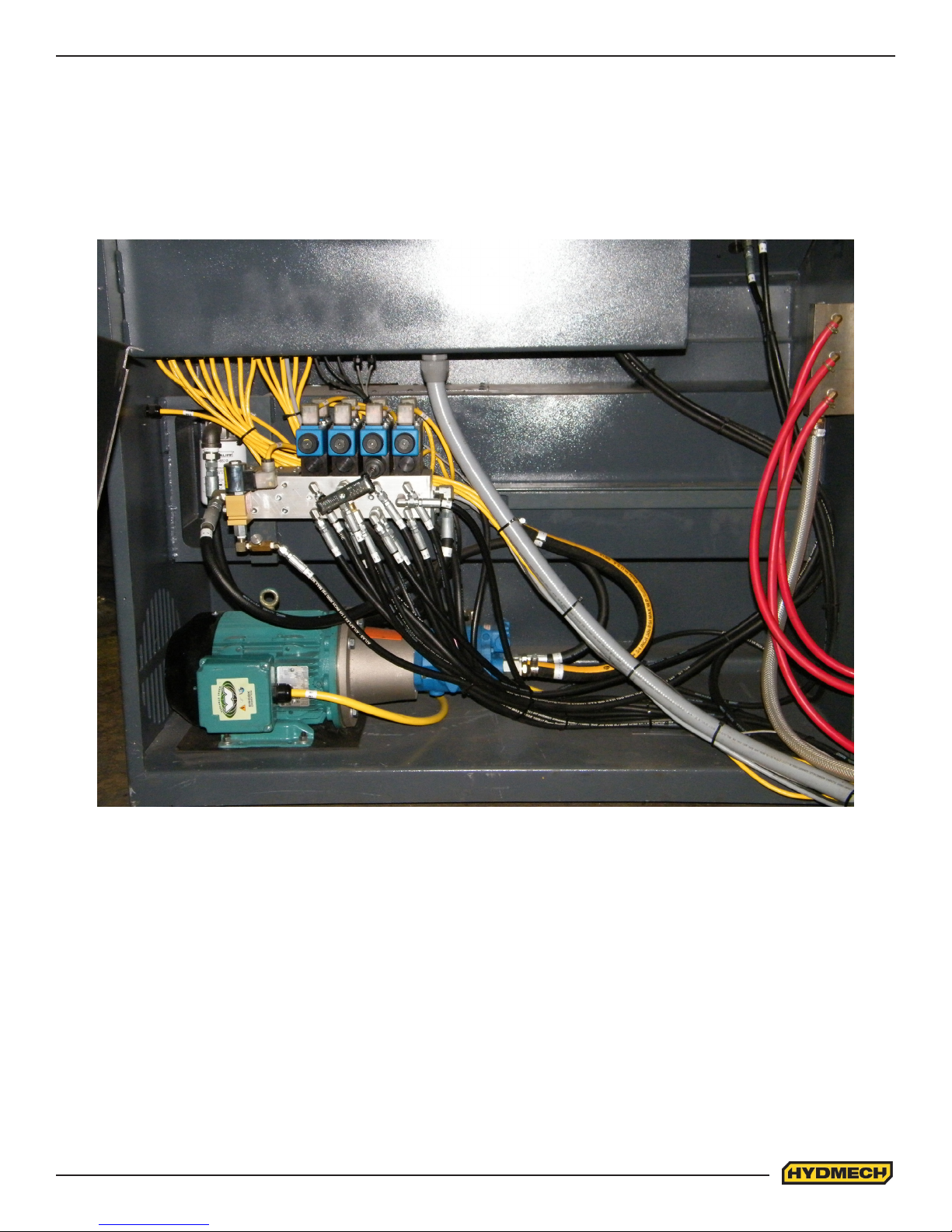

HYDRAULIC MAINTENANCE ..........................................................................................................3.6

CLEANLINESS .................................................................................................................................3.6

TROUBLE SHOOTING GUIDE ........................................................................................................3.7

ELECTRICAL SCHEMATICS: SEE PDF ON ATTACHED CD .........................................................4.1

SECTION 4 - ELECTRICAL

Page 3

SECTION 5 - HYDRAULIC SYSTEM

HYDRAULIC SCHEMATICS & PLUMBING DIAGRAMS: SEE PDF ON ATTACHED CD ...............5.2

LIST OF H-40 HYDRAULIC COMPONENTS ...................................................................................5.2

SECTION 6 - MECHANICAL ASSEMBLIES

MECHANICAL ASSEMBLY DRAWINGS & PARTS LIST: SEE PDF ON ATTACHED CD ................6.1

SECTION 7 - OPTIONS

OPTIONAL ASSEMBLY DRAWINGS: SEE PDF ON ATTACHED CD .............................................7.1

BLADE DEVIATION MONITORING SYSTEM (K10) ........................................................................7.1

SECTION 8 - SPECIFICATIONS

H4040 SPECIFICATIONS ................................................................................................................8.1

H4060 SPECIFICATIONS ................................................................................................................8.2

H4080 SPECIFICATIONS ................................................................................................................8.3

LAYOUT DRAWING .........................................................................................................................8.4

SECTION 9 - WARRANTY

WARRANTY .....................................................................................................................................9.1

Page 4

SECTION 0 - SAFETY INSTRUCTIONS

SUMMARY

All persons operating this machine must have read and understood all of the following sections of this Manual:

Section 0 SAFETY Section 2 OPERATING INSTRUCTIONS

However, as a memory aid, the following is a summary of the Safety Section.

Put Safety First

Mandatory Information – What operators and maintenance people must have read and understood.

Signatures – Everyone involved with this machine must sign to conrm they have read and understood mandatory

information.

Basic Rules – only use this machine when

• It is in good working order.

• All safety equipment is in place and functional.

• Operations are in compliance with this manual.

• Materials are within designed specications and are non-hazardous.

Owner is responsible to

• Keep Manual accessible at the machine.

• Ensure only reliable, fully trained personnel work with the machine.

• Clearly dene responsibilities of all personnel working with the machine.

• Keep the machine in good working order.

Operator and Maintenance Personnel are responsible to:

• Keep all safety equipment in order, check its function at the beginning of each shift, and report any shortcomings.

• Shut down machine and report any faults or malfunctions that could impair safety.

• Understand and obey safety hazard labels.

• Not to wear un-restrained long hair, loose clothing or jewellery.

• Wear all required personal protective equipment.

• Not to wear gloves within 24 inches of moving blade.

• Maintain a clean working area and machine.

• Always use Lock-out when performing maintenance or repairs.

0.1

Page 5

FOREWORD

Put Safety First!

This Safety Section contains important information to help you work safely with your machine and describes the dangers inherent to bandsaws. Some of these dangers are obvious, while others are less evident.

It really is important to PUT SAFETY FIRST. Make it a habit to consider the hazards associated with any action BEFORE

you do it. If you feel any uncertainty, stop and nd a safer approach to the action. If you’re still uncertain, ask for advice

from your supervisor.

The SAFETY FIRST approach is particularly necessary when you do something new, or di󰀨erent, and most people

instinctively recognize this, although impatience may still cause them to take unnecessary risks.

Danger also lurks in the routine task that we have done over and over. Here, familiarity, boredom, or tiredness may lull us into unthinking, automatic repetition. Be alert for this, and when you feel it happening, stop and assess your situation. Review the safety hazards associated with what you are doing. That should get your brain working again.

Certainly production is important, but if you think you’re too busy to put safety rst, think how much production you’ll lose if

you get hurt.

You owe it to yourself, your family, and your co-workers to PUT SAFETY FIRST.

Mandatory Information

All persons operating this machine must have read and understood all of the following sections of this Manual:

Section 0 SAFETY

Section 2 OPERATING INSTRUCTIONS

Personnel involved in installation and maintenance of the machine must have read and understood all sections of the manual

Persons who have di󰀩culty reading, or for whom English is not their rst language, must receive particularly thorough

instruction.

Signatures

Everyone involved in operation of this machine must sign below to conrm that:

I have read and understood all parts of Section 0 – Safety, and Section 2 – Operating Instructions.

Name Date Signature

Everyone involved in the installation, inspection, maintenance, and repair of this machine must sign below to conrm that:

I have read and understood all parts of this Operation and Maintenance Manual.

Name Date Signature

0.2

Page 6

BASIC RULES

Intended Use

Exclusion of Misuse

Liability

Our machines are designed and built in line with the state of the art, and specically in accordance with

American National Standards Institute Standard B11.10 Safety Requirements for Metal Sawing Machines. However, all machines may endanger the safety of their users and/or third parties, and be damaged,

or damage other property, if they are operated incorrectly, used beyond their specied capacity, or for purposes other than those specied in this Manual.

Misuse includes, for example:

Sawing hazardous materials such as magnesium or lead.

Sawing work pieces which exceed the maximum workload appearing in the Specications.

Operating the machine without all original safety equipment and guards.

The machine may only be operated:

When it is in good working order, and

When the operator has read and understood the Safety and Operating Instructions Sections of the Manual, and

When all operations and procedures are in compliance with this Manual.

Hyd-Mech Group cannot accept any liability for personal injury or property damage due to operator errors or non-compliance with the Safety and Operating Instructions contained in this Manual.

RESPONSIBILITIES OF THE OWNER

Organization of work

This Operation and Maintenance Manual must always be kept near the machine so that it is accessible to all concerned.

The general, statutory and other legal regulations on accident prevention and environmental protection must also be observed, in addition to the Manual material. The operators and maintenance personnel must be instructed accordingly. This obligation also includes the handling of dangerous substances and the provision and use of personal protective equipment.

Choice and qualication of personnel

Ensure that work on the machine is only carried out by reliable persons who have been appropriately trained for such work.

Training

Everyone working on or with the machine must be properly trained with regard to the correct use of the machine, the correct use of safety equipment, the foreseeable dangers that may arise during operation of the machine, and the safety precautions to be taken.

In addition, the personnel must be instructed to check all safety devices at regular intervals.

0.3

Page 7

Dene responsibilities

Clearly dene exactly who is responsible for operating, setting-up, servicing and repairing the machine.

Dene the responsibilities of the machine operator and authorize him to refuse any instructions by third parties if they run contrary to the machine’s safety.

Persons being trained on the machine may only work on or with the machine under the constant supervision of an experienced operator. Observe the minimum age limits required by law.

Condition of Machine and Workplace

Ensure that the machine and its safety equipment are kept in good working order.

Ensure that the work area is well lit, and protected from the elements, such as rain, snow, abrasive dust, and extremes of temperature.

Ensure that the machine is installed with su󰀩cient clearance around it for the safe loading and unloading

of work pieces.

RESPONSIBILITIES OF THE OPERATOR AND MAINTENANCE PERSONNEL

Safety equipment

All machines are delivered with safety equipment that must not be removed or bypassed during operation.

The correct functioning of safety equipment on the machine must be checked:

• At the start of every shift.

• After maintenance and repair work

• When starting for the rst time, and after prolonged shutdowns

Emergency Stop Button (E-Stops)

Always be aware of the location of the Emergency Stop Button(s). Do not allow material or objects to block your access to an Emergency Stop.

Damage

If any changes capable of impairing safety are observed in the machine or its operation, such as damage, malfunctions, or irregularities, then appropriate steps must be taken immediately, the machine switched

o󰀨, locked-out, and the fault reported to the responsible person.

Safe operation

The machine may only be operated when in good working order and when all protective equipment is in place and operational.

Keep a safe distance from all moving parts – especially the blade and vises.

Stock should not be loaded onto the saw if the blade is running.

Long and heavy stock should always be properly supported in front of and behind the saw.

Faults

The machine must be switched o󰀨 and locked-out before starting to remedy any faults.

Safety hazard labels

Safety hazard labels and other instructional labels on the machine must be observed. They must be clearly visible and legible at all times. If they become damaged they must be replaced.

0.4

Page 8

Clothing, jewellery, protective equipment

Personnel operating or working on the machine must not wear un-restrained long hair, loose-tting

clothes and dangling jewellery.

When operating or working on the machine, always wear suitable, o󰀩cially tested personal protective

equipment such as safety glasses and safety boots and any other equipment required by workplace regulations.

Gloves

Experience has shown that careless use of gloves around machinery is a major factor in serious hand injuries.

Gloves should not be worn when operating or adjusting the machine, except:

Wear protective gloves when handling bandsaw blades at blade changes.

Gloves may be worn when handling work pieces, only if the machine is in Manual Mode and the bandsaw blade is not running.

If the machine is running in Auto Mode, and only if the cut parts are greater than 24 inches long, it may be possible to safely wear gloves for handling the cut parts, but the wearer of the gloves must never put his hands near the blade for any reason. If the cut

parts are less than 24 inches long, it is required to arrange their automatic ow into a parts bucket or other suitable arrangement to avoid the necessity to pick them o󰀨 the

machine by hand.

Hearing protection

Ear protection must be worn whenever necessary.

The level and duration of noise emission requiring hearing protection depends upon the national regulations in the country in which the machine is being used.

The actual level of noise emission by band sawing machines depends upon work piece size, shape and material, blade type, blade speed and feed rate.

The only practical course of action is to measure the actual noise emission levels for the type of work that is typically done. With reference to national standards, decide upon the necessary hearing protection required.

In the absence of such measurements, it is advisable for anyone exposed to long periods of moderate to loud noise to wear hearing protection. It is important to understand that hearing loss is gradual and easily goes un-noticed until it is serious and irreversible.

Workplace

A clear working area without any obstructions is essential for safe operation of the machine. The

oor must be level and clean, without any build-up of chips, o󰀨-cuts, coolant, or hydraulic oil.

The workplace must be well lit, and protected from the elements, such as rain, snow, abrasive dust, and extremes of temperature

Nothing may ever be placed on, or leaned against the machine, with the obvious exception of the work piece on the table and conveyor of the machine.

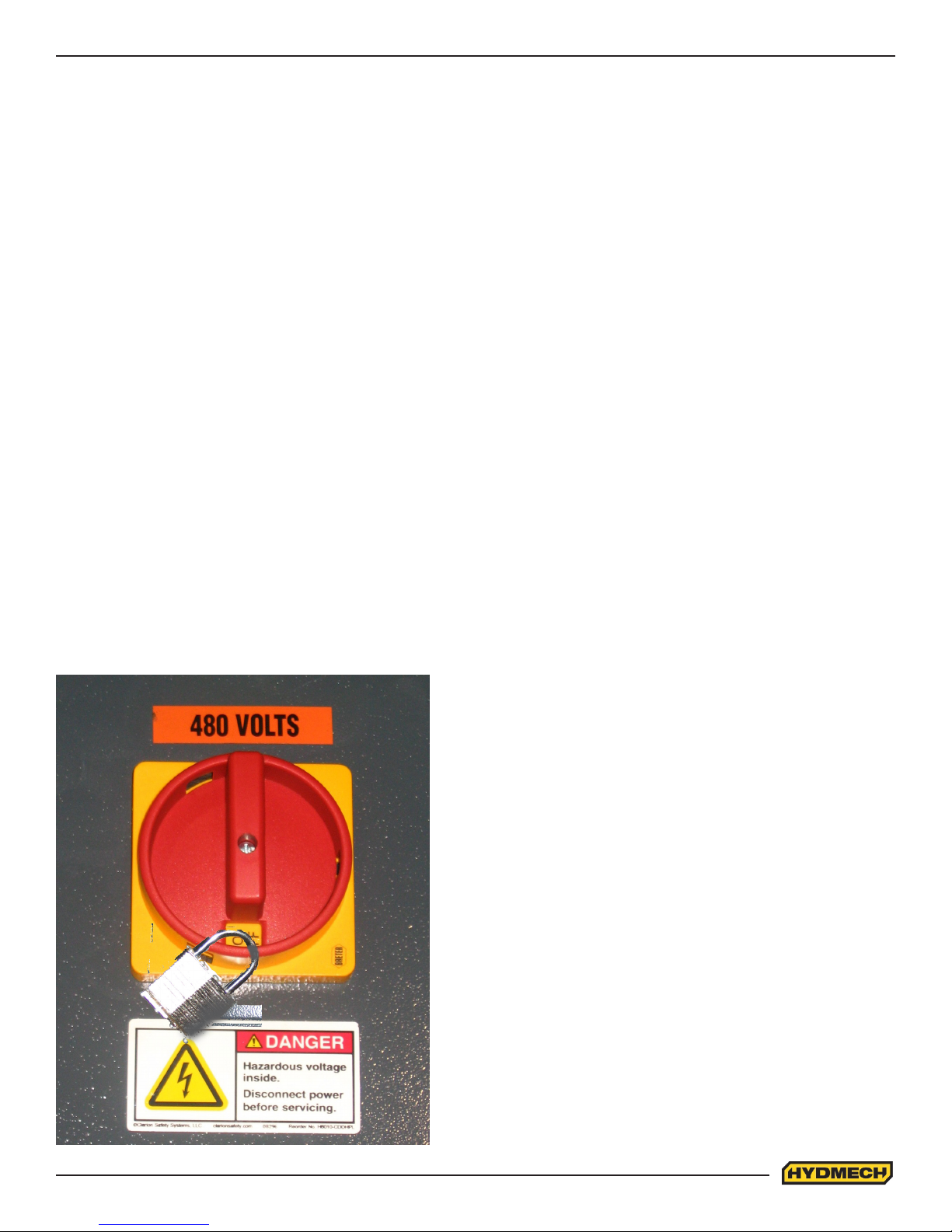

Master Disconnect

Lock-out the machine before undertaking any maintenance or repair work on it. ‘Lock-out’ refers switching o󰀨 the master electrical disconnect switch, and locking it out so that it cannot be switched on again

without authorization.

0.5

Page 9

On Hyd-Mech machines the Master Disconnect Switch will be of one of four types:

• Rotary switch mounted in electrical control cabinet door and inter-locked with door.

• Rotary switch mounted on the side of the operator interface console.

• Lever switch mounted in separate box on the machine.

• Supply disconnect switch supplied by user at installation and usually wall-mounted within sight of

the machine, depending upon local regulations.

In almost all jurisdictions, it is required that owners of industrial equipment establish and post lock-out procedures. Know and use the lock-out procedures of your company or organization.

Residual Risks

The machine is still not completely de-energized if an electrical cabinet door type switch is locked-out.

The line side of the disconnect switch itself remains energized.

Variable speed blade drives store dangerous voltage in their capacitors, and this requires time to dissipate. After locking out power, wait 3 minutes before beginning to work on machine electrical circuits.

If compressed air is supplied to the machine to power a mist lubrication system or other devices, it should be disconnected, and any stored air pressure released before working on the machine.

The weight of individual machine components represents stored potential energy that can be released if they fall when disconnected. Secure these components with adequate hoisting gear before disassembly.

SAFETY HAZARD LABELS

The safety hazard labels attached to your machine represent important safety information to help you avoid personal injury or death. All supervisors, operators, and maintenance personnel must locate and understand the safety information associated with each hazard label prior to operating or servicing the machine. The safety hazard labels shown below are located at various positions on the machine to indicate possible safety hazards. The location and re-order part number of all the safety labels associated with this particular model of bandsaw are indicated at the end of this section of the manual. It is important to replace any safety hazard label that becomes damaged or illegible.

HAZARDOUS VOLTAGE INSIDE

Contact with high voltage may cause death or serious injury. Never perform

maintenance on, or near, electrical components until the machine’s electrical

power source has been disconnected. Lock-out power in accordance with

your company’s lock-out procedures before any such maintenance. The “Stop” or “Emergency Stop” push button does not disconnect the machine’s

power supply. Hazardous voltage is still present in the machines electrical circuits.

The machine’s Electrical Disconnect Switch does disconnect voltage from the machine’s circuits; however hazardous voltage is still present inside the main electrical cabinet, on the infeed

(line) side of the main fuses. Therefore keep hands and tools away from the infeed side of the control panel main fuses. If these fuses need to be replaced, use a fuse puller. Allow three minutes after locking-out power before opening any electrical enclosures. Your machine may be equipped with a variable frequency drive that stores high voltage within its capacitors. Three minutes will allow

su󰀩cient time for this voltage to safely discharge.

Never spray coolant directly at electrical components or cabinets.

0.6

Page 10

MOVING BANDSAW BLADE WILL CUT

Do NOT operate with guard removed.

Do NOT place hands or ngers near moving bandsaw blade.

For blade changing, always follow the proper Blade Changing Procedure, as given in Section 3 of this manual.

PINCH POINT

Machine parts may move without warning, either because the machine is operating automatically, or because another person initiates the motion. Keep hands clear of all labelled pinch points, whenever the machine is running. Machine vises can exert great force and cause severe injury. Keep hands clear of vises and work piece when vises are opened or closed. Be aware that vise closing or opening may result in potentially dangerous work piece movement. Be aware also that the opening motion of a vise may create potential pinch points.

MOVING PARTS CAN CRUSH AND CUT

Keep hands clear of chip auger. Lock-out power in accordance with your

company’s lock-out procedures before attempting to clear a jam in the

chip auger. Be aware that the chip auger may start unexpectedly, either because the machine is operating automatically, or because another person initiates the motion. If the chip auger is stalled because of a jam, it may start without warning when the jam is cleared, unless the machine power is locked out.

0.7

Page 11

SECTION 1 - INSTALLATION

Upon delivery of your new H-40 saw, it is imperative that a thorough inspection be undertaken to check for any damage that could have been sustained during shipping. Special attention should be paid to the electrical and

hydraulic systems to check for damaged cords, hoses and uid leaks. In the event of damage caused during shipping, contact your carrier to le a damage claim.

SAFETY PRECAUTIONS

The H-40 has been designed to give years of reliable service. It is essential that operators be alerted to the safe operation of this saw, and the practices to avoid that could lead to injury. The following safety rules are at the minimum necessary for the safe installation, operation, and maintenance of the saw. Take every precaution for the protection of operators and maintenance personnel. At the beginning and through out this manual there are precautionary indicators, these will inform you of areas which require special attention.

• POWER HOOK-UPS AND REPAIRS SHOULD BE ATTEMPTED ONLY BY QUALIFIED TRADESMEN.

• THE SAW SHOULD BE LOCATED IN AN AREA WITH SUFFICIENT ROOM TO SAFELY LOAD STOCK INTO THE SAW. SECURE THE SAW TO THE FLOOR.

• THE AREA AROUND THE SAW SHOULD BE MAINTAINED IN A CLEAN AND TIDY CONDITION TO AVOID OBSTACLES OPERATORS COULD TRIP OVER.

• THE H-40 SAW SHOULD ONLY BE OPERATED ACCORDING TO THE SPECIFICATIONS OF THE SAW AVOID UNSAFE USAGE PRACTICES.

• IF AT ANY TIME THE SAW DOES NOT APPEAR TO BE OPERATING PROPERLY IT SHOULD BE STOPPED IMMEDIATELY AND REPAIRED.

OPERATOR:

• THE SAW SHOULD NEVER BE OPERATED UNLESS ALL GUARDS AND DOORS ARE IN PLACE AND CLOSED.

• KEEP A SAFE DISTANCE FROM ALL MOVING PARTS – ESPECIALLY THE BLADE AND VISES.

• LOOSE CLOTHING AND GLOVES SHOULD NEVER BE WORN WHILE OPERATING THE SAW, COVER LONG HAIR.

• STOCK SHOULD NOT BE LOADED ONTO THE SAW IF THE BLADE IS RUNNING.

• LONG AND HEAVY STOCK SHOULD ALWAYS BE PROPERLY SUPPORTED IN FRONT OF AND BEHIND THE SAW.

• NEVER ATTEMPT TO DISLODGE OR MOVE STOCK WHILE THE BLADE IS MOVING. TAKE THE TIME TO STOP THE SAW BLADE, REMOVE OBSTRUCTIONS, AND RESTART BLADE.

• MUST WEAR EYE PROTECTION.

• MAINTAIN PROPER ADJUSTMENT OF BLADE TENSION, BLADE GUIDES, AND BEARINGS.

• HOLD WORKPIECE FIRMLY AGAINST TABLE.

• DO NOT REMOVE JAMMED CUTOFF PIECES UNTIL BLADE HAS STOPPED.

NO MODIFICATIONS TO THE MACHINE ARE PERMITTED WITHOUT PRIOR APPROVAL FRO HYD-MECH. ANY APPROVED MODIFICATIONS SHOULD ONLY BE UNDERTAKEN BY TRAINED PERSONNEL.

1.1

Page 12

LIFTING THE H-40

The machine weight for a H40-40 is 39,000lbs (17690Kg) or 42,000lbs (19051Kg) with the optional outboard vise. The machine weight for a H40-60 is 42,000lbs (19051Kg) or 45,000lbs (20412Kg) with the optional outboard vise. The machine weight for a H40-80 is 46,000lbs (20865Kg) or 50,000lbs (22680Kg) with the optional outboard vise.

1.2

Page 13

THE DATA/DESIGN CONTAINED HEREIN IS PROPRIETARY

AND CONFIDENTIAL.REPRODUCTION,PUBLICATION OR

DISTRIBUTION OF ANY PART REQUIRES WRITTEN CONSENT

OF HYD-MECH GROUP.THIS DATA IS THE PROPERTY OF

HYD MECH GROUP AND ITS POSSESION CONFERS NO

LICENSE TO USE OR RIGHT OR LICENSE TO DISCLOSE IT

TO OTHERS FOR ANY PURPOSE WHATSOEVER.

MACHINE LAYOUT

126"

146"

100.75"

120.75"

221"

241"

A B C D

41"

61"

H4040

H4060

166"

140.75"

261"

81"

H4080

1-8 UNC (x4)

148

143

SHEET

SCALE

CHKED BY:

OF 1

1:66

DATE:

COATING:

REV

No Coating

H40-0-00

EngCoop

Jan 21, 2016

DRWN BY:

PART WEIGHT:

DRAWING NUMBER:

DATE:

WOODSTOCK. ONTARIO. CANADA N4S 0A9

HYDMECH GROUP LIMITED

MAT'L:

COMPONENT GROUP:

SECTION A-A

00 - Top Level

MODEL:

H4040

TITLE

H4040, H4060, H4080 MACHINE LAYOUT

MATERIAL CODE:

FOUNDATION PLAN

UNLESS

HYDMECH

STANDARD

TOLERANCES

SPECIFIED

OTHERWISE

DIMENSIONS

ARE IN INCHES

THIRD ANGLE PROJECTION

25.25

2.5

DATE

3.5

REVISIONS

ECN NUMBER

120

119

REV

1.3

Page 14

FOUNDATION, LEVELING AND ANCHORING

Machine location should be carefully selected. A at concrete oor area should be chosen. It should have enough free

space surrounding the machine to enable free access for safe operation and maintenance.

The machine should be leveled in both directions, i.e. along and across its infeed conveyor especially when machine is to be inserted into a larger conveyor system. The photo below shows the conveyor from the infeed side.

Four leveling screws are provided, one in each corner of the machine base. Steel plates are to be placed under each

screw to prevent their sinking into the concrete oor.

NOTES: In some cases leveling the saw infeed and auxiliary conveyors with a slight slope towards the blade are recommended. This will prevent coolant from running down the raw stock. (This is especially true when cutting tubing or bun-

dles).

H-40 INSTALLATION PROCEDURE

1) Machine location should be carefully selected. A at concrete oor area should be chosen and have enough free

space surrounding the machine to enable free access for safe operation and maintenance.

2) Cut strapping and remove conveyor drive & chip bucket from saw rollers.

3) Remove coolant tank & position at the left side of the saw (facing from front).

4) Remove leveling pads from inside coolant tank & place under saw base leveling bolts.

5) Check machine level from side to side & back to front. A slight incline (1/8”-1/4” rear of saw higher) will assist

coolant ow back into return tray. Ideally if the machine is sitting at on the oor & the level is good do not

touch leveling bolts. If leveling bolt adjustment is necessary use shims supplied and place under 6 corners of

base frame. Remove leveling bolts and re-check level. If level is unchanged anchor machine to the oor using

adjusting bolt holes.

6) Install infeed conveyor drive with bolts supplied. Install the conveyor drive chain.

1.4

Page 15

For machine shipping purposes the following items have been removed from the saw.

• Infeed conveyor gearbox and motor

• Bearing housing support

• Chain guard

Once the machine has been installed, levelled and anchored the above three items are to be installed as follows:

1. Install the gearbox and motor (1) using the four bolts and use the gearbox as a tensioner by moving it up and down before completely tightening the four bolts.

2. Install the chain guard over the sprockets.

3. Install the bearing housing support (2).

4. Install the chain guard (3).

1.5

Page 16

HYDRAULIC OIL AND CUTTING FLUID

The H-40 bandsaw is supplied with Texaco 46 hydraulic oil. If it in necessary to change the oil to di󰀨erent brand see the

HYDRAULIC SECTION for equivalent grade oil.

No cutting uid is supplied with machine. There are two types of coolant available:

-Oil based; dilute 1:10 ratio. (one part concentrated coolant to 10 parts water)

-Synthetic; dilute as recommended by the manufacturer.

WIRING CONNECTIONS

After the machine is leveled and anchored the necessary power hook-up needs to be performed. In order to provide

a safe operation as well as to prevent potential damage to the machine, only qualied personnel should make the

connections.

BEFORE START-UP THE FOLLOWING TWO POINTS SHOULD BE CHECKED:

-Signs of damage that may have occurred during shipping to the electrical cables and the hydraulic hoses.

-The hydraulic oil level is between the upper and lower lines on the level gauge on the front of the control panel base.

As supplied, the machine is set to run on three phase voltage as indicated on the serial plate and voltage label. Power connection to the machine is made to machine disconnect and ground connections inside the electrical panel as shown below.

During the initial hook-up it is very important to check that the phase order is correct. This is indicated by the hydraulic pressure gauge registering a pressure rise and the blade running in a counter clockwise direction. If the hydraulics do not

ATTENTION:

1) Running the hydraulics “backwards” can damage the hydraulic pump.

2) After checking the hydraulic pressure and BEFORE INSTALLING the drive chain between

the infeed conveyors, check that the conveyors are running in the correct direction. If they are not, change any two phases at the MOTOR JUNCTION BOX for each motor as required.

Power connections should be made by qualied personnel only

1.6

Page 17

L1 L2 L3

Ground connection

Electrical panel located behind the head on the drive side

1.7

Page 18

SECTION 2 - OPERATING INSTRUCTIONS

This section has been prepared to give the operator the ability to set up the saw for most cutting situations. Before cutting any material, the operator should be familiar with all operations and controls as well as the basic cutting theory described below. The saw is equipped with variable blade speed and hydraulic feed control, as well as an extensive door chart to guide the operator to the correct setting of these controls.

BLADE BASICS

Technology is rapidly changing all aspects of production machining. Metal cuto󰀨 is no exception. The advances made in the bandsaw blade industry have denitely brought down the cost per cut, despite the three fold higher price of high

technology blades. Variable pitch, bi-metal blades (like the 4/6 or 3/4 bi-metal blade supplied with the machine) last much longer, cut faster, and more accurately than conventional carbon steel blades. In order to take advantage of the superiority of bi-metal blades, it is critical to properly “break-in” a new blade. This is accomplished by taking two or three cuts through

solid four or ve inch diameter mild steel at an extremely slow feed rate. (It is also advisable to utilize a slow blade speed)

These two or three slow cuts su󰀩ciently lap (polish) the teeth on the new blade so that it does not snag the material being cut. Proper break-in will alleviate blade vibration; improve surface nish, accuracy, and blade life.

After “break-in”, the following six points must be closely monitored to ensure long blade life:

1. Proper blade tension should be maintained. (See Section 3, Maintenance and Troubleshooting)

2. Generous coolant application is essential with most materials. A high quality and well mixed coolant will extend blade life, and also increase cutting rate and quality. On those materials where coolant is undesirable for cutting,

a slight coolant ow or periodic oiling of the blade is necessary to prevent the blade from being scored by the

carbide guides.

3. The stock being cut must be securely clamped in the vises.

4. The proper feed force should be chosen. (see Saw Cutting Parameters: Step 2)

5. The proper blade speed must be selected. (see Saw Cutting parameters: Step 4)

6. The proper feed rate must be applied. (see Saw Cutting Parameters: Step 5)

VARIABLE SPEED CONTROL

Blade speed can be adjusted innitely between 75 and 270 SFM (Surface Feet/Minute) (23 to 82 m/min) Adjustment should be made only when the blade is running. Clockwise rotation of the knob increases blade speed while counter clockwise rotation decreases blade speed.

THE CONTROL PANEL

START-UP

The control console has been designed to simplify the operation of the saw, to give the operator the ability to stop any function at any time, and to be able to control all the functions remotely. We cannot overstress the importance of familiarizing yourself with the controls prior to star ting the machine.

NOTE:

1. ALL SWITCHES MUST BE IN THE CENTER NEUTRAL POSITION TO START THE MACHINE!

2. WHEN STARTING THE MACHINE FOR THE FIRST TIME MAKE SURE THAT BLADE IS MOVING IN A

COUNTERCLOCKWISE DIRECTION, AND THAT THE HYDRAULIC PRESSURE IS:

-1200 PSI FOR H-40/40 AND H-40/60

-1300 PSI FOR H-40/80

MANUAL OPERATION

Manual Operations can be performed by using the control buttons on the HMI. All functions are self-explanatory. Specic

control button functions are described on the following pages.

2.1

Page 19

EMERGENCY STOP

Stops blade and hydraulic motors. Head motion will stop and vise clamping pressure will begin to fall o󰀨. Long pieces of work should always be supported so they will not become loose over time and fall while the machine is shut down. This is a latched button and must be pulled out to start the machine.

BLADE STOP

When depressed the blade will stop. Blade motor will stop automatically when head reaches head down limit switch.

HEAD CONTROL

This switch has three positions: UP, HOLD, and DOWN. UP causes head to rise until it mechanically cannot raise any higher or the switch is moved to HOLD. In HOLD head movement stops. In the DOWN position the head will descend until it reaches the lower limit switch. The speed or rate of descent is controlled by the FEED RATE VALVE.

CONVEYOR FORWARD

When depressed, the selected conveyor’s rollers rotate in a direction which would move material

forward from behind the saw head toward the front of the machine. Releasing the push button deactivates conveyor motor(s) and movement will stop.

FRONT VISE

This switch has three positions, OPEN, NEUTRAL and CLOSE. With the switch held in the OPEN position the vise will open all the way or until the switch is released. With the switch in the NEUTRAL position, the vise will stay where it is and will not move freely although it will not resist

a large force indenitely without creeping. In CLOSE, the vise will close all the way, or until it

encounters enough resistance to stop it.

2.2

Page 20

HYDRAULIC START

To start the hydraulic system, the switches for the head and vises must be in the “NEUTRAL” position. The “HYDRAULIC START” button must be depressed and held in momentarily until the PLC display becomes active.

BLADE START

Starts the blade when depressed. Only active with hydraulics running and saw head up, o󰀨 of

lower limit switch.

GUIDE ARM

Three position, spring centered switch. When held to the IN position, the moveable guide arm will

move in toward the xed guide arm. OUT retracts the moveable arm away from the xed guide

arm. When released, the switch returns to the center position allowing no guide arm movement.

ENSURE CLEARANCE BETWEEN GUIDE ARM AND VISES AT ALL TIMES.

CONVEYOR REVERSE

When depressed, the selected conveyor’s rollers rotate in a direction which would move material toward the back of the machine. Releasing the push button deactivates conveyor’s motors and

movement will stop.

REAR VISE

a large force indenitely without creeping. In CLOSE, the vise will close all the way, or until it

encounters enough resistance to stop it.

BLADE SPEED

Allows for increase or decrease of blade speed while blade motor is running.

COOLANT

This switch has three positions, AUTO, OFF, and ON. In the ON position, the coolant system

will operate when there is power to the machine; this allows using the wash gun to clean the

machine. In the OFF position, the coolant system is inactive. In the AUTO position the coolant system will only run when the blade is on. The coolant system can also be run only when both

the blade is on and the head is descending by selecting this option in the PLC parameters.

CONVEYOR SPEED

Allows for increase or decrease in speed of selected conveyor(s) when FORWARD or REVERSE push buttons are depressed.

2.3

Page 21

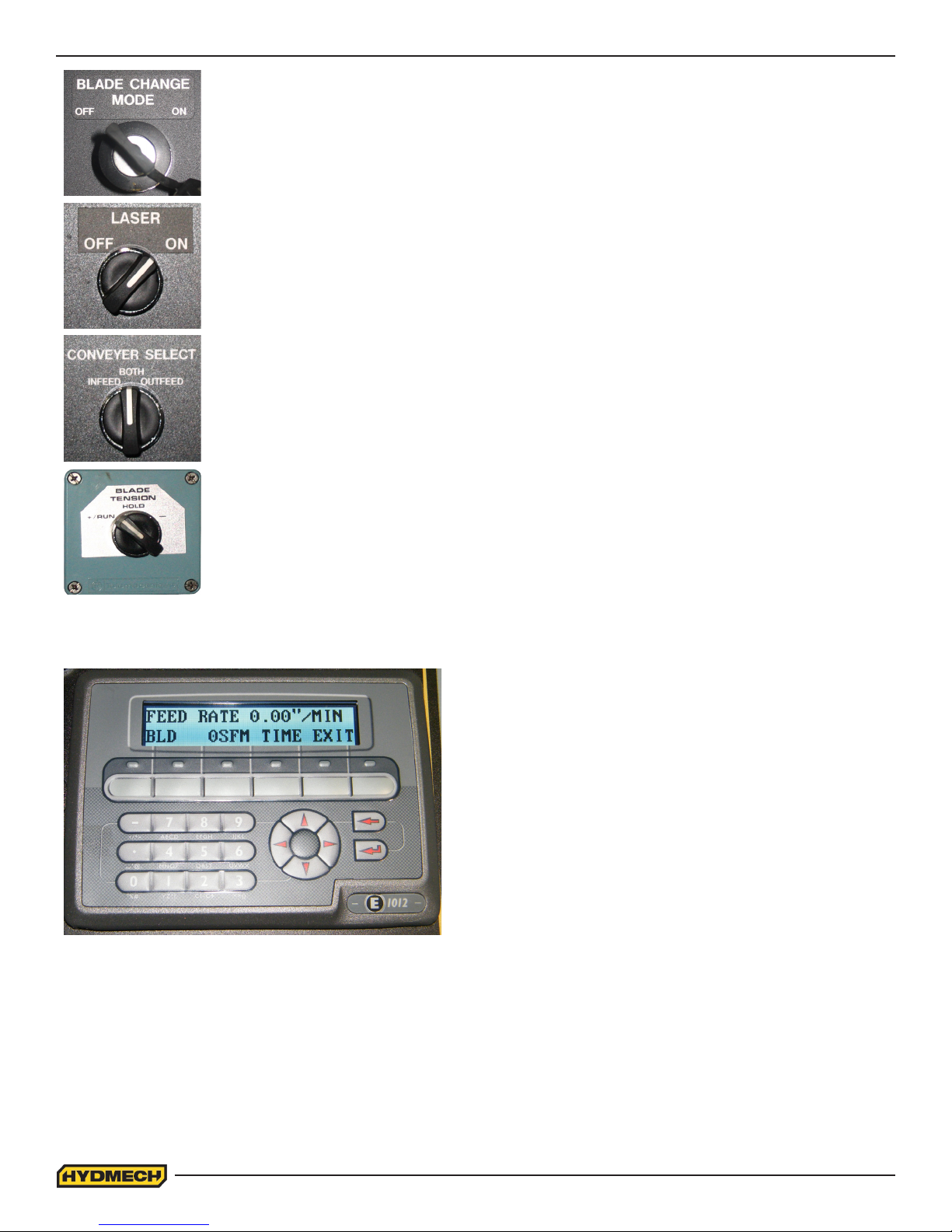

SAFETY LOCK

This lock is provided for the safety of the operator during the blade changing procedure. When the lock is in the “ON” position, the door interlocks are disabled and the only functions that are active are the HEAD and BLADE TENSION controls. All other controls are inactive. After the blade has been changed the lock must be switched to “OFF” in order to operate the machine.

LASER

This option switch has two positions, OFF & ON.

CONVEYOR SELECT

Three maintained positions: INFEED, BOTH, and OUTFEED. Selects the conveyor(s) to move when the CONVEYOR FORWARD or REVERSE PUSH BUTTONS are used.

BLADE TENSION

Located in the idler wheel box, is a three position maintained switch: Normal running position is +/RUN. This position will keep constant tension on the blade. In the center HOLD position the idler wheel is held in position with not tension applied to the blade. The “-“ position retracts the idler wheel, releasing blade tension and allowing for blade removal.

DISPLAY

The following information is displayed on the E1012 HMI:

1. Head Height. (Inches)

2. Feed Rate. (Inches/minute)

3. Blade Speed. (surface feet/minute)

4. Cutting Time Elapsed.

5. Cut Time Remaining. (Before Head Down switch is activated)

2.4

Page 22

When the machine is initially powered the LCD will show company logo and software version. On activation of a push button or selector switch the LCD display will show the head height.

Depressing the button under B RUN will change the screen to show FEED RATE and BLADE SPEED.

Depressing the button under TIME will change the screen to show CUTTING TIMES.

Depressing the button under EXIT will change the display to the previous screen.

2.5

Page 23

HYDRAULIC FEED CONTROL

The Hydraulic Feed Control is located to the left of the control panel. These controls allow independent control of Feed Force (FF) and Feed Rate (FR)

FEED FORCE IS FACTORY PRESET AND CANNOT BE ADJUSTED ON ANY H40 MODEL.

FAST APPROACH LEVER. DEPRESS FOR FAST HEAD DESCENT

FEED RATE KNOB USED TO SET FEED RATE (COUNTERCLOCKWISE ROTATION TO INCREASE AND CLOCKWISE ROTATION TO DECREASE).

2.6

Page 24

CUTTING PARAMETERS CHART

A full size CUTTING PARAMETERS CHART is mounted on the front of the saw. The chart contains ve steps for the

operator to follow in order to achieve optimum performance of the saw. These steps are detailed on the following pages.

Saw Cutting Parameters Chart

CHART EXAMPLE #1

We will use the parameters chart to set up the saw for cutting 8” (200mm) Diameter #1045 Carbon Steel.

STEP 1: DETERMINE EFFECTIVE MATERIAL WIDTH - W (inches) or (mm)

E󰀨ective material width, W (in.) for most common shapes of materials, is the widest solid part of the material to be in

contact with blade during cutting. For simple shapes, as illustrated on the chart, this can be directly measured. For

bundles of tubes and structurals, measuring the e󰀨ective width is di󰀩cult. E󰀨ective width is 60% to 75% of the actual

material width.

Material Width Chart

NOTES:

1. E󰀨ective material width, as determined here in STEP 1, can be thought of as the average width of material “seen”

by each tooth, and it is used in STEPS 3 and 4.

In Example #1, for an 8” (200 mm) diameter solid, E󰀨ective Material Width is 8” (200mm).

2.7

Page 25

STEP 2: SET FEED FORCE LIMIT (DOES NOT APPLY TO H40 MACHINES AS FEED FORCE IS FACTORY PRESET)

The Feed Force Limit is the maximum amount of force with which the head is allowed to push the blade into the work-piece.

CUTTING SOLIDS

For cutting solids, the wider the section, the less FF should be set, to avoid blade overloading. See the graph below.

% OF FF

SETTING (INDICATED ON LABEL)

MAT’L WIDTH AS %

OF SAW CAPACITY

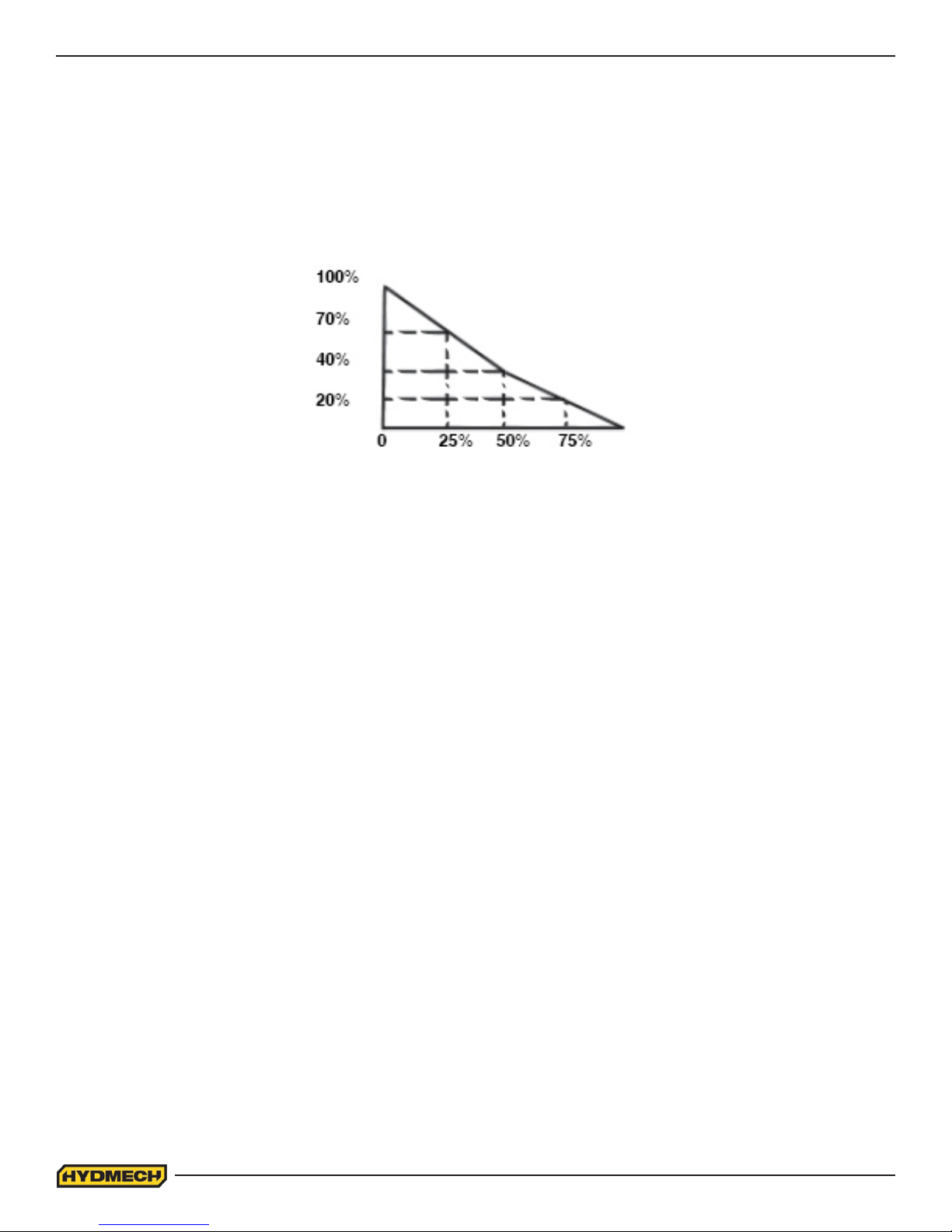

EXAMPLE: When cutting a solid which is 1/2 of machine capacity using the graph, locate 50% on the horizontal line and

travel upwards to the plotted line and then travel directly across to the vertical FF Setting line. The point that you have

arrived at shows a setting of 40% for a piece 50% of capacity.

CUTTING STRUCTURALS: A reduced Feed Force Setting is used when cutting structurals.

2.8

Page 26

STEP 3: DETERMINE OPTIMUM BLADE PITCH - TEETH PER INCH (T.P.I.)

Selecting a blade with proper tooth pitch is important in order to achieve optimal cutting rates and good blade life.

For cutting narrow or thin wall structural materials a ne blade with many teeth per inch (T.P.I.) is recommended. For wide

materials a blade with a coarse pitch should be used. The sketch can be referenced for the blade pitch changes for

di󰀨ering e󰀨ective material widths.

Optimum Blade Pitch (T.P.I) for Material Width (Inches)

It is impractical to change the blade to the proper pitch every time a di󰀨erent width of material is cut and it is not necessary, but remember that the optimum blade will cut most e󰀩ciently. Too ne a blade must be fed slower on wide

material because the small gullets between the teeth will get packed with chips before they get across and out of the cut. Too coarse a blade must be fed slower because it has fewer teeth cutting and there is a limit to the depth of a cut taken by each tooth. Allowance for the use of a non-optimum blade is made in STEP 5.

Example #1: E󰀨ective material width of 8” (200 mm):

Optimum blade has 2/3 teeth per inch.

2.9

Page 27

STEP 4: DETERMINE OPTIMUM BLADE SPEED, V (ft/min) (m/min)

The relationship between optimum blade speed and e󰀨ective material width for various materials is represented on the

graph shown.

The graph shows that as e󰀨ective material width gets wider or as material gets harder, lower blade speeds are recommended. If material is narrow or soft, higher blades speeds should be selected.

Example #1

1. 8” (200mm) diameter #1045 Medium Carbon Steel solid bar is to be cut.

2. On the graph above nd the Medium Carbon Steel Curve which represents the optimum blade speeds for 1045

Carbon Steel.

3. On the horizontal axis (e󰀨ective material width axis) nd number 8 which represents e󰀨ective material width of an

8” (200mm) diameter solid.

4. Find the point where a vertical line from 8” (200mm) intersects the Medium Carbon Steel Curve.

5. From this intersection point run horizontally left to the vertical axis (optimum blade speed axis) and nd the point

marked “200”.

6. For 8” (200mm) diameter, 1045 Carbon Steel solid bar 200 ft/min (60m/min) is the optimum blade speed.

NOTE:

1. Higher than optimum blade speed will cause rapid blade dulling. Lower than optimum blade speeds reduce

cutting rates proportionately and do not result in signicantly longer blade life except where there is a vibration

problem. If the blade vibrates appreciably at optimum speed as most often occurs with structurals and bundles, a lower blade speed may reduce vibration and prevent premature blade failure.

2. Material Hardness - The graph above illustrates blade speed curves for materials of hardness 20 RC (225 Bhn) or lower. If the material is hardened then the multipliers need to be used. These multipliers are given in the NOTE at the bottom right of the graph. As the hardness increases the optimum blade speed decreases.

2.10

Page 28

The following table gives examples of the optimum blade speeds for di󰀨erent materials.

# MATERIALS OPTIMUM BLADE SPEED

(ft/min) (m/min)

1 5” (125mm) Diameter Solid Carbon Steel 225 70

2 12” (300mm) I-Beam 290 90

3 4” x 4” (100mm x 100mm) Rect. Tube 1/4” (6mm) Wall 350 110

4 4” (100mm) 400 Stainless Steel 140 45

5 2” x 2” (50mm x 50mm) Rect. Tube 1/4” (6mm) Wall

Bundle 5” x 5” pcs. 10” x 10” (500mm x 500mm) 325 100

6 3” x 3” (75mm x 75mm) Inconel 60 20

Materials and Blade Speed

STEP 5: DETERMINE FEED RATE SETTING, FR (in/min) (mm/min).

FEED RATE is the vertical speed at which the blade descends through the work-piece.

The FEED RATE Knob controls FEED RATE of the blade descent. The FEED RATE should be adjusted only in one direction (from “O” to required value). If you go too far, go back to “O” and come back up. To set FEED RATE for particular cutting situations use the graph below, which represents the relationship between FEED RATE, blade speed and blade pitch.

Example #1: It is known from Step 3 that optimum blade pitch is 2/3, and from Step 4 that blade speed is 200 ft/min (60mm/min). From the Graph on the left, the FEED RATE is determined in the following way:

1. On the horizontal axis (blade speed axis), nd

200 ft/min (60mm/min).

2. Find the point where a ver tical line from 200 ft/min (60mm/min) would intersect the 2/3 blade pitch curve

3. From this intersection point run horizontally left to the ver tical (FEED RATE) axis, to ar rive at 1.8 in/min (45mm/min) FEED RATE. Thus 1.8 in/min (45mm/min) is the FEED RATE for cutting 8” (200mm) diameter 1045 Carbon Steel when the optimum 2/3 pitch blade is used.

Feed Rate Calculation

2.11

Page 29

FEED RATE, continued

If the saw is tted with a blade coarser than optimum (e.g.: 1.4/2.5 TPI) we can still use the graph, but we go to the 1.4/2.5 curve. As a result we nd that the FEED RATE is decreased to 1.3 in/min (133mm/min) for this blade. If however, the machine is tted with a ner than optimum blade (e.g. 3/4 TPI) we use the graph for the optimum blade as before, and

then use a multiplier given by the table below.

Optimum Vs Actual Blade Pitch

ADDITIONAL CUTTING SETUP EXAMPLES

EXAMPLE # 2

Material: Round Steel Tube SAE 4320 - Hardened to 35 RC (325 Bhn ) Dimensions - 6” O.D. x 4” I.D. (150mm O.D. x 100mm I.D.)

Step 1 E󰀨ective Material Width: 4 1/2” (.75 X 6) 114mm (19 x 6)

Step 2 Feed Force limit setting for 6” Diameter material (Refer to Feed Force Limit, Setting in Step 2)

Step 3 Optimum blade pitch (TPI): 3/4 T. P. I.

Actual blade pitch on the saw: 4/6 T. P. I.

Step 4 Optimum blade speed for 4 1/2” e󰀨ective 225 ft/min (70m/min) material width

Blade speed reduced by hardness factor: 225 ft/min X .60 = 135ft/min (70m/min x .60 = 42m/min)

Step 5 Feed Rate for 3/4 TPI blade: 1.8 in/min (45mm/min)

Feed Rate for 4/6 TPI blade: 1.8 in/min X .70 = 1.3in/min

(reduced by ner than optimum blade pitch factor) (45mm/min x .70= 31.5mm/min)

2.12

Page 30

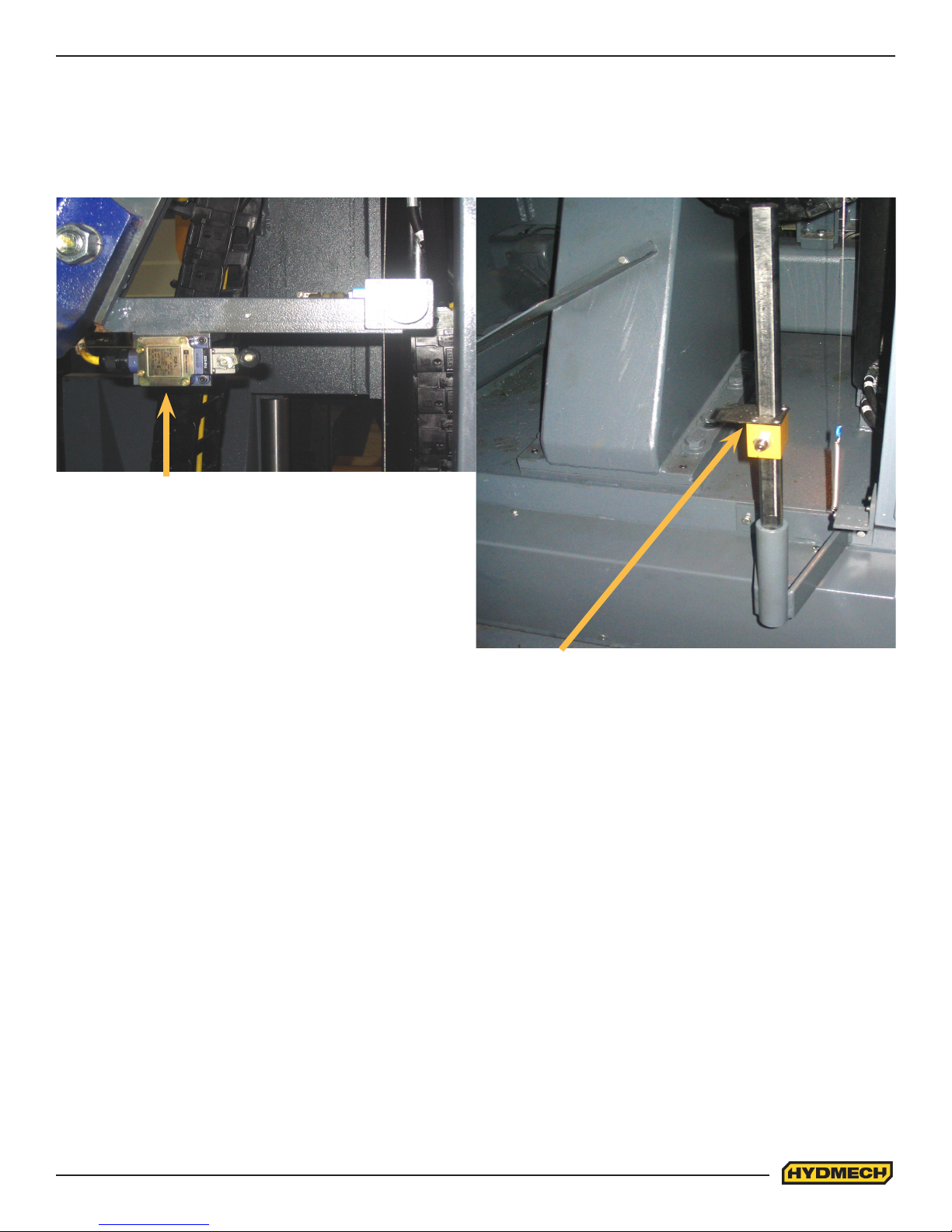

HEAD DOWN LIMIT SETTING

Head Down Limit: This limit is factory set and under ordinary cutting requirements should not be changed. If changed, it may cause the machine to malfunction in the automatic cycle.

LIMIT SWITCH

HEAD DOWN ADJUSTMENT BLOCK

2.13

Page 31

GUIDE ARM POSITIONING

The adjustable guide arm should always be adjusted with respect to the material width. It will optimize cutting conditions and increase blade life with the guide arm adjusted as close to the material as permitted.

In order to adjust the guide arm, the remote guide arm adjustment switch, located on the control console is used to hydraulically position the guide arm. Turn the switch clockwise to move the guide arm toward the stock. Turn the switch counter clockwise to move the guide arm away from the stock.

ENSURE CLEARANCE BETWEEN GUIDE ARM AND VISES AT ALL TIMES.

H-40 Guide Arm Position

2.14

Page 32

COOLANT CONTROLS

GUIDE ARM

A generous ow of coolant should be applied in order to increase production and blade life. The machine is provided with

adjustable coolant on the left side of the operator panel as shown below.

A properly adjusted ow of coolant should cover the blade (from the adjustable guide arm) which in turn will carry it into

the cutting area. Additional coolant can be supplied with the coolant bars shown below which are controlled by the knob labeled ‘FLEX HOSE”.

NOTE: When cutting materials that do not need coolant (cast iron), some coolant ow is required to provide blade

lubrication and prevent scoring of the blade by the carbides.

GUIDE ARM

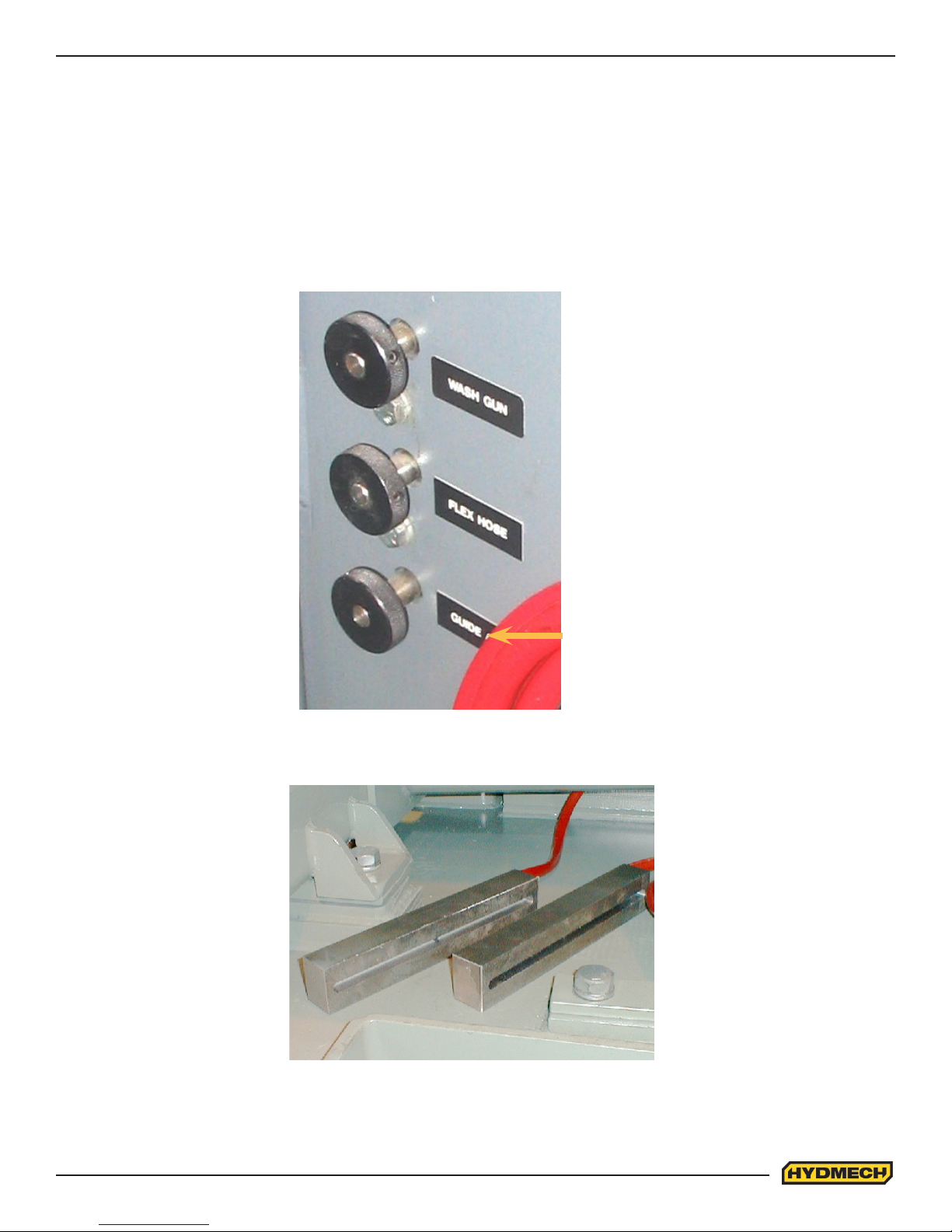

Coolant ow controls, found on left side of control console

Coolant Bars can be placed on top of materials for extra coolant coverage. Flow is controlled with the knob labeled “FLEX HOSE”

2.15

Page 33

SECTION 3 – MAINTENANCE

SAFETY DURING MAINTENANCE AND TROUBLESHOOTING

“Lock-out”, or “Lock-out Tag-out” are terms that refer to procedures taken to prevent the unexpected start-up, or other release of energy, by a machine, whenever anyone is required to remove or bypass safety guards or devices, or whenever anyone is required to place part of his body in a hazard area. In almost all jurisdictions, it is required that owners of industrial equipment establish and post lock-out procedures. Know and use the lock-out procedures of your company or organization. In the absence, of such posted procedures, use the following procedure.

LOCK OUT PROCEDURE

Whenever work is to be performed on a machine, which requires removal or bypassing of safety guards or devices, or the

placement of part of anyone’s body in a hazard area, the following steps shall be taken:

1. Operator shuts down the machine.

2. The supervisor in charge of the machine must be informed of the intention to Lock-out the machine.

3. The FEEDER power which supplies power to the machine and which is connected to the machine via the Power Junction Box (see picture below) must be turned OFF and locked in the OFF (0) position by means of a padlock. The key for this padlock must be kept by the person performing the work on the machine. If more than one person is performing work on the machine, then a multiple lock hasp shall be used, and each person shall apply his or her own lock to the hasp.

4. The Machine Power Disconnect Switch must be turned OFF, and locked in the OFF (0) position by means of a padlock. The key for this padlock must be kept by the person performing the work on the machine. If more than one person is performing work on the machine, then a multiple lock hasp shall be used, and each person shall apply his or her own lock to the hasp.

5. Prior to starting any work on the locked-out machine, the supervisor shall attempt to start the machine to ensure that the lock-out device provides adequate protection. Operating controls must be reset to the “OFF” position after this test.

6. Work on the locked-out machine may now proceed.

MACHINE DISCONNECT SWITCH USED FOR SAFETY LOCKOUT PURPOSES

Machine Power Disconnect located on the door of the high voltage electrical panel, mounted on the drive side machine post.

1. Ensure switch is in the OFF position.

2. Install padlock and lock it.

3.1

Page 34

RESTORING MACHINE TO USE

After completion of all repairs or maintenance to the locked-out machine, it shall be restored to use as follows:

The person(s) who performed the work shall verify that all areas around the machine are safe, before the machine is re-energized. No-one shall be permitted in un-safe areas around the machine. All guards and covers shall be properly installed. Each lock-out padlock shall be removed by the person who applied it. After the lock-out padlocks are removed, and before the machine is started, the supervisor and all other employees who

use the machine, shall be informed that the lock-out has been removed. After notication is made, the machine may be

re-started.

BLADE CHANGE MODE PROCEDURE

Wear safety glasses, gloves, and a long sleeve shirt for protection when handling band saw blades during blade change. NOTE THAT GLOVES SHOULD NEVER BE WORN NEAR A RUNNING BANDSAW BLADE. When handling new blades,

or ones that will be re-used, it is important to keep the teeth out of contact with concrete oors.

This machine is equipped with hydraulic blade tension and a ‘Blade Change Mode’ key switch, located on the operator

control panel.

This key has two positions:

OFF – All normal operations of the band saw are operative.

ON – Hydraulic motor can be started. Blade tension is operative.

3.2

Page 35

BLADE REMOVAL

1. With the blade change mode key switch in ‘OFF’, the blade stopped and the hydraulics ON, raise the saw head

until the drive door will clear the electrical control panel.

2. Move the guide arm out to provide room between the two guide arms to easily grasp the blade with

two hands, BUT DO NOT TOUCH THE BLADE UNTIL THE BLADE CHANGE MODE SWITCH IS TURNED TO

THE ‘ON’ POSITION.

3. Turn the blade change key switch to the ‘ON’ position. The hydraulics will continue to run, but only the blade

tension switch is functional. The blade wheel doors can be opened without the hydraulics shutting down.

4. Open both blade wheel doors.

5. Release the blade tension by turning the switch briey to ‘ – ‘. By jogging the switch between ‘HOLD’ and ‘ – ‘, it is possible to regulate the degree of tension on the blade.

6. Pull the top strand of the blade up, out of its slot above the cutting area and forward out of the slots on the inside walls of the blade wheel housings.

7. Pull the lower strand of the blade down out of the blade guides.

8. Store and dispose of the used blade.

BLADE INSTALLATION

NOTES ABOUT NEW BLADES

• A new blade will come folded into a compact coil. Follow the blade manufacturer’s instructions for safely

unfolding the blade.

• The blade must be installed with the teeth facing towards the rear of the saw where it passes around the wheels, and with the teeth in the cutting area pointing away the drive wheel. This may require that the blade be turned inside out before installation.

1. With the blade change mode key switch remaining in the ‘ON’ position, turn the blade tension switch to the ‘ – ‘

position for several seconds until the idler wheel has fully retracted.

2. Insert the lower strand of the new blade into the blade guides.

3. Lift the upper strand of the blade up into its slot above the cutting area, and place it around the blade wheels.

4. Turn the blade tension switch briey to ‘ +/RUN’ and then leave it in ‘HOLD’ to retain the blade lightly on the

wheels.

5. Adjust the blade position on the wheels so that the blade is not crooked on them and the teeth overhang the back edge of the wheels.

6. Turn the blade tension switch to ‘ +/RUN’.

7. Close both blade wheel doors.

8. Turn the blade change mode key switch to the ‘OFF’ position. The hydraulics will shut down.

9. Switch the hydraulics on, then start the blade and run for 20 seconds.

10. Stop the blade.

11. Turn the blade change key switch to the ‘ON’ position.

12. Open the blade wheel doors and inspect the blade tracking, plus the position of the blade brush. Refer to the manual for tracking adjustments.

13. Close the blade wheel doors and turn the blade change mode key to the ‘OFF’ position.

14. Blade change procedure is now complete.

3.3

Page 36

BLADE BRUSH ADJUSTMENT

The blade brush is properly set when the machine leaves the factory, however, it wears out during operation and needs to be adjusted periodically. The blade brush assembly is shown in the photo. In order to adjust it, the nut on the adjusting bolt needs to be loosened and the brush mounting bracket turned until the wires from the brush touch the bottom of the blade gullets as shown and then tighten the adjusting nut.

If the brush gets worn to approximately 70% of its original diameter, it should be replaced. A brush may be purchased

through a Hyd-Mech Group Limited dealer in your area.

3.4

Page 37

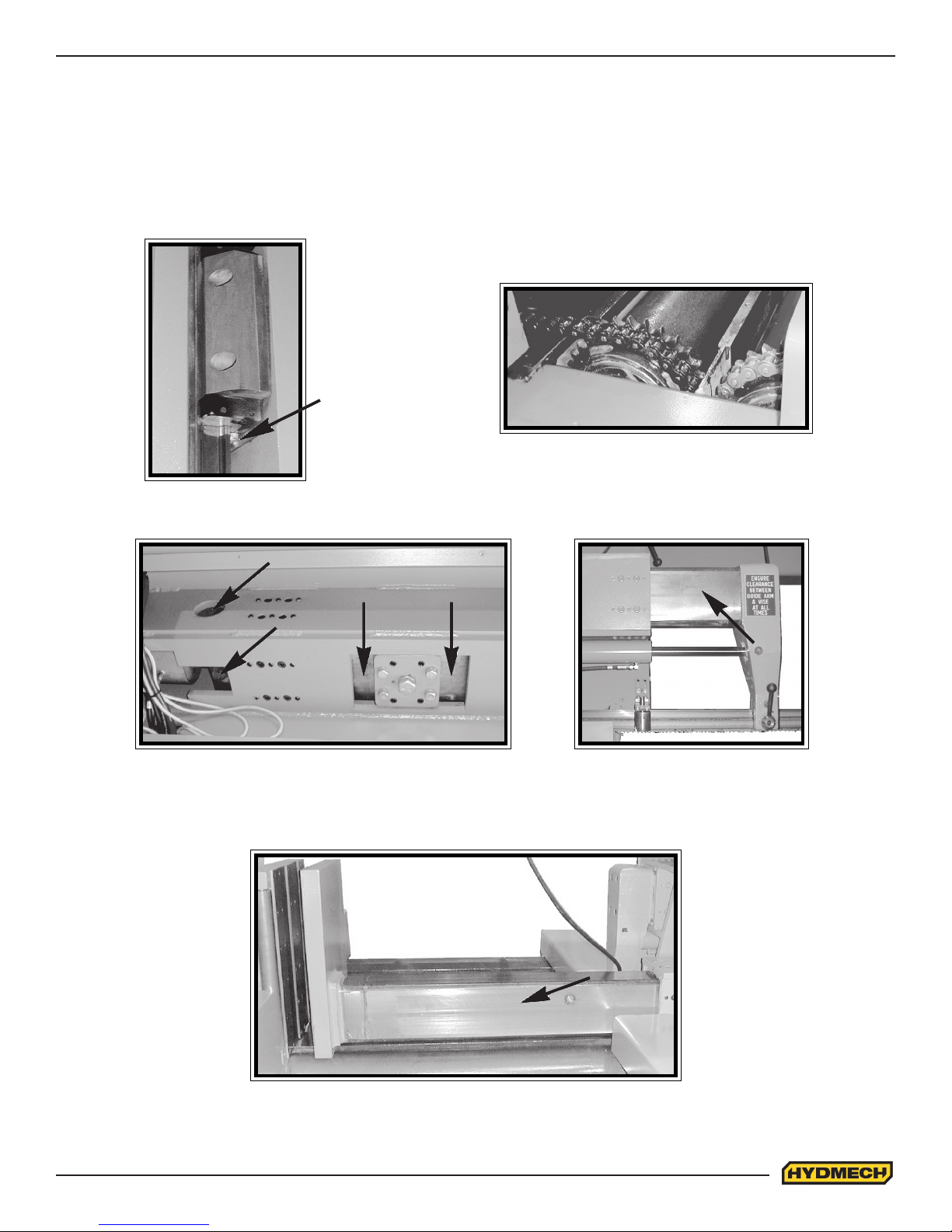

LUBRICATION

The design of the H-40 were intended to minimize maintenance, although periodically certain moving parts need lubrication. We recommend that this periodic lubrication be done once a month using any general purpose grease. In addition to the grease points shown, vise jaw guides and infeed rollers require greasing.

HYD-MECH recomends monthly lubrication.

LUBRICATION

The design of the H-40 was intended to minimize maintenance, although periodically certain moving parts need lubrication. We recommend that this periodic lubrication be done once a month using any general-purpose grease. In addition to the grease points shown, vise jaw guides and infeed rollers require greasing.

Hyd-Mech Group Limited recommends monthly lubrication.

Four linear bearings

with a grease nipple.

Roller chains.

Apply grease to the four places indicated on the

blade tension assembly.

(Shown with the cover removed.)

With the vis(s) closed, apply grease to all four sides of

Apply grease to all four sides

of the guide arm shaft with it

fully extended.

the vise shaft.

3.5

Page 38

HYDRAULIC MAINTENANCE

There are only FIVE items of routine maintenance associated with the hydraulic system:

1. OIL FILTER – Ten-micron ltration of the hydraulic oil is provided by a spin-on type lter mounted on the tank return line. The element should be changed after the rst 50 Hours of operation and then every 500 working hours. Suitable

replacement elements are:

CANFLO RSE-30-10 GRESEN K-22001 PARKER 921999 ZINGA AE-10

2. OIL LEVEL - The oil level should be maintained in the upper half of the level gauge. Normally the rate of oil

consumption will be very low and it should be unnecessary to add oil more often than at lter changes. Add oil only to the

top line on the gauge. Hydraulic tank capacity is approximately 17 US gallons. The machine is shipped from the factory with Texaco Rando HD 46 hydraulic oil. Generally any brand of recognized mineral hydraulic oil with the same properties should be compatible with Texaco Rando HD 46 oil, but to avoid any risk we

suggest staying with Texaco Rando HD 46. If it is desirable to change brands, it is necessary to drain the tank and to ll to 1/3 with the new oil. Operate through several full strokes of each cylinder, drain the tank again, and nally ll the tank with

the new brand.

Recommended replacement oils: Chevron AW Hydraulic Oil 46 ESSO NUTO H46 Mobil Mobil DTE 25 Shell Tellus 46 Petro Canada Harmony AW 46

3. OIL TEMPERATURE – Oil temperature is indicated by a thermometer contained in the level gauge. Oil temperature during steady operation should stabilize at about 50-55°F (10-12° C) above room temperature. Thus in a 70° F (20° C) shop one might expect an oil temperature of about 120° F (50°C) Oil temperature should never exceed 160°F (70°C).

4. OIL PRESSURE – Oil pressure is factory set to 1500 PSI (10339 kPa) for H-40 and should not require further attention except precautionary observation at start-up and every few days thereafter.

CLEANLINESS

The H-40 series design should endure heavy operating conditions and provide the customer with awless machine

performance. To extend good performance some care is required, especially cleanliness. The following areas should be kept clean of dirt, grease and chips:

CONTROL CONSOLE DOOR CHARTS WHEEL BOXES BLADE GUIDES

NOTE: All parts should be cleaned before any repair or service is performed on them.

3.6

Page 39

TROUBLE SHOOTING GUIDE

Most problems which may occur have relatively simple solutions which appear in this section. If the solution is not found here, contact the Hyd-Mech Distributor from whom

you purchased your bandsaw. They have trained eld service personnel who will be able

to rectify the problem.

PROBLEM PROBABLE CAUSE SOLUTION

1 Saw is cutting out of

1. Blade worn. 1. Change blade.

square vertically

2 Saw is cutting out of

2. Stock not square in vises. 2. Adjust accordingly.

square horizontally

3 Blade comes o󰀨 wheels. 3a. Not enough blade tension 3a.Blade tension is

determined by system pressure. Check that system pressure is as

specied above.

3b. Improper tracking. 3b. Set tracking.

4 Blade stalls in cut. 4a. Not enough blade tension 4a. Blade tension is

determined by system pressure. Check that system pressure is as

specied above.

5 Blade vibrates excessive-

ly.

4b. Excessive feed force. 4b. Reduce.

5a. Blade speed too fast. 5a. Reduce.

5b. Guide arms too far apart. 5b. Adjust accordingly. 5c. Not enough blade tension 5c. Blade tension is

determined by system pressure. Check that system

pressure is as specied

above.

3.7

Page 40

6 Excessive blade break-

6a. Excessive blade tension 6a.Blade tension is

age.

determined by system pressure. Check that system

pressure is as specied

above.

6b. Excessive feed rate. 6b. Reduce.

7 Tooth Strippage 7a. Blade pitch too ne 7a.Select coarser pitch.

7b. Blade brush not cleaning 7b. Adjust or replace brush. 7c. Excessive feed rate 7c. Reduce 7d. Excessive feed force 7d. Reduce

8 No coolant ow 8a. No coolant. 8a. Add coolant.

8b. Coolant line blocked. 8b. Blow out coolant line. 8c.Coolant pump inoperable. 8c. Check, replace if

necessary.

9 Saw will not start. 9a.Motor overload has 9a. Depress each of the

tripped. overload buttons located

in the electrical box. Depressing one button at a time and trying to start the saw will indicate which motor was overloaded.

9b. Control circuit fuse has 9b. Replace the fuse with a blown. 5 Amp 250 Volt AG1 type

fuse. Random blowouts may occur but a quickly repeated blow out indicates an internal wiring fault

10 Saw starts but will not

10.On machines so 10. Reload with stock or

run after Start button has

equipped, the out-of-stock re mount blade. Hold the

been released. blade breakage limit switch hydraulic start button and

has been tripped. release the blade tension

or open vises far enough to deactivate the limit switch.

3.8

Page 41

11 Saw starts but no hydrau-

11a. If blade wheels run 11a. Stop immediately;

lic functions. clockwise, wrong phase reverse any two of the three

order in power connection phase connections. to saw. 11b. If pump is noisy cause 11b. Stop immediately; add may be low hydraulic oil level. hydraulic oil. 11c. Pump-motor coupling 11c. Adjust accordingly. has separated.

12 Individual functions will

12a. Observe pilot light (s) on 12a. Solution usually requires

not respond to its manual relevant valve. If pilot light opening the control console, control switch. related to inoperative function and should be left to some

fails to light, problem is one qualied to work on electrical. machine tool electrical

systems.

12b. If pilot light related to 12b. Solution usually requires inoperative function does opening the control console, light, problem may be the and should be left to some coil. If problem remains after one qualied to work on swapping coils it probably machine tool electrical results from dirt in the valve systems. spool.

13 Saw starts but only front 13a. Mode selector switch 13a. Select “manual” mode.

vise functions. is in “neutral”.

14 Head will not rise. 14a. Head up limit is set 14a. Readjust head up limit

fully down. switch bracket.

3.9

Page 42

15 Head still will not rise or

15a. Observe pilot light (s) 15a. In case of head function

fall, or any individual function

on relevant valve. If pilot check operation of related

will not respond to its manual light related to inoperative limit switches. Limit switch control switch. function fails to light, problem levers should operate

is electrical. freely and emit an audible

click on both depress and release. If not replace the switch nose. Look for cause of switch damage (ie debris or maladjustment of switch actuator). To check the switch unit itself, remove the switch lid and wire together the two terminals closest to the wiring port. If function now responds to manual switch replace internal limit switch unit. If function still does not respond then… Open panel door to gain access to valves. Remove coil retaining nut and withdraw problem related coil, replace it with any other coil from the group. If the problem remains it requires the attention of a

qualied service person.

15b. If pilot light related to 15b. Disassembly of inoperative function does hydraulic valves should be light, problem may still be undertaken only by the coil (see 15a. Solution). qualied service personnel If problem remains it or those knowledgable with probably results from dirt in hydraulic components. the valve spool.

3.10

Page 43

16 Head will not descend. 16a. Feed Rate Valve is 16a. Turn Feed Rate Knob

fully closed-pointer is set on counter clockwise to open “0” or close to “0” in/min. valve.

16b. Feed Force Limit is set 16b. Increase Feed Force too low. Limit (to at least 150 psi).

16c. Pointer is not adjusted. 16c. Loosen printer, turn

knob clockwise until it bottoms; tighten pointer at “0”.

17 Head descends when

17a. Pointer of Feed Rate 17a. Re-adjust pointer. As in

Feed Rate Valve pointer is set tovalve is stopped by stop 16c.

“0” on the scale and Feed bolt but not fully closing the Force Limit gauge is

valve.

more than 150 psi.

3.11

Page 44

SECTION 4 - ELECTRICAL

ELECTRICAL SCHEMATICS: SEE PDF ON ATTACHED CD

4.1

Page 45

SECTION 5 - HYDRAULIC SYSTEM

The H-40 hydraulic system does not require any special work on a new machine before its start-up. The

hydraulic tank is lled with Texaco Rando 46 hydraulic oil and all machine functions have been tested at the

factory to ensure proper operation upon initial start-up.

HYDRAULIC MANIFOLD AND MOTOR ASSEMBLY

5.1

Page 46

LIST OF H-40 HYDRAULIC COMPONENTS

ITEM QUANTITY DESCRIPTION PART NUMBER

1 2 HEAD CYLINDER H40-C4-00B

2 1(2) VISE CYLINDER V18A-C1-00A

3 1 BLADE TENSION CYLINDER H40-C5-00A

4 1 GUIDE ARM POSITIONING CYLINDER H40-C6-00

5 1 MANIFOLD BLOCK MB1 MB6P

6 3(4) DOUBLE PILOT CHECK DPCH-1

7 2 PRESSURE GAUGE (1000 PSI) PG-10

8 1 PRESSURE GAUGE (2000 PSI) PG-15

9 1 CHIP CONVEYOR DRIVE MOTOR HM-01 (MG12)

10 1 BRUSH MOTOR HM-02

11 0(1) REAR VISE VALVE DCV3P-AB-T

12 1 FRONT VISE VALVE DCV3P-AB-T

13 1 HEAD VALVE DCV3P-AB-T

14 1 BLADE TENSION VALVE DCV3P-AB-C

15 1 PRESSURE REDUCING VALVE PRV-2

16 1 GUIDE ARM VALVE DCV3P-AB-T

17 1 SINGLE SOLENOID TWO WAY VALVE PV2P-A-C

18 1 RELIEF VALVE RV7

19 1 FEED RATE VALVE DF7-0-00

20 1 PUMP HYP-1

21 1 SUCTION STRAINER TFS-100-0-P

22 1 RETURN FILTER SF6520

23 1 COOLER AO-10

24 2 NEEDLE VALVE N10BK

25 1 CHECK VALVE CHV

HYDRAULIC SCHEMATICS & PLUMBING DIAGRAMS: SEE PDF

ON ATTACHED CD

5.2

Page 47

SECTION 6 - MECHANICAL ASSEMBLIES

MECHANICAL ASSEMBLY DRAWINGS & PARTS LIST: SEE PDF

ON ATTACHED CD

6.1

Page 48

SECTION 7 - OPTIONS

BLADE DEVIATION MONITORING SYSTEM (K10)

OPTIONAL ASSEMBLY DRAWINGS: SEE PDF ON ATTACHED CD

BLADE DEVIATION MONITORING SYSTEM (K10)

General description of the blade deviation monitoring system.

This system monitors lateral blade deviation during cutting. If blade deflection increases beyond the pre-set warning limit, then the monitoring device sends a warning signal by means of flashing beacon mounted on the top of machine head. If no steps are taken to correct this condition, the machine will continue to cut until the pre-set shut-down limit is reached. At this point the machine will behave in one of two ways, selectable by parameter setting:

1. Stop cutting, raise the head and shut down

2. Finish the cut with present degree of deviation and then shut down.

Operation of the system

The proximity transducers are enclosed in a housing mounted on the idler and drive side guide arms. The sensors convert the blade lateral deflection to an analog signal, which is sent to the PLC and after a series of calculations is displayed on the operator interface in a form of bar graphs. One bar graph for the transducer mounted on the idler guide arm and the second bar graph for the transducer mounted on the drive side guide arm.

The bar graphs appears in both Manual Mode and Automatic Mode Screens. It is only active when the blade is running and head is descending. The length of the bar graph is proportional to the blade deflection. The bar graphs extend from the screen centre towards the right if blade is deviating toward the front of the saw (cutting into the part), and extends from the screen centre towards the left if blade is deviating toward the rear of the saw (cutting into the stock).

If a warning limit is reached and maintained longer than the preset response time, then the beacon light mounted on the top of the head will start flashing.

If a shutdown limit is reached and maintained longer than the preset response time, then the machine will behave in one of two ways: stop cutting, raise the head and shut down or finish the cut with present degree of deviation and then shut down.

7.1

Page 49

Procedure to access blade deviation parameters

- To adjust the warning and shutdown limits, enter MONITOR LIMIT SETTING screen by pressing F2 (BLD. LIMITS) access blade deviation limit settings (Figure 1).

The MONITOR LIMIT SETTING screen will be displayed (Fig. 2)

- Enter parameters screen by pressing function key F3.(Labeled: PARMTR) The PARAMETER SETTING screen will be displayed (Fig. 3).

- Change BLADE MONITOR parameter to ON by moving the cursor using the navigation keys to ON/OFF and pressing ENTER. The value of Blade Monitor parameter will change to ON.

- Exit parameter screen by pressing function key F5.

Repeating the above steps will disable the blade monitor option.

Warning and shutdown limits adjustments

To adjust the warning and shutdown limits, enter MONITOR LIMIT SETTING screen by pressing

Press F2 (BLD. LIMITS) to access blade deviation limit settings (Figure 1).



Fig1



Fig2

PressF3(PARMTR)toaccessparameters.



Fig3

Usecursorkeytoscrollthroughtheparameterslist.

PressF5toreturntopreviousscreen

7.2

Page 50

The MONITOR LIMIT SETTING screen will be displayed Figure 2.

There are two scales, the upper one showing the preset right and left shutdown limits, and the lower scale showing the preset right and left warning limits. All four limits (right and left warning and right and left shutdown) are set independently.

To adjust limits move cursor to number on right hand side of the screen and key in new value from – 100 to 0 for cut out limit and from 0 to 100 for cut in limit.

CUT OUT MAX LIMT 50

CUT IN MAX LIMT -50

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

CUT OUT WARNING 30 CUT IN WARNING -30

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Figure 2 Monitor Limit setting screen.

Cut out maximum limit – (out - cutting towards outfeed, range 0 ~100). This parameter will adjust shutdown limit if blade is cutting towards the part. Increasing this value decreases sensitivity, which will result in a larger deviation from nominal straight, before shutdown sequence is initialized.

Cut in maximum limit – (in - cutting towards infeed, range -100 ~ 0) This parameter will adjust shutdown limit if blade is cutting towards the stock. Decreasing this value decreases sensitivity, which will result in a larger deviation from nominal straight, before shutdown sequence is initialized.

Cut out warning limit – (out - cutting towards outfeed, range 0 ~100) This parameter will adjust warning limit if blade is cutting towards the part. Increasing this value decreases sensitivity, which will result in a warning further from nominal straight.

Cut in warning limit – (in - cutting towards infeed, range -100 ~ 0) This parameter will adjust warning limit if blade is cutting towards the stock. Decreasing this value decreases sensitivity, which will result in a warning further from nominal straight.

7.3

Page 51

To return from the MONITOR LIMIT SETTING screen to Auto or Manual screens, press EXIT F5 function key

To access the parameters screen (Figure 3), press PARMTR (F3) function key.

WARNING RESPONSE TIME MAX LIMIT RESPONSE TIME SENSOR BLADE DEVIATION MONITOR DISPLAY REFRESH RATE

Xs Xs XXXX ON 2/s

Figure 3 Parameter screen.

To set any of the numerical parameters, use the NAVIGATION keys (Figure 1) to place the cursor over the number. Key in the desired value, and then press ENTER.

To change the ON/OFF parameters, place the cursor over the parameter, and press ENTER to toggle between ON and OFF.

Warning response time (range 2 – 99 seconds)

WARNING RESPONSE TIME

MAX LIMIT RESPONSE TIME

If the blade deviation exceeds the preset warning limit for longer than warning response time, then the beacon light mounted on the top of the head will start flashing.

Maximum limit response time – (range 2 – 99 seconds)

If the blade deviation exceeds the preset shutdown limit for longer than shutdown response time, then the machine will execute shutdown sequence.

(range –2000 – +2000)

The number displayed here represents the position of the blade within the

SENSOR

BLADE DEVIATION MONITOR ON/OFF

DISPLAY REFRESH RATE

measuring range of the proximity transducer. At 0, the blade is exactly centered within the sensing range. The display assists adjustment with the prompts ‘SETTING, or ‘SET’. The prompt ‘SET’ appears when the adjustment is within the acceptable range of – 100 +100. [See sensor adjustment procedure section]

This parameter will activate or deactivate response of the blade deviation monitoring system.

(range 0.1 sec – 10 sec) The refresh time is time between bar graph updates. If it is set to low value

then the display will flicker do to vibration of the blade, weld passing by the sensor or other irregularities in the blade.

Figure 4 Parameter description chart.

Relationship between Blade Deflection Display and Actual Cut Deviation

The digital display indicates the blade lateral deflection at the point where it passes the blade deflection sensor, which is 1” past the idler side guide arm. The display range of0 +/-100 is proportional to the amount of blade deviation. This depends on the type of material, shape of the work-piece and amount of blade tension. The maximum deviation of the cut surface will occur at or near the center of the cut, and will be several times larger than that measured at the sensor.

The actual amount is difficult to predict, experience with different work-pieces will provide the best guide.

7.4

Page 52

SECTION 8 - SPECIFICATIONS

H4040 SPECIFICATIONS

H-40-40 BANDSAW SPECIFICATIONS

Capacity

Blade

Blade Tension

Blade Speed VFD 45 - 225 sf/min (14 - 68 m/min)

Blade Guides

Blade Wheel Dia.

Motors

Pumps

Hydraulic Tank

Coolant Tank

System Pressure

Vise Control

round 41" (1042mm)

rectangular 41"x 41"(1042mm x 1042mm)

Length 37'-0" (11278mm)

Width 3" or 2 5/8" (76mm or 67mm)

thickness .063" (1.6mm)

Hydraulic

carbide inserts

45" (1143mm)

blade drive 20 HP (15 KW)

hydraulic pump drive 5 HP (3.7 KW)

Hydraulic 6 1/2 U.S. Gal. / min (25 Liters/min) pressure compensated

Coolant 16.6 U.S. Gal. / min (63 Liters/min)

17 U.S. Gallons (64.5 Liters)

27 U.S. Gallons (102.5 Liters)

1200 PSI (8274 kPa)

hydraulic

Table Height

Control Panel

Machine Weight 39,000 lbs (19051 Kg)

Maximum Workload

Overall Dimensions

27" (686mm)

Waist Height

42,000 lbs (20412 Kg) with optional outboard vise

42000 lbs (19051 Kg)

221" (5613mm) Wide, 119" (3023mm) Long, 148" (3759mm) High

8.1

Page 53

H4060 SPECIFICATIONS

H-40-60 BANDSAW SPECIFICATIONS

Capacity

Blade

Blade Tension Hydraulic

Blade Speed VFD 45 - 225 sf/min (14 - 68 m/min)

Blade Guides

Blade Wheel Dia.

Motors

Pumps

Hydraulic Tank

Coolant Tank

System Pressure

Vise Control

round 41" (1042mm)

rectangular 41"x 61"(1042mm x 1550mm)

Length 40'-4" (12294mm)

Width 3" or 2 5/8" (76mm or 67mm)

thickness .063" (1.6mm)

carbide inserts

45" (1143mm)

blade drive 20 HP (15 KW)

hydraulic pump drive 5 HP (3.7 KW)

Hydraulic 6 1/2 U.S. Gal. / min (25 Liters/min) pressure compensated

Coolant 16.6 U.S. Gal. / min (63 Liters/min)

17 U.S. Gallons (64.5 Liters)

27 U.S. Gallons (102.5 Liters)

1200 PSI (8274 kPa)

hydraulic

Table Height

Control Panel

Machine Weight 42,000 lbs (19051 Kg)

Maximum Workload

Overall Dimensions

27" (686mm)

Waist Height

45,000 lbs (20412 Kg) with optional outboard vise

50000 lbs (22680 Kg)

241" (6121mm) Wide, 119" (3023mm) Long, 148" (3759mm) High

8.2

Page 54

H4080 SPECIFICATIONS

H-40-80 BANDSAW SPECIFICATIONS

Capacity

Blade

Blade Tension Hydraulic

Blade Speed VFD 45 - 225 sf/min (13.5 - 67.5 m/min)

Blade Guides

Blade Wheel Dia.

Motors

Pumps

Hydraulic Tank

System Pressure

Vise Control

Table Height

round 41" (1042mm)

rectangular 41"x 81"(1042mm x 2058mm)

Length 43'-10" (13361mm)

Width 3" or 2 5/8" (76mm or 67mm)

thickness .063" (1.6mm)

carbide inserts

45" (1143mm)

blade drive 20 HP (15 KW)

hydraulic pump drive 5 HP (3.7 KW)

Hydraulic 6 1/2 U.S. Gal. / min (25 Liters/min) pressure compensated

Coolant 16.6 U.S. Gal. / min (63 Liters/min)

17 U.S. Gallons (64.5 Liters)

1300 PSI (8963 kPa)

hydraulic

27" (686mm)

Control Panel

Machine Weight 46,000 lbs (20865 Kg)

Maximum Workload

Overall Dimensions

Waist Height

50,000 lbs (22680 Kg) with optional outboard vise

50000 lbs (22680 Kg)

261" (6629mm) Wide, 119" (3023mm) Long, 148" (3759mm) High

8.3

Page 55

LAYOUT DRAWING

THE DATA/DESIGN CONTAINED HEREIN IS PROPRIETARY

AND CONFIDENTIAL.REPRODUCTION,PUBLICATION OR

DISTRIBUTION OF ANY PART REQUIRES WRITTEN CONSENT

OF HYD-MECH GROUP.THIS DATA IS THE PROPERTY OF

HYD MECH GROUP AND ITS POSSESION CONFERS NO

LICENSE TO USE OR RIGHT OR LICENSE TO DISCLOSE IT

TO OTHERS FOR ANY PURPOSE WHATSOEVER.

126"

146"

100.75"

120.75"

221"

241"

A B C D

41"

61"

H4040

H4060

166"

140.75"

261"

81"

H4080

1-8 UNC (x4)

148

143

SHEET

SCALE

CHKED BY:

OF 1

1:66

DATE:

COATING:

REV

No Coating

H40-0-00

EngCoop

Jan 21, 2016

DRWN BY:

PART WEIGHT:

DRAWING NUMBER:

DATE:

WOODSTOCK. ONTARIO. CANADA N4S 0A9

HYDMECH GROUP LIMITED

MAT'L:

COMPONENT GROUP:

SECTION A-A

00 - Top Level

MODEL:

H4040

TITLE

H4040, H4060, H4080 MACHINE LAYOUT

MATERIAL CODE:

FOUNDATION PLAN

UNLESS

HYDMECH

STANDARD

TOLERANCES

SPECIFIED

OTHERWISE

DIMENSIONS

ARE IN INCHES

THIRD ANGLE PROJECTION

25.25

2.5

DATE

3.5

REVISIONS

ECN NUMBER

120

119

REV

8.4

Page 56

SECTION 9 - WARRANTY

WARRANTY

Hyd-Mech Group Limited warrants parts/components on each new bandsaw to be free from failure resulting from defective material and workmanship under proper use and service for a period of two years on following the date of shipment from the factory. Hyd·Mech’s sole obligation under this warranty is limited to the repair or replacement without charge, at Hyd·Mech’s factory, warehouse, or approved repair shop any part or parts which Hyd·Mech’s inspection shall disclose to be defective. Return freight must be prepaid by the user.

This warranty, in its entirety, does not cover maintenance items, including but not limited to lubricating grease and oils,

lters, V-belts, saw blades, etc., nor any items therein which show signs of neglect, overloading, abuse, accident,

inadequate maintenance, or unauthorized altering.

MOTOR, GEARBOX, PUMP, ELECTRIC COMPONENTS, VALVES, HOSES, FITTINGS, and any other items used in the

manufacture of the saw, but not originally manufactured by Hyd·Mech are subject to the original manufacturer’s warranty. Hyd·Mech will provide such assistance and information as is necessary and available to facilitate the user’s claim to such

other manufacturer.

Liability or obligation on the part of Hyd·Mech for damages, whether general, special or for negligence and expressly

including any incidental and consequential damages is hereby disclaimed. Hyd·Mech’s obligation to repair or replace shall

be the limit of its liability under this warranty and the sole and exclusive right and remedy of the user.

THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, WRITTEN OR ORAL, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

This warranty may not be changed, altered, or modied in any way except in writing by Hyd-Mech

Group Limited

HYD·MECH GROUP LIMITED 1079 Parkinson Road P.O. BOX 1659 Woodstock, Ontario N4S 0A9 Phone: (519) 539-6341 Fax: (519) 539-5126 Toll Free: (877) 276-SAWS (7297) E-mail: [email protected]

9.1

Page 57
