HYDIS HV121WX5-121 Specification

Download
Page 1
Global LCD Panel Exchange Center
THIS SPECIFICATION IS THE PROPERTY OF HYDIS AND SHALL NOT BE REPRODUCED OR COPIED WITHOUT THE WRITTEN PERMISSION OF HYDIS AND MUST BE RETURNED TO HYDIS UPON ITS REQUEST

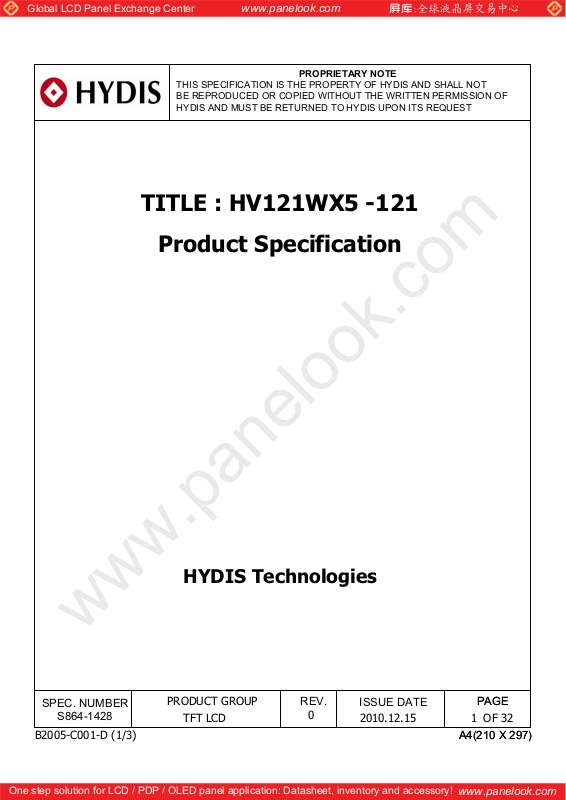

TITLE : HV121WX5 -121
Product Specification
www.panelook.com
PROPRIETARY NOTE
HYDIS Technologies
SPEC. NUMBER
S864-1428
B2005-C001-D (1/3)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
PRODUCT GROUP
TFT LCD
0
ISSUE DATE
2010.12.15
PAGE
PAGE
1
OF 32
A4(210 X 297)
A4(210 X 297)
www.panelook.com
Page 2
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT GROUP
TFT LCD PRODUCT
REV ISSUE DATE
0 2010.12.15
REVISION HISTORY
REV. ECN NO. DESCRIPTION OF CHANGES DATE PREPARED
0 Initial Release 10.12.15 J.T LEE
SPEC. NUMBER
S864-1428
B2005-C001-D (2/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
SPEC TITLE
HV121WX5-121 Product Specification
2
www.panelook.com
PAGE
OF 32
Page 3
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT GROUP
TFT LCD PRODUCT
REV ISSUE DATE
0 2010.12.15
Contents
No Item Page
1.0 General Description 4
2.0 Absolute Maximum Ratings 6
3.0 Electrical Specifications 7
4.0 Optical Specifications 9
5.0 Interface Connections 14
6.0 Input Signals, Basic Display Colors & Gray Scale of Colors 16
7.0 Power Sequence 19
8.0 Mechanical Characteristics 20
9.0 Mechanical Drawing 21
10.0 Reliability Test 23
11.0 Handling & Cautions 23
12.0 Labels 25

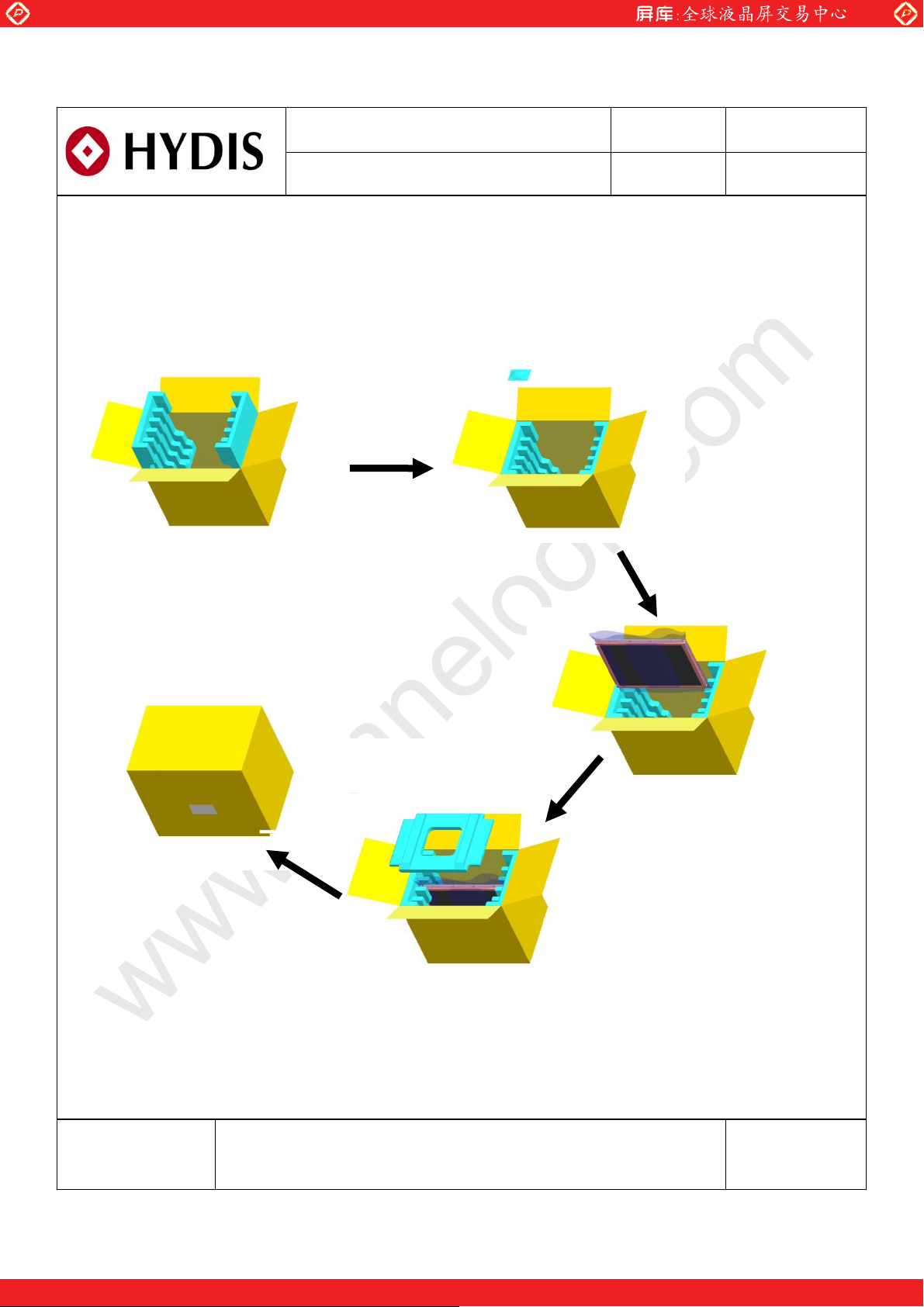

13.0 Packing Information 27
14.0 EDID 29
SPEC. NUMBER
S864-1428
B2005-C001-D (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
SPEC TITLE
HV121WX5-121 Product Specification
3
www.panelook.com
PAGE
OF 32
Page 4
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT GROUP
TFT LCD PRODUCT
REV ISSUE DATE
0 2010.12.15

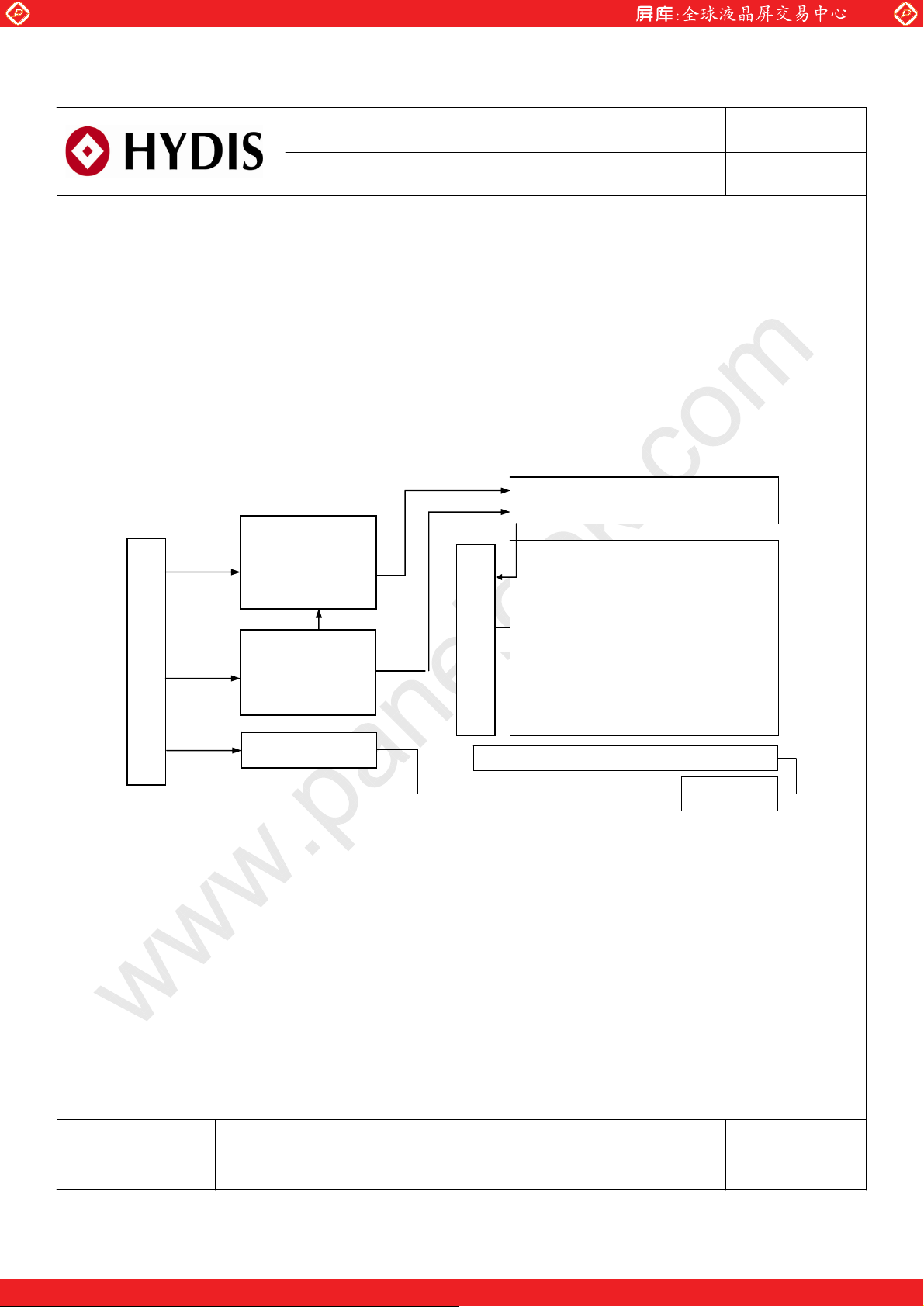

1.0 GENERAL DESCRIPTION
1.1 Introduction
HV121WX5-121 is a color active matrix TFT LCD module using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 12.1 inch diagonally measured active area with WXGA resolutions (1280 horizontal by 800 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical Stripe and this module can display 262,144 colors. The TFT-LCD panel used for this module is a low reflection and higher color type.
Source Driver
Connector (CN
eDP Input Signal
eDP Rx
+
T/CON
Gate Driver
TFT LCD Panel
1
1
)
VDD
HVDD
VDIM
DC/DC
Gamma
Vcom
LED Driver
Back Light (SMD LED Array)
1280 ശ800
CN2
1.2 Features
z Thin and Light Weight z 3.3 V Logic Power Supply z 12V Back-light Power Supply z 1 lane eDP Interface z SMD LED (48EA) Array (Bottom Side/Horizontal Direction) z 262,144 Colors z Data Enable Signal Mode z Side Mounting Frame z Green Product (RoHS)
SPEC. NUMBER
S864-1428
SPEC TITLE
HV121WX5-121 Product Specification
PAGE
OF 32
4
B2005-C001-D (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 5
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT GROUP
TFT LCD PRODUCT
1.3 Application
z Tablet PC (Wide type)
1.4 General Specifications
Parameter Specification Unit Remarks
Active area 261.12(H) ശ163.20(V) mm
Number of pixels 1280(H) ശ800(V) pixels
Pixel pitch 0.204(H) ശ0.204(V) mm
Pixel arrangement RGB Vertical Stripe
REV ISSUE DATE
0 2010.12.15
Display colors 262,144 colors
Display mode Normally Black
Outline dimension
Weight 265(Typ.) g Note 2
Back-light SMD LED (48EA) Array
Note 1 : at PCB side Note 2 : without digitizer
276.8r0.3(H) ശ180.0r0.3(V) ശ6.8(D:Max.)
mm Note 1
SPEC. NUMBER
S864-1428
B2005-C001-D (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
SPEC TITLE
HV121WX5-121 Product Specification
5
www.panelook.com
PAGE
OF 32
Page 6
Global LCD Panel Exchange Center
(
ఁ
)
(40,
)
(
)
(
)
www.panelook.com
PRODUCT GROUP
TFT LCD PRODUCT
REV ISSUE DATE
0 2010.12.15

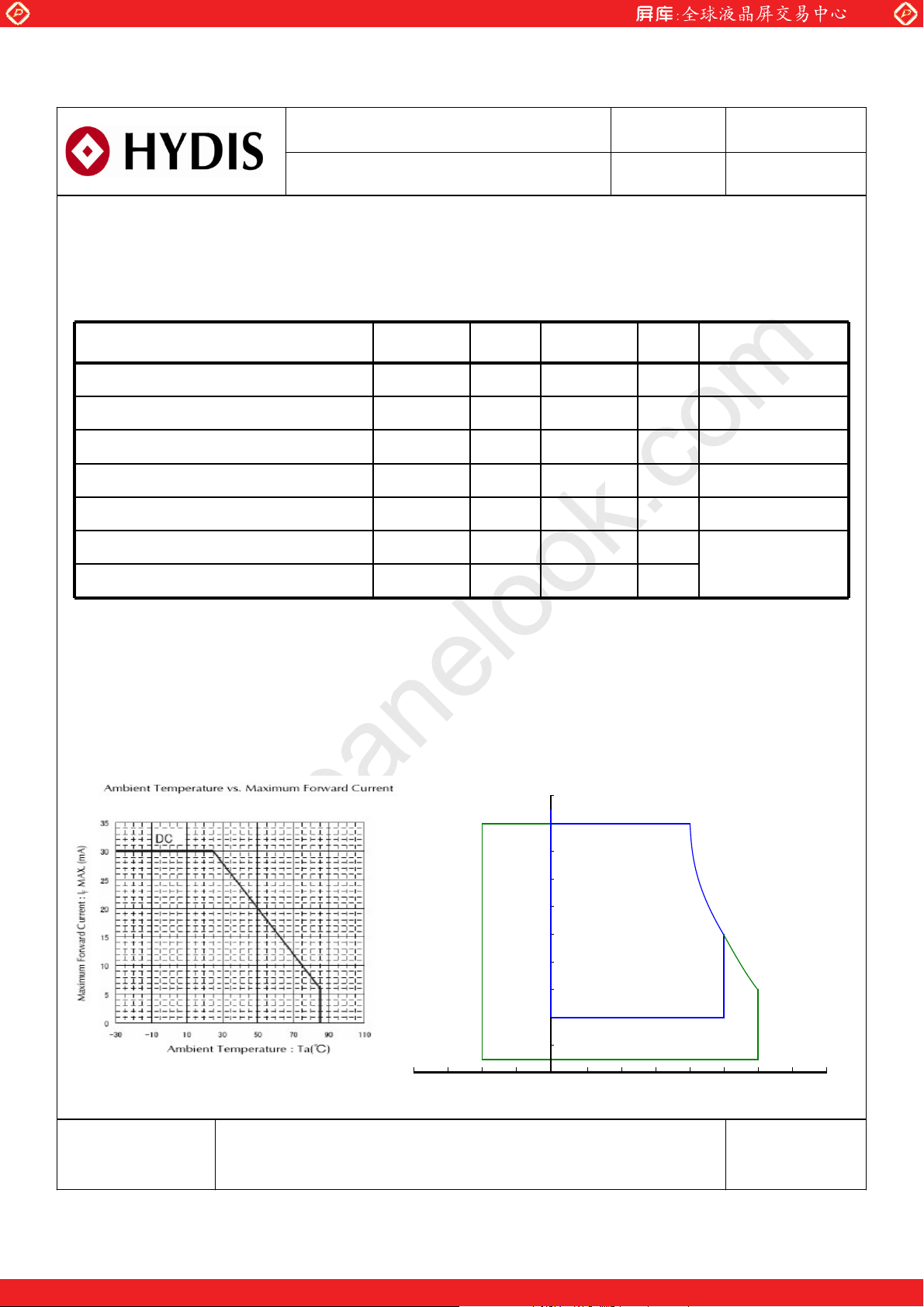

2.0 ABSOLUTE MAXIMUM RATINGS
The followings are maximum values which, if exceed, may cause faulty operation or
damage to the unit.
Parameter Symbol Min. Max. Unit Remarks
Logic Power Supply Voltage V
Logic Power Supply Voltage V
Back-light Power Supply Voltage HV
Back-light LED Current I
LED
Back-light LED Reverse Voltage V
Operating Temperature T
Storage Temperature T
DD
IN
DD
R
OP
SP
-0.3 4.0 V
-0.3 VDD+0.3 V
-0.3 40 V
- 30 mA Note 1
-5V
0+50
ଇ
Note 1, Note 2
-20 +60
ଇ
Ta=25+/-2¶C
Note 1. Ambient temperature vs allowable forward current are shown in the figure below.
Note 2. Temperature and relative humidity range are shown in the figure below.
90% RH Max. ( 40ఁ؅Ta) Maximum wet - bulb temperature at 39୅ or less. ( > 40ఁ) No condensation.
100
90
80
60
Operating Range
40
20
90
50, 50
60, 27
Storage Range
5
-40 -20 0 20 40 60 80
Temperature
SPEC. NUMBER
S864-1428
SPEC TITLE
HV121WX5-121 Product Specification
B2005-C001-D (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
PAGE
OF 32
6
www.panelook.com
Page 7
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT GROUP
TFT LCD PRODUCT
3.0 ELECTRICAL SPECIFICATIONS
3.1 Electrical Specifications
< Table 3. Electrical Specifications >
Parameter Min. Typ. Max. Unit Remarks
Logic Power Supply Voltage V
Logic Power Supply Current I
Back-light Power Supply Voltage HV
Back-light Power Supply Current I
Back-light Power Consumption P
Power Consumption (EBL) P
LED Driver’s Efficiency
Back-light PWM Frequency F
DD
DD
DD
HVDD
BL
EBL
ഗ
PWM
REV ISSUE DATE
0 2010.12.15
3.0 3.3 3.6 V
-346470mA
7.0 12.0 20 V
-255305mA
- 3.06 3.66 W
- 1.83 2.0 W
-82-%
200 280 350
໪
Note 1
Note 1
Note 2
Note 2, 3
Note 2, 3
Note 1, 2, 3
Note 2, 3
High Level PWM Signal Voltage V
Low Level PWM Signal Voltage V
Back-light LED Voltage / Back-light LED Total Voltage
Back-light LED Current / Back-light LED Total Current
Life Time
Power Consumption
PWMH
PWML
V
LED
/V
BL
I
LED
/I
BL
P
D
P
LED
P
total
2.1 3.3 5.0 V
-00.6V
-
-
10,000
3.1
/ 37.2
16.9
/ 67.6
--Hrs
3.5/
42.0
17.8/
71.2
V
mA
-1.14TBDW
- 2.51 2.99 W
-3.65TBDW
Note 4
Note 4
Based on LED
Note 1
Note 4
Note 1, 4
Notes : 1. The supply voltage is measured and specified at the interface connector of LCM.
The current draw and power consumption specified is for 3.3V at 25ଇ. a) Typ : Window XP pattern, b) Max : Vertical Sub line pattern c) EBL : Mosaic pattern ( 32 X 32 )
2. The power supply voltage and current is measured and specified at the interface connector of LCM including LED Driver.
3. Reference value, which is measured with LED Driver for 12V.
4. Reference value, which is measured without LED Driver.
5. Calculated value for reference (V
LED
ശ I
Ý # of LEDs (48EA) ).
LED
SPEC. NUMBER
S864-1428
SPEC TITLE
HV121WX5-121 Product Specification
7
B2005-C001-D (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
PAGE
OF 32
Page 8
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT GROUP
TFT LCD PRODUCT

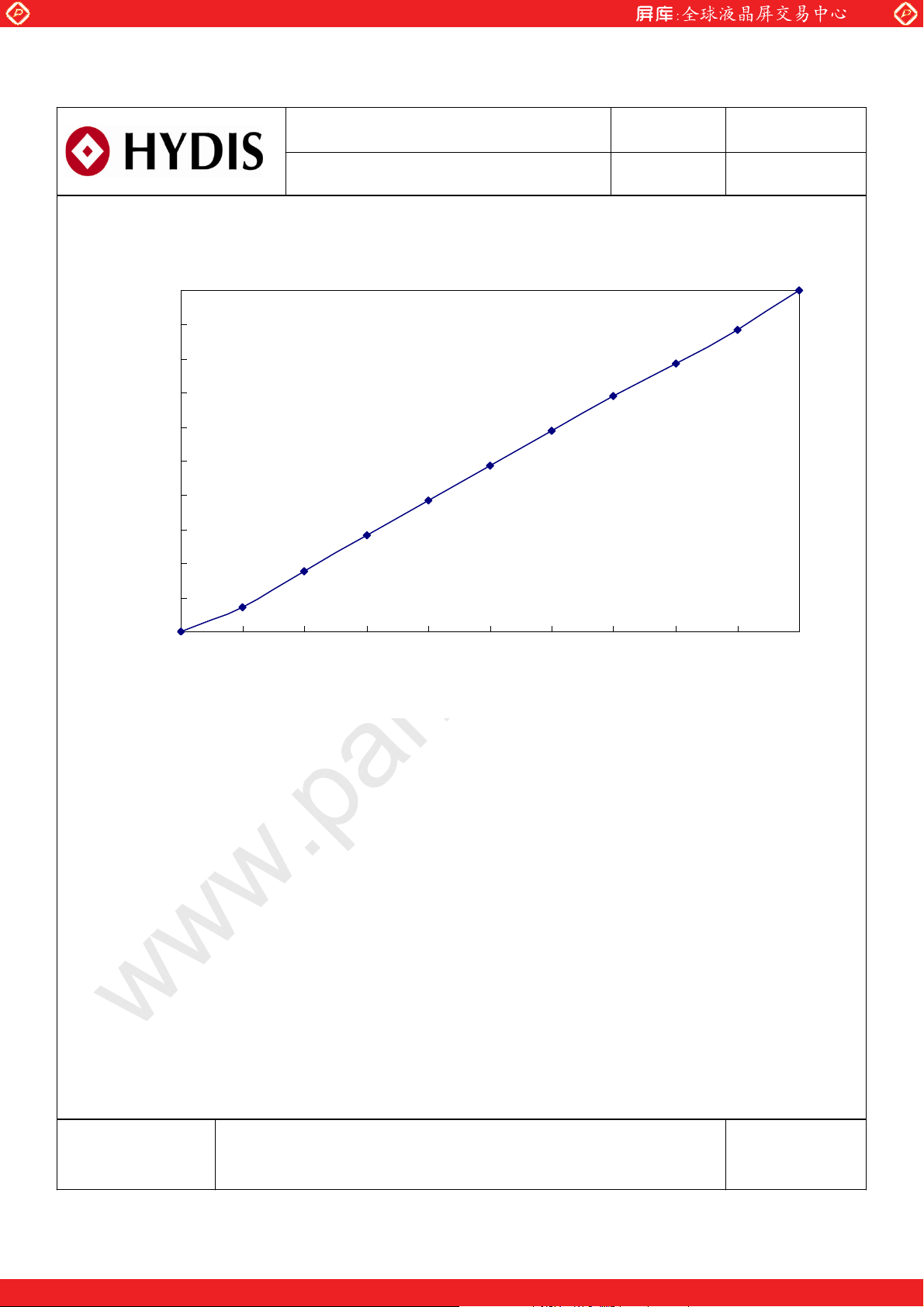

3.2 PWM Duty Ratio vs Brightness
100
90
80
70
60
50
40
30
Relative Brightness (%)
20
REV ISSUE DATE
0 2010.12.15
10
0
0 102030405060708090100
Duty Ratio (%)
Notes :
In case of duty ratio 0%, LED can’t illuminate itself so this state is LED off. In case of duty ratio 100%, the brightness of LED is maximum and the state is LED on.
SPEC. NUMBER
S864-1428
B2005-C001-D (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
SPEC TITLE
HV121WX5-121 Product Specification
8
www.panelook.com
PAGE
OF 32
Page 9
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT GROUP
TFT LCD PRODUCT
REV ISSUE DATE
0 2010.12.15
4.0 OPTICAL SPECIFICATIONS
4.1 Overview
The test of optical specifications shall be measured in a dark room (ambient luminance d 1 lux and temperature = 25r2ଇ) with the equipment of Luminance meter system (Goniometer system and TOPCON BM-5A) and test unit shall be located at an approximate distance 50cm from the LCD surface at a viewing angle of ഘ and ഍ equal to 0q. We refer to ഘ (=ഘ3 ) as the 3 o’clock direction (the “right”), ഘ (“upward”), ഘ
(= ഘ9 ) as the 9 o’clock direction (“left”) and ഘ
Ø=180
(= ഘ12 ) as the 12 o’clock direction
Ø=90
(= ഘ6 ) as the 6
Ø=270
o’clock direction (“bottom”). While scanning ഘ and/or Ø, the center of the measuring spot on the Display surface shall stay fixed. The backlight should be operating for 30 minutes prior to measurement. VDDshall be 3.3+/- 0.3V at 25qC. Optimum viewing angle direction is 6 o’clock.
4.2 Optical Specifications
<Table 4. Optical Specifications>
Parameter Symbol Condition Min. Typ. Max. Unit Remarks
Ø=0
Horizontal
Viewing Angle
range
Vertical
ԭ
Luminance Contrast ratio CR
Luminance of
White White
5 Points Y
5 Points ೼Y5 80 - -
Luminance
uniformity
13 Points ೼Y13 60 - -
W
White Chromaticity
W
Red
Reproduction
of color
Response
Time
Cross Talk CT
Green
Blue
Total
(T
r+Td
ԭ
ԭ
ԭ
R R G G B B
3
9
12
6
CR > 10
ԭ = 0q
w
ԭ = 0q
x
y
x
y
x
y
x
y
ԭ = 0q
ԭ = 0q
Ta= 25q C
)
ԭ = 0q
ԭ = 0q
-8990Deg.
-8990Deg. Note 1
-8990Deg.
-8990Deg.
- 500 - Note 2
190 220 - cd/m
2
Note 4
%
Note 5
0.283 0.313 0.343
0.299 0.329 0.359
0.533 0.563 0.593
0.324 0.354 0.384 Note 3
0.301 0.331 0.361
0.512 0.542 0.572
0.116 0.146 0.176
0.087 0.117 0.147
- 30 - ms Note 6
- - 2.0 % Note 7
SPEC. NUMBER
S864-1428
SPEC TITLE
HV121WX5-121 Product Specification
9
B2005-C001-D (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
PAGE
OF 32
Page 10
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT GROUP
TFT LCD PRODUCT
Notes :
1. Viewing angle is the angle at which the contrast ratio is greater than 10. The viewing angles are determined for the horizontal or 3, 9 o’clock direction and the vertical or 6, 12 o’clock direction with respect to the optical axis which is normal to the LCD surface (see Figure1).
2. Contrast measurements shall be made at viewing angle of ഀ= 0 and at the center of the LCD surface. Luminance shall be measured with all pixels in the view field set first to white, then to the dark (black) state (see Figure1). Luminance Contrast Ratio (CR) is defined mathematically as CR = Luminance when displaying a white raster / Luminance when displaying a black raster.
3. Reference only / Standard Front Surface Treatment Measured with green cover glass. The color chromaticity coordinates specified in Table 4 shall be calculated from the spectral data measured with all pixels first in red, green, blue and white. Measurements shall be made at the center of the panel.
REV ISSUE DATE
0 2010.12.15
SPEC. NUMBER
S864-1428
B2005-C001-D (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
SPEC TITLE
HV121WX5-121 Product Specification
10
www.panelook.com
PAGE
OF 32
Page 11
Global LCD Panel Exchange Center
www.panelook.com

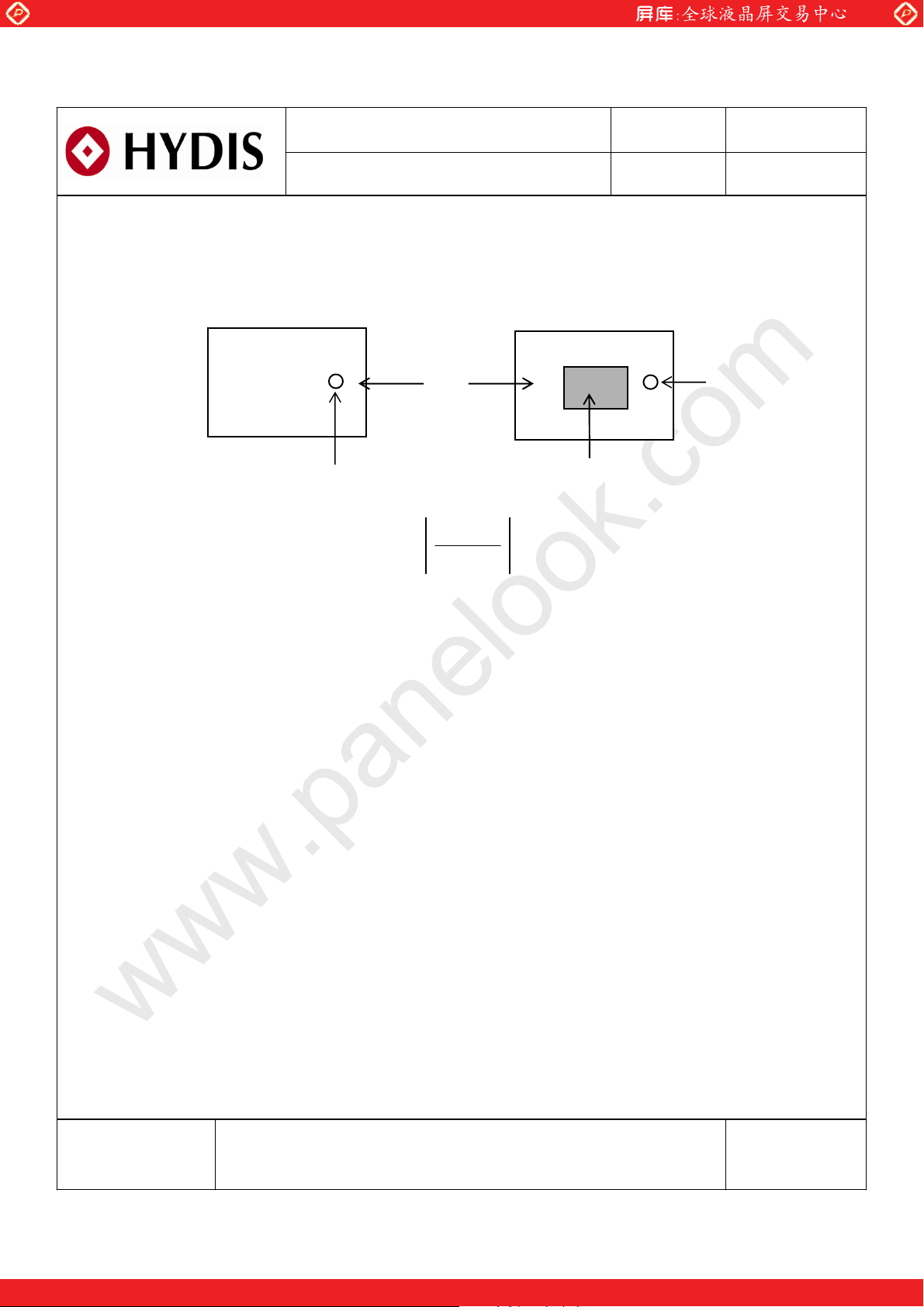

4.3 Optical Measurements
Photo detector
( TOPCON BM-5A)
TFT-LCD module
PRODUCT GROUP
REV ISSUE DATE
TFT LCD PRODUCT

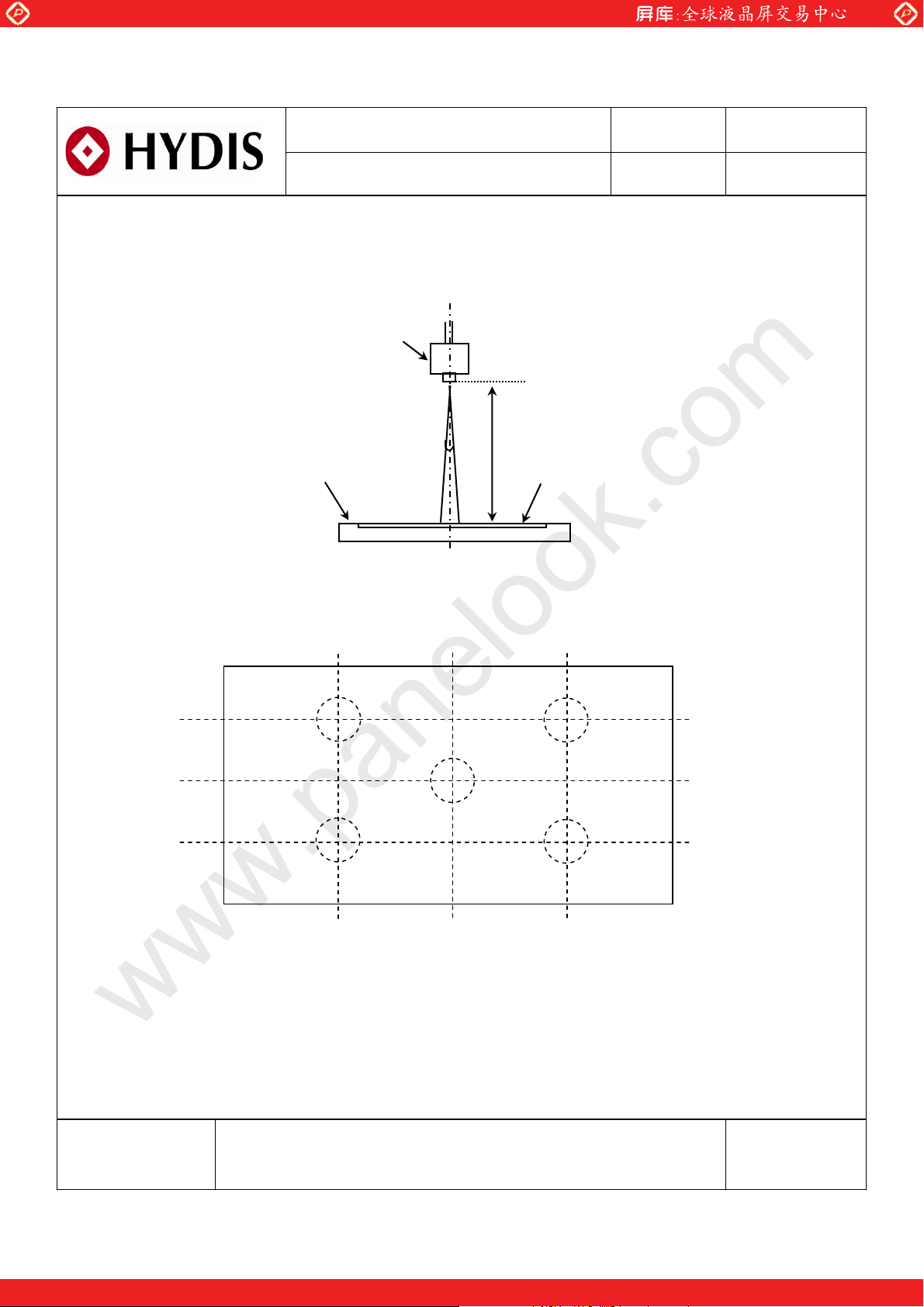

Figure 1. Measurement Set Up
o
Field = 2
Center of the screen
Optical characteristics measurement setup
50 cm
LCD panel
0 2010.12.15
Figure 2. White Luminance and Uniformity Measurement Locations (5 points)
Column
Row
200
400
600
320 640 960
Note 4. Luminance of white is defined as luminance values of 5 points across the LCD surface. Luminance shall be measured with all pixels in the view field set first to white. This measurement shall be taken at the locations shown in Figure 2 for a total of the measurements per display.
* Yw = (Sum of 5 Points Luminance / 5 )
SPEC. NUMBER
S864-1428
SPEC TITLE
HV121WX5-121 Product Specification
11
B2005-C001-D (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
PAGE
OF 32
Page 12
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT GROUP
TFT LCD PRODUCT
REV ISSUE DATE
0 2010.12.15

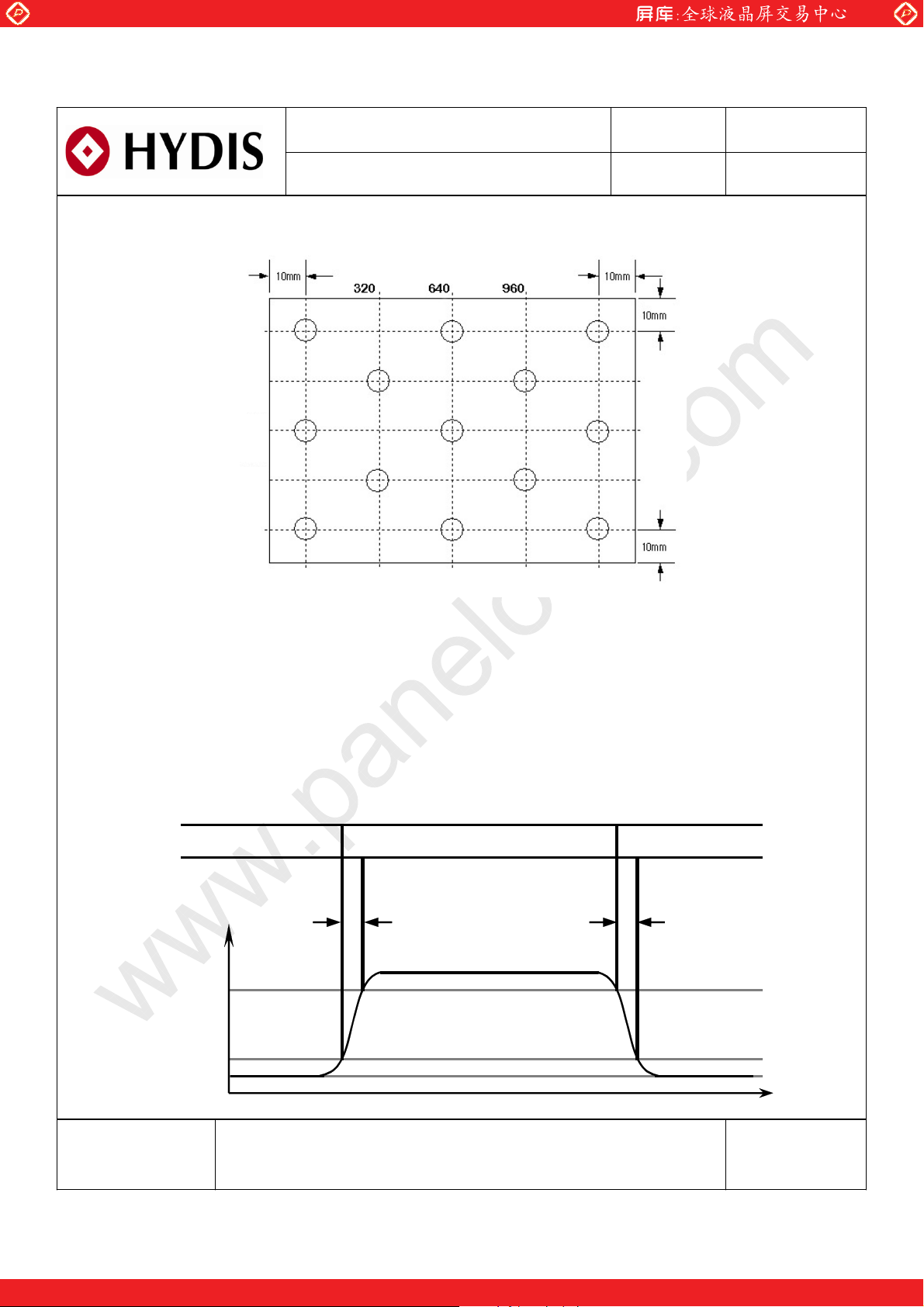

Figure 3. Uniformity Measurement Locations (13 points)
200
400
600
Note 5. The White luminance uniformity on LCD surface is then expressed as : ȟY5 = (Minimum Luminance of five points / Maximum Luminance of five points) X 100% (see Figure 2) , ȟY13 = (Minimum Luminance of 13 points /Maximum Luminance of 13 points) X 100% (see Figure 3).
Figure 4. Response Time Testing
TFT Of f (Blac k) TFT On (White) TFT Of f (Blac k)
Tr
Td
100%
90%
10%
0%
SPEC. NUMBER
S864-1428
SPEC TITLE
HV121WX5-121 Product Specification
12
B2005-C001-D (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
PAGE
OF 32
Page 13
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT GROUP
TFT LCD PRODUCT
Figure 5. Cross Modulation Test Description
VIEW AREA
L31
(1120, 400)
Y
A
Cross-Talk (%) = ശ 100
YB-Y
Y
A
B
VIEW AREA
320,200
L0
REV ISSUE DATE
0 2010.12.15
960,200
(1120, 400)
Y
B
960,600320,600
Where:
YA= Initial luminance of measured area (cd/m2) YB= Subsequent luminance of measured area (cd/m2)
The location measured will be exactly the same in both patterns
Note 6. The electro-optical response time measurements shall be made as Figure 4 by switching the “data” input signal ON and OFF. The times needed for the luminance to change from 10% to 90% is Tr, and 90% to 10% is Td.
Note 7. Cross-Talk of one area of the LCD surface by another shall be measured by comparing the luminance (YA) of a 25mm diameter area, with all display pixels set to a gray level, to the luminance (YB) of that same area when any adjacent area is driven dark (Refer to Figure 5).
SPEC. NUMBER
S864-1428
SPEC TITLE
HV121WX5-121 Product Specification
13
B2005-C001-D (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
PAGE
OF 32
Page 14
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT GROUP
TFT LCD PRODUCT
REV ISSUE DATE
0 2010.12.15
5.0 INTERFACE CONNECTIONS
5.1 Electrical Interface Connection
CN1 Interface Connector (I-PEX 20455-030E-02)
Pin Signal Description
1 EDID_Check Hydis internal use for EDID verification
2 NC No Connection (Reserved)
3 NC No Connection (Reserved)
4 NC No Connection (Reserved)
5 H_GND High Speed (Main Link) Ground
6 ML_Lane 0 (n) Complement Signal-Main Link Lane
7 ML_Lane 0 (p) True Signal-Main Link Lane
8 H_GND High Speed (Main Link) Ground
9 AUX_CH(p) True Signal-Auxiliary channel
10 AUX_CH(n) Complement Signal-Auxiliary
11 H_GND High Speed (Main Link) Ground
12 VCC VCC for Module (3.3V)
13 VCC VCC for Module (3.3V)
14 BIST Built-In Self Test (active high)
15 GND Ground
16 GND Ground
17 HPD Hot Plug Detect
18 BL_GND BL Ground
19 BL_GND BL Ground
20 BL_GND BL Ground
21 BL_GND BL Ground
22 BL_EN BL On/Off (On: 2.0~3.3V, Off: 0~0.5V) / NC (100K pull-up) / 5V tolerant
23 BL_PWM PWM for luminance control (200~1KHz, 3.3V, 10~100%, 0V=off) 5V tolerant
24 EDID_Check Hydis internal use for EDID verification
25 EDID_Check Hydis internal use for EDID verification
26 VBL BL Power 6V-20V
27 VBL BL Power 6V-20V
28 VBL BL Power 6V-20V
29 VBL BL Power 6V-20V
30 EDID_Check Hydis internal use for EDID verification
SPEC. NUMBER
S864-1428
SPEC TITLE
HV121WX5-121 Product Specification
14
B2005-C001-D (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
PAGE
OF 32
Page 15
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT GROUP
TFT LCD PRODUCT
REV ISSUE DATE
0 2010.12.15

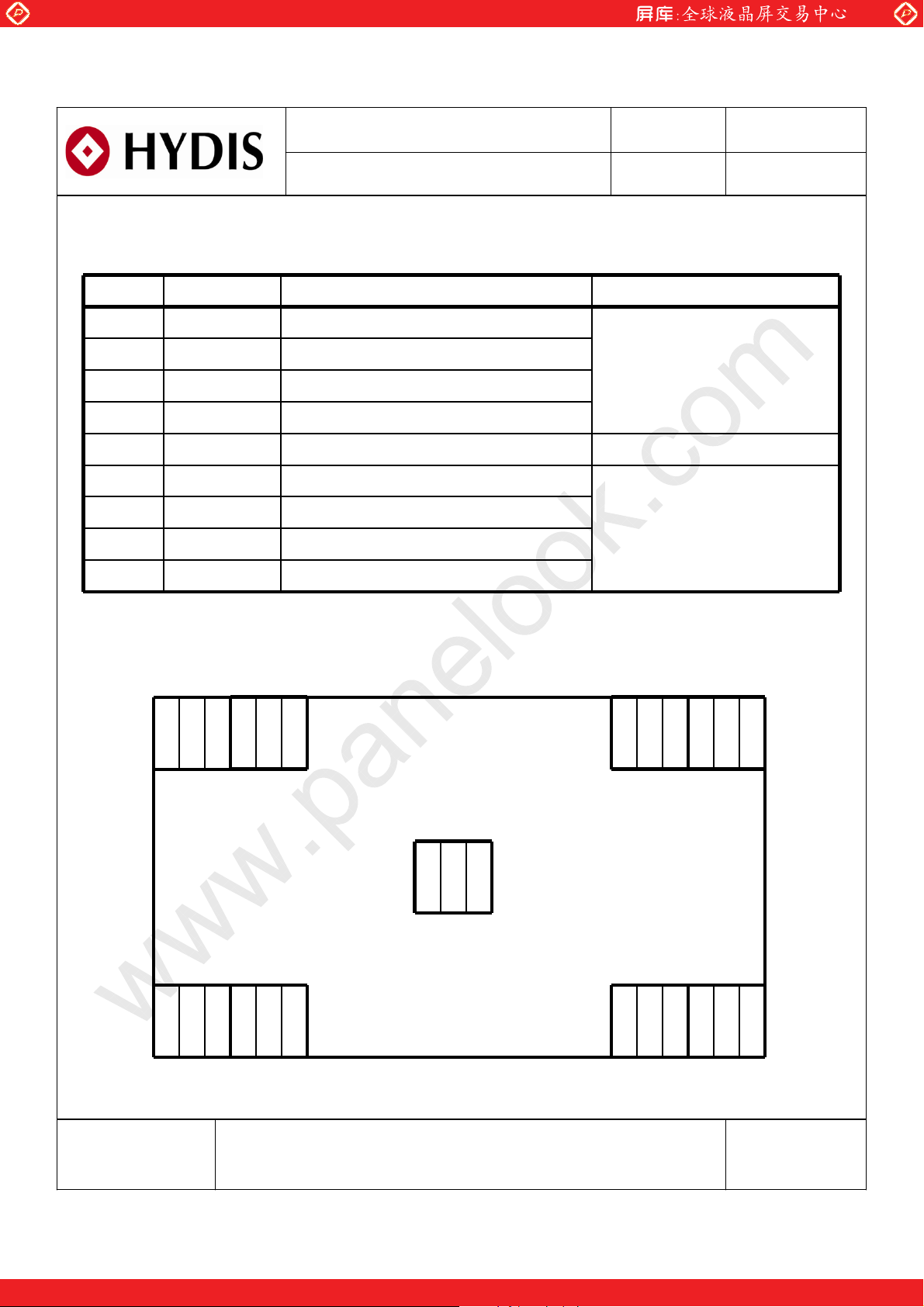

5.2 Back-light Interface
CN2 LED FPC Connector (04-6298-009, Manufactured by Kyocera)
Pin No. Symbol Function Remark
1 Anode1 LED Anode Power Supply
2 Anode2 LED Anode Power Supply
3 Anode3 LED Anode Power Supply
4 Anode4 LED Anode Power Supply
5 NC Non-Connection
6 Cathode1 LED Cathode Power Supply
7 Cathode2 LED Cathode Power Supply
8 Cathode3 LED Cathode Power Supply
9 Cathode4 LED Cathode Power Supply
LED Anode Power Supply (3.1V X 12EA = 37.2V)
LED Cathode Power Supply
5.4 Data Input Format
(1,1) (2,1)
RGBRGB RGBRGB
RGBRGB RGBRGB
(1,800)
(2,800) (1279,800) (1280,800)
(1279,1) (1280,1)
1 Pixel = 3 Dots
RGB
SPEC. NUMBER
S864-1428
SPEC TITLE
HV121WX5-121 Product Specification
15
B2005-C001-D (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
PAGE
OF 32
Page 16
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT GROUP
TFT LCD PRODUCT
REV ISSUE DATE
0 2010.12.15
6.0. SIGNAL TIMING SPECIFICATIONS
6.1 The 12.1” WXGA LCM is operated by the only DE (Data enable) mode
(LVDS Transmitter Input)
Item Symbol Min. Typ. Max. Unit
Frame Period T1 810 814 - Lines
Vertical Display Period T2 - 800 -
One line Scanning Period T3 1350 1418 - Clocks
Horizontal Display Period T4 - 1280 - Clocks
Clock Frequency 1/T5 - 69.3 - MHz
Lines

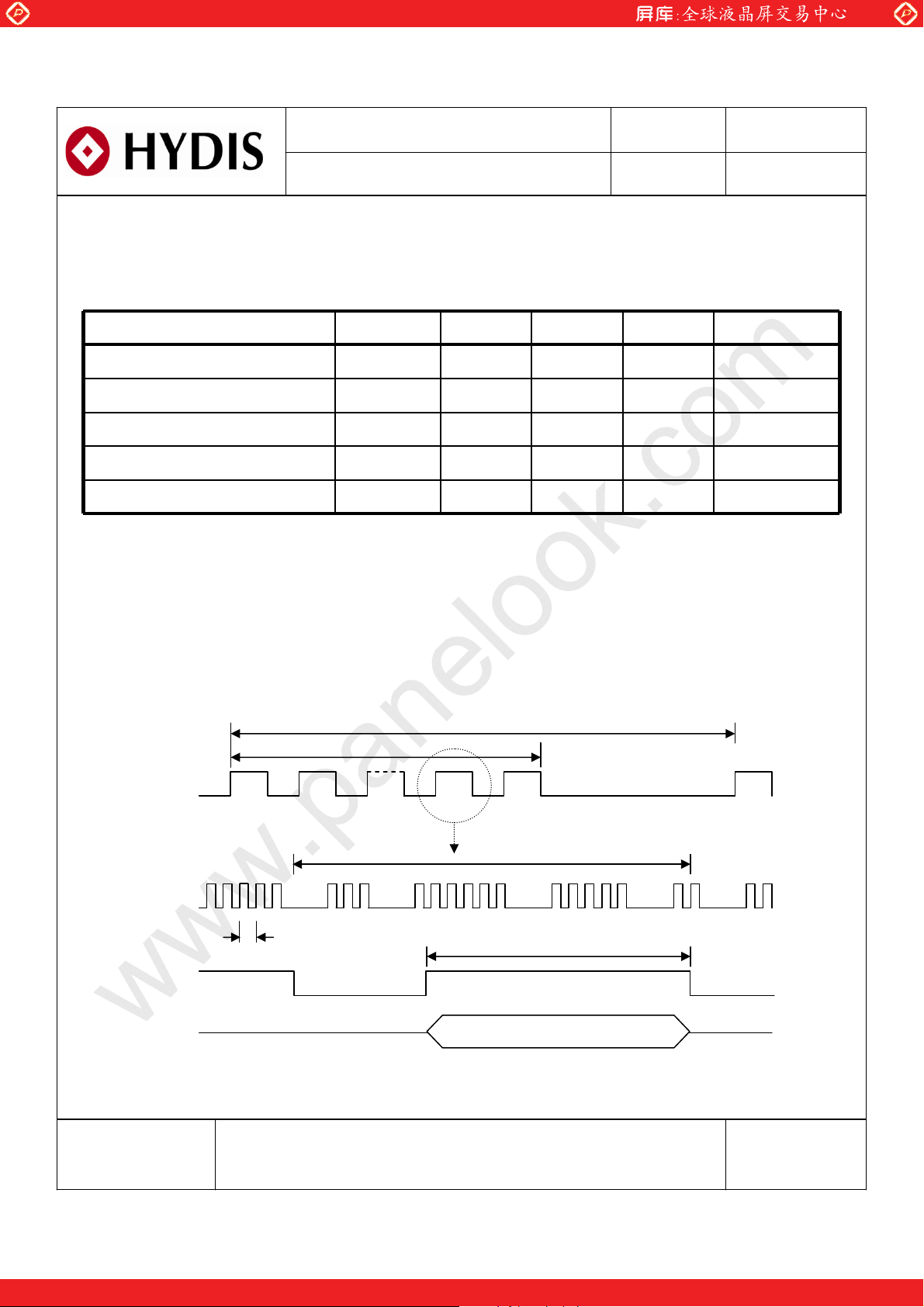

7.0 SIGNAL TIMING WAVEFORMS
7.1 Timing Waveforms of Interface Signal
T2
DE
DCLK
T5
DE
DATA SIGNALS
T1
T3
T4
Valid display data (1280 Clocks)
SPEC. NUMBER
S864-1428
SPEC TITLE
HV121WX5-121 Product Specification
16
B2005-C001-D (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
PAGE
OF 32
Page 17
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT GROUP
TFT LCD PRODUCT
REV ISSUE DATE
0 2010.12.15

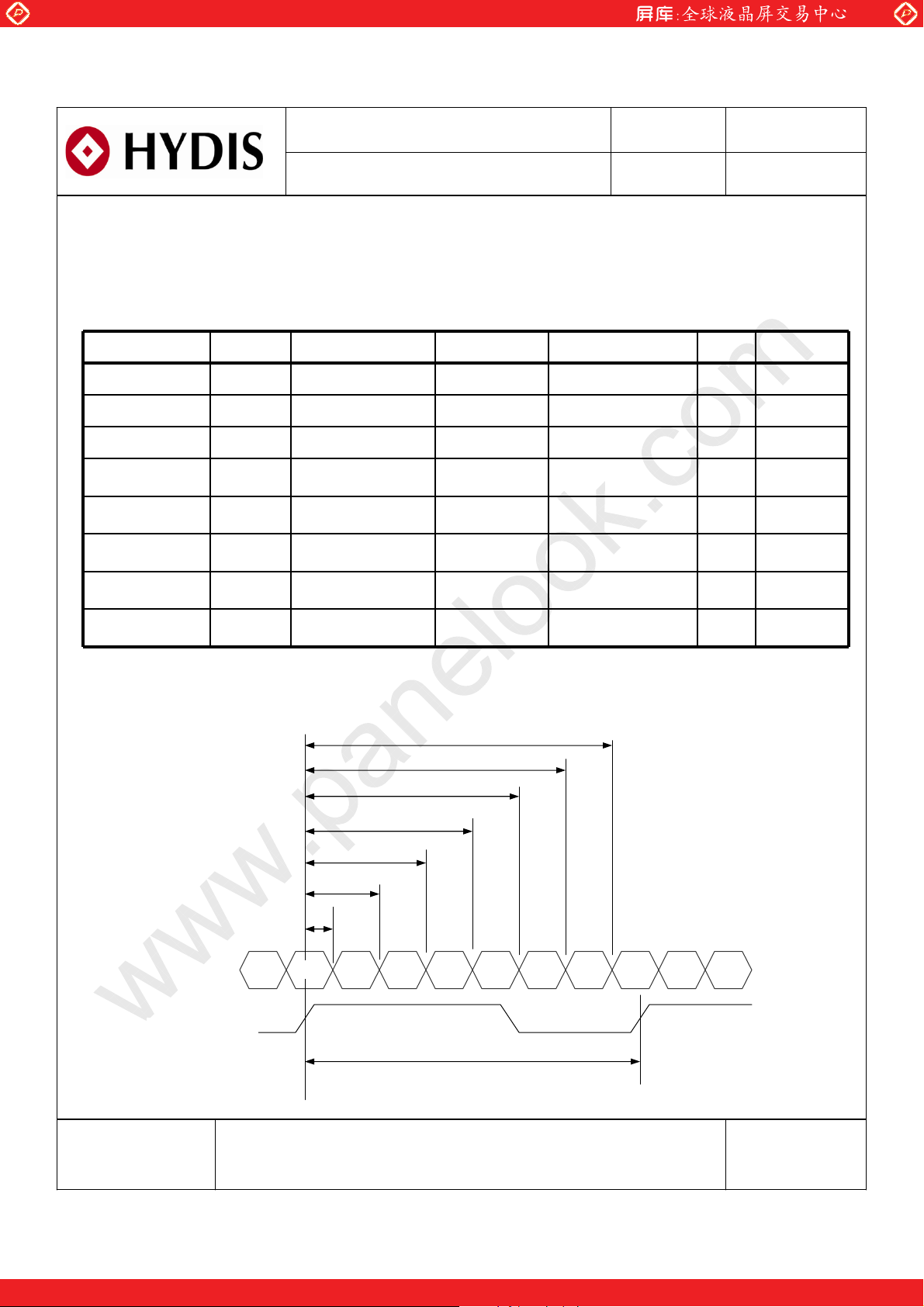

7.2 LVDS Rx Interface Timing Parameter
The specification of the LVDS Rx interface timing parameter
< LVDS Rx Interface Timing Specification>
Item Symbol Min. Typ. Max. Unit Remarks
CLKIN Period tRCIP 12.50 14.43 25.00 nsec
Input Data 0 tRIP0 -0.4 0.0 +0.4 nsec
Input Data 1 tRIP1 tRICP/7-0.4 tRICP/7 tRICP/7+0.4 nsec
Input Data 2 tRIP2 2 ശtRICP/7-0.4 2 ശtRICP/7 2 ശtRICP/7+0.4 nsec
Input Data 3 tRIP3 3 ശtRICP/7-0.4 3 ശtRICP/7 3 ശtRICP/7+0.4 nsec
Input Data 4 tRIP4 4 ശtRICP/7-0.4 4 ശtRICP/7 4 ശtRICP/7+0.4 nsec
Input Data 5 tRIP5 5 ശtRICP/7-0.4 5 ശtRICP/7 5 ശtRICP/7+0.4 nsec
Input Data 6 tRIP6 6 ശtRICP/7-0.4 6 ശtRICP/7 6 ശtRICP/7+0.4 nsec
tRIP6
tRIP5
tRIP4
tRIP3
tRIP2
tRIP1
tRIP0
RxINz +/-
* Z = 0, 1, 2
RxCLKIN+/-
Rx Rx Rx Rx Rx Rx Rx Rx Rx RxRx
Vdiff=0[v]Vdiff=0[v]
tRCIP
SPEC. NUMBER
S864-1428
SPEC TITLE
HV121WX5-121 Product Specification
17
B2005-C001-D (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
PAGE
OF 32
Page 18
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT GROUP
TFT LCD PRODUCT
REV ISSUE DATE
0 2010.12.15
6.0 INPUT SIGNALS, BASIC DISPLAY COLORS & GRAY SCALE OF COLORS
Each color is displayed in sixty-four gray scales from a 6 bit data signal input. A total of 262,144 colors are derived from the resultant 18 bit data.
Colors & Gray
Scale
Basic
Colors
Gray
Scale
Of
Red
Gray
Scale
Of
Green
Gray
Scale
Of
Blue
Gray
Scale
Of
White
&
Black
SPEC. NUMBER
S864-1428
Black
Blue
Green
Cyan
Red
Magenta
Yellow
White Black
ଠ
Darker
ଠ ଢ
Brighter
ଢ
Red
Black
ଠ
Darker
ଠ ଢ
Brighter
ଢ
Green
Black
ଠ
Darker
ଠ ଢ
Brighter
ଢ
Blue
Black
ଠ
Darker
ଠ ଢ
Brighter
ଢ
White
SPEC TITLE
R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0
1 1 1 1 0 1 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0
0 0 0 0 0 0 1 1 1 1 0 1 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0
0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 0 1 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 1 0 0 0 0 0 1 0 0 0 0 1 0 0 0 0 0 1 0 0 0 0 0 1 0
1 1 1 1 0 1 1 1 1 1 0 1 1 1 1 1 0 1 1 1 1 1 1 0 1 1 1 1 1 0 1 1 1 1 1 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
HV121WX5-121 Product Specification
Red Data Green Data Blue Data
     
     
     
     
18
PAGE
OF 32
B2005-C001-D (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 19
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT GROUP
TFT LCD PRODUCT
REV ISSUE DATE
0 2010.12.15

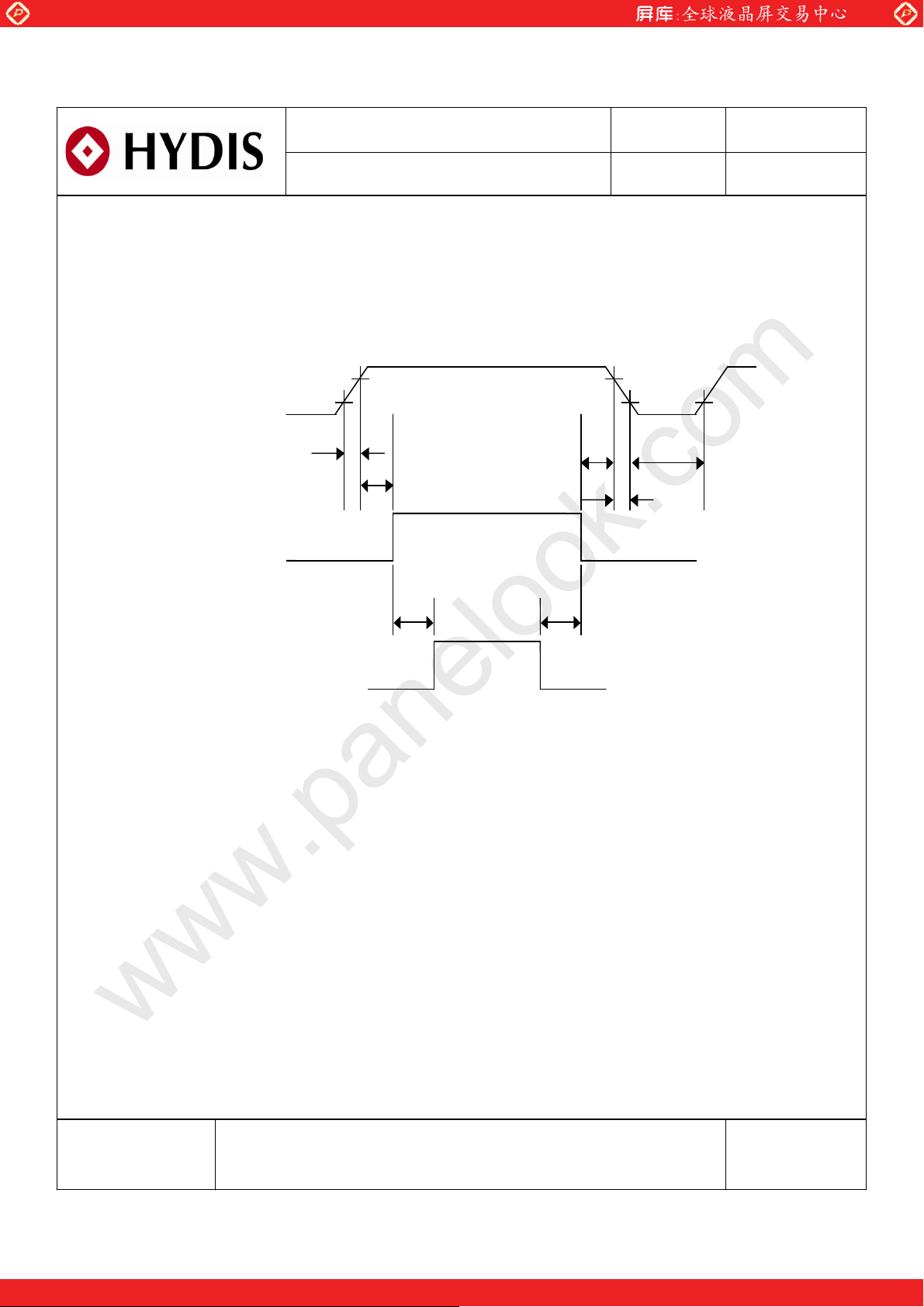

7.0 POWER SEQUENCE
To prevent a latch-up or DC operation of the LCD module, the power on/off sequence shall be as shown in below
Power Supply
Interface Signal
0.9VDD
0.1VDD
0V
T1
T2
Valid
0V
0.9VDD
T5
0.1VDD
T7
T6
T3 T4
Back- light
0V
T1 d 10 ms0 d T2 d 50 ms200 ms d T3200 ms d T40 d T5 ˺ 50 ms 0 d T6 d 10ms500ms d T7
Notes : 1. When the power supply VDD is 0V, Keep the level of input signals on the low or keep
high impedance.
2. Do not keep the interface signal high impedance when power is on.
3. Back Light must be turn on after power for logic and interface signal are valid.
SPEC. NUMBER
S864-1428
SPEC TITLE
HV121WX5-121 Product Specification
19
B2005-C001-D (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
PAGE
OF 32
Page 20
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT GROUP
TFT LCD PRODUCT
REV ISSUE DATE
0 2010.12.15
8.0 MECHANICAL CHARACTERISTICS
8.1 Dimensional Requirements
Figure 6 & 7 (located in 9.0) shows mechanical outlines for the model
Parameter Specification Unit
Active Area 261.12(H) X 163.20(V) mm
Number of pixels 1280(H) X 800(V) (1 pixel = R + G + B dots)
Pixel pitch 0.204(H) X 0.204(V)
Pixel arrangement RGB Vertical stripe
Display colors 262,144
Display mode Normally Black
Outline dimension 276.8ധ0.3(H)ശ180.0(V)ധ0.3ശ6.8(D:Max.) mm
Weight 265(Typ.) g
Back-light SMD LED (48EA) Array
8.2 Mounting
See Figure 6 & 7 & 8. (shown in 9.0)
Parameter Specification Unit
Torque of side mounting screw 2.5(Max.) Kgf.cm
Torque of ground plate screw 1.5(Max.) Kgf.cm
Torque of top side screw 2.5(Max.) Kgf.cm
2
2
2
8.3 Anti-Glare and Polarizer Hardness.
The surface of the LCD has an anti-glare coating to minimize reflection and a coating to
reduce scratching.
8.4 Light Leakage
There shall not be visible light from the back-lighting system around the edges of the screen as seen from a distance 50cm from the screen with an overhead light level of 150lux. The manufacture shall furnish limit samples of the panel showing the light leakage acceptable.
SPEC. NUMBER
S864-1428
SPEC TITLE
HV121WX5-121 Product Specification
20
B2005-C001-D (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
PAGE
OF 32
Page 21
Global LCD Panel Exchange Center
www.panelook.com
9.0 Mechanical Drawing

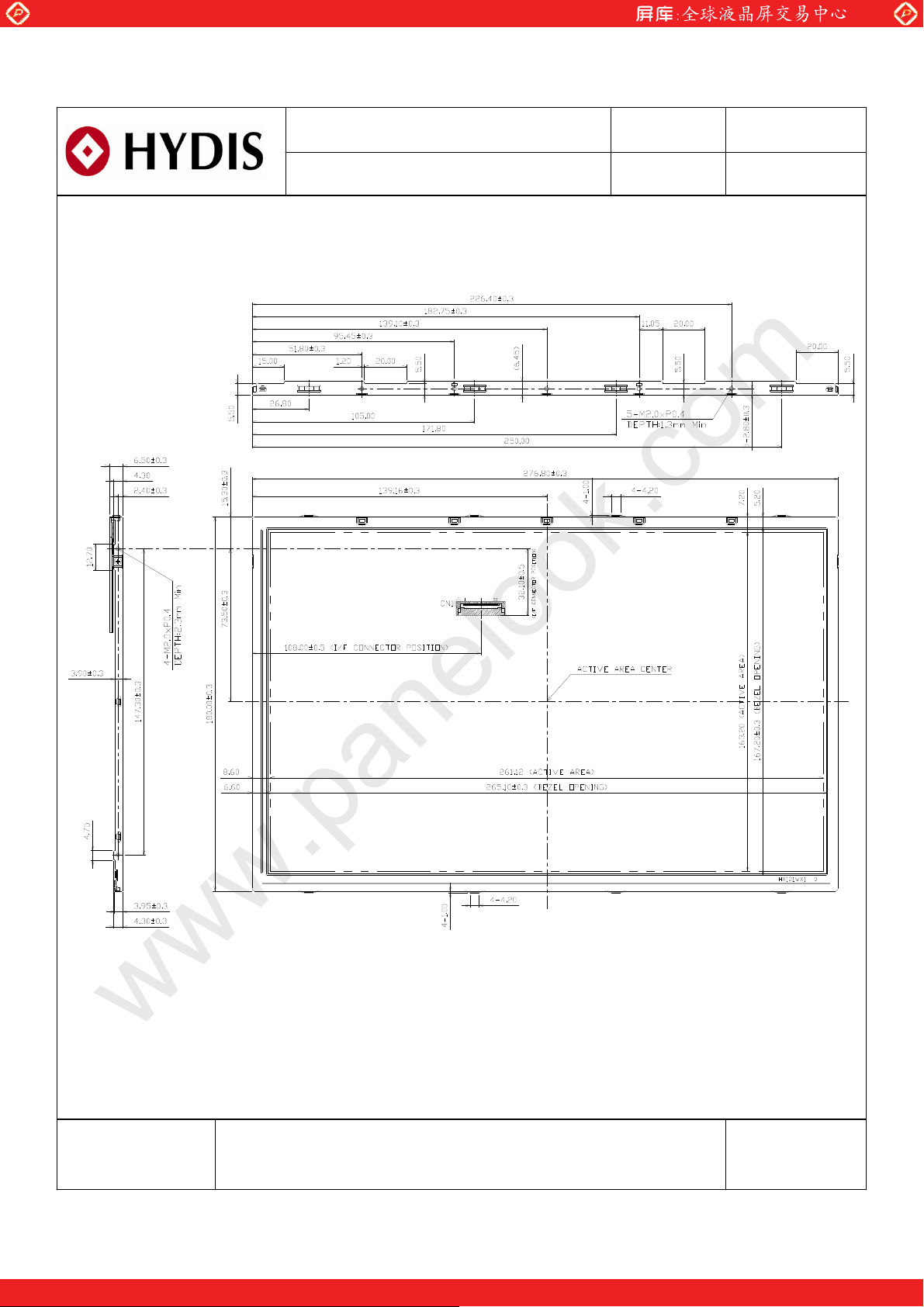

Figure 6. TFT-LCD Module Outline Dimension (Front View)
PRODUCT GROUP
TFT LCD PRODUCT
REV ISSUE DATE
0 2010.12.15
SPEC. NUMBER
S864-1428
B2005-C001-D (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
SPEC TITLE
HV121WX5-121 Product Specification
21
www.panelook.com
PAGE
OF 32
Page 22
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT GROUP
TFT LCD PRODUCT
REV ISSUE DATE
0 2010.12.15

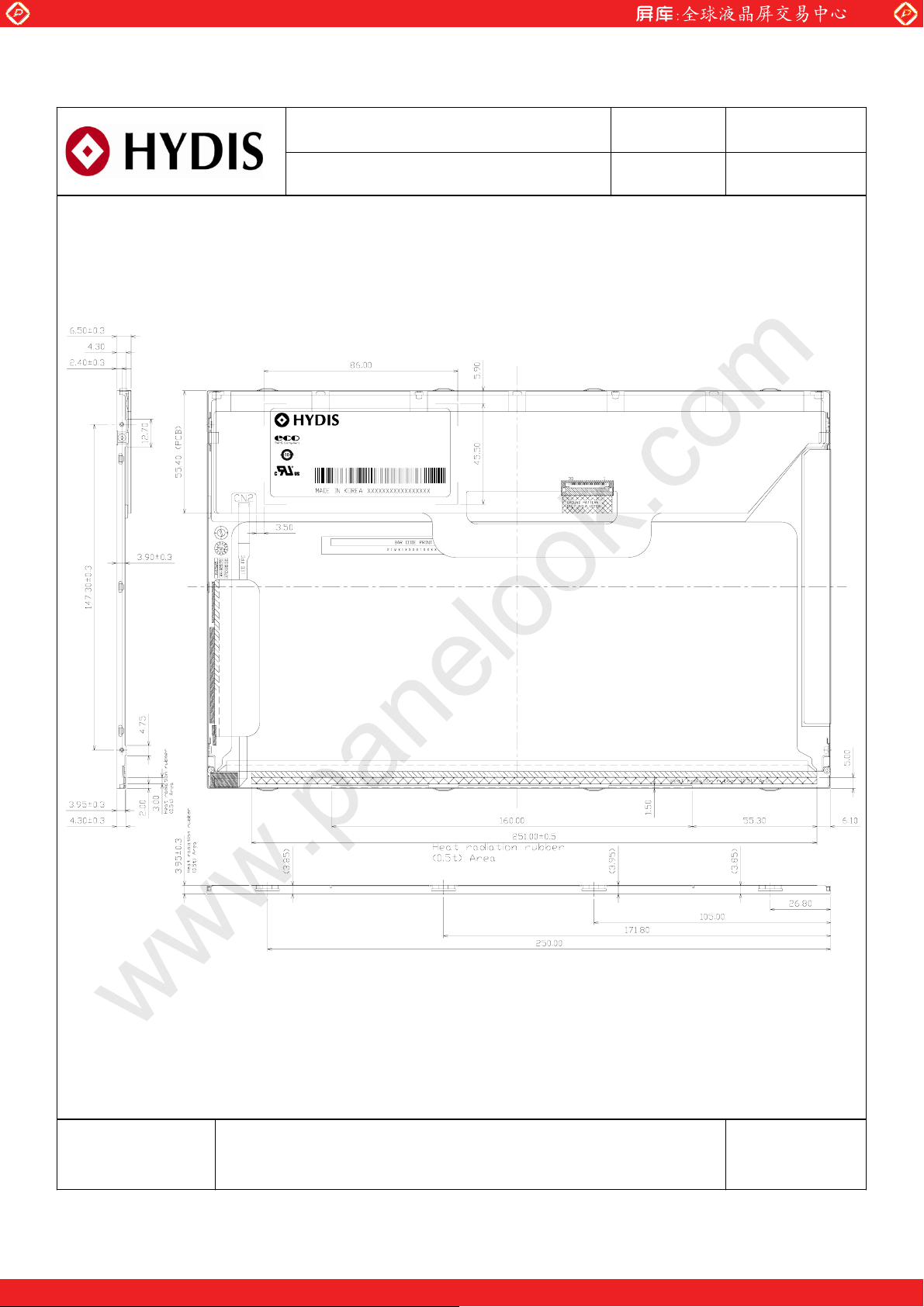

Figure 7. TFT-LCD Module Outline Dimensions (Rear view)
3
o}XYX~\TXYX
4
SPEC. NUMBER
S864-1428
SPEC TITLE
HV121WX5-121 Product Specification
22
B2005-C001-D (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
PAGE
OF 32
Page 23
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT GROUP
TFT LCD PRODUCT
10.0 RELIABLITY TEST
The Reliability test items and its conditions are shown in below.
<Table 12. Reliability Test>
No Test Item Conditions
1 High temperature storage test
2 Low temperature storage test
3
High temperature & high humidity operation test
4 High temperature operation test
5 Low temperature operation test
6 Thermal shock
7
Vibration test (non-operating)
Ta = 60 qC, 240 hrs
Ta = -20 qC, 240 hrs
Ta = 50 ଇ, 80%RH, 240hrs
Ta = 50 qC, 240 hrs
Ta = 0 qC, 240 hrs
Ta = -20 qC l 60 qC (30 min), 100 cycle
Frequency : 10~500Hz Gravity/AMP : 1.5G Period : X,Y,Z 30min
REV ISSUE DATE
0 2010.12.15
8
9
Shock test (non-operating)
Electro-static discharge test (non-operating)
Gravity : 220G Pulse width : 2ms, half sine wave
ρX, ρY, ρZ Once for each direction
Air : 150pF, 330ohm, 15KV Contact : 150pF, 330ohm, 8KV
11.0 HANDLING & CAUTIONS
11.1 Cautions when taking out the module
y Pick the pouch only, when taking out module from a shipping package.
11.2 Cautions for handling the module
y As the electrostatic discharges may break the LCD module, handle the LCD module with
care. Peel a protection sheet off from the LCD panel surface as slowly as possible.
y As the LCD panel and back - light element are made from fragile glass (epoxy) material,
impulse and pressure to the LCD module should be avoided.
y As the surface of the polarizer is very soft and easily scratched, use a soft dry cloth
without chemicals for cleaning.
y Do not pull the interface connector in or out while the LCD module is operating. y Put the module display side down on a flat horizontal plane. y Handle connectors and cables with care.
SPEC. NUMBER
S864-1428
SPEC TITLE
HV121WX5-121 Product Specification
23
B2005-C001-D (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
PAGE
OF 32
Page 24
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT GROUP
TFT LCD PRODUCT
11.3 Cautions for the operation
y When the module is operating, do not lose MCLK, DE signals. If any one of these signals
were lost, the LCD panel would be damaged.
y Obey the supply voltage sequence. If wrong sequence is applied, the module would be
damaged.
11.4 Cautions for the atmosphere
y Dew drop atmosphere should be avoided. y Do not store and/or operate the LCD module in a high temperature and/or humidity
atmosphere. Storage in an electro-conductive polymer packing pouch and under relatively low temperature atmosphere is recommended.
11.5 Cautions for the module characteristics
y Do not apply fixed pattern data signal to the LCD module at product aging. y Applying fixed pattern for a long time may cause image sticking.
REV ISSUE DATE
0 2010.12.15
11.6 Cautions for the digitizer assembly
y When assembling FPC connector, do not flip connector past 90¶ due to possible damage
to connector.
y When positioning digitizer underneath driver IC, do not lift driver IC past 90¶ due to
possible damage to drive IC pattern.
y Please be warned that during assembly of digitizer, the opening or closing of FPC will
result in possible electrostatic discharge damage to the LED
11.7 Other cautions
y Do not re-adjust variable resistor or switch etc. y When returning the module for repair or etc., Please pack the module not to be broken.
We recommend to use the original shipping packages.
SPEC. NUMBER
S864-1428
B2005-C001-D (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
SPEC TITLE
HV121WX5-121 Product Specification
24
www.panelook.com
PAGE
OF 32
Page 25
Global LCD Panel Exchange Center
o}XYX~\TXYX
www.panelook.com
12.0 LABELS

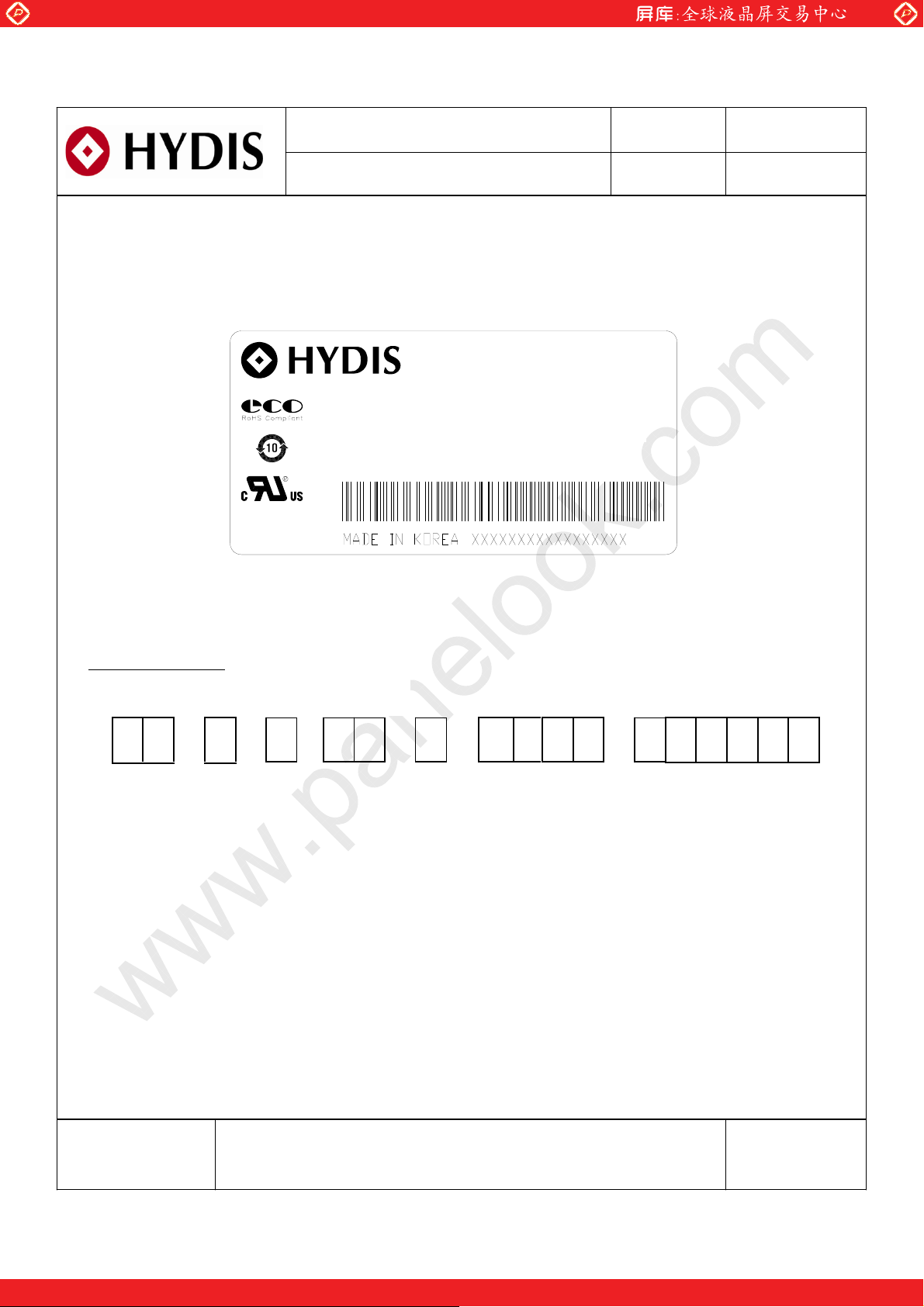

12.1 Product Label
PRODUCT GROUP
TFT LCD PRODUCT
4
3
REV ISSUE DATE
0 2010.12.15
HYDIS Barcode
1 2
No 1. Control Number
No 2. Rank / Grade
No 3. Line Classification
(HYDIS : H)
No 4. Year (5 : 2005, 6 : 2006, …)
3
4
5
6
7
XXXXXXXXXXXXXXXX X
No 5. Month (1, 2, 3,…, 9, X, Y, Z)
No 6. FG Code
No 7. Serial Number
SPEC. NUMBER
S864-1428
SPEC TITLE
HV121WX5-121 Product Specification
25
B2005-C001-D (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
PAGE
OF 32
Page 26
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT GROUP
TFT LCD PRODUCT

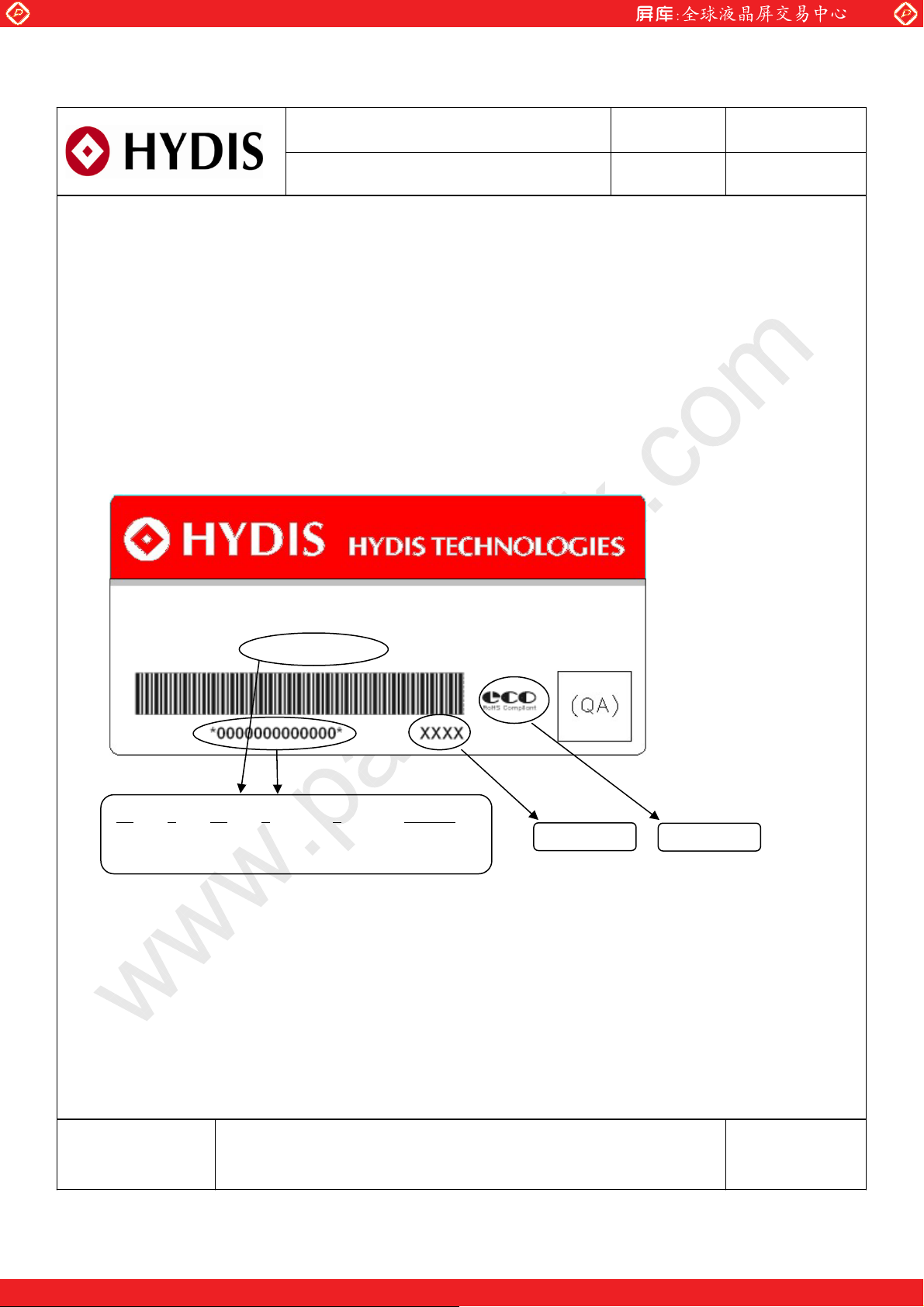

12.2 Packing Label
Label Size: 108 mm (L) u 56 mm (W) Contents Model: HV121WX5-121 Q`ty: Module Q`ty in one box Serial No.: Box Serial No. See next figure for detail
description. Date: Packing Date FG Code: FG Code of Product
REV ISSUE DATE
0 2010.12.15
MODEL : HV121WX5-121
SERIAL NO. : 0000000000000
00 0 00 0 0 000000 Type Grade Year Month ITEM-CODE Serial_no
Q’TY : 10
DATE : XXXX. XX. XX
FG CODE
RoHS Mark
SPEC. NUMBER
S864-1428
SPEC TITLE
HV121WX5-121 Product Specification
26
B2005-C001-D (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
PAGE
OF 32
Page 27
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT GROUP
TFT LCD PRODUCT
13.0 PACKING INFORMATION
13.1 Packing order
Put Pad into the box.
REV ISSUE DATE
0 2010.12.15
Put silica gels in the box.
After sealing the box, attach Packing Label on the attach position sign area of the box.
13.2 Notes
Place a cover on the top of the box.
As shown in the figure, place the Modules bundled by shielding bag in the box.
z Box Dimension : 349.0mm(W) X 261.0mm(D) X 311.0mm(H) z Package Quantity in one Box : 10pcs
SPEC. NUMBER
S864-1428
SPEC TITLE
HV121WX5-121 Product Specification
27
B2005-C001-D (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
PAGE
OF 32
Page 28
Global LCD Panel Exchange Center
wGw
www.panelook.com
13.2
PRODUCT GROUP
TFT LCD PRODUCT
REV ISSUE DATE
0 2010.12.15
* Note

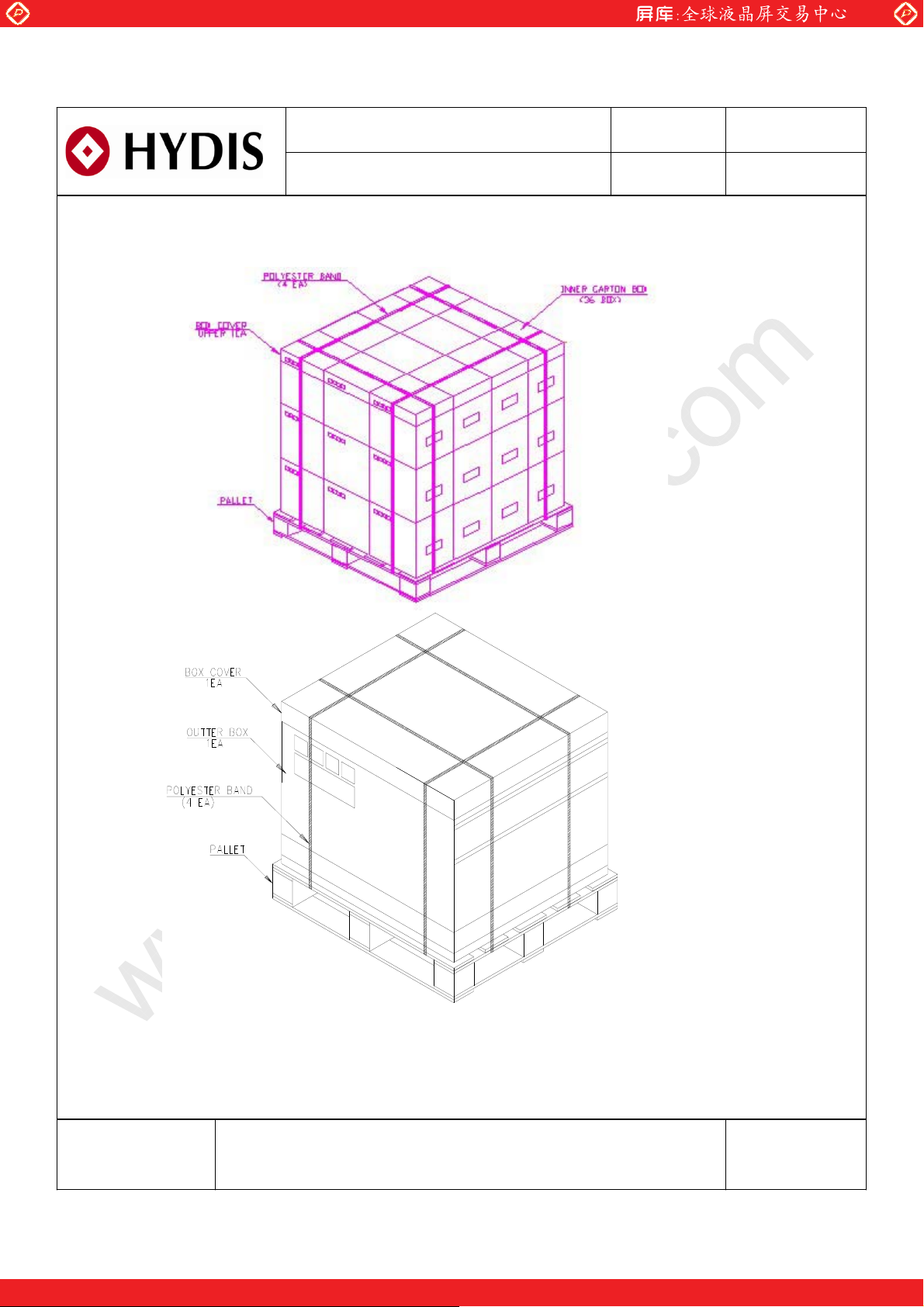

z Pallet Dimension : aGXXWWGGOsPGu XXWWGGO~PGu XYWGGOoP z Package Quantity in one Box : 10pcs z Box Quantity in one Pallet : 36 box
SPEC. NUMBER
S864-1428
B2005-C001-D (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
SPEC TITLE
HV121WX5-121 Product Specification
28
www.panelook.com
PAGE
OF 32
Page 29
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT GROUP
TFT LCD PRODUCT
REV ISSUE DATE
0 2010.12.15
14.0 EDID Table
Addres s
(HEX)
00 00 0 01 FF 255 02 FF 255 03 FF 255 04 FF 255 05 FF 255 06 FF 255 07 00 0 08 09 9
09 E5 229 0A A0 160 0B 08 8 0C 00 0 0D 00 0 0E 00 0
0F 00 0
10 Week of manufacture 0 0
11 Year of Manufacture 13 19
12 EDID Structure Ver. 01 1
13EDID revision #044
14 Video input definition 95 149
15 Max H image size 1A 26
16 Max V image size 10 16
17 Dis play Gamma 78 120
18 Feature s upport 2A 42
19 Red/Green low bits 92 146 1A Blue/White low bits 75 117 1B Red x high bits 90 144 0.564 Rx = 0.56416 1C Red y high bits 59 89 0.349 Ry = 0.3491 1D Green x high bits 5A 90 0.352 Gx = 0.35152 1E Green y high bits 90 144 0.565 Gy = 0.5648
1F Blue x high bits 26 38 0.150 Bx = 0.14956
20 BLue y high bits 1D 29 0.117 By = 0.1166
21 White x high bits 50 80
22 White y high bits 54 84
Function Hex Dec
Header EDID Header
ID Manufacturer Name
ID Product Code
32-bit serial No.
values. Notes
0 255 255 255 255 255 255
0
BOE
2208
0
2009
1
4
­26 16
2.2
-
-
0.313
0.329
Manufact ured in 2009
Gamma curve = 2.2
RGB display, Preferred Timming
Red / Green Low Bits
Blue / White Low Bits
ID = BOE
CODE = 2208
EDID Ver 1.0
EDID Rev. 0.4
26 cm (Approx) 16 cm (Approx)
mode
Wx = 0.313 Wy = 0.329
SPEC. NUMBER
S864-1428
SPEC TITLE
HV121WX5-121 Product Specification
29
B2005-C001-D (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
PAGE
OF 32
Page 30
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT GROUP
TFT LCD PRODUCT
Addres s
(HEX)
23 Established timing 1 00 0 24 Established timing 2 00 0 25 Established timing 3 00 0 26 01 1 27 01 1 28 01 1
29 01 1 2A 01 1 2B 01 1 2C 01 1 2D 01 1 2E 01 1
2F 01 1
30 01 1
31 01 1
32 01 1
33 01 1
34 01 1
35 01 1
36 12 18
37 1B 27
38 00 0
39 8A 138
3A 50 80
3B 20 32 3C 0E 14
3D 30 48
3E 1A 26
3F 16 22
40 22 34
41 00 0
42 05 5
43 A3 163
44 10 16
45 00 0
46 00 0
47 19 25
Function Hex Dec
Standard timing #1 Not Used
Standard timing #2 Not Used
Standard timing #3 Not Used
Standard timing #4 Not Used
Standard timing #5 Not Used
Standard timing #6 Not Used
Standard timing #7 Not Used
Standard timing #8 Not Used
Detailed timing/monitor
desc riptor #1
(60Hz)
REV ISSUE DATE
0 2010.12.15
values. Notes
-
-
-
69.3000
1280
138
-
800
14
-
26 22
2 2
261
163
-
0 0
-
4 bits of Hor. Active + 4 bits of Hor.
4 bits of Ver. Active + 4 bits of Ver.
69.3MHz Main clock
Hor Active = 1280
Hor Blanking = 138
Blanking
Ver Active = 800
Ver Blanking = 14
Blanking
Hor Sync Offset = 26
H Sync Pulse Width = 22
V sync Offset = 2 line
V Sync Pulse width : 2 line
Horizontal Image Size = 261 mm
(Low 8 bits)
Vertical Image Size = 163 mm
(Low 8 bits)
4 bits of Hor Image Size + 4 bits of
Ver Image Size
Hor Border (pixels)
Vertical Border (Lines)
SPEC. NUMBER
S864-1428
SPEC TITLE
HV121WX5-121 Product Specification
30
B2005-C001-D (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
PAGE
OF 32
Page 31
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT GROUP
TFT LCD PRODUCT
Addres s
(HEX)
48 0C 12
49 12 18 4A 0 0 1280 Hor Act ive = 1280 4B 8A 138 138 Hor Blanking = 160
4C 50 80 -
4D 20 32 800 Ver Active = 768 4E 0E 14 14 Ver Blanking = 23
4F 30 48 -
50 1A 26 26 Hor Sync Offset = 48
51 16 22 22 H Sync Pulse W idth = 32
52 22 34 2 V sync Offset = 3 line
53 00 0 2 V Sync Pulse width = 6 line
54 05 5 261
55 A3 163 163
56 10 16 -
57 00 0 0 Hor Border (pixels )
58 00 0 0 Vertical Border (Lines)
59 19 25 - Refer to right table 5A 00 0 0 5B 00 0 0 5C 00 0 0 5D 00 0 0 5E 00 0 0
5F 00 0 0
60 00 0 0
61 00 0 0
62 00 0 0
63 00 0 0
64 00 0 0
65 00 0
66 00 0 0 mini-LVDS
67 00 0 0
68 00 0 0
69 00 0 0 6A 00 0 0 6B 00 0 0
Function Hex Dec
Detailed timing/monitor
desc riptor #2
Detailed timing/monitor
desc riptor #3
values. Notes
46.2000
0
REV ISSUE DATE
0 2010.12.15
47.33MHz Main c loc k
4 bits of Hor. Active + 4 bits of
Hor. Blanking
4 bits of Ver. Active + 4 bits of
Ver. Blanking
Horizontal Image Size = 261
mm (Low 8 bits)
Vertical Image Size = 163 mm
(Low 8 bits )
4 bits of Hor Image Size + 4 bits
of Ver Image Size
SPEC. NUMBER
S864-1428
SPEC TITLE
HV121WX5-121 Product Specification
31
B2005-C001-D (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
PAGE
OF 32
Page 32
Global LCD Panel Exchange Center
www.panelook.com
Address
(HEX)
6C 6D 6E
6F
70 71 72 73 74 75 76
77
78
79 7A 7B 7C 7D 7E Extens ion flag
7F Checksum
Function Hex Dec values.
Detailed timing/monitor
descriptor #4
PRODUCT GROUP
TFT LCD PRODUCT
00 0 0 00 0 0 00 0 0
02 2 2
00 0 0 19 25 10 3D 61 24 E5 229 90 16 22 22 3C 60 60 6E 110 220
1F 31 1240
14 20 800 22 34 2740
6E 110 220 00 0 0 00 0 0 00 0 0
00 0 0
65 101 -
REV ISSUE DATE
0 2010.12.15
Notes
DetailedTimingDescription#4
Flag
Reserved
ForBrightnessTabl eandPower consumption Flag
PWM10%@Step0
PWM24%@Step5
PWM90%@Step10
22Nits@Step0
60Nits@Step5
220Nits@Step10
Pa nel El ectroni c s Che
ss Pa tter n Bac kl i ghtPower@60nits
Bac kl i ghtPower@Step10
Nits@100%PWMDuty
Flags
Flags
Flags
Po
wer@32x32
SPEC. NUMBER
S864-1428
SPEC TITLE
HV121WX5-121 Product Specification
32
B2005-C001-D (3/3) A4(210 X 297)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
PAGE
OF 32
