HYCON HPP18V FLEX Operating Manual

Operating Manual

HPP18V FLEX
Hydraulic Powerpack

From serial
number 13728

Revised

05.03.2019

Prior to Operation

We thank you for choosing a
HYCON powerpack.

Please note that the power­pack is delivered without hy­draulic oil, and therefore it
must be filled up with hydrau­lic oil prior to operation.

To ensure smooth operation
and long-lasting performance
of your new powerpack, we
recommend that you study
this operating manual carefully
and pay special attention to
the

Safety and Service
Precautions

We hope you will be satisfied
with your new HYCON power­pack.

Best regards

HYCON A/S

HYCON A/S
Juelstrupparken 11
DK-9530 Støvring
Denmark

Tel: [phone]
Fax: [phone]
Mail [email protected]
www.hycon.dk

1

Contents

Safety Precautions ................................................................................................................................... 2

Filling Up Hydraulic Oil ............................................................................................................................ 2

Technical Data ......................................................................................................................................... 3

Starting Instructions ................................................................................................................................ 4

Setting of Flow......................................................................................................................................... 4

Service, Maintenance and Hydraulic Settings ......................................................................................... 5

Hydraulic Settings .................................................................................................................................... 5

Oil Types .................................................................................................................................................. 6

EC-Declaration of Conformity ................................................................................................................. 7

Warranty Terms ...................................................................................................................................... 8

2

Safety Precautions

1. Always use protective earplugs. The powerpack complies with the EU noise

limit, but by daily long-lasting operation there is a risk of hearing defects.

2. Always connect hoses before starting.

3. Never add fuel and oil when the engine is running.

4. In case of non-operation or performance of service, always turn off the en-

gine.

5. Never start the engine without side covers.

6. Operation of the powerpack without tool connected and with lever at “ON”

may cause overheating of the system and damage to the powerpack.

7. When lifting the powerpack from a vehicle, we recommend the use of a crane.

8. The pressure relief valves are set at 160 bar from our plant. Never set them

higher.

9. Always use filters with by-pass. The use of filters without by-pass may blow

the hydraulic hoses and the filter cover.

Filling Up Hydraulic Oil

 To fill up with hydraulic oil, loosen

the filter cover on top of the power­pack.

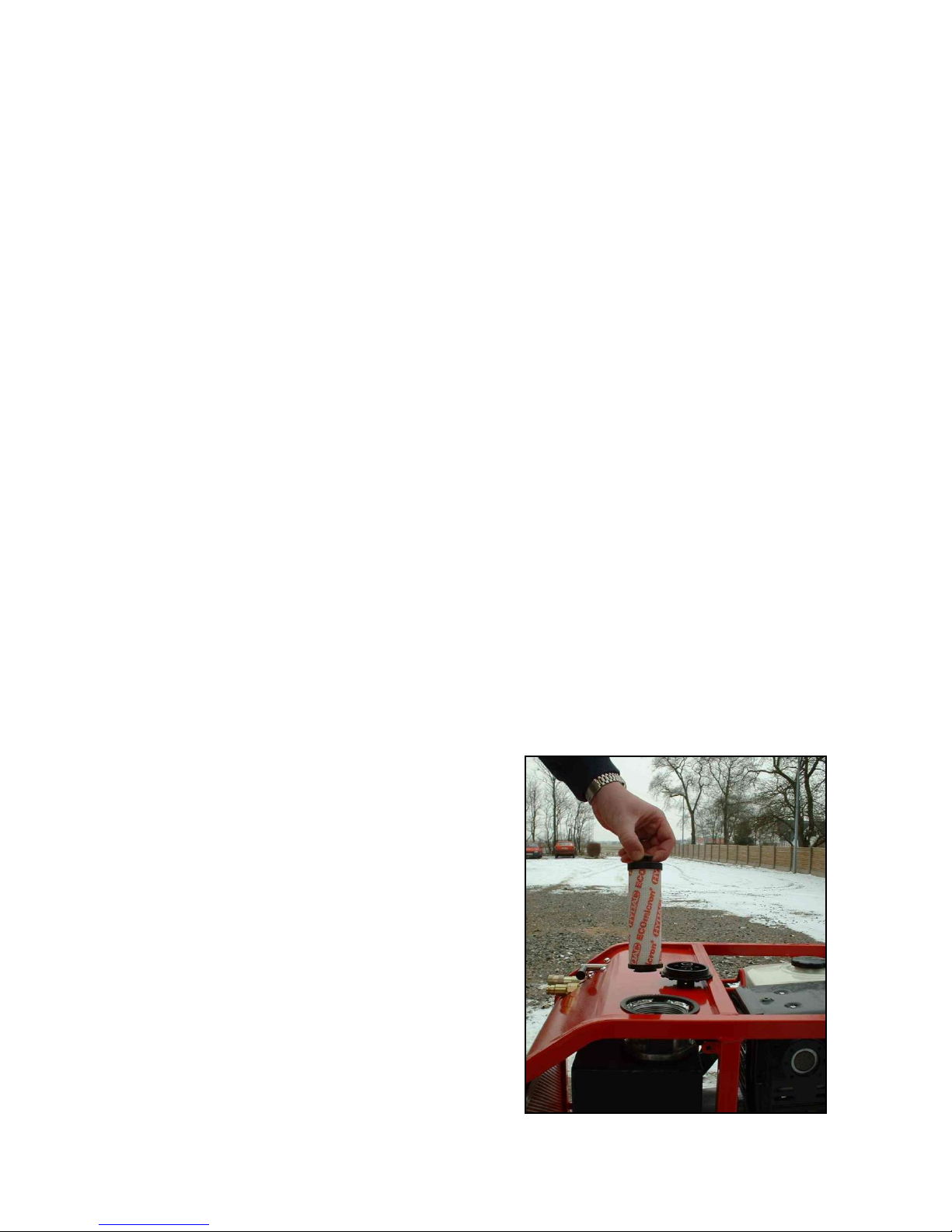

 Remove the filter element (see

photo), and fill up with oil. When oil
is showing at the bottom of the filter
unit, there is enough oil on the
powerpack.

 Insert the filter element again, mount

the cover and the powerpack is ready
for use.

Please note: When connecting new extension hoses,
it is necessary to fill up with extra 2 litres of oil.
Therefore always top up the powerpack when
connecting new extension hoses.

3

Technical Data

Hydraulics

The HYCON HPP18V MULTI FLEX open centre powerpack is designed in accordance
with the EHTMA categories C, D and E, which prescribe a performance of 20, 30 and
40 l.p.m. respectively at 138 bar. The HYCON powerpack is fully compatible with and
sufficient for the common European tools.

The powerpack is mounted with a double pump (two independent hydraulic circuits),
and it has three connections for each circuit separately or both circuits simul­taneously. This way the powerpack can operate two tools simultaneously. For a more
detailed description, please refer to the section about “Setting of Flow”

The powerpack is mounted with pressure relief valves to avoid a too high pressure.
Furthermore, the very efficient air cooling protects the powerpack against
overheating. The powerpack has no POR system, and the engine r.p.m. (oil flow) is
adjusted manually by means of the throttle.

Oil flow connection A 20 l.p.m. at 1800 r.p.m.
30 l.p.m. at 2700 r.p.m.

40 l.p.m. at 3600 r.p.m.

Oil flow connections B and C 10 l.p.m. at 1800 r.p.m.
15 l.p.m. at 2700 r.p.m.

20 l.p.m. at 3600 r.p.m.

Working pressure nominal 120 bar
Pressure relief valves Set at 160 bar
Pump Double gear pump
Oil temperature Max. 70° C
Capacity hydraulic oil tank Min. 8 litres/max. 11 litres
Capacity petrol tank 8.5 litres
Hydraulic system complete 12 litres
Filter system (filter element) 25 Micron with by-pass
Engine Vanguard 2-cylinder

18 HP (gross power)
4-stroke petrol
Normal or unleaded petrol
Engine oil 1.1 litres

Guaranteed sound power level LWA 101 dB
Sound pressure level 1 m LPA 89 dB
Dimensions (LxWxH) 805x625x695 mm
Weight w/o hydraulic oil 112 kg

4

Starting Instructions

Please observe the starting instructions on the front of the powerpack.

Start:

 Check engine oil level
 Check hydraulic oil level at sight glass
 Connect hoses and tool
 Switch fuel tap to “ON”
 Activate choke
 Turn ignition key
 Activate electric start or pull recoil starter
 Set the flow – see below

Stop:

 Move all levers to “OFF“
 Turn off the ignition switch
 Turn the fuel tap to “OFF”

Setting of Flow

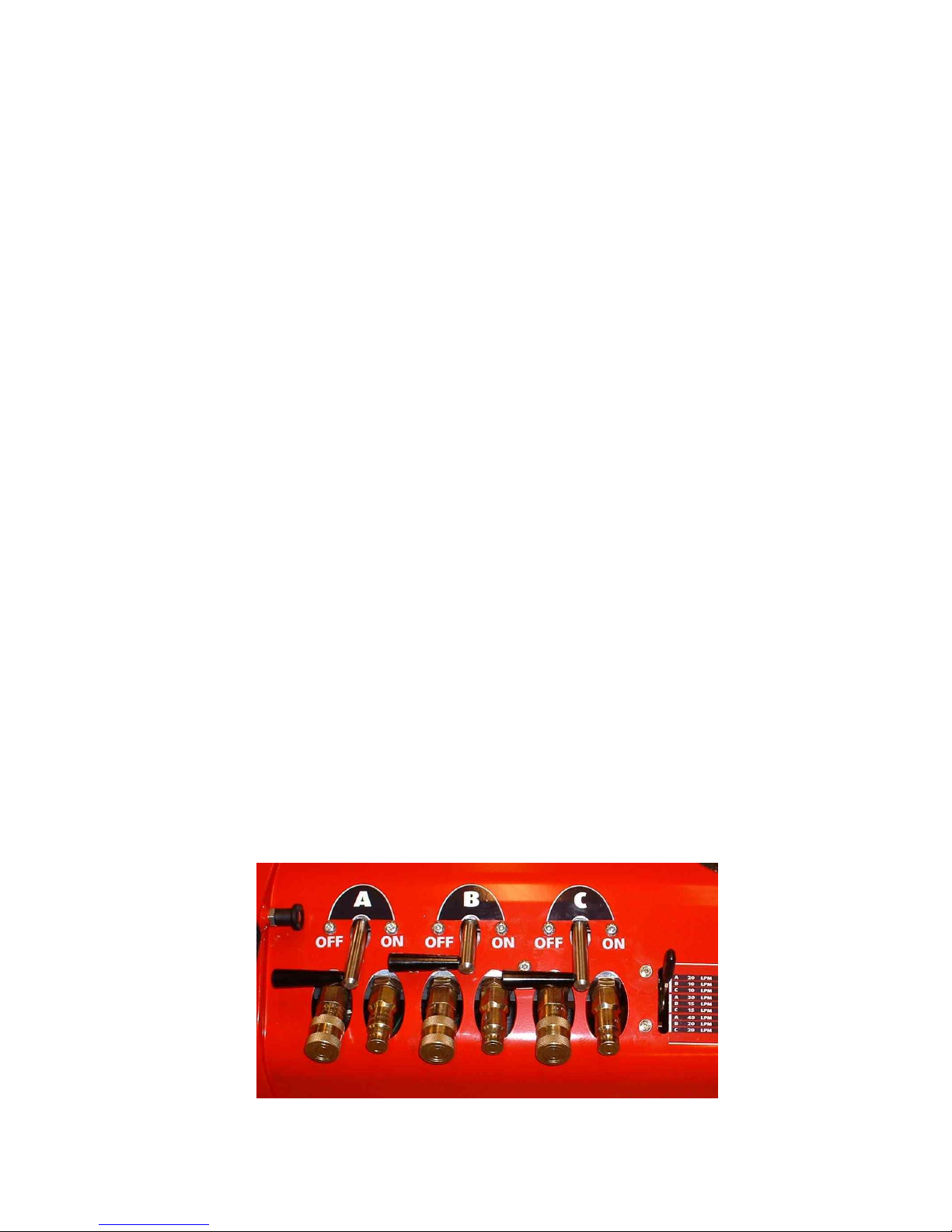

The powerpack has three connections, allowing for connection of two tools
simultaneously. The connections are marked A, B and C, respectively.

The oil flow can be adjusted by regulating the engine r.p.m. by means of the
throttle. Connection A can be set to 20-40 l.p.m. Connections B and C can be set to
10-20 l.p.m. Connection A cannot be used simultaneously with connections B and C.

Each connection is equipped with an ON-OFF lever. Connections not in use must be
set at OFF, and connections in use must be set at ON. Connections B and C can only
be used when connection A is OFF. Never turn the lever to ON if no tool is
connected.

5

Service, Maintenance and Hydraulic Settings

Service/Maintenance

Daily

Weekly

Yearly

Engine oil

Check

1 x replacement

Hydraulic oil

Check

1 x replacement

Hydraulic oil filter *)

1 x replacement

check hoses

(tighten up if needed)

Air filter

1 x replacement

Fuel filter

1 x replacement

*) use only filters with by-pass

Hydraulic Settings

Check the working pressure by means of test equipment. The test equipment must
comprise a pressure gauge, a flow meter and a valve for adjustment of pressure.

The pressure relief valves are placed on the valve block. There are two pressure
relief valves (one for each hydraulic circuit), and they must be adjusted individually.
The pressure relief valves are marked with B and C respectively.

1. Connect the test equipment to connection B, start the powerpack and move the

B lever to ON and the A and C levers to OFF. Then close the valve on the test
equipment and adjust the pressure relief valve B according to the technical data.

Adjust the pressure relief valve by loosening the lock nut and turning the
adjustment screw in or out. “In” increases the pressure, and “out” decreases the
pressure.

Retighten the lock nut after adjustment.

Connect the test equipment to connection C, start the powerpack and move lever
C to ON and levers A and B to OFF. Then close the valve on the test equipment
and adjust the pressure relief valve C according to the technical data.

2. Having adjusted the pressure relief valves correctly, set the working pressure to

100 bar by means of the valve on the test equipment. At 100 bar the oil flow
should correspond to the flow rate which the lever is set at (see Setting of Flow).

If correct pressure/oil flow cannot be achieved by following
the above instructions, the powerpack must be re-adjusted.
If the pressure/oil flow is then still incorrect, the pump is
defect and must be replaced.

6

Oil Types

The HYCON power packs use standard hydraulic oil, i.e. all types of mineral oil and
biodegradable oil, which comply with the following values:

Ambient temperature range

Below 10°C

50°F

10 … 30°C
50 … 68°F

Above 30°C

68°F

Recommended oil viscosity grade

VG 32

VG 46

VG 68

Recommended oil cleanliness

ISO 4406 /19/16 / NAS 1638 10

Permitted viscosity

cSt

10 – 600

Viscosity index

Minimum

100

Oil temperature area

°C /°F

-20 to 70 / -4 to 158

7

EC-Declaration of Conformity

We hereby declare that

HPP18V MULTI FLEX hydraulic powerpack - from serial No. 13728

(with 13.4 kW petrol engine)

is manufactured in conformity with the EC Directives 2006/42/EC and 2000/14/EC.

Notified Body 1585:
AkustikNet A/S
Frederikssundsvej 179 B
DK-2700 Brønshøj
Denmark

Guaranteed sound power level: 101 dB

HYCON A/S
Juelstrupparken 11
DK-9530 Støvring
Denmark

Martin Møller
General Manager

06.03.2019

HYCON A/S
Juelstrupparken
11
DK-9530 Støvring
Denmark

Tel: +45 9647

8

Warranty Terms

We grant 12 months warranty from the first date of operation – however, not more
than 18 months from the date of delivery.

The warranty applies to faults that can be related to construction and production
errors.

Faults caused by incorrect operation, incorrect handling, lack of maintenance or the
like will not be accepted as warranty.

The warranty covers the parts necessary for repair and the suggested average time
needed for repair.

For further warranty details, please contact your local dealer.
