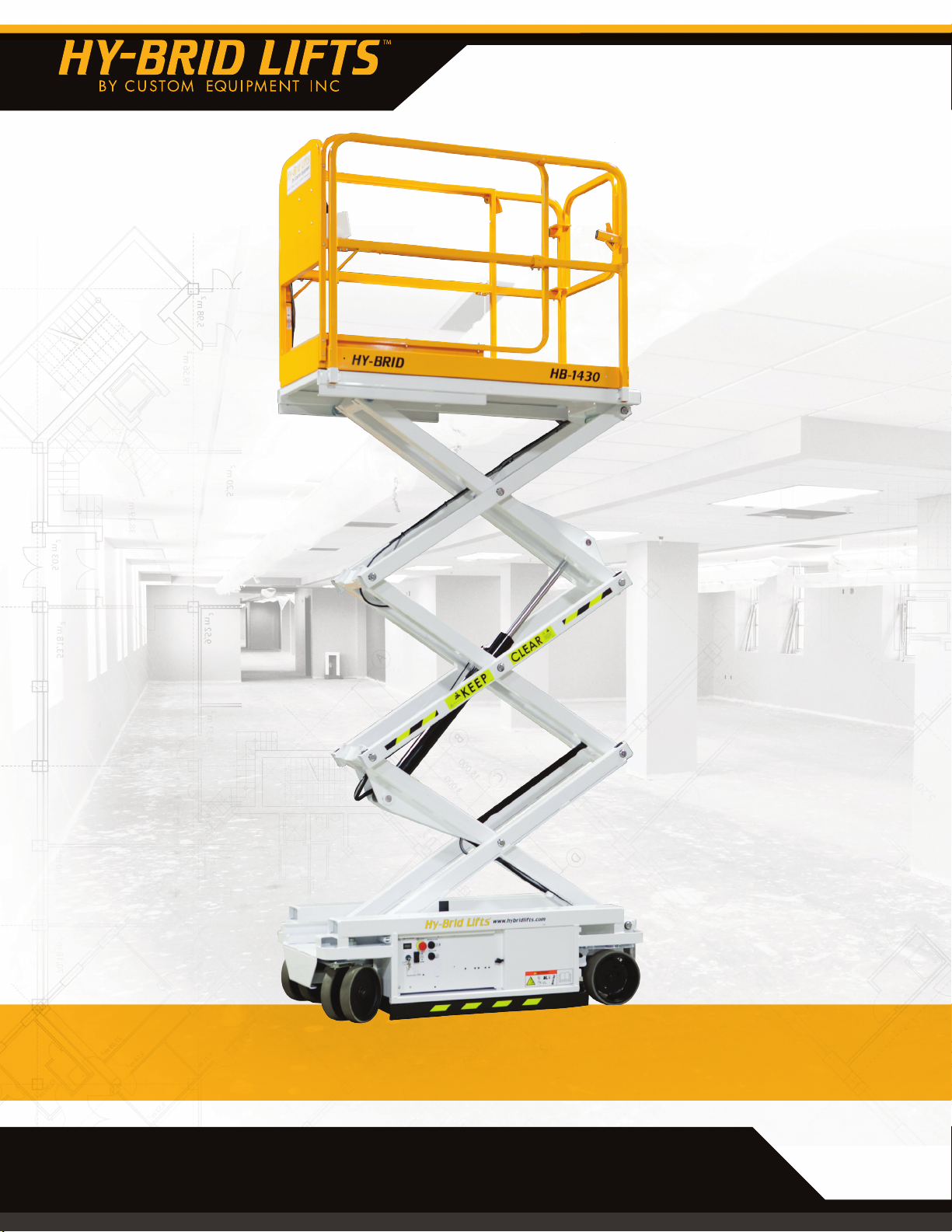

HB-1430

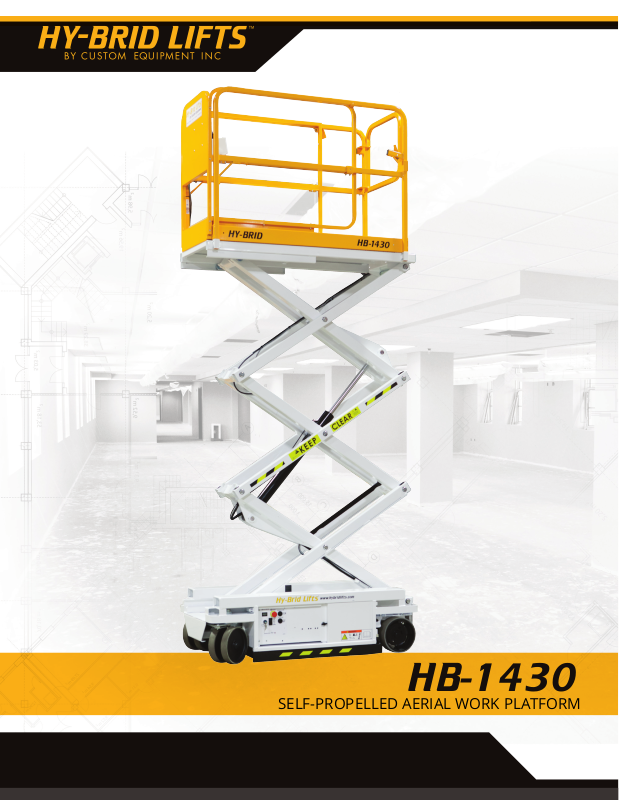

SELF-PROPELLED AERIAL WORK PLATFORM
Page 2

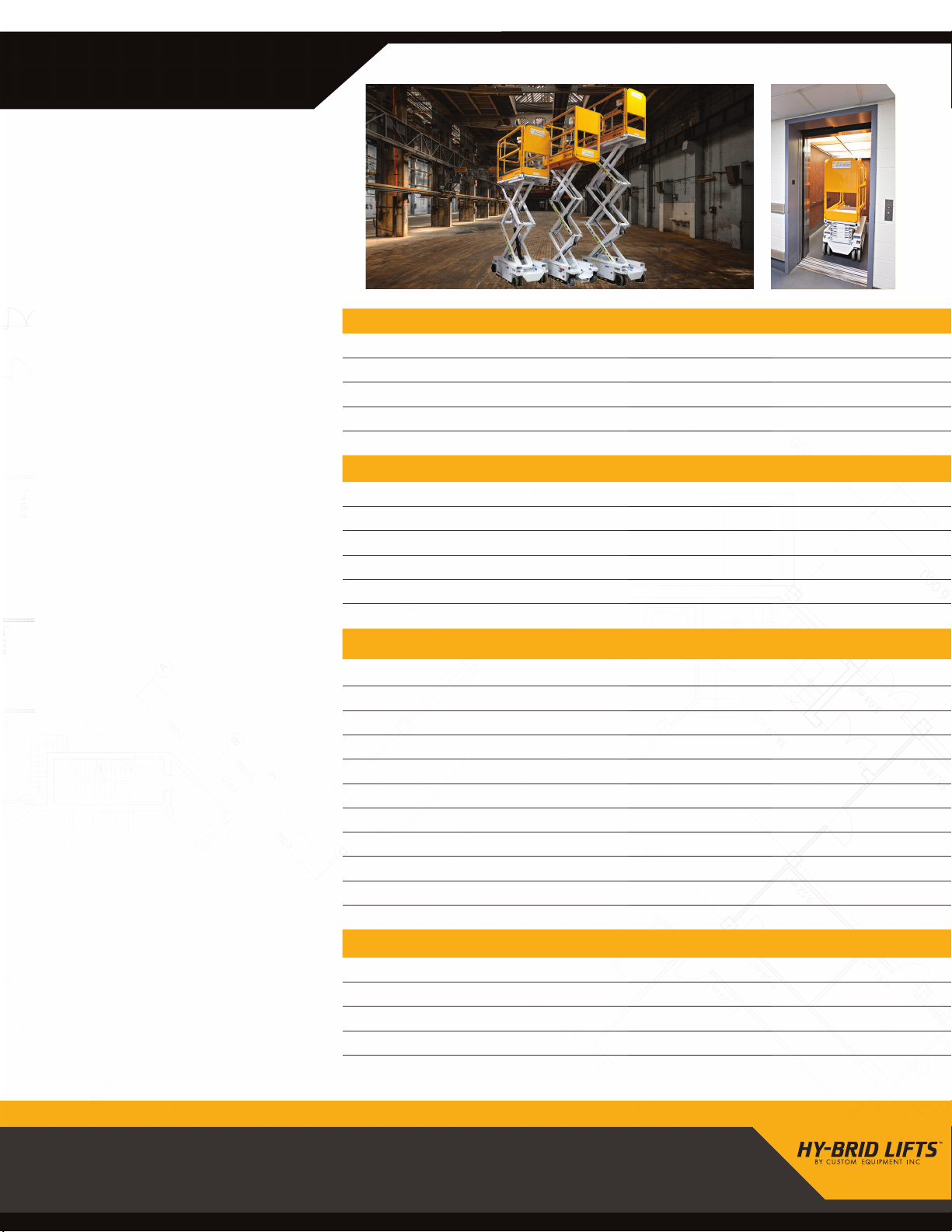

FEATURES & SPECIFICATIONS
H B -143 0
LARGE WORK PLATFORM
Includes 30 in (76.2 cm) slideout deck
extension for extra supplies and work
space, extension is supported mid-rail to
eliminate jams.
COUNTER ROATATING WHEELS
Will not cause carpet to buckle, helps
protect sensitive oors and prevent
surface scus on job site.
LOW STOWED HEIGHT
Low entry height allows for easy loading
of materials and tools onto the platform.
LOW FLOOR LOADING
Extremely lightweight design allows fo
use on delicate or sensitive surfaces.
USER-FRIENDLY DESIGN
Low step height and full swing gate
provide easy access to platform and
reduce chances of knee and neck strain.
ROBUST RAIL SYSTEM
Unique rail technology provides greater
durability and resilience against wear on
the job site.
OVERSIZED 1.25 IN (3.18 CM) PINS
Robust scissor stack requires no
greasing and oversized pins reduce
scissor sway.
NON-MARKING WHEELS
Protect sensitive oors and prevent
surface scus on job site.
NON-SKID DECK
Large durable platform provides safe
and ample working area.
BUILT IN TOOL TRAY
Keeps tools and supplies organized and
within reach.
DUAL USB PORT
Allows users ability to charge mobile
divices directly from platform.
HEIGHTS US METRIC
Working Height 20 ft 6.1 m
Platform Height Max 14 ft 4.3 m
Platform Height Min 25.3 in 64.3 cm
Ground Clearance Raised 0.4 in 1.0 cm
Ground Clearance Lowered 3.0 in 7.6 cm
MEASUREMENTS
Overall Length 69.5 in 176.5 cm
Overall Width 30 in 76.2 cm
Stowed Height 70 in 177.8 cm
Platform Length 60 in 152.4 cm
Platform Width 25 in 63.5 cm
Platform Extension 30 in 76.2 cm
PERFORMANCE
Platform Capacity 670 lb 303.9 kg
Rated Occupancy 2 person 2 person
Extension Capacity 250 lb 113.4 kg
Weight 1645 lb 746.2 kg
Gradeability 25% 25%
Inside Turn Radius 21 in 53.3 cm
Drive Speed Raised 0.7 mph 0.31 m/s
Drive Speed Lowered 2.5 mph 1.12 m/s
Lift Speed Up/Down 15/22 sec 15/22 sec
Power Source (2) 12V DC (2) 12V DC
Tires Front/Rear 10/10 in 25.4/25.4 cm
FLOOR LOADING
Min Wheel Load 80.9 psi 557.8 kPa
Max Wheel Load 113.6 psi 783.2 kPa
Min Machine Load 125.3 psf 6.21 kPa
Max Machine Load 180.0 psf 8.6 kPa
