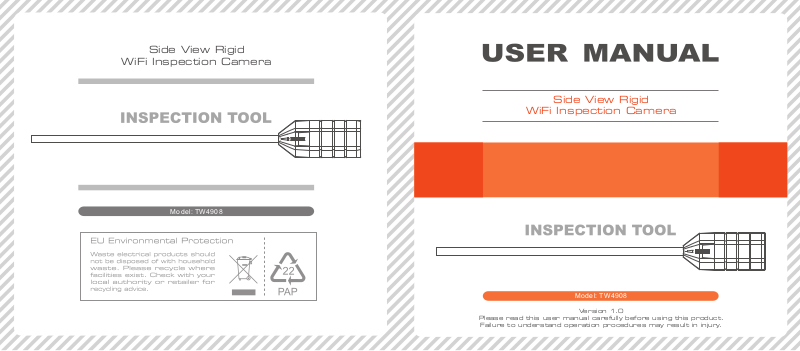

Side View Rigid
WiFi Inspection Camera
Mo de l: TW 49 08
Side View
Rigid
WiFi Inspection Camera
ON
OFF
ON
OFF
Mo de l: TW 49 08
Please read this user manual carefully before using this product.
Failure to understand operation procedures may result in injury.
Version 1.0
General Safety Information ---------------------------------------------------------------------------- 02
Welcome ------------------------------------------------------------------------------------------------------ 03
Features ------------------------------------------------------------------------------------------------------ 03
Packing List -------------------------------------------------------------------------------------------------- 03
Structure ----------------------------------------------------------------------------------------------------- 04
Installation ---------------------------------------------------------------------------------------------------- 05
To Connect Camera Power ------------------------------------------------------------------------ 05
Video Output of Camera --------------------------------------------------------------------------- 05
Basic Operation -------------------------------------------------------------------------------------------- 05
Operation for Android Devices ----------------------------------------------------------------------- 06
Install APP ------------------------------------------------------------------------------------------------ 06
Connect Wifi --------------------------------------------------------------------------------------------- 06
View Real Time Video --------------------------------------------------------------------------------- 06
Setting ----------------------------------------------------------------------------------------------------- 06
Operation for iOS ------------------------------------------------------------------------------------------ 07
Install APP ------------------------------------------------------------------------------------------------ 07
Connect Wifi --------------------------------------------------------------------------------------------- 07
View Real Time Video --------------------------------------------------------------------------------- 07
Setting ----------------------------------------------------------------------------------------------------- 07
Specifications ----------------------------------------------------------------------------------------------- 08
Troubleshooting -------------------------------------------------------------------------------------------- 09
FCC Information ------------------------------------------------------------------------------------------- 09

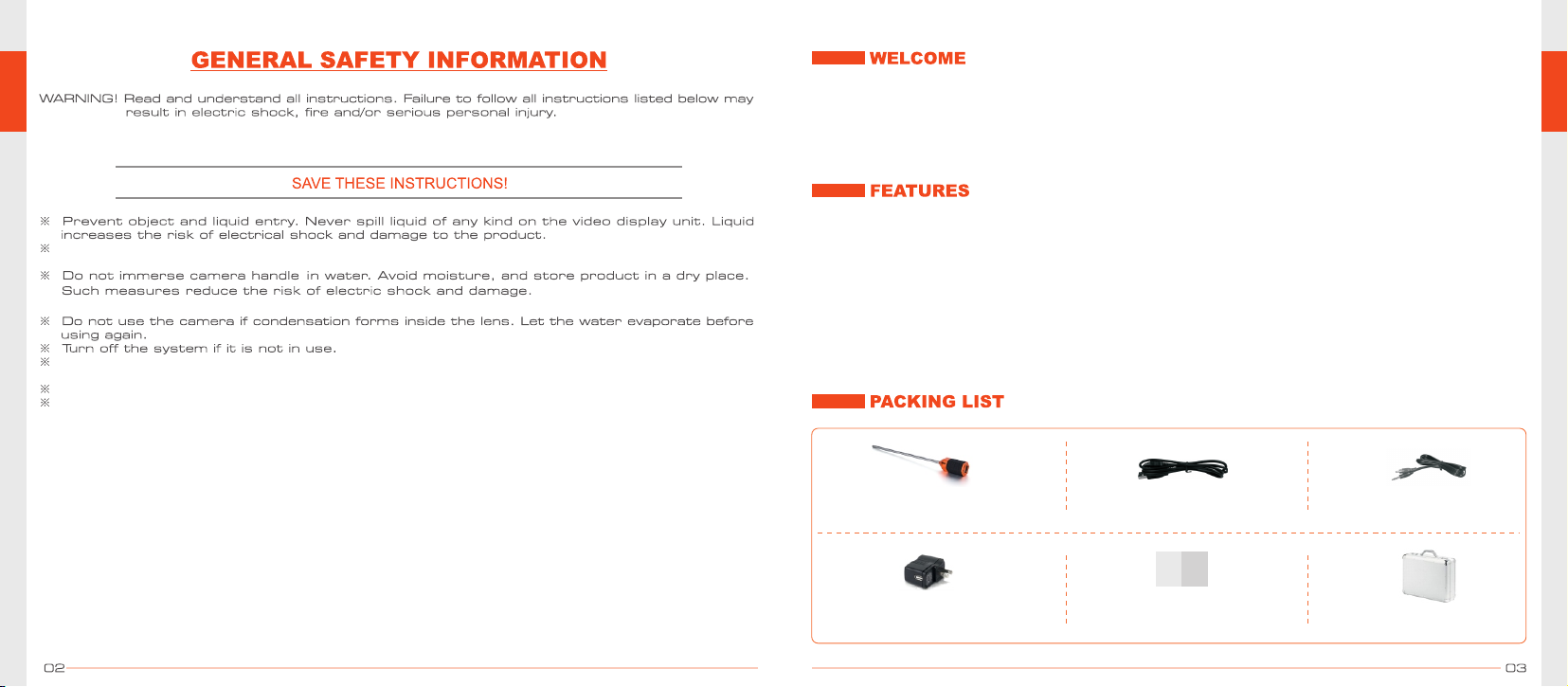

The unit is not sh ock-re sista nt. Do not use this camera as a hamme r and avoid hig h impact
resul tant from th ings such as dr opping th e unit from hei ght.
The lens and tube are water
resistant when the unit is fully assemble d, but handle is not.
This product can onl y be com plete ly disc onnect ed fro m its po wer sou rce by u nplugging th e
power adapte r.
Do not cut the DC power cable off provided with this product to fit with another power source.
Use power adapter provided by vender only.
Tha nk you fo r pu rchas ing our Side View Rigid WiFi Insp ect ion Came ra . Th is produ ct is
spe cia ll y de si gne d f or c av ity wal l i nsp ect ion , w all tie an d dr y r ot i ns pec tio n, inspec tio n o f
spa ces u nde r flo ors , abo ve ce ili ngs a nd beh in d p ane ls an d duc ts, a nd many mor e whe re a
rig id si de v iew e ndo sco pe i s req uir ed.
l W iFi t ran sm iss ion , sup po rt iO S and A ndr oid
l M ini s tai nl ess s tee l ins er tio n tub e, di a. 9mm
l I nse rti on t ube l eng th 30 0m m
l S ide v iew c am era h ead , 380 TV L
l 2 h igh i nte ns ity L EDs o n cam er a hea d, pr ovi ding li ght u p to1 .5 mete rs
l V ide o out f un cti on
l Wa ter pro of le ve l: IP 67 (c ame ra t ube o nly )
l B uil t-i n Re cha rge abl e Li -ba tte ry
1x USB Cable 1x Video Out Cable1x Camera Prob e
Manual
1x Power adapter
1x Manual
1x Case

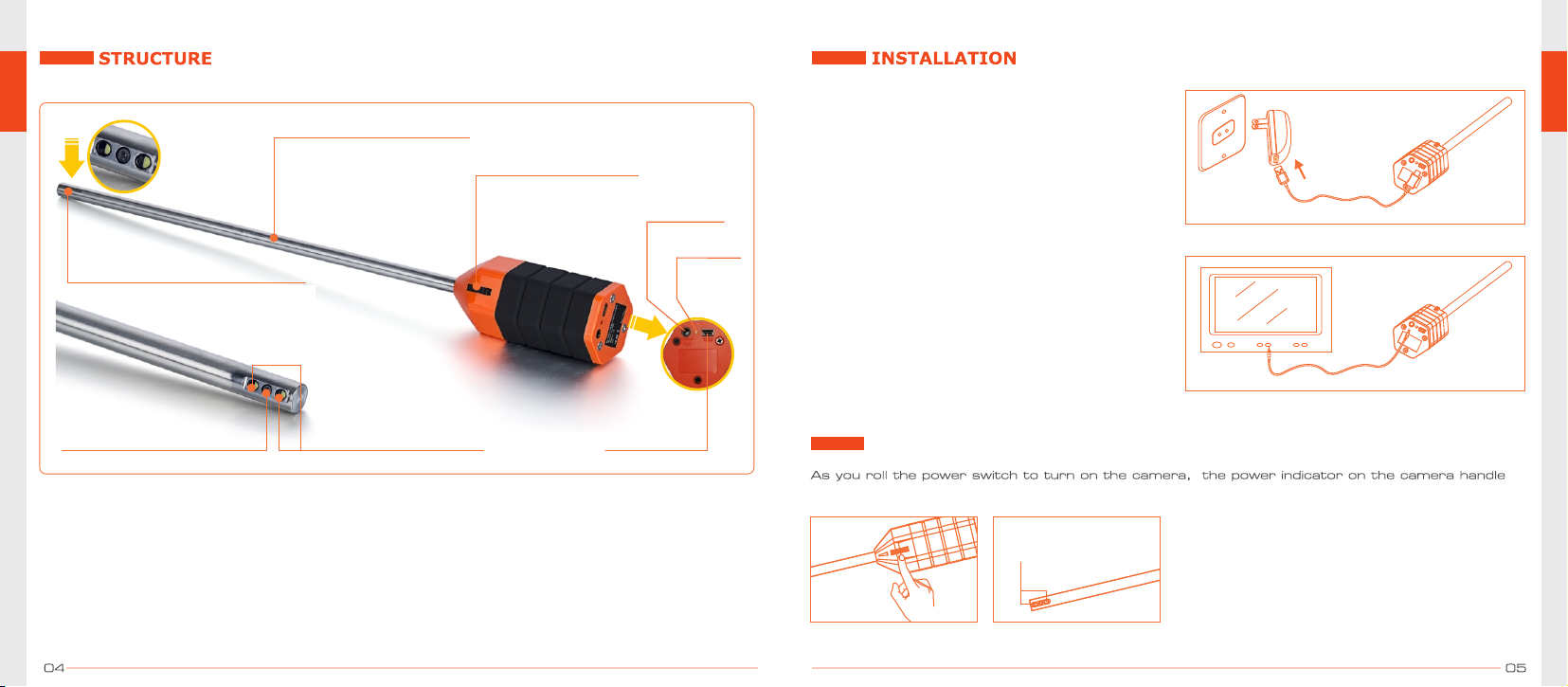

Side View Camera
O
F
F
O
N
LEDs Lighting Distance Up To 1.5m
Stainless Steel Insertion Tube
Dia. 9mm
Lenth 300mm
On/Off Switch
LED Brightness Control
Video Out
Indicator
To Connect Camera Power
Plug the USB cable into the power adapter, and
the other end into the camera to charge the
camera.
Notice: You must use the original power
adapter provided by the vender.
Video Output of Camera
Insert the video out cable to camera's video out
port, and another end to a TV, The camera is
now capable of outputting high quality video to a
display.
power
source
Power adapter
USB cable
TV
Video In
video output cable
Tw4908
Vid
eo
Out
U
SB
Tw4908
Vid
eo
Out
U
SB
Side View Camera
2 High Intensity LEDs
Lighting Distance: 1.5m
USB Charging
BA SIC O PER ATI ON
will light GREEN. The rolling switch then acts as a dimmer for LEDs on the end of the tube.
Two LEDs provide lighting

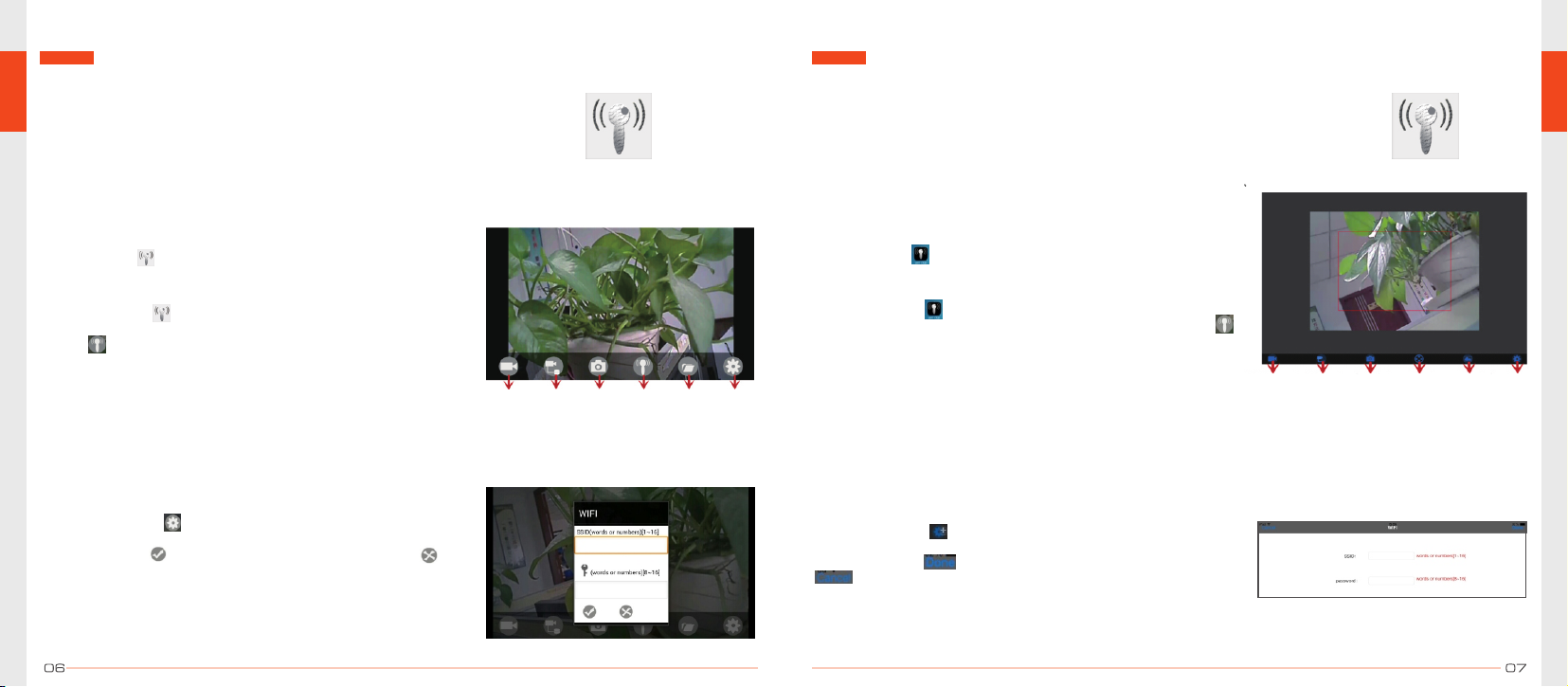

OP ERA TIO N FOR A NDR OID D EVI CES
OP ERA TIO N FOR i OS
Install APP:
1. Open GOOGLE PLAY store.
2. Search and download “WIFI AVIN”.
3. Install the APP, a new icon will be displayed on your mobile device.
Connect WiFi:
1. Connect your mobile device to the WiFi of the tool camera. The initial
SSID of the device is “WIFI AVIN”, then type in the password (default
password: 12345678 ).
2. Click the “ ” icon on mobile device.
View Real Time Video
Open the app “ ”, and if the connection between the
WiFi of the tool and mobile device is successful, the
icon “ ” will be highlighted, and live video will be
displayed in the APP, as showed in the right hand side
figure.
Notice：
When the background is black or the image is still, please quit the app, and check whether the
WiFi connection is established. Then click again the app icon to enter into the real time video.
Mobile
recordDVrecord
Snapshot Emitter
signal
File folder Settings
The DV record button doesn't work on this product.
Settings:
Press this icon “ ” to enter into settings menu. You can
change the default factory SSID and password of the
WiFi, and click“ ” to confirm the change, and click“ ” to
cancel the new SSID set.
Install APP:
1. Enter APP store.
2. Search and install WIFI AVIN.
3. Install the APP software, a new icon will be displayed on your iPhone or
iPad.
Connect WiFi:
1. Connect your mobile device to the WiFi of the tool
camera. The initial SSID of the device is WIFI AVIN, then
type in the password (default password: 12345678 ).
2. Click the “ ” icon on mobile device.
View Real Time Video
Open the app “ ”, and if the connection between the WiFi
of the tool and mobile device is successful, the icon “ ”
will be highlighted, and live video will be displayed in the APP,
as showed in the right hand side figure.
Mobile
Notice：
When the background is black or the image is still, please quit the app, and check whether the
WiFi connection is established. Then click again the app icon to enter into the real time video.
recordDVrecord
Snapshot
Record
folder
Snapshot
folder
Settings
The DV record button doesn't work on this product.
Settings:
Press this icon to enter into settings menu. You can
change the default factory SSID and password of the
WiFi, and click to confirm the change, and click
to cancel the new SSID set.

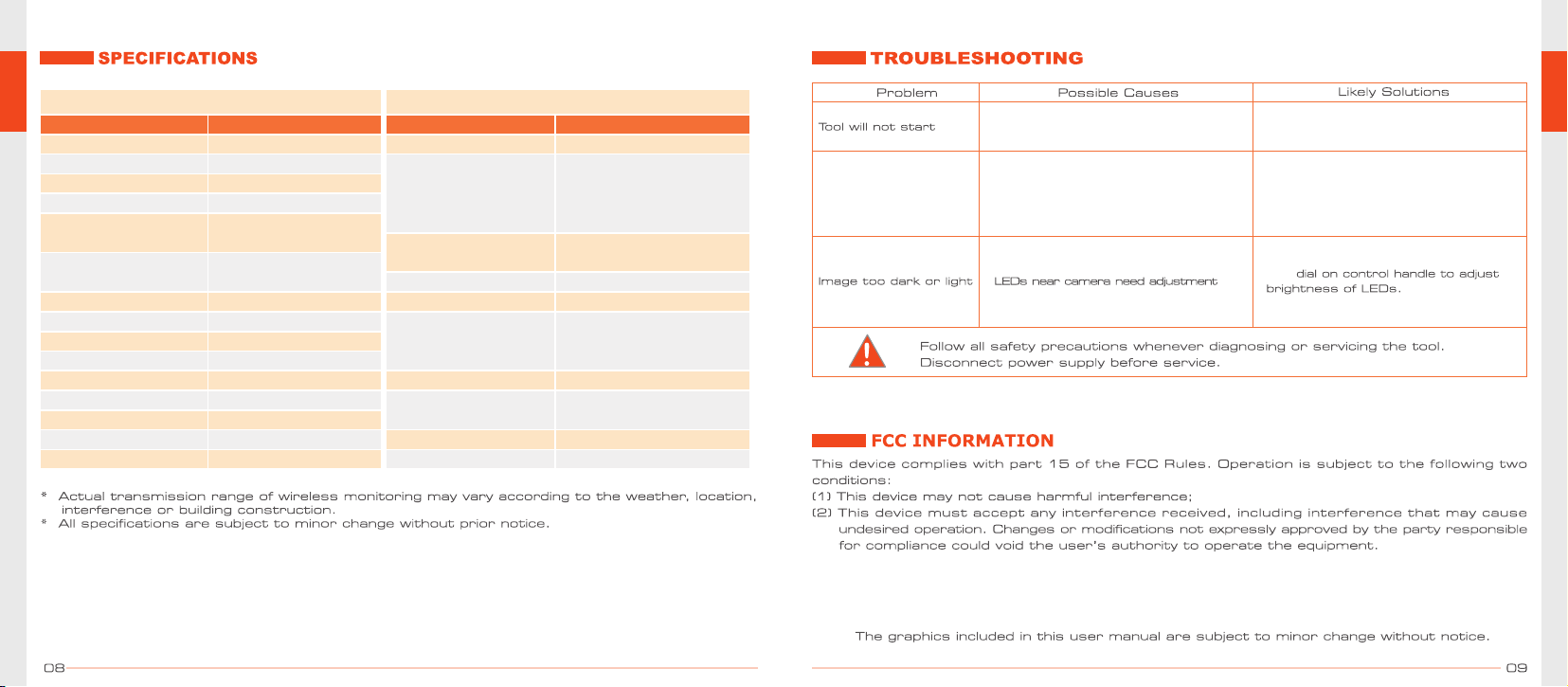

Camera (Model No. TW4908)
Items
Diam. of Insertion Tube
Insertion Tube Length
Overall Length
Tube Material
Light Source
Effective Pixels
Mains Battery Charger
Depth of Field (DOF)
Field of View (FOV)
Water Proof
Operation Temperature
Battery capacity
Work Time
Charge time
Specifications
9mm
300mm
400mm
Stainless Steel
2 high intensity LEDs for
1.5m lighting distance
768 x 494(NTSC) /
752 x 582(PAL)
Yes
6cm-infinite
55º
IP67 (Probe only)
-10ºC ~ 60ºC
1500mAh
2.5 hours
5 hours
WiFi
Items
Transmitting frequency
Modem mode
Transmission distance
in line of sight
Frame rate
Video compression
Wireless protocols
Encryption mode
Client
Specifications
2400MHz-2483.5MH
802.11b: DSSS(CCK,
DQPSK,DBPSK)
802.11g/n: OFDM(BPSK,
QPSK,16QAM,64QAM)
>150m
30fps
H.264
IEEE 802.11b, IEEE
802.11g
IEEE 802.n(1T1RModes)
WPA2
Android 2.2 or above
iOS Version 4.3 or above.
Camera not charged Charge camera
No image WiFi connection failed
Change mobile device's WiFi
connection to tool camera's WiFi
