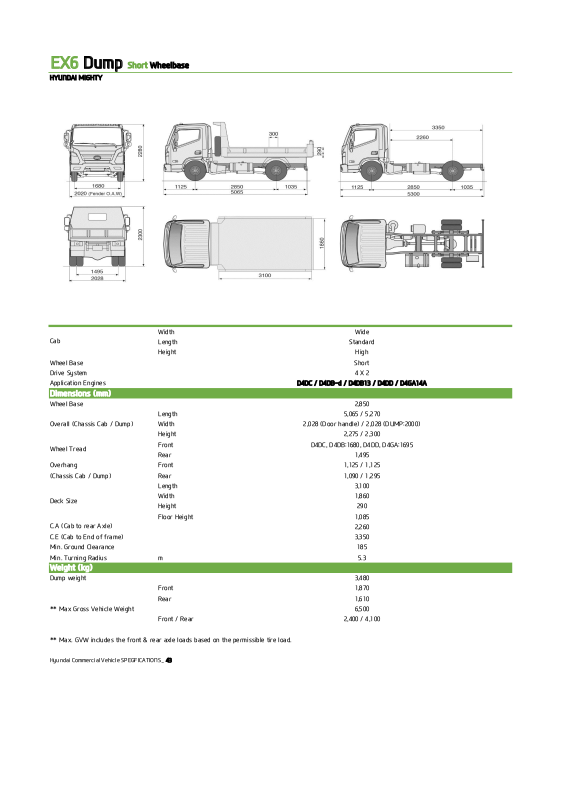

Page 1
EX6 Dump Short Wheelbase
HYUNDAI MIGHTY
Width Wide
Length Standard
Height High
Wheel Base Short
Drive System 4 X 2
D4DC / D4DB-d / D4DB13 / D4DD / D4GA14A
Dimensions (mm)
Wheel Base 2,850
Length 5,065 / 5,270
Width 2,028 (Door handle) / 2,028 (DUMP:2000)
Height 2,275 / 2,300
Front D4DC, D4DB:1680, D4DD, D4GA:1695
Rear 1,495
Overhang Front 1,125 / 1,125
(Chassis Cab / Dump) Rear 1,090 / 1,295
Length 3,100
Width 1,860
Height 290
Floor Height 1,085
2,260
3,350
185
Min. Turning Radius m 5.3
3,480
Front 1,870
Rear 1,610
6,500
Front / Rear 2,400 / 4,100
** Max. GVW includes the front & rear axle loads based on the permissible tire load.
Hyundai Commercial Vehicle SPEGFICATIONS_ 43
Cab
Deck Size
Application Engines
Overall (Chassis Cab / Dump)
Wheel Tread
Dump weight
** Max Gross Vehicle Weight
C.A (Cab to rear Axle)
C.E (Cab to End of frame)
Min. Ground Clearance
Weight (kg)
Page 2
HYUNDAI MIGHTY_EX6 Dump
Chassis Specifications
Engine
D4DC D4DB-d D4D13 D4DD D4GA14A
Natural Aspiration
3,933
ø103 x 118
18.1 ： 1 17.5 ： 1 17.0 ： 1
Eurol 120/3,200 - - - -
Euroll - 120/2,900 130/2,900 - -
Eurolll - - - 140/2,800 -
Euro IV - - - - -
Euro V - - - - 140/2,800
Euro VI - - - - -
Eurol 26/2,000 - - - -
Euroll - 30/2,000 38/1,800 - -
Eurolll - - - 38/1,600 -
Euro IV - - - - -
Euro V - - - - 40/1,400
Euro VI - - - - -
General
Cooling fan
Radiator
Battery
Alternator
24V-50A(OPT：70A)
24V-90A
Starter
Injection pump
Doowon Inline type
Governor
Fuel filter
Spin-on type, 2
Filter
Lubrication
Oil Filter
Oil cooler
Oil grade CI-4 or above
Single Overhead
Cam, Four valves
per cylinder
** Max. Power and Torque of engine may vary according to each country.
Type
Facing Material
Facing Size (mm)： Outside dia x Inside dia
44 _Hyundai Commercial Vehicle SPECIFICATIONS
ø300 x 190
Oil System
Forced lubrication by gear pump
Full flow filter with paper element
Shell-and-plate type
API classification service CF-4 or above
Air cleaner
Cyclonic dry paper element
Valve System
Overhead valve, Two valves per cylinder
Clutch
Hydraulic control, Diaphragm spring, Single dry plate, Pre-Damper
non-Asbestos
Electrical System
MF 90AH
24V-40A (OPT:70A)
24V-5.0kW
Fuel System
Doowon Inline type (or Denso Inline
type)
Denso Common rail system
Mechanical type
Electrical type (ECU Control)
Spin-on type
Max. Power** (ps/rpm)
Max. Torque ** (kg.m/rpm)
Cooling System
Water coolingtype with thermostat, forced circulations by centrifugal pump
Suction type with mechanical fan clutch
Corrugated fin and tube type with pressure cap and condenser tank
Piston Displacement (cc)
3,907
Bore x Stmke (mm)
ø104 x 115
Compression Ratio
18.0 ： 1
Model
Type
Turbo Charger Intercooler
4 stroke-cycle, water-cooled, direct-injection diesel engine
Number of Cylinder
4 in-line
Page 3
HYUNDAI MIGHTY_EX6 Dump
Transmission
Engine D4DC
D4DB-d
D4D13 D4DD D4GA14A
Model M2S5 M3S5
Type
1st 5.494 5.181
2nd 2.836 2.865
3rd 1.592 1.593
4th 1 1.000
5th 0.746 0.739
5th - -
Reverse 5.494 5.181
Gear Oil
TG.S. (Transmission Gear Shift)
Rear Axle
Type
Capacity kg
Type
Final Reduction Gear G/Ratio 6.666 6.166 (OPT:6.666)
K4 ： 5.000 K5
： 4.625
Front Axle
Type
Capacity kg
Tire & Wheel
Type
Tire Front / Rear
205/75R17.5-10PR
(205/85R16-10PR)
Wheel Front / Rear
17.5 x 5.25 (16 x
5.50)
Steering
Type
Tilting Angle
Overall Steering Manual
Inner
Outer
Actuation
Front
Rear
Total lining area
Adjuster Installed
Hyundai Commercial Vehicle SPEGFICATIONS_ 45
16 x 5.50F (OPT ： 17.5 x 5.25)
4-spoke, Ball-nut type, Tilt & Telescopic steering column
Drum 2,826㎠ (OPT ： Disc 856㎠)
Depending on National Sales Condition
-3.7 ° ~ 5.8 °
-
44.5 °
32 °
Service Brake
Size (mm)
Hydraulic with vacuum servo assistance, dual circuit
Drum ø320 x 110 x 11 (OPT ： Disc 107㎠ x 21,5 mm)
Drum ø320 x 110 x 11 (OPT ： Disc 107㎠ x 21,5 mm)
Floor Shift, 5 Speed Manual
5.380
M035S5
3.028
1.700
1.000
0.722-5.380
Turning Angle
5.428
Reverse Elliot type “ I ’’ beam
2,300
Gear Ratio
SAE80W90 (Temperate & Frigid Zone), SAE90 (Tropical Zone)
Floor shift, Mechanical remote control
Full floating type
4,700
Single Reduction, Hypoid gear
Single Front, Dual Rear
7.00R16-10PR (OPT ： 205/75R17.5-10PR)
Page 4
HYUNDAI MIGHTY_EX6 Dump
Parking Brake
Engine D4DC D4DB-d D4D13 D4DD D4GA14A
Actuation
Total lining area
Type
Type Front / Rear
Shock absorber
Exhaust system
General
Tail pipe
Fuel tank
Capacity
Material
Frame
Type
Main section side rail dimension (mm)
46 _Hyundai Commercial Vehicle SPECIFICATIONS
Depth x Flange x Thickness ： 183 x 60 x 6t
Size (mm)
Conventional (hori7ontal) type muffler
Droptail type, blowing to chassis rearward
100ℓ
Steel
“H” type frame with channel sectional side rail & cross members
Suspension
Double Acting
Internal expanding type on propellarshaft at the rear of transmission assy
Drum diameter x Lining width x Lining thickness
ø180 x 35 x 5 (M*S5 T/M), ø190 x 45 x 4 (M035S5 T/M)
132㎠ (M*S5 T/M), 187㎠ (M035S5 T/M)
Multi / Multi
Vacuum operated, butterfly valve type
Exhaust Brake
Page 5
HYUNDAI MIGHTY_EX6 Dump
Annotations
1) Empty vehicle weight and curb weight shown are to 3.5% variation to allow for production tolerance.
2) Empty vehicle weight and curb weight include weight of oil, fuel, coolant and spare tire carrier & bracket, spare tire but exclude standard tool set.
3) The vehicle specifications may differ per country.
4) Hyundai motor company reserves the right to alter the specifications, equipment or options or discontinue the models at any time without prior notice.
Hyundai Commercial Vehicle SPEGFICATIONS_ 47
