3.5 inch Wide Full Touch BLACKBOX
B12HD-HD
1
Contents
1. Safety Precautions
2. Before Use
3. Product Feature
4. Package
5. Product Parts
6. Installation
7. External GPS Installation
8. How to record
9. REC Time
10. LED Operation Guide
11. Voice Guide
12. LCD Configuration
13. PC Viewer Program Installation
14. How to use PC Viewer
15. Playback
16. How to display Front / Rear screen
17. To save video file on your PC
18. How to separate video
19. SD card format & Set breaking voltage
20. Specification
21. FAQ
2
4
5
6
7
8
11
12
13
14
15
16
17
18
20
23
24
25
26
27
28
2
1. Safety Precautions
Caution on Operation and Storage
Do not operate the product during driving. It may cause
accident.
The product must be installed at a point which would not
obstruct the driver’s view.
Do not allow unauthorized disassembly or alteration to the
product. It may cause malfunction, and the consequent
product damage will not be covered under the warranty.
If the product is damaged or power is cut off by a serious
accident, the product may not be able to record such event
Always keep the windshield clean to enable normal recording.
Since the product is purpose to record video data during
driving, video quality may be deteriorated when in/out the
tunnel, and at night or by contrast and backlight.
Contaminated camera lens may deteriorate the video quality.
Keep the lens clean.
Do not place the product under direct sunlight
or inside the
closed vehicle as it may cause malfunction.
Do not use chemicals or detergent to clean the product. Clean
gently with soft cloth.
Use of the product at temperature below -20℃ or above 70℃
may cause malfunction or breakdown. (This caution should
be applied when product is unused.)
Do not use the product in places in high temperature/humidity.
Do not exert excessive force to the product (especially to LCD
buttons and to bracket) as it may cause breakdown.
Operate the product for 3-5 minutes to check for correct
recording, before each use.
Prolonged exposure to sunlight and high temperature in the
summer may cause malfunction.
Do not turn off power, or remove the SD card during firmware
upgrading as it may cause malfunction.
Do not touch a cigar lighter cable with
wet hand as it may
cause electric shock.
Do not use a damaged cigar lighter cable as it may cause
electric shock or fire.
Do not place the cigar lighter cable in near heating devices.
Do not leave the product connected to the cigar lighter
without using for a long period of time. Remove the cable
from the product.
Insert the cigar lighter securely.
Do not bend or pull the cigar lighter cable by excessive force,
or place heavy objects on the cable.
(It may damage the cord and as a result it may cause electric
shock or fire.)
Do not touch the LCD excessive force as it may cause
malfunction.
3
Caution on SD Card
Because an SD card is consumables, if it is used for a long
time, you may lose the data or may not record due to an
error, so please check it periodically.
When the product is in recording or the power is on, do
not eject the SD card forcibly. It may cause a failure of the
SD card and data loss.
If temperature gets too high in the vehicle, data storing
may be disabled, or data may be damaged. Park your
vehicle in the shade in the summer.
When identify the car's accident or damage, please keep
the SD card separately. Due to overwrite, important data
may be deleted.
When turn off the power of the body and remove the SD
card before LED is turned off, the last recording file may not
be saved, so please be careful.
When turn off the power of the body and remove the SD
card before LED is turned off, the last recording file may not
be saved, so please be careful.
When driving a vehicle, do not remove the SD card. Make
sure to remove it safely when a vehicle is in parking or stop.
After turning on the power, make sure that it is in normal
operation.
Please note that the warranty period of an SD card is
six (6) months, and replace it at the time of more than
six (6) months. Please purchase and use SD Card that
manufacture recommended specification.
The SD card randomly purchased other than the one we
provide, shall be excluded from the warranty, and we shall
not take any responsibility for loss and damage of the data
recorded in the S
D card in any case.
4
2. Before Use
Thank you for purchasing B12HD-HD
This User Manual contains important information
about the proper use and cautions in use of the
product. Please read carefully before use.
B12HD-HD is an auxiliary product to alert users for
safe driving and prevent accidents, by recording
video during driving. Also purpose for evidence
of an accident.
B12HD-HD does not however guarantee that all
accidents are recorded. Minor shock may not
detect sensor to record.
Atom gold shall not be liable for any loss or
damage to data or to the product which may be
caused by accident or impact.
All rights vested in the design and software of
B12HD-HD are the property of Atom gold. and
protected by the Copyright Law.
B12HD-HD may change without notice for
further function improvement.
This User Manual is published based on the
current state of the product, and may contain
typographical errors or omissions.
Contents of this User Manual may be modified,
changed or supplemented without notice for
further improvement.
5
3. Product Feature
High Quality Lens and High Image Quality
Resolution support
ㆍ
Front 2mega pixel image sensor
ㆍ
Wide angle mega lens
ㆍ
Front HD (1280x720) high image quality resolution and
total 60fps (Front 30 + Rear 30)
Various Recording Function and Video
Data Acknowledgement
ㆍ
Touch LCD display apply, recording image and recorded image
can be confirmed on LCD
ㆍ
Constant(Normal), Manual, Event, Motion and auto change to
Parking recording mode
ㆍ
Driving records can be stored with GPS data. (optional)
ㆍ
G sensor built-in Automatic parking recording mode change and
event recording mode.
ㆍ
Configuration setting is available on LCD menu.
ㆍ
PC viewer program are provided to change various setting
values and map data can be checked when using GPS. (In the
general video player (e.g. Windows media player), recorded
video can be played)
ㆍ
SD card can be formatted as the product itself, without
connecting to a PC.
ㆍ
Each capacity of a constant(normal)/ event/ motion folder
can be set in PC Vi
ewer
High Quality Voice Record and Voice
Guidance
ㆍ
Operating instructions service by voice guidance
ㆍ
Voice recording On/Off function and speaker output On/Off
function
ㆍ
High performance microphone built-in
Back-up battery and vehicle constant
power discharge protection function
ㆍ
Stored recorded image safety by built-in high-capacity
capacitor when power is off
ㆍ
Vehicle constant power discharge protection function
(Selectable ON/OFF on viewer, Not required another
equipment for this function)
Consume less than 300uA when power shutdown
(Based on 12V)
ㆍ
When using vehicle constant power discharge protection
functions, If user vehicle voltage is 12V and the voltage of less
than 11.8V is maintained for more than 5 minutes the product
power will be shuts-off (Note: Shutdown time depend on the
Type of vehicle and condition.
)
Other
ㆍ
Soft look and emotional design. (easy removable body)
ㆍ
Security LED light are built-in front body (LED Lighting function
On/Off can be set in PC viewer / LCD menu)
6

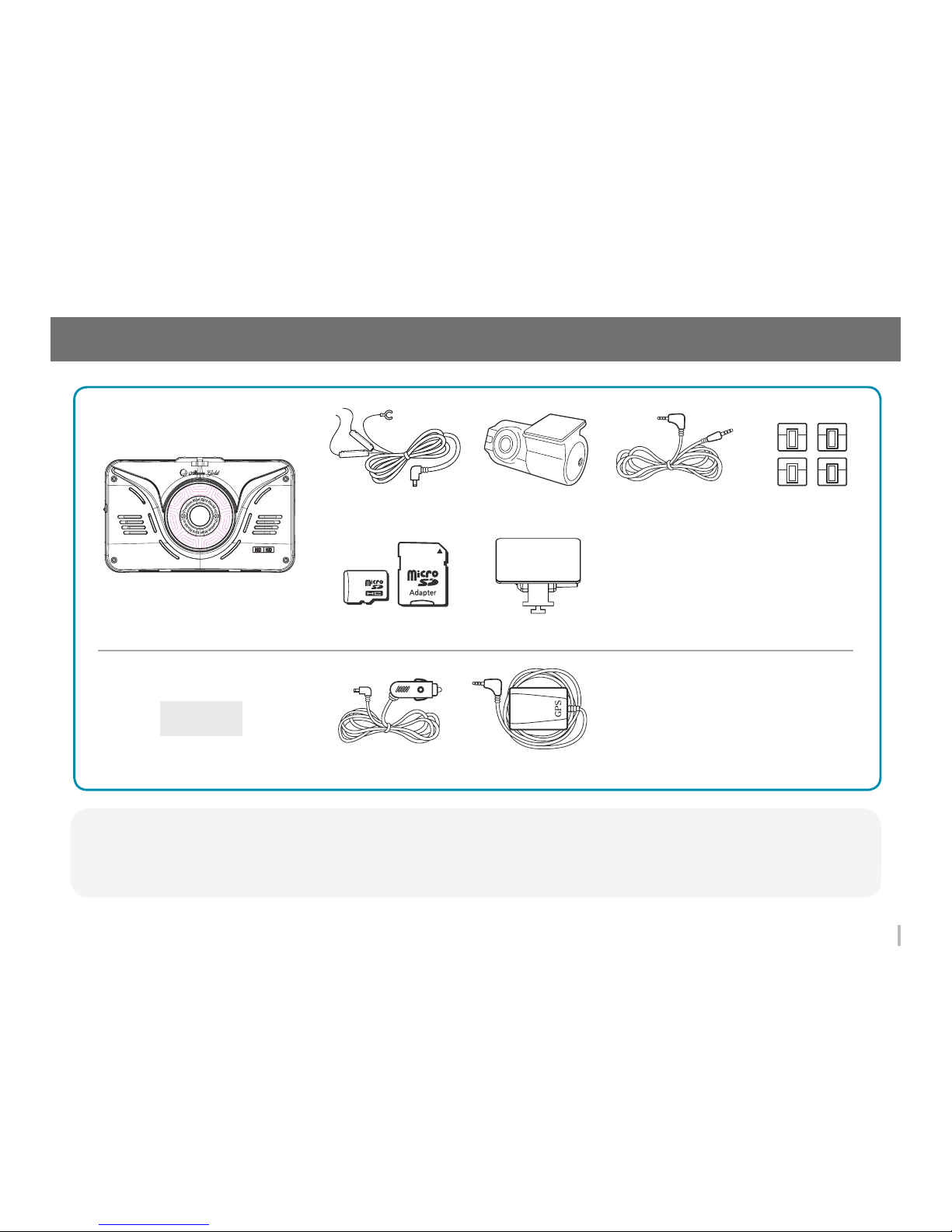

4.
Package
Standard Package
ㆍ
The packaged product picture of the user manual may differ from the actual product.
ㆍ
Video input type is different and check the user manual of monitor.
Power Cable for
rear camera
별매품
B12HD-HD Body
Hardwire Cable
Cigar Lighter External GPS
Cable Clip
Micro SD Card & Adaptor
Bracket
Rear Camera
7

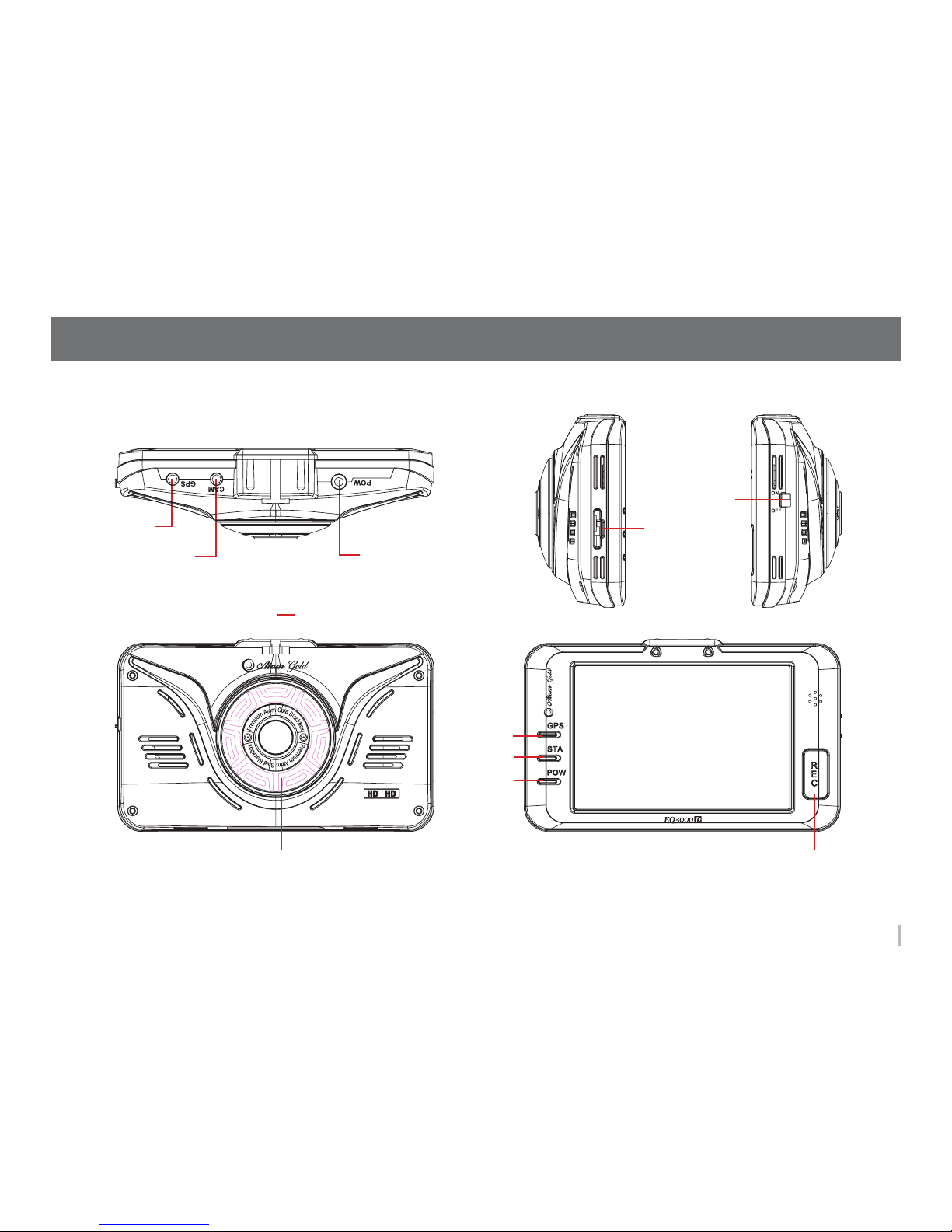

5. Product Parts
Front Camera
REC Button
by manual
Power Button
SD Card Slot
GPS
DC-IN
Rear Camera
GPS LED
STATE LED
POWER LED
Security LED
8

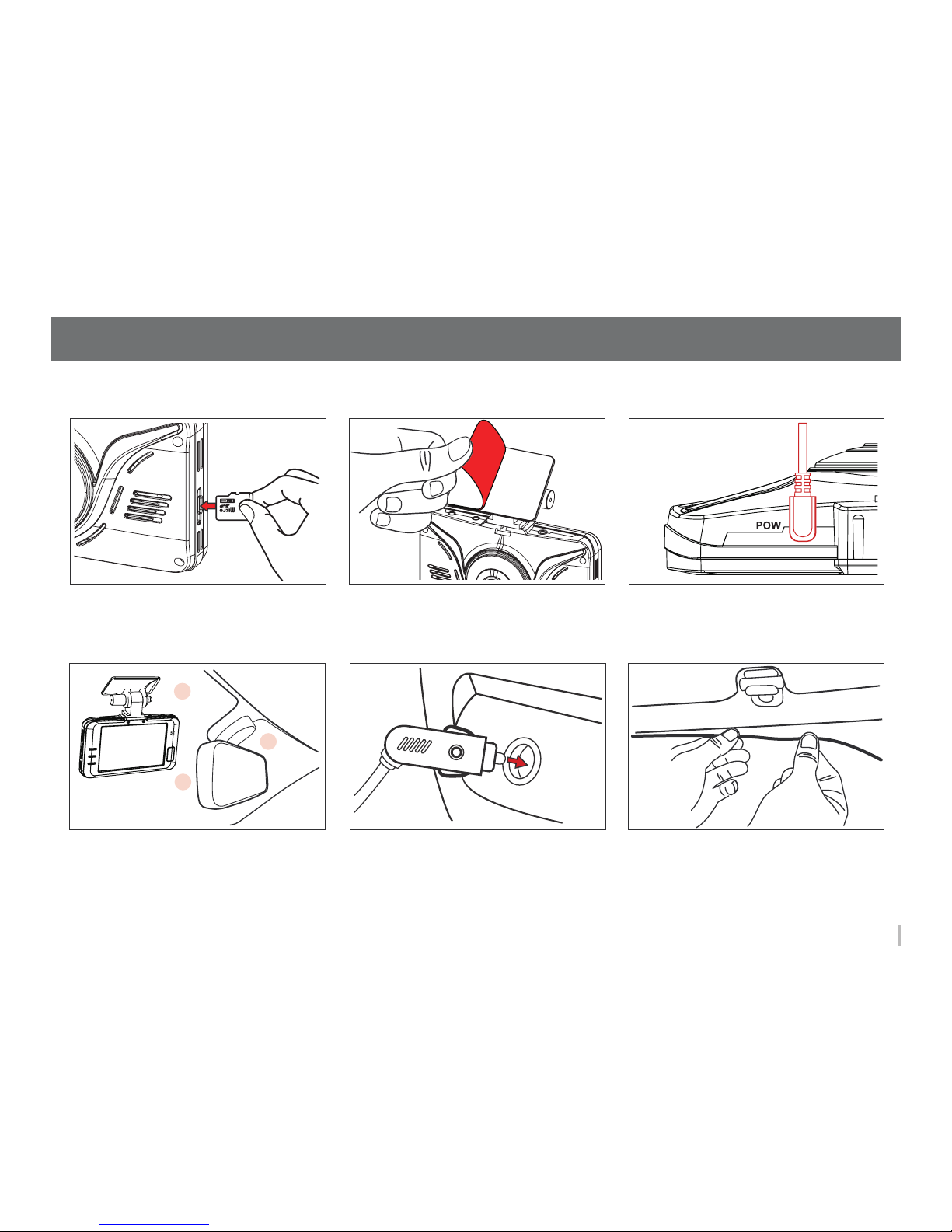

6. Installation
1. Insert Micro SD card to SD card slot of
the device.
(Check the defection of SD card.)
2. Remove the protective tape from the
bracket.
3. Connect the cigar jack cable to DC-IN
of the device.
1. Front Camera Installation
6. Arrange the wire by using the cable
clip.
4. Attach the bracket on the windshield
of the left of center behind the rearview
mirror.
5. Plug the cigar jack cable into car power
socket.
9

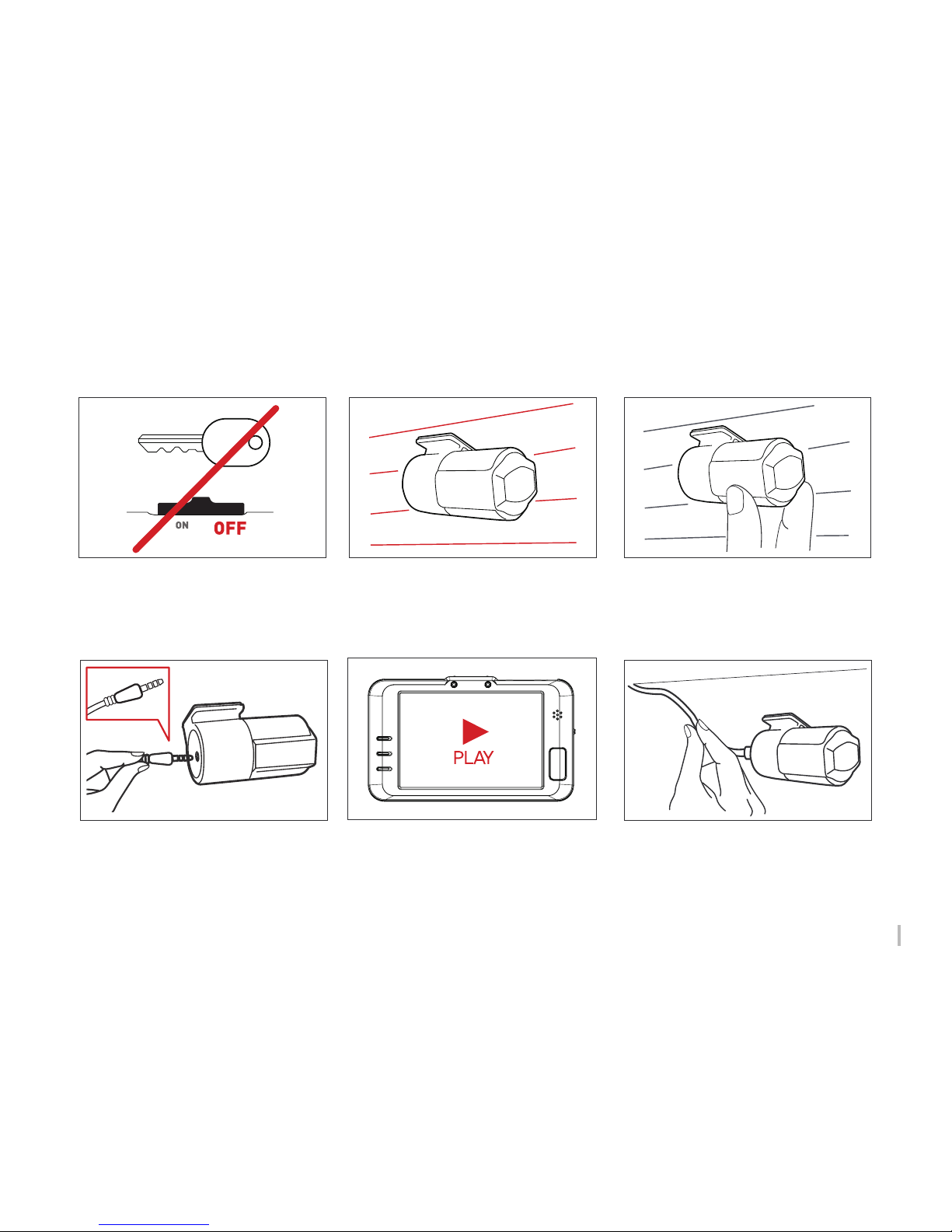

2. Rear Camera Installation
4. Connect video cable
Plug (ㅡ) shape's rear end of the plug to
the camera connection, (ㄱ) shape's
one to the device.
5. Check an operation
Turn the device on and check whether
to record properly.
P l ease power off a car and Dashcam
before installation.
(Disconnect the power connection)
1. Shutdown a car battery and power
2. Install a rear camera 3. Adjust a rear camera angle
6. Arrange a front/rear camera cable
Arrange the wire by using the cable clip.
R emove the protective tape from the rear
camera and attach the camera in the
proper place.
A djust the camera angle and fix it.
(To adjust the angle, the horizon is seen
above the right center of the screen.)
10

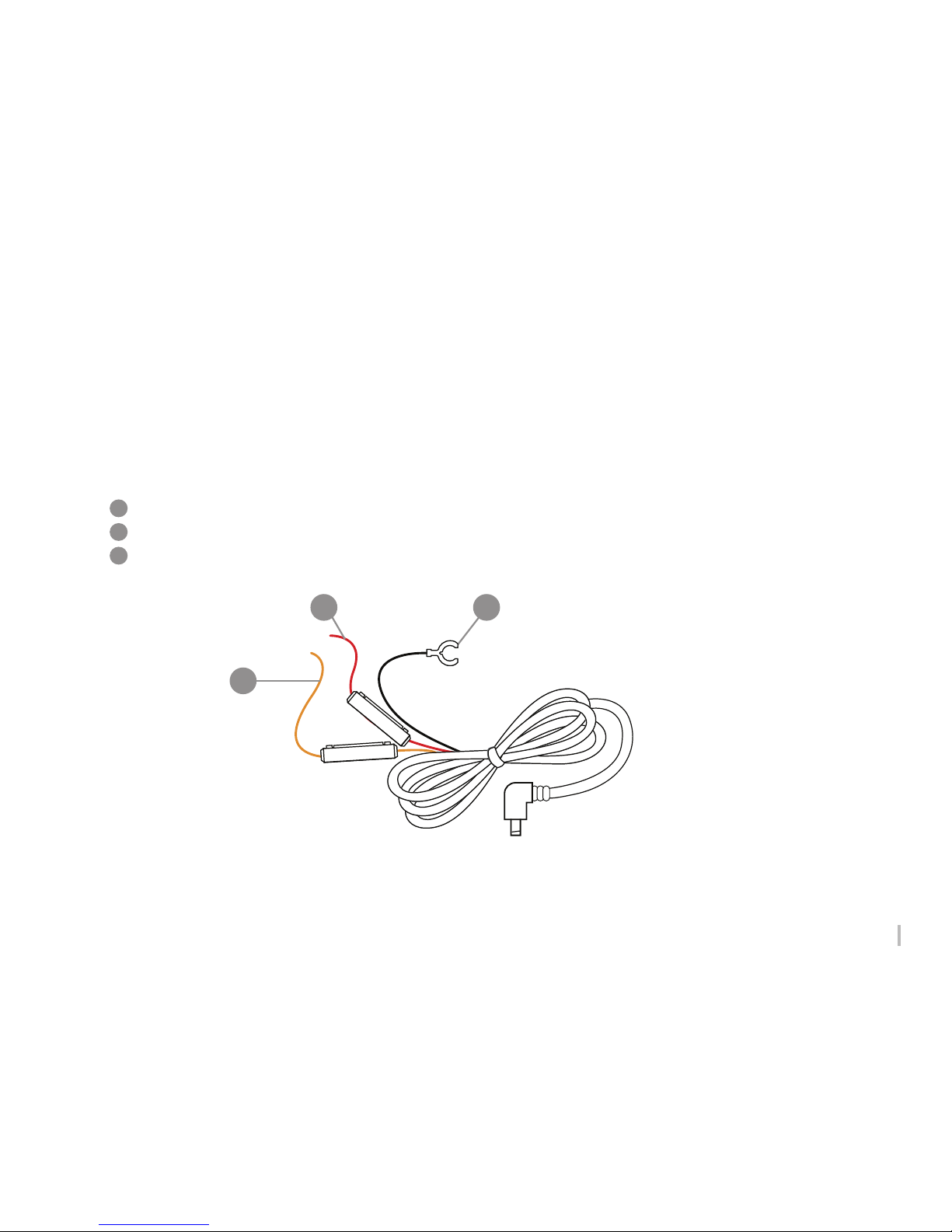

1. How to install a Fuse Cable
Fuse cable has 3 lines.
(When use constant power discharge protection function)
Battery Line (
Yellow
) :
Connect to Emergency light
ACC Line (
Red
) : Connect to Fuse Power
Ground Line (Black) : GND
1
2
3
3
1
2
3. Fuse Cable Installation
11

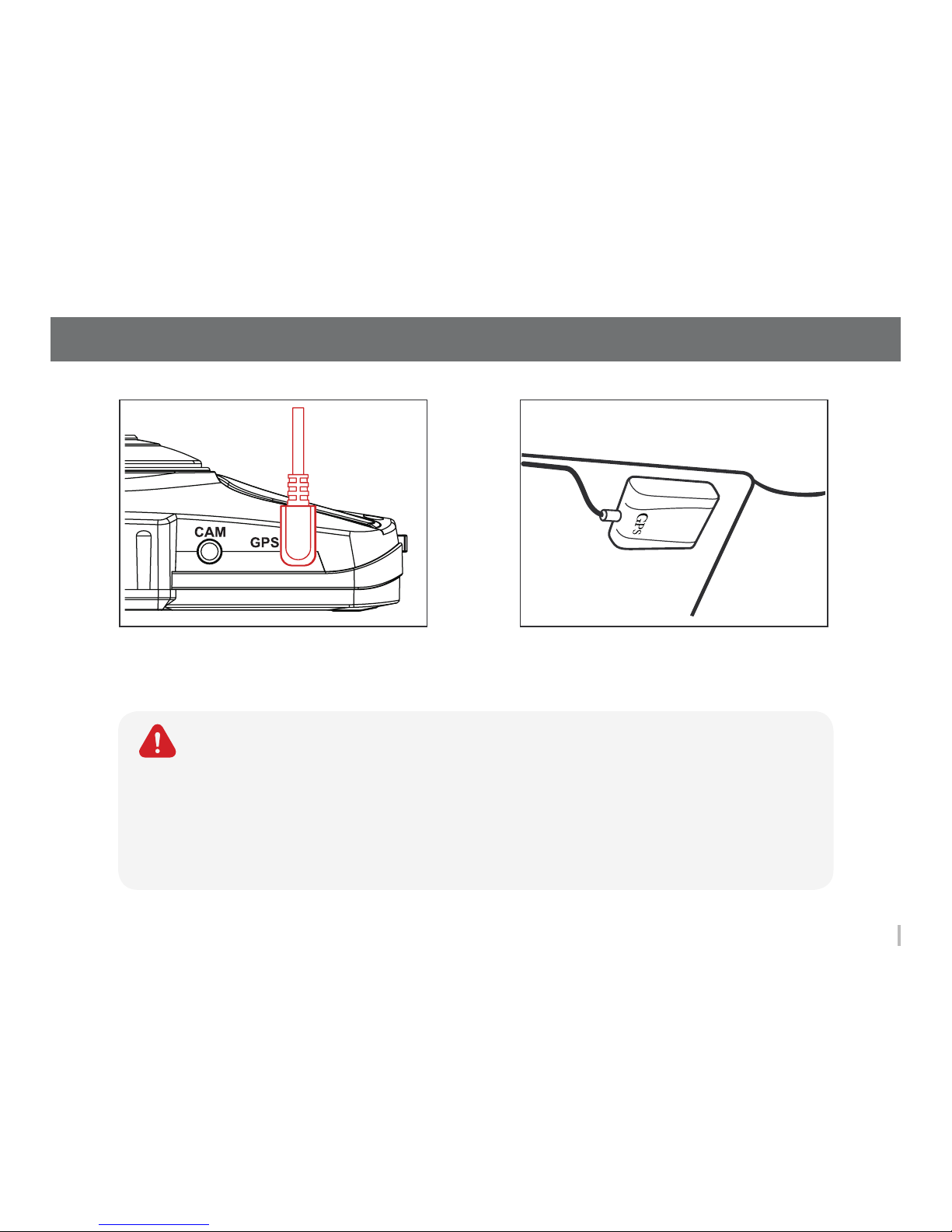

Connect the external GPS to GPS
connection on the device.
Fix the external GPS into appropriate
place, and tidy up the cable.
7. External GPS Installation
Caution on GPS Installation
ㆍ
This feature may not be available in some countries.
ㆍ
Other electronic devices may interfere with GPS signal if placed too close to the device. Keep its distance
from them as much as possible.
ㆍ
GPS may be affected by weather conditions, satellite signal, or surrounding geographical features.
ㆍ
Coated windshields can interfere with GPS signal which may result in poor or blocked GPS reception.
12
8. How to record
1. Record : Winner is automatically boot at power on, and a constant(normal) recording starts as an initial recording mode.
2. Recording Mode : it is classified into driving recording mode and parking (motion) recording mode.
3. Recording Method : it is classified into a Constant(normal) recording, event recording, motion recording.
※ For automatic recording and manual recording methods, please refer the below table.
※ After changed to Parking mode, LCD will be on for 30sec nevertheless you set screen saving time
as 30se/60sec/always.
※ When turned to “Parking Mode” G-sensor sensitivity will be more sensitive than driving mode.
REC Mode
Driving
Mode
Parking
(Motion)
Mode
REC Method
Constant(normal)
REC
-
Memory save
Event REC In G-sensor detect shock
Motion REC
-
Including before 10 sec
Event/Motion detect
Event REC In G-sensor detect shock
Auto REC Mode REC Time
13
▶ Default Setting
3-5. 녹화 시간
9. REC Time
ㆍ
By time : When the SD card is full, the oldest file will be automatically deleted.
ㆍ
By mode : Total record files are stored by your setting rate on “SD card Folder Capacity Adjustment”.
When memory is full on a particular recording mode, the oldest file will be automatically deleted on particular
recording mode. Stored file may also be deleted.
CH
1CH
2CH
Video
Quality
Camera
16GB 32GB 128GB64GB
Super High Front
High Front
Normal Front
Super High
Front/Rear
High
Front/Rear
Normal
Front/Rear
Normal
(50%)
Normal
(50%)
Normal
(50%)
Normal
(50%)
Motion
(20%)
Motion
(20%)
Motion
(20%)
Motion
(20%)
Event
(30%)
Event
(30%)
Event
(30%)
Event
(30%)
(
Unit : Minute
)
347 1402171 69972 29035 145108 43553 217
416 1683205 83872 29035 145108 43553 217
520 2104256 104872 29035 145108 43553 217
173 70185 34969 28034 140104 42151 210
208 841102 41972 29035 145108 43553 217
260 1052128 52472 29035 145108 43553 217
14
10. LED Operation Guide
Item Security LED
Booting Blue ON
FW update Blue ON
Continuous / Event REC Standby (N) ON 1 sec / OFF 1 sec
In detect a Shock (E) ON 0.5 sec / OFF 0.5 sec
Parking REC (P) ON 0.25 sec / OFF 0.25 sec
Parking REC Standby 5 LED flashing interval 0.5 sec to right and left
No micro SD Card (including an error) OFF
15
11. Voice Guide
Situation Voice Guide
Remove SD card / SD card Error “ Please check your SD card. ”
Constant (Normal) Recording Start (In booting) “ Constant Recording will start. ”
* Event Recording Start (In booting) “ Event Recording will start. ”
Parking Recording start “ Parking Recording will start. ”
Recording end “ The Recording will end. ”
Alarm tone in a Rear Camera disconnect
(the error for 2CH REC)
“ Ding-Dong ”
※ Only when event REC mode is set in the configuration, the voice guiding "event recording will start"
will announce
16

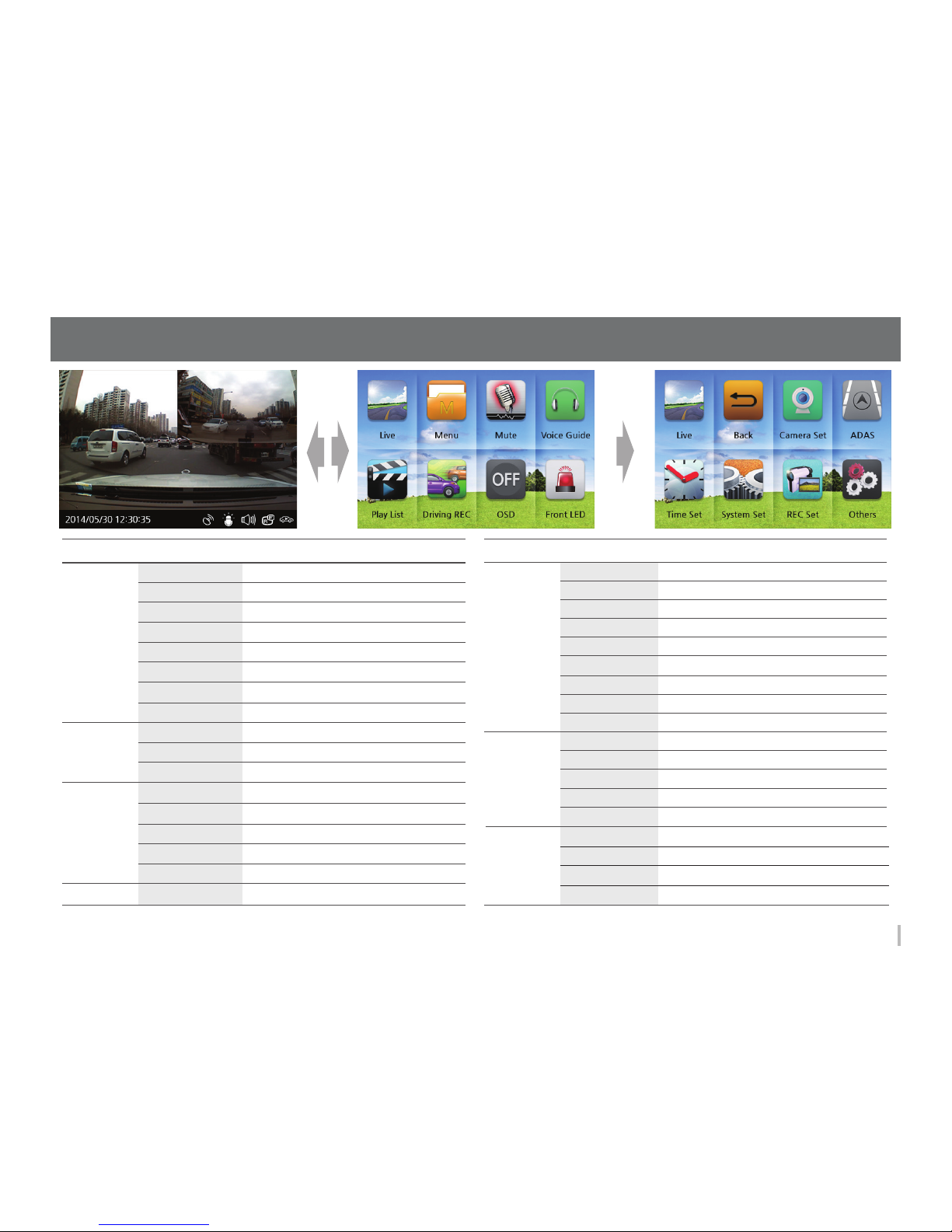

12. LCD Configuration
Night Vision
Menu
Menu
Function
Function
Live
Live Image
Quick Menu
Time Set
System Set
Camera Set
Menu
Setting Menu
Mute
Voice REC ON/OFF
Voice Guide
Speaker ON/OFF
Time Set
Set Time on product
Play List
Driving/Parking REC
Playback List
N(Driving), P(Parking) REC
Standard Time Set
Set Standard Time
Summer Time
Set Summer Time
OSD
OSD On/Off
Cut Off Voltage
Set voltage for car constant power discharge
Front LED
LED On/Off
Auto LCD Off
Language
Normally off after 30sec / on 60sec
Set Language
High Temp Cutoff
Speaker Volume
Camera Set
Set High Temperature Cut off
Set Speaker Volume
Adjust Brightness, Contrast, Chroma on Camera
REC Set
Others
REC CH
Touch Calibration
Operating Speed
Warning
LDWS
FVSA
ADAS
Set More Bright under nighttime parking mode
Calibrate Touch Screen
Set ADAS Operating Speed
Warning On/Off
Set LDWS Warning during Driving
Set FVSA Warning during Driving
Set REC Channel
Front Video Quality
Rear Video Quality
Set Front Video Quality
REC Mode
Set Rear Video Quality
Continuous / Shock
Mic Volume Set REC Volume
Shock Level(N) Set Shock Sensor Level (Driving)
Shock Level(P) Set Shock Sensor Level (Parking)
Motion Level Set Motion Sensor Level
System Info
Memory Adjustment
Display System Information
Adjust REC Folder Capacity Rate
Factory Init Initialize Configuration
SD Card Format Format Micro SD Card
17
1. System Requirements
Windows XP(32bit), Windows Vista(32bit), Windows7(32/64bit), Windows8(32/64bit),
Windows10(32/64bit)
Display monitor resolution: 1024 X 768
DirectX Support (WPF)
13. PC Viewer Program Installation
18

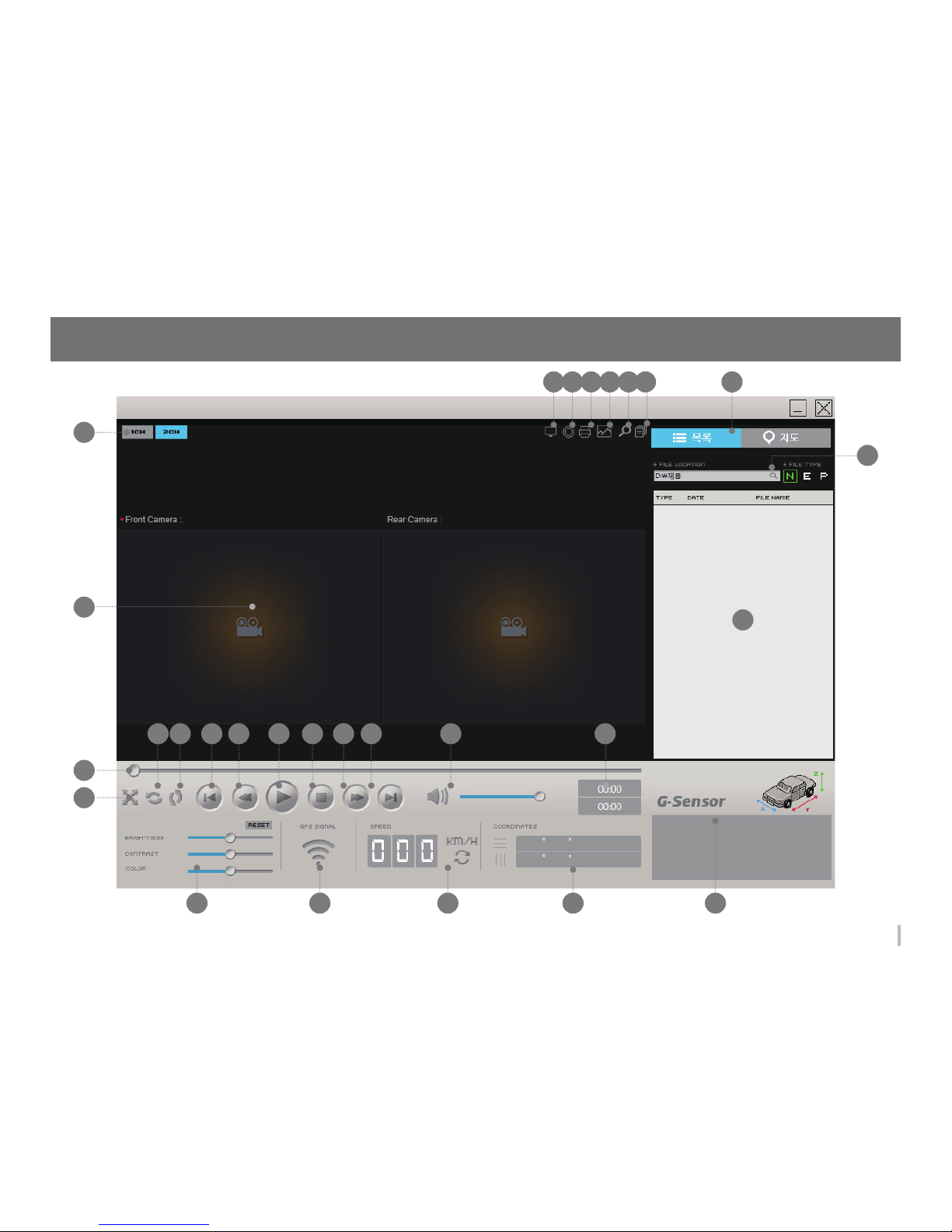

14. How to use PC Viewer
2 3 4 5 6 7 8
10
1
28
11
13 14 15 16 17 18 19 20 21 22
23 24 25 26 27
12
9
19
Full Screen
Item ItemFunction Function
1CH / 2CH View Rewind 5 sec
Viewer Configuration Playback or Pause
System Configuration Stop
Print Forward 5 sec
Screen Capture File Skip
Zoom Control Volume
Play List / Map Button
Total File Time / Playback Time
File Location Search
Brightness / Contrast
REC File List / Map Display
GPS Signal Condition
Playback Video Image
Driving Speed
Playback Control Latitude / Longitude
G-sensor Information
Flip Horizontal
Split Image
Flip Vertical
File Skip Back
1
16
2
17
3
18
4
19
5
20
6
21
7
22
8
23
9
24
10 25
11 26
12 27
13 28
14
15
20

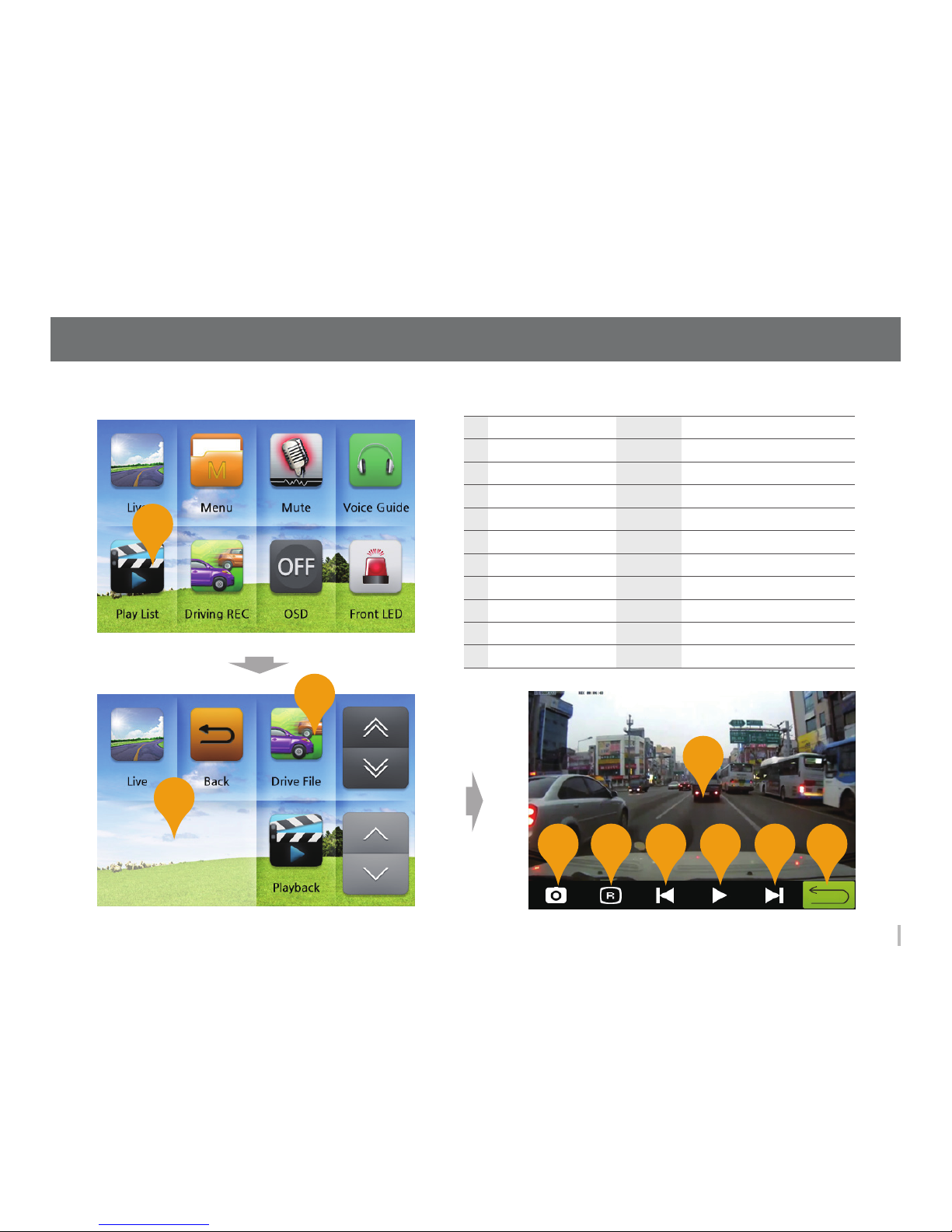

15. Playback
1. Vehicle Drive Recorder
5 6 7 8 9 10
4
1
2
2017/06/01 12:02:19
2017/06/01 18:11:24
2017/06/02 01:09:08
3
NO. Item Display Description
Back Button Back to list tab10
LIVE Button Back to list5
Front / Rear Button Toggle Front / Rear video diplay6
Former File Button Playback Former file7
Playback Button Playback REC file8
Next File Button Playback Next file9
Normal / Event / Motion Tab Each REC file list display tab2
Playback Icon Display REC List1
REC File list List REC File list that is selected tab3
Playback REC Window REC video playback window4
21

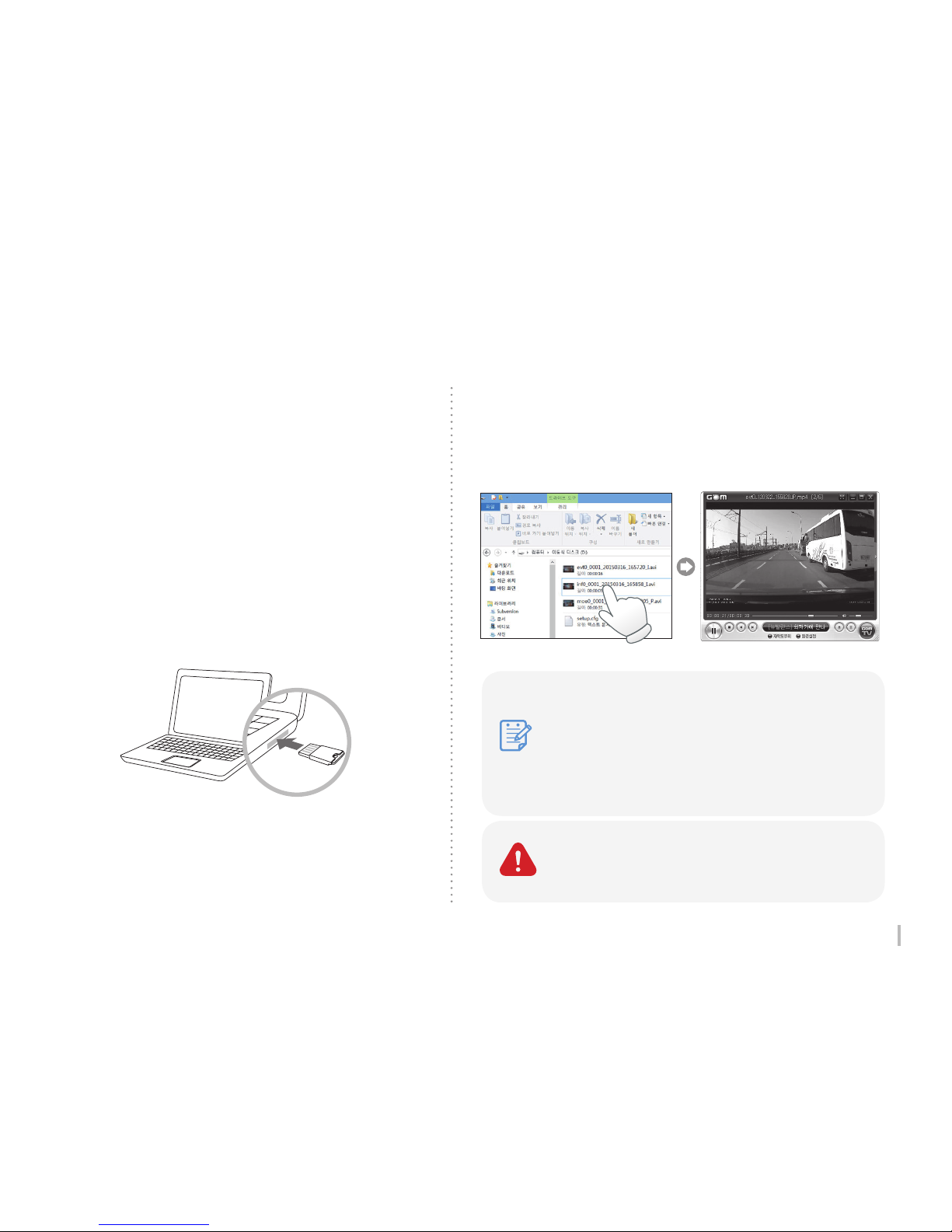

1) Remove the SD Card from the device
Open a SD Card slot cover and press
softly, then a SD Card can be removed
easily.
You can check only front REC when playing
by a video player.
2. Video Player
3) Playback
Open a removal disc, you can see each folders.
And click files to playback which is stored in
each folders.
2) Connect a SD Card to PC
Insert a SD card to SD Card Reader or to
adapter, and connect it to PC.
infxx
moexx
evtxx
GPS Information is displayed in the original viewer.
: Constant(normal) record
: Motion record which is detected by
motion detection sensor. (Parking mode)
: Event record which is detected a shock
by shock sensor.
22

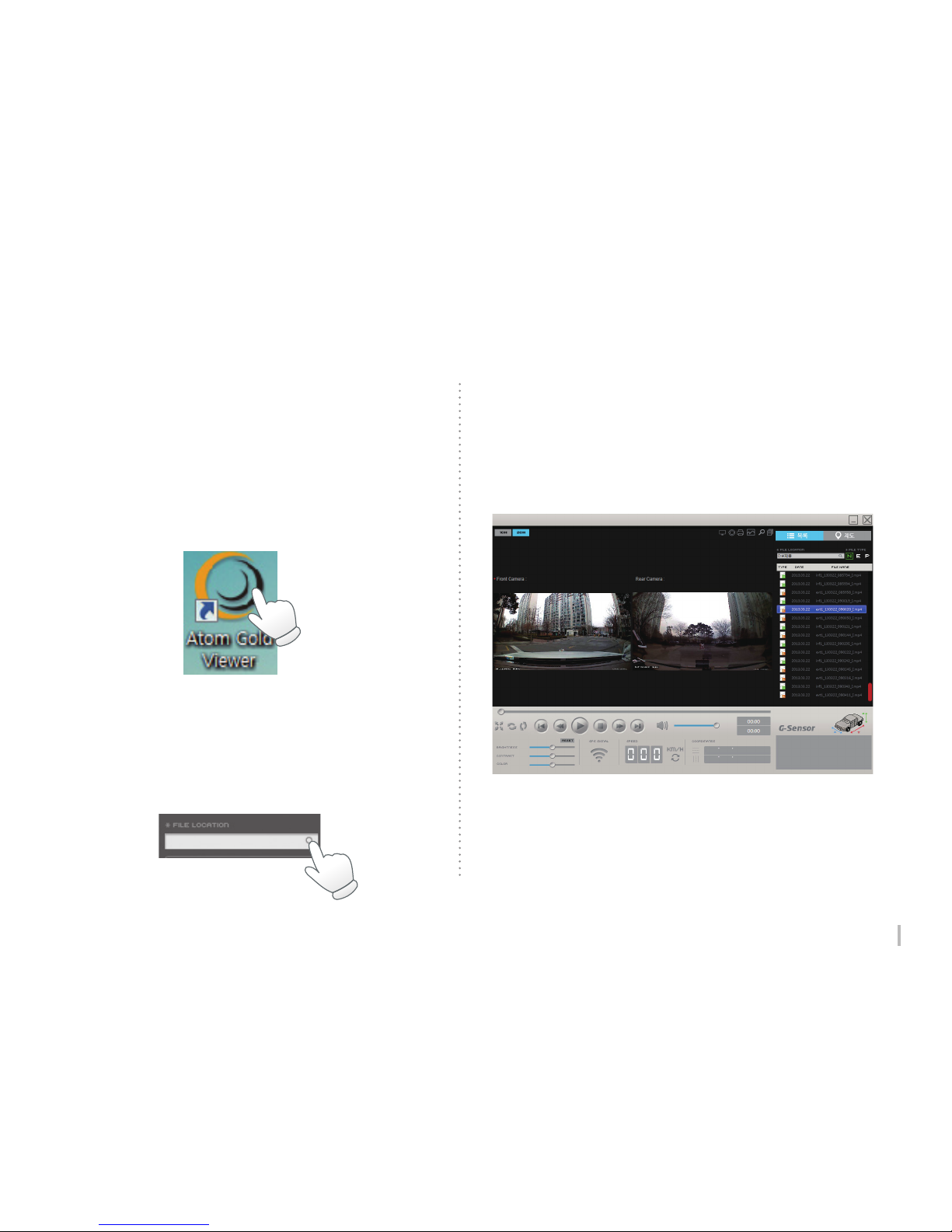

3. PC Viewer Program
1) Connect TV Out cable 4) Playback
※Click
N : Constant(normal) REC file list
E : Event REC file list
P : Parking REC file list
2) PC Viewer Program
Click the icon to operate the viewer
program.
3) Find a REC file location
Click “FILE LOCATION” in the viewer
program on upper right. Choose the file
location, video file list will be sho
23

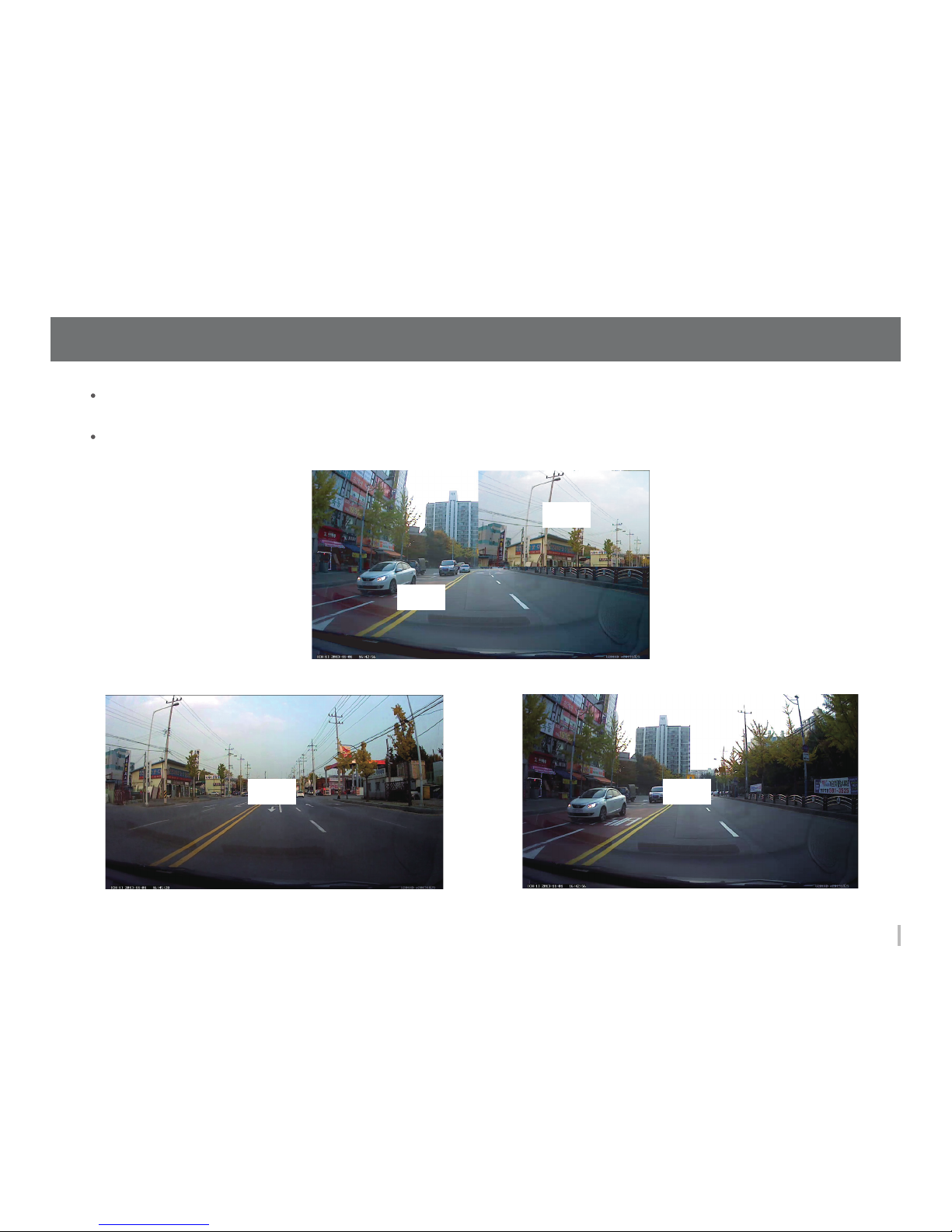

16. How to display Front / Rear screen
When you touch in the upper-right-hand corner of the screen (1/4 of whole screen), LCD Screen will
change automatically Front/Rear, only Front, only Rear.
Only LCD Screen looks different, 2CH images will be recorded when rear camera is connected.
Front/Rear LCD Screen
Rear LCD Screen Front LCD Screen
Rear
Rear Front
Front
24

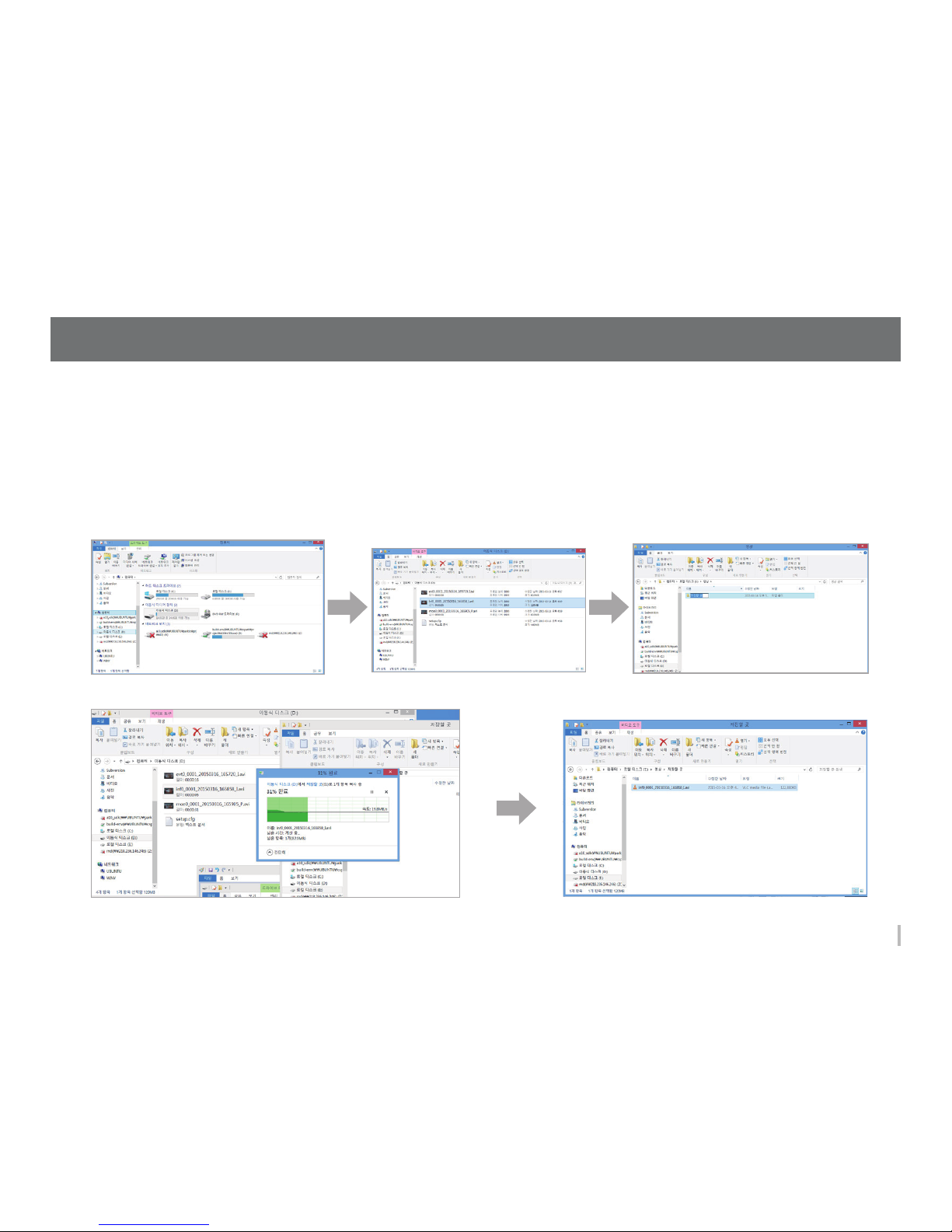

17. To save video file on your PC
1) Enter to removal disc after insert SD card to your PC.
2) Go to the folder where recorded video files are stored.
3) Create the new folder in same location.
4) Drag the particular file to the new file to copy.
(If you drag a folder, the whole folder will be copied.)
25

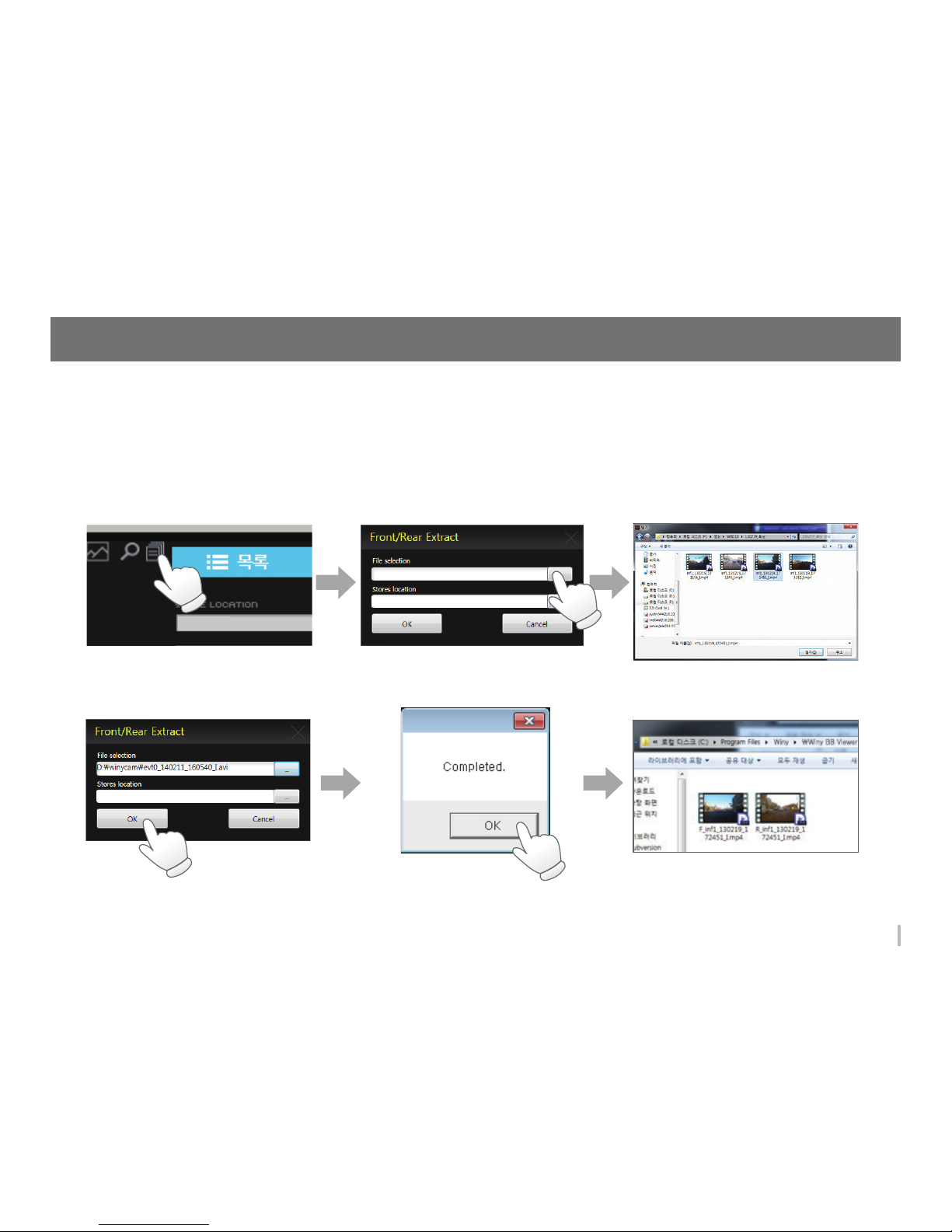

18. How to separate video
1. Press “Front & Rear Extract” button on the original PC viewer program.
2. Select a video file to separate and click “OK” button.
3. Stored separated file in “C:\Program Files\BlackBoxViewer\BlackBoxViewer\Video”
C:\Program Files (x86)\MDA\AtomGold\Video
C:\Program Files (x86)\MDA\AtomGold\Video
1.
4. 5 6.
2. 3.
26
Format the Micro SD card on the device. (Menu > Others > SD Card Format)
※ Please back up data before formatiing the memory card. Once you format memory card, all data will be
deleted and cannot be restored.
1. Format on the device
2. Cut Off Voltage Setting
This device can prevent the discharge of the vehicle battery by blocking power to the dash cam if the
voltage drops below a configured value. With the configuration on LCD screen or PC viewer program,
set the voltage level to cut off automatically in order to prevent from draining the vehicle battery.
2) PC Viewer Program
Operating Configuration > Bracking Voltage
* Setting Value : Disable, 11.8V(23.2), 11.9V(23.6),
12.0V(24.0), 12.2V(24.4), 12.4V(24.8)
1) Setting on LCD Screen
Menu > System Set > Cut Off Voltage
19. SD card format & Set breaking voltage
27
20. Specification
Item Item
CPU
Flash Memory
RAM
Recording Channel
Camera
Image Quality
FPS
GPS
View angel
Power Input
Display (LCD)
Battery
G-Sensor
Video Format
ADAS
Voice Recording
Voice Guidance
Video Compression
Memory
High Temperature
Cut-off
Operating
Temperature
Breaking Voltage
Storage
Temperature
Specification Specification
Allwinner V3 (ARM Cortex A7 core)
1Gb Serial NAND
256 MB DDR
2CH
Front : Omnivision 9732
Rear : Clairpixel HDX11
Front
: HD (1280x720)
Rear
: HD (1280x720)
30 FPS / 30 FPS
External GPS Module (Option)
Front : 110°(H) X 60°(V) X 130°(D)
Rear : 92 ° (H) x 48° (V) x 110° (D)
DC 12V~24V
3.5" TFT with TSP (320x480)
Super Capacitor
3D Shock Sensor
AVI
Yes
Built-in high sensitive
microphone
Built-in speaker
H.264 / PCM
microSD Card
(up to 128GB opt.)
Yes
-20℃ ~+70℃
(Option) : Disable, 11.8V(23.2),
11.9V(23.6), 12.0V(24.0),
12.2V(24.4), 12.4V(24.8)
-30℃ ~+80℃
28
21. FAQ
Precaution before use
1. Please check for any defect on the product before installation.
The Company shall not take responsibility for any cost or
expense incurred as a result of the failure to check before
installation.
2. If installation was held at a service center other than those
designated by the Company, the Company shall not take a
responsibility for cost or expense charged at such center.
3. If the constant power protect function is set ‘OFF’, monitoring
during parking will be performed only for a certain period of time.
If the vehicle battery voltage is
lowered for self-protection, power
to the device may be disconnected even in the Parking Mode
disabling the recording.
4. The Micro SD card is a consumable. Use of
an aged SD card may
cause error. Please replace on a regular basis.
5. When a vehicle accident occurred, turn off power of the product
immediately, remove the SD card and save the accident file on your
PC. If the file is erased due to the times away, the Company shall
not take responsible.
1. Power is not turned on.
※ Check once again if the power cable is properly connected. If the problem is not solved, please contact manufacture.
2. The map is not shown when a video is played on a PC original viewer program.
※ Check your Internet connection. Check if your Internet Explorer is v7.0 or higher.
3. Power is connected, but LED is not lightning.
※ Check if the power cable is connected properly. Then if still LED dose not lightning, the product or the SD card may be
defective. Please contact
manufacture.
4. GPS signal dose not recognize. (GPS is sold separately.)
※ GPS signal reception may be interrupted temporarily depending on the environment and locations. Drive your vehicle
to other location where GPS signal reception is abled. Please wait 3-5 minutes in th
e GPS signal reception area.
If the signal still dose not recognized, please contact manufacture
5. The product does not recognize the SD card.
※ Remove the SD card from Winner after power OFF, and check for any foreign material or abnormality around the
connecting terminal. Format the SD card and try again. If the SD card is old
, please replace to a new one.
29
Warranty
1. The products are manufactured through the strict quality control and inspection process.
2. The defect occurring in normal use of user within the warranty period will be repaired free of charge.
3. If the warranty period has passed, we will repair by paid charge.
4. Please take this “Warrantee” when you request repair.
5. Please keep this “Warrantee” because we will not be able to re-issue this warrantee note.
Warranty Details (Conditions)
1. Free Service
Product : 1 Year from purchase date.
Micro SD Card : 6 months from purchase date
(if purchase date is not confirmed, it should be counted from manufacture date of SD card.)
2. Paid Service
1) If the warranty period has passed.
2) If a failures caused by carelessness using (drop, flooding, shock, breakage, excessive operation)
3) If failures caused by natural disasters (fire, lightning, flood damage, etc.
4) Failures caused by the malfunction of power in use and connected equipment.
Model Name Product
Serial No Purchase date
Customer TEL
Address
Purchase from TEL
B12HD-HD Vehicle Drive Recorder / Rear Camera
YY MM DD
Please keep this “Warrantee” because we will not be able to re-issue this warrantee note.
www.huvitech.com
Loading...
