Hutto Model MJ Grinding Machine

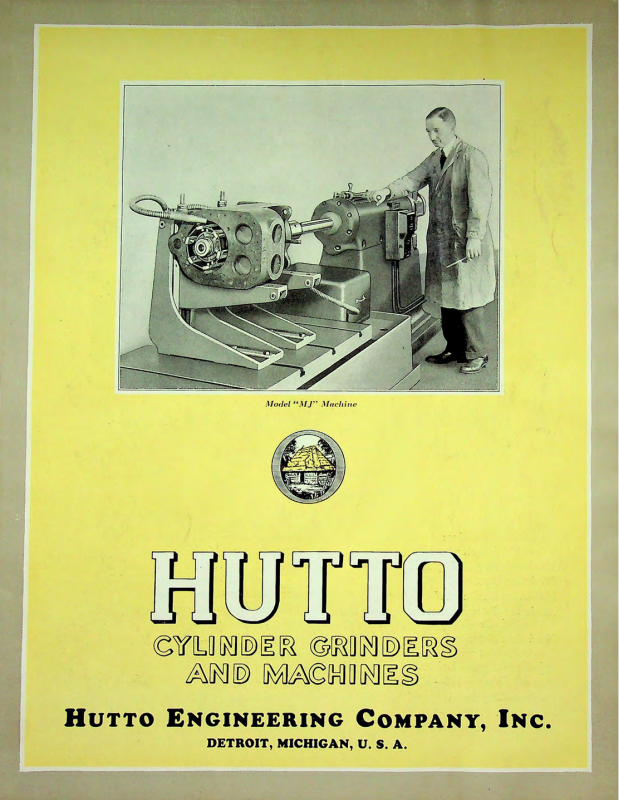

Model MJ Machine
SPECIFICATIONS
Capacity of machine:
3" to 10" Diameter bore
Maximum length of cylinder—55"
Minimum Stroke—5"
Maximum Stroke—27"
Minimum distance from face of
of
Spindle—5"
Maximum distance from face of nose to end
of
Spindle—34"
Spindle—Bayonet Drive.
Spindle Speeds—100—150—200 R. P. M.
Reciprocating Speeds
Ratio to R. P. M.’s—1 to 2
Floor Space—4' 0" x 14' 0"
nose to end
Power Motor
Pump Motor—Fl
Height of Spindle from floor—32"
Height of Table from floor—12J^"
Kerosene Capacity—35 gallons
Filtering device and pump
Table:
Working Surface—
Overall Size—
Size of T
Number of T
Center Distance of T slots—12"
Net Weight—2900 pounds
Prices upon application
—
40" x 86"
slots—1"
slots—5
Horse Power
Horse Power
30^" x 65"
Page 3
HE Hullo
grinding machine is of sturdy con
T
struction and especially adapted
to the grinding of cylinder bores up to
10 inches in diameter and a maximum
length of
Ball bearings are used throughout and
moving parts are immersed in oil, assur
ing
long life.
7J/4 horsepower driving motor
A
assures abundant power for grinding
within the specified range of the machine.
Change speed gears afford three dif
ferent traversing and revolving speeds.
The stroke of the machine is variable
between 5 inches and 27 inches, quickly
and easily adjusted by means of stops
located on horizontal reversing bar on
lop of the body of the machine. These
stops automatically reverse the direction
of travel of spindle at each end of the
stroke. However, a manually operated
lever permits reversal of spindle at any
point of travel or throwing clutch into
neutral permitting grinder to dwell at
any point desired in the work to remove
high spots.
A kerosene coolant reservoir of 35
gallons capacity is built into the table
and a filter, circulating pump and motor
furnish a liberal supply of clean, cool
coolant.
This machine when used with the
proper Hutto grinder will enable the
operator to maintain the closest possible
accuracy limits for straight and round
cylinders. The amount of production is
of course directly related to the diameter
and length of the cylinder bore, the
material and amount of stock necessary
to remove.
Model
55 inches.
”
MJ" horizontal
Our engineering facilities and experi
ence are available at all times without
obligation and an analysis of any internal
grinding problem will be cheerfully
given. Experienced factory representa
tives are always available to install
Hutto equipment and properly instruct
the operator in its use.
