Item Part # Description Wiring Item #
F
AN ASSEMBLIES,
AND THERMOSTATS
A. 12W Standard Fan Assembly (1)
0047000 Fan Motor, Evaporator (MO.4410103)
0461805 Fan Blade (FB.4780446)
12W Optional Energy Efficient Fan Assembly (1)
0477655 Fan Motor, Evaporator (MO.4410546)
0461805 Fan Blade (FB.4780446)
B. 0474033 Standard Non-adjustable (2)
Defrost Thermostat (CT.4440726)
C. Optional Adjustable
Refrigeration Thermostat (3)
D. 0344662 Defrost Limit Thermostat (4)
(CT.4440261)
E. 0461814 Relay Control Thermostat or (5)
Fan and Anti-sweat Heater
Thermostat (CT.4481296)
R
ELAYS
F. 0342598 Anti-Sweat Control Relay (6)
(120V) (RL.4480238)
G. 0342599 Fan Control Relay (208V) (7)
(RL.4480237)
Item Part # Qty Description Wiring Item #
H
EATERS
H. Electric Defrost Heaters
0441755 (2) 208V Front (HE.4850346) (8)
0463891 (2) 208V Rear (HE.4850358) (8)
0444685 (2) 208V End (HE.4850502) (8)
I. Drain Pan Heater — Electric & Kool Gas
0387037 (2) 120V (HE.4850240) (9)
J Flue Reheater 120V (HE.4850573)
0444712 120V (HE.4850573) (10)
L
AMPS. BALLASTS, LED FIXTURES AND POWER SUPPLY
K. 0489698 2 Lamp Ballast (BA.4481596)
0489699 3 Lamp Ballast (BA.4481739)
0424649 Export Ballast (BA.0424649)
M. Standard Fluorescent Lamp
Replace with like fixtures
L. 0499399 LED Power Supply (EP.4481668)
M. LED Fixture
Replace with like fixtures
NOTE: For LED lighting parts contact your Hussmann service
representative at 1-800-922-1919. Please have your model and
serial number available.
REAR
F
G
I
K
L
B
Serial Plate
J
D
K
C
E
Main Terminal Block
Terminal Block
Terminal Block
H
E
E
K
L
A
F
G
Terminal Block
B
A
B
M
F
G
Merchandisers
®
Warning:
Terminal block
NOT for
case-to-case
wire connection!
RLNIE
with
INNOVATOR
Doors
Technical Data Sheet
P/N 0444704_G
NSF
®
Certified
November 2009
We reserve the right to change
or revise specifications and
product design in connection
with any feature of our
products. Such changes
do not entitle the buyer to
corresponding changes,
improvements, additions or
replacements for equipment
previously sold or shipped.
©2009 HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM
NOTE: Revision G updates LED electrical data, Page 4.
P/N0444704G
Refer to I
NNOVATOR REACH-IN GLASS DOOR
I
NSTALLATION AND SERVICE
manual, P/N 0425683,
for Innovator and Innovator II door and frame
replacement parts.
6
(152)
Water
Seal
Waste Outlet
Electrical Wireway
Electrical Wireway
Waste Outlet
Electrical Wireway
88 1/2
(2248)
9 1/8
(232)
Relay & Terminal
Block Location
Refrigeration
Outlet
60 5/8
(1540)
63 1/4
(1607)
70 1/8
(1782)
72 3/8
(1838)
1 3/4 (44)
4 (102)
54 1/4
(1378)
5 5/8
(143)
38 1/4
(972)
99 3/4
(2534)
48
(1219)
Main Field Connection
Electrical Terminal Block
REAR OF CASE
FRONT OF CASE
Relay &
Terminal
Block
Location
Relay & Terminal
Block Location
Splashguard
7
(178)
Clearance for Door Swing
26
1
/2
(673)
26
1
/2
(673)
26
1
/2
(673)
Clearance
for Door
Swing
125 3/8
(3185)
126 1/4
(3207)
Clearance for Door Swing
RLNIE with Innovator Doors Technical Data Sheet
2 of 11
HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.
RLNIE
General
Case Length 99
3
/4 (2534)
Maximum O/S dimension of case back to front (Includes bumpers) 72 3/8 (1838)
Width of skid rail 3 3/
4 (95)
Width of Bottom Front Support 6 (152)
Stub-up area between front skid rail and splashguard 9 (229)
Electrical Service*
RH end of case to the center of nearest knockout 4 (102)
RH end of case to the center of LH knockout 88
1
/2 (2248)
Back O/S of case to center of knockout (Electrical Field Wiring Connection Point is at terminal.) 70 1/8 (1781)
Waste Outlet
RH end of case to center of waste outlet in back of case 38 1/4 (972)
RH end of case to center of waste outlet in front of case 54 1/4 (1378)
Back O/S of case to center of waste outlet 63 1/4 (1607)
Water Seal
Edge of water seal to center of waste outlet 13 (330)
Schedule 40 drip piping 1 1/4 (32)
Field installed water seal outlets, tees, and connectors are shipped with case.
Refrigeration Outlet
RH end of case to center of refrigeration outlet 5 5/8 (142)
Back O/S of case to center of refrigeration outlet 60 5/8 (1541)
Outside bottom front supports from end of case 7 (178)
Distance between centerlines of bottom front supports 48 (1219)
Engineering
Plan Views
Reach-in
Narrow Island
Unitized End Case
Dimensions shown as in. & (mm).
11-2009
PHYSICAL DATA
Merchandiser Drip Pipe (in.) 1 1/4
Merchandiser Liquid Line (in.)
5
/8
Merchandiser Suction Line (in.) 1 1/8
REFRIGERATION DATA
Note: This data is based on store temperature
and humidity that does not exceed 75°F and
55% R.H.
FF IC
Discharge Air (°F) 0 –11
Evaporator (°F) –11 –19
Unit Sizing (°F) –14 –22
Btu/hr/case FF IC
Parallel
9,500 9,800
Conventional
9,700 10,000
*Optional LED lighting reduces the
refrigeration load by 600 Btu/hr/case.
Optional Energy Efficient Fan motors reduce
refrigeration load by 654 Btu/hr/case.
DEFROST DATA
FF IC
Frequency (hr) 24 24
Defrost Water (lb/day) 8.6 8.6
(± 15% based on case configuration and
product loading).
ELECTRIC FF IC
Temp Term (°F) 48 48
Failsafe (minutes) 45 45
G
AS
Duration (minutes) 20 20
OFFTIME Not Recommended
Standard Defrost Thermostat
Close on rise: close 48°F — open 33°F
CONVENTIONAL CONTROLS
Low Pressure Backup Control
FF IC
CI/CO (Temp °F)* –18/–34 –26/–45
Indoor Unit Only, Pressure Defrost
Termination (Temp °F)*
Not Recommended
*Use a Temperature Pressure Chart to
determine PSIG conversions.
Estimated Charge (lb/case)**
RLNIE 5.4
**This is an average for all refrigerant types.
Actual refrigerant charge may vary by
approximately half a pound.
Length added to Lineup by:
Each Standard End (in.) 2
Optional End with Window (in.) 1
1
/2
Insulated Partition (in.) 1 1/2
3 of 11
P/N 0444704_G
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM
72 (1838)
70 (1778)
4
(121)
11
(298)
83
(2108)
2
1
/8
(54)
67
(1702)
Frame
65 1/2
(1664)
Door
82 1/4
(2089)
13 1/8
(333)
Frame
6
1
/4
(159)
9
(232)
63 (1607)
60 (1540)
3 1/2
(89)
Impact RLNIE
Frozen Food & Ice Cream
Dimensions shown as in. & (mm).
Reach-in Narrow Island, End and Center Unitized
NSF Certification
This merchandiser model is manufactured to meet ANSI/NSF
(National Sanitation Foundation) Standard #7 requirements for
construction, materials & cleanability.
RLNIE
RLNIE with Innovator Doors Technical Data Sheet
4 of 11
Impact RLNIE
Frozen Food & Ice Cream
Electrical Data
RLNIE
Number of Fans – 12W 7
Amperes Watts
Merchandiser
Evaporator Fans
120V 60Hz Standard 4.55 350
120V 50Hz Standard 5.25 399
220V 60Hz Export 2.31 350
220V 50Hz Export 2.66 399
120V 60Hz Energy Efficient 2.10 126
220V 60Hz Energy Efficient 1.05 126
Door Anti-sweat Heaters (on fan circuit)
120V 50/60Hz Standard 6.17 740
220V 50/60Hz Export 3.36 744
Frame Anti-sweat Heaters (on fan circuit)
120V 50/60Hz Standard 3.14 376
220V 50/60Hz Export 1.71 376
Frame Anti-sweat Heaters (on fan circuit)
120V 50/60Hz Standard 1.67 200
220V 50/60Hz Export 0.87 200
Minimum Circuit Ampacity
120V 60Hz Standard 15.73
120V 50Hz Standard 16.43
220V 60Hz Export 8.45
220V 50Hz Export 8.80
120V 60Hz Energy Efficient 13.28
220V 60Hz Energy Efficient 7.19
Maximum Over Current Protection 120V 20
Maximum Over Current Protection 220V 15
Defrost
Drain Heaters (120V 60Hz) 1.89 225
Export (230V 50Hz) 1.02 252
Electric Defrost (208V 3 Phase
))
per phase value 11.70 2426
Standard Vertical Lighting
Innovator* Doors (120V) 4.50 540
Export (230 V 50Hz) 2.25 554
Optional LED Lighting
Hussmann EcoShine™ [27 W] (120V) 1.58 189
Hussmann EcoShine™ [27 W] [220V (Export)] 0.86 189
Hussmann EcoShine™ [16 W] (120V) 0.93 112
Hussmann EcoShine™ [16 W] [220V (Export)] 0.51 112
Hussmann EcoShine™ [20 W] (120V) 1.17 140
Hussmann EcoShine™ [20 W] [220V (Export)] 0.58 140
Gelcore (120V) 1.68 203
Gelcore [220V (Export)] 0.91 203
* Innovator or Innovator II
HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.
Hussmann recommends against frame heater cycling with
Innovator
doors to prevent door seals from freezing to the
frames and tearing.
5 of 11
P/N 0444704_G
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM
Impact RLNIE
Frozen Food & Ice Cream
ESTIMATED SHIPPING WEIGHT
5
Case
RLNIE
lb (kg) 1980 (900)
5
Actual weights will vary according to optional kits included.
Product Data
Recommended Usable Cube
1
(Cu Ft/Case) 148.52 ft3 /Case ( 4.21 m3 /Case)
ARI Total Display Area
2
(Sq Ft/Case) 131.90 ft2/Case (12.25 m2 /Case)
Shelf Area 3(Sq Ft/Case) 185.65 ft2/Case (17.25 m2 /Case)
1
ARI Refrigerated Volume less shelving and other unusable space: Refrigerated Volume/Unit of Length, ft3/ft [m3/m]
2
Computed using ARI 1200 standard methodology: Total Display Area, ft2[m2]/Unit of Length, ft [m]
3
Shelf surface area is composed of bottom deck plus standard shelf complement, as shown in the Hussmann
Product Reference Guide. The standard shelf complement for this model is (5) rows of 22-inch shelves.
RLNIE with Innovator Doors Technical Data Sheet
6 of 11
Defrost Termination
Thermostat
Refrigeration
Thermostat
(Optional)
Pink
2
3
}
To
Condensing
Unit

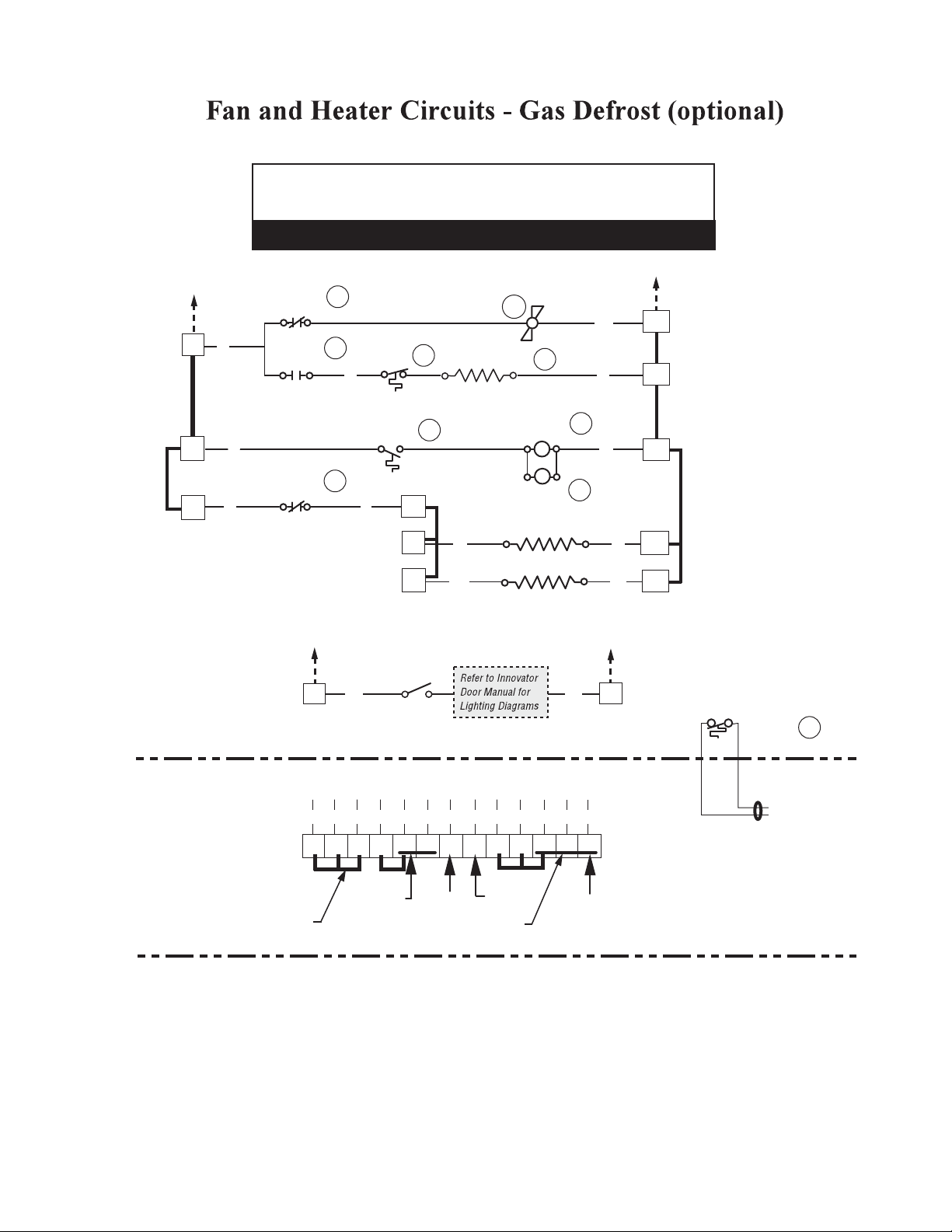

Terminal Blocks in Front and Rear Raceway
Low Temperature with
Electric Defrost
20
21
22
26
17
1234
56 7
81011 1413 16
LIGHTS
(120V)
DEFROST HEATERS
(208V)
CAUTION: When multiplexing
merchandisers equipped with defrost
heaters, if branch circuit overcurrent
protection is larger than the
circuit load, then additional
supplemental overcurrent protection
may be required per NEC Articles
210 and 240.
RLNIE Front and Rear Compartment
24 2512
FANS & A.S.
(120V)
LIGHTS
(Neutral)
FANS & A.S. (Neutral)
Permanent Internal
Jumpers
R P
W
BRORRRRBKBKRRBKP2PBK BK ORBK 2P Y
Removable External
Jumpers
Dark Blue
Refer to Innovator Reach-In
Glass Door, Installation and
Service manual, P/N 0425683,
for Innovator door and frame
replacement parts.
Switch
17
20
120V
NEUTRAL
OR
OR
Defrost Termination Thermostat
FIELD WIRED
C.O.R.
DB
DB
Rear Defrost
Front Defrost
Defrost Limit
O.O.R.
1
2
3
8
7
6
4
5
Fan Relay Coil
208V
F
208V
R
R
R
7
1
3
R
B
B
R
R
8
8
4
Rod Heater (Drain)
Fans
COM
NC
NO
F
F
Fan Relay
Relay
Control
C.O.R.
A.S. Relay Coil
14
16
24
25
26
NC
AS
A.S. Relay
Frame A.S.
Door A.S.
13
10
11
12
22
21
AS
120V
NEUTRAL
Y
W
BR
1
9
7
7
B
B
Y
31
BB
6
6
P
2P 2P
P
6
ROD HEATER (Drain)
CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS
THESE ARE MARKER COLORS (WIRE MAY VARY.)
R = Red P = Purple 2P = Purple (2 Bands) DB = Dark Blue BL = Black
LB = Light Blue BR =Brown Y =Yellow OR = Orange W = White
Front and Rear Compartments Connect to Main Terminal Block at Rear (see Page 8).
Wiring Diagram is per side — two circuits required per case.
Wiring Diagram is per side — two circuits required per case.
HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.
7 of 11
P/N 0444704_G
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM
Defrost Termination
Thermostat
Refrigeration
Thermostat
(Optional)
Pink
2
3
}
To
Condensing
Unit
Terminal Blocks in End Raceway
Low Temperature with
Electric Defrost
20
21
22
26
17
1234
56 7
81011 1413 16
LIGHTS
(120V)
DEFROST HEATERS
(208V)
CAUTION: When multiplexing
merchandisers equipped with defrost
heaters, if branch circuit overcurrent
protection is larger than the
circuit load, then additional
supplemental overcurrent protection
may be required per NEC Articles
210 and 240.
RLNIE End Compartment
24 2512
FANS & A.S.
(120V)
LIGHTS
(Neutral)
FANS & A.S. (Neutral)
Permanent Internal
Jumpers
R P
W
BRORRRRBKBKRRBKP2PBK BK ORBK 2P Y
Removable External
Jumpers
Dark Blue
Refer to Innovator Reach-In
Glass Door, Installation and
Service manual, P/N 0425683,
for Innovator door and frame
replacement parts.
Rear Defrost
Front Defrost
Defrost Limit
O.O.R.
1
2
3
8
7
6
4
5
Fan Relay Coil
208V
F
208V
R
R
R
13
7
R
BB
4
R
R
8
8
Fans
COM
NC
NO
F
F
Fan Relay
Relay Control
C.O.R.
A.S. Relay Coil
14
16
24
25
26
NC
AS
A.S. Relay
Frame A.S.
Door A.S.
13 10
11
12
22
21
AS
120V
Neutral
Reheater
B
B
7
7
1
5
6
BR
W
3
1
BB
P
2P
6
P
2P
Switch
Defrost Termination Thermostat
FIELD WIRED
17
20
C.O.R.
120V
NEUTRAL
DB
DB
OR
OR
10
CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS
THESE ARE MARKER COLORS (WIRE MAY VARY.)
R = Red P = Purple 2P = Purple (2 Bands) DB = Dark Blue BL = Black
LB = Light Blue BR =Brown Y =Yellow OR = Orange W = White
End Compartment Connects to Main Terminal Block at Rear (see Page 8).
RLNIE with Innovator Doors Technical Data Sheet
8 of 11
Defrost Heaters (208v)
Defrost Heaters (208v)
Fans & AS (120v)
Light (120v)
Light (Neutral)
Fans & AS (Neutral)
Defrost Heaters (208v)
Defrost Heaters (208v)
Fans & AS (120v)
Light (120v)
Light (Neutral)
Fans & AS (Neutral)
Defrost Heaters (208v)
Defrost Heaters (208v)
Fans & AS (120v)
Light (120v)
Light (Neutral)
Fans & AS (Neutral)
Defrost Heaters (208v)
Defrost Heaters (208v)
Defrost Heaters (208v)
Fans & AS (120v)
Light (120v)
Fans & AS (Neutral)
Light (Neutral)
Field Connections
Front of Case
(Three door Frame)
End Case
(Two door Frame)
Rear of Case
(Three door Frame)
Ph. A (208v)
Main Field Electrical Connection Rear of Case
(Terminal Block Located in RH Doorframe wireway)
Standard RL terminal blocks
in door frame wireway.
Main terminal block located in
Rear wireway.
1
2
3
4
5
6
7
8
10
11 12
13
14
16
17
20
21
22
24
25
26
1
2
34
5
6
7
8
10
11 12
13
14
16
17
20
21
22
24
25
26
1
2
3
4
5
6
7
8
10
11
12
13
14
16
17
20
21
22
24
25
26
Ph. B (208v)
Ph. C (208v)
Fans & AS (120v)
Lights (120v)
Fans & AS (Ntrl)
Lights (Ntrl)
RLNIE Wiring Diagram for Electric Defrost
Front of Case
(Three door Frame)
End of Case
(Two door Frame)
Rear of Case
(Three door Frame)
Electric Defrost Sequence - Low Temperature
1. Power from the defrost contactor energizes Defrost Heaters and 208V Evaporator Fan Relay Coil (7). Relay Contacts open the fan
circuit and energizes the Drain Pan Heater.
2. If the Defrost Heater raises internal air temperature above 90°F, the Defrost Limit Thermostat (4) will open.
3. Temperature rise of the evaporator closes the Relay Control Thermostat (5) at about 35°F, energizing 120V A.S. Relay Coil (6). This
relay’s contacts open the Frame and Door Heater Circuits.
4. When Defrost Termination Thermostat ends defrost period, the defrost contactor opens the Defrost Heater and Evaporator Fan Relay
Coil Circuits. The Drain Pan Heater goes off and fans are on.
5. Temperature fall of the evaporator opens the Relay Control Thermostat (5) at about 20°F, de-energizing 120V A.S. Relay Coil (6).
A.S. Relay Contacts close the Frame and Door Heater Circuits.
HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.
9 of 11
P/N 0444704_G
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM
Permanent Internal
Jumpers
A.S. Relay
Coil
BR
Evaporator Fans
1
Fan Relay
F
COM
N.O.
Rod Heater (Drain)
9
Y
Y
N.C.
7
7
1
3
W
B
Relay Control
c
25
Fan Relay
F
B
5
6
B
B
COM
N.C.
6
A.S. Relay
A.S.
24
Door A.S. Heaters
Frame A.S. Heaters
22
2P
2P
P
12
10
120V POWER
13
26
C.O.R.
P
OR
120V POWER
OR
Switch
NEUTRAL
17
20
Terminal Blocks in Raceway
Low Temperature with
Gas Defrost
20
21
22
26
17
10 11 1413 16
LIGHTS
(120V)
Refrigeration
Thermostat
(Optional)
Pink
3
}
To
Condensing
Unit
24 2512
FANS & A.S.
(120V)
LIGHTS
(Neutral)
FANS & A.S. (Neutral)
P
W
BRORBK P
2P
BK BK ORBK 2P Y
Removable External
Jumpers
RLNIE Front and Rear Compartment
16
7
Fan Relay
Coil
11
c
Defrost Limit
4
O.O.R.
14
21
NEUTRAL
Refer to Innovator Reach-In
Glass Door, Installation and
Service manual, P/N 0425683,
for Innovator door and frame
replacement parts.
CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS
THESE ARE MARKER COLORS (WIRE MAY VARY.)
R = Red P = Purple 2P = Purple (2 Bands) DB = Dark Blue BL = Black
LB = Light Blue BR =Brown Y =Yellow OR = Orange W = White
Front and Rear Compartments Connect to Main Terminal Block at Rear (see Page 11).
Wiring Diagram is per side — two circuits required per case.
Wiring Diagram is per side — two circuits required per case.
RLNIE with Innovator Doors Technical Data Sheet
10 of 11
Reheater
10
Permanent Internal
Jumpers
A.S. Relay
Coil
BR
Evaporator Fans
1
Fan Relay
F
COM
N.O.
N.C.
7
7
1
3
W
B
Relay Control
c
25
Fan Relay
F
B
5
6
B
B
COM
N.C.
6
A.S. Relay
A.S.
24
Door A.S. Heaters
Frame A.S. Heaters
22
2P
2P
P
12
10
120V POWER
13
26
C.O.R.
P
OR
120V POWER
OR
Switch
NEUTRAL
17
20
Terminal Blocks in Raceway
Low Temperature with
Gas Defrost
20
21
22
26
17
10 11 1413 16
LIGHTS
(120V)
Refrigeration
Thermostat
(Optional)
Pink
3
}
To
Condensing
Unit
24 2512
FANS & A.S.
(120V)
LIGHTS
(Neutral)
FANS & A.S. (Neutral)
P
W
BRORBK P
2P
BK BK ORBK 2P Y
Removable External
Jumpers
RLNIE End Compartment
16
7
Fan Relay
Coil
11
c
14
21
NEUTRAL
Refer to Innovator Reach-In
Glass Door, Installation and
Service manual, P/N 0425683,
for Innovator door and frame
replacement parts.
CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS
THESE ARE MARKER COLORS (WIRE MAY VARY.)
R = Red P = Purple 2P = Purple (2 Bands) DB = Dark Blue BL = Black
LB = Light Blue BR =Brown Y =Yellow OR = Orange W = White
End Compartment Connects to Main Terminal Block at Rear (see Page 11).
HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.
11 of 11
P/N 0444704_G
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM
Fans & AS (120v)
Light (120v)
Light (Neutral)
Fans & AS (Neutral)
Fans & AS (120v)
Light (120v)
Light (Neutral)
Fans & AS (Neutral)
Fans & AS (120v)
Light (120v)
Light (Neutral)
Fans & AS (Neutral)
Fans & AS (120v)
Light (120v)
Fans & AS (Neutral)
Light (Neutral)
RLNIE Wiring Diagram for Gas Defrost
Main Field Electrical Connection Rear of Case
(Terminal Block Located in RH Doorframe wireway)
Front of Case
(Three door Frame)
End Case
(Two door Frame)
Rear of Case
(Three door Frame)
Fans & AS (120)
Standard RL terminal blocks
in door frame wireway.
New terminal block located in
RH door frame wireway.
10
11 12
13
14 16 17 20
21
22
24 25
26
10
11
12
13
14 16
17
20
21
22
24 25
26
10
11 12
13
14 16 17 20
21
22
24 25
26
Lights (120) Fans & AS (Ntrl)
Lights (Ntrl)
Front of Case
(Three door Frame)
End Case
(Two door Frame)
Rear of Case
(Three door Frame)
Gas Defrost Sequence - Low Temperature
1. Defrost vapor enters evaporator causing a rise in temperature. At about 35°F the Control Relay Thermostat
(5)
closes the Fan Relay Coil
(7)
and Control Relay Coil
(6)
circuit. The Coil opens the Fan, Door Heater,
and Frame Heater circuits, while energizing the Drain Pan Heater
(9)
.
2.
If the Drain Pan Heater
(9)
raises internal air temperature above 90°F, the Heater Limit Thermostat
(4)
will open.
3.
When the defrost timer ends a defrost period, the evaporator temperature will start to fall. At about 20°F, the Control
Relay Thermostat will open, de-energizing the Control Relay Coil and Fan Relay Coil
(7).
Control and Fan Relay’s
will open the Drain Pan Heater circuits, and will close the Fan, Door Heater, and Frame Heater circuits.
Loading...
