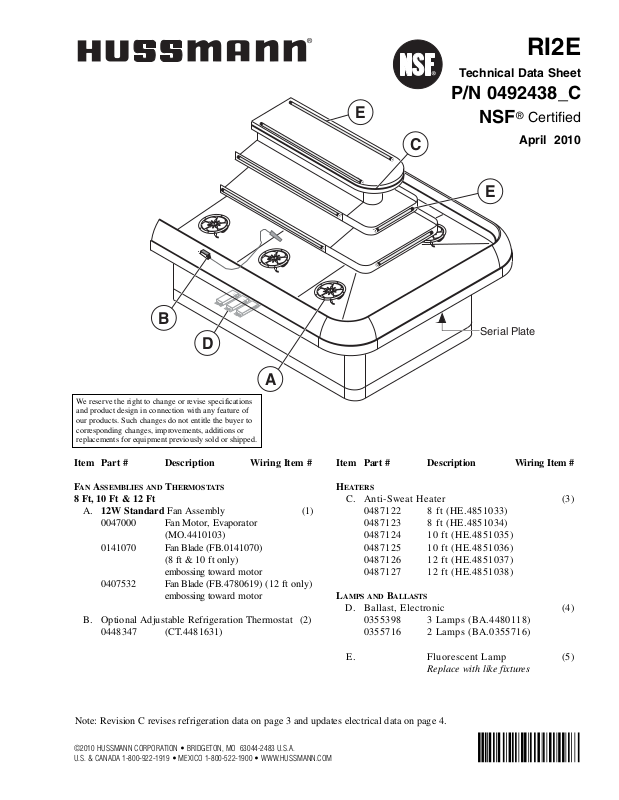

RI2E
Technical Data Sheet
P/N 0492438_C
NSF
®
Certified
April 2010
©2010 HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM
We reserve the right to change or revise specifications
and product design in connection with any feature of
our products. Such changes do not entitle the buyer to
corresponding changes, improvements, additions or
replacements for equipment previously sold or shipped.
Item Part # Description Wiring Item #
F
AN ASSEMBLIES AND THERMOSTATS
8 Ft, 10 Ft & 12 Ft
A. 12W Standard Fan Assembly (1)
0047000 Fan Motor, Evaporator
(MO.4410103)
0141070 Fan Blade (FB.0141070)
(8 ft & 10 ft only)
embossing toward motor
0407532 Fan Blade (FB.4780619) (12 ft only)
embossing toward motor
B. Optional Adjustable Refrigeration Thermostat (2)
0448347 (CT.4481631)
Item Part # Description Wiring Item #
HEATERS
C. Anti-Sweat Heater (3)
0487122 8 ft (HE.4851033)
0487123 8 ft (HE.4851034)
0487124 10 ft (HE.4851035)
0487125 10 ft (HE.4851036)
0487126 12 ft (HE.4851037)
0487127 12 ft (HE.4851038)
L
AMPS AND BALLASTS
D. Ballast, Electronic (4)
0355398 3 Lamps (BA.4480118)
0355716 2 Lamps (BA.0355716)
E. Fluorescent Lamp (5)
Replace with like fixtures
Note: Revision C revises refrigeration data on page 3 and updates electrical data on page 4.
P/N0492438C
B
D
A
E
C
E
Serial Plate
Page 2
2 of 7
RI2E Technical Data Sheet
U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900
Engineering
Plan Views
08-2009
Front
8 ft 10 ft 12 ft
General
(A) Overall Case Length 96 (2438) 120 (3048) 144 (3658)
(B) Base Length 86 1/
2 (2197) 110
1
/
2 (2807) 134
1
/
2 (3416)
Maximum O/S dimension of case back to front
(includes bumper) 72 (1829) 72 (1829) 72 (1829)
Front of splashguard to O/S edge of front base rail 1
5
/
8 (41) 1
5
/
8 (41) 1
5
/
8 (41)
Front of case to O/S edge of front base rail 13
1
/8 (333) 13 1/8 (333) 13 1/8 (333)
Back of case to O/S edge of front base rail 58 7/8 (1495) 58 7/8 (1495) 58 7/8 (1495)
Width of base rail 1 7/8 (48) 1 7/8 (48) 1 7/8 (48)
(D) Length of Canopy 69
1
/8 (1756) 93 1/8 (2365) 117 1/8 (2975)
Width of Canopy 18
1
/8 (460) 18 1/8 (460) 18 1/8 (460)
Electrical Service Electrical Field Wiring connection point)
Center of Electrical service to O/S edge of front base rail 47 (1194) 47 (1194) 47 (1194)
Left end of case to center of field connection box 27 (686) 27 (686) 27 (686)
Right end of case to center of field connection box 69 (1753) 93 (2362) 117 (2972)
Waste Outlets
(C) LH End of case to the center of waste outlet 81 (2057) 96 (2438) 96 7/8 (2461)
Center of front waste outlet to outside of front base rail 8 7/8 (225) 8 7/8 (225) 8 7/8 (225)
Center of back waste outlet to outside of front base rail 40 1/8 (1019) 40 1/8 (1019) 40 1/8 (1019)
Schedule 40 PVC drip pipe 1 1/2 (38) 1 1/2 (38) 1 1/2 (38)
Refrigeration Outlet
LH end of case to center of refrigeration outlet 22 (559) 22 (559) 22 (559)
RH end of case to center of refrigeration outlet 74 (1880) 98 (2489) 122 (3099)
RI2E Island
PHYSICAL DATA
Merchandiser Drip Pipe (in.) 1 1/2
Merchandiser Liquid Line (in.)
3
/8
Merchandiser Suction Line (in.)
5
/8
Dimensions shown as inches and (mm).
C
27
A
Serial
Plate
(686)
22
(559)
Field Connection
Electrical Box
72
(1829)
31 1/4
(794)
47
(1194)
7
(178)
32 1/2
(826)
Refrigeration
Outlets
Canopy
Waste
Outlets
18 1/8
(460)
11 1/2
(292)
D
9 1/2
(241)
B
20 3/8
(518)
Page 3
3 of 7P/N 0492438_C
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM
Dimensions shown as inches and (mm).
REFRIGERATION DATA
Note: This data is based on store temperature
and humidity that does not exceed 75°F and
55% R.H.
RI2E
Discharge Air (°F) 27
Evaporator (°F) 20
Unit Sizing (°F) 18
Btu/hr/ft
‡
L
IT & UNLIT SHELVES RI2E
Parallel 1444
Conventional 1575
DEFROST DATA
RI2E
Frequency (hr) 4
Defrost Water (lb/ft/day) 10
(± 15% based on case configuration and
product loading).
O
FFTIME
RI2E
Time Terminated (minutes) 20
E
LECTRIC OR GAS
Not Recommended
CONVENTIONAL CONTROLS
Low Pressure Backup Control
RI2E
CI/CO* 14°F / 4°F
Indoor Unit Only, Pressure Defrost
Termination* 48°F
*Use a Temperature Pressure Chart to
determine PSIG conversions.
Estimated Charge ** RI2E
8 ft 1.7 lb 27 oz 0.8 kg
10 ft 2.1 lb 34 oz 1.0 kg
12 ft 2.5 lb 40 oz 1.1 kg
**This is an average for all refrigerant types.
Actual refrigerant charge may vary by
approximately half a pound.
RI2E
Delicatessen
NSF®Certification
This merchandiser is manufactured to meet ANSI/NSF
®
(National Sanitation
Foundation) Standard #7 requirements for construction, materials & cleanability.
Multi-deck Island End, 3 Display Levels
RI2E
Load Limit Profile
Air flow between the shelves, from the Center Air Discharge (CAD) to the return, must be
maintained at all times for optimum operating efficiency and to prolong product shelf life.
At no time should merchandisers be stocked beyond the load limits indicated.
Cases may not function properly if they are loaded above load limits.
Standard Height Plex
and Product Stop
21
1
/2 (546)
18
(460)
3 (76)
5
3
7
/8 (149)
1
/4 (83)
23
(607)
7
/8
27 (686)
1
/8
8 (203)
12
(305)
Optional High Plex
and Product Stop
6 (152)
9
7
/8 (251)
55
(1416)
1
27
/8
(689)
3
/4
11
(292)
1
/2
49 (1245)
11
(292)
1
/2
72 (1829)
Optional Shelves
CAD
Optional High Plex
with 6 in. (152 mm)
Product Depth
Load Limit
Load Limit
RI2E
Page 4
4 of 7
RI2E Technical Data Sheet
U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900
RI2E
Delicatessen
Electrical Data
8 ft 10 ft 12 ft
Number of Fans – 12W 6 8 10
Amperes Watts
8 ft 10 ft 12 ft 8 ft 10 ft 12 ft
Evaporator Fan
120V 60Hz Standard 3.90 5.20 6.50 300 400 500
120V 50Hz Standard 4.50 6.00 7.50 342 456 570
230V 60Hz Export NA NA NA NA NA NA
230V 50Hz Export NA NA NA NA NA NA
120V 60Hz Energy Efficient N
A NA NA NA NA NA
230V 60Hz Energy Efficient NA NA NA NA NA NA
Anti-sweat Heaters †
120V 60Hz Standard 0.70 0.70 0.90 84 84 108
230V 50Hz Export NA NA NA NA NA NA
Minimum Circuit Ampacity (MCA)
†
120V 60Hz Standard 4.80 6.30 7.60
120V 50Hz Standard 5.07 6.57 8.17
230V 60Hz Export NA NA NA
230V 50Hz Export NA NA NA
120V 60Hz Energy Efficient NA NA NA
230V 60Hz Energy Efficient NA NA NA
Maximum Over Current Protection 120V 20 20 20
Maximum Over Current Protection 230V NA NA NA
Standard Lighting
1 Row Canopy 0.70 0.95 1.23 84 114 148
Optional Lighting
1 Row of Ledge 1.33 1.67 2.00 160 200 240
Shelf Lighting
1 Row of Shelves 0.84 1.09 1.38 101 131 165
2 Rows of Shelves 1.68 2.18 2.75 202 262 330
115V Lighting Circuit Total = Standard Lighting + Total Optional Lighting + Optional Shelf Lighting
Page 5
5 of 7P/N 0492438_C
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM
ESTIMATED SHIPPING WEIGHT
4
Case
8 ft 10 ft 12 ft End
lb (kg) 1100 (499) 1300 (590) 1400 (635) NA
4
Actual weights will vary according to optional kits included.
Product Data
RI2E8
Recommended Usable Cube 1 (Cu Ft/Case) 34.15 ft3 /case (0.97 m3/case)
AHRI Total Display Area 2 (Sq Ft/Case) 40.10 ft2 /case (3.73 m2 /case)
Shelf Area 3(Sq Ft/Case) 66.64 ft2 /case (6.19 m2 /case)
RI2E10
Recommended Usable Cube 1 (Cu Ft/Case) 42.69 ft3 /case (1.21 m3/case)
AHRI Total Display Area 2 (Sq Ft/Case) 50.13 ft2 /case (4.66 m2 /case)
Shelf Area 3(Sq Ft/Case) 83.30 ft2 /case (7.74 m2 /case)
RI2E12
Recommended Usable Cube 1 (Cu Ft/Case) 51.23 ft3 /case (1.45 m3/case)
AHRI Total Display Area 2 (Sq Ft/Case) 60.15 ft2 /case (5.59 m2 /case)
Shelf Area 3(Sq Ft/Case) 99.96 ft2 /case (9.29 m2 /case)
1
AHRI Refrigerated Volume less shelving and other unusable space: Refrigerated Volume / Unit of Length, ft3/ft [m3/m]
2
Computed using AHRI 1200 standard methodology: Total Display Area, ft2[m2] / Unit of Length, ft [m]
3
Shelf surface area is composed of bottom deck plus standard shelf complement, as shown in the Hussmann Product
Reference Guide. The standard shelf complement for this model is (1) row of 8-inch shelf, (1) row of 12-inch shelf.
RI2E
Delicatessen
Page 6
6 of 7
RI2E Technical Data Sheet
U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900
Fan Wiring
Offtime Defrost
6, 8 & 10 Fans
8 ft
10 ft
12 ft
120V POWER
BROWN BAND
BROWN BAND
120V NEUTRAL
BROWN BAND
1
Fans
BROWN BAND
1
Anti-sweat Heaters
3
Refrigeration Thermostat
2
Light Blue
All components must have mechanical ground, and the merchandiser must be grounded.
= 120VPOWER
To
Condensing
}
Unit
R = Red Y = Yellow G = Green BL = Blue B = Black W = White
WARNING
CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS
= 120V NEUTRAL = FIELD GROUND
= CASE GROUND
Page 7
7 of 7P/N 0492438_C
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM
ORANGE OR TAN BAND
Light Circuits
120V
N
EUTRAL
120V
P
OWER
Light
Switch
G
Lighted Shelf Wiring
W
B
G
B
4
BL
G G G
W
4
BL
G G G
W
G
B
4
BL
G G G
BL
R
5
R
5
R
5
BL BLR R
BL
BL BLR RR
BL
BL BLR RR
BL
R
5
BL
5
BL
5
5
5
5
Typical Shelf Ballast Wiring
Maximum lamps per ballast is three (3).
Different shelf configurations and different
case lengths will have more shelf ballasts.
Optional Ledge Light Circuit
G
W
B
All components must have mechanical ground, and the merchandiser must be grounded.
CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS
R = Red Y = Yellow G = Green BL = Blue B = Black W = White
= 120VPOWER = 120V NEUTRAL = FIELD GROUND
4
G
WARNING
BL
R
BL
5
BL BLR R R
G G
BL
5
5
= CASE GROUND
