Hussmann RGSSFP Specifications
12
Specialty Products
RGSSFP
RGSSFP
Technical Data Sheet
REFRIGERATION DATA
Note: This data is based on store temperature and
humidity that does not exceed 75F and 55% R.H.
Discharge Air (F) 28
Discharge Air (F) 30 (Rear Storage Only)
Evaporator (F) 18
Evaporator Air (F) 20 (Rear Storage Only)
Note: Not recommended to control temp by regulating
coil temp allow t-stat to cycle and control temp.
Btu/hr/ft*
Parallel 650
Conventional 748
Parallel 200
Conventional 230
Parallel 175
Conventional 201
*For all refrigeration equipment other than Hussmann,
use conventional Btu values.
These merchandisers are manufactu red t o meet ANSI/N ational Sanitat i on
Foundation Standard #7 requirements.
We reserve the right to change or revise specifications and
product design in connection with any feature of our
products. Such changes do not entitle the buyer to
corresponding changes, improvements, additions or
replacements for equipment previously sold or shipped.
40427
ETL Listed
ETL Sanitation
40427
Frequency Hrs 6
OFFTIME
Temp Term °F 54
Failsafe Minutes 40
ELECTRIC or GAS Not Recommended
Merchandiser Drip Pipe (in.) 1 ½*
Merchandiser Liquid Line (in.) 3/8*
Merchandiser Suction Line (in.) 5/8*
Estimated Charge (lb)
4ft 0.9
6ft 1.8
8ft 1.9
10ft 2.4
12ft 2.9
16ft 3.4
*Dependent on case length and refrigerant type.
Front
Refrigerated Dome
Rear Storage
DEFROST DATA
PHYSICAL DATA
1 of 12
Rev E
12
Specialty Products
Engineering
Side/Plan View
RGSSFP
RGSSFP
Technical Data Sheet
Rev E
GLYCOL REQUIREMENTS
GPM PSI
4ft 1.2 1.0
6ft 1.8 2.0
8ft 2.4 3.4
12ft 3.6 7.0
GLYCOL REQUIREMENTS
REAR STORAGE
GPM PSI
4ft 0.2 0.1
6ft 0.4 0.7
8ft 0.5 1.3
12ft 0.7 3.1
2 of 12
12
Specialty Products
RGSSFP
RGSSFP
Technical Data Sheet
Rev E
3 of 12
12
Specialty Products
RGSSFP
RGSSFP
RGSSFP-Combos RGSSFP-REM-8 Hot/Cold 8' W3510010
6' W3500002
Self Contained 6' 1H10857
Self Contained 8' 1H10858
12' W3500005

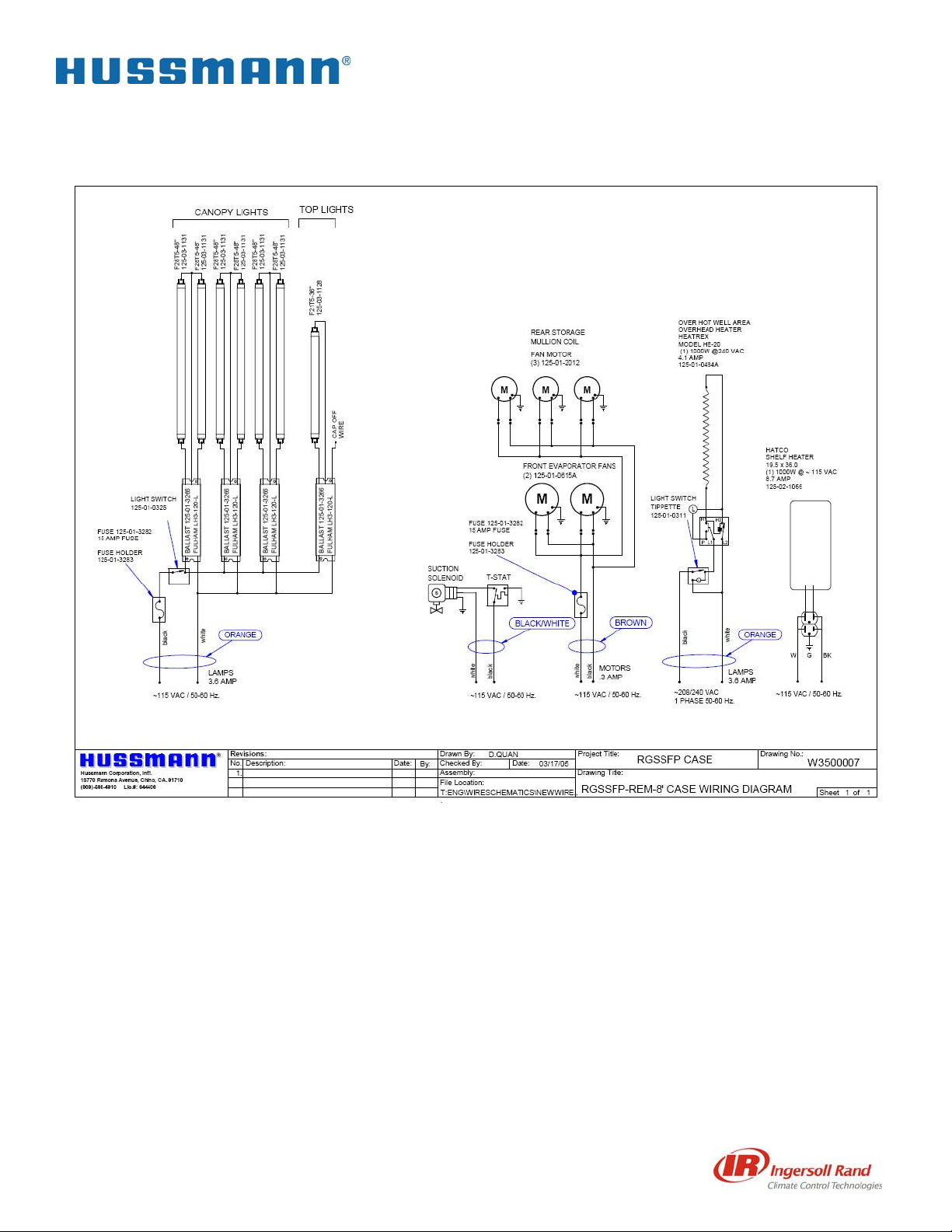

8' W3500007
4' W3500001
RGSSFP
Technical Data Sheet
Rev E
4 of 12
