Specialty Products
RDI
Technical Data Sheet
RDI
REFRIGERATION DATA
Note: This data is based on store temperature and
humidity that does not exceed 75F and 55% R.H.
Discharge Air (F) 30
Evaporator (F) 20
ote: Not recommended to control temp by regulating
coil temp allow t-stat to cycle and control temp.
tu/hr/ft*
Parallel 750
Conventional 863
*For all refrigeration equipment other than Hussmann,
These merchandisers are manufactu red t o meet ANSI/N ational Sanitat i on
Foundation Standard #7 requirements.
We reserve the right to change or revise specifications and
roduct design in connection with any feature of our
roducts. Such changes do not entitle the buyer to
corresponding changes, improvements, additions or
replacements for equipment previously sold or shipped.
CUL Listed
UL Sanitation
use conventional Btu values.
DEFROST DATA
Frequency Hrs 4
OFFTIME
Temp Term °F 54
Failsafe Minutes 20
ELECTRIC or GAS Not Recommended
Merchandiser Drip Pipe (in.) 1 ½*
Merchandiser Liquid Line (in.) 3/8*
Merchandiser Suction Line (in.) 5/8*
Estimated Charge (lb)***
*Dependent on case length and refrigerant type.
*** This is an average for all refrigerants types. Actual
refrigerant charge may vary by approximately half a
ound.
GPM PSI
NA NA
NA NA
NA NA
PHYSICAL DATA
4ft 1.2
5ft 1.5
6ft 1.8
GLYCOL REQUIREMENTS
1 of 13
Rev A
13
Engineering
Cut & Plan View RDI
Specialty Products
RDI
RDI
Technical Data Sheet
Rev A
2 of 13
13
Specialty Products
RDI
RDI
Technical Data Sheet
Rev A
RDl
Remote or S/Contained 3 or 4 Pans, 1/4 HP-115V W2100002
5 or 6 Pans, 1/4 HP-115V W2100003
1 or 2 Pans, 1/4 HP-115V W2100001
7 or 8 Pans, 1/3 HP-115V 8' W2100004
9 or 10 Pans, 1/2HP-115V W2100005
11 Pans, 3/4 HP-230V W2100006
RDI-20-6WELL-SC 6 W2100005
RDI-20-7WELL-SC W2100007

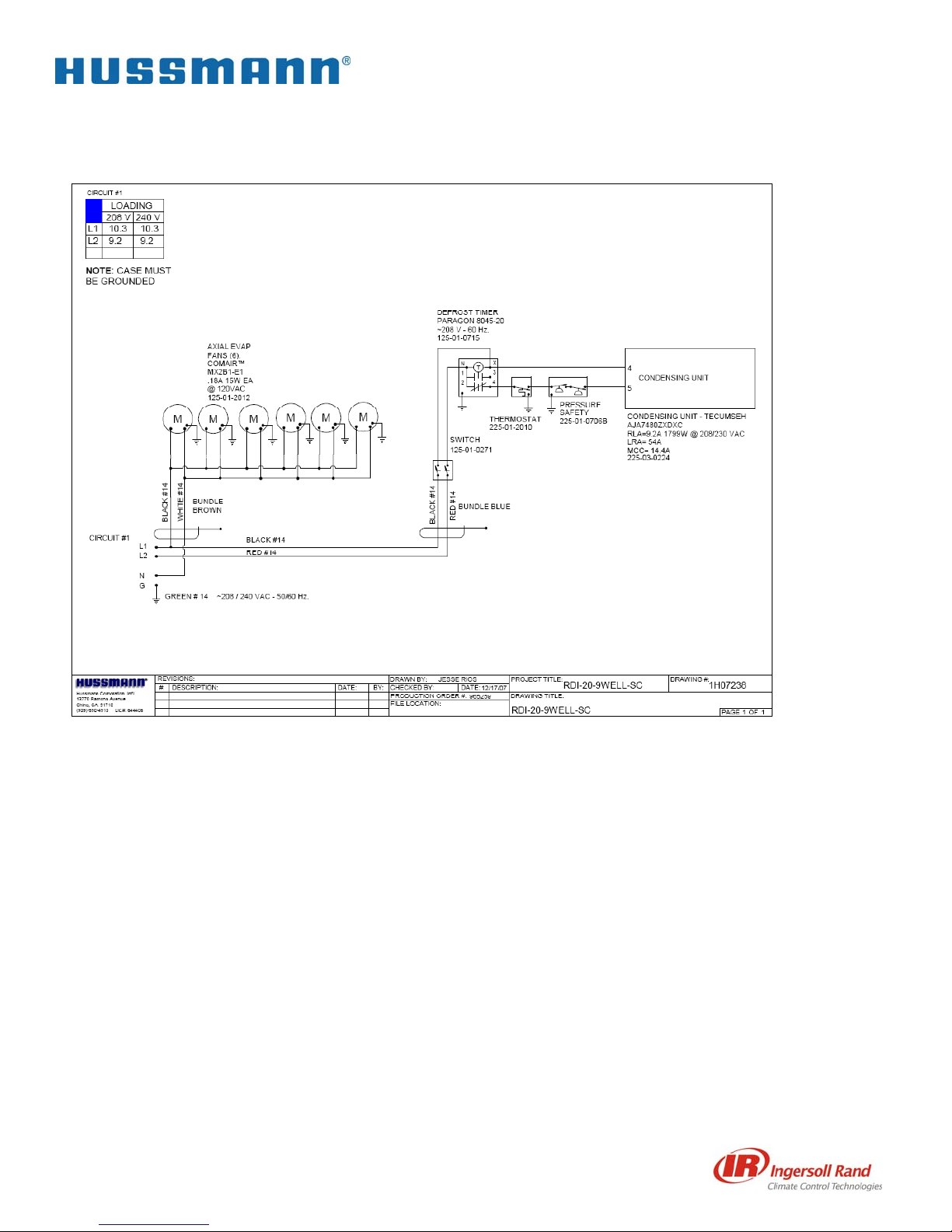

RDI-20-9WELL-SC 1H07238

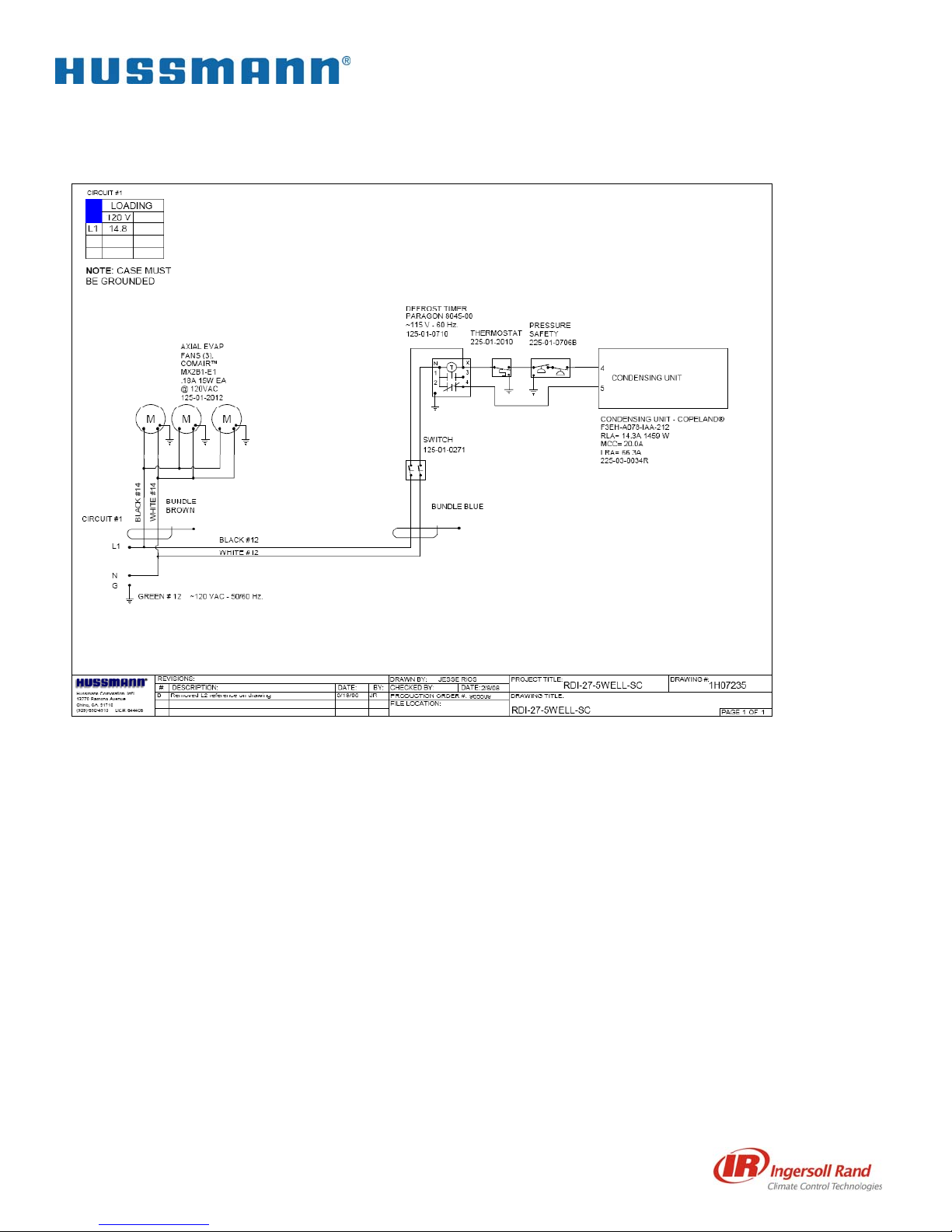

RDI-27 5 Well-SC 1H07235
3 of 13
13
Specialty Products
RDI
RDI
Technical Data Sheet
Rev A
4 of 13
13
Specialty Products
RDI
RDI
Technical Data Sheet
Rev A
5 of 13
13
Specialty Products
RDI
RDI
Technical Data Sheet
Rev A
6 of 13
13
Specialty Products
RDI
RDI
Technical Data Sheet
Rev A
7 of 13
13
Specialty Products
RDI
RDI
Technical Data Sheet
Rev A
8 of 13
13
Specialty Products
RDI
RDI
Technical Data Sheet
Rev A
9 of 13
13
Specialty Products
RDI
RDI
Technical Data Sheet
Rev A
10 of 13
13
Specialty Products
RDI
RDI
Technical Data Sheet
Rev A
11 of 13
13
Specialty Products
RDI
RDI
Technical Data Sheet
Rev A
12 of 13
13
Specialty Products
RDI
RDI
Technical Data Sheet
Rev A
13 of 13
