Hussmann R3TO, CR3TO User Manual

8

These merchandi s ers a re manufactured to meet ANSI/Na tional Sanitat i on
Foundation Standard #7 requirements.

We reserve the right to change or revise specifications and
product design in connection with any feature of our
products. Such changes do not entitle the buyer to
corresponding changes, improvements, additions or
replacements for equipment previously sold or shipped.

40427

ETL Listed

ETL Sanitation

40427

Specialty Products

R3TO/CR3TO

1 of 8

R3TO/CR3TO

Technical Data Sheet

REFRIGERATION DATA

Note: This data is based on store temperature and
humidity that does not exceed 75F and 55% R.H.

Discharge Air (F) 24
Evaporator (F) 18

Note: Not recommended to control temp by regulating
coil temp allow t-stat to cycle and control temp.

Btu/hr/ft*
Parallel 250

Conventional 288

*For all refrigeration equipment other than Hussmann,
use conventional Btu values.

DEFROST DATA

Frequency Hrs 6

OFFTIME
Temp Term °F 54
Failsafe Minutes 40

ELECTRIC or GAS Not Recommended

Merchandiser Drip Pipe (in.) 1 ½*
Merchandiser Liquid Line (in.) 3/8*
Merchandiser Suction Line (in.) 5/8*

Estimated Charge (lb)***

*Dependent on case length and refrigerant type.

*** This is an average for all refrigerants types. Actual
refrigerant charge may vary by approximately half a
pound.

GPM PSI
NA NA
NA NA
NA NA

PHYSICAL DATA

4ft 1.2
5ft 1.5
6ft 1.8

GLYCOL REQUIREMENTS

Rev C

8

Specialty Products

R3TO/CR3TO

Engineering

Cut & Plan View

R3TO/CR3TO

R3TO/CR3TO

Technical Data Sheet

Rev C

2 of 8

8

Specialty Products

R3TO/CR3TO

R3TO/CR3TO

Technical Data Sheet

Rev C

R3 Top Only - Cold

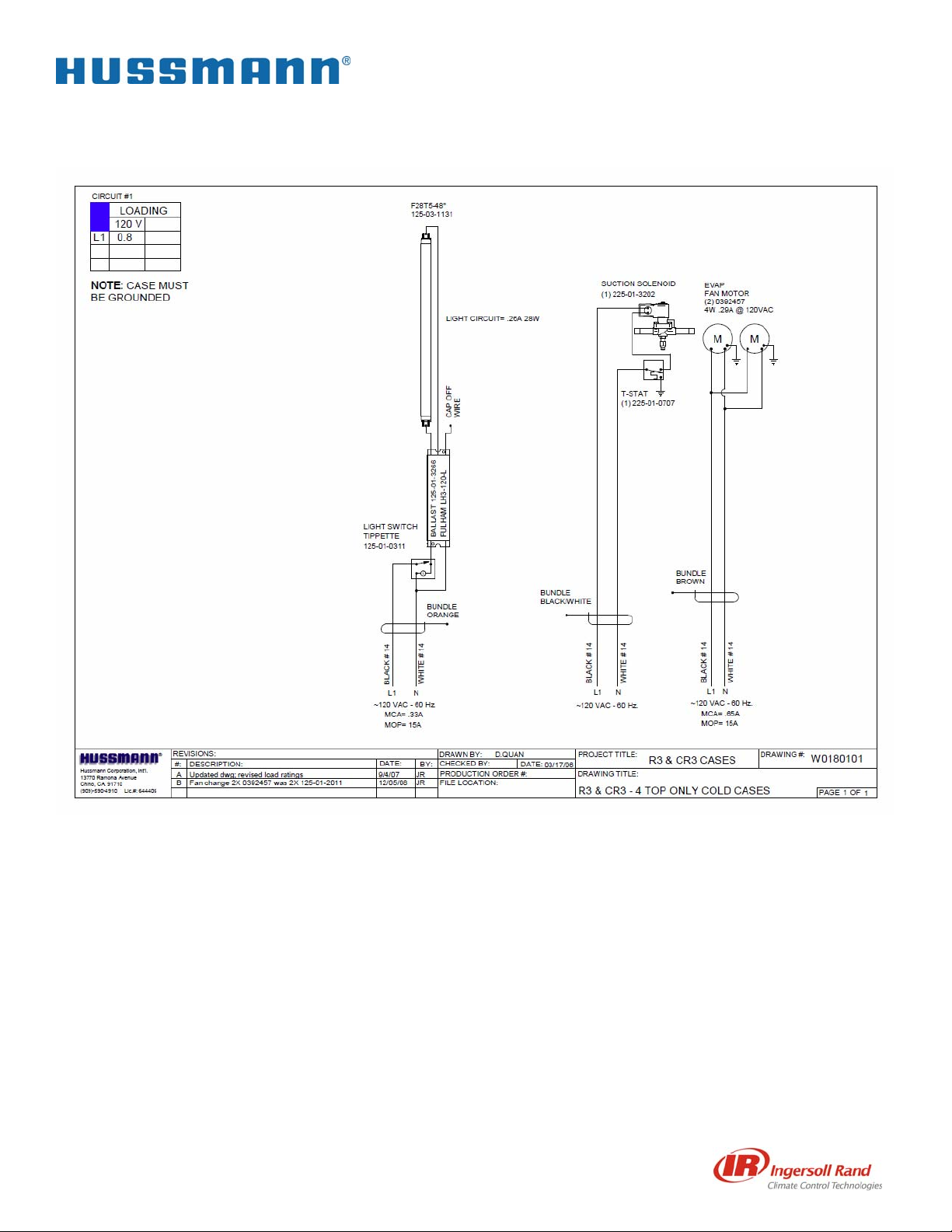

4' W0180101
6' W0180102

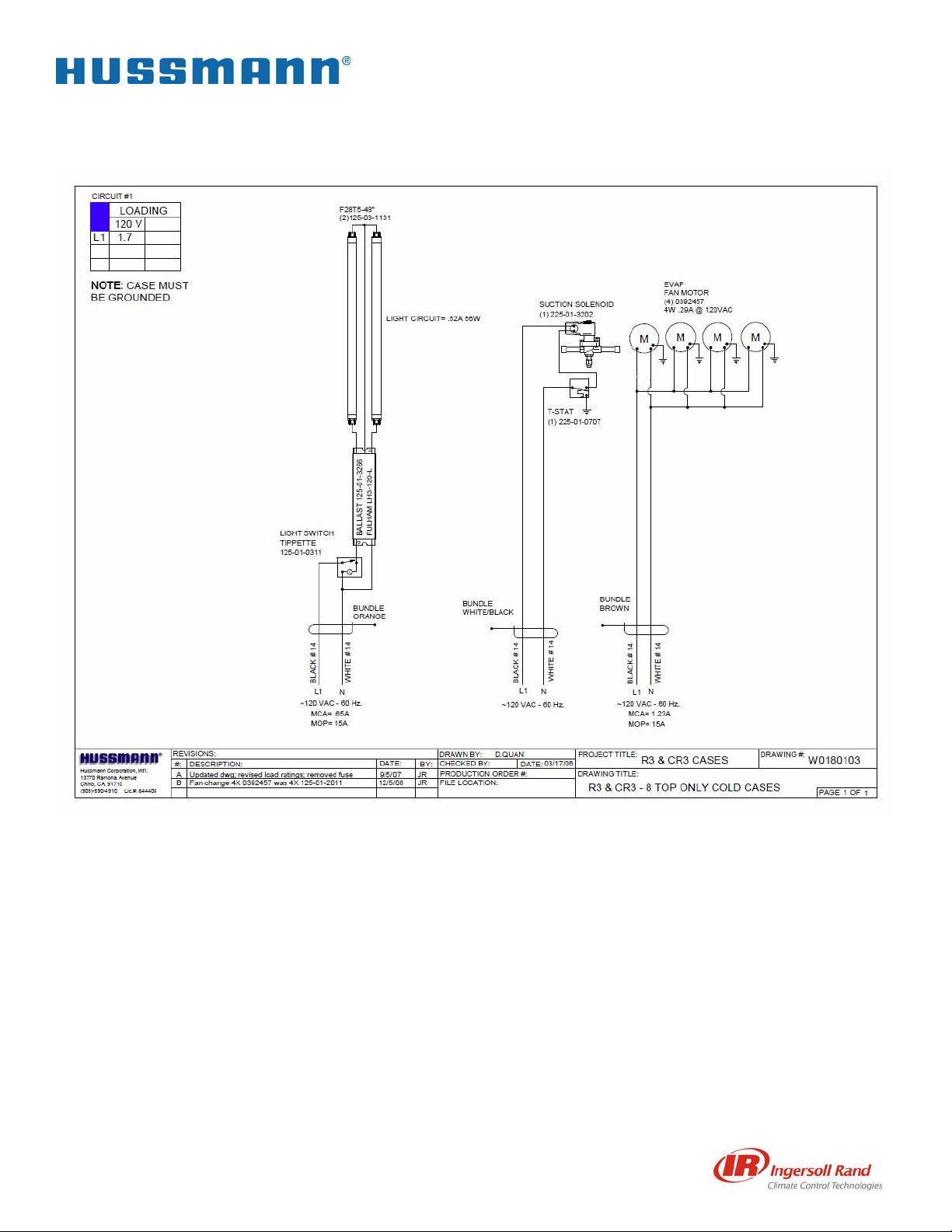

8' W0180103
10' W0180174
12' W0180105

3 of 8
