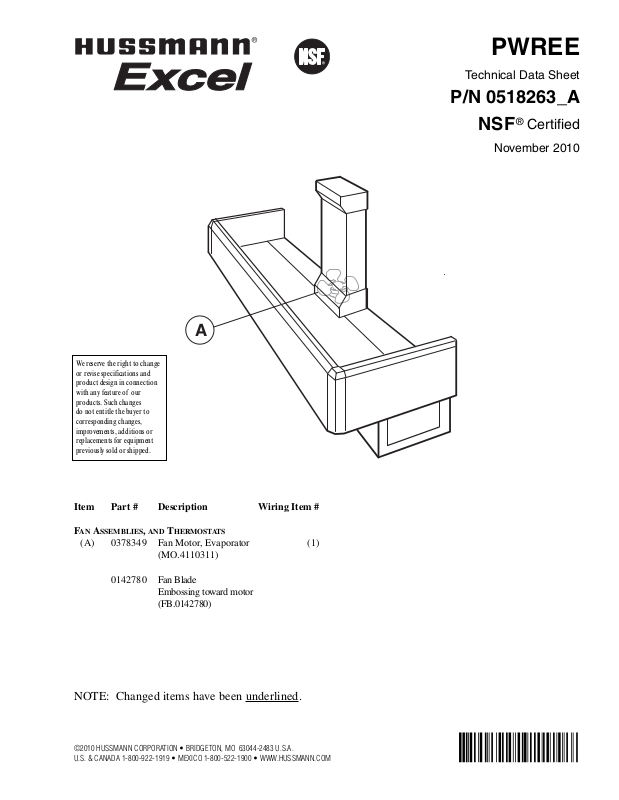

Page 1
PWREE
Technical Data Sheet
P/N 0518263_A
NSF
®
Certified
November 2010
A
NOTE: Changed items have been underlined.
Item Part # Description Wiring Item #
F
AN ASSEMBLIES, AND THERMOSTATS
(A) 0378349 Fan Motor, Evaporator (1)
(MO.4110311)
0142780 Fan Blade
Embossing toward motor
(FB.0142780)
We reserve the right to change
or revise specifications and
product design in connection
with any feature of our
products. Such changes
do not entitle the buyer to
corresponding changes,
improvements, additions or
replacements for equipment
previously sold or shipped.
P/N_0518263_A
©2010 HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM
Page 2
General END
PWREE
Maximum outside dimension of case side to side (includes bumper) 98 1/2 (2502)
Each Partition adds 1 1/2 in. (38 mm) to the length of the lineup.
Lefthand side of case to outside edge of righthand base rail 81 1/2 (2070)
Width of case 49 3/8 (1254)
Front of base rail to rear of case 32
3
/8 (822)
Front of case to outside edge of base rail 17 (432)
Front of splashguard to outside edge of base rail 5
7
/8 (149)
Width of base rail 2
1
/8
(54)
Access area between front of base rail and splashguard 4
7
/8 (124)
Waste Outlet
Front outside edge of case to center of waste outlet 26 1/4 (667)
Right outside edge of case to center of waste outlet 38 3/
4 (984)
PWREE Technical Data Sheet2 of 5
U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM
PWREE
Base Rail
Waste Outlet
& Water Seal
Front
Access Area
32
3
/
8
(822)
49
3
/
8
(1254)
17
(432)
81
1
/
2
(2070)
98
1
/
2
(2502)
38
3
/
4
(984)
17
(432)
5
7
/
8
(149)
26
1
/
4
(667
)
5
7
/
8
(149)
Engineering
Plan Views
End Case
for 98 Inch
Produce
Wide Island
11-2010
Dimensions are shown as inches & (mm).
PHYSICAL DATA
Merchandiser Drip Pipe (in.) 1 1/2
Merchandiser Liquid Line (in.)
3
/8
Merchandiser Suction Line (in.)
7
/8
Page 3
3 of 5P/N 0518263_A
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM
Excel PWREE
Produce
Produce Wide Island End, 1 Display Level
44
(1118)
30 3/8
(772)
15
(381)
36 3/4
(933)
6 (152)
12 3/8
(314)
5 7/8
(149)
17 (432)
49 3/8 (1254)
16 5/8
(422)
26 1/4 (667)
32 3/8 (822)
25 1/2
(648)
17 3/8
(441)
FAN
COIL
PWREE
Optional
Rack
Positions
Dimensions are shown as inches & (mm).
REFRIGERATION DATA
Note: This data is based on store temperature
and humidity that does not exceed 75°F and
55% R.H.
PWREE
Discharge Air (°F) 32
Evaporator(°F) 24
Unit Sizing (°F) 22
Btu/hr/case PWREE
Parallel 2845
Conventional 3140
DEFROST DATA
PWREE
Frequency (hr) 6
Defrost Water (lb/ft/day) 8
(± 15% based on case configuration and
product loading).
OFFTIME PWREE
Temp Term (°F) N/A
Failsafe (minutes) 45
Standard Defrost Thermostat NA
CONVENTIONAL CONTROLS
Low Pressure Backup Control
CI/CO* 17°/ 7° F
Indoor Unit Only, Pressure Defrost
Termination** 48° F
*Use a Temperature Pressure Chart to
determine PSIG conversions.
PHYSICAL DATA
Estimated Charge (lb)**
PWWEE 1.1 lb 18 oz 1.1 kg
**This is an average for all refrigerant
types. Actual refrigerant charge may vary
by approximately 0.5 lb (8 oz / 0.2 kg).
NSF Certification
This merchandiser model is manufactured to meet ANSI/NSF
(National Sanitation Foundation) Standard #7 requirements for
construction, materials & cleanability.
Page 4
Electrical Data
Number of Fans PWWEE
Refrigeration — 9W 1
Refrigeration — 9W (Export) 1
Amperes Watts
Merchandiser PWWEE PWWEE
Fans (Refrigeration)
Standard (120V 60Hz) 0.77 62
Energy Efficient (120V 60Hz) 0.38 25
Export (230V 50 Hz) 0.47 70
Min. Circuit Ampacity
With Standard Fans (120V 60Hz) 0.97
With Energy Efficient Fans (120V 60Hz) 0.58
With Export Fans (230V 50 Hz) 0.67
Maximum Over Current Protection 120V 20
Maximum Over Current Protection 230V 15
Standard Lighting
None
Optional Lighting
None
Optional Shelf Lighting
None
PWREE Technical Data Sheet4 of 5
U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM
Excel PWREE
Produce
Page 5
5 of 5P/N 0518263_A
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM
= 120V POWER
= 120V NEUTRAL
Fan Wiring
Offtime Defrost
WARNING
All components must have a mechanical ground, and the merchandiser must be grounded.
CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS
1 Fan
120V NEUTRAL
B
ROWN BAND
120V POWER
Fan
1
BROWN BAND
Excel PWREE
Produce
ESTIMATED SHIPPING WEIGHT
4
PWREE End Case
300 (136)
4
Actual weights will vary according to optional kits included.
Product Data
Recommended Usable Cube
1
(Cu Ft/Case) 52.35 ft3 /case (1.48 m3 /case)
ARI Total Display Area
2
(Sq Ft/Case) 41.88 ft2/case (3.89 m2 /case)
Shelf Area 3(Sq Ft/Case) 45.28 ft2/case (4.21 m2 /case)
1
ARI Refrigerated Volume less shelving and other unusable space: Refrigerated Volume/Unit of Length, ft3/ft [m3/m]
2
Computed using ARI 1200 standard methodology: Total Display Area, ft2[m2]/Unit of Length, ft [m]
3
Shelf surface area is composed of bottom deck plus standard shelf complement, as shown in the Hussmann
Product Reference Guide. The standard shelf complement for this model is NONE.
