PW-E
Technical Data Sheet
P/N 0518260_A
NSF
®
Certified
November 2010
Item Part # Description Wiring Item #
F
AN ASSEMBLIES, AND THERMOSTATS
(A) 0378349 Fan Motor, Evaporator (1)
(MO.4410311)
0142780 Fan Blade
Embossing toward motor
(FB.0142780)
We reserve the right to change
or revise specifications and
product design in connection
with any feature of our
products. Such changes
do not entitle the buyer to
corresponding changes,
improvements, additions or
replacements for equipment
previously sold or shipped.
©2010 HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM
4 Ft 6 Ft 8 Ft 12 Ft
General
(A) Case Length 48 1/4 (1226) 72 1/4 (1835) 96 3/8 (2448) 144 1/2 (3670)
Each End and Partition adds 1 1/2 in. (38 mm) to the length of the lineup.
Maximum outside dimension of case back to front 74 5/
8 (1895) 74
5
/
8 (1895) 74
5
/
8 (1895) 74
5
/
8 (1895)
(includes bumper)
Front of splashguard to outside edge of front base rail 5
7
/8 (149) 5 7/8 (149) 5 7/8 (149) 5 7/8 (149)
Back of case to outside edge of front base rail 57 5/
8 (1464) 57
5
/
8 (1464) 57
5
/
8 (1464) 57
5
/
8 (1464)
Front of case to outside edge of front base rail 17 (432) 17 (432) 17 (432) 17 (432)
Width of base rail 2
1
/8 (54) 2 1/8 (54) 2 1/8 (54) 2 1/8 (54)
Stub-up area between front base rail and splashguard 4 7/
8 (124) 4
7
/
8 (124) 4
7
/
8 (124) 4
7
/
8 (124)
Electrical Service
(B) Righthand end of case to center of farthest knockout 47
1
/
4 (1202) 71
1
/
4 (1810) 95
3
/
8 (2423) 143
5
/
8 (3650)
Length of electrical raceway 11
7
/8 (303) 34 5/8 (878) 34 5/8 (878) 34 5/8 (878)
*Note: Electrical field wiring connection point.
Waste Outlet
(C) Right end of case to center of waste outlet 24
1
/8
(613) 46
5
/8
(613) 72
1
/4
(613) 72
1
/4
(613)
Water Seal
Edge of water seal to center of waste outlet 4 (102) 4 (102) 4 (102) 4 (102)
Center of waste outlet to outside edge of front base rail 3
1
/2 (89) 3 1/2 (89) 3 1/2 (89) 3 1/2 (89)
** Note: Field installed water seal outlets, tees, and connectors are shipped with case
Drip Pipe Outlet
(D) Left end of case to center of drip pipe outlet 20 3/8 (517) 19 1/2 (495) 19 1/2 (495) 68 1/2 (1740)
(E) Center of waste outlet to center of drip pipe outlet 3
3
/4
(95) 24
3
/4
(629) 51
7
/8
(1318) 3
3
/4
(95)
(F) Front of case to center of drip pipe outlet 24
7
/8 (632) 25 7/8 (657) 25 7/8 (657) 24 7/8 (632)
Outside diameter of drip pipe lines 1 1/2 (38) 1 1/2 (38) 1 1/2 (38) 1 1/2 (38)
***Note: Field drip pipe connection point.
Refrigeration Outlet
(G) Righthand end of case to center of refrigeration outlet 9 (230) 9 (230) 9 (230) 9 (230)
Center of refrigeration outlet to outside edge
of front base rail 3 1/2 (89) 3 1/2 (89) 3 1/2 (89) 3 1/2 (89)
PW-E Technical Data Sheet
2 of 5
U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM
Front
PW-8E
Waste Outlet
& Water Seal
A
Base Rail
Refrigeration
Outlet
(See Note***)
Access Area
C
L
(See Note*)
5 7/8
(149)
3 1/2
(89)
17
(432)
57 5/8
(1464)
74 5/8
(1895)
C
B
G
F
D
E
(See Note**)

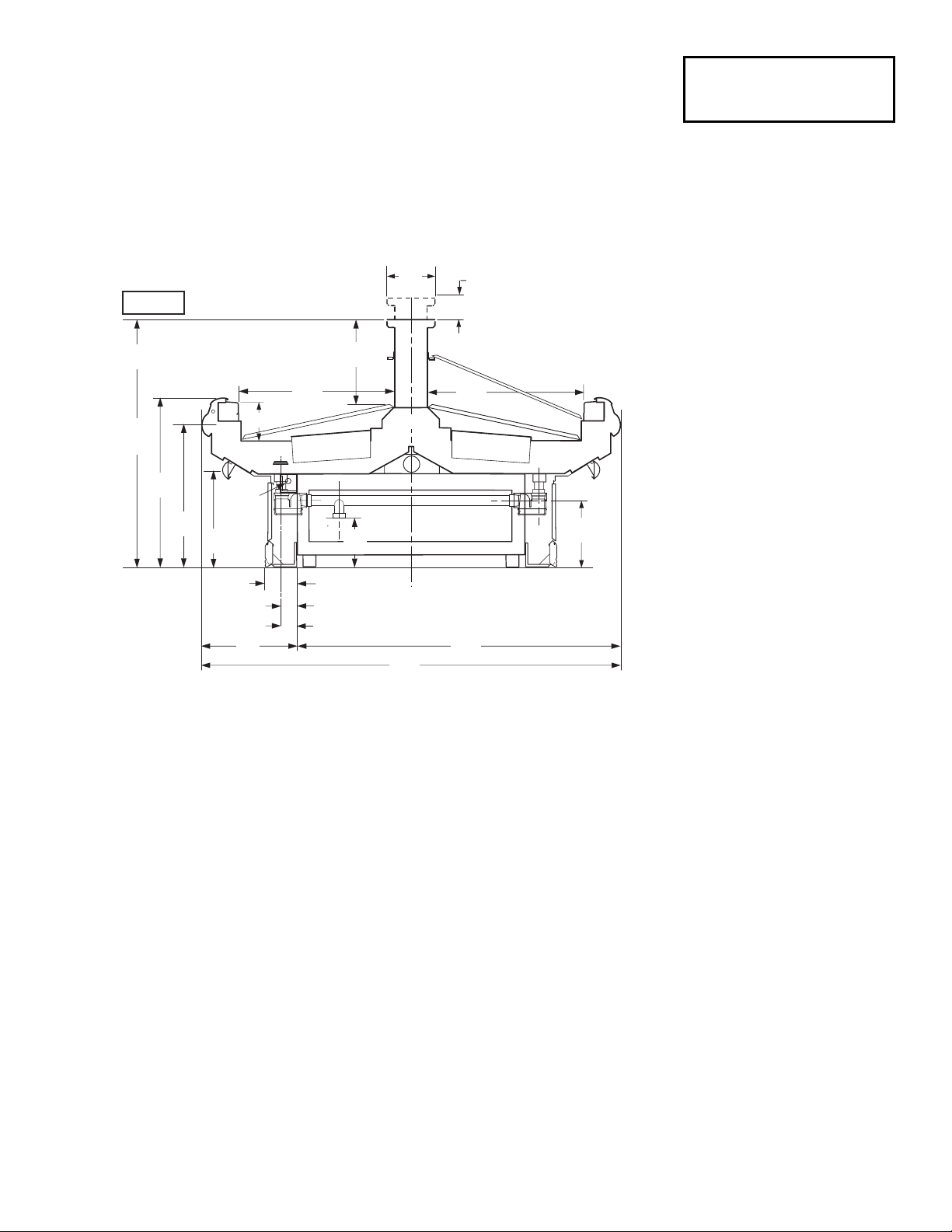

Engineering
Plan Views
Wide Island
Bulk Produce
11-2010
Dimensions are shown as inches & (mm).
PHYSICAL DATA
Merchandiser Drip Pipe (in.) 1 1/2
Merchandiser Liquid Line (in.)
3
/8
Merchandiser Suction Line (in.)
7
/8
REFRIGERATION DATA
Note: This data is based on store
temperature and humidity that does not
exceed 75°F and 55% R.H.
PW-
4, 6, 8, 12E
Discharge Air (°F) 34
Evaporator(°F) 24
Unit Sizing (°F) 22
Btu/hr/ft PW-
4, 6, 8, 12E
Parallel 1090
Conventional 1205
DEFROST DATA
PW-
4, 6, 8, 12E
Frequency (hr) 6
Defrost Water (lb/ft/day) 8
(± 15% based on case configuration and
product loading).
O
FFTIME
PW-
4, 6, 8, 12E
Temp Term (°F) N/A
Failsafe (min) 45
Standard Defrost Thermostat NA
CONVENTIONAL CONTROLS
Low Pressure Backup Control
PW-
4, 6, 8, 12E
CI/CO** 17°/ 7° F
Indoor Unit Only, Pressure Defrost
Termination* 48° F
*Use a Temperature Pressure Chart to
determine PSIG conversions.
PHYSICAL DATA
Estimated Charge ** PW-
4, 6, 8, 12E
4 ft 2.3 lb 37 oz 1.0 kg
6 ft 2.3 lb 37 oz 1.0 kg
8 ft 2.8 lb 45 oz 1.3 kg
12 ft 4.3 lb 69 oz 2.0 kg
**This is an average for all refrigerant
types. Actual refrigerant charge may vary
by approximately 0.5 lb (8 oz / 0.2 kg).
3 of 5P/N 0518260_A
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM
Excel PW-E
Produce
Wide Island, 1 Display Level
L
C
Front
of
Case
PW-E
5 in. optional kit
for additional height
COIL
Electrical
Optional
Rack
Positions
8 1/8
(206)
5 1/2
(114)
COIL
FAN
44
(1118)
25 1/2
(648)
27 3/4
(705)
15 1/2
(394)
27 3/4
(705)
57 5/8
(1464)
6 (152)
5 7/8 (149)
17
(432)
12 3/8
(314)
3 1/2 (89)
3 1/2 (89)
74 5/8
(1895)
30 3/8
(772)
17 3/8
(441)
Dimensions are shown as inches & (mm).
NSF Certification
This merchandiser model is manufactured to meet ANSI/NSF
(National Sanitation Foundation) Standard #7 requirements for
construction, materials & cleanability.
PW-E Technical Data Sheet4 of 5
U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM
Excel PW-E
Produce
Electrical Data
Number of Fans 4 ft 6 ft 8 ft 12 ft
Refrigeration — 9W 1 1 2 3
Refrigeration — 9W (Export) 1 1 2 3
Amperes Watts
Merchandiser 4 ft 6 ft 8 ft 12 ft 4 ft 6 ft 8 ft 12 ft
Fans (Refrigeration)
Standard (120V 60Hz) 0.77 0.77 1.54 2.31 62 62 124 186
Energy Efficient (120V 60Hz) 0.38 0.38 0.76 1.14 25 25 50 75
Export (230V 50 Hz) 0.47 0.47 0.94 1.41 70 70 140 210
Min. Circuit Ampacity
With Standard Fans (120V 60Hz) 0.97 0.97 1.74 2.51
With Energy Efficient Fans (120V 60Hz) 0.58 0.58 0.96 1.34
With Export Fans (230V 50 Hz) 0.45 0.45 0.70 0.95
Maximum Over Current Protection 120V 20 20 20 20
Maximum Over Current Protection 230V 15 15 15 15
Standard Lighting
None
Optional Lighting
None
Optional Shelf Lighting
None
5 of 5P/N 0518260_A
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM
= 120V POWER
= 120V NEUTRAL

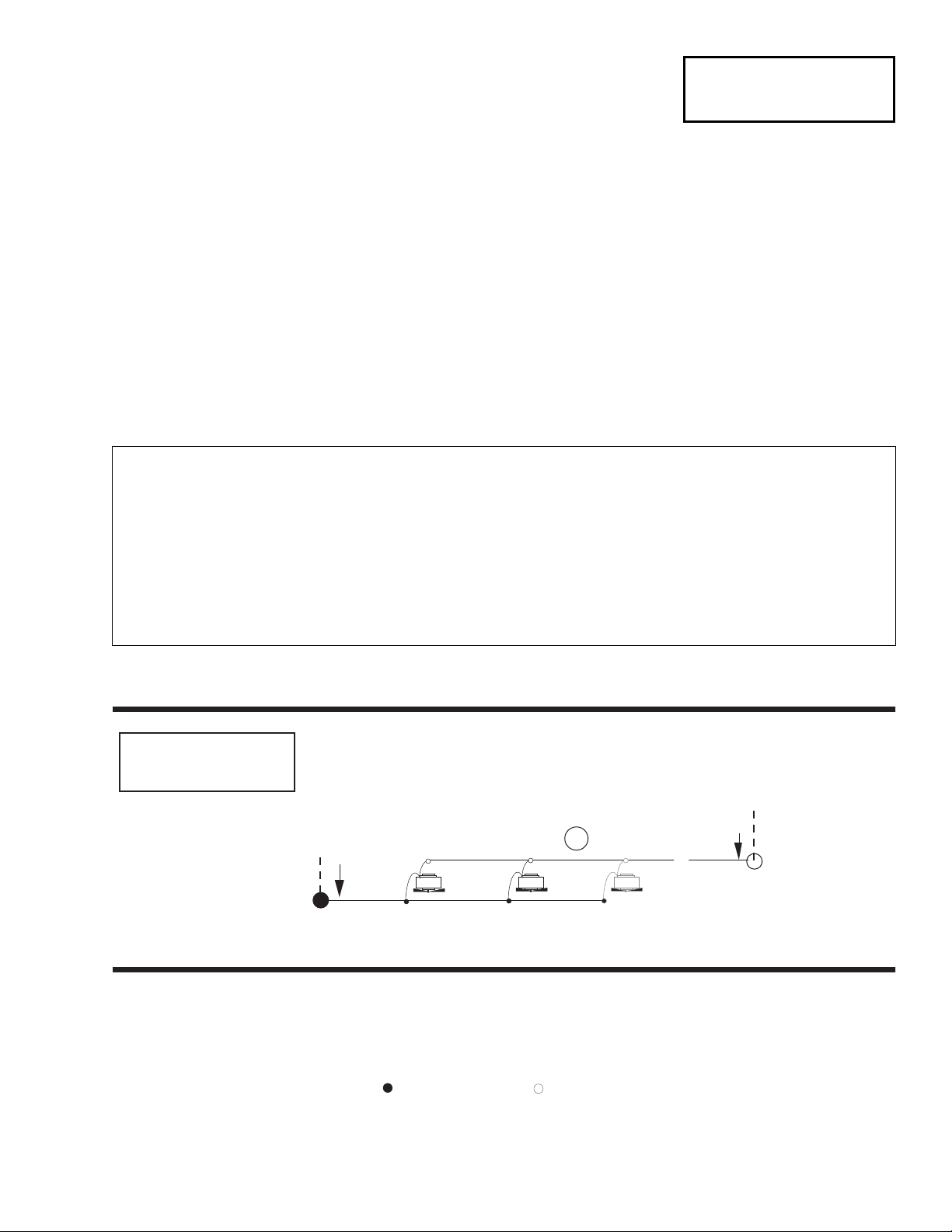

Fan Wiring
Offtime Defrost
WARNING
All components must have a mechanical ground, and the merchandiser must be grounded.
CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS
1, 2 & 3 Fans
120V NEUTRAL
B
ROWN BAND
120V POWER
Fans
1
BROWN BAND
4 ft, 6 ft 8 ft 12 ft
ESTIMATED SHIPPING WEIGHT
4
Case Flat End
4 ft 6 ft 8 ft 12 ft (each)
lb (kg) 600 (272) 800 (363) 1000 (454) 1200 (544) 60 (27)
4
Actual weights will vary according to optional kits included.
Product Data
Recommended Usable Cube
1
(Cu Ft/Ft) 5.83 ft3 /ft (0.54 m3 /m)
ARI Total Display Area
2
(Sq Ft/Ft) 4.67 ft2/ft (1.42 m2 /m)
Shelf Area 3(Sq Ft/Ft) 5.17 ft2/ft (1.58 m2 /m)
1
ARI Refrigerated Volume less shelving and other unusable space: Refrigerated Volume/Unit of Length, ft3/ft [m3/m]
2
Computed using ARI 1200 standard methodology: Total Display Area, ft2[m2]/Unit of Length, ft [m]
3
Shelf surface area is composed of bottom deck plus standard shelf complement, as shown in the Hussmann
Product Reference Guide. The standard shelf complement for this model is NONE.
Excel
PW-E
Produce
