Hussmann M3X-EP Specifications

C

B

D

A

C

D

E

G

D

F

P/N_0463875_F

M3X-EP

Technical Data Sheet

P/N 0463875_F

NSF

®

Certified

March 2010

Item Part # Description Wiring Item #

FANASSEMBLIES

8 Ft & 12 Ft

A. 12W Standard Fan Assembly (1)

0047000 Fan Motor, Evaporator

(MO.4410103)

0461805 Fan Blade (FB.4780446) 12W Energy Efficient Fan Assembly (1) 0477655 Fan Motor, Evaporator

(MO.4410546)

0461805 Fan Blade (FB.4780446)

6 Ft Only

A. 7W Standard Fan Assembly (1)

0058698 Fan Motor, Evaporator

(MO.4410102)

0142780 Fan Blade (FB.0142780) 7W Energy Efficient Fan Assembly (1) 0477654 Fan Motor, Evaporator

(MO.4410545)

0142780 Fan Blade (FB.0142780)

Item Part # Description Wiring Item #

THERMOSTATS

B. Optional Adjustable Refrigeration Thermostat (2)

LAMPS AND BALLASTS

C. Ballast, Electronic (3)

0480130 2 lamps (BA.4481676) 0480131 3 lamps (BA.4481654) 0480132 4 lamps (BA.4481677)

D. Fluorescent Lamp (4)

Replace with like fixtures

LED F

IXTURES AND POWER SUPPLY

E. 0501213 Power Supply (EP.4481861) (5)

F. LED Canopy Fixture (6)

Replace with like fixtures — See Page 5.

G. LED Shelf Fixture (7)

Replace with like fixtures — See Page 5.

We reserve the right to change or revise specifications and product design in connection with any feature of our products. Such changes do not entitle the buyer to corresponding changes, improvements, additions or replacements for equipment previously sold or shipped.

Note: Revision F adds EcoShine LED (page 4) and parts (page 5), and revises canopy wiring diagram (page 6). Other changes marked by bar, underline or circle.

2 of 9 M3X-EP Technical Data Sheet

U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900

Engineering

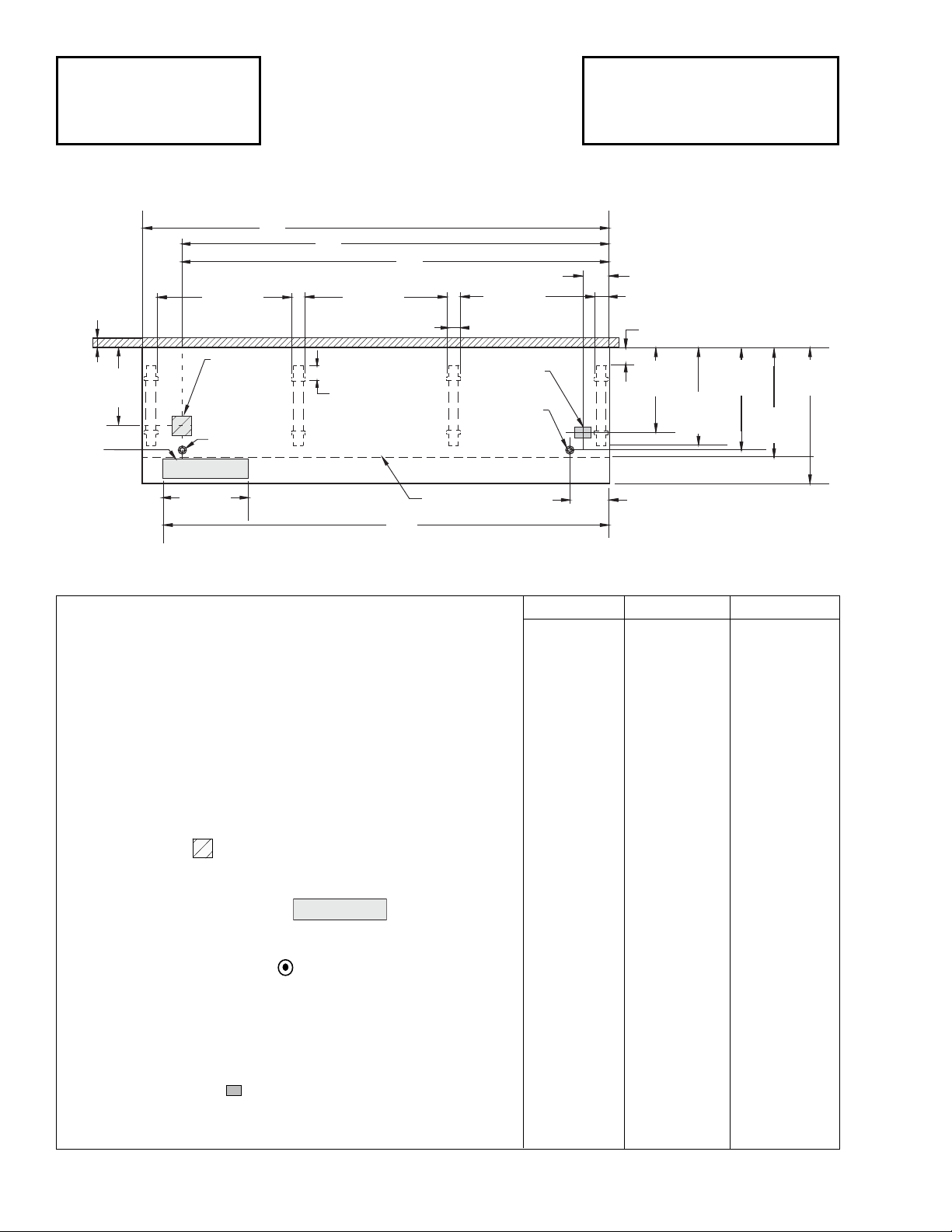

Plan Views

Dimensions shown as in. and (mm).

Meat, Delicatessen & Produce

10-2004

NOTE: Case-to-Case Electrical Connections are made IN FRONT OF SPLASHGUARD.

4 3/4 (120)

Splashguard

31 5/8

(804)

42

(1064)

A

41 1/2

(1054)

3 In.

(77 mm)

Required

Air Gap

Refrigeration

Outlet

Electrical

Stub Up Area

6 x 6

(152x152)

Waste Outlet

FRONT

26 1/4

(665)

B

D

8 (203)

4 1/2 (115)

12 1/8 (307)

41 1/2

(1054)

43 7/8

(1114)

C

Wireway

4 3/4 (120)

26 1/2

(673)

4 1/4 (108)

24

(612)

33 1/2

(851)

Electrical Field Connection

30 1/4

(768)

M3X

6 ft 8 ft 12 ft

General

(A) Case Length (without ends or partitions) 72 3/8 (1838) 96 3/8 (2448) 144 1/2 (3670)

(Each end and insulated partition adds 1 1/2 in. (38 mm) to case line up.)

Maximum O/S dimension of case back to front

(includes bumper) 42 (1064) 42 (1064) 42 (1064)

Back of case to front of splashguard 33 1/2 (851) 33 1/2 (851) 33 1/2 (851) Back of case to O/S edge of front leg 30 1/

4 (768) 30

1

/

4 (768) 30

1

/

4 (768)

Distance between edges of external legs and center legs 29

1

/2 (750) 41 1/2 (1054) 41 1/2 (1054) Distance between edges of center legs NA NA 43 7/8 (1114) Distance between front legs and splashguard 2 3/4 (70) 2 3/4 (70) 2 3/4 (70)

Electrical Service (Electrical Field Wiring connection point)

(B) RH End of case to center of stub up area 60 1/4 (1530) 84 1/4 (2140) 132 3/8 (3363)

Back of case to center of stub up area 24 (612) 24 (612) 24 (612) Length of electrical wireway 26 1/2 (673) 26 1/2 (673) 26 1/2 (673)

(C) RH End of case to LH end of wireway 66 1/8 (1680) 90 1/8 (2289) 138 1/4 (3511)

Waste Outlets (One each end)

(D) RH End of case to the center of LH waste outlet 60 1/4 (1530) 84 1/4 (2140) 132 3/8 (3363)

RH End of case to the center of RH waste outlet 12 1/8 (307) 12 1/8 (307) 12 1/8 (307) Back O/S of case to center of waste outlets 31 5/8 (804) 31 5/8 (804) 31 5/8 (804) Schedule 40 PVC drip pipe 1 1/4 (32) 1 1/4 (32) 1 1/4 (32)

Refrigeration Outlet

Back of case to center of refrigeration outlet 26 1/4 (665) 26 1/4 (665) 26 1/4 (665) RH end of case to center of refrigeration outlet 8 (203) 8 (203) 8 (203)

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 1/4 Merchandiser Liquid Line (in.)

3

/8

Merchandiser Suction Line (in.)

7

/8

Wireway

REFRIGERATION DATA

Note: This data is based on store temperature and humidity that does not exceed 75°F and 55% R.H.

M3X-EP UNLIT LIT

Discharge Air °F 31 29

Evaporator °F 28 26

Unit Sizing °F 26 24

Btu/hr/ft

‡

— Unlit Shelves

‡‡

M3X-EP Parallel Conventional

U

NLIT 930 1010

‡

Optional energy efficient motors reduce the

refrigeration load by 27 Btu/hr/ft.

‡‡

Add 10 Btu/hr/ft per shelf row for LED fixtures.

Add 20 Btu/hr/ft per shelf row for fluorescent lamps.

DEFROST DATA

Frequency Hr 6

Defrost Water (lb/ft/day) 8

(± 15% based on case configuration and product loading).

O

FFTIME

M3X-EP

Time (minutes) 30

E

LECTRIC OR GAS

Not Recommended

CONVENTIONAL CONTROLS

Low Pressure Backup Control

M3X-EP

CI/CO* 19°F / 9°F

Indoor Unit Only,

Pressure Defrost Termination* 48°F

*Use a Temperature Pressure Chart to determine PSIG conversions.

Estimated Charge** M3X-EP

6 ft 2.2 lb 35 oz 1.0 kg

8 ft 3.1 lb 50 oz 1.4 kg

12 ft 4.5 lb 72 oz 2.0 kg

**This is an average for all refrigerant types. Actual refrigerant charge may vary by approximately half a pound.

3 of 9

P/N 0463875_F

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

74 3/8

(1890)

31 5/8 (804)

4 3/4

(120)

30 1/4 (768)

42 (1064)

33 1/2 (851)

26 1/4 (665)

Refrigeration

Outlet

30 1/4

(768)

42 1/2

(1080)

34 5/8

(878)

36 1/2

(927)

FAN

C O

I

L

28 5/8

(727)

3 In. (77 mm)

Required

Air Gap

7 1/4 (183)

31

(788)

15

(381)

16 1/4

(413)

Electrical

Case to Case

Connections

17 1/8

(436)

Dimensions shown as inches and (mm).

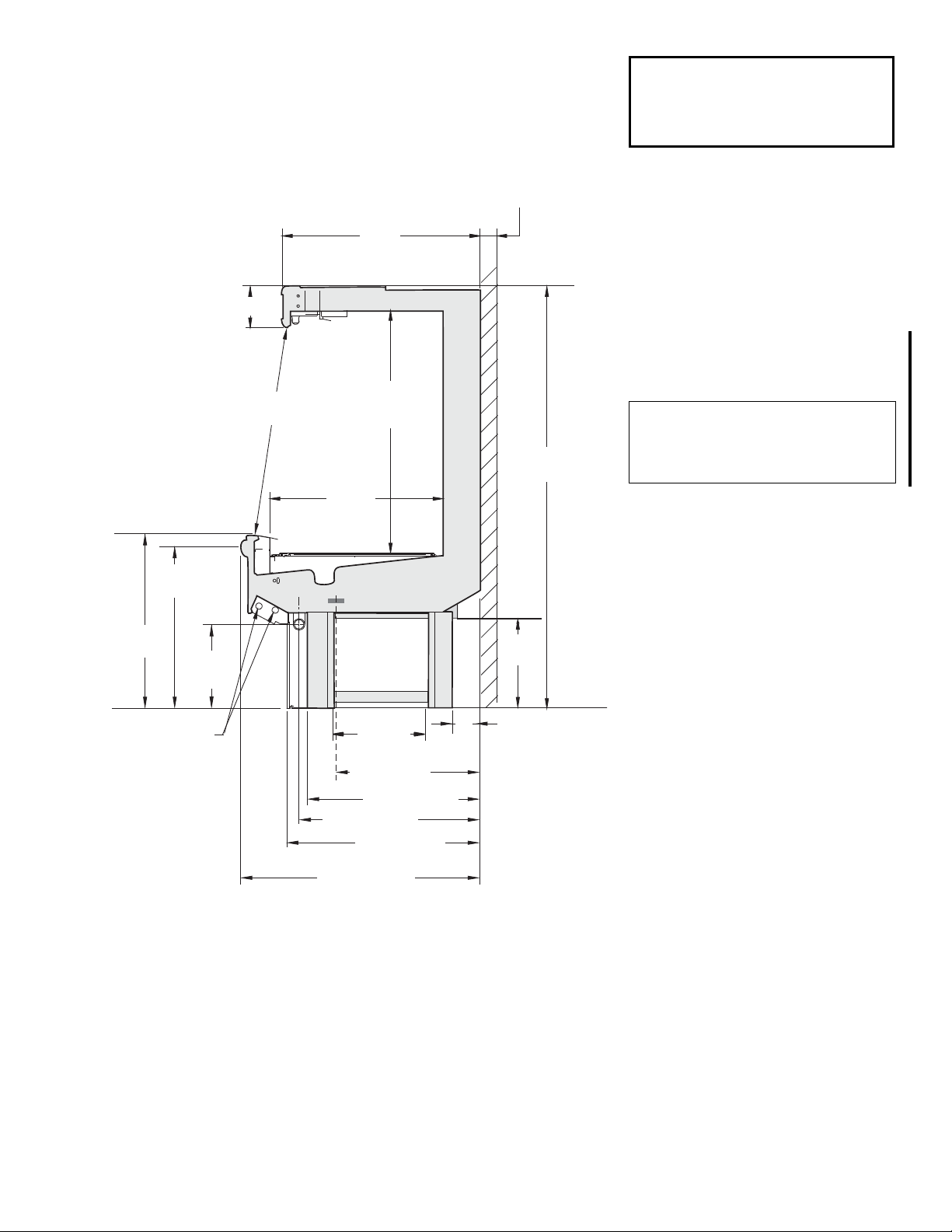

Multi-deck, 3 Display Levels

Impact

Excel

M3X-EP

Meat, Delicatessen

Pre-cut and Packaged Produce

M3X-EP

NSF Certification

This merchandiser model is manufactured to meet ANSI/NSF (National Sanitation Foundation) Standard #7 requirements for construction, materials & cleanability.

4 of 9 M3X-EP Technical Data Sheet

U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900

Impact

Excel

M3X-EP

Meat, Delicatessen Precut and Packaged Produce

Electrical Data

6 ft 8 ft 12 ft Number of Fans—12W — 2 3 Number of Fans—7W 2 — —

Amperes Watts

6 ft 8 ft 12 ft 6 ft 8 ft 12 ft Evaporator Fan

120V 60Hz Standard 1.00 1.30 1.95 78 100 150

120V 50Hz Standard 1.10 1.50 2.25 84 114 171

230V 60Hz Export 0.50 0.66 0.99 78 100 150

230V 50Hz Export 0.56 0.76 1.14 84 114 171

120V 60Hz Energy Efficient 0.38 0.60 0.90 28 36 54

230V 60Hz Energy Efficient 0.20 0.30 0.45 28 36 54

Minimum Circuit Ampacity

120V 60Hz Standard 1.20 1.50 2.15

120V 50Hz Standard 1.30 1.70 2.45

230V 60Hz Export 0.70 0.86 1.19

230V 50Hz Export 0.76 0.96 1.34

120V 60Hz Energy Efficient 0.58 0.80 1.10

230V 60Hz Energy Efficient 0.40 0.50 0.65

Maximum Over Current Protection 120V 20 20 20

Maximum Over Current Protection 230V 15 15 15

Standard Lighting (T-8 fluorescent)

1 Row Canopy 0.51 0.51 0.77 59 59 85

Optional Lighting (T-8 fluorescent)

Additional 1 Row Canopy 0.51 0.51 0.77 59 59 85

Additional 2 Row Canopy 1.02 1.02 1.54 118 118 170

Additional 3 Row Canopy 1.53 1.53 2.31 177 177 255

1 Row Rail Light 0.51 0.51 0.77 59 59 85

2 Rows of Shelves 1.02 1.02 1.54 118 118 170

EcoShine Multi-deck — Normal CRI—120VAC, 50/60Hz

2 Row Canopy (Front & Rear) 0.41 0.55 0.82 49 66 98

2 Row of Shelves 0.29 0.39 0.58 35 47 70

EcoShine Multi-deck — High CRI —120VAC, 50/60Hz

2 Row Canopy (Front & Rear) 0.47 0.63 0.93 56 75 112

2 Row of Shelves 0.35 0.47 0.70 42 56 84

Optional Always*Bright LED Canopy Lighting

2 Row Canopy (Front & Rear) 0.55 0.71 1.08 66 85 130

2 Row of Shelves 0.34 0.47 0.67 41 56 80

120V Lighting Circuit Total = Standard Lighting + Total Optional Lighting + Optional Shelf Lighting

230V Lighting Circuit Total = Multiply 120V Lighting Circuit Total by 0.52

5 of 9P/N 0463875_F

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

Impact

Excel

M3X-EP

Meat, Delicatessen

Pre-cut and Packaged Produce

ESTIMATED SHIPPING WEIGHT

4

Case Solid End

6 ft 8 ft 12 ft (each)

lb (kg) 800 (363) 1000 (454) 1300 (590) 75 (34)

4

Actual weights will vary according to optional kits included.

Product Data

Recommended Usable Cube

1

(Cu Ft/Ft) 6.04 ft3 /ft (0.56 m3 /m)

AHRI Total Display Area

2

(Sq Ft/Ft) 3.49 ft2/ft (1.06 m2 /m)

Shelf Area 3(Sq Ft/Ft) 5.37 ft2/ft (1.64 m2 /m)

1

AHRI Refrigerated Volume less shelving and other unusable space: Refrigerated Volume/Unit of Length, ft3/ft [m3/m]

2

Computed using AHRI 1200 standard methodology: Total Display Area, ft2[m2]/Unit of Length, ft [m]

3

Shelf surface area is composed of bottom deck plus standard shelf complement, as shown in the Hussmann Product Reference Guide. The standard shelf complement for this model is (1) row of 16-inch shelf and (1) row of 18-inch shelf.

PARTS LIST (Continued from Page 1)

Note: Always*Bright lamps will be replaced with the latest generation of EcoShine lamps.

Item Part # Description

LED F

IXTURES AND POWER SUPPLY

E. 0501213 Power Supply (EP.4481861) (5)

F. EcoShine LED Canopy Fixture (6)

4441720 Front 48-inch 2900K HCRI 4441722 Front 48-inch 3500K HCRI 4441724 Front 48-inch 3500K 4441726 Front 48-inch 4100K 4441721 Rear 48-inch 2900K HCRI 4441723 Rear 48-inch 3500K HCRI 4441725 Rear 48-inch 3500K 4441727 Rear 48-inch 4100K

4441712 Front 36-inch 2900K HCRI 4441714 Front 36-inch 3500K HCRI 4441716 Front 36-inch 3500K 4441718 Front 36-inch 4100K

Item Part # Description

F.

(CONTINUED) EcoShine LED Canopy Fixture

4441713 Rear 36-inch 2900K HCRI 4441715 Rear 36-inch 3500K HCRI 4441717 Rear 36-inch 3500K 4441719 Rear 36-inch 4100K

G. EcoShine LED Shelf Fixture (7)

4441590 48-inch 2900K HCRI 4441591 48-inch 3500K HCRI 4441592 48-inch 3500K 4441593 48-inch 4100K

4441586 36-inch 2900K HCRI 4441587 36-inch 3500K HCRI 4441588 36-inch 3500K 4441589 36-inch 4100K

M3X-EP Technical Data Sheet

U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900

6 of 9

R = Red Y = Yellow G = Green BL = Blue BK = Black W = White

= 120V P

OWER = 120V NEUTRAL = FIELD GROUND

= CASE GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

4

3

4

Optional

Two Row

Canopy

Connector

BL

W

G

R

BL

W

R

BL

R

BL

R

BK

Orange or Tan Band

4

3

44

Connector

W

BK

BL

R

BL

R

12 ft

BK

12 ft

Ballast Plug for Optional Light Rail (if applied)

W

BK

Field Connections

Case

Ground

Bar

4

3

44

Optional

Two Row

Canopy

W

BL

R

BL

R

6 ft or 8 ft

BK

Refrigeration

Thermostat

2

To Condensing Unit

}

Light Blue

2 & 3 Fans

120V NEUTRAL

B

ROWN BAND

120V POWER

Fans

1

B

ROWN BAND

6 ft 8 ft

12 ft

Fan Wiring Offtime Defrost

Light Circuits — Fluorescent Fixtures

7 of 9P/N 0463875_F

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

R = Red Y = Yellow G = Green BL = Blue BK = Black W = White

= 120V P

OWER = 120V NEUTRAL = FIELD GROUND

= CASE GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

Optional Shelf Harness and Light Circuits for Two Rows of Shelves

Connector

4

3

4

BK

W

Connector

6 ft or 8 ft case

12 ft case

R

W

BL

R

BK

BL

R

4

3

4

BK

W

R

W

BL

R

BK

BL

R

4

3

4

BK

W

R

W

BL

R

BK

BL

R

Optional Shelf Lighting

Fluorescent Fixtures

M3X-EP Technical Data Sheet

U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900

8 of 9

R = Red Y = Yellow G = Green BL = Blue BK = Black W = White

= 120V P

OWER = 120V NEUTRAL = FIELD GROUND

= CASE GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

6

5

Optional Canopy Lighting

LED Fixtures

9 of 9P/N 0463875_F

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

W

Optional Shelf Lighting LED Fixtures

Optional Shelf Harness and LED Light Circuits for Two Rows of Shelves

BK

W

BK

W

G

Connector

BK

W

BK

Connector

BL

R

BL

R

W

BL

5

7

BL

R

BL

R

BL

R

BL

R

BL

R

6 ft or 8 ft case

R

7

BL

R

BL

7

Shelf Light

Plug & Receptacle

(TYP)

12 ft case

BK

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

R = Red G = Green BL = Blue BK = Black W = White

= 120V P

OWER = 120V NEUTRAL = FIELD GROUND

WARNING

= CASE GROUND

Hussmann M3X-EP Specifications

Specifications and Main Features

Frequently Asked Questions

User Manual
