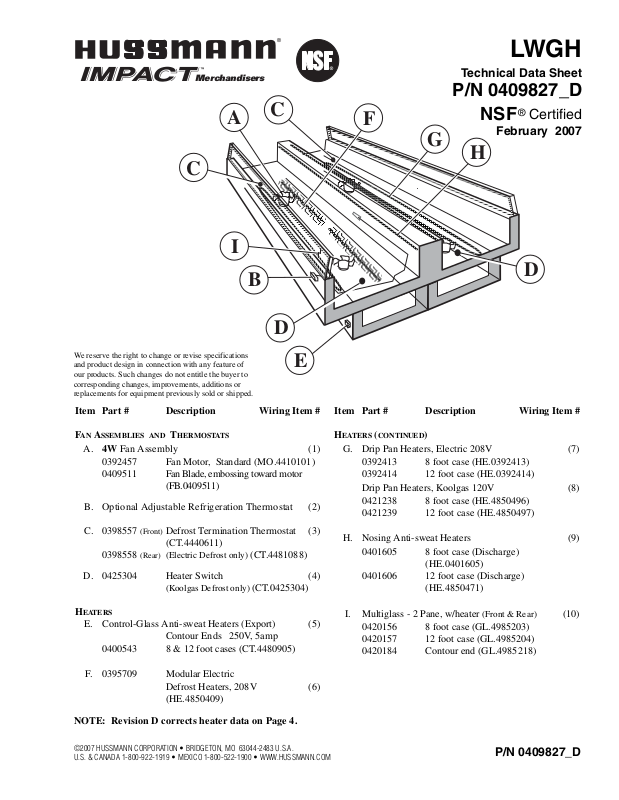

Hussmann LWGH Technical Data Sheet

P/N 0409827_D

®

LWGH

Technical Data Sheet

P/N 0409827_D

NSF

®

Certified

February 2007

Item Part # Description Wiring Item #

F

AN ASSEMBLIES AND THERMOSTATS

A. 4W Fan Assembly (1)

0392457 Fan Motor, Standard (MO.4410101)
0409511 Fan Blade, embossing toward motor

(FB.0409511)

B. Optional Adjustable Refrigeration Thermostat (2)

C. 0398557

(Front) Defrost Termination Thermostat (3)

(CT.4440611)

0398558 (Rear) (Electric Defrost only) (CT.4481088)

D. 0425304 Heater Switch (4)

(Koolgas Defrost only) (CT.0425304)

HEATERS

E. Control-Glass Anti-sweat Heaters (Export) (5)

Contour Ends 250V, 5amp

0400543 8 & 12 foot cases (CT.4480905)

F. 0395709 Modular Electric

Defrost Heaters, 208V (6)
(HE.4850409)

Item Part # Description Wiring Item #

H

EATERS (CONTINUED)

G. Drip Pan Heaters, Electric 208V (7)

0392413 8 foot case (HE.0392413)
0392414 12 foot case (HE.0392414)

Drip Pan Heaters, Koolgas 120V (8)
0421238 8 foot case (HE.4850496)

0421239 12 foot case (HE.4850497)

H. Nosing Anti-sweat Heaters (9)

0401605 8 foot case (Discharge)

(HE.0401605)

0401606 12 foot case (Discharge)

(HE.4850471)

I. Multiglass - 2 Pane, w/heater

(Front & Rear) (10)

0420156 8 foot case (GL.4985203)
0420157 12 foot case (GL.4985204)
0420184 Contour end (GL.4985218)

©2007 HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM

We reserve the right to change or revise specifications
and product design in connection with any feature of
our products. Such changes do not entitle the buyer to
corresponding changes, improvements, additions or
replacements for equipment previously sold or shipped.

NOTE: Revision D corrects heater data on Page 4.

Merchandisers

A

C

I

B

C

D

E

F

G

H

D

LWGH Technical Data Sheet

2 of 7

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Engineering

Plan Views

Dimensions shown as inches & (mm).

Single Deck

Frozen Food

8 ft 12 ft

General

(A) Case Length (without ends or partitions) 96 1/

4 (2445) 144

3

/

8 (3667)

(Each end and insulated partition adds 2 in. (51 mm) to case line up.)

Maximum O/S dimension of case back to front (includes bumper) 81 1/

2 (2070) 81

1

/

2 (2070)

(B) Front of splashguard to O/S edge of front base rail 8

1

/

2 (216) 8

1

/

2 (216)

Back of case to O/S edge of front base rail 69 (1753) 69 (1753)

(C) Front of case to O/S edge of front base rail 12

1

/

2 (318) 12

1

/

2 (318)

Width of base rail 2

1

/

8 (54) 2

1

/

8 (54)

Stub-up area (gray) between front base rail and
splashguard 7

5

/

8 (194) 7

5

/

8 (194)

Electrical Service (Electrical Field Wiring connection point)

RH End of case to center of nearest knockout 5 (127) 5 (127)

(D) Center of knockouts to O/S edge of front base rail 7 (178) 7 (178)

Waste Outlets

(E) RH End of case to the center of front waste outlet 58

1

/

4 (1480)) 67

7

/

8 (1724)

(F) Center of waste outlet to O/S edge of front base rail 3

3

/

4 (95) 3

3

/

4 (95)

(G) RH End of case to center of rear waste outlet 38 (965) 76

1

/

2 (1918)

Back O/S of case to center of waste outlet 8

7

/

8 (225) 8

7

/

8 (225)

Water Seal

Edge of water seal to center of waste outlet 11 (279) 11 (279)
O/S diameter of drip pipe lines 1

1

/

2 (38) 1

1

/

2 (38)

Note*: Field installed water seal outlet, tees and connectors are shipped with case.

Refrigeration Outlet

RH End of case to center of RH front and rear refrigeration outlets 5

1

/

2 (140) 5

1

/

2 (140)

(H) LH End of case to center of LH front and rear refrigeration outlets 88

3

/

8 (2245) 138

7

/

8 (3527)

Back O/S edges of case to center of refrigeration outlet 70

1

/

4 (1784) 70

1

/

4 (1784)

(I) Center of refrigeration outlet to O/S edge of front skidrail 1

1

/

4 (32) 1

1

/

4 (32)

A

H

G

E

8

7/8

(141)

LWGH

C

L

Base Rail

Access Area

(Gray)

10

(276)

7/8

Front

Water Seal

(See Note*)

Waste Outlet

Refrig. Outlet

Refrig. Outlet

Electrical

2

(98)

5

(141)

7/8

9/16

I

5

(127)

69

(1753)

81

1/2

(2070)

D

B

F

C

REFRIGERATION DATA

Note: This data is based on store temperature

and humidity that does not exceed 75°F and
55% R.H.

FF IC

Discharge Air (°F) –12 –22

Evaporator (°F) –20 –30

Unit Sizing (°F) –23 –33

Btu/hr/ft FF IC

Parallel

775 785

Conventional

800 810

DEFROST DATA

FF IC

Frequency (hr) 24 24
Defrost Water (lb/ft/day) 1.5 1.2

(± 15% based on case configuration and product

loading).

ELECTRIC FF IC

Temp Term (°F) 48° 48°
Failsafe (minutes) 60 60

GAS

Duration (minutes) 15 18

O

FFTIME

Not Recommended

Standard Defrost Thermostat

Close on rise: close 48°F — open 33°F

CONVENTIONAL CONTROLS

Low Pressure Backup Control

FF IC

CI/CO (Temp °F)* –27/–39 –27/–39

Indoor Unit Only, Pressure Defrost
Termination (Temp °F)

Not Recommended

*Use a Temperature Pressure Chart to determine
PSIG conversions.

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 1/4
Merchandiser Liquid Line (in.)

3

/8

Merchandiser Suction Line (in.)

5

/8

Estimated Charge (lb)**

8 ft 3.5

12 ft 5.3

**This is an average for all refrigerant types.
Actual refrigerant charge may vary by
approximately half a pound.

Length Added to Lineup by:
Each End/Partition (in.) 1

1

/2

Each Contoured End 5

3 of 7P/N 0409827_D

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

Dimensions shown in inches & (mm).

Impact

LWGH

Frozen Food & Ice Cream

Single Level Wide Island High Front Display, with Glass Front

NSF Certification

These merchandisers are manufactured to meet ANSI /National
Sanitation Foundation (NSF®) Standard #7 requirements.

7

M

M

FAN

C

COIL

L

C

I

COIL

C

FAN

B

L

D

E

F

G

H

K

L

K

J

I

H

G

J

F

Dimensions

E

D

C

AB

10

5

1/2

81

69

1/2

12

1/2

8

7

3/4

3

1/4

1

15 32

36

LWGH

O

N

A

Front

of Case

178

254

318 1 27

214

178 2070

95

32

3

81

381 1753

914

(MM)

1/4

210

8

NO

26

660

(MM)

LWGH

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

LWGH Technical Data Sheet

4 of 7

Impact LWGH

Frozen Food & Ice Cream

Electrical Data

8 ft 12 ft

Number of Fans – 4W 4 6

(Energy Efficient fan motors are not available for End or End-compartment models)

Amperes Watts

8 ft 12 ft 8 ft 12 ft

Evaporator Fans

120V 60Hz Standard 1.24 1.86 96 144
120V 50Hz Standard NA
230V 60Hz Export 0.60 0.90 96 144
230V 50Hz Export 0.72 1.08 108 162
120V 60Hz Energy Efficient 0.56 0.84 40 60
230V 60Hz Energy Efficient NA

Nosing Anti-sweat Heaters (on fan circuit)

120V 60Hz Standard 1.88 2.80 224 336
230V 50Hz Export 0.98 1.46 224 336

Glass Anti-sweat Heaters

120V 60Hz Standard 2.44 3.32 294 398
230V 50Hz Export 1.41 1.91 324 439

Cycling Anti-sweat Heaters

120V 60Hz Standard NA
230V 50Hz Export NA

Minimum Circuit Ampacity

120V 60Hz Standard 5.76 8.18
120V 50Hz Standard NA
230V 60Hz Export
230V 50Hz Export 3.31 4.65
120V 60Hz Energy Efficient 5.08 7.16
230V 60Hz Energy Efficient NA

Maximum Over Current Protection 120V 20 20
Maximum Over Current Protection 230V 15 15

Electric Defrost Heaters

208V

60Hz Standard Front Compartment 8.0 12.0 1670 2505

208V

60Hz Standard Rear Compartment 8.0 12.0 1670 2505
230V 50Hz Export Front Compartment 8.9 13.3 2047 3060
230V 50Hz Export Rear Compartment 8.9 13.3 2047 3060

Koolgas Drip Pan Heaters

120V 60Hz Standard 5.0 7.5 600 900
230V

50Hz Export NA

Standard Lighting: None

5 of 7P/N 0409827_D

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

Electric Defrost – Standard

L1

Red

Red

120V POWER

BROWN BAND

208 V Power From Defrost Contactors

Drip Pan Heater

7

Red

Modular Electric Defrost Heaters

Drip Pan Heater

7

6

Red

Modular Electric Defrost Heaters

Fans

1

6

BROWN BAND

L2

120V NEUTRAL

9

Nosing (anti-sweat) Heaters

BROWN BAND

To
Condensing Unit

}

BROWN BAND

Defrost
Termination
Thermostat

Fans

1

9

Nosing (anti-sweat) Heaters

Refrigeration

2

3

Dark Blue

Thermostat

(Field Installed)

Light Blue

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

Circled Numbers = Parts List Item Numbers

Grayed components in 12 foot models only.

Gas Defrost – Optional

LWGH Technical Data Sheet

6 of 7

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

8

4

Drip Pan Heater

Yellow

Heater Switch

Yellow

120V POWER

120V NEUTRAL

Dark BlueDark Blue

Refrigeration

Thermostat

To
Condensing Unit

}

Light Blue

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

Circled Numbers = Parts List Item Numbers

Grayed components in 12 foot models only.

(Field Installed)

2

8

4

Drip Pan Heater

Yellow

Heater Switch

Yellow

120V POWER

120V NEUTRAL

Dark BlueDark Blue

BROWN BAND

Fans

BROWN BAND

Nosing (anti-sweat) Heaters

120V POWER

120V NEUTRAL

1

9

BROWN BAND

Fans

BROWN BAND

Nosing (anti-sweat) Heaters

1

9

7 of 7P/N 0409827_D

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

Glass Anti-sweat Heaters — Domestic & Export

Glass Anti-sweat Heater (Domestic)

2 Pane Multiglass

Purple

Purple

Purple

120V

Yellow

Glass Anti-sweat Heater

2 Pane Multiglass

Purple

Black

120V

White

White

Glass Anti-sweat Heater

Anti-sweat Heater (Domestic)

LWGH Contour Ends

2 Pane Multiglass

Purple

Purple

10

10

Yellow

10

White

Black

White

White

Discharge

Glass

Return

Glass

Glass Anti-sweat Heater (Export Only)

10

White

10

Purple

Black

Purple

230V

White

2 Pane Multiglass

Purple

Yellow Yellow

Glass Anti-sweat Heater

2 Pane Multiglass

White

Black

Glass Anti-sweat Heater

Anti-sweat Heater (Export Only)

LWGH Contour Ends

5

Heater Control

Red

Purple

Purple

10

2 Pane Multiglass

White

120V

White

Black

Black

Glass Anti-sweat Heater

230V

Red

W/White

0400543

Purple

W/White

Black

Glass Anti-sweat Heater

White

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

Circled Numbers = Parts List Item Numbers
Grayed components in 12 foot models only.

Black
