Hussmann Lifeline RLN Specifications

®

LifeLine Premier

RLN

with

INNOVATOR

Doors

Technical Data Sheet

P/N 0510308_B

NSF

®

Certified

May 2010

OPTIONS SHOWN:

• Lighted Facades

• Facade Arch

• Gooseneck Lamps

• Dry Goods Storage

• Bump Out Partitions

Warning:

Terminal block NOT for

case-to-case

wire connection!

Item Part # Description Wiring Item #

F

AN ASSEMBLIES, AND THERMOSTATS

A. 12W Standard Fan Assembly (1)

MO.4410103 Fan Motor, Evaporator
FB.4780446 Fan Blade
12W Optional Energy Efficient Fan Assembly (1)
MO.4410546 Fan Motor, Evaporator
FB.4780446 Fan Blade

B. CT.4440726 Standard Non-adjustable Defrost (2)

Thermostat
C. Optional Adjustable Refrigeration Thermostat (3)
D. CT.4440261 Defrost Limit Thermostat (4)

E. CT.4481296 Relay Control Thermostat or (5)

Fan and Anti-sweat Heater Thermostat

R

ELAYS

F. RL.4480238 Anti-Sweat Control Relay (120V) (6)

G. Fan Control Relay (7)

RL.4480237 (208V) Electrical Defrost
RL.4480238

(120V) KoolGas Defrost

H

EATERS

H. Electric Defrost Heaters – Front (208V) (8)

HE.4850346 (1) 2 Door Models
HE.4850337 (1) 3 Door Models
HE.4850347 (1) 4 Door Models
HE.4850323 (1) 5 Door Models

Electric Defrost Heaters — Rear (208V) (8)
HE.4850358 (1) 2 Door Models
HE.4850359 (1) 3 Door Models
HE.4850360 (1) 4 Door Models
HE.4850361 (1) 5 Door Models

Item Part # (Qty) Description Wiring Item #

H

EATERS (CONTINUED)

I. Drain Pan Heater — Electric & KoolGas (120V) (9)

HE.4850239 (1) 2 Door Models
HE.4850240 (1) 3 Door Models
HE.4850241 (1) 4 Door Models
HE.4850242 (1) 5 Door Models

LED F

IXTURES AND POWER SUPPLY

J. EP.4481668 Power Supply (EP.4481668) (10)

K. Door Lamp, LE

BU.4440875 3500K Center (11)
BU.4440877 4100K Center (11)
BU.4440876 3500K End (12)
BU.4440878 4100K End (12)

L. Facade Lamp, LED (13)

BU.4441411 2900K 29.5 In. Length
BU.4441412 2900K 30.5 In. Length

M. BU.4441413 Gooseneck Lamp (14)

N. BU.4441414 Dry Goods Lamp, 3500K LED (15)

(NOTE: Gooseneck Lamp and Dry Goods Lamp
cannot be applied to same merchandiser.)

SH.4991645 KLU9600

Dry Goods Shelf, Lighted, Pearwood

P/N0510308B

©2010 HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM

Refer to INNOVATOR REACH-IN GLASS DOOR
INSTALLATION AND SERVICE manual, P/N 0425683,

for Innovator, and Innovator II door and frame
replacement parts.

NOTE: Revision B adds Btu Note on page 5, updates stocking height on page 4, and updates pages 1, 2, 3, 5, 7, 11 & 12. Changes are

underlined, circled or marked with a vertical line in the margin.

We reserve the right to change
or revise specifications and
product design in connection
with any feature of our
products. Such changes
do not entitle the buyer to
corresponding changes,
improvements, additions or
replacements for equipment
previously sold or shipped.

M

N

K

E

A

J

I

C

J

L

H

D

G

F

B

LifeLine Premier

RLN with Innovator Doors

Technical Data Sheet

2 of 12

U.S. & Canada 1-800-922-1919 • Mexico 1-800-522-1900

Reach-In

2, 3, 4 & 5 Door

Engineering

Plan Views

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 1/4
Merchandiser Liquid Line (in.)

3

/8

Merchandiser Suction Line (in.)

7

/8

LifeLine Premier

RLN - RMN

Plan View

05-2010

Base 5-door merchandiser is shown above, without Bump Out, Dry Goods sections, Partitions or Ends.

Illustrated below is a 4-door merchandiser with Dry Goods cabinets and Bump Out end partitions.

Refer to chart on Page 3 for detailed dimensional information on options.

Dimensions shown as inches and (mm).

Dimensions shown as inches and (mm).

4 in. (102 mm ) Required Air Gap
from Merchandiser Insulated Panel

7

(178)

to Wall or Flat Surface

5

37

/8

(956)

Skid/
External
Base

6

(152)

48

(1219)

Waste Outlet

Splashguard

4

(102)

13/4

(44)

(see note *)

Electrical Wireway

1

26

/2

(673)

Water Seal

(see note **)

Front

5-Door Shown

C

Bottom
Front
Support

Refrigeration Outlet

Relay & Terminal

Block Location

(see note *)

13/4

(44)

Door Swing

Clearance

D

B

28

(711)

30

(778)

5

A

/8

39

(1010)

3

/4

66

(1683)

1

/4

LifeLine
Narrow Footprint Plan View

2, 3 & 4 Door

A

4 in. (102 mm ) Minimum Air Gap
from Merchandiser Insulated Panel
to Wall or Flat Surface

12 7/8

(327)

10 3/4

(273)

Shelf

Area

7

(178)

4

(102)

37 5/8

(956)

Skid/

External

Base

Electrical Wireway

3

/4

(see note *)

1

(44)

Bottom
Front
Support

48

(1219)

Waste Outlet

Splashguard

Water Seal

(see note **)

Front

4-Door Shown

6

(152)

Refrigeration

Relay & Terminal

Block Location

C

Outlet

1 3/4

(44)

Door Swing

Clearance

1

15

/4

(387)

D

Shelf

Area

B

(see note *)

28

(711)

30 5/8

12

(305)

39 3/4

(1010)

51

(778)

(1314)

1

26

/2

(674)

from Bumper

3

/4

78

(1988)

1

/4

3 of 12P/N 0510308_B

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

LifeLine Premier

RLN

With INNOVATOR Doors

Frozen Food & Ice Cream

Plan View Dimensions for

LifeLine Premier

Options

Abbreviations: DG = Dry Goods section BO = Bump Out

2 Dr 3 Dr 4 Dr 5 Dr

General

(A) Merchandiser Length 62 (1575) 92

1

/

2 (2350) 122

7

/

8 (3121) 153

3

/

8 (3896)

(A) Merchandiser Length BO includes 2 bump-out ends 66 (1676) 96

1

/

2 (2451) 126

7

/

8 (3222) 157

3

/

8 (3997)

(A) Merchandiser Length DG includes 4 ends and dry goods cabinets 92

1

/

2 (2350) 123 (3124) 153

3

/

8 (3896) NA

Maximum O/S dimension of merchandiser back to front *** 39

3

/

4 (1010) 39

3

/

4 (1010) 39

3

/

4 (1010) 39

3

/

4 (1010)

Maximum O/S dimension of merchandiser back to front BO *** 51

3

/

4 (1314) 51

3

/

4 (1314) 51

3

/

4 (1314) 51

3

/

4 (1314)

***

Includes bumper. Add 26 1/

2 in. (673 mm) for door swing.

Interior width of dry goods cabinet 10 3/

4 (273) 10

3

/

4 (273) 10

3

/

4 (273) NA

Interior depth of dry goods cabinet 12

7

/

8 (327) 12

7

/

8 (327) 12

7

/

8 (327) NA

Back of merchandiser to rear of splashguard 35

7

/

8 (911) 35

7

/

8 (911) 35

7

/

8 (911) 35

7

/

8 (911)

Back of merchandiser to rear of splashguard BO 47 7/8 (1216) 47 7/8 (1216) 47 7/8 (1216) 47 7/8 (1216)

Width of Skid rail 3 3/4 (95) 3 3/4 (95) 3 3/4 (95) 3 3/4 (95)

Width of Bottom Front Support 6 (152) 6 (152) 6 (152) 6 (152)

Stub-up area between front support and splashguard 3 1/

8 (79) 3

1

/

8 (79) 3

1

/

8 (79) 3

1

/

8 (79)

Electrical Service

(B) RH end of merchandiser to the center of nearest knockout 4 (102) 4 (102) 4 (102) 4 (102)

(B) RH end of merchandiser to the center of nearest knockout BO 6 (152) 6 (152) 6 (152) 6 (152)

(B) RH end of merchandiser to the center of nearest knockout DG 19

1

/4 (489) 19 1/4 (489) 19 1/4 (489) NA

RH end of merchandiser to the center of LH knockout 58 (1473) 88 1/

2 (2248) 118

7

/

8 (3019) 149

3

/

8 (3794)

Back O/S of merchandiser with bump-out to center of knockout 49

5

/8 (1260) 49 5/8 (1260) 49 5/8 (1260) 49 5/8 (1260)

* NOTE: Electrical Field Wiring Connection Point is at terminal.

Waste Outlet

(C) Right end of merchandiser to center of waste outlet 23 7/

8 (606) 54

1

/

4 (1378) 46

1

/

4 (1175) 76

5

/

8 (1946)

(C) Right end of merchandiser to center of waste outlet BO 25

7

/8 (657) 56 1/4 (1429) 48 1/4 (1226) 78 5/8 (1997)

(C) Right end of merchandiser to center of waste outlet DG 39 (991) 69 1/2 (1765) 61 1/2 (1562) NA

Back O/S of merchandiser with BO to center of waste outlet 42 5/

8 (1083) 42

5

/

8 (1083) 42

5

/

8 (1083) 42

5

/

8 (1083)

Water Seal

Edge of water seal to center of waste outlet 13 (330) 13 (330) 13 (330) 13 (330)

Schedule 40 PVC drip pipe 1

1

/

4 (32) 1

1

/

4 (32) 1

1

/

4 (32) 1

1

/

4 (32)

** NOTE: Field installed water seal outlets, tees, and connectors are shipped with merchandiser.

Refrigeration Outlet

(D) RH end of merchandiser to center of RH refrigeration outlet 5 3/8 (136) 5 3/8 (136) 5 3/8 (136) 5 3/8 (136)

(D) RH end of merchandiser to center of RH refrigeration outlet BO 7 3/8 (187) 7 3/8 (187) 7 3/8 (187) 7 3/8 (187)

(D) RH end of merchandiser to center of RH refrigeration outlet DG 20 5/

8 (524) 20

5

/

8 (524) 20

5

/

8 (524) NA

Back O/S of merchandiser with bump-out to center of refrigeration outlet 40 (1016) 40 (1016) 40 (1016) 40 (1016)

Outside bottom front supports from end of merchandiser 7 (178) 7 (178) 7 (178) 7 (178)

Outside bottom front supports from end of merchandiser BO 9 (229) 9 (229) 9 (229) 9 (229)

Outside bottom front supports from end of merchandiser DG 26

1

/

2 (673) 26

3

/

4 (679) RH 26

1

/

4 (667) NA

37

1

/2 (952) LH

Center bottom front support from Centerline 24 (610) 24 (610) 24 (610) 24 (610)

Center bottom front support from Centerline BO 24 (610) 24 (610) 24 (610) 24 (610)

Center bottom front support from Centerline DG 6 3/4 (171) LH 8 3/4 (222) RH 24 (610) NA

Distance between Center and Outside supports will vary

LifeLine Premier

RLN with Innovator Doors

Technical Data Sheet

4 of 12

U.S. & Canada 1-800-922-1919 • Mexico 1-800-522-1900

LifeLine Premier

RLN

With INNOVATOR Doors

Frozen Food & Ice Cream

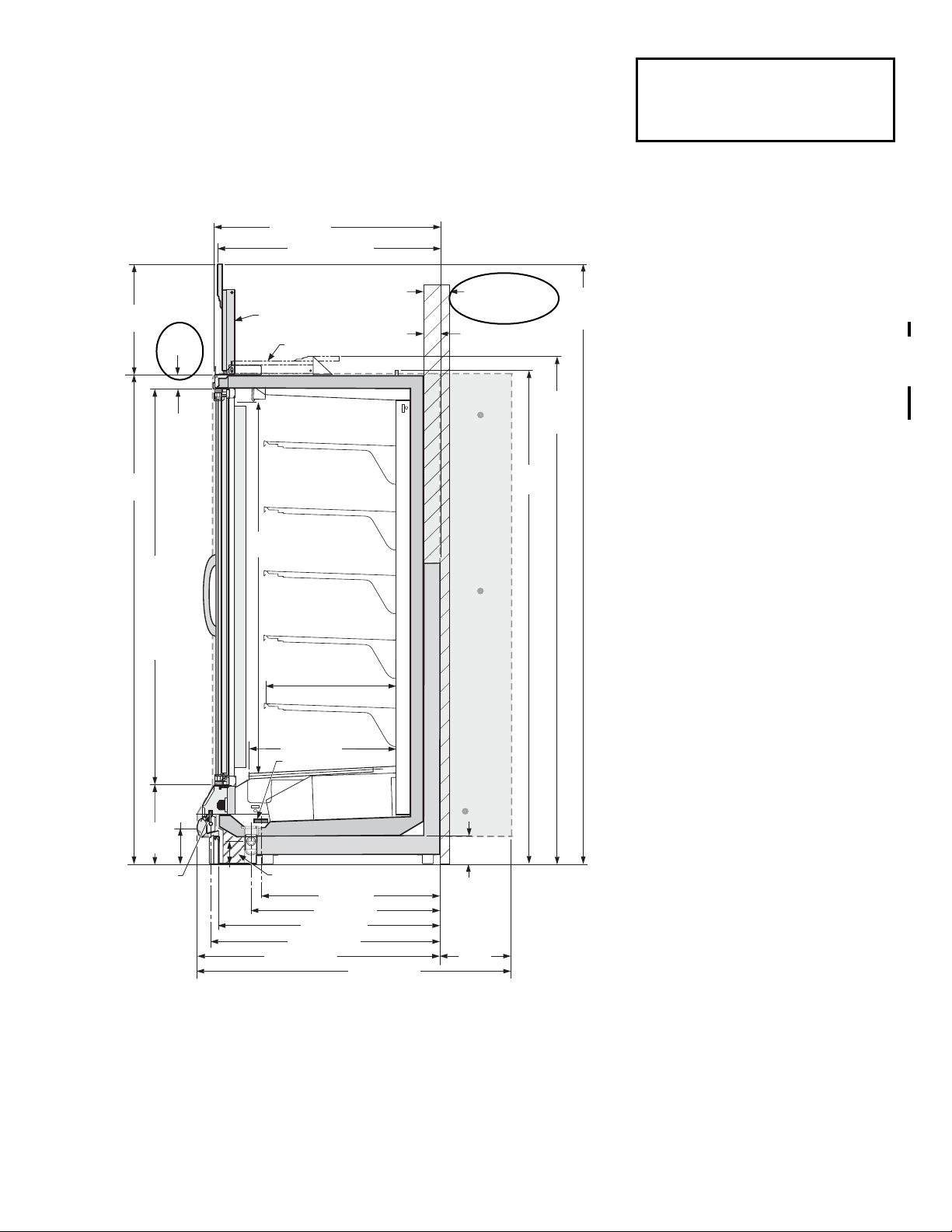

Facade Options in Cross Section

Partition and End ProfilesDry Goods Cross-Section

11

(279)

12 1/8

(308)

18 1/8

(460)

Facade (Installed Position)

Facade (Shipping Position)

12 in. Straight Facade

Facade (Installed Position)

Facade (Shipping Position)

18 in. Straight Facade

Gooseneck

Lamp

8

(203)

87 1/2

(2222)

Shipped

100 1/2

Installed

87 1/2

(2222)

Shipped

94 1/2

(2401)

Installed

(2553)

17 1/2

(445)

23 1/2

(597)

Facade (Installed Position)

Facade (Shipping Position)

12 in. Arch Facade

Facade (Installed Position)

Facade (Shipping Position)

18 in. Arch Facade

87 1/2

(2222)

Shipped

87 1/2

(2222)

Shipped

99 7/8

(2537)

Installed

105 7/8

(2689)

Installed

Facade

Lamp

64 1/2

(1638)

Usable

Height

Maximum

Stocking Height

7

/8 (327)

12

Usable Depth

Fixed Shelf

Electrical Connection

for Shelf Lamps

Adjustable

Shelves

39 3/4 (1010)

51 3/4 (1314)

Bump Out

12

(305)

77 5/8

(1972)

LifeLine Premier

RLN

With INNOVATOR Doors

Frozen Food & Ice Cream

51 3/4 (1314)

12

(305)

Bump Out

3 7/8

(97)

Electrical
Field Wiring
Connection
is at
Terminal

6 1/4

(159)

Facade (Installed Position)

Facade (Shipping Position)

23 1/2

(597)

Fan

Coil

62 1/2

(1588)

4

3

/4

(121)

22 Shelf

(559)

23

5

/8 (600)

Refrigeration Outlet

30 5/8 (778)

28 (711)

37 5/8 (956)

35 7/8 (911)

Electrical Stub-up Area

39 3/4 (1010)

37 (940)

36 1/4 (924)

83

(2108)

105 7/8

(2689)

Installed

18 in. Arch Facade

Shown

87 1/2

(2222)

Shipped

2 1/8

(54)

13 1/8

(333)

67

(1702)

Frame

65 1/2

(1664)

Door

82 1/4

(2089)

2 5/8

(67)

4 in. (102 mm)

Required Air Gap

Dimensions shown as inches and (mm).

LifeLine Premier

Narrow Footprint Reach-in

2, 3, 4 and 5 Door Models

5 of 12P/N 0510308_B

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

NSF Certification

This merchandiser model is manufactured to meet ANSI/NSF
(National Sanitation Foundation) Standard #7 requirements for
construction, materials & cleanability.

LifeLine

Premier

RLN - RMN

See Page 4
for alternate
facade heights.

REFRIGERATION DATA

Note: This data is based on store temperature

and humidity that does not exceed 75°F and
55% R.H.

FF IC
Discharge Air (°F) –5 –12
Evaporator (°F) –11 –19
Unit Sizing (°F) –14 –22

Btu/hr/Door*

Parallel

1200 1270

Conventional

1225 1300

*Optional Energy Efficient Fan motors
reduce refrigeration load by 109 Btu/hr/Door.

DEFROST DATA

FF IC
Frequency (hr) 24 24
Defrost Water (lb/Dr/day) 1.2 1.2

(± 15% based on merchandiser configuration

and product loading.)

E

LECTRIC

FF IC
Temp Term (°F) 48° 48°
Failsafe (minutes) 45 45

GAS

Duration (minutes) 20 20

O

FFTIME

Not Recommended

CONVENTIONAL CONTROLS

Low Pressure Backup Control

FF IC

CI/CO (Temp °F)** –18°/ –34° – 26°/ –45°

Indoor Unit Only, Pressure Defrost
Termination (Temp °F)**

Not Recommended

**Use a Temperature Pressure Chart to
determine PSIG conversions.

Estimated Charge ***

2Dr 1.8lb 29 oz 0.8 kg
3Dr 2.7lb 43 oz 1.2 kg
4Dr 3.6lb 58 oz 1.6 kg
5Dr 4.6lb 74 oz 2.1 kg

***This is an average for all refrigerant types.
Actual refrigerant charge may vary by approx­imately

0.5 lb (8 oz / 0.2 kg).

Electrical Data

2Dr 3Dr 4Dr 5Dr

Number of Fans—12W 2 3 4 5

Amperes Watts

Merchandiser 2Dr 3Dr 4Dr 5Dr 2Dr 3Dr 4Dr 5Dr

Evaporator Fan

120V 60Hz Standard 1.30 1.95 2.60 3.25 100 150 200 250

120V 50Hz Standard 1.50 2.25 3.00 3.75 114 171 228 285

220V 60Hz Export 0.66 0.99 1.32 1.65 100 150 200 250

220V 50Hz Export 0.76 1.14 1.52 1.90 114 171 228 285

120V 60Hz Energy Efficient 0.60 0.90 1.20 1.50 36 54 72 90

220V 60Hz Energy Efficient 0.30 0.45 0.60 0.75 36 54 72 90

Door Anti-sweat Heaters (on fan circuit)

120V 50/60Hz Standard 1.54 2.31 3.08 3.86 185 278 370 463

220V 50/60Hz Export 0.84 1.26 1.68 2.10 185 278 370 463

Frame Anti-sweat Heaters (on fan circuit)

120V 50/60Hz Standard 0.78 1.18 1.57 1.97 94 141 188 236

220V 50/60Hz Export 0.43 0.64 0.85 1.07 94 141 188 236

Minimum Circuit Ampacity

120V 60Hz Standard 3.82 5.64 7.45 9.28

120V 50Hz Standard 4.02 5.94 7.85 9.78

220V 60Hz Export 2.13 3.09 4.05 5.02

220V 50Hz Export 2.23 3.24 4.25 5.27

120V 60Hz Energy Efficient 3.12 4.59 6.05 7.53

220V 60Hz Energy Efficient 1.77 2.55 3.33 4.12

Maximum Over Current Protection 120V 20 20 20 20
Maximum Over Current Protection 220V 15 15 15 15

Defrost

Drain Heaters (120V) 0.63 1.25 2.00 2.50 75 150 240 300

(Export: 220V 50 hz) 0.39 0.76 1.22 1.53 84 168 269 336

208V 1Ø Electric Defrost 6.72 10.08 13.46 16.82 1400 2100 2800 3500

(Export: 220V 50 hz) 7.11 10.66 14.24 17.79 1564 2345 3133 3914

Standard Vertical Lighting* 2Dr 3Dr 4Dr 5Dr 2Dr 3Dr 4Dr 5Dr

Hussmann EcoShine™ (24VDC) 0.45 0.68 0.90 1.13 54 81 108 135

Optional LED Lighting (24VDC)

Facade Lamps 0.79 1.17 1.54 1.92 19 28 37 46
Gooseneck Lamps (2 per merchandiser) 4.17 4.17 4.17 NA** 100 100 100 NA**
Dry Goods Lamps (both sides, 10 per side) 1.50 1.50 1.50 NA** 36 36 36 NA**

* Innovator or Innovator II

** Dry Goods sections are not available on 5-Door models.

U.S. & Canada 1-800-922-1919 • Mexico 1-800-522-1900

LifeLine Premier

RLN with Innovator Doors

Technical Data Sheet

6 of 12

LifeLine Premier

RLN

With

INNOVATOR Doors

Frozen Food & Ice Cream

Hussmann recommends against frame heater cycling with

Innovator

doors to prevent door seals from freezing to the

frames and tearing.

Product Data

Recommended Usable Cube 1(Cu Ft/Dr) 22.80 ft3 /Dr (0.65 m3 /Dr)
AHRI Total Display Area

2

(Sq Ft/Dr) 13.31 ft2/Dr (1.24 m2 /Dr)

Shelf Area

3

(Sq Ft/Dr) 28.50 ft2/Dr (2.65 m2 /Dr)

1

AHRI Refrigerated Volume less shelving and other unusable space: Refrigerated Volume/Unit of Length, ft3/ft [m3/m]

2

Computed using AHRI 1200 standard methodology: Total Display Area, ft2[m2]/Unit of Length, ft [m]

3

Shelf surface area is composed of bottom deck plus standard shelf complement, as shown in the Hussmann
Product Reference Guide. The standard shelf complement for this model is (5) rows of 22-inch shelves.

Product Data (Dry Goods Area Only)

TOTAL Gross Usable Cube (Volume for 2 DG per merchandiser) 10.33 ft3/ (0.29 m3 )

7 of 12P/N 0510308_B

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

LifeLine Premier

RLN

With INNOVATOR Doors

Frozen Food & Ice Cream

ESTIMATED SHIPPING WEIGHT

4

2 Dr 3 Dr 4 Dr 5 Dr Solid End (each)

Standard LifeLine Premier Merchandiser (12-Inch Facade, no Arch)

lb (kg) 925 (420) 1167 (529) 1578 (716) 1945 (882) 65 (29)

Standard LifeLine Premier Merchandiser (18-Inch Facade, no Arch)

lb (kg) 935 (424) 1182 (536) 1598 (725) 1970 (894) 74 (34)

LifeLine Premier Merchandiser with Two (2) Bump Out Partitions (12-Inch Facade, no Arch)

lb (kg) 1093 (496) 1335 (606) 1746 (792) 2113 (958) N/A

LifeLine Premier Merchandiser with Two (2) Bump Out Partitions (18-Inch Facade, no Arch)

lb (kg) 1115 (506) 1362 (618) 1778 (806) 2150 (975) N/A

LifeLine Premier Merchandiser with Two (2) Dry Goods Sections, Four (4) Partitions (12-Inch Facade, no Arch)

lb (kg) 1382 (627) 1624 (737) 2035 (923) NA N/A

LifeLine Premier Merchandiser with Two (2) Dry Goods Sections, Four (4) Partitions (18-Inch Facade, no Arch)

lb (kg) 1411 (640) 1658 (752) 2074 (941) NA N/A

LifeLine Premier Merchandiser with

Two (2) Bump Out Partitions, Two (2) Dry Goods Sections, Two (2) Partitions (12-Inch Facade, no Arch)

lb (kg) 1421 (645) 1663 (754) 2074 (941) NA N/A

LifeLine Premier Merchandiser with

Two (2) Bump Out Partitions, Two (2) Dry Goods Sections, Two (2) Partitions (18-Inch Facade, no Arch)

lb (kg) 1452 (659) 1699 (771) 2115 (959) NA N/A

Add 10 lb (5 kg) for Arch

4

Actual weights will vary according to optional kits included.

Preliminary

LifeLine Premier

RLN with Innovator Doors

Technical Data Sheet

8 of 12

A.S. Relay

Coil

BR

Evaporator Fans

1

Fan Relay

F

COM

N.O.

Rod Heater (Drain)

9

Y

Y

N.C.

7

7

1

3

W

Relay Control

c

25

Fan Relay

F

5

6

BK

COM

N.C.

6

A.S. Relay

A.S.

24

Door A.S. Heaters

Frame A.S. Heaters

21

22

2P

P

2P

P

12

11

10

120V POWER

16

13

14

26

C.O.R.

NEUTRAL

OR

120V POWER

OR

NEUTRAL

17

20

Switch

Evaporator Fan

Relay Coil

1

3

Rear Defrost Heater

R

R

C

8

R

R

Front Defrost Heater

R

5

4

BK

7

R

N.C.

7

8

8

Defrost Limit

208V

208V

1

2

3

4

6

O.O.R.

BK

Defrost Termination

Thermostat

Refrigeration

Thermostat

(Optional)

Pink

2

3

}

To
Condensing
Unit

Dark Blue

DB

C.O.R.

2

Defrost Termination

Thermostat

FIELD WIRED

DB

Terminal Blocks in Wireway

Low Temperature with

Electric Defrost

20

21

22

26

17

1234

56 7

81011 1413 16

LIGHTS

(120V)

DEFROST HEATERS

(208V)

CAUTION: When multiplexing
merchandisers equipped with defrost
heaters, if branch circuit overcurrent
protection is larger than the

circuit load, then additional
supplemental overcurrent protection
may be required per NEC Articles
210 and 240.

Low Temperature

24 2512

FANS & A.S.

(120V)

LIGHTS

(Neutral)

FANS & A.S. (Neutral)

Permanent Internal

Jumpers

R P

W

BRORR R R BK R R P

2P

OR 2P Y

Removable External

Jumpers

Refer to Innovator Reach-In

Glass Door, Installation and
Service manual, P/N 0425683,

for Innovator door and frame
replacement parts.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

THESE ARE MARKER COLORS (WIRE MAY VARY.)

R = Red P = Purple 2P = Purple (2 Bands) DB = Dark Blue BK = Black

LB = Light Blue Pink = Pink BR =Brown Y =Yellow OR = Orange W = White

BK

BK

BK

BK BK BK BK BK

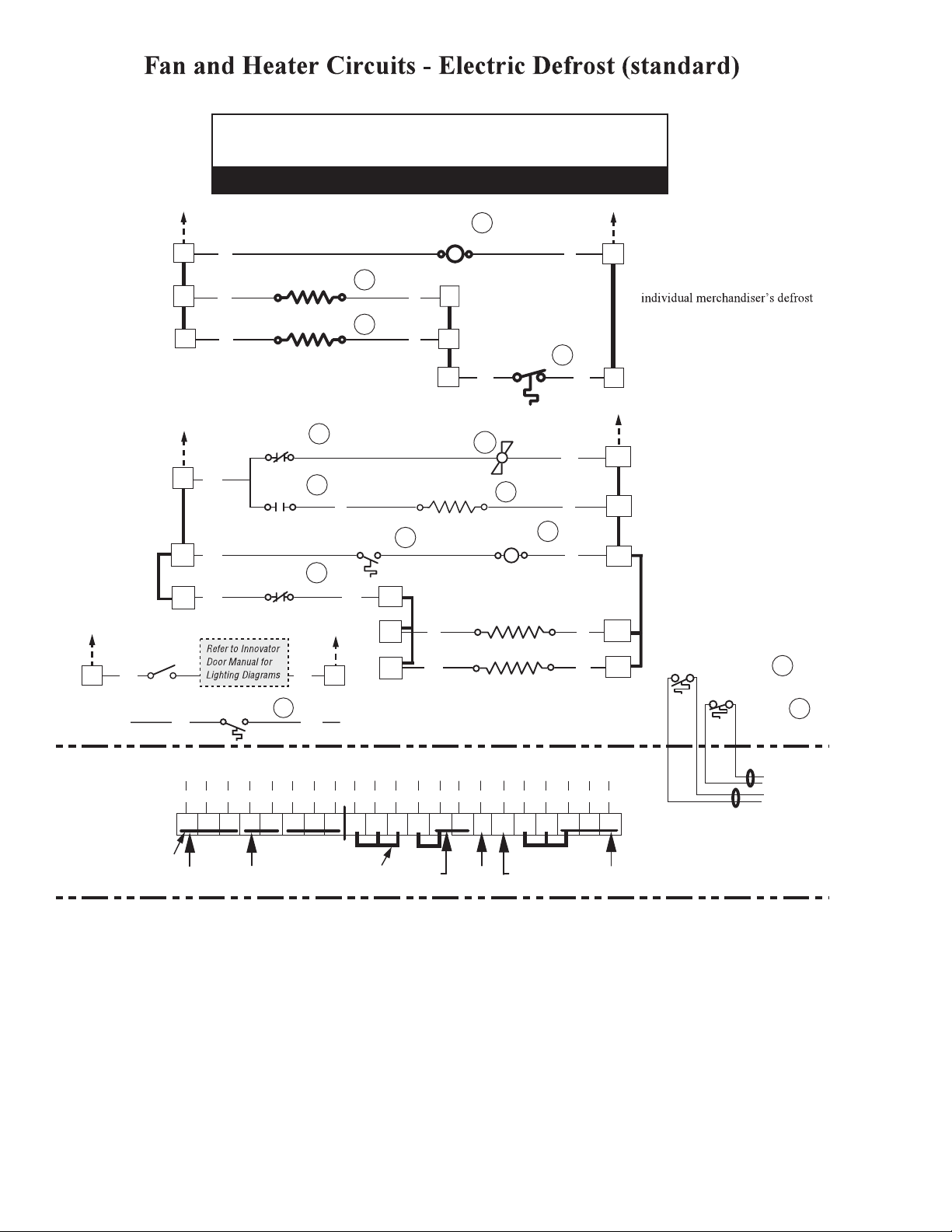

Electric Defrost Sequence - Low Temperature

1. Power from the defrost contactor energizes Defrost Heaters and 208V Evaporator Fan Relay Coil (7). Relay Contacts open the fan
circuit and energizes the Drain Pan Heater.

2. If the Defrost Heater raises internal air temperature above 90°F, the Defrost Limit Thermostat (4) will open.

3. Temperature rise of the evaporator closes the Relay Control Thermostat (5) at about 35°F, energizing 120V A.S. Relay Coil (6).
This relay’s contacts open the Frame and Door Heater Circuits.

4. When Defrost Termination Thermostat ends defrost period, the defrost contactor opens the Defrost Heater and Evaporator Fan
Relay Coil Circuits. The Drain Pan Heater goes off and fans are on.

5. Temperature fall of the evaporator opens the Relay Control Thermostat (5) at about 20°F, de-energizing 120V A.S. Relay Coil (6).
A.S. Relay Contacts close the Frame and Door Heater Circuits.

U.S. & Canada 1-800-922-1919 • Mexico 1-800-522-1900

9 of 12P/N 0510308_B

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

R = Red P = Purple 2P = Purple (2 Bands) DB = Dark Blue BK = Black

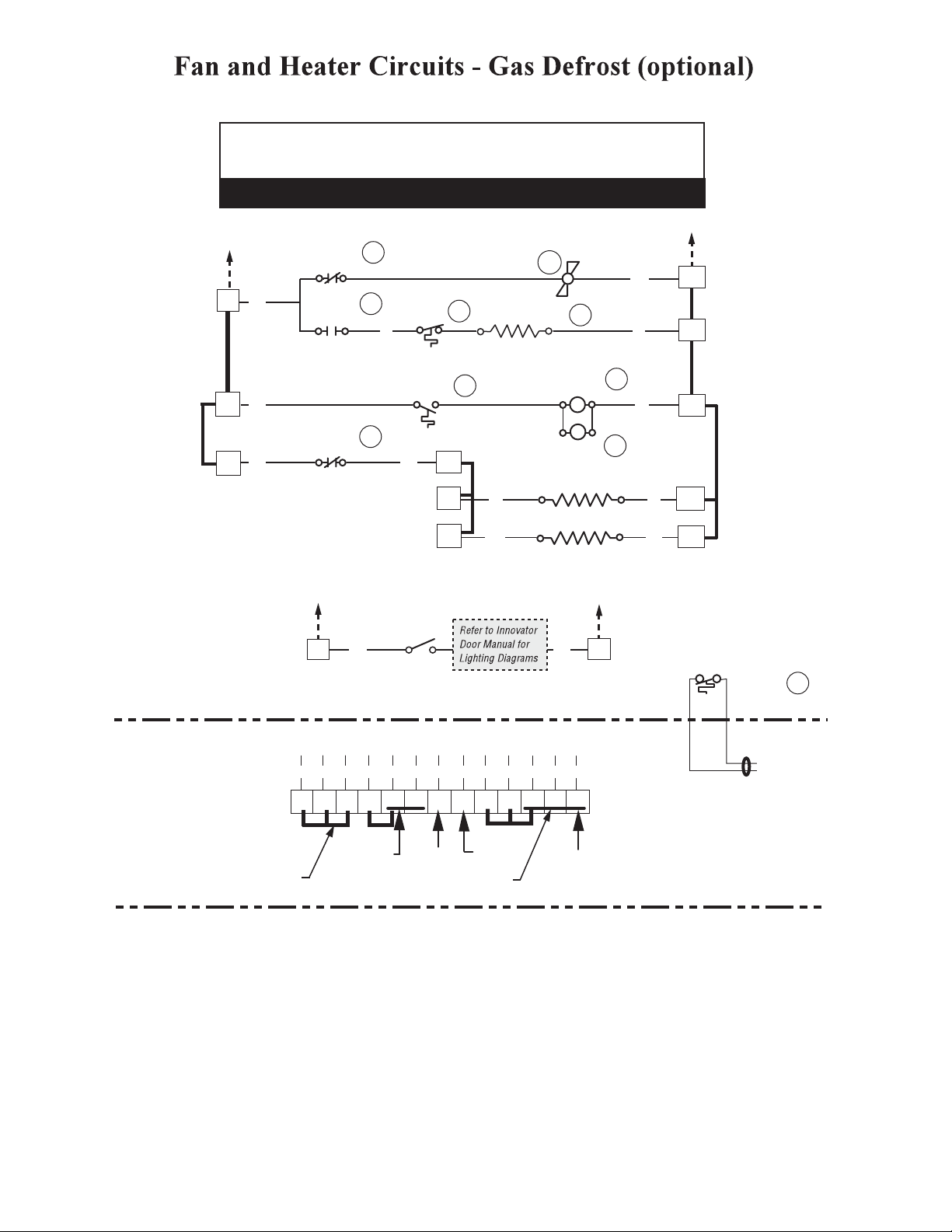

Gas Defrost Sequence - Low Temperature

1. Defrost vapor enters evaporator causing a rise in temperature. At about 35°F the Control Relay Thermostat

(5) closes

the A.S. Relay Coil (6) and Fan Relay Coil (7) circuit. The Relay opens the Fan, Door Heater, and Frame Heater
circuits, while energizing the Drain Pan Heater

(9).

2. If the Drain Pan Heater (9) raises internal air temperature above 90°F, the Heater Limit Thermostat (4) will open.

3. When the defrost timer ends a defrost period, the evaporator temperature will start to fall. At about 20°F, the Relay

Control Thermostat will open, de-energizing the A.S. Relay Coil (6) and Fan Relay Coil (7). The A.S. and Fan Relays
will open the Drain Pan Heater circuits, and will close the Fan, Door Heater, and Frame Heater circuits.

Preliminary

Preliminary

LB = Light Blue Pink = Pink BR =Brown Y =Yellow OR = Orange W = White

120V POWER

14

16

13

Low Temperature

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

THESE ARE MARKER COLORS (WIRE MAY VARY.)

Fan Relay

COM

BK

BK

BK BK

Fan Relay

A.S. Relay

COM

A.S.

7

F

N.C.

7

N.O.

Defrost Limit

Y

Relay Control

F

Evaporator Fans

4

Rod Heater (Drain)

O.O.R.

5

C.O.R.

6

N.C.

10

11

12

P

2P

1

9

A.S. Relay

Coil

3

1

c

c

Fan Relay

Coil

Frame A.S. Heaters

Door A.S. Heaters

NEUTRAL

BR

Y

6

7

26

Refer to Innovator Reach-In

Glass Door, Installation and

25

Service manual, P/N 0425683,
for Innovator door and frame
replacement parts.

W

24

P

22

2P

21

NEUTRAL

OR

20

BROR

W

24 2512

26

FANS & A.S. (Neutral)

Refrigeration

Thermostat

(Optional)

Pink

}

3

To
Condensing
Unit

Low Temperature with

Gas Defrost

Removable External

Jumpers

120V POWER

OR

17

Terminal Blocks in Wireway

P

BK

10 11 1413 16

BK BK BK

2P

FANS & A.S.

(120V)

Switch

OR 2P Y

20

17

21

LIGHTS

(120V)

LIGHTS

(Neutral)

Permanent Internal

Jumpers

P

22

LifeLine Premier

RLN with Innovator Doors

Technical Data Sheet

10 of 12

U.S. & Canada 1-800-922-1919 • Mexico 1-800-522-1900

Standard
Vertical
Lighting

Hussmann
EcoShine

™

LED
Fixtures

SWITCH

LIGHT

BLACK

WHITE

BLACK

12

OUTPUT

WIREWAY

RED

RED

BLACK

INPUT

BLUE

RED

RED

BLACK

BLACK

10

1211

RED

TERMINAL BLOCK

20

17

WHITE

BLACK

BLACK

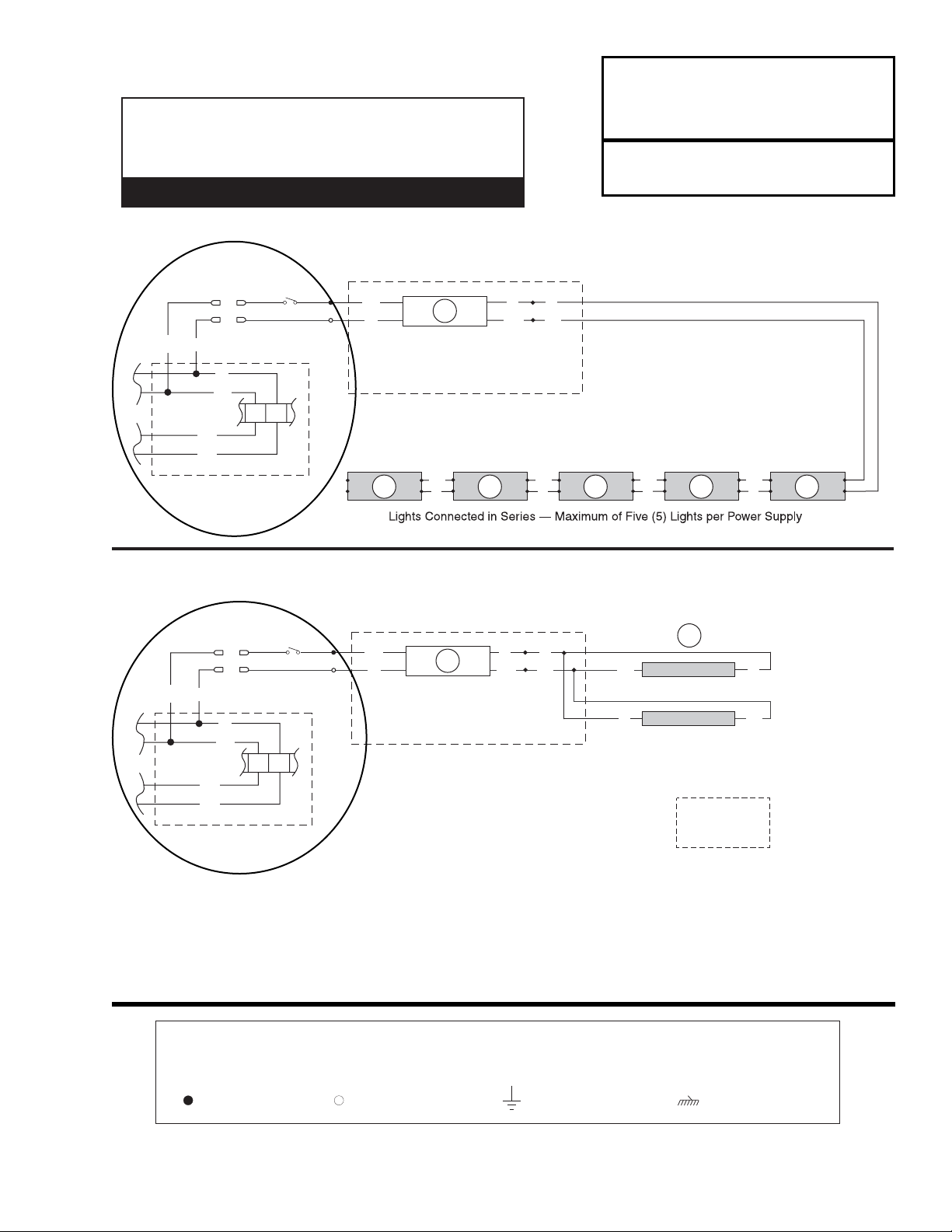

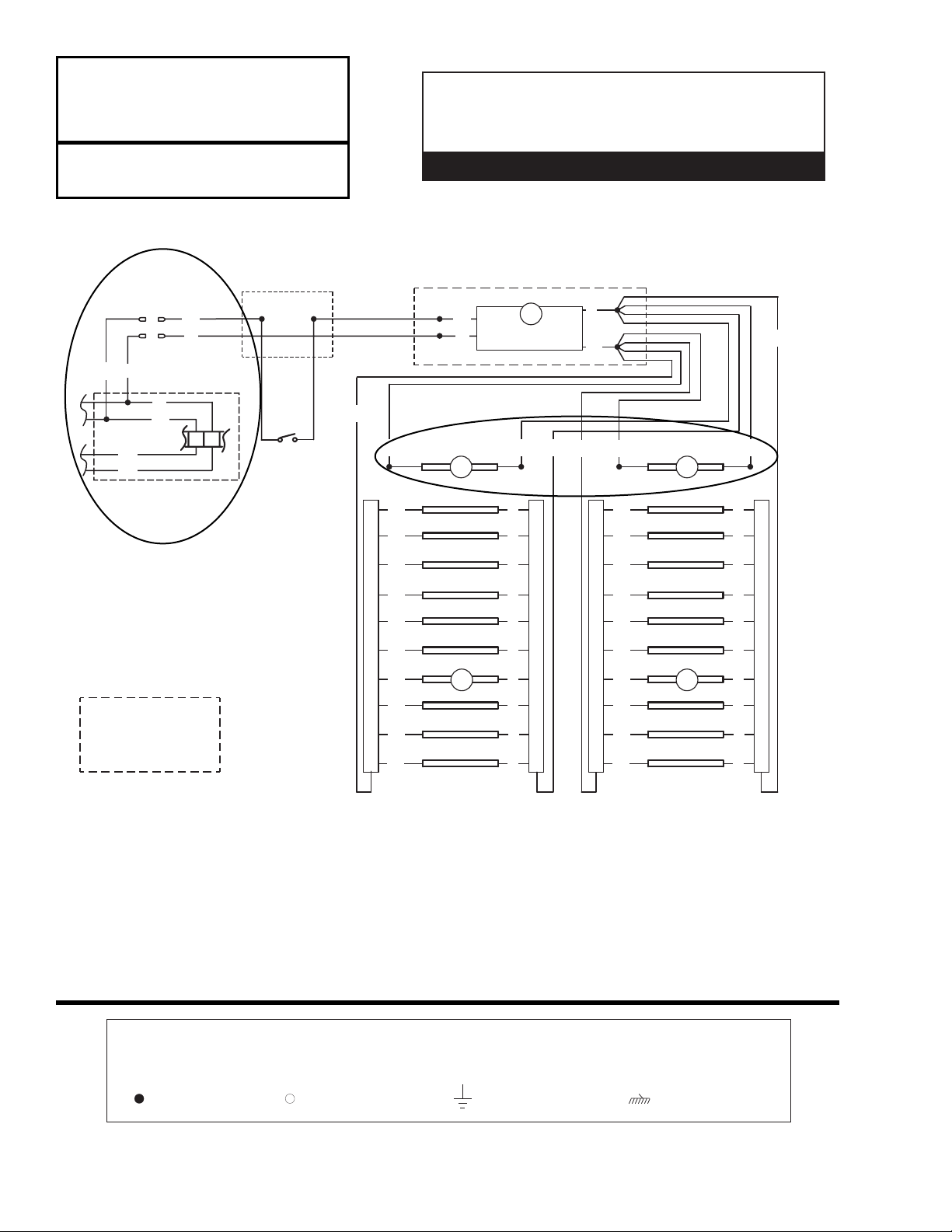

2 DOOR LED LIGHT WIRING DIAGRAM

SWITCH

LIGHT

BLACK

INPUT

WHITE

12

RED

BLACK

RED

OUTPUT

10

BLUE

RED

11

RED

BLACK

BLACK

RED

11

RED

BLACK

BLACK

12

RED

TERMINAL BLOCK

17

20

WHITE

BLACK

WIREWAY

BLACK

BLACK

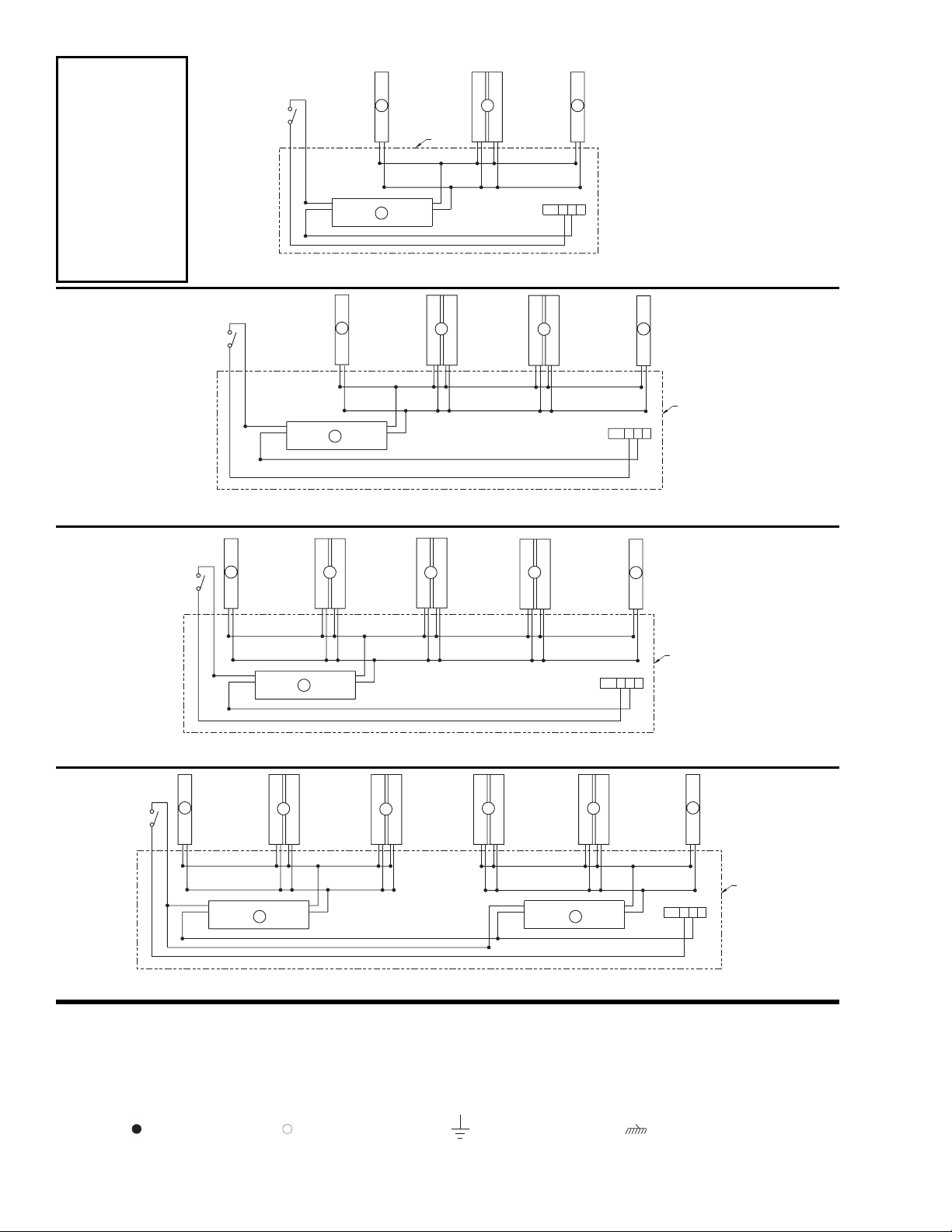

3 DOOR LED LIGHT WIRING DIAGRAM

SWITCH

LIGHT

12

RED

BLACK

BLACK

INPUT

WHITE

BLACK

RED

11

RED

BLACK

BLACK

RED

BLUE

OUTPUT

RED

11

RED

BLACK

BLACK

10

RED

11

RED

BLACK

BLACK

12

RED

TERMINAL BLOCK

17

20

WHITE

BLACK

BLACK

WIREWAY

4 DOOR LED LIGHT WIRING DIAGRAM

SWITCH

LIGHT

RED

12

BLACK

BLACK

WHITE

RED

11

RED

BLACK

BLACK

11

RED

RED

BLACK

BLACK

RED

BLUE

INPUT

OUTPUT

10

RED

11

RED

BLACK

BLACK

BLACK

INPUT

WHITE

11

RED

RED

BLACK

BLACK

RED

OUTPUT

10

BLUE

TERMINAL BLOCK

12

RED

BLACK

WIREWAY

17 20

BLACK

BLACK

BLACK

5 DOOR LED LIGHT WIRING DIAGRAM

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

R = Red Y = Yellow G = Green BL = Blue BK = Black W = White

= 120VP

OWER

= 120V NEUTRAL = FIELD GROUND

= CASE GROUND

11 of 12P/N 0510308_B

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

LifeLine Premier

RLN

With INNOVATOR Doors

Frozen Food & Ice Cream

Preliminary

Optional Lighting Circuits

Preliminary

R = Red P = Purple 2P = Purple (2 Bands)

DB = Dark Blue BK = Black BL = Blue

BR =Brown Y =Yellow OR = Orange W = White

THESE ARE MARKER COLORS (WIRE MAY VARY.)

Optional External Facade LED Wiring

120V AC

from Wireway

W

BK

W

BK

OR

OR

Terminal Block

Switch

17 20

Light

BK

W

Facade Light

Assembly

13 13131313

10

Power Supply

24V DC

BL

R

Optional External Gooseneck LED Wiring

17 20

Light

Switch

BK

W

10

Power Supply

24V DC

120V AC

from Wireway

W

BK

W

BK

OR

OR

Terminal Block

R
BL

R

BL

BL

R

BL

R

BL

BL

R

14

R

Gooseneck

BL

R

Light

Gooseneck

Light

Enclosure

or Wireway

BL

R

R

BL

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

= 120VPOWER

= 120V NEUTRAL = FIELD GROUND

= CASE GROUND

LifeLine Premier

RLN with Innovator Doors

Technical Data Sheet

12 of 12

U.S. & Canada 1-800-922-1919 • Mexico 1-800-522-1900

LifeLine Premier

RLN

With INNOVATOR Doors

Frozen Food & Ice Cream

Optional Lighting Circuits

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

R = Red P = Purple 2P = Purple (2 Bands)

DB = Dark Blue BK = Black BL = Blue

BR =Brown Y =Yellow OR = Orange W = White

Optional External Dry Goods LED Wiring

120 VAC

from Wireway

BK

W

W

BK

W

BK

OR
OR

Terminal Block

17 20

Light Switch

BL

BL

BL

THESE ARE MARKER COLORS (WIRE MAY VARY.)

BK

W

15

10

Input

Power Supply

R

RBL

R

RBL

RBL

RBL

R

Output

BL

R

BL

BL

15

BL

R

R

RBL

R

RBL

RBL

RBL

BL

Pilaster / Shelf Standard

BL

BL

BL

15

Enclosure

or Wireway

BL

Pilaster / Shelf Standard

BL

BL

BL

15

R

Pilaster / Shelf Standard

R

RBL

R

R

Shelf Lamps (up to 10 per end)

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

= 120VPOWER

= 120V NEUTRAL = FIELD GROUND

= CASE GROUND

R

Pilaster / Shelf Standard

R

RBL

R

R
