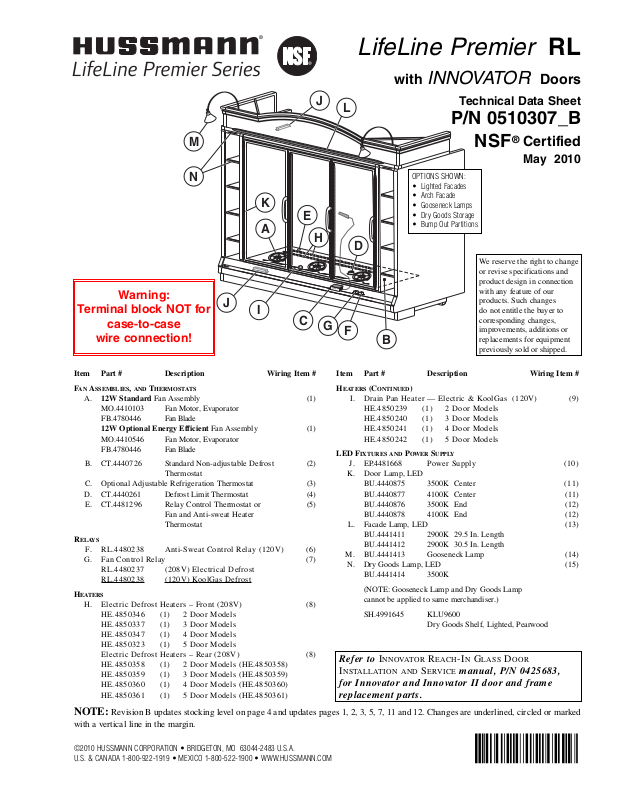

Hussmann Lifeline RL Specifications

®

LifeLine Premier

RL

with

INNOVATOR

Doors

Technical Data Sheet

P/N 0510307_B

NSF

®

Certified

May 2010

We reserve the right to change
or revise specifications and
product design in connection
with any feature of our
products. Such changes
do not entitle the buyer to
corresponding changes,
improvements, additions or
replacements for equipment
previously sold or shipped.

OPTIONS SHOWN:

• Lighted Facades

• Arch Facade

• Gooseneck Lamps

• Dry Goods Storage

• Bump Out Partitions

Warning:

Terminal block NOT for

case-to-case

wire connection!

Item Part # Description Wiring Item #

F

AN ASSEMBLIES, AND THERMOSTATS

A. 12W Standard Fan Assembly (1)

MO.4410103 Fan Motor, Evaporator
FB.4780446 Fan Blade
12W Optional Energy Efficient Fan Assembly (1)
MO.4410546 Fan Motor, Evaporator
FB.4780446 Fan Blade

B. CT.4440726 Standard Non-adjustable Defrost (2)

Thermostat
C. Optional Adjustable Refrigeration Thermostat (3)
D. CT.4440261 Defrost Limit Thermostat (4)

E. CT.4481296 Relay Control Thermostat or (5)

Fan and Anti-sweat Heater

Thermostat

R

ELAYS

F. RL.4480238 Anti-Sweat Control Relay (120V) (6)

G. Fan Control Relay (7)

RL.4480237 (208V) Electrical Defrost
RL.4480238 (120V) KoolGas Defrost

H

EATERS

H. Electric Defrost Heaters – Front (208V) (8)

HE.4850346 (1) 2 Door Models
HE.4850337 (1) 3 Door Models
HE.4850347 (1) 4 Door Models
HE.4850323 (1) 5 Door Models
Electric Defrost Heaters – Rear (208V) (8)
HE.4850358 (1) 2 Door Models (HE.4850358)
HE.4850359 (1) 3 Door Models (HE.4850359)
HE.4850360 (1) 4 Door Models (HE.4850360)
HE.4850361 (1) 5 Door Models (HE.4850361)

Item Part # Description Wiring Item #

H

EATERS (CONTINUED)

I. Drain Pan Heater — Electric & KoolGas (120V) (9)

HE.4850239 (1) 2 Door Models
HE.4850240 (1) 3 Door Models
HE.4850241 (1) 4 Door Models
HE.4850242 (1) 5 Door Models

LED F

IXTURES AND POWER

SUPPLY

J. EP.4481668 Power Supply (10)

K. Door Lamp, LED

BU.4440875 3500K Center (11)
BU.4440877 4100K Center (11)
BU.4440876 3500K End (12)
BU.4440878 4100K End (12)

L. Facade Lamp, LED (13)

BU.4441411 2900K 29.5 In. Length
BU.4441412 2900K 30.5 In. Length

M. BU.4441413 Gooseneck Lamp (14)

N. Dry Goods Lamp, LED (15)

BU.4441414 3500K

(NOTE: Gooseneck Lamp and Dry Goods Lamp
cannot be applied to same merchandiser.)

SH.4991645 KLU9600

Dry Goods Shelf, Lighted, Pearwood

P/N0510307B

©2010 HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM

Refer to INNOVATOR REACH-IN GLASS DOOR
INSTALLATION AND SERVICE manual, P/N 0425683,

for Innovator and Innovator II door and frame
replacement parts.

NOTE: Revision B updates stocking level on page 4 and updates pages 1, 2, 3, 5, 7, 11 and 12. Changes are underlined, circled or marked

with a vertical line in the margin.

M

N

K

E

A

J

I

C

J

L

H

G

D

F

B

LifeLine Premier

RL with Innovator Doors

Technical Data Sheet

2 of 12

U.S. & Canada 1-800-922-1919 • Mexico 1-800-522-1900

Reach-In

2, 3, 4 & 5 Door

Engineering

Plan Views

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 1/4
Merchandiser Liquid Line (in.)

3

/8

Merchandiser Suction Line (in.)

7

/8

LifeLine Premier

RL - RM

Plan View

05-2010

Base 5-door merchandiser is shown above, without Bump Out, Dry Goods sections, Partitions or Ends.

Illustrated below is a 4-door merchandiser with Dry Goods cabinets and Bump Out end partitions.

Refer to chart on Page 3 for detailed dimensional information on options.

Dimensions shown as inches and (mm).

Dimensions shown as inches and (mm).

4 in. (102 mm ) Required Air Gap
from Merchandiser Insulated Panel
to Wall or Flat Surface

A

C

D

32

(813)

34

(879)

5

7

(178)

5

41

(1057)

/8

Skid/
External
Base

48

(1219)

6

(152)

Bottom
Front
Support

Waste Outlet

Refrigeration Outlet

Splashguard

Relay & Terminal

Block Location

(see note *)

13/4

(44)

Door Swing

Clearance

B

4

(102)

(see note *)

13/4

(44)

Electrical Wireway

Water Seal

(see note **)

1

26

/2

(673)

Front

5-Door Shown

LifeLine
Plan View

2, 3 & 4 Door

A

4 in. (102 mm ) Required Air Gap
from Merchandiser Insulated Panel
to Wall or Flat Surface

C

15

(387)

1

/4

(305)

/8

43

(1111)

12

3

/4

70

(1784)

1

/4

2 7/8

(327)

10 3/4

(273)

Shelf

Area

Usable

Width

5

41

7

(178)

/8

(1057)

Skid/

External

Base

Bottom
Front
Support

48

(1219)

Waste Outlet

Splashguard

Water Seal

(see note **)

4

(102)

Electrical Wireway

(see note *)

3

1

/4

(44)

Front

4-Door Shown

6

(152)

Refrigeration

Relay & Terminal

Block Location

Outlet

1 3/4

(44)

Door Swing

Clearance

55

(879)

43

(1111)

5

/8

(1416)

3

/4

32

(813)

D

34

Shelf

Area

B

(see note *)

1

26

/2

(674)

from Bumper

3

/4

82

(2089)

1

/4

3 of 12P/N 0510307_B

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

LifeLine Premier

RL

With INNOVATOR Doors

Frozen Food & Ice Cream

Plan View Dimensions for

LifeLine Premier

Options

Abbreviations: DG = Dry Goods section BO = Bump Out

General 2 Dr 3 Dr 4 Dr 5 Dr

(A) Merchandiser Length 62 (1575) 92

1

/2 (2350) 122 7/8 (3121) 153 3/8 (3896)

(A) Merchandiser Length BO includes 2 bump-out ends 66 (1676) 96 1/2 (2451) 126 7/8 (3222) 157 3/8 (3997)

(A) Merchandiser Length DG includes 4 ends and dry goods cabinets 92 1/

2 (2350) 123 (3124) 153

3

/

8 (3896) NA

Maximum O/S dimension of merchandiser back to front *** 43

3

/4 (1111) 43 3/4 (1111) 43 3/4 (1111) 43 3/4 (1111)

Maximum O/S dimension of merchandiser back to front BO *** 55 3/

4 (1416) 55

3

/

4 (1416) 55

3

/

4 (1416) 55

3

/

4 (1416)

***

Includes bumper. Add 26 1/

2 in. (673 mm) for door swing.

Interior width of dry goods cabinet 10 3/

4 (273) 10

3

/

4 (273) 10

3

/

4 (273) NA

Interior depth of dry goods cabinet 12

7

/

8 (327) 12

7

/

8 (327) 12

7

/

8 (327) NA

Back of merchandiser to rear of splashguard 39

7

/

8 (1013) 39

7

/

8 (1013) 39

7

/

8 (1013) 39

7

/

8 (1013)

Back of merchandiser to rear of splashguard BO 51

7

/

8 (1318) 51

7

/

8 (1318) 51

7

/

8 (1318) 51

7

/

8 (1318)

Width of Skid rail 3

3

/4 (95) 3 3/4 (95) 3 3/4 (95) 3 3/4 (95)

Width of Bottom Front Support 6 (152) 6 (152) 6 (152) 6 (152)

Stub-up area between front support and splashguard 3 1/8 (79) 3 1/8 (79) 3 1/8 (79) 3 1/8 (79)

Electrical Service

(B) RH end of merchandiser to the center of nearest knockout 4 (102) 4 (102) 4 (102) 4 (102)

(B) RH end of merchandiser to the center of nearest knockout BO 6 (152) 6 (152) 6 (152) 6 (152)

(B) RH end of merchandiser to the center of nearest knockout DG 19 1/4 (489) 19 1/4 (489) 19 1/4 (489) NA

RH end of merchandiser to the center of LH knockout 58 (1473) 88 1/2 (2248) 118 7/8 (3019) 149 3/8 (3794)

Back O/S of merchandiser with bump-out to center of knockout 53 5/

8 (1362) 53

5

/

8 (1362) 53

5

/

8 (1362) 53

5

/

8 (1362)

* NOTE: Electrical Field Wiring Connection Point is at terminal.

Waste Outlet

(C) Right end of merchandiser to center of waste outlet 23 7/8 (606) 54 1/4 (1378) 46 1/4 (1175) 76 5/8 (1946)

(C) Right end of merchandiser to center of waste outlet BO 25 7/

8 (657) 56

1

/

4 (1429) 48

1

/

4 (1226) 78

5

/

8 (1997)

(C) Right end of merchandiser to center of waste outlet DG 39 (991) 69

1

/

2 (1765) 61

1

/

2 (1562) NA

Back O/S of merchandiser with bump-out to center of waste outlet 46

5

/8 (1184) 46 5/8 (1184) 46 5/8 (1184) 46 5/8 (1184)

Water Seal

Edge of water seal to center of waste outlet 13 (330) 13 (330) 13 (330) 13 (330)

Schedule 40 PVC drip pipe 1 1/4 (32) 1 1/4 (32) 1 1/4 (32) 1 1/4 (32)

** NOTE: Field installed water seal outlets, tees, and connectors are shipped with merchandiser.

Refrigeration Outlet

(D) RH end of merchandiser to center of RH refrigeration outlet 5 3/

8 (136) 5

3

/

8 (136) 5

3

/

8 (136) 5

3

/

8 (136)

(D) RH end of merchandiser to center of RH refrigeration outlet BO 7

3

/8 (187) 7 3/8 (187) 7 3/8 (187) 7 3/8 (187)

(D) RH end of merchandiser to center of RH refrigeration outlet DG 20 5/8 (524) 20 5/8 (524) 20 5/8 (524) NA

Back O/S of merchandiser with bump-out to center of refrigeration outlet 44 (1118) 44 (1118) 44 (1118) 44 (1118)

Outside bottom front supports from end of merchandiser 7 (178) 7 (178) 7 (178) 7 (178)

Outside bottom front supports from end of merchandiser BO 9 (229) 9 (229) 9 (229) 9 (229)

Outside bottom front supports from end of merchandiser DG 26 1/

2 (673) 26

3

/

4 (679) RH 26

1

/

4 (667) NA

37

1

/2 (952) LH

Center bottom front support from Centerline 24 (610) 24 (610) 24 (610) 24 (610)

Center bottom front support from Centerline BO 24 (610) 24 (610) 24 (610) 24 (610)

Center bottom front support from Centerline DG 6 3/

4 (171) LH 8

3

/

4 (222) RH 24 (610) NA

Distance between Center and Outside supports will vary

LifeLine Premier

RL with Innovator Doors

Technical Data Sheet

4 of 12

U.S. & Canada 1-800-922-1919 • Mexico 1-800-522-1900

LifeLine Premier

RL

With INNOVATOR Doors

Frozen Food & Ice Cream

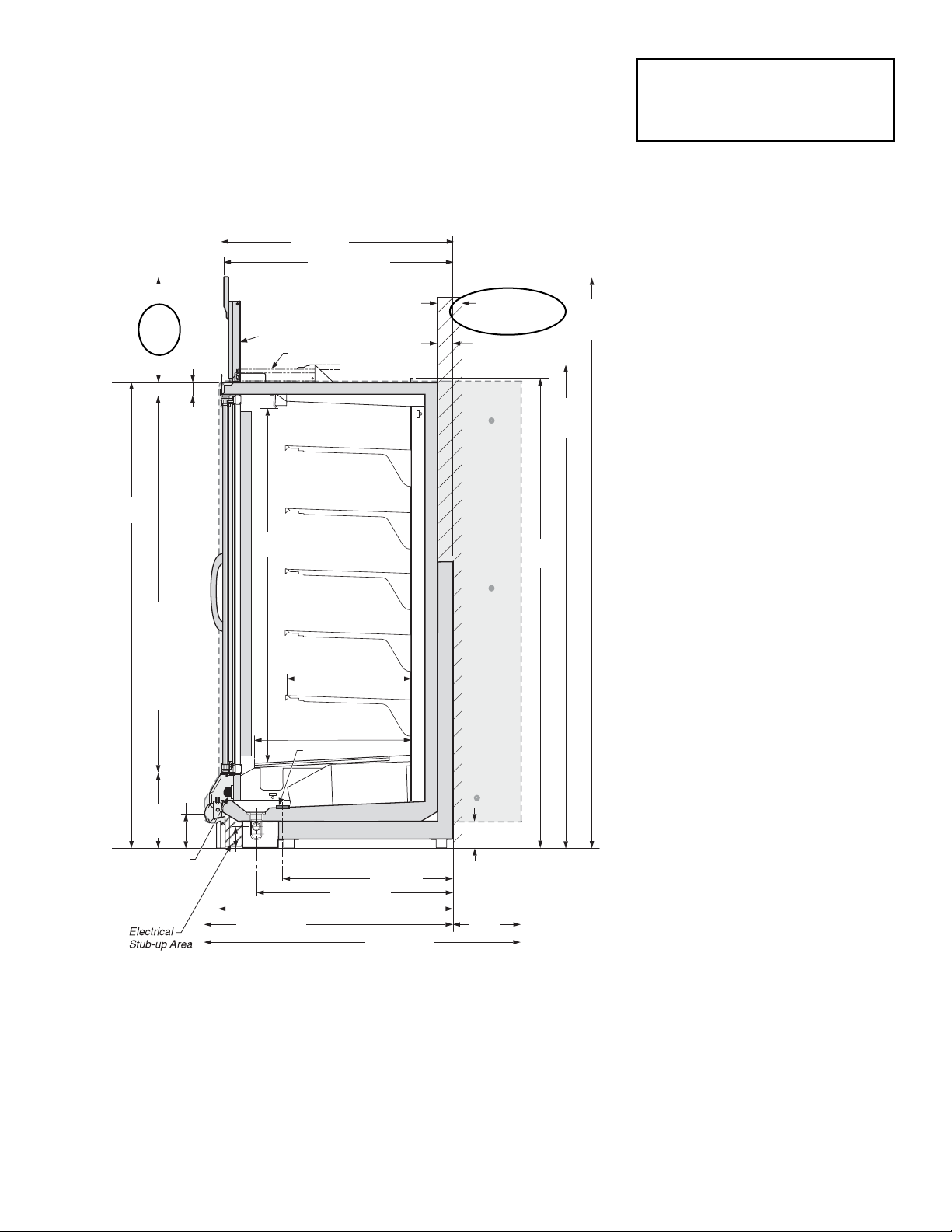

Facade Options in Cross Section

Partition and End ProfilesDry Goods Cross-Section

12 1/8

(308)

18 1/8

(460)

11

(279)

Facade (Installed Position)

Facade (Shipping Position)

12 in. Straight Facade

Facade (Installed Position)

Facade (Shipping Position)

18 in. Straight Facade

Gooseneck

Lamp

8

(203)

87 1/2

(2222)

Shipped

100 1/2

Installed

87 1/2

(2222)

Shipped

94 1/2

(2401)

Installed

(2553)

17 1/2

(445)

23 1/2

(597)

Facade (Installed Position)

Facade (Shipping Position)

12 in. Arch Facade

Facade (Installed Position)

Facade (Shipping Position)

18 in. Arch Facade

87 1/2

(2222)

Shipped

87 1/2

(2222)

Shipped

99 7/8

(2537)

Installed

105 7/8

(2689)

Installed

Facade

Lamp

64 1/2

(1638)

Usable

Height

Maximum

Stocking Height

12 7/8 (327)

Usable Depth

Fixed Shelf

Electrical Connection

for Shelf Lamps

Adjustable

Shelves

43 3/4 (1110)

55 3/4 (1416)

Bump Out

12

(305)

77 5/8

(1972)
