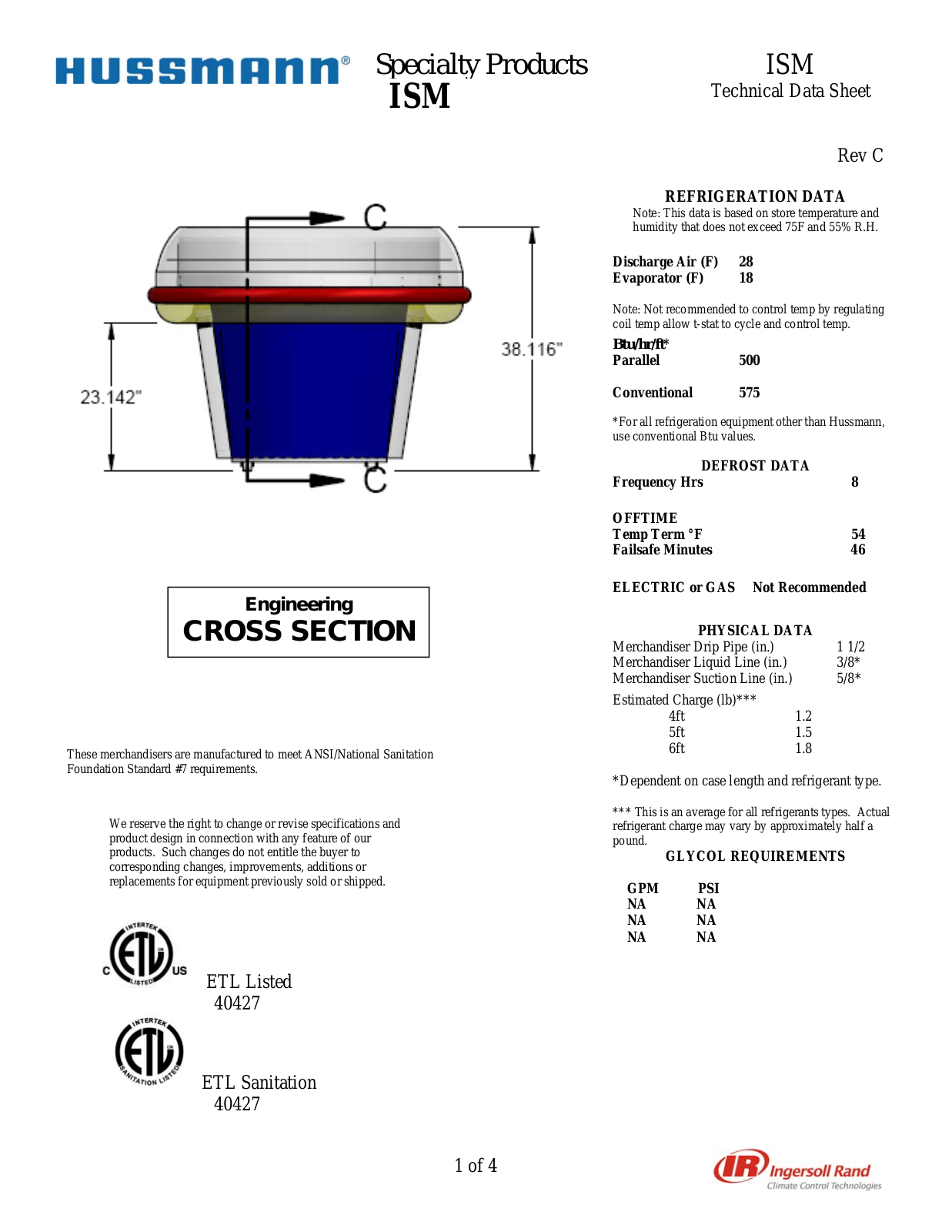

Hussmann ISM Specifications

Page 1
4
Specialty Products
ISM
Technical Data Sheet
ISM
REFRIGERATION DATA
Note: This data is based on store temperature and humidity that does not exceed 75F and 55% R.H.
Discharge Air (F) 28 Evaporator (F) 18
Note: Not recommended to control temp by regulating coil temp allow t-stat to cycle and control temp.
Btu/hr/ft* Parallel 500
Conventional 575
*For all refrigeration equipment other than Hussmann, use conventional Btu values.
DEFROST DATA
Frequency Hrs 8
CROSS SECTION
Engineering
These merchandisers are manufactured to meet ANSI/National Sanitation Foundation Standard #7 requirements.
We reserve the right to change or revise specifications and product design in connection with any feature of our products. Such changes do not entitle the buyer to corresponding changes, improvements, additions or replacements for equipment previously sold or shipped.
OFFTIME Temp Term °F 54 Failsafe Minutes 46
ELECTRIC or GAS Not Recommended
Merchandiser Drip Pipe (in.) 1 1/2 Merchandiser Liquid Line (in.) 3/8* Merchandiser Suction Line (in.) 5/8*
Estimated Charge (lb)***
*Dependent on case length and refrigerant type.
*** This is an average for all refrigerants types. Actual refrigerant charge may vary by approximately half a pound.
GPM PSI NA NA NA NA NA NA
PHYSICAL DATA
4ft 1.2 5ft 1.5 6ft 1.8
GLYCOL REQUIREMENTS
40427
ETL Listed
Rev C
ETL Sanitation
40427
1 of 4

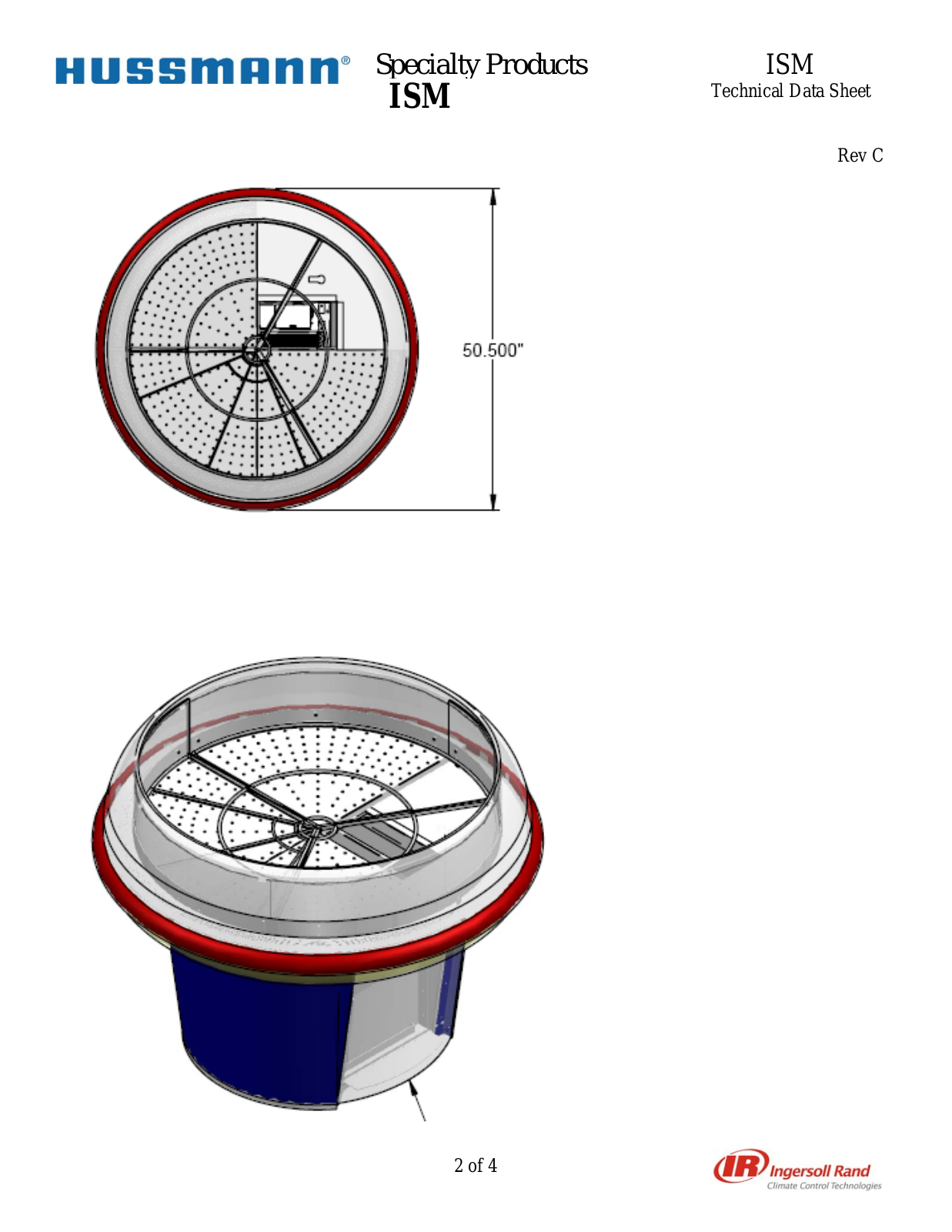

Page 2
4
Specialty Products
ISM
ISM
Technical Data Sheet
Rev C
2 of 4

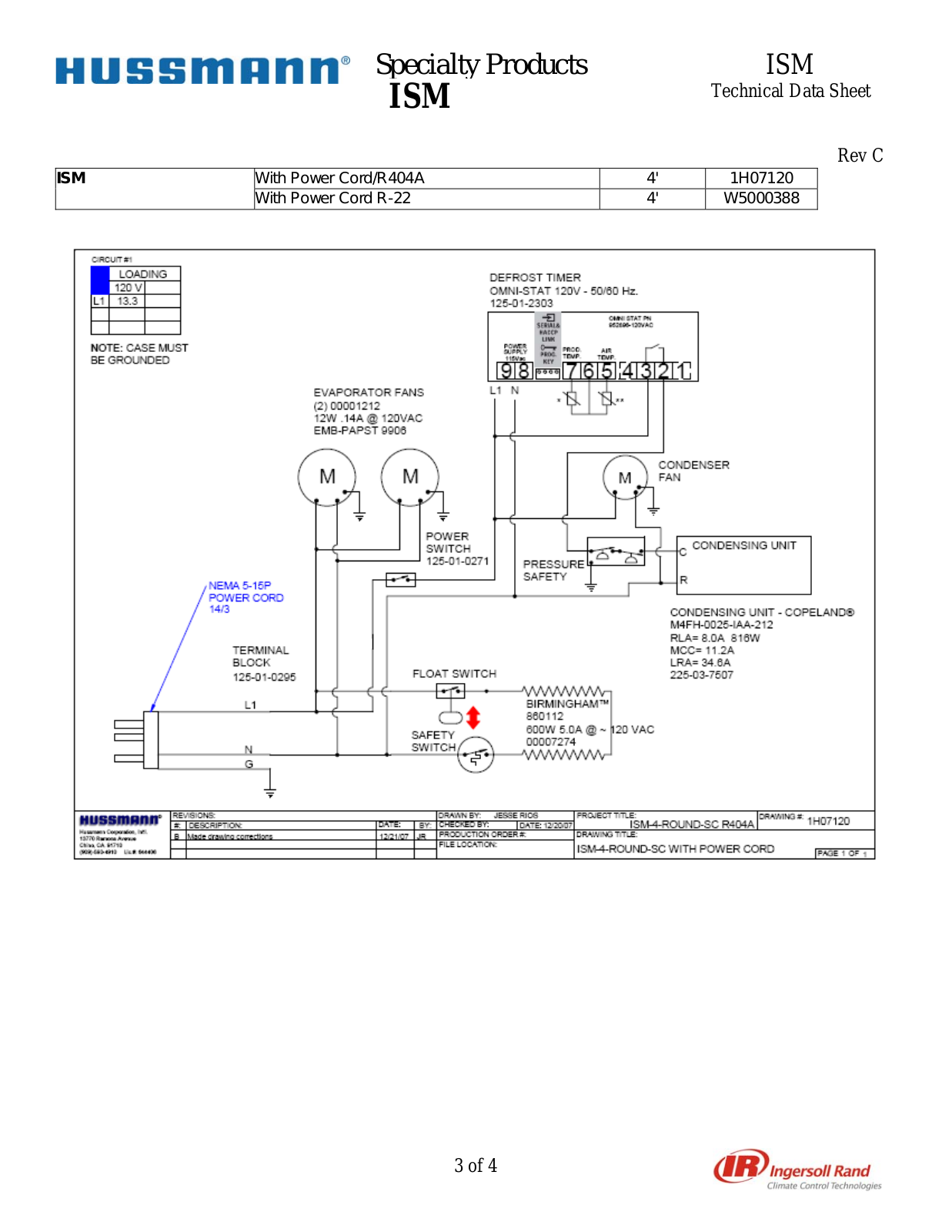

Page 3
4
ISM
Specialty Products
ISM
With Power Cord/R404A 4' 1H07120 With Power Cord R-22 4' W5000388
Technical Data Sheet
ISM
Rev C
3 of 4

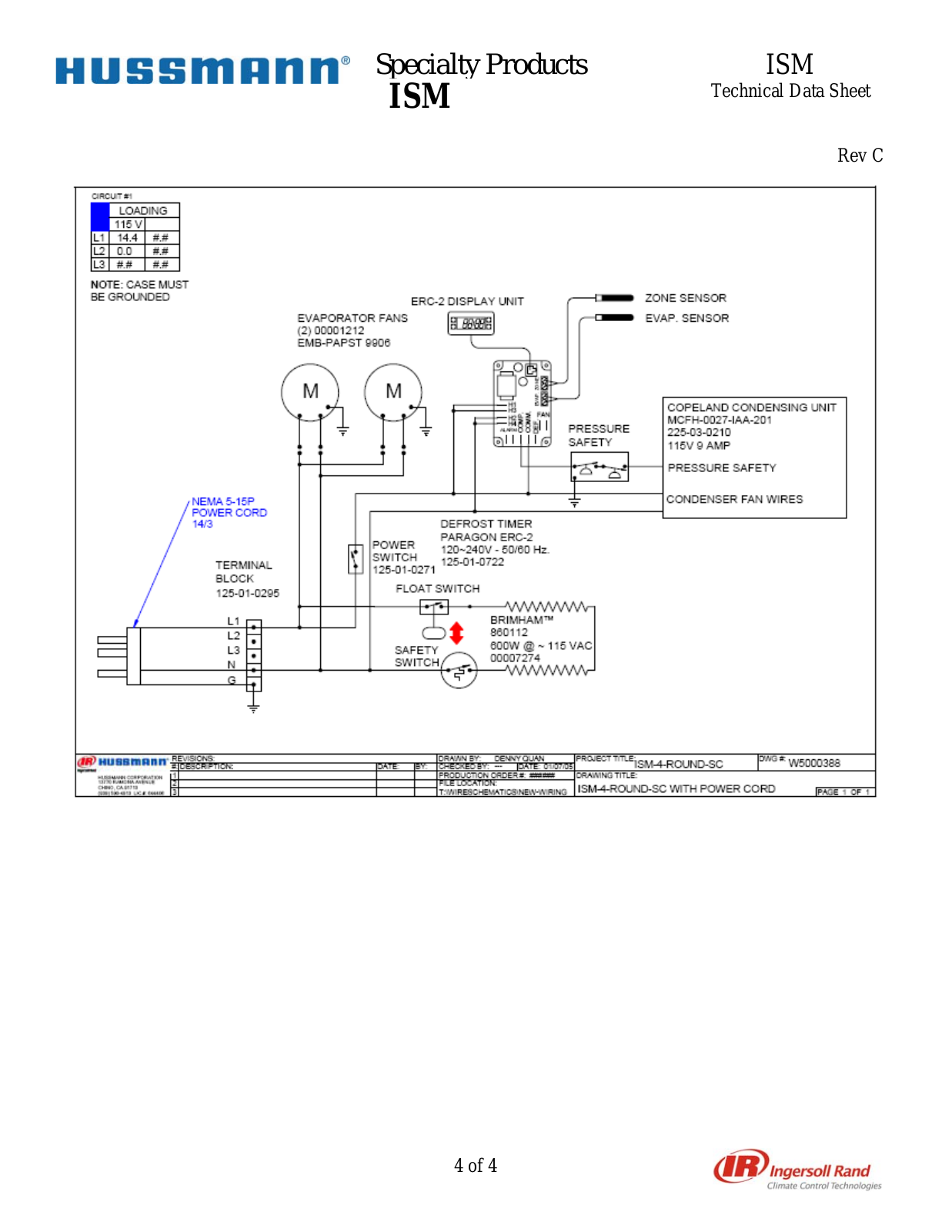

Page 4
4
Specialty Products
ISM
ISM
Technical Data Sheet
Rev C
4 of 4
