Curved Top (With Sliding Tempered Glass Lids) and Flat Top With Interior Step (and Sliding Tempered Glass Lids)
Mobile Spot Merchandisers
VERSATILITY – Choice of Slant
Top and Flat Top … Solid White
Exterior Panels for Custom
Graphic Decals.
MOBILITY – Standard Swivel
Casters With Two Front Locking
Allows Spots to be Moved Anywhere
in Your Store at any Time.
FLEXIBILITY – Multi Temperature
Capability From Freezer to Refrigerator
Available in all Models.
HSD/SC
HSD/SC-Y
Mobile Spot Merchandisers
HSD/SC/Y PLAN VIEW HSD/SC/Y CROSS SECTION
Max
Baskets Approx.
AB C DE F G H Fuse Per Weight
Model Length Depth Height* Cu. Ft. Length Depth Height Step Height Step Width Voltage Amps Cabinet (Lbs)
HSD/SC-190Y 36.50 23.60 34.20 6.70 31.26 18.35 24.50 7.93 11.81 115/60/1 15 3 - A 128
HSD/SC-220Y 40.60 23.60 34.20 7.80 35.43 18.35 24.50 7.93 11.81 115/60/1 15 3 - B 137
HSD/SC-280Y 48.60 23.60 34.20 9.90 43.62 18.35 24.50 7.93 11.81 115/60/1 15 4 - A 150
HSD/SC-320Y 54.40 23.60 34.20 11.30 49.21 18.35 24.50 7.93 11.81 115/60/1 15 4 - B 159
Baskets for curved glass cases will not fit in any other style case. *Height includes 2.6” caster.
E
XTERNAL
I
NTERNAL
(All Dimensions Inches)
HSD/SC-Y
STANDARD FEATURES
●
Tempered Glass Sliding Lids
●
“E” Heat Reflective Coated Sliding Glass Lids
●
Lid Door Locks
●
Swivel Casters (Front Two Locking)
●
One Hanging Wire Basket
●
1” Interior Clean Out Drain in Bottom
●
Textured Aluminum Interiors With White Baked
Enamel Exterior
●
Mounting for Lighted Signs (Includes Plug and 2-AMP
Fuse for Sign) (Curved Top Models Only)
OPTIONS
●
Sign Kit Available at Additional Cost (Curved Top
Models Only)
●
Additional Wire Display Baskets Available
●
Decal Production and/or Application
WARRANTY
Five Years Against Insulation Failure or Leaks in
Insulated Area. Five Years Against Failure of
Compressor. One Year Against Defective Materials or
Faulty Workmanship, Includes Labor.
NEMA 5-15P
ALL MODELS
A
D
H
E
G
C
F
B
*Height includes 2.6” caster.
(All Dimensions Inches)
Note regarding all products featured:
For optimum performance, these models are designed for use in air-conditioned stores where temperatures and humidity are maintained at 75° F and 55% RH. Locate case away from direct sunlight, rapid air
current and extreme temperature changes.
Hussmann reserves the right to change or revise specifications and product design in connection with any feature of our products. Such changes do not entitle the buyer to corresponding changes,
improvements, additions or replacements for equipment previously sold or shipped.

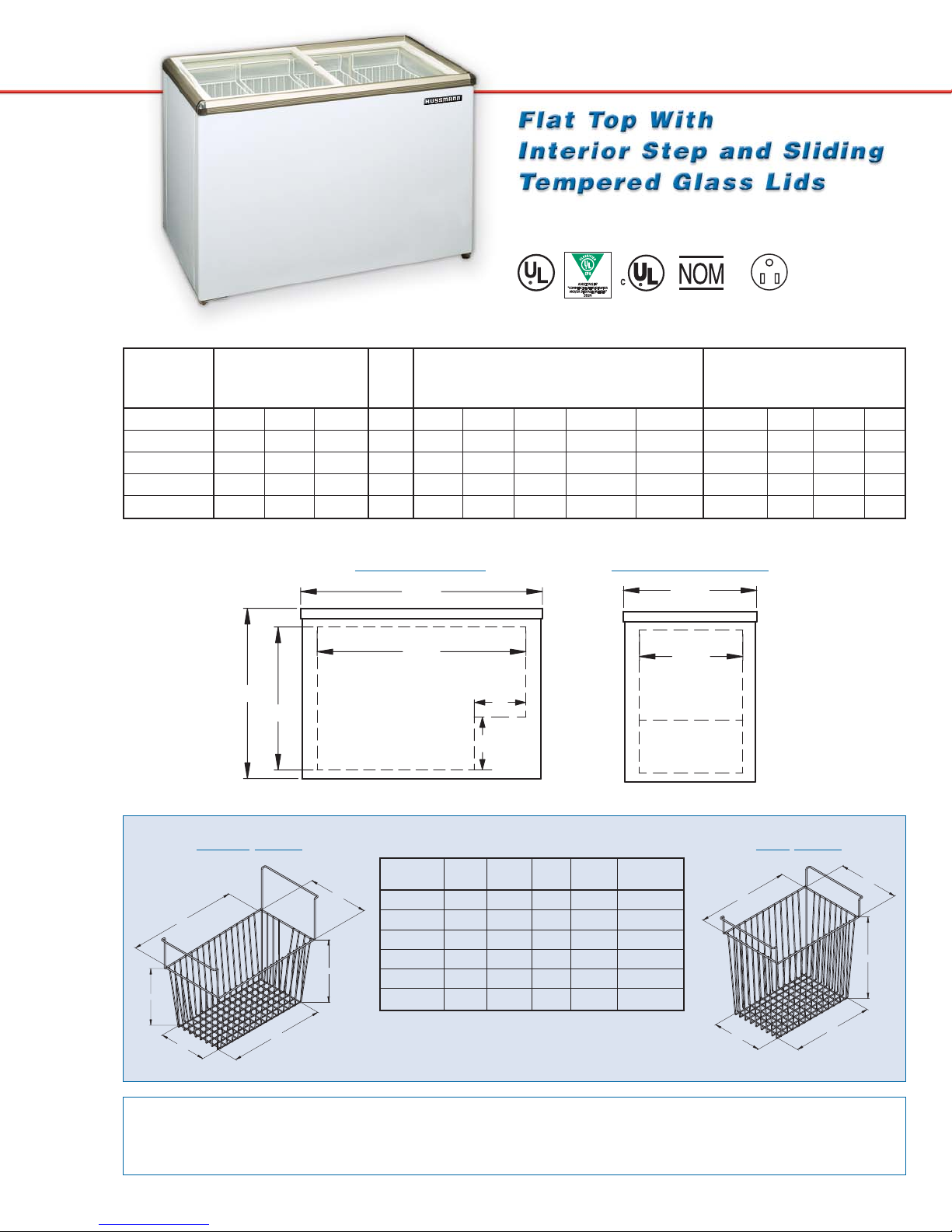

HSD/SC P
LAN VIEW
HSD/SC C
ROSS SECTION
HSD/SC
W
IRE BASKET
S
LANTED BASKET
Basket Length Length Width Width
Style Top Bottom Top Bottom Height
A - Slanted 17.1” 15.4” 9.4” 7.6” 9.3” to 9.9”
B - Slanted 17.1” 15.4” 10.9” 9.2” 9.3” to 9.9”
C 16.8” 15.4” 9.4” 8.0” 12.9”
D 18.9” 17.5” 9.4” 8.0” 12.9”
E 16.8” 15.4” 10.9” 9.6” 12.9”
F 18.9” 17.5” 10.9” 9.6” 12.9”
*Dimensions shown are net I.D. wire basket dimensions only
and do not include the hanging area dimensions.
NEMA 5-15P
ALL MODELS
Max
Baskets Approx.
AB C DE F G H Fuse Per Weight
Model Length Depth Height* Cu. Ft. Length Depth Height Step Height Step Width Voltage Amps Cabinet (Lbs)
HSD/SC-258 42.50 23.60 33.80 9.10 37.40 18.50 25.59 9.45 9.25 115/60/1 15 3 - E 104
HSD/SC-302 45.70 23.60 33.80 10.70 40.55 18.50 25.59 9.45 9.25 115/60/1 15 4 - C 110
HSD/SC-358 49.70 26.70 34.20 12.60 43.66 20.60 26.62 10.25 11.97 115/60/1 15 4 - D 143
HSD/SC-408 53.70 26.70 34.20 14.40 47.52 20.60 26.62 10.25 11.97 115/60/1 15 4 - F 145
HSD/SC-518 66.50 26.70 34.20 18.30 60.47 20.60 26.62 10.25 11.97 115/60/1 15 5 - F 172
EXTERNAL INTERNAL
A
D
C
F
H
B
E
G
LENGTH TOP
WIDTH BOTTOM
WIDTH TOP
HEIGHT
LENGTH BOTTOM
WIDTH TOP
LENGTH TOP
HEIGHT REAR
HEIGHT FRONT
WIDTH BOTTOM
LENGTH BOTTOM
Printed in USA © 2005 Hussmann Corporation 0505-071-X-5M
Web Site: www.hussmann.com
Hussmann Corporation
12999 St. Charles Rock Rd.
Bridgeton, MO 63044-2483
314.291.2000
