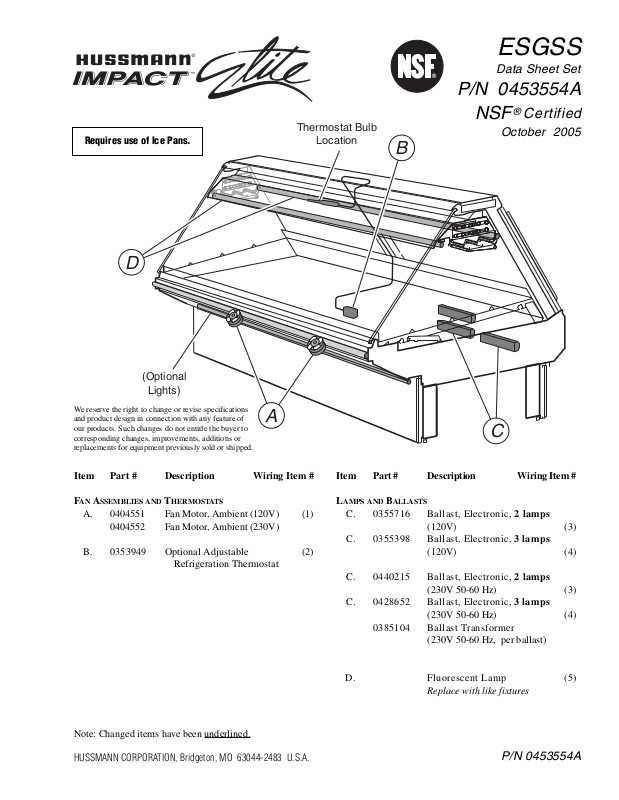

(Optional

Lights)

Thermostat Bulb

Location

P/N 0453554A

ESGSS

Data Sheet Set

P/N 0453554A

NSF

Certified

October 2005

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Note: Changed items have been underlined.

Item Part # Description Wiring Item #

FAN ASSEMBLIES AND THERMOSTATS

A. 0404551 Fan Motor, Ambient (120V) (1)

0404552 Fan Motor, Ambient (230V)

B. 0353949 Optional Adjustable (2)

Refrigeration Thermostat

Item Part # Description Wiring Item #

LAMPS AND BALLASTS

C. 0355716 Ballast, Electronic, 2 lamps

(120V) (3)

C. 0355398 Ballast, Electronic, 3 lamps

(120V) (4)

C. 0440215 Ballast, Electronic, 2 lamps

(230V 50-60 Hz) (3)

C. 0428652 Ballast, Electronic, 3 lamps

(230V 50-60 Hz) (4)

0385104 Ballast Transformer

(230V 50-60 Hz, per ballast)

D. Fluorescent Lamp (5)

Replace with like fixtures

Requires use of Ice Pans.

We reserve the right to change or revise specifications and product design in connection with any feature of our products. Such changes do not entitle the buyer to corresponding changes, improvements, additions or replacements for equipment previously sold or shipped.

ESGSS Data Sheet 2 of 6

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Engineering

Plan Views

Dimensions shown as in. and (mm).

Elite Straight Hinged Glass Seafood/Meat/Delicatessen

4 ft 6 ft 8 ft 12 ft

General

(A)

Case Length (without ends or partitions) 48 1/

4 (1226) 72

8 (1838) 96

8 (2448) 144

2 (3670)

Maximum O/S dimension back to front

(with bumper) 45

/4 (1149) 45 1/4 (1149) 45 1/4 (1149) 45 1/4 (1149) Back of case to front of front panel 33 1/4 (845) 33 1/4 (845) 33 1/4 (845) 33 1/4 (845) RH end of case to outside edge of external support 1 5/

8 (41) 1

8 (41)

Distance between edges of

external support and center support NA 28

/2 (724) 40 5/8 (1032) 40 5/8 (1032) Distance between edges of center supports NA NA NA 44 (1118) Distance between edges of external supports 37 (940) NA NA NA

Electrical Service (Electrical Field Wiring connection point)

(C)

Length of electrical raceway 38 (965) 29 5/8 (752) 41 3/4 (1060) 41 3/4 (1060) RH End of case to center of farthest knockout 10 3/8 (264) 10 (254) 10 3/8 (264) 10 1/4 (260) Back of case to center of end knockout 3 5/8 (92) 3 5/8 (92) 3 5/8 (92) 3 5/8 (92)

(B)

RH End of case to RH end of raceway 5 (127) 5 (127) 5 (127) 5 (127)

Waste Outlet

(D)

RH End of case to the center of waste outlet 24 1/8 (613) 24 1/8 (613) 24 1/8 (613) 72 1/4 (1835) LH End of case to the center of waste outlet 24

(613) 48

(1226) 72

(1835) 72

(1835)

Back O/S of case to center of waste outlet 26

/4 (667) 26 1/4 (667) 26 1/4 (667) 26 1/4 (667)

Water Seal

Edge of water seal to center of waste outlet 4 (102) 4 (102) 4 (102) 4 (102) Outside diameter of the drip pipe 1 1/2 (38) 1 1/2 (38) 1 1/2 (38) 1 1/2 (38)

(Field installed water seal outlets, tees, and connectors

are shipped with the merchandiser.)

Refrigeration Outlet

Back of case to center of refrigeration outlet 29 3/8 (746) 29 3/8 (746) 29 3/8 (746) 29 3/8 (746)

(E)

RH end of case to center of refrigeration outlet 8 1/4 (210) 8 1/4 (210) 8 1/4 (210) 8 1/4 (210)

Legs

3 5/8 (92)

Electrical

29 3/8

(746)

33 1/4

(845)

26 1/4

(667)

Waste Outlet

Front

Water Seal

Refrigeration Outlet

45 1/4

(1149)

REFRIGERATION DATA

Note: This data is based on store temperature

and humidity that does not exceed 75°F and 55% R.H. Schedule defrost at night while lights are off.

ESGSS

Discharge Air (°F) 27

Evaporator (°F) 22

Unit Sizing (°F) 20

Btu/hr/ft*

ESGSS

Parallel

270

Conventional

290

*For all refrigeration equipment other than Hussmann, use conventional Btu values.

DEFROST DATA

ESGSS

Frequency (hr) 24

Defrost Water (lb/ft/day) 0.5

(± 15% based on case configuration and

product loading).

ESGSS

FFTIME

(minutes) 110

Failsafe (minutes) 110

LECTRIC OR GAS Not Recommended

CONVENTIONAL CONTROLS

Low Pressure Backup Control

ESGSS

CI/CO (Temp °F)** 15 / 5

Indoor Unit Only, Pressure Defrost

Termination (Temp °F)**

Not Recommended

**Use a Temperature Pressure Chart to determine PSIG conversions.

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1

Merchandiser Liquid Line (in.)

Merchandiser Suction Line (in.)

Estimated Charge (lb)***

4 ft 0.8

6 ft 1.2

8 ft 1.5

12 ft 2.0

***This is an average for all refrigerant types. Actual refrigerant charge may vary by approximately half a pound.

Length Added to Lineup by:

Each End/Partition (in.) 1

3 of 6P/N 0453554A

COIL

Electrical

Refrigeration Outlet

FAN

23 3/8

(594)

(203)

(559)

52 1/4

(1327)

32 5/8

(829)

15 3/4

(400)

26 1/4

(667)

16 5/8

(422)

27 1/8

(689)

ESGSS

12 1/2

(318)

4 (102)

29 3/8

(746)

33 1/4

(845)

45 1/4

(1149)

(305)

(508)

Dimensions shown as in. and (mm).

Impact Elite

ESGSS

Seafood / Meat / Delicatessen

Elite Straight Hinged Glass, Gravity coil with Ice Pans, Single Display

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

NSF Certification

These merchandisers are manufactured to meet ANSI /National Sanitation Foundation (NSF

) Standard #7 requirements.

ESGSS Data Sheet 4 of 6

Impact Elite

ESGSS

Seafood / Meat / Delicatessen

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Electrical Data

Number of Fans 4 ft 6 ft 8 ft 12 ft

Refrigeration (120V 60hz) – 4W N/A

Ambient Air Wipe – 15W 1 2 2 3

Export Refrigeration (230V 50 hz ) – 4W N/A

Export Ambient Air Wipe – 15W 1 2 2 3

Amperes Watts

Merchandiser 4 ft 6 ft 8 ft 12 ft 4 ft 6 ft 8 ft 12 ft

Refrigeration Fans N/A

Ambient Air Wipe Fans

Standard (120V 60hz) 0.26 0.52 0.52 0.78 23 45 45 68

Energy Efficient(120V 60hz) N/A

Export: 230V 50 hz 0.15 0.30 0.30 0.45 25 50 50 75

Constant On Anti-sweat Heaters N/A

Cycling Anti-sweat Heaters N/A

Minimum Circuit Ampacity

With Standard Fans (120V 60hz) 0.46 0.72 0.72 0.98

With Energy Efficient Fans (120V 60hz) N/A

With Export Fans (230V 50 hz ) 0.35 0.50 0.50 0.65

Maximum Over Circuit Protection 120V 20

Maximum Over Circuit Protection 230V 15

Standard Lighting* (120V 60hz) 4 ft 6 ft 8 ft 12 ft 4 ft 6 ft 8 ft 12 ft

2 Row Canopy 0.49 0.98 0.98 1.42 59 118 118 171

Optional Lighting

1 Row Ledge 0.49 0.49 0.49 0.71 59 59 59 86

1 Row Rail 0.49 0.49 0.49 0.71 59 59 59 86

*230V lighting values are under review.

P/N 0453554A 5 of 6

Ambient Fan

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Wiring

Glass Air Wipe

Fans

120V POWER

BROWN BAND

4 ft case has 1 Fan 6 ft case has 2 Fans 8 ft case has 2 Fans 12 ft case has 3 Fans

Fans

Electric Service Receptacle

Offtime Defrost

120V NEUTRAL

BROWN BAND

Refrigeration

Thermostat

(Field Installed)

Light

Blue

Light Blue

To Condensing Unit

}

Receptacles

120V NEUTRAL

120V POWER

N.E.C.

MAROON

BAND
