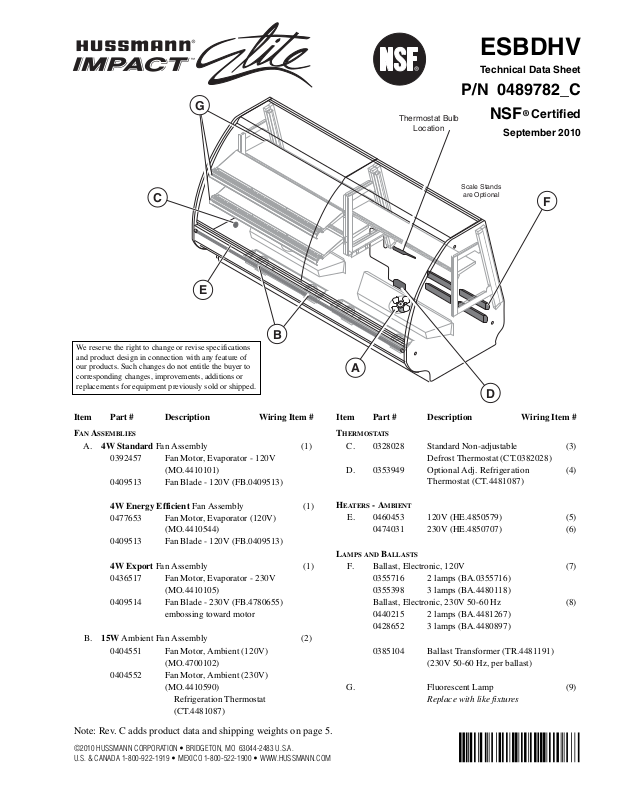

Hussmann ESBDHV Specifications

Thermostat Bulb

Location

Scale Stands

are Optional

ESBDHV

Technical Data Sheet

P/N 0489782_C

NSF

Certified

September 2010

Item Part # Description Wiring Item #

AN ASSEMBLIES

A. 4W Standard Fan Assembly (1)

0392457 Fan Motor, Evaporator - 120V

(MO.4410101)

0409513 Fan Blade - 120V (FB.0409513)

4W Energy Efficient Fan Assembly (1) 0477653 Fan Motor, Evaporator (120V)

(MO.4410544)

0409513 Fan Blade - 120V (FB.0409513)

4W Export Fan Assembly (1) 0436517 Fan Motor, Evaporator - 230V

(MO.4410105)

0409514 Fan Blade - 230V (FB.4780655)

embossing toward motor

B. 15W Ambient Fan Assembly (2)

0404551 Fan Motor, Ambient (120V)

(MO.4700102)

0404552 Fan Motor, Ambient (230V)

(MO.4410590)

Refrigeration Thermostat (CT.4481087)

Item Part # Description Wiring Item #

HERMOSTATS

C. 0328028 Standard Non-adjustable (3)

Defrost Thermostat (CT.0382028)

D. 0353949 Optional Adj. Refrigeration (4)

Thermostat (CT.4481087)

EATERS - AMBIENT

E. 0460453 120V (HE.4850579) (5)

0474031 230V (HE.4850707) (6)

LAMPS AND BALLASTS

F. Ballast, Electronic, 120V (7)

0355716 2 lamps (BA.0355716) 0355398 3 lamps (BA.4480118) Ballast, Electronic, 230V 50-60 Hz (8) 0440215 2 lamps (BA.4481267) 0428652 3 lamps (BA.4480897)

0385104 Ballast Transformer (TR.4481191)

(230V 50-60 Hz, per ballast)

G. Fluorescent Lamp (9)

Replace with like fixtures

Note: Rev. C adds product data and shipping weights on page 5.

We reserve the right to change or revise specifications and product design in connection with any feature of our products. Such changes do not entitle the buyer to corresponding changes, improvements, additions or replacements for equipment previously sold or shipped.

P/N_0489782_C

ESBDHV Technical Data Sheet 2 of 9

U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900

Legs

Waste Outlet

Electrical

Refrigeration Outlet

Water Seal

Front

26 1/4

(667)

3 5/8 (92)

29 3/8

(746)

33 1/4

(845)

45 1/4

(1149)

Dimensions shown as in. and (mm).

Elite High Volume

Meat & Delicatessen

Curved Hinged Glass Models

Engineering

Plan Views

4 ft 6 ft 8 ft 12 ft

General

(A) Case Length (without ends or partitions) 48 1/4 (1226) 72 3/8 (1838) 96 3/8 (2448) 144 1/2 (3670)

(Each end and insulated partition adds 1 in. (25 mm) to case line up.)

Maximum O/S dimension back to front (with bumper) 45 1/

4 (1149) 45

4 (1149)

Back of case to front of front panel 33

/4 (845) 33 1/4 (845) 33 1/4 (845) 33 1/4 (845) RH end of case to outside edge of external support 1 5/8 (41) 1 5/8 (41) 1 5/8 (41) 1 5/8 (41) Distance between edges of

external support and center support NA 28 1/2 (724) 40 5/8 (1032) 40 5/8 (1032) Distance between edges of center supports NA NA NA 44 (1118) Distance between edges of external supports 37 (940) NA NA NA

Electrical Service (Electrical Field Wiring connection point)

RH End of case to center of farthest knockout 10 3/8 (264) 10 (254) 10 1/4 (260) 10 1/4 (260) Back of case to center of end knockout 3 5/8 (92) 3 5/8 (92) 3 5/8 (92) 3 5/8 (92)

(B) RH End of case to RH end of raceway 5 (127) 5 (127) 5 (127) 5 (127)

Waste Outlet

(D) RH End of case to the center of waste outlet 24 1/8 (613) 24 1/8 (613) 24 1/8 (613) 72 1/4 (1835)

LH End of case to the center of waste outlet 24 1/8 (613) 48 1/4 (1226) 72 1/4 (1835) 72 1/4 (1835) Back O/S of case to center of waste outlet 26 1/4 (667) 26 1/4 (667) 26 1/4 (667) 26 1/4 (667)

Water Seal

Edge of water seal to center of waste outlet 4 (102) 4 (102) 4 (102) 4 (102) Outside diameter of the drip pipe 1 1/2 (38) 1 1/2 (38) 1 1/2 (38) 1 1/2 (38)

(Field installed water seal outlets, tees, and connectors are shipped with the merchandiser.)

Refrigeration Outlet

Back of case to center of refrigeration outlet 29 3/8 (746) 29 3/8 (746) 29 3/8 (746) 29 3/8 (746)

(E) RH end of case to center of refrigeration outlet 8 1/4 (210) 8 1/4 (210) 8 1/4 (210) 8 1/4 (210)

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 1/2 Merchandiser Liquid Line (in.)

Merchandiser Suction Line (in.)

REFRIGERATION DATA

Note: This data is based on store temperature

and humidity that does not exceed 75°F and 55% R.H.

ESBDHV

Discharge Air (°F) 27

Evaporator (°F) 20

Unit Sizing (°F) 18

Btu/hr/ft

‡ ‡‡

ESBDHV

Parallel

407

Conventional

426

‡

Optional energy efficient motors reduce the

refrigeration load by 14 Btu/hr/ft.

‡‡

Add 20 Btu/hr/ft per shelf row for fluorescent lamps.

DEFROST DATA

ESBDHV

Frequency (hr) 12

Defrost Water (lb/ft/day) 0.38 (± 15% based on case configuration and

product loading).

FFTIME

ESBDHV

Temp Term (°F) 43

Failsafe (minutes) 90

LECTRIC OR GAS

Not Recommended

Standard Defrost Thermostat

Close on rise: close 43°F — open 33°F

CONVENTIONAL CONTROLS

Low Pressure Backup Control

ESBDHV

CI/CO (Temp °F)* 13

Indoor Unit Only, Pressure Defrost

Termination (Temp °F)*

Not Recommended *Use a Temperature Pressure Chart to determine PSIG conversions.

Estimated Charge (lb)** ESBDHV

4 ft 0.8

6 ft 1.2

8 ft 1.5

12 ft 2.0

**This is an average for all refrigerant types. Actual refrigerant charge may vary by approximately half a pound.

3 of 9P/N 0489782_C

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

Refrigeration Outlet

COIL

FAN

22 1/2

(572)

18 1/8

(460)

52 1/8

(1324)

26 1/4

(667)

27 1/4

(692)

ESBDHV

29 3/8

(746)

33 1/4

(845)

(305)

45 1/4

(1149)

(508)

14 3/8

(365)

4 (102)

29 1/4

(743)

(305)

(203)

(254)

(203)

8 1/4 (210)

9 5/8

(245)

5 1/2 (140)

Dimensions shown as in. and (mm).

Impact Elite ESBDHV

Meat & Delicatessen

Elite Curved Hinged Glass, Blower, High Volume, 3 Display Levels

NSF Certification

This merchandiser model is manufactured to meet ANSI/NSF (National Sanitation Foundation) Standard #7 requirements for construction, materials & cleanability.
